Transmission Fluid Cooler: Installation

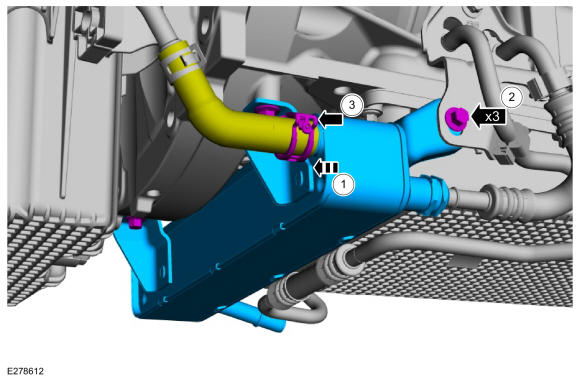

  1. Install the transmission fluid cooler.

    1. Slide the transmission fluid cooler on the coolant hose.
    2. Install the bolts.

      Torque

      : 22 lb.ft (30 Nm)

    3. Position the coolant hose clamp.

    GFD583000Courtesy of FORD MOTOR COMPANY

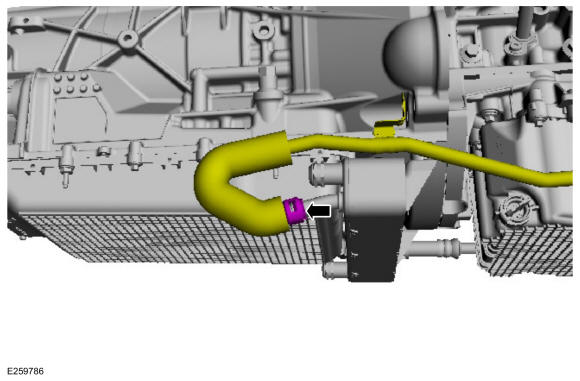

  2. Connect the coolant hose to the transmission fluid cooler.
    GFD582998Courtesy of FORD MOTOR COMPANY

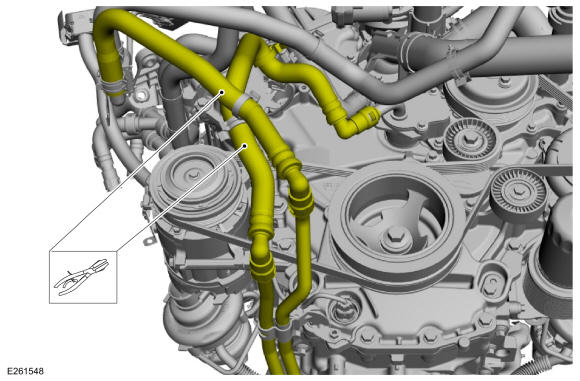

  3. Remove the clamps from the transmission fluid cooler coolant hoses.
    GFD582997Courtesy of FORD MOTOR COMPANY

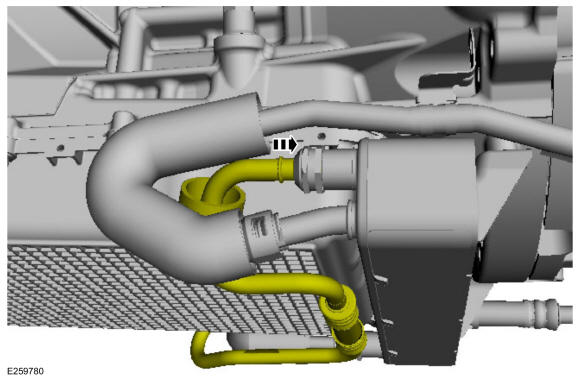

  4. Connect the transmission fluid cooler outlet tube to the transmission fluid cooler.
    GFD583001Courtesy of FORD MOTOR COMPANY

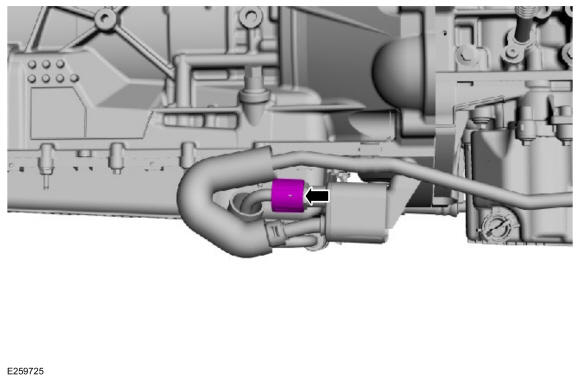

  5. Install the transmission fluid cooler outlet tube secondary latch.
    GFD582995Courtesy of FORD MOTOR COMPANY

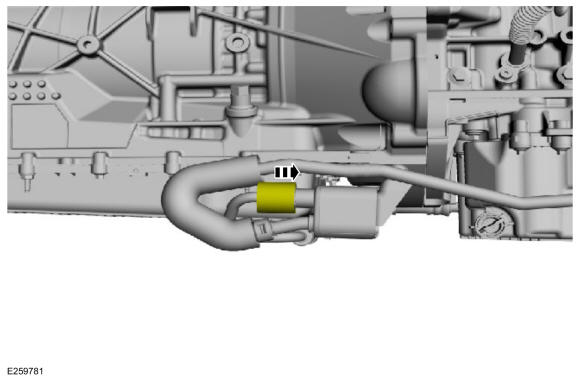

  6. Position the transmission fluid cooler outlet tube heat shield.
    GFD583002Courtesy of FORD MOTOR COMPANY

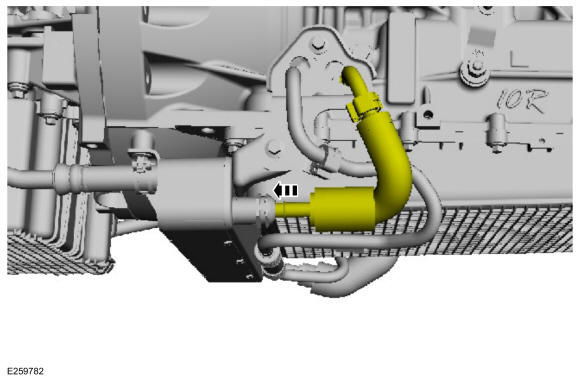

  7. Connect the transmission fluid cooler inlet tube to the transmission fluid cooler.
    GFD583003Courtesy of FORD MOTOR COMPANY

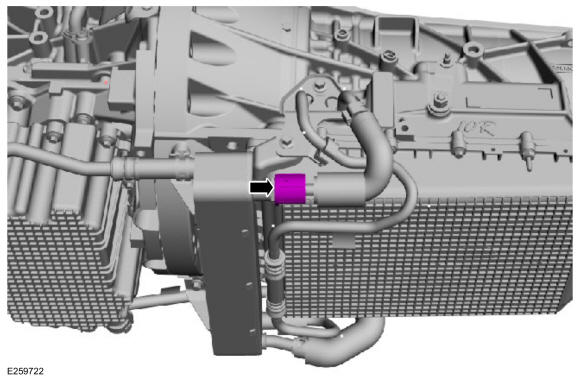

  8. Install the transmission fluid cooler inlet tube secondary latch.
    GFD582992Courtesy of FORD MOTOR COMPANY

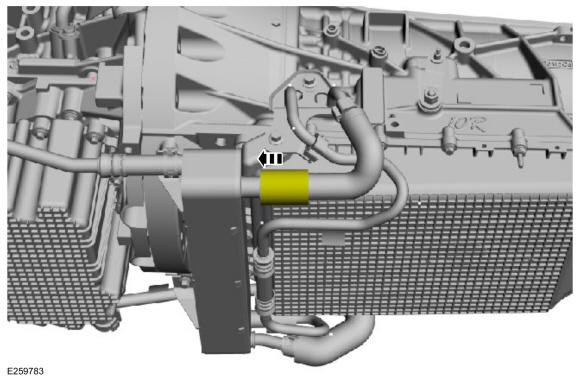

  9. Position the transmission fluid cooler inlet tube heat shield.
    GFD583004Courtesy of FORD MOTOR COMPANY
  10. Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
  11. Check the engine coolant level and adjust as necessary. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

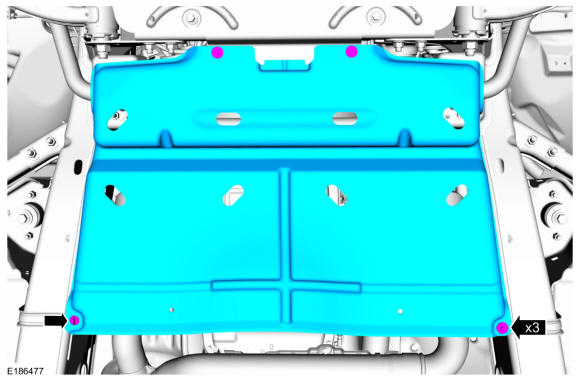

  12. Install the shield, the retainer and the bolts.

    Torque

    : 71 lb.in (8 Nm)

GFD582405Courtesy of FORD MOTOR COMPANY
