Section 624 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2020 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

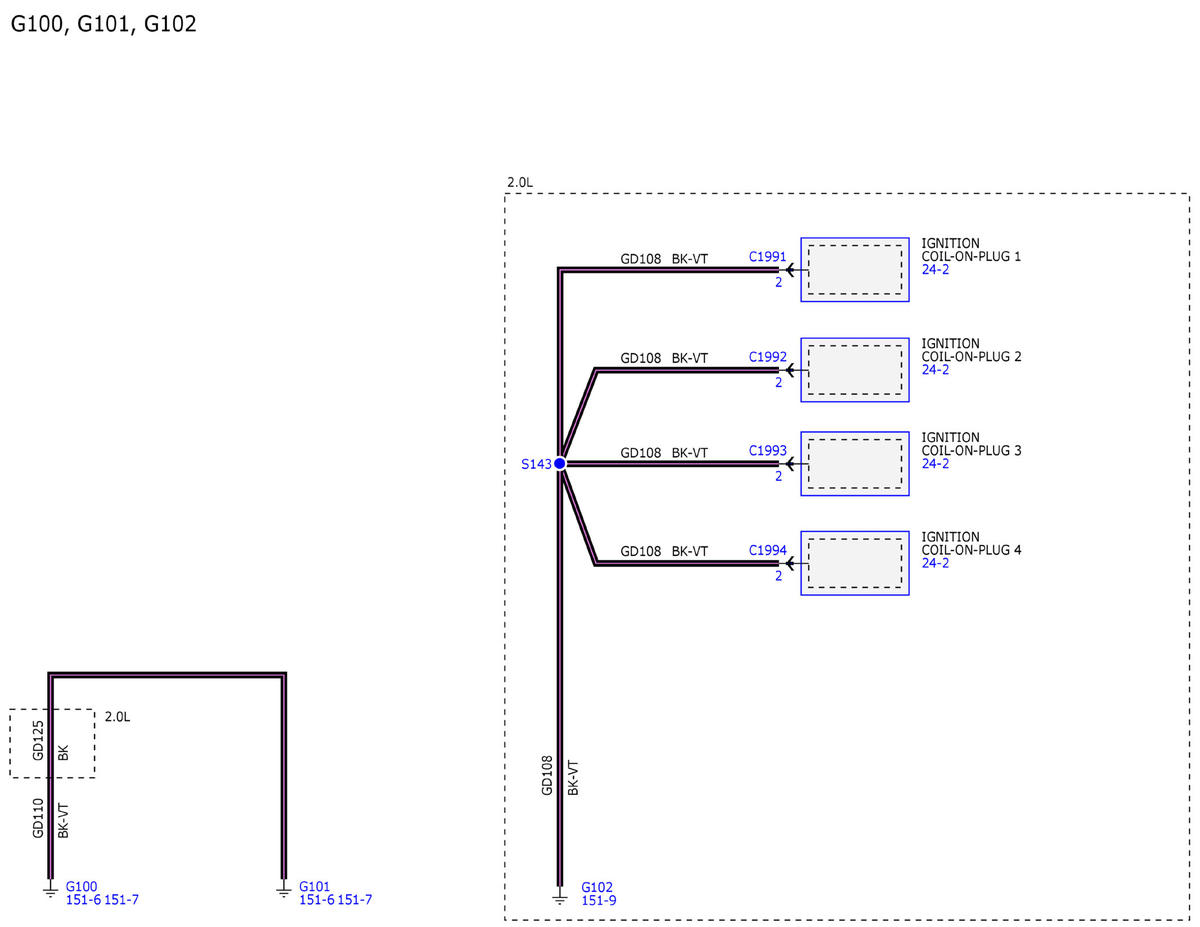

GFDWR112791Courtesy of FORD MOTOR COMPANY

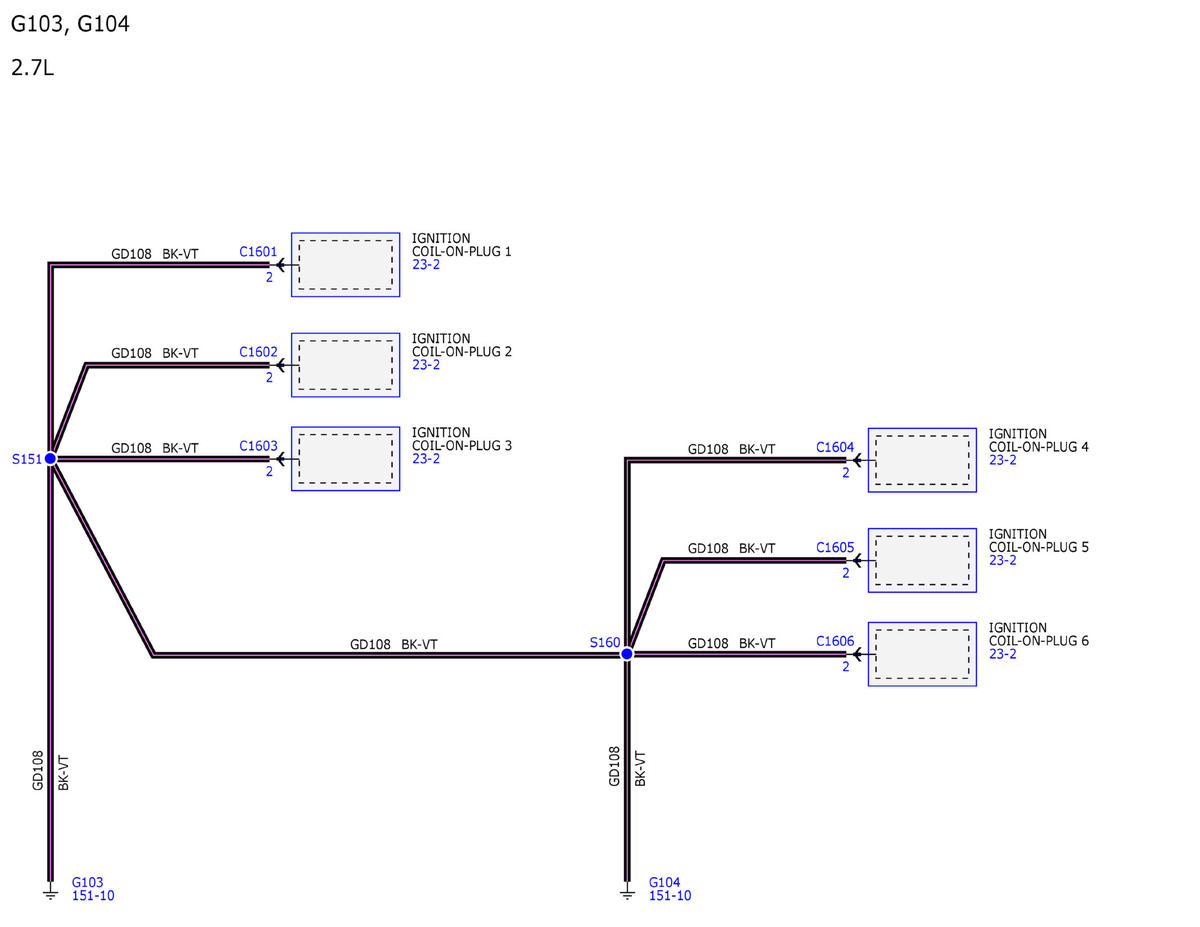

GFDWR112776Courtesy of FORD MOTOR COMPANY

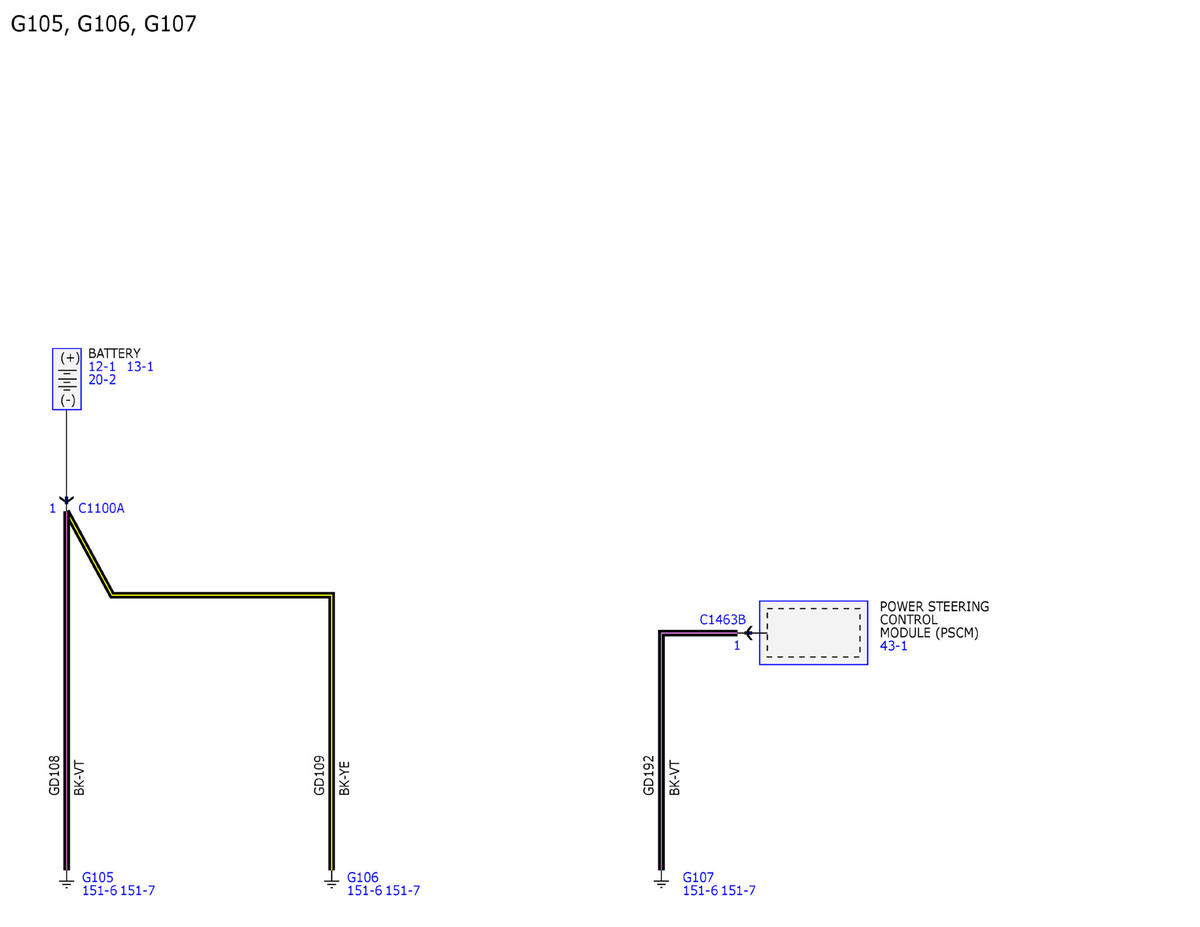

GFDWR112788Courtesy of FORD MOTOR COMPANY

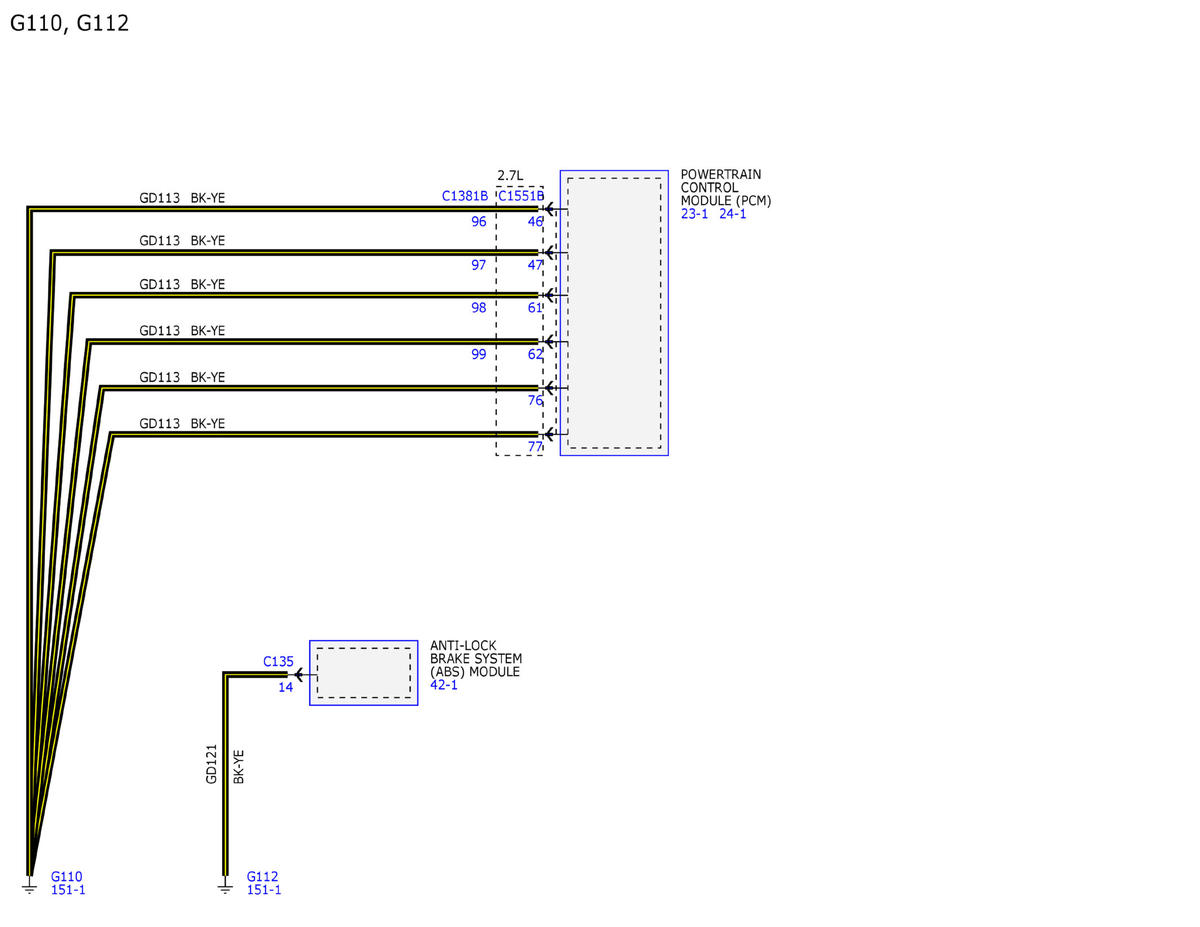

GFDWR112793Courtesy of FORD MOTOR COMPANY

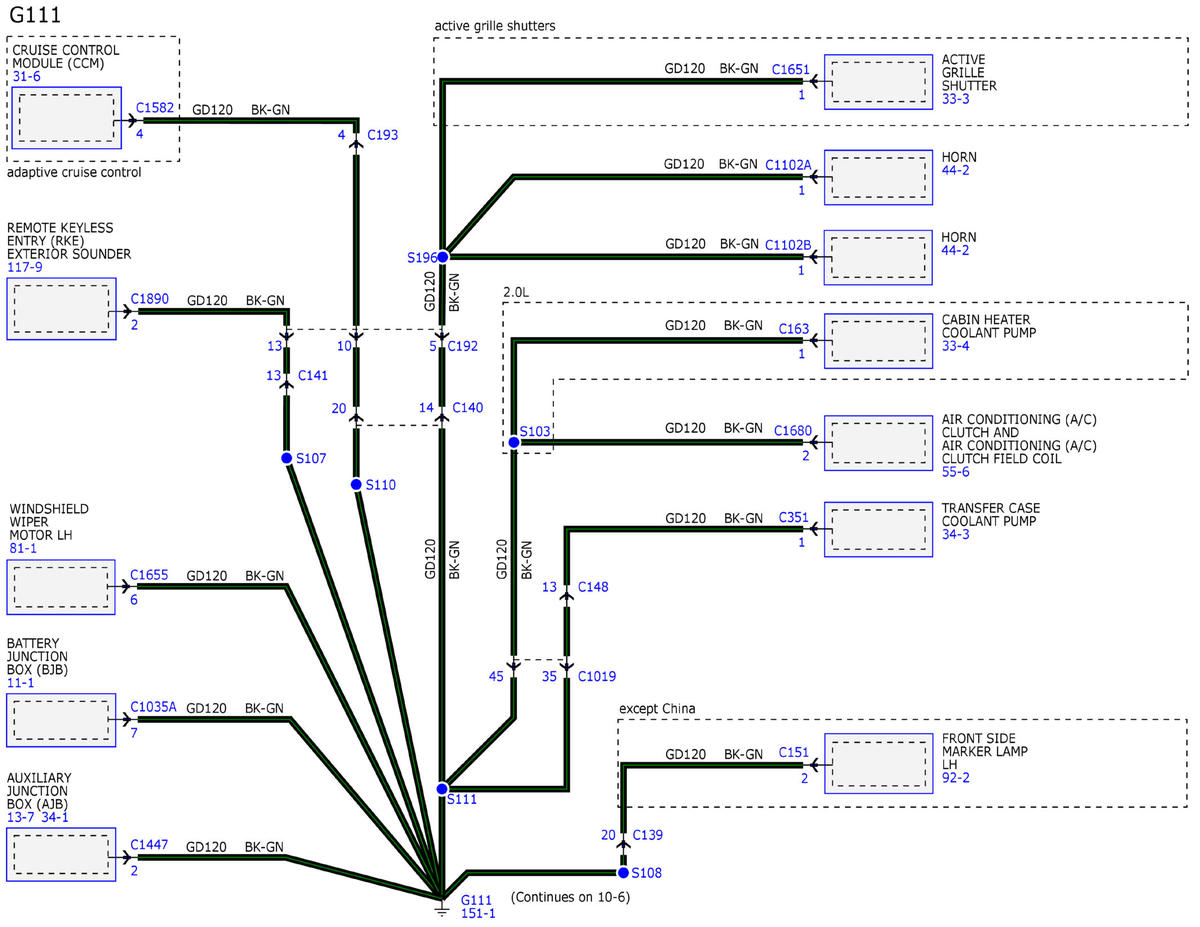

GFDWR112799Courtesy of FORD MOTOR COMPANY

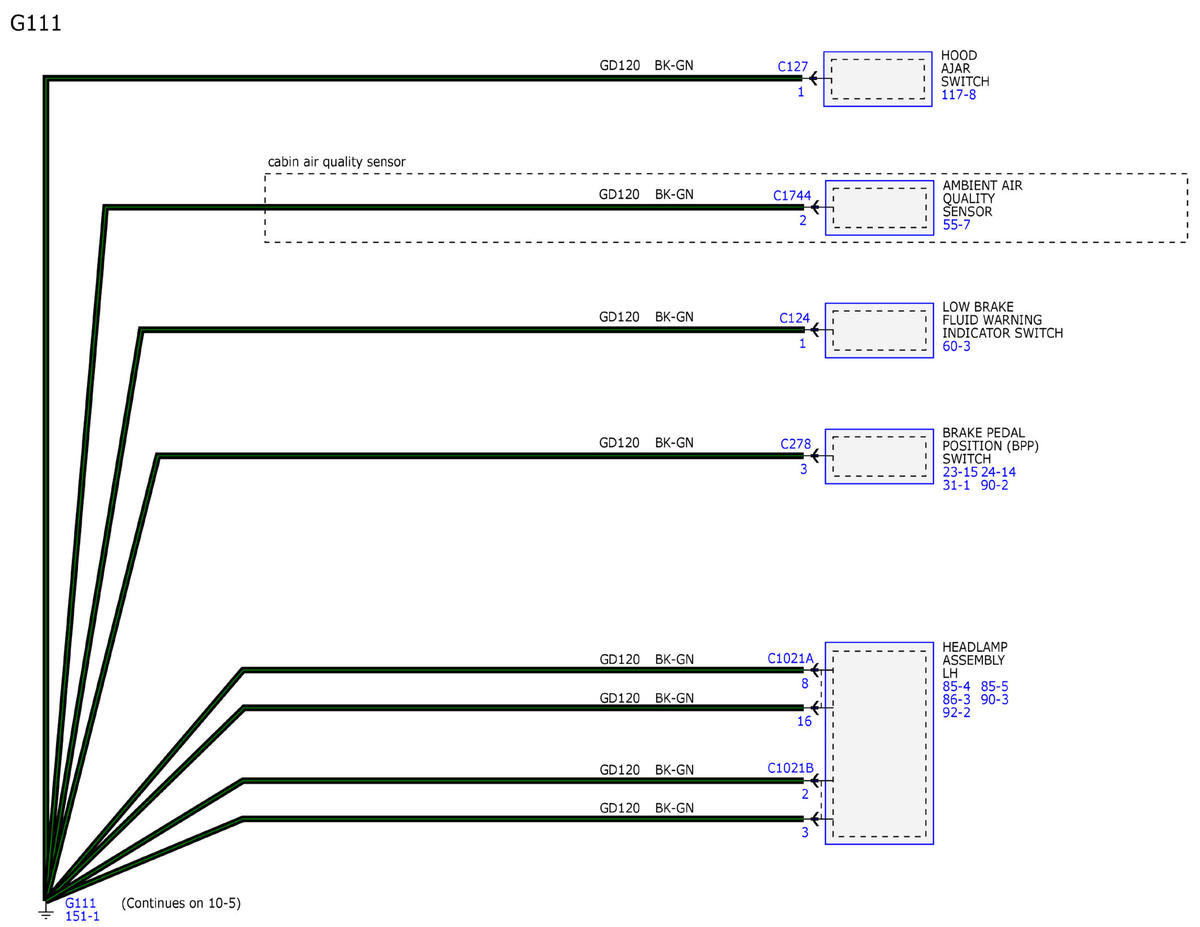

GFDWR112789Courtesy of FORD MOTOR COMPANY

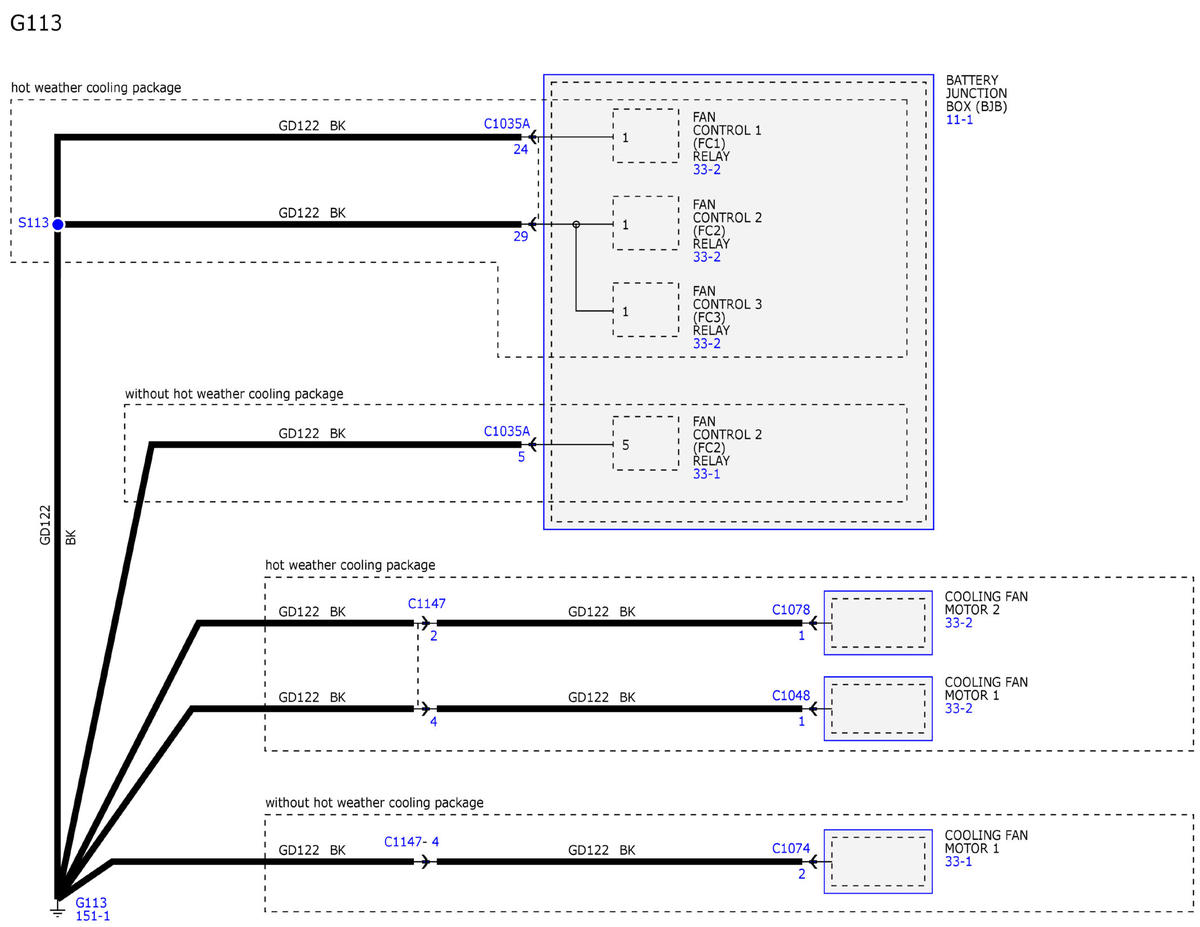

GFDWR112785Courtesy of FORD MOTOR COMPANY

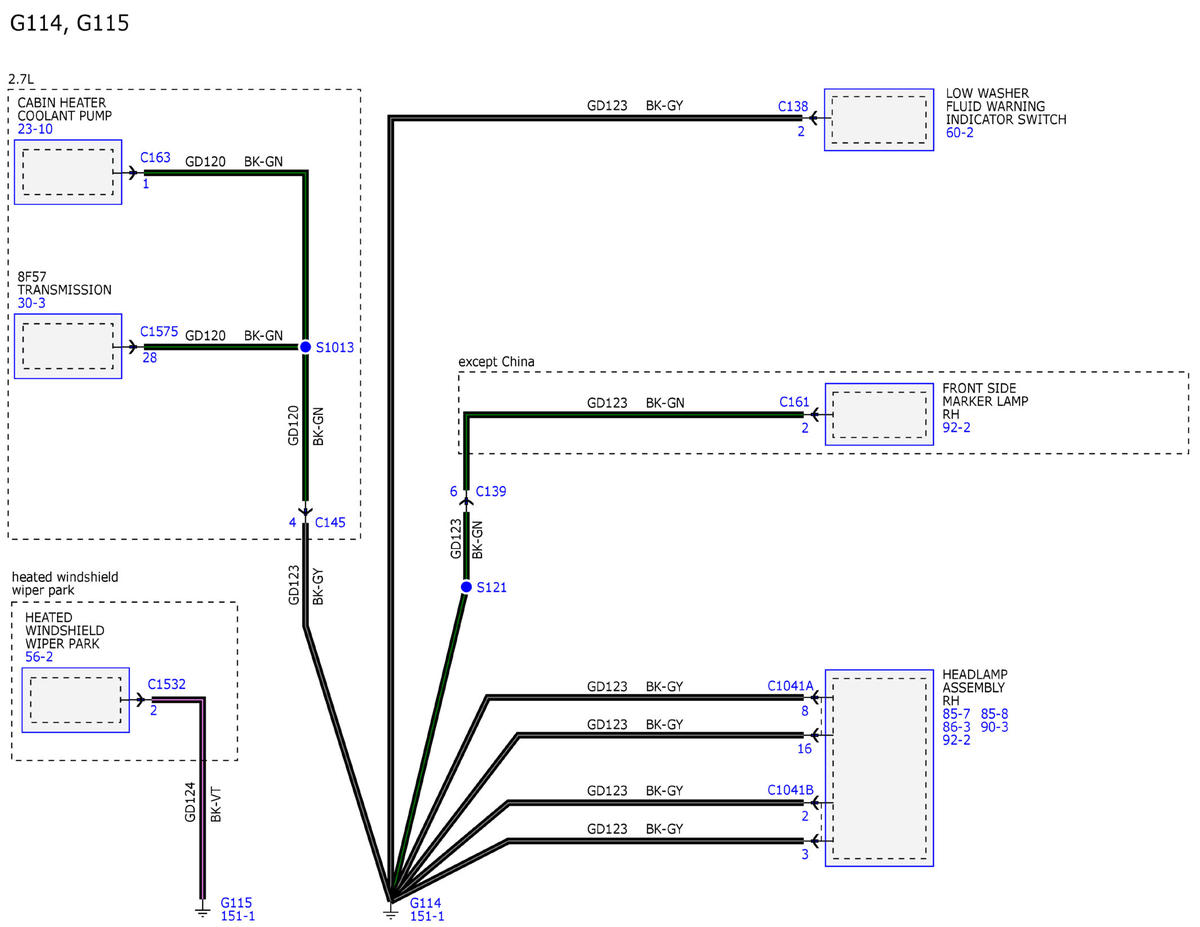

GFDWR112782Courtesy of FORD MOTOR COMPANY

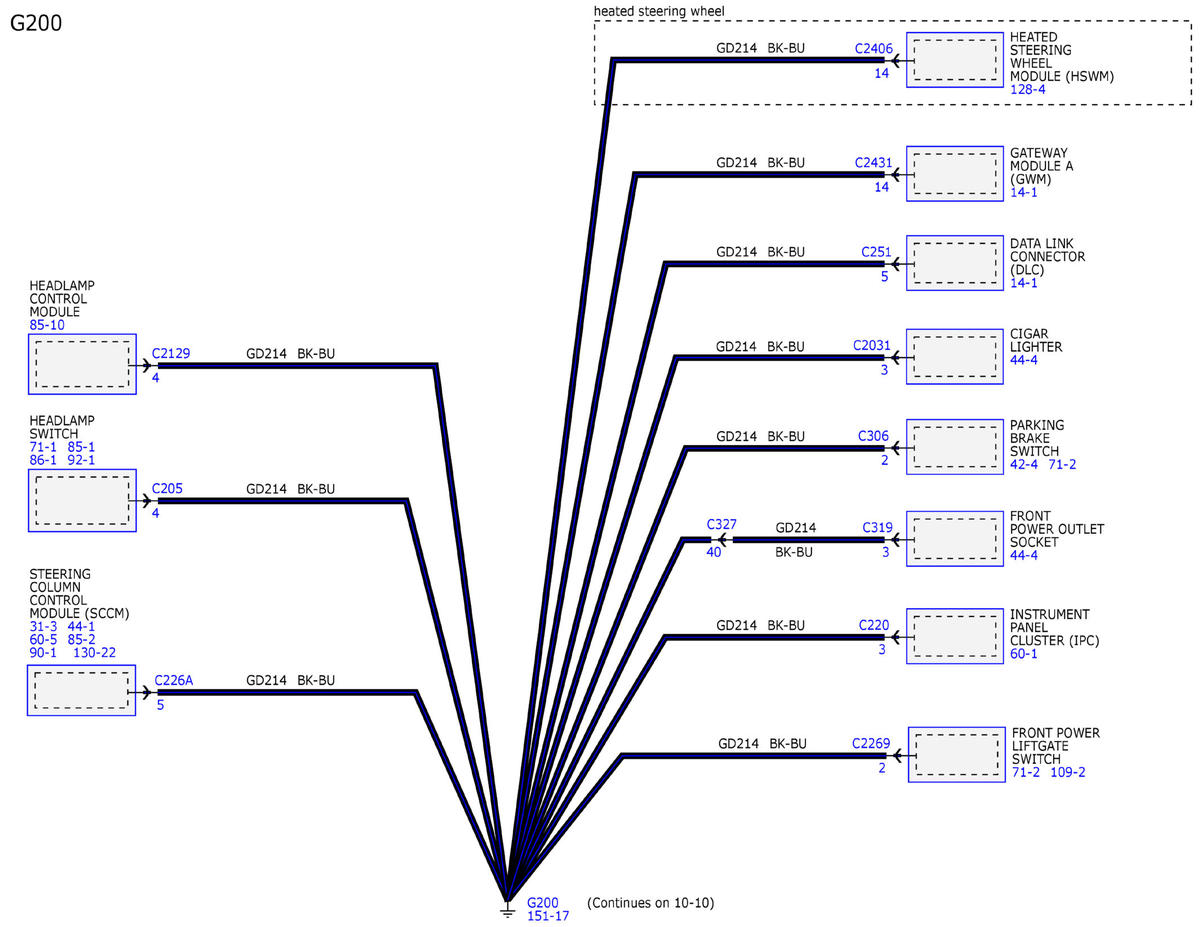

GFDWR112780Courtesy of FORD MOTOR COMPANY

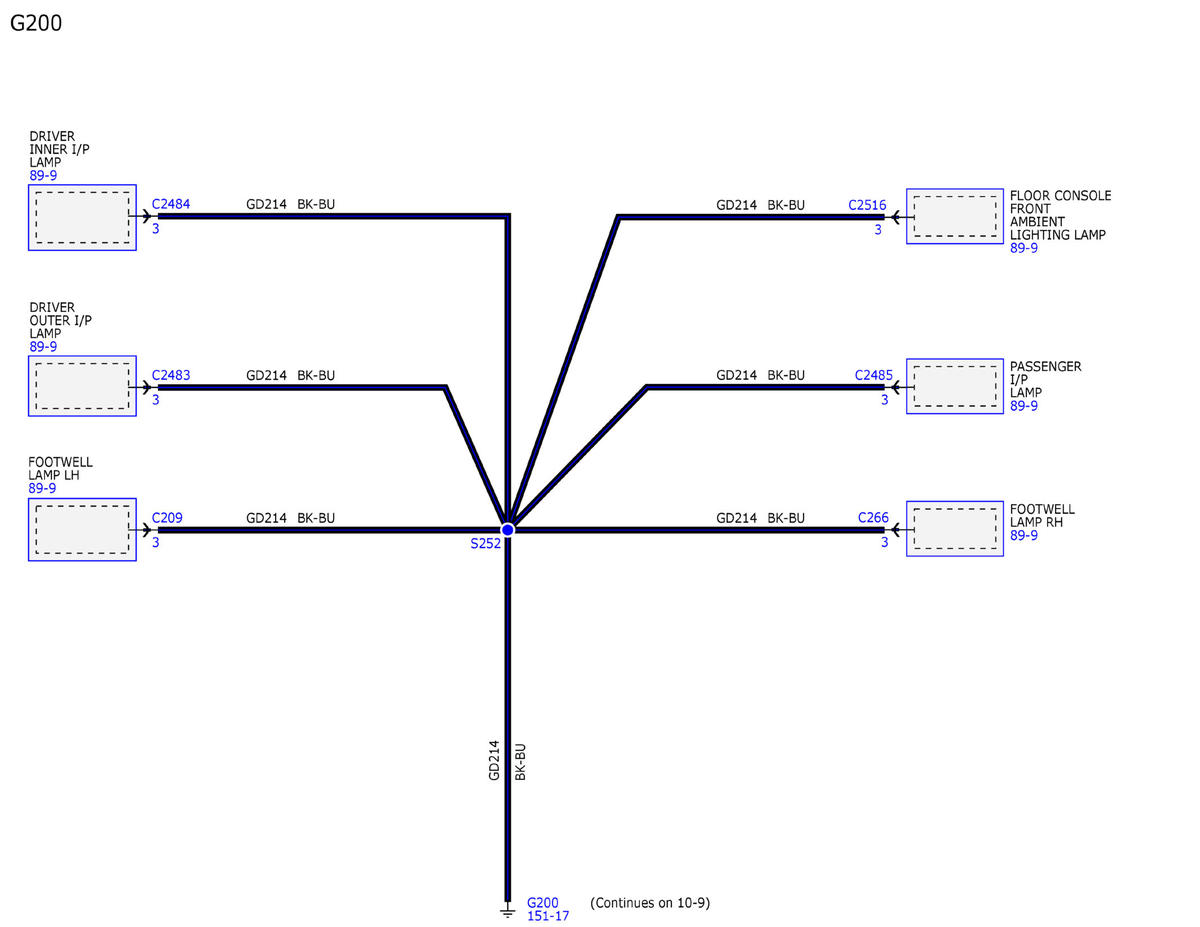

GFDWR112800Courtesy of FORD MOTOR COMPANY

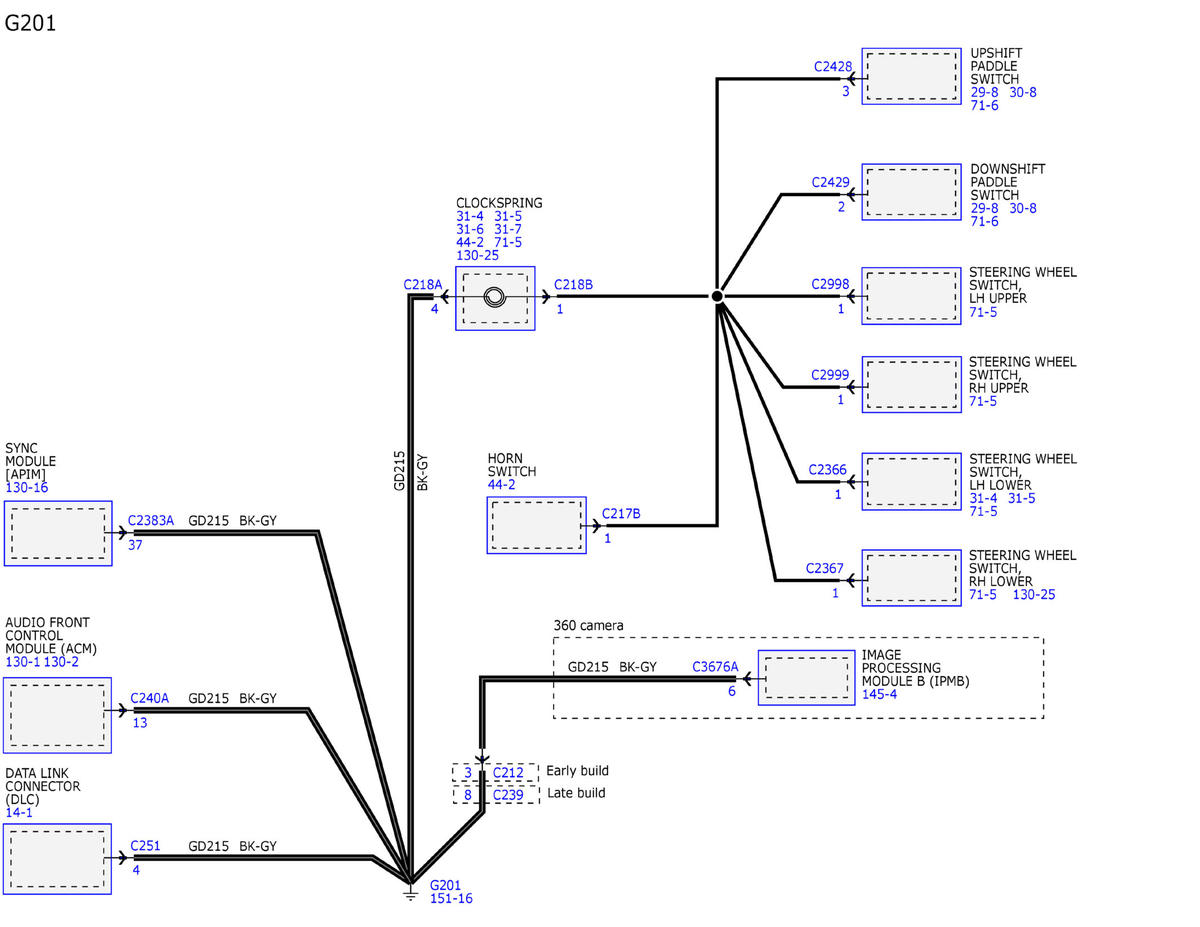

GFDWR112795Courtesy of FORD MOTOR COMPANY

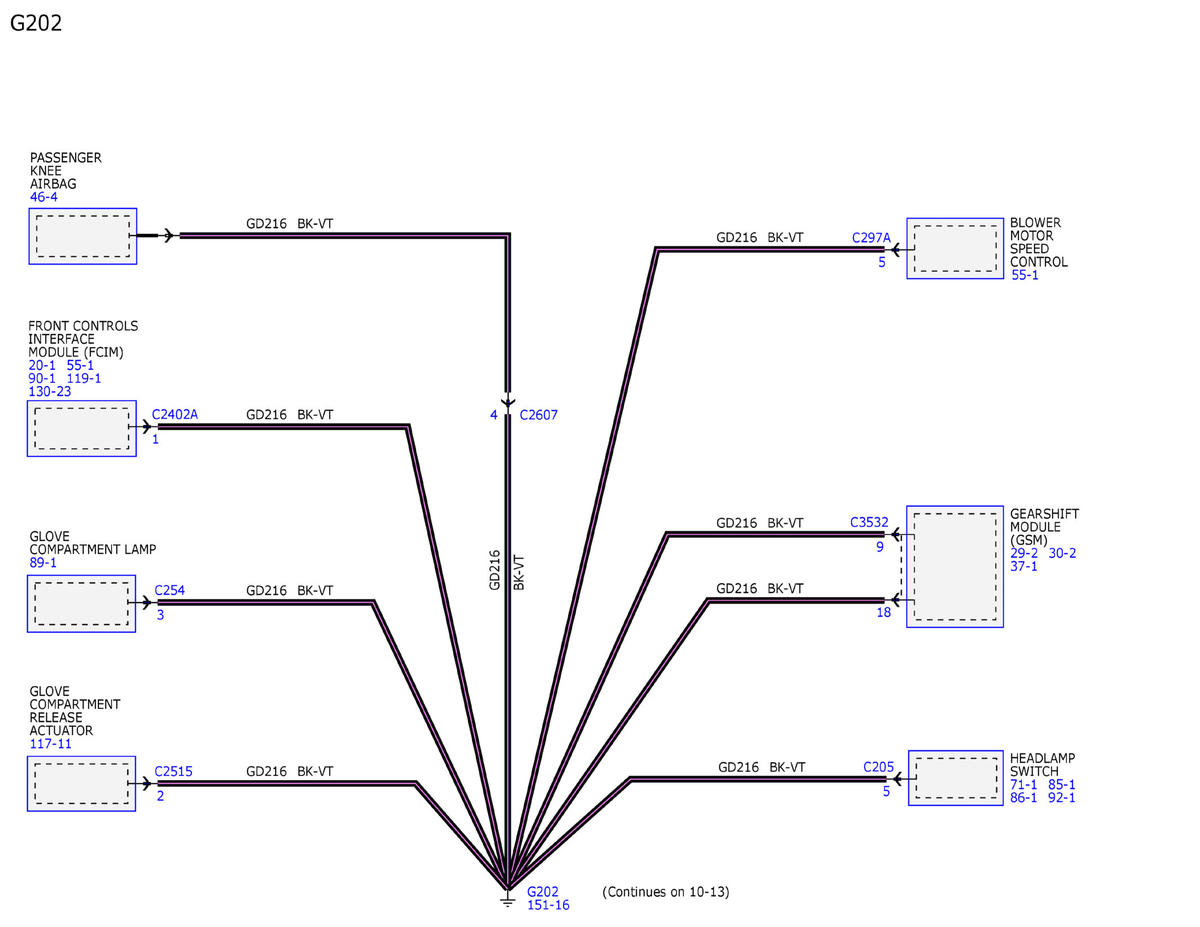

GFDWR112783Courtesy of FORD MOTOR COMPANY

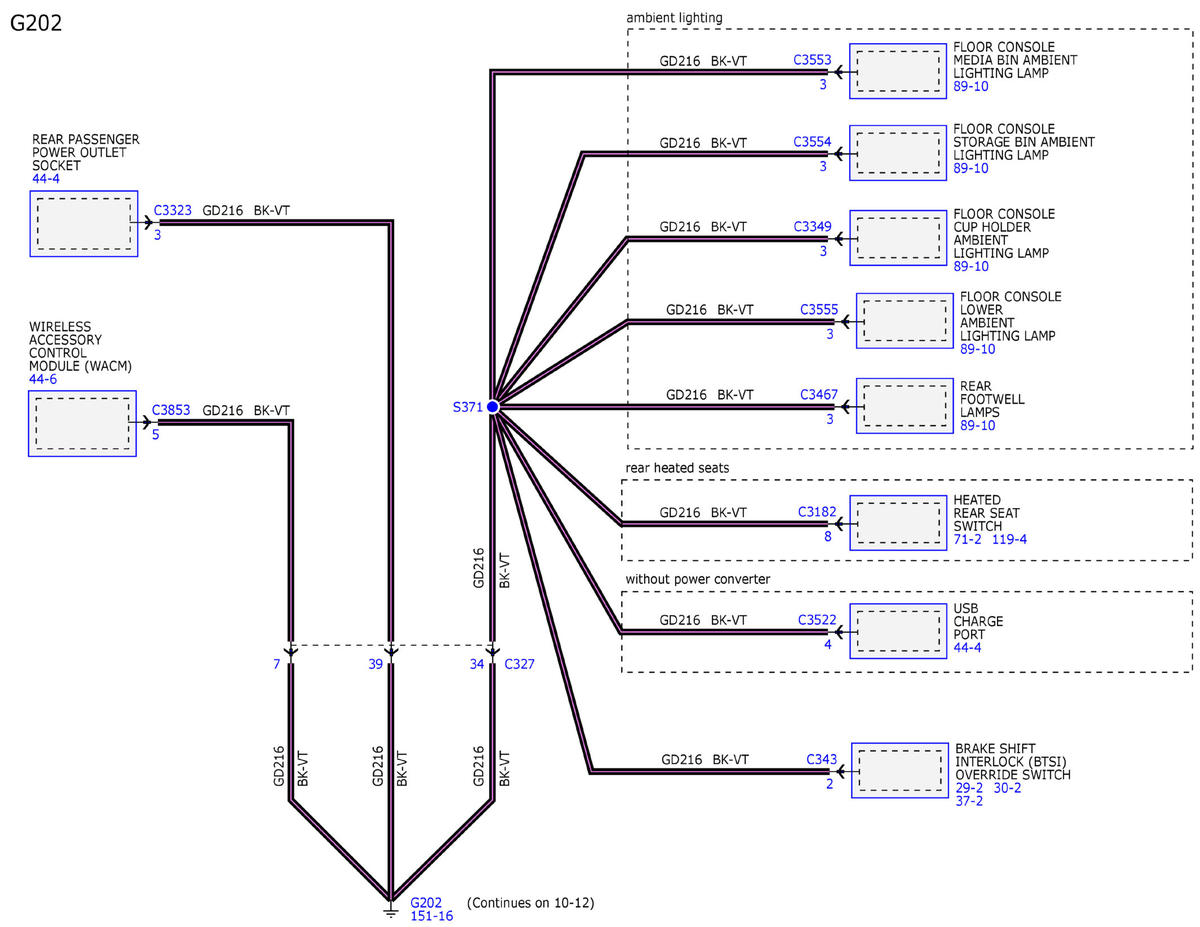

GFDWR112779Courtesy of FORD MOTOR COMPANY

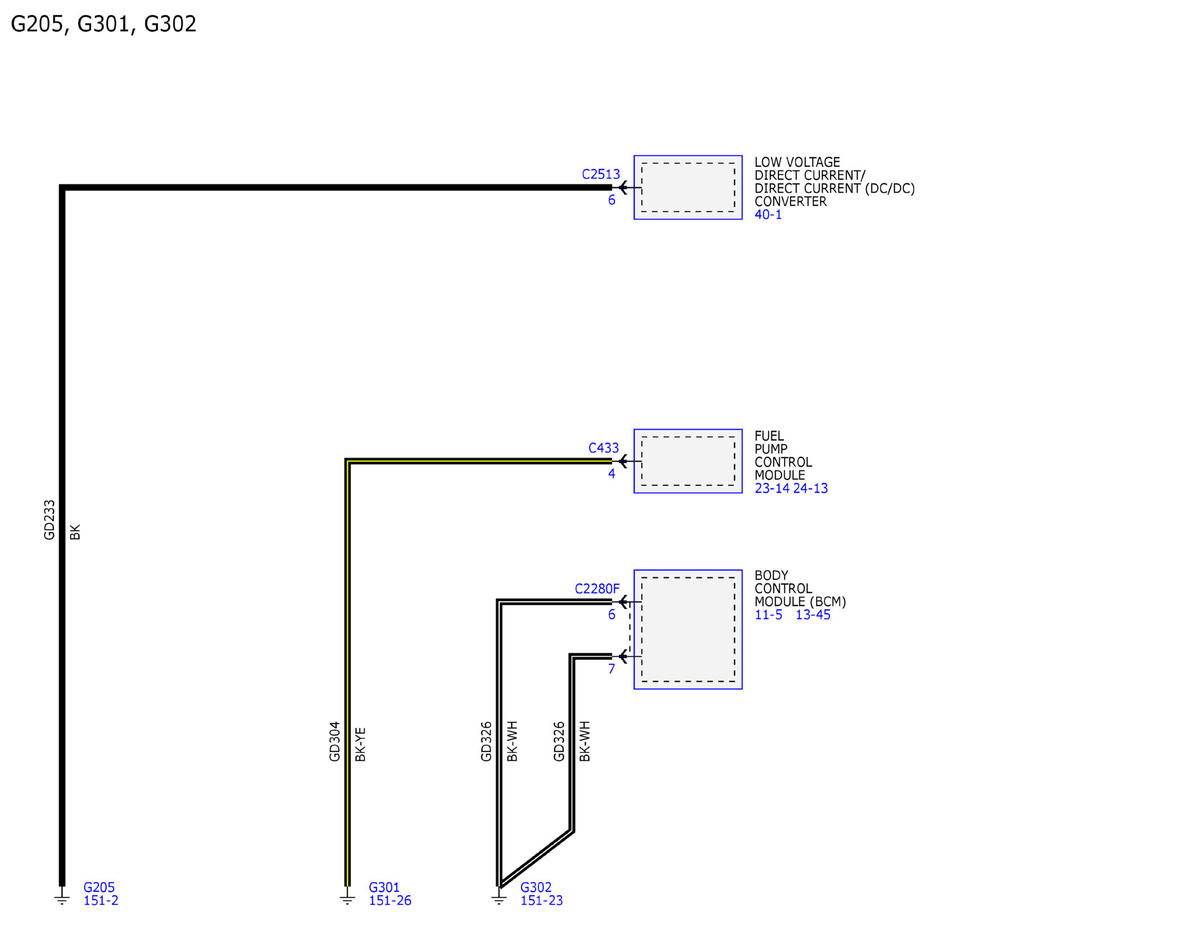

GFDWR112797Courtesy of FORD MOTOR COMPANY

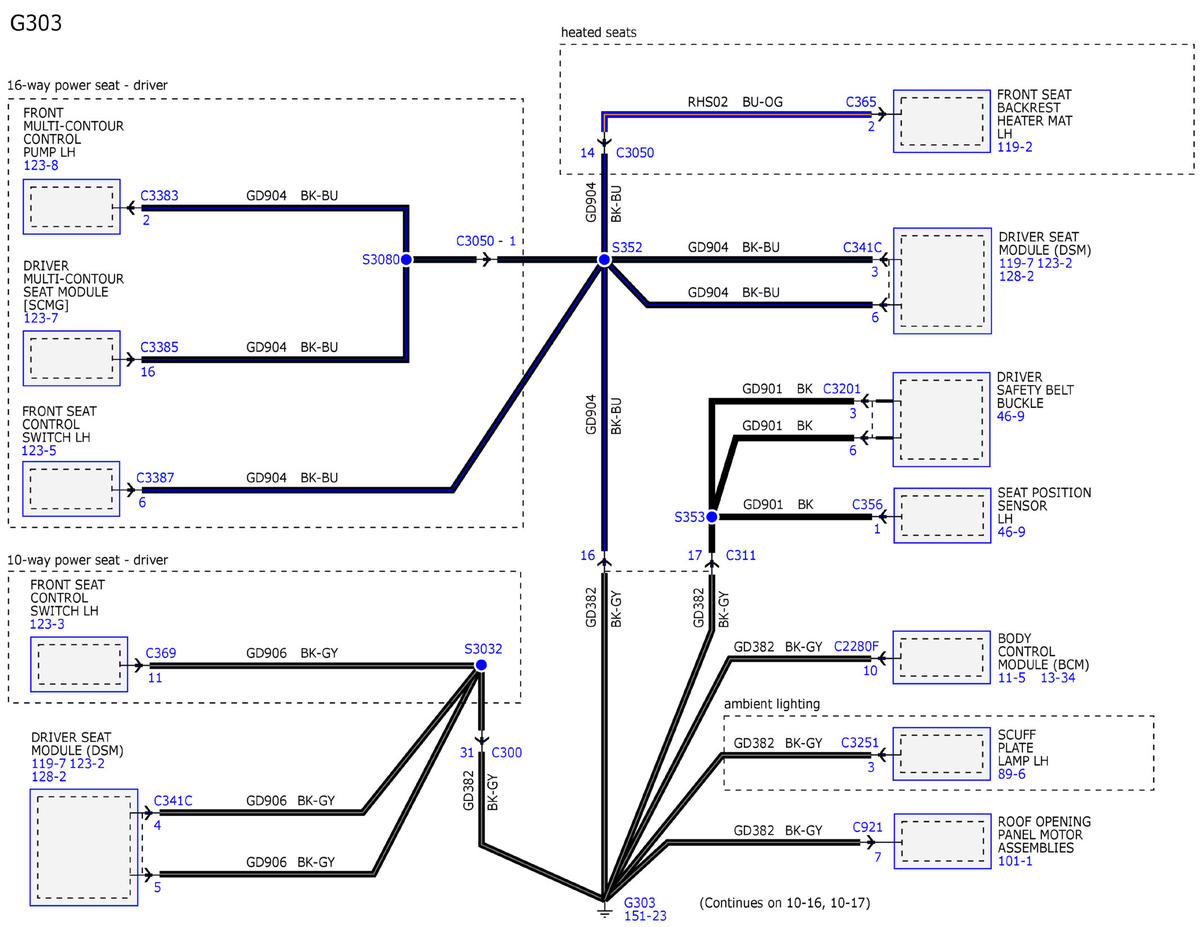

GFDWR112790Courtesy of FORD MOTOR COMPANY

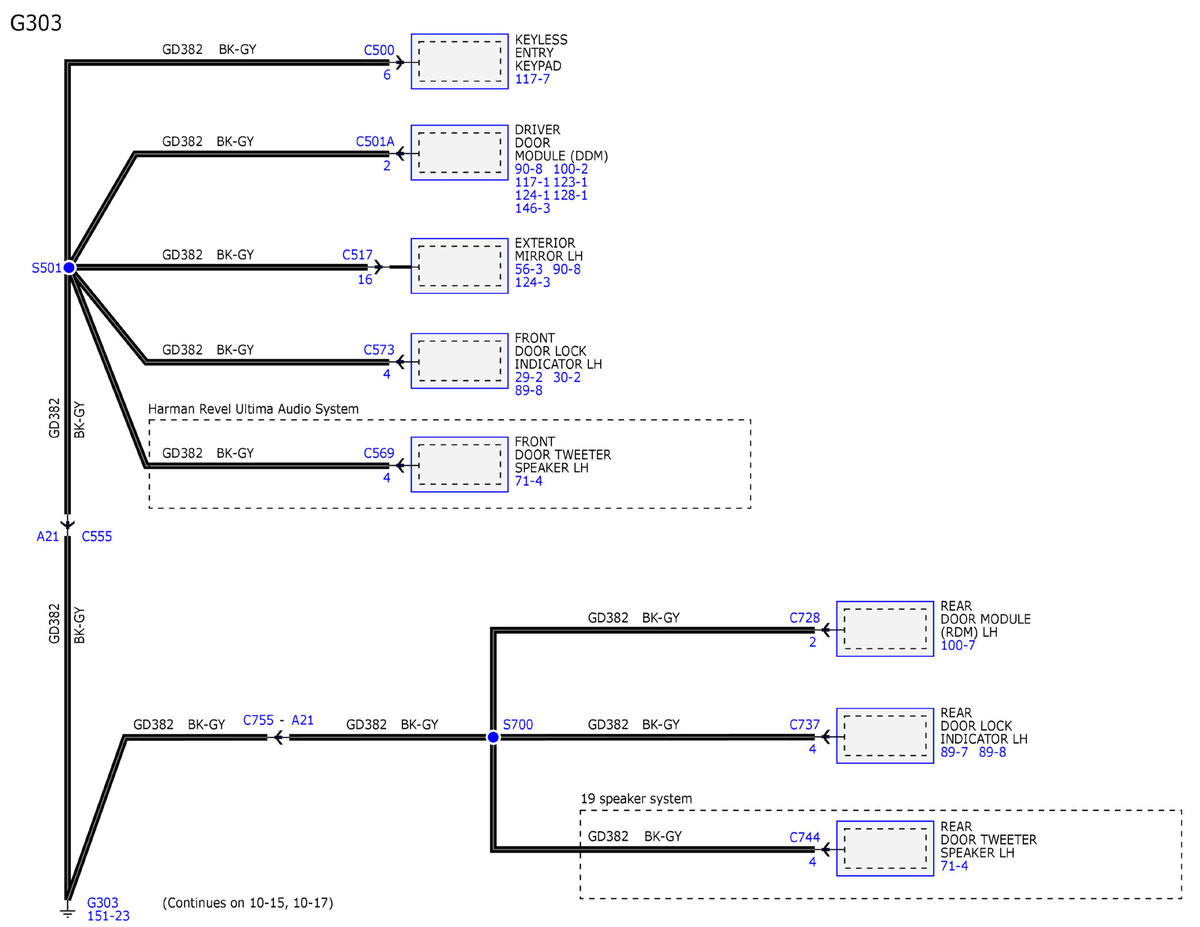

GFDWR112781Courtesy of FORD MOTOR COMPANY

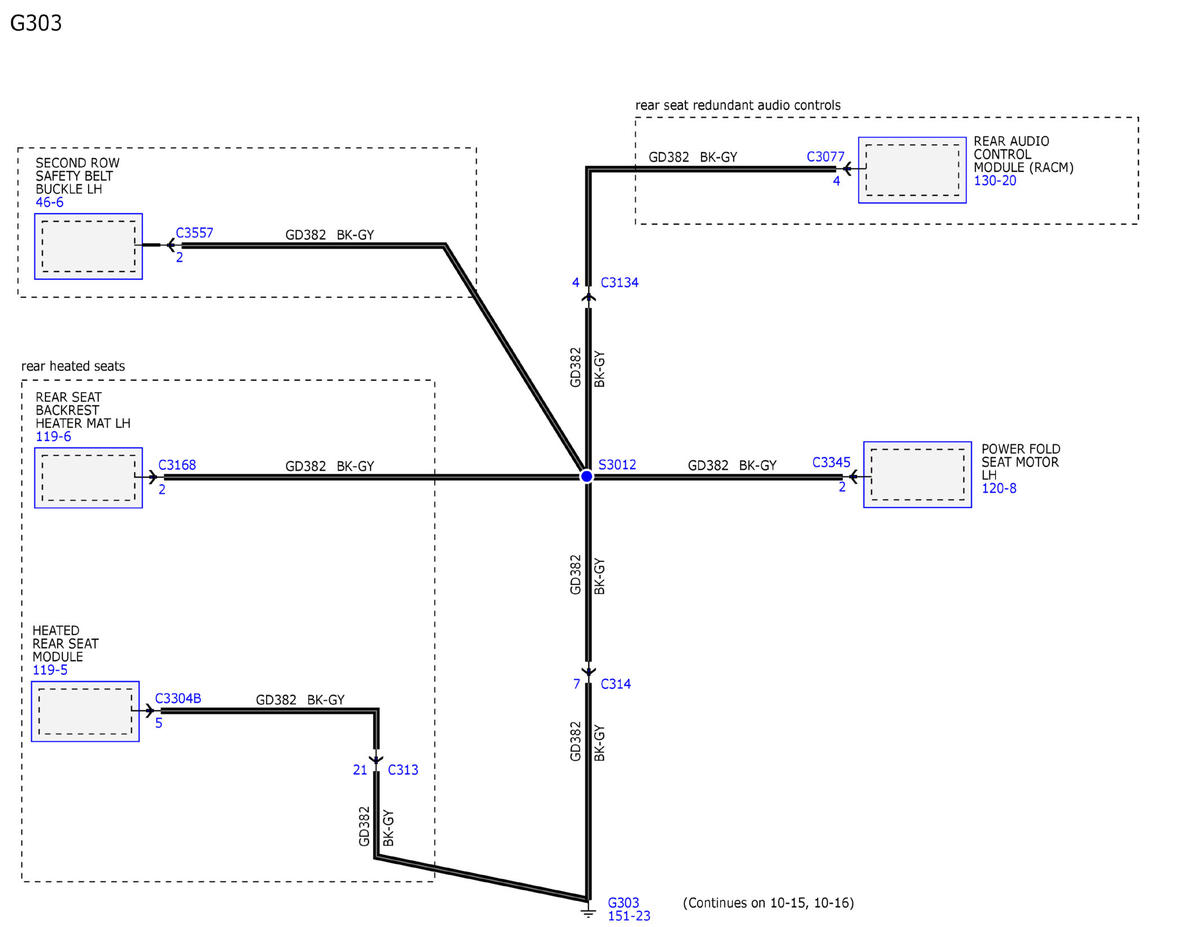

GFDWR112794Courtesy of FORD MOTOR COMPANY

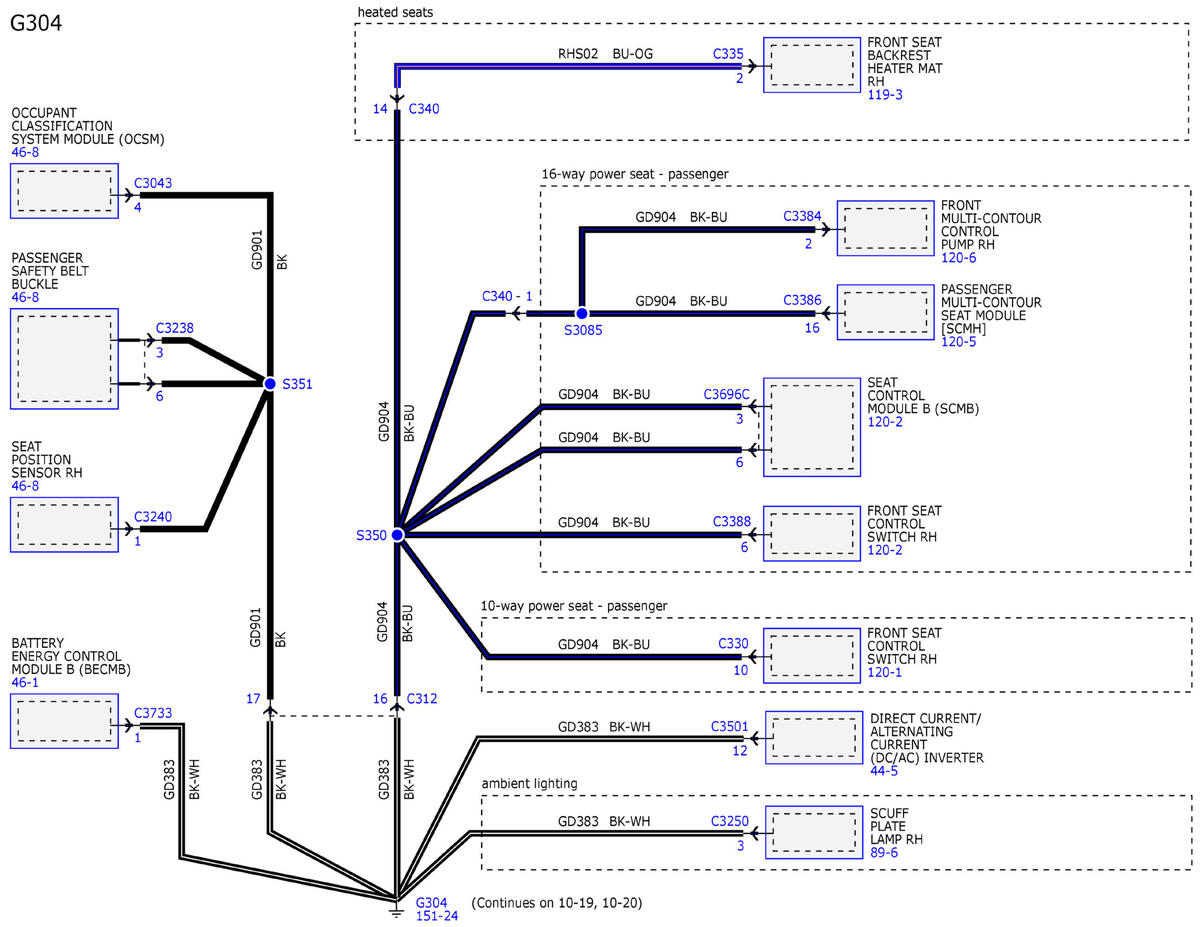

GFDWR112796Courtesy of FORD MOTOR COMPANY

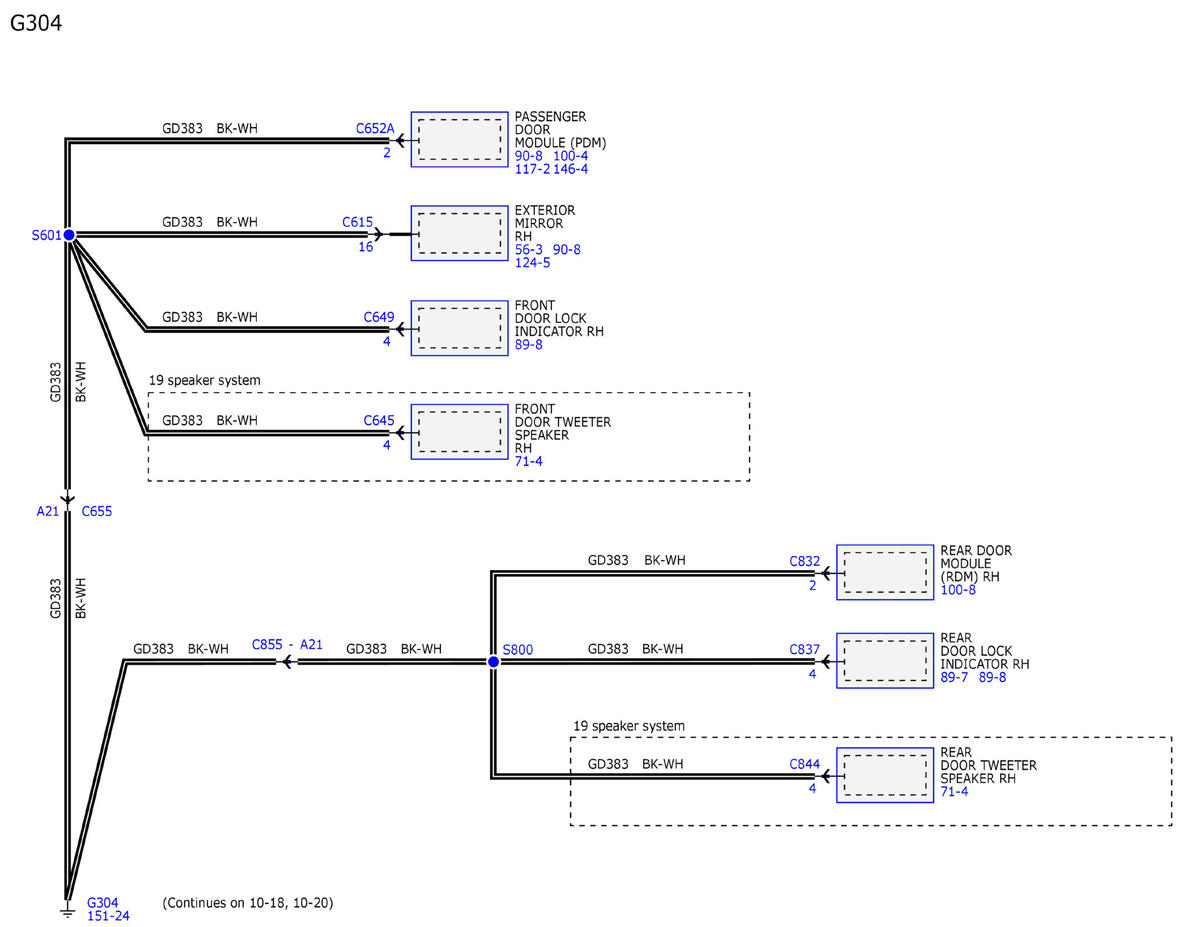

GFDWR112784Courtesy of FORD MOTOR COMPANY

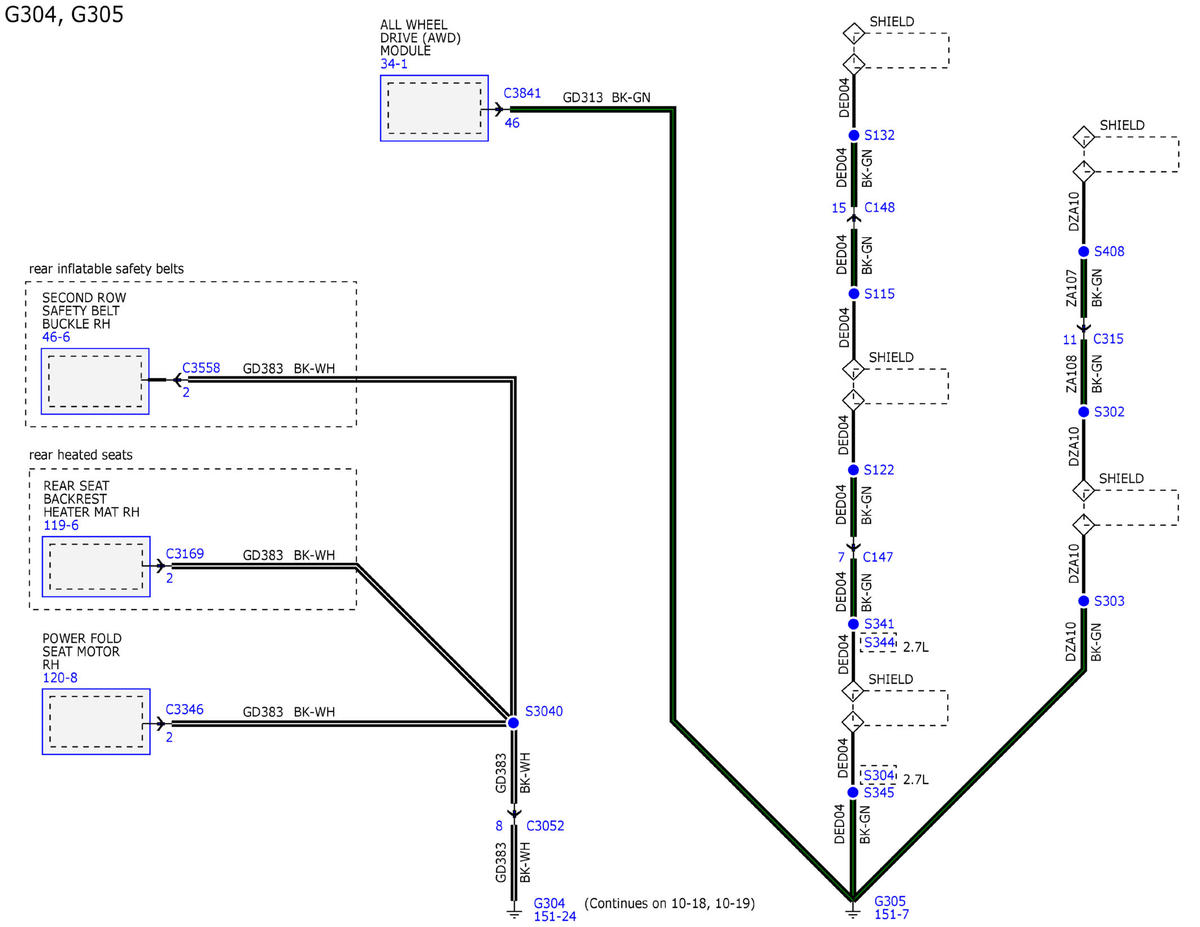

GFDWR112786Courtesy of FORD MOTOR COMPANY

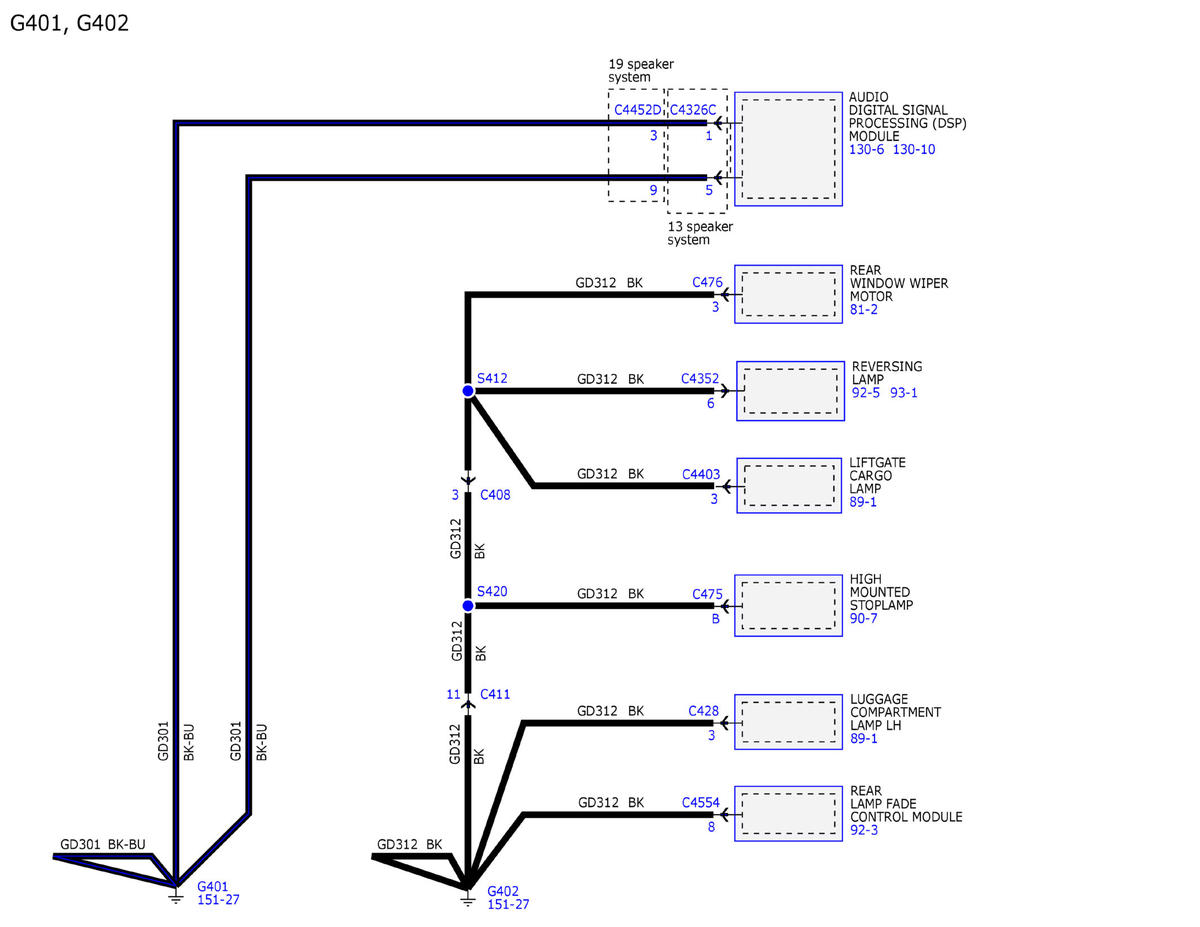

GFDWR112778Courtesy of FORD MOTOR COMPANY

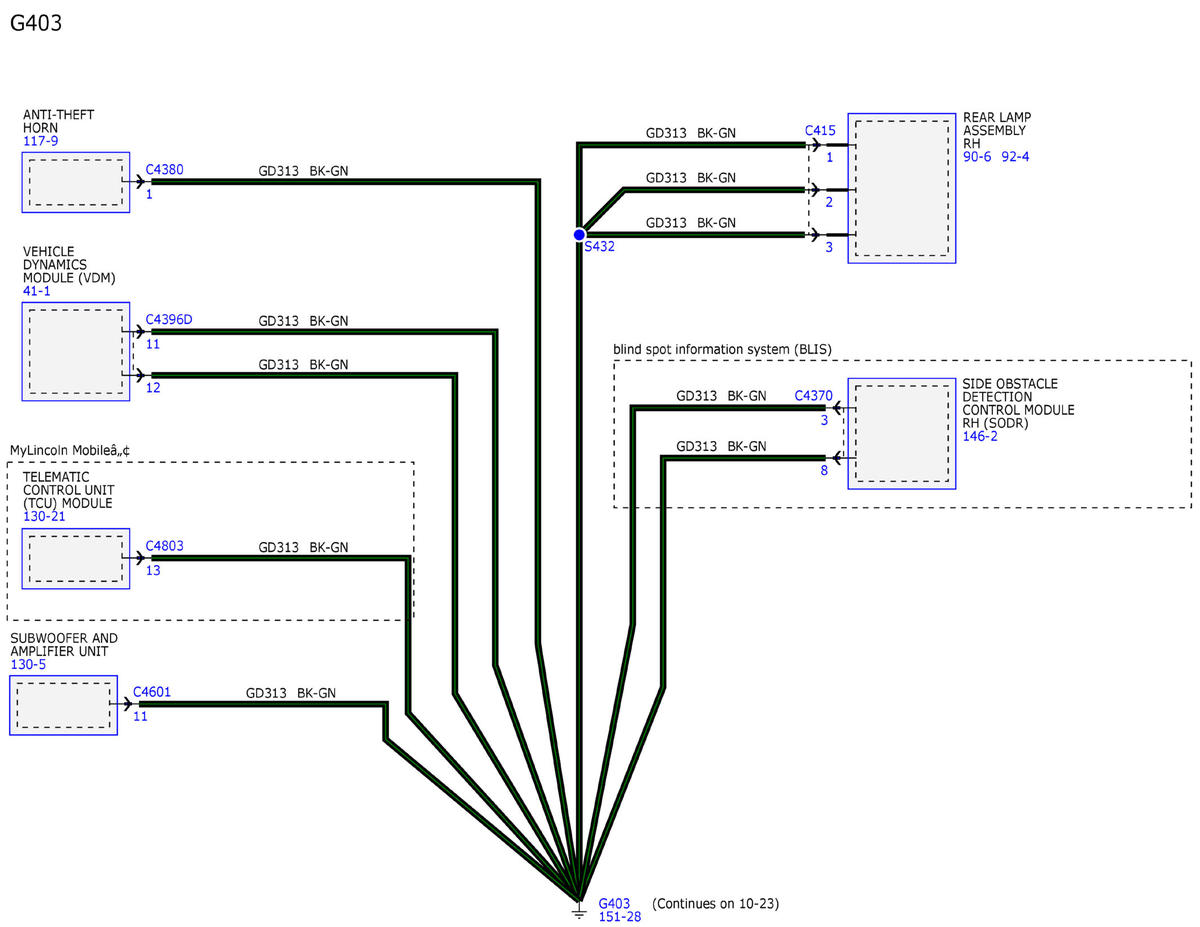

GFDWR112792Courtesy of FORD MOTOR COMPANY

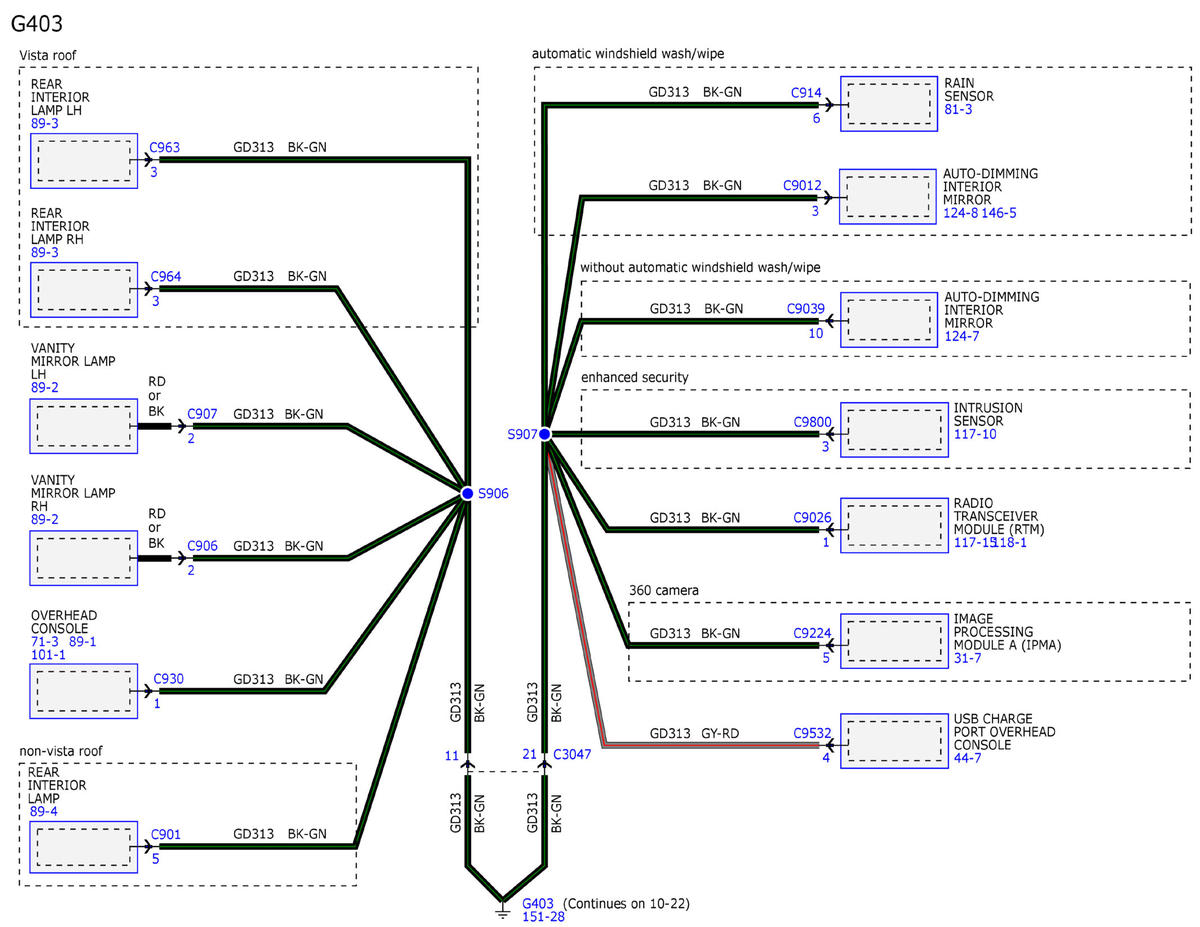

GFDWR112777Courtesy of FORD MOTOR COMPANY

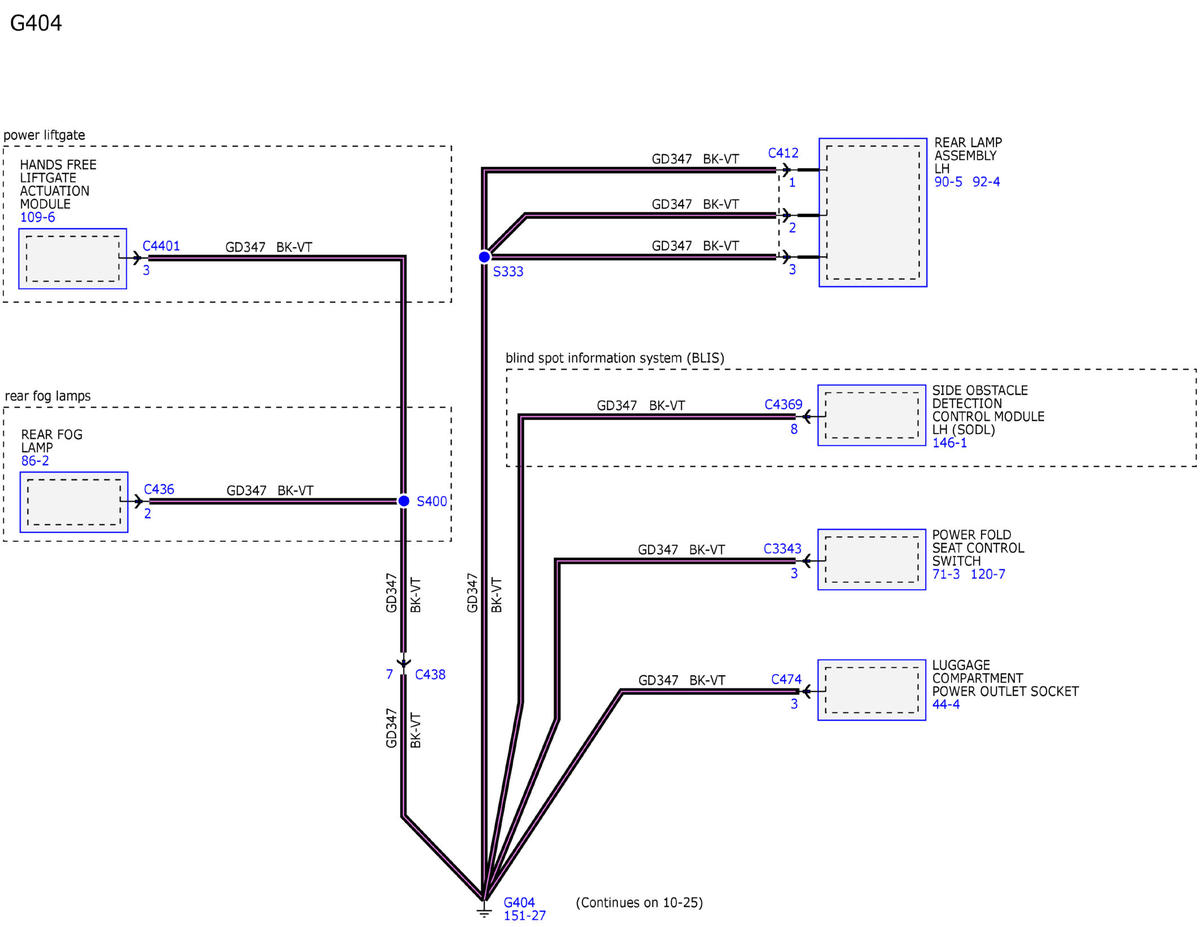

GFDWR112798Courtesy of FORD MOTOR COMPANY

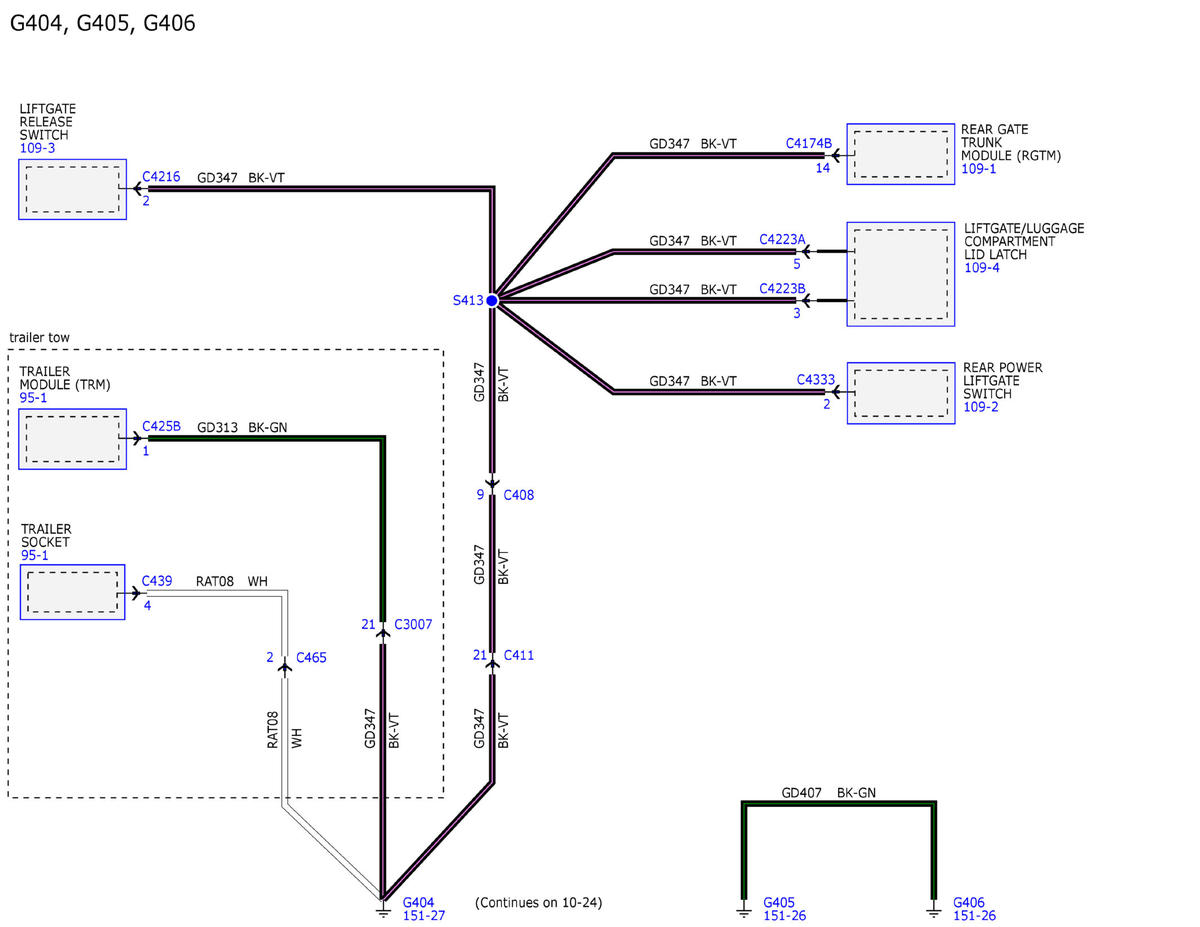

GFDWR112787Courtesy of FORD MOTOR COMPANY
