Fuel Pump Driver Module (FPDM): Installation

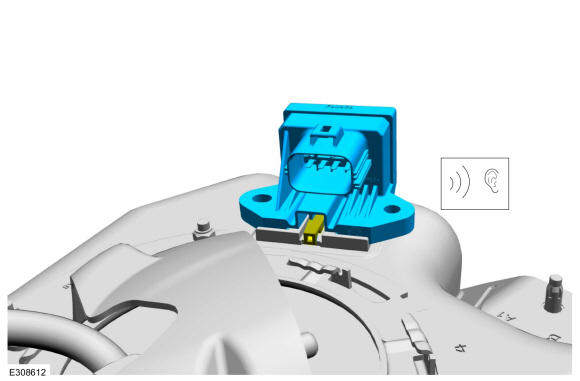

  1. Install the fuel pump driver module to the bracket until it clicks and locks into position.
    GFD588247Courtesy of FORD MOTOR COMPANY

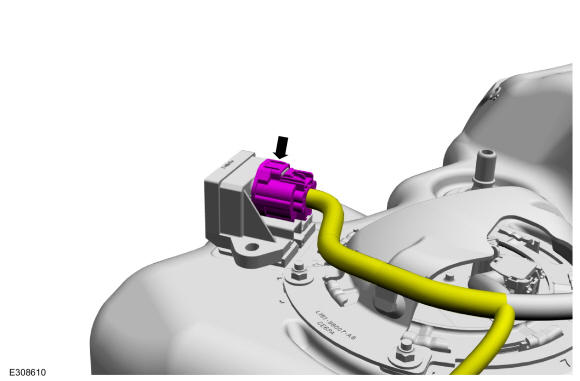

  2. Connect the fuel pump driver module electrical connector.
    GFD588245Courtesy of FORD MOTOR COMPANY
  3. Install the fuel tank. Refer to: Fuel Tank
