Warning Devices
Warning Devices

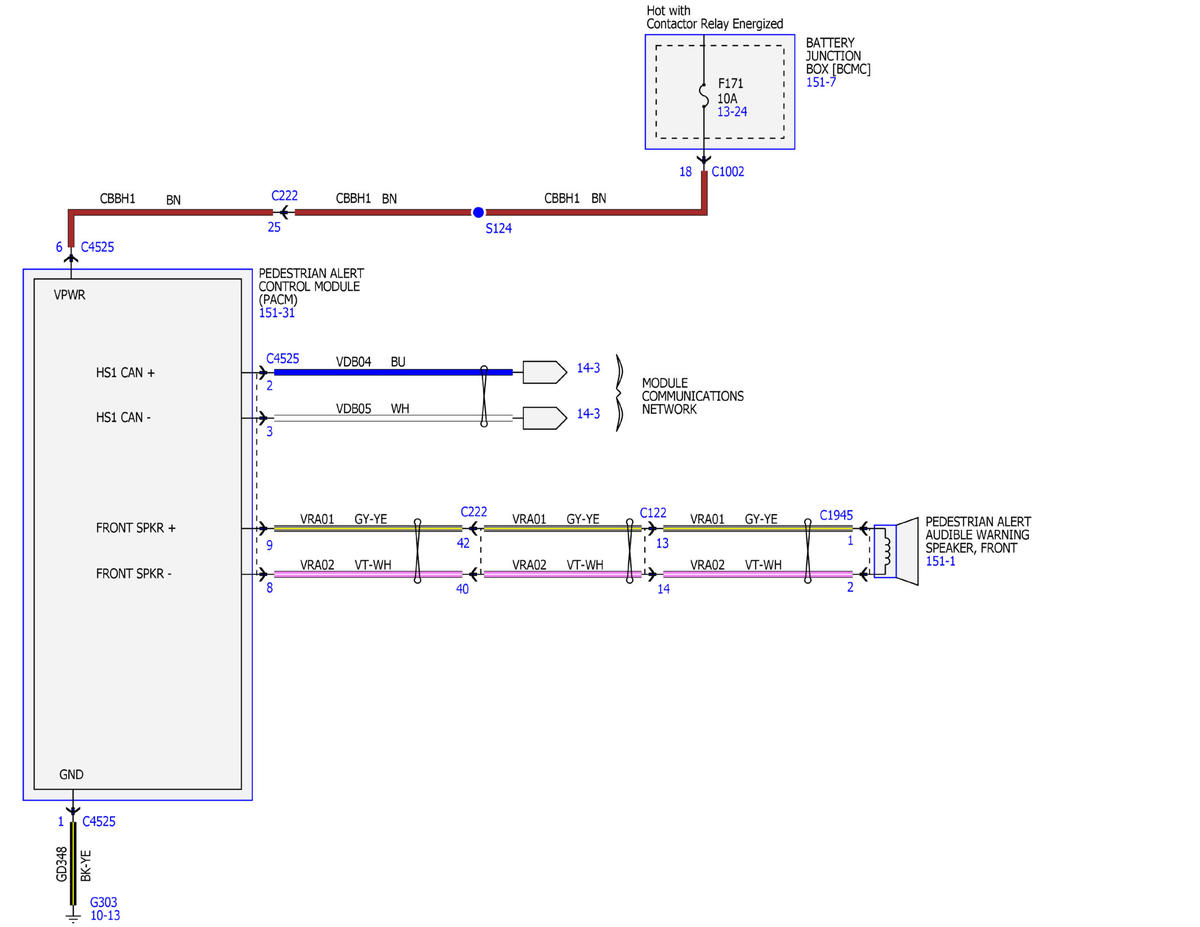

Fig 1: Warning Devices Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
