Power Mirrors

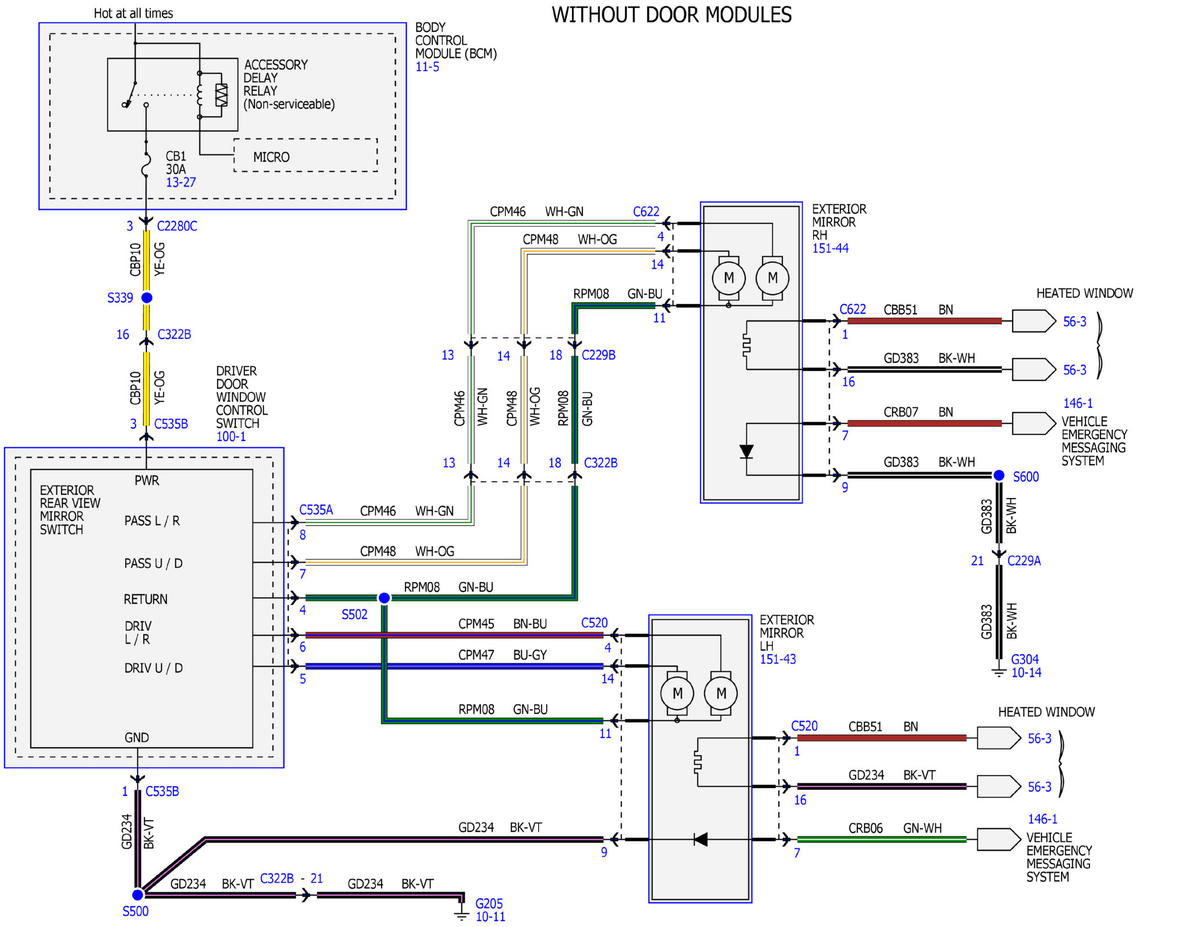

Fig 1: Power Mirrors Wiring Diagram (1 Of 5)
GFDWR137344Courtesy of FORD MOTOR COMPANY

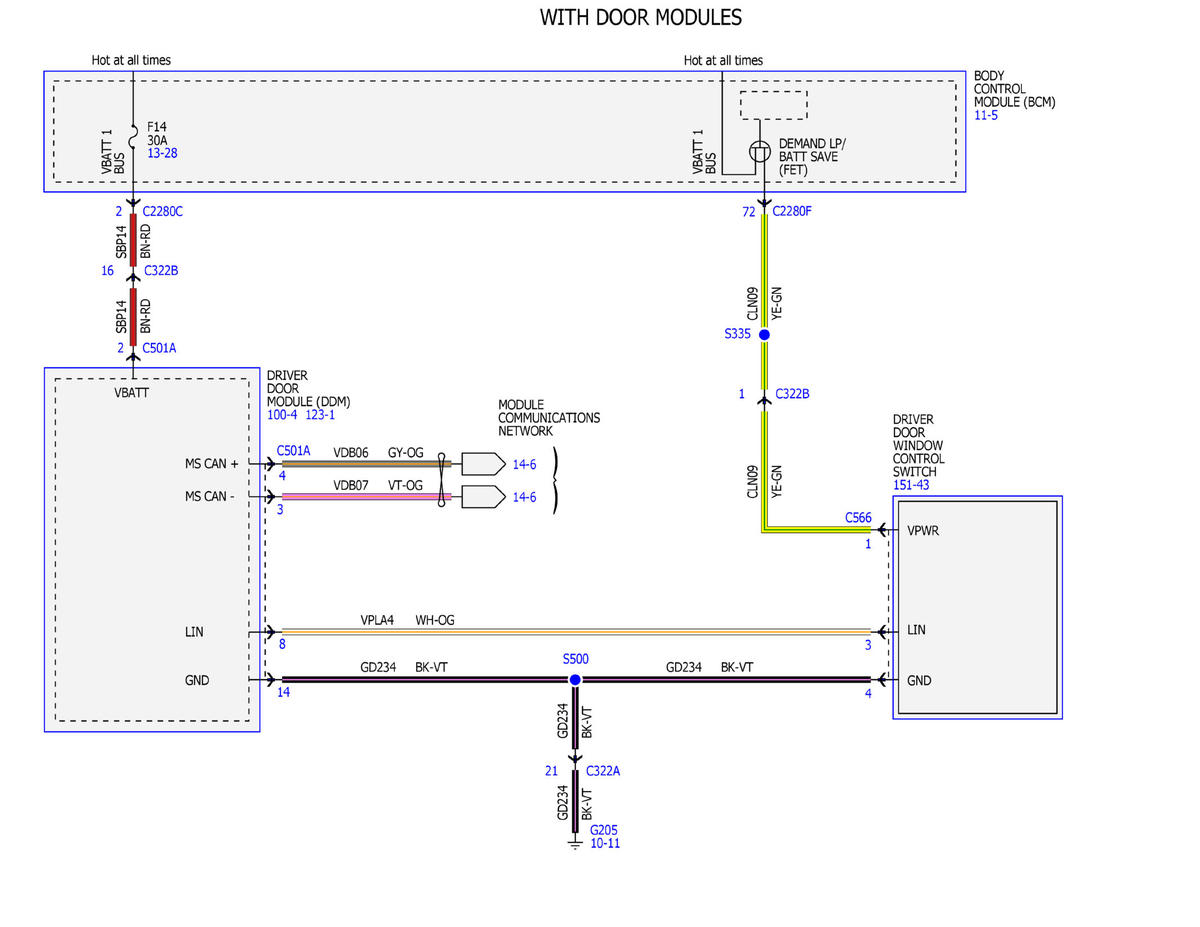

Fig 2: Power Mirrors Wiring Diagram (2 Of 5)
GFDWR137345Courtesy of FORD MOTOR COMPANY

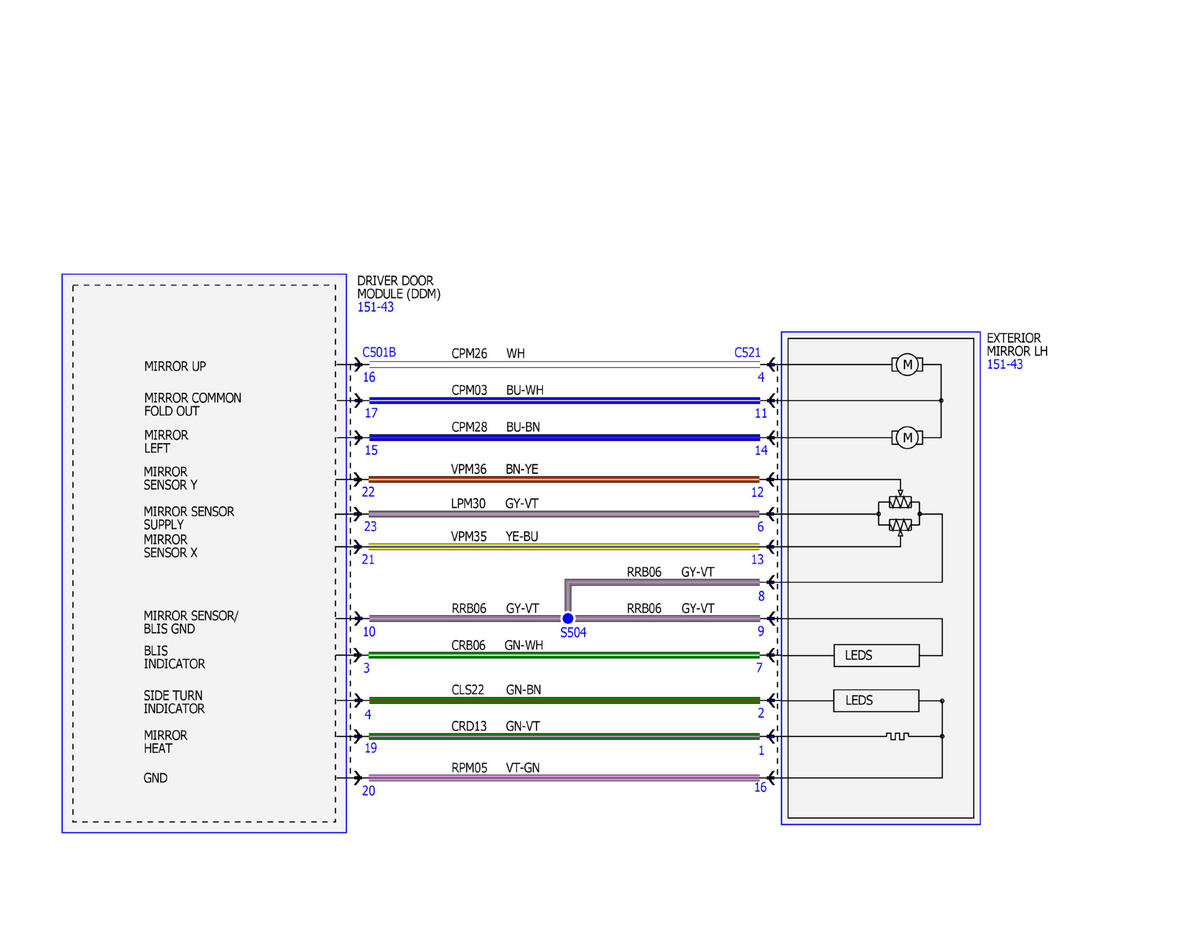

Fig 3: Power Mirrors Wiring Diagram (3 Of 5)
GFDWR137346Courtesy of FORD MOTOR COMPANY

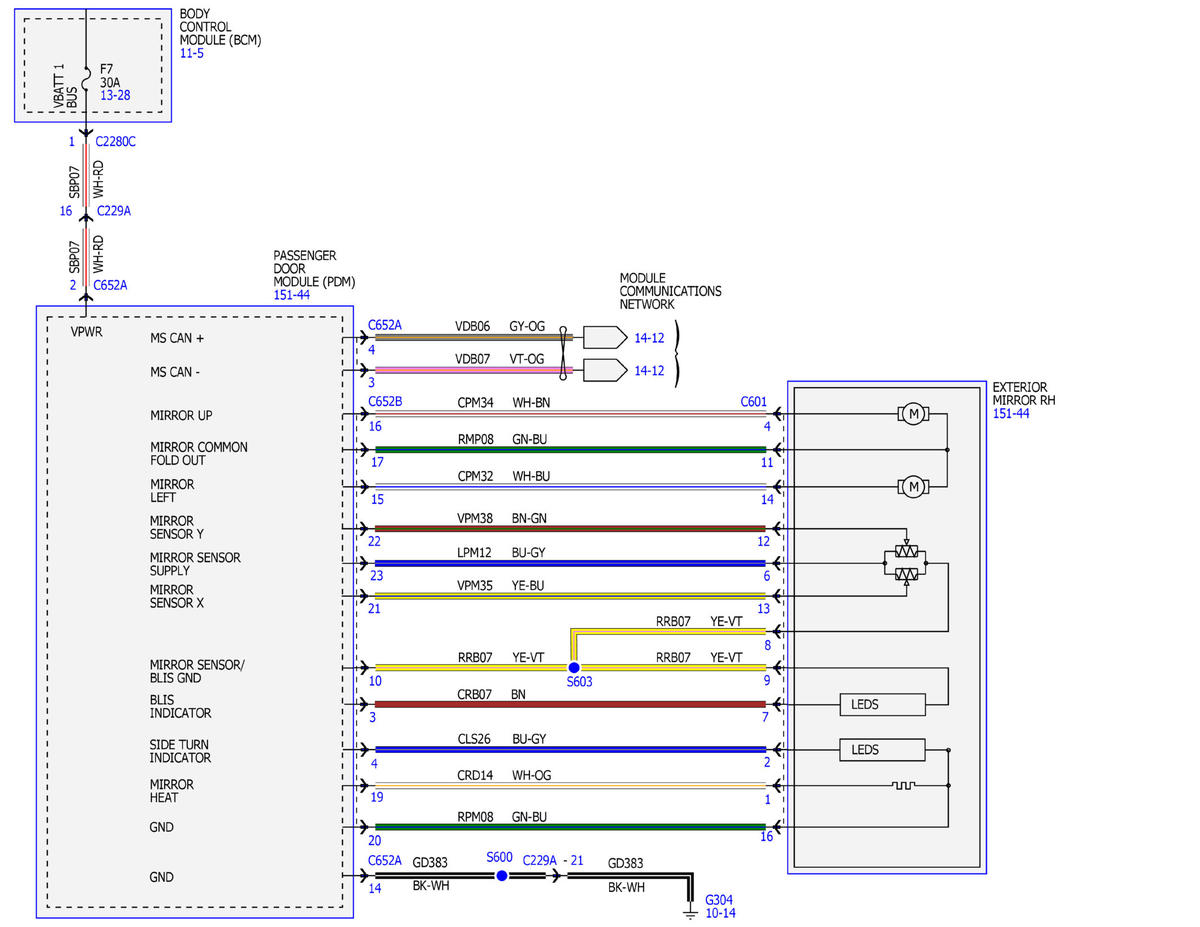

Fig 4: Power Mirrors Wiring Diagram (4 Of 5)
GFDWR137347Courtesy of FORD MOTOR COMPANY
Fig 5: Power Mirrors Wiring Diagram (5 Of 5)
GFDWR137348Courtesy of FORD MOTOR COMPANY
