Heated Window

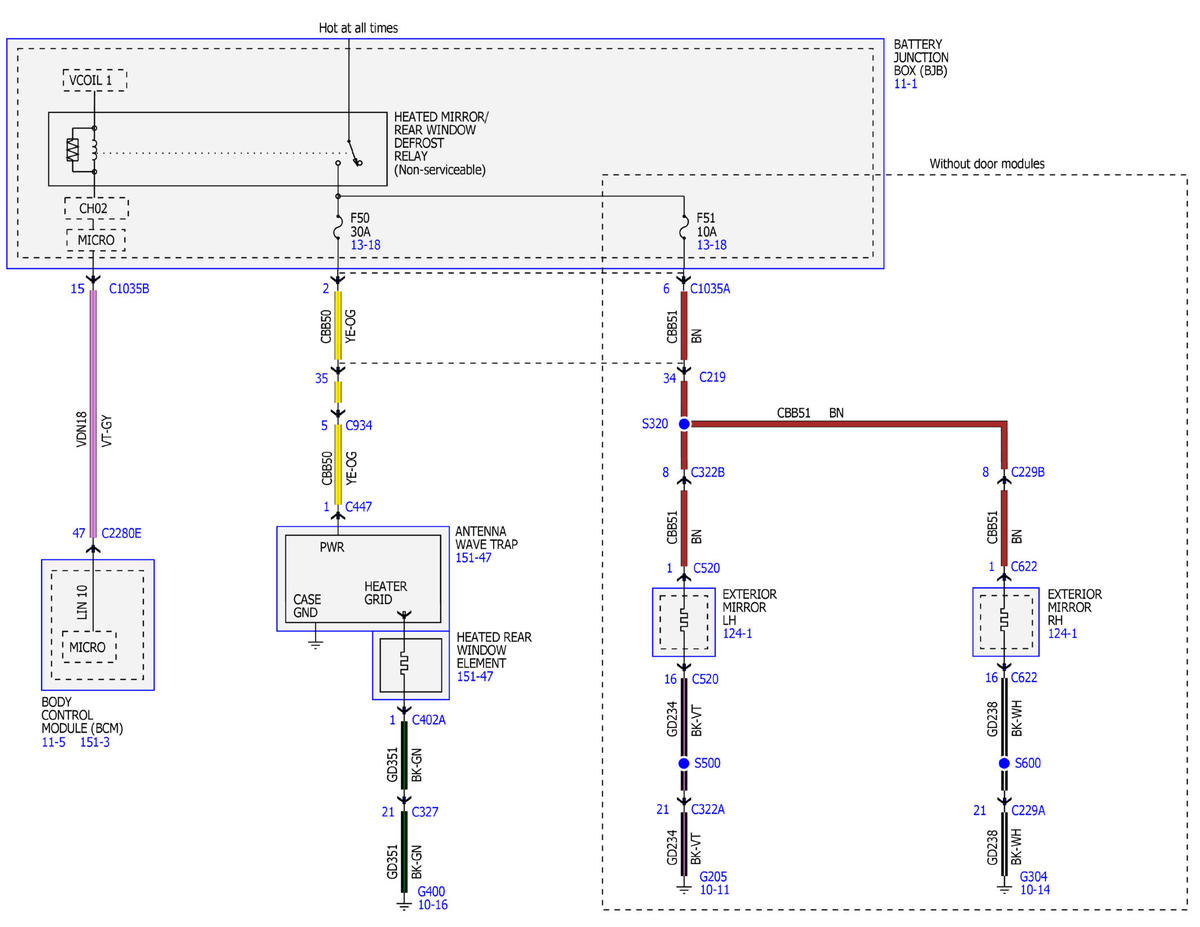

Fig 1: Heated Window Wiring Diagram (1 Of 3)
GFDWR137242Courtesy of FORD MOTOR COMPANY

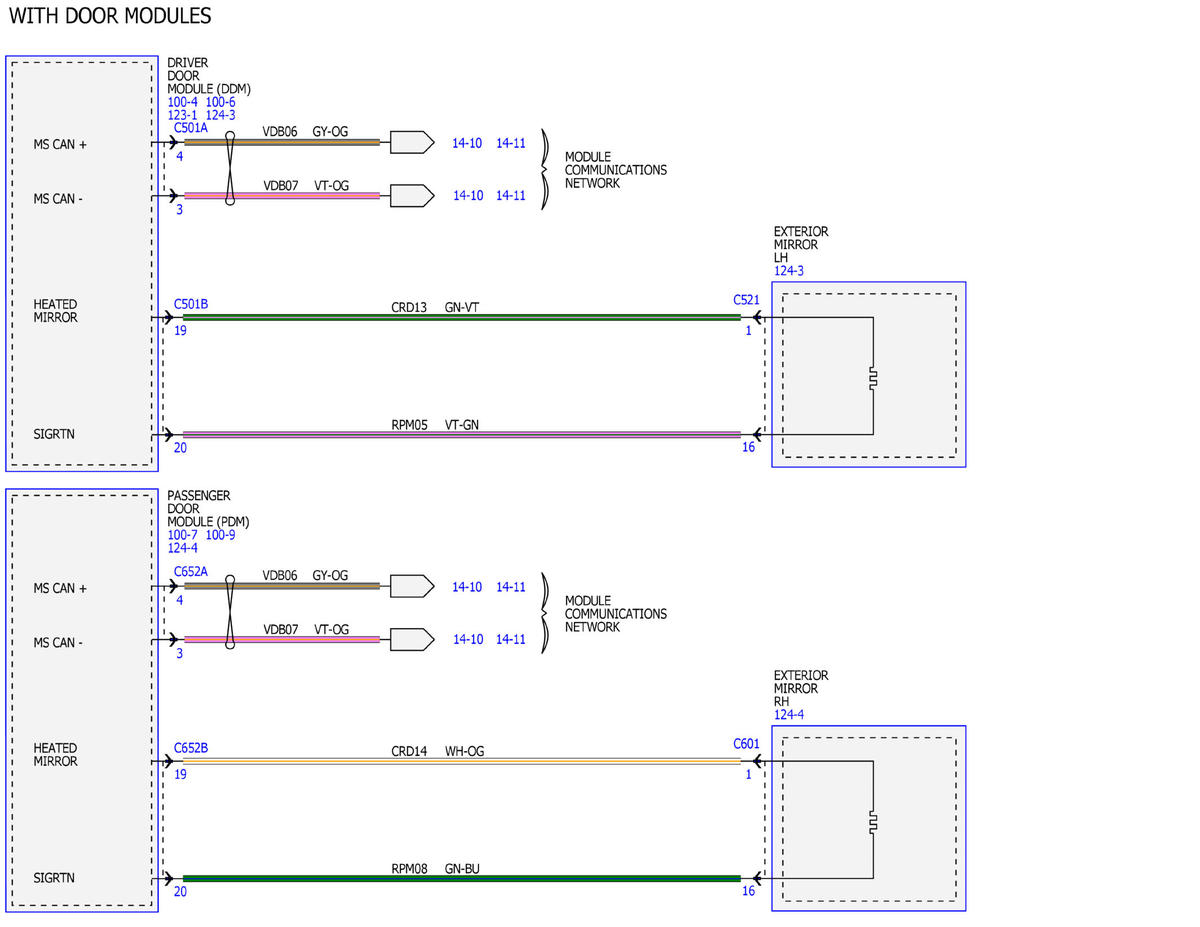

Fig 2: Heated Window Wiring Diagram (2 Of 3)
GFDWR137243Courtesy of FORD MOTOR COMPANY

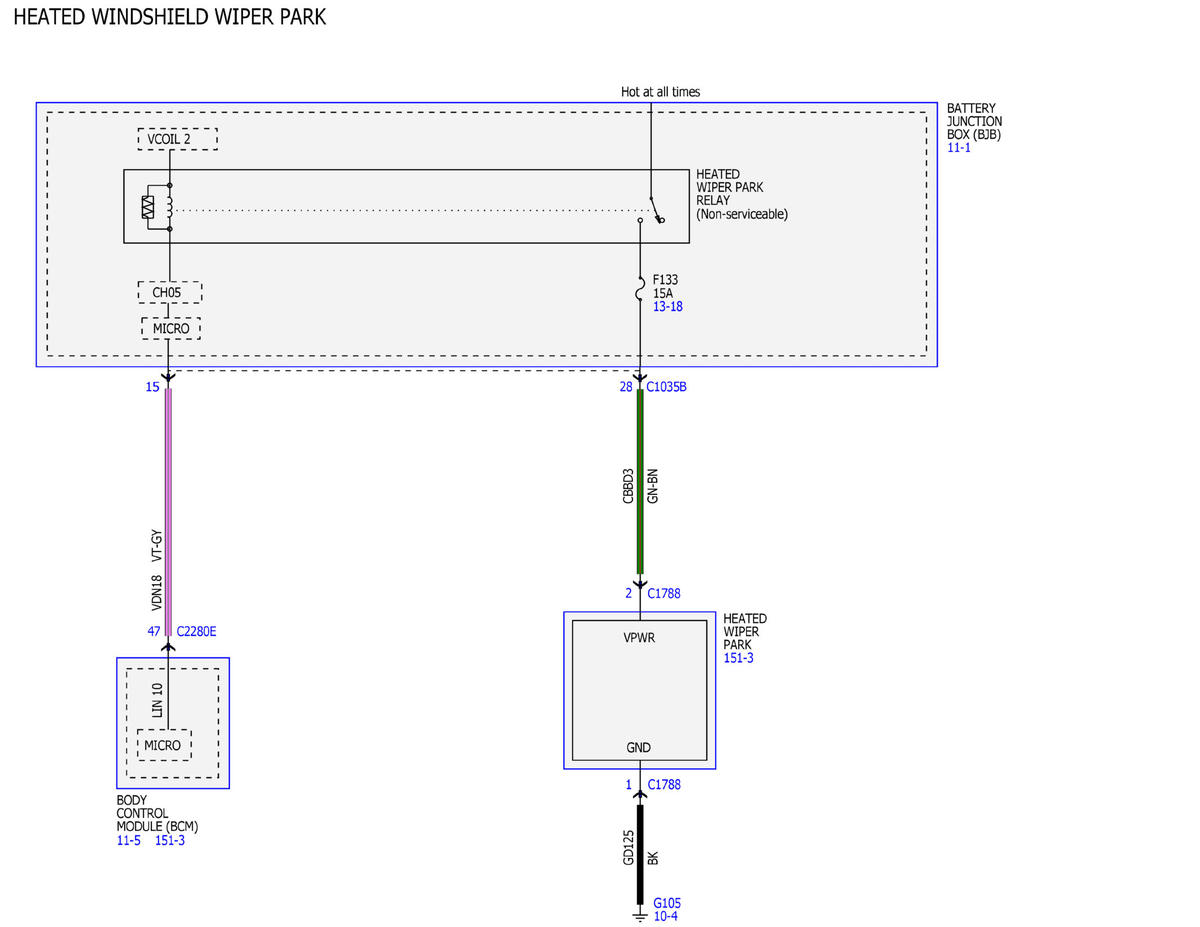

Fig 3: Heated Window Wiring Diagram (3 Of 3)
GFDWR137244Courtesy of FORD MOTOR COMPANY
