Escape Titanium Plug-In Hybrid
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Auto-Start-Stop System
Auto-Start-Stop System

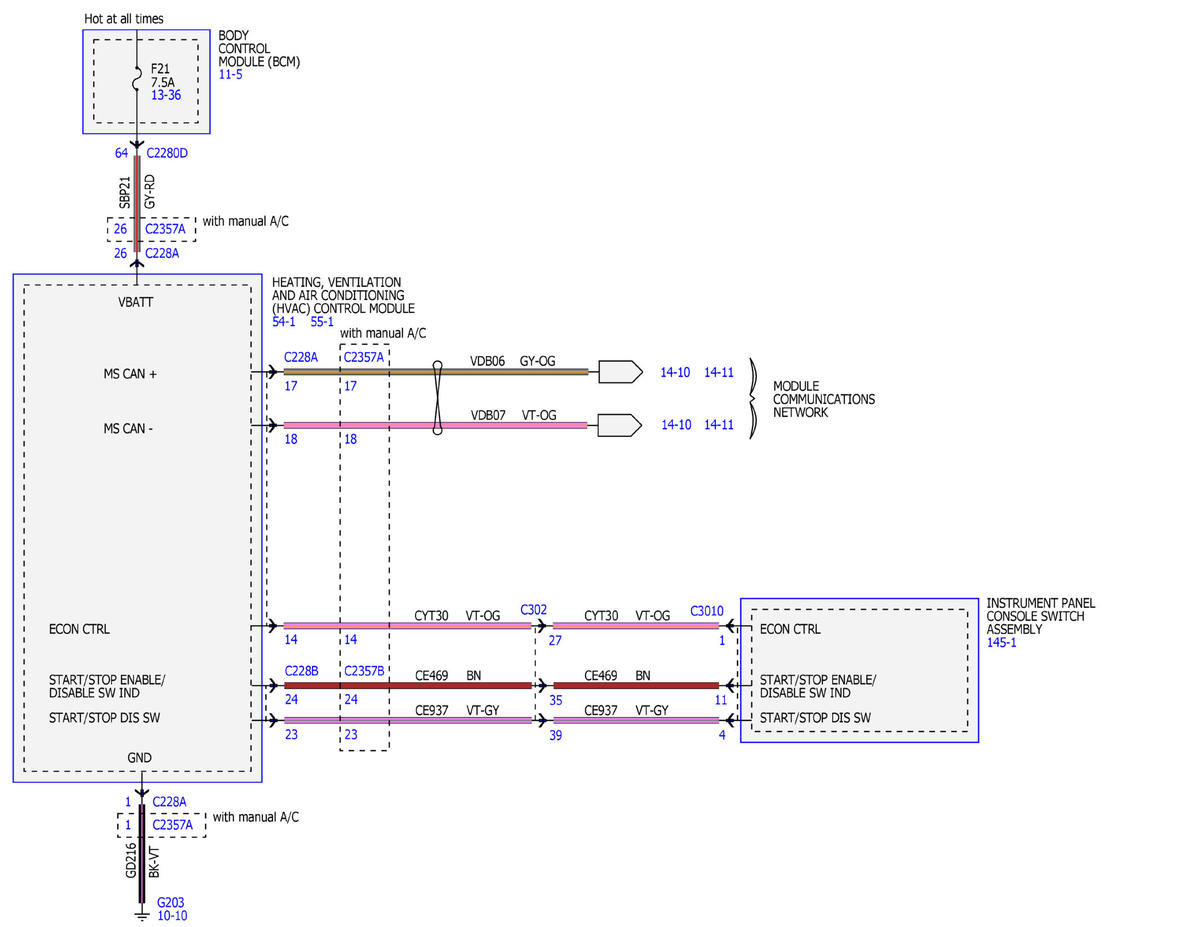

Fig 1: Auto-Start-Stop System Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY

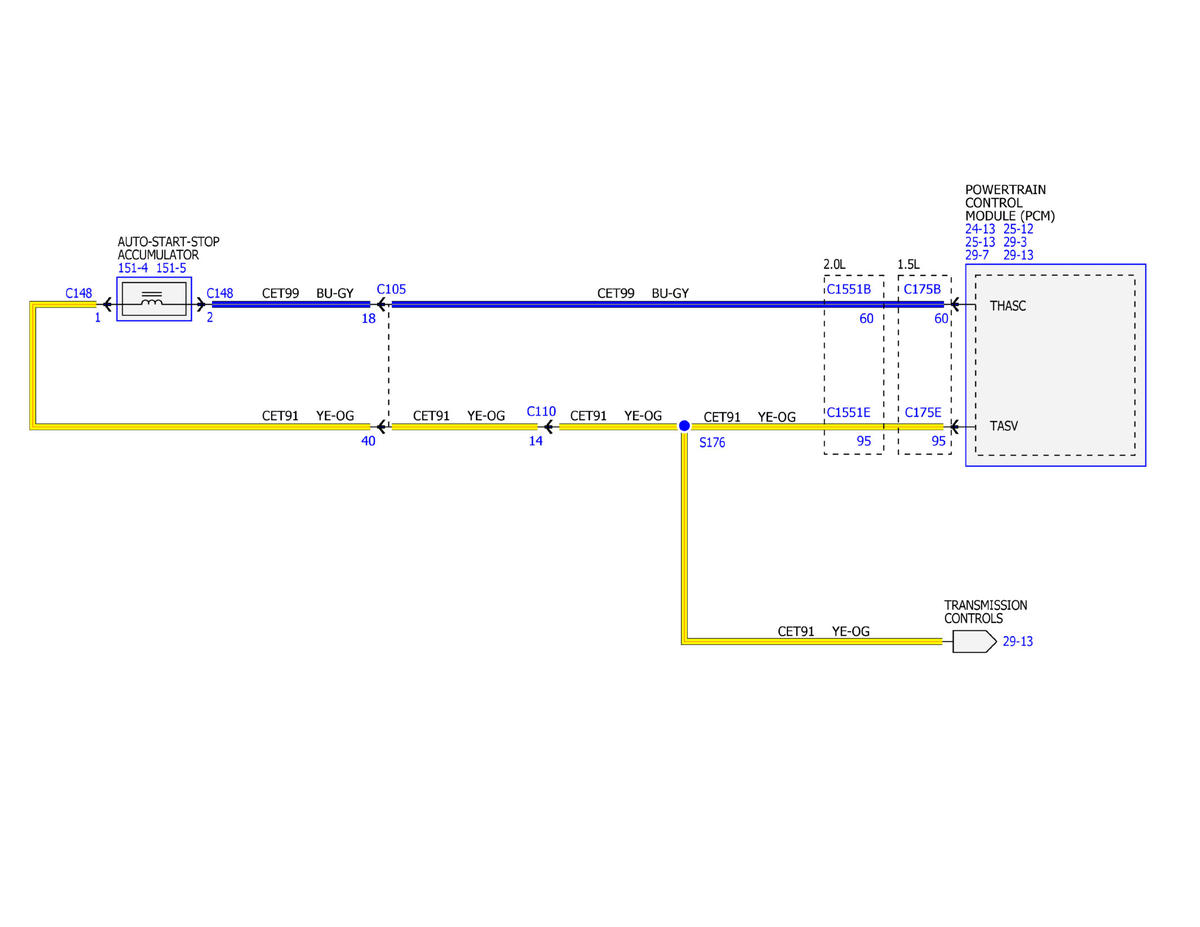

Fig 2: Auto-Start-Stop System Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR COMPANY
