OEM Wiring Diagram Symbols: Symbols

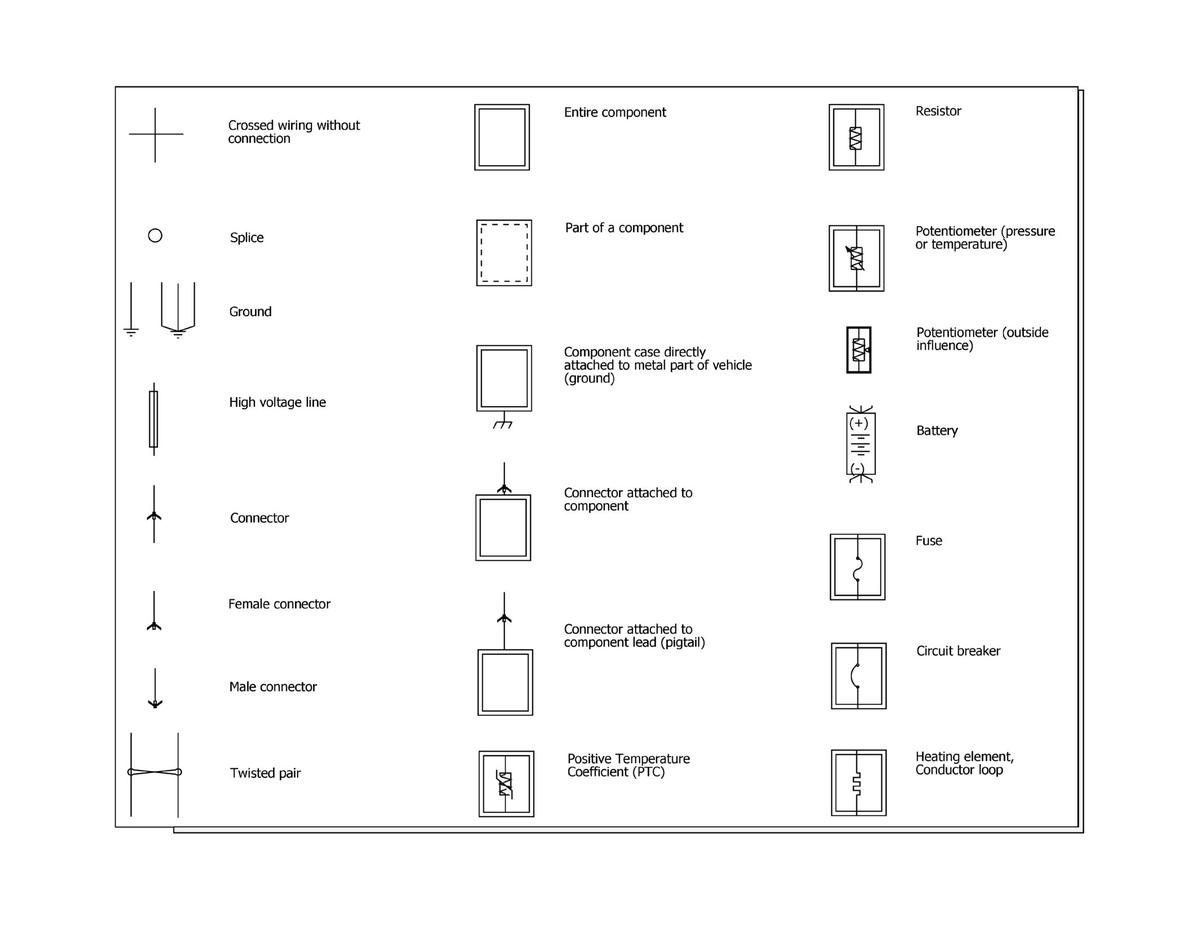

GFDWR137438

Courtesy of FORD MOTOR COMPANY

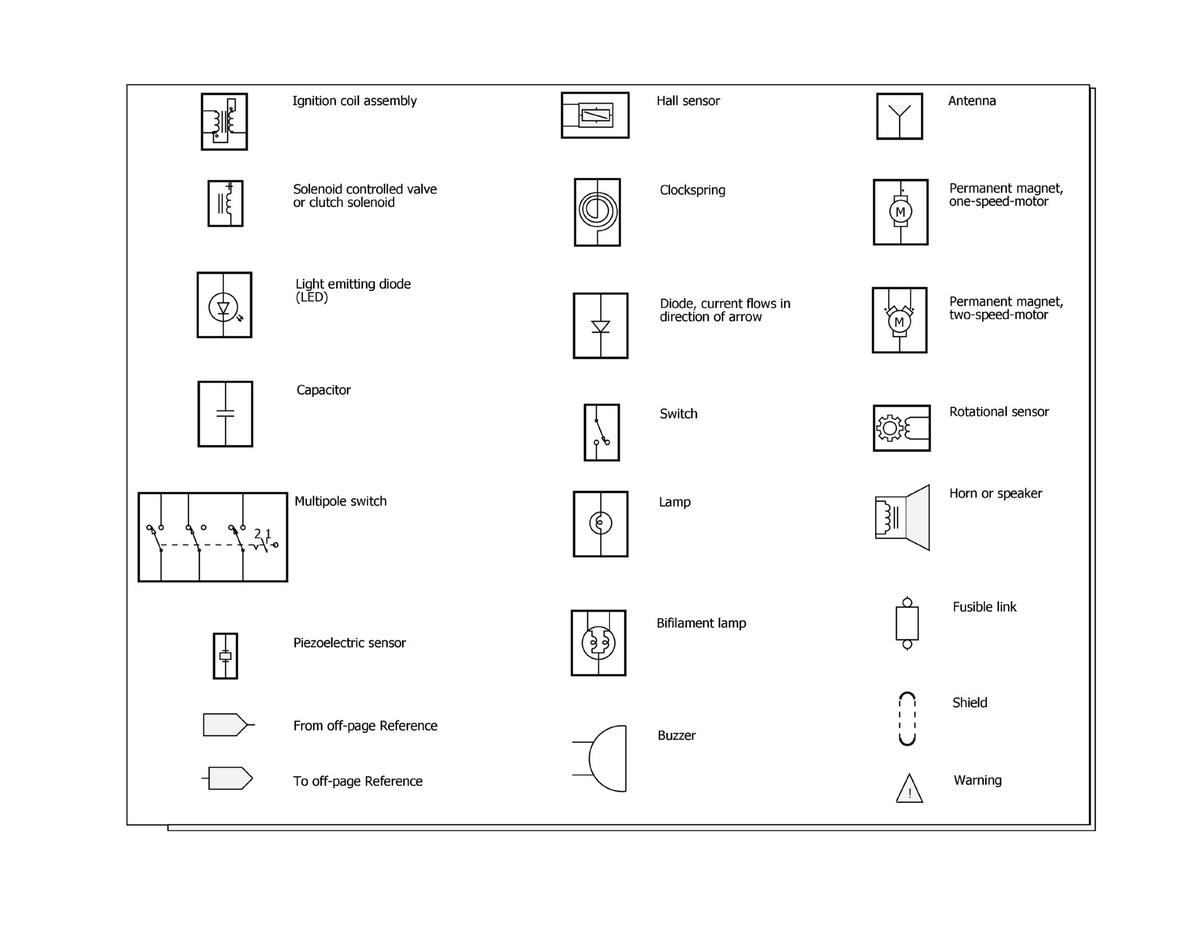

GFDWR137439

Courtesy of FORD MOTOR COMPANY

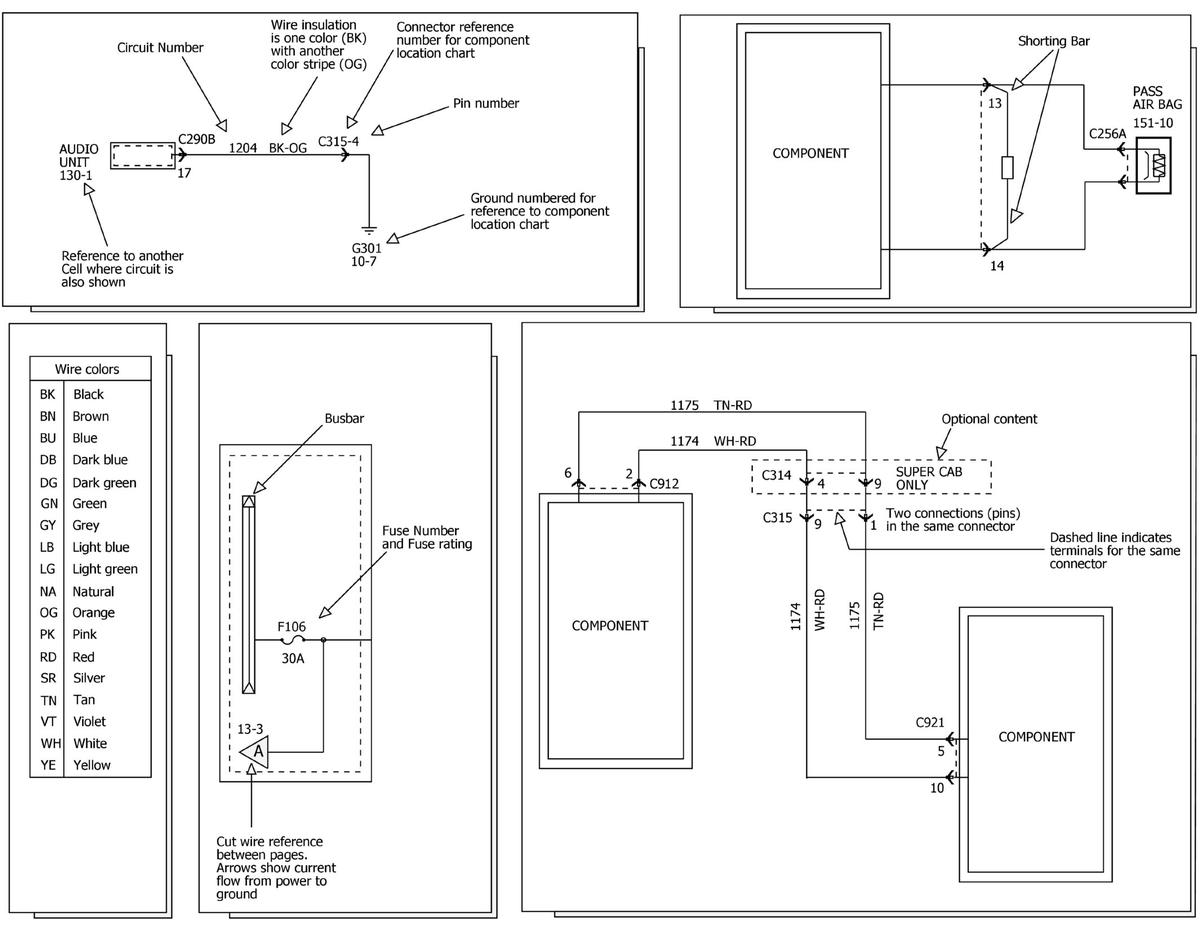

GFDWR137440

Courtesy of FORD MOTOR COMPANY

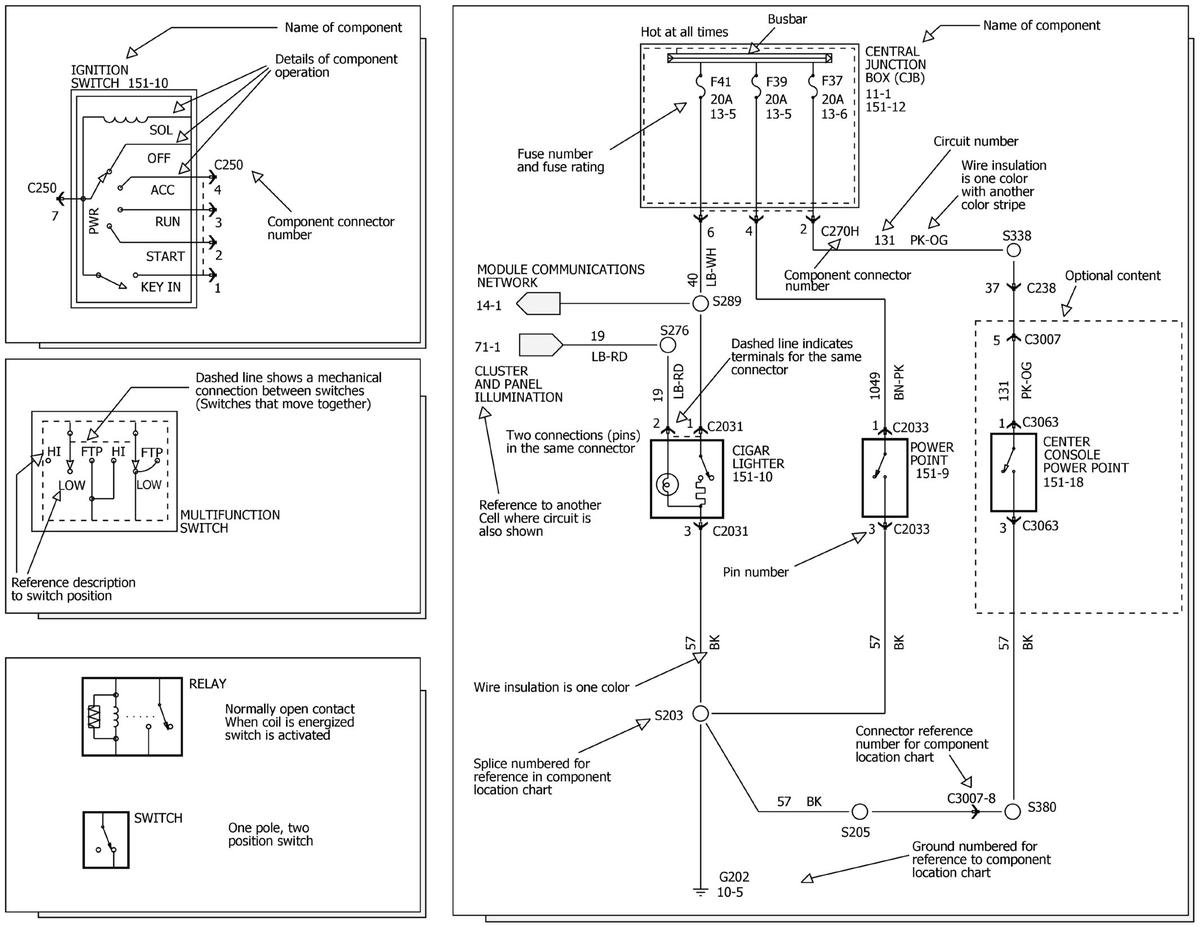

GFDWR137441

Courtesy of FORD MOTOR COMPANY

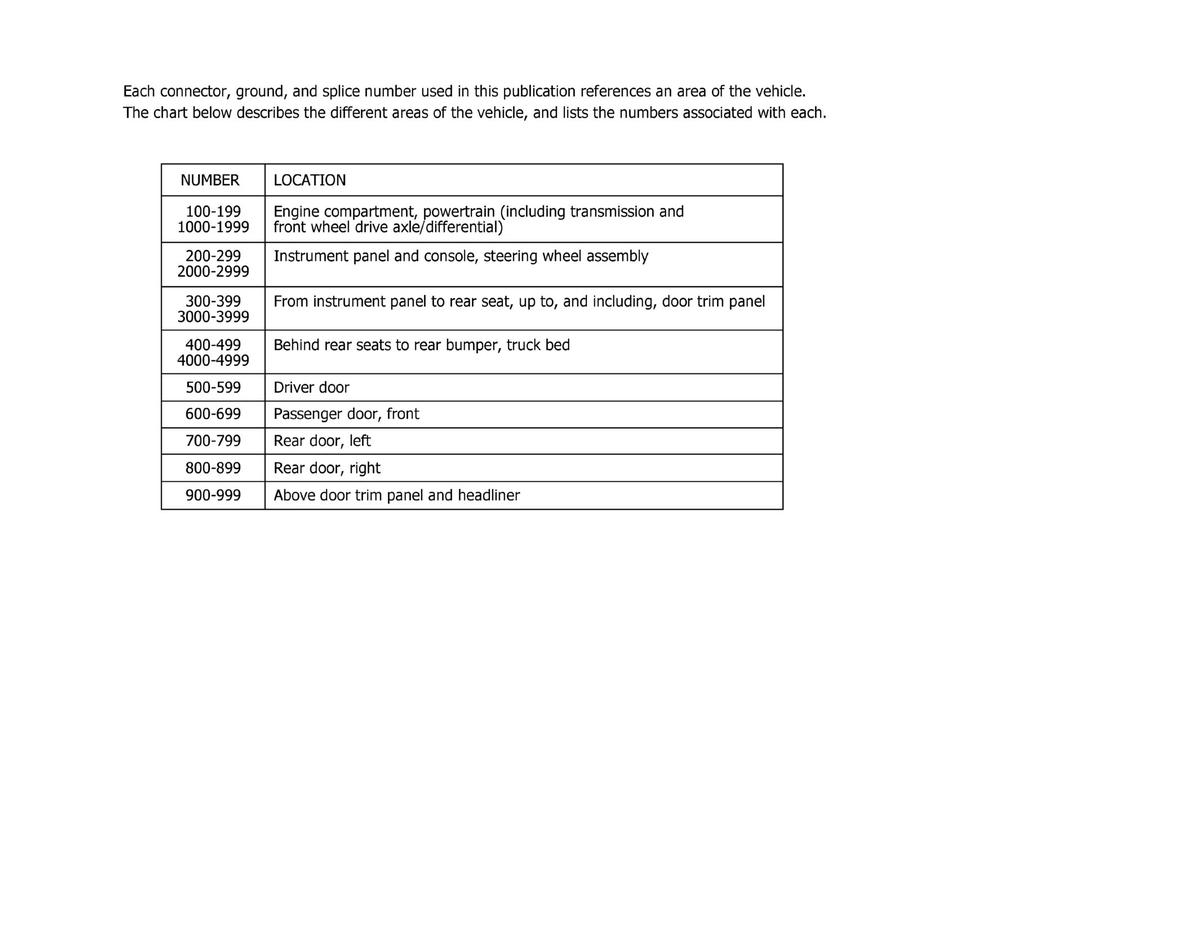

GFDWR137442

Courtesy of FORD MOTOR COMPANY
