Fuse And Relay Information

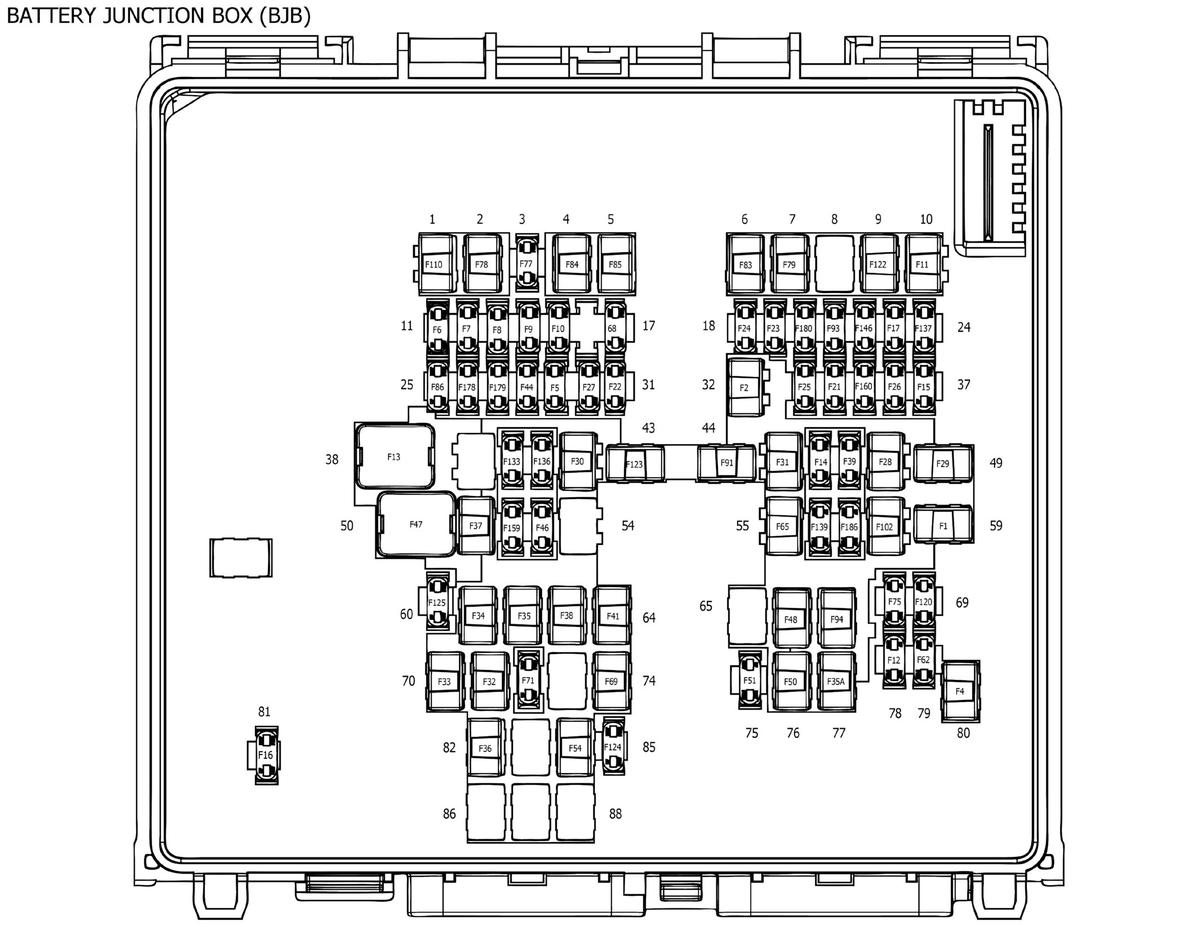

Fig 1: Battery Junction Box (BJB)
GFDWR137097Courtesy of FORD MOTOR COMPANY

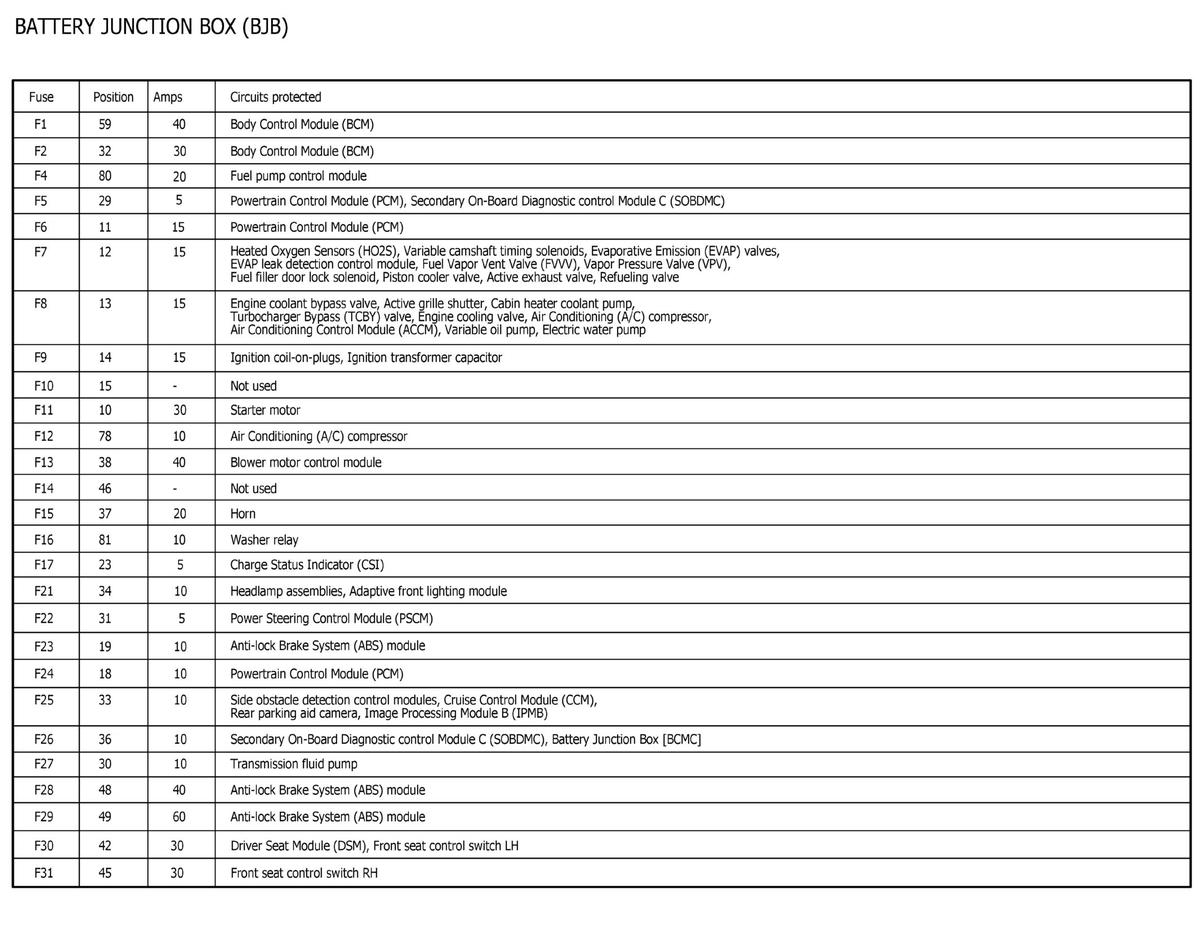

Fig 2: Battery Junction Box Component Chart 1 (BJB)
GFDWR137098Courtesy of FORD MOTOR COMPANY

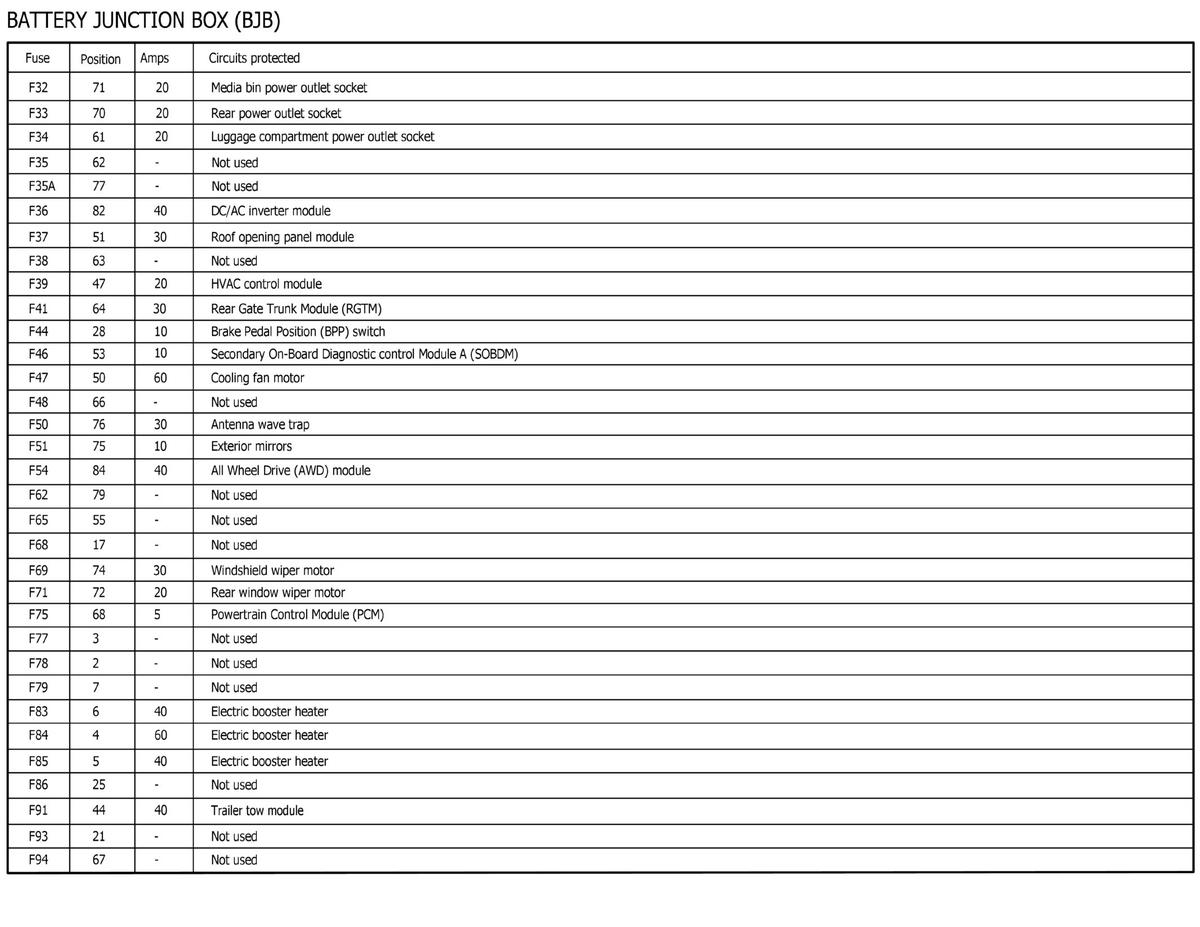

Fig 3: Battery Junction Box Component Chart 2 (BJB)
GFDWR137099Courtesy of FORD MOTOR COMPANY

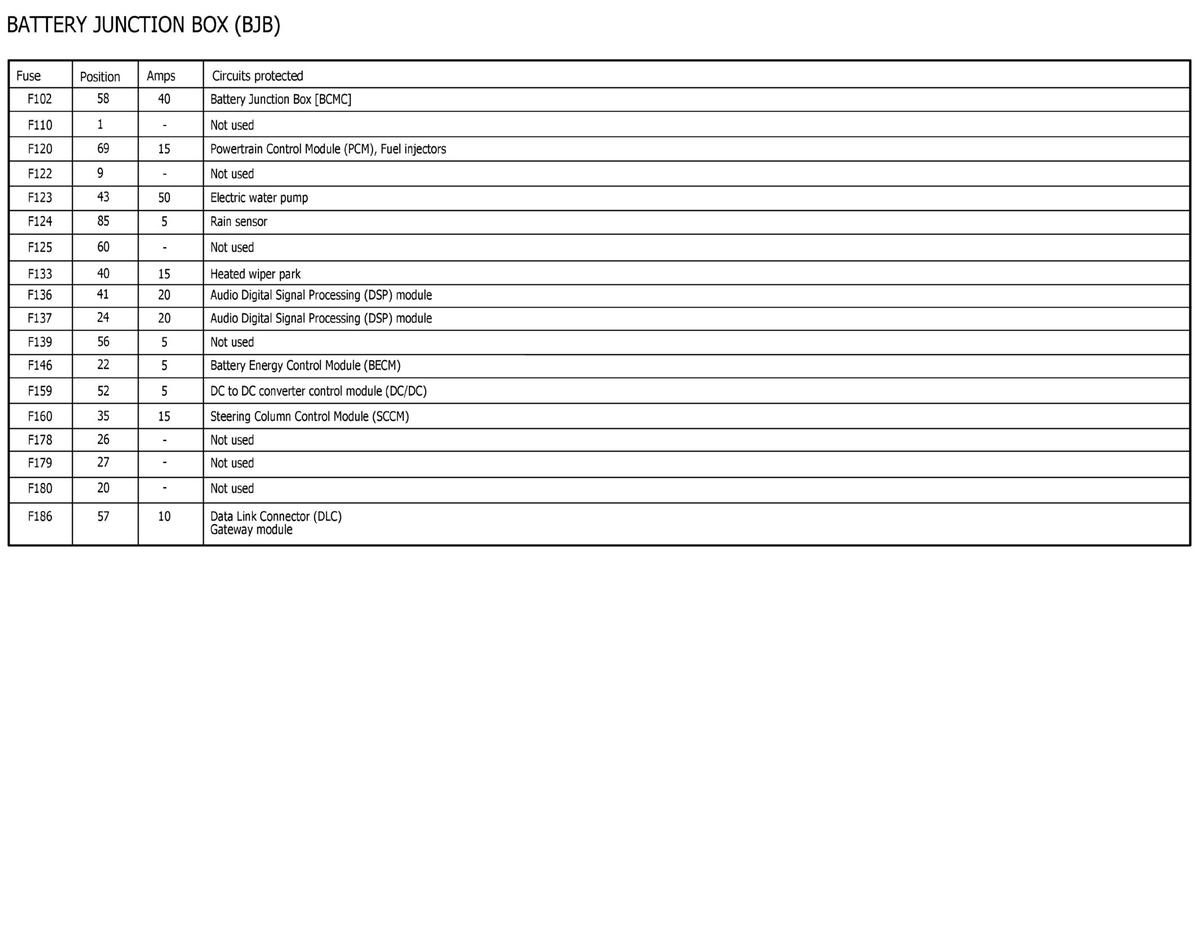

Fig 4: Battery Junction Box Component Chart 3 (BJB)
GFDWR137100Courtesy of FORD MOTOR COMPANY

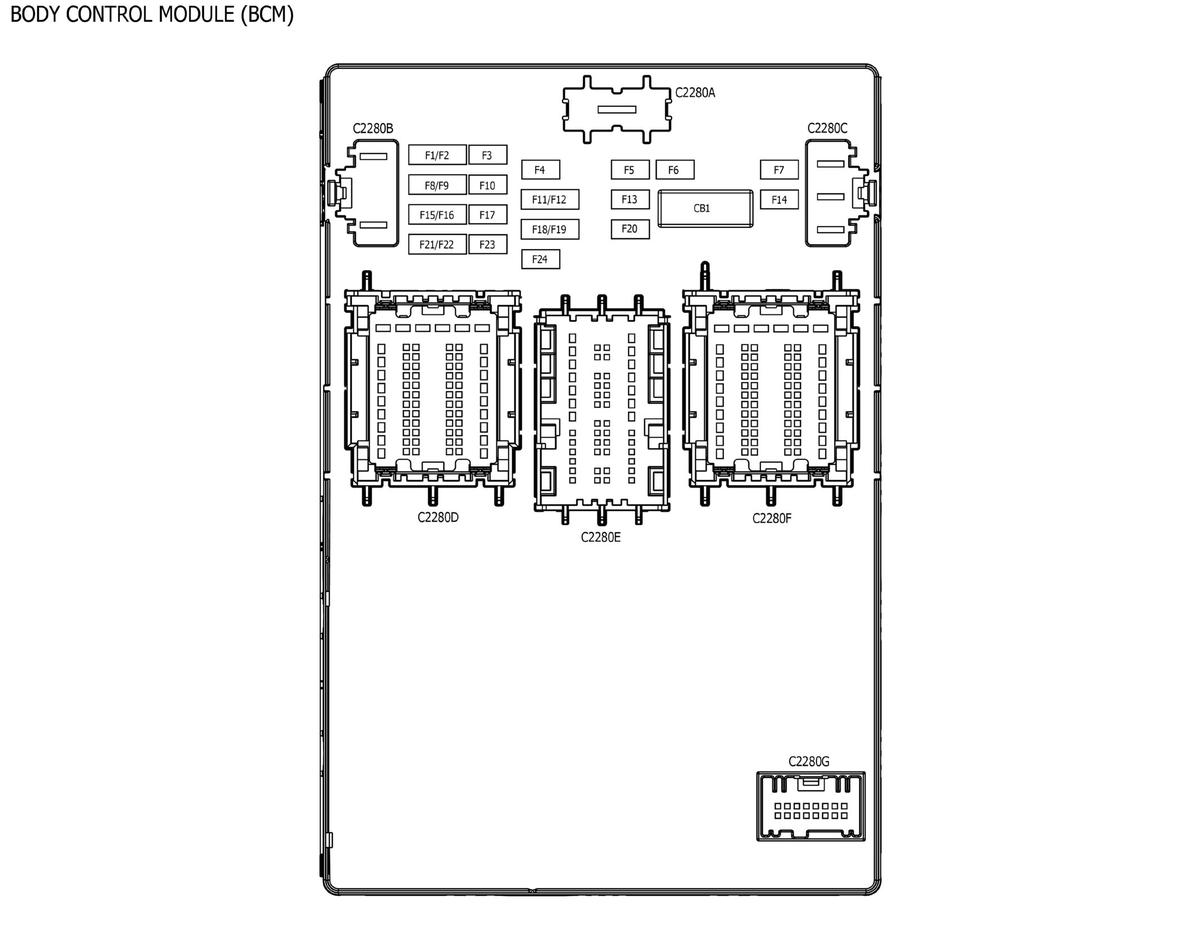

Fig 5: Body Control Module (BCM)
GFDWR137101Courtesy of FORD MOTOR COMPANY

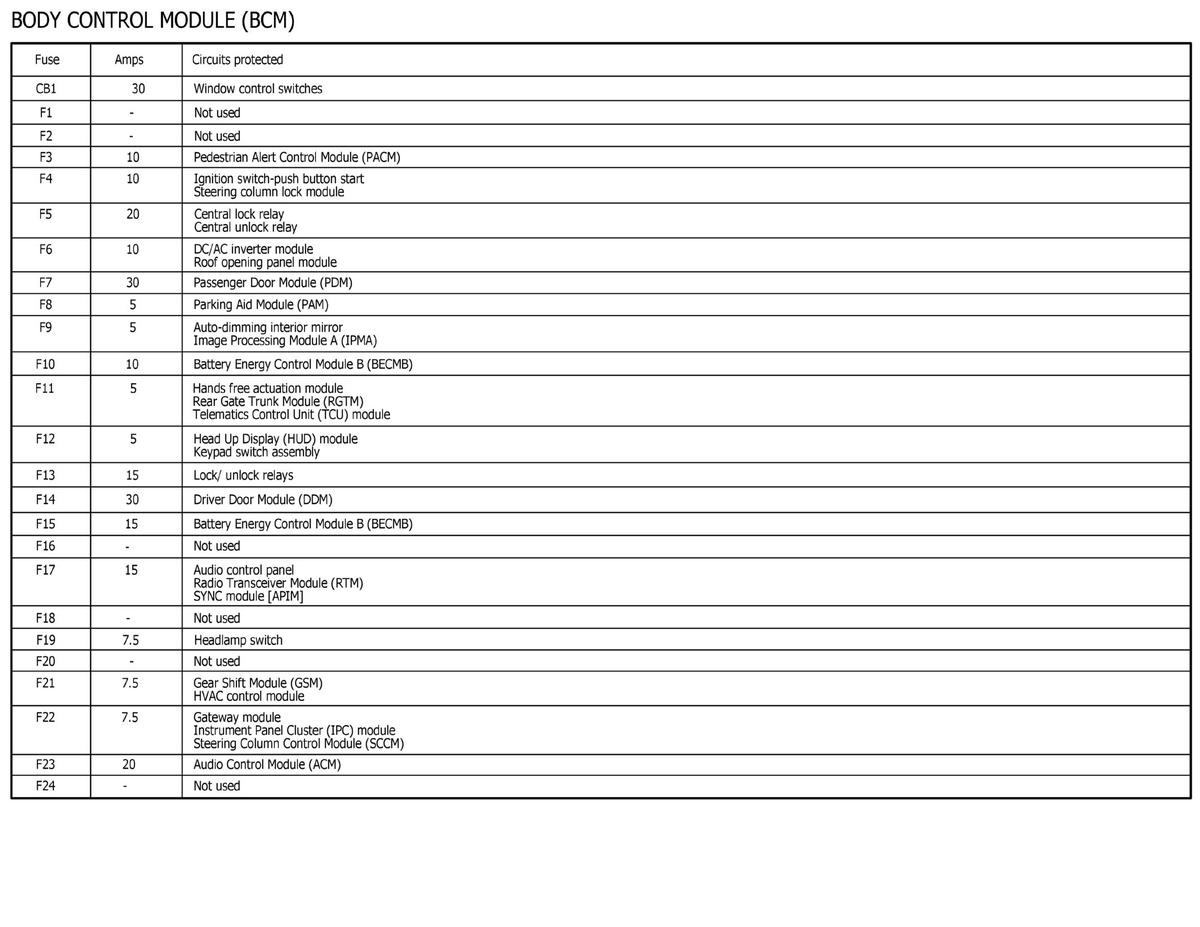

Fig 6: Body Control Module Connector Chart (BCM)
GFDWR137102Courtesy of FORD MOTOR COMPANY

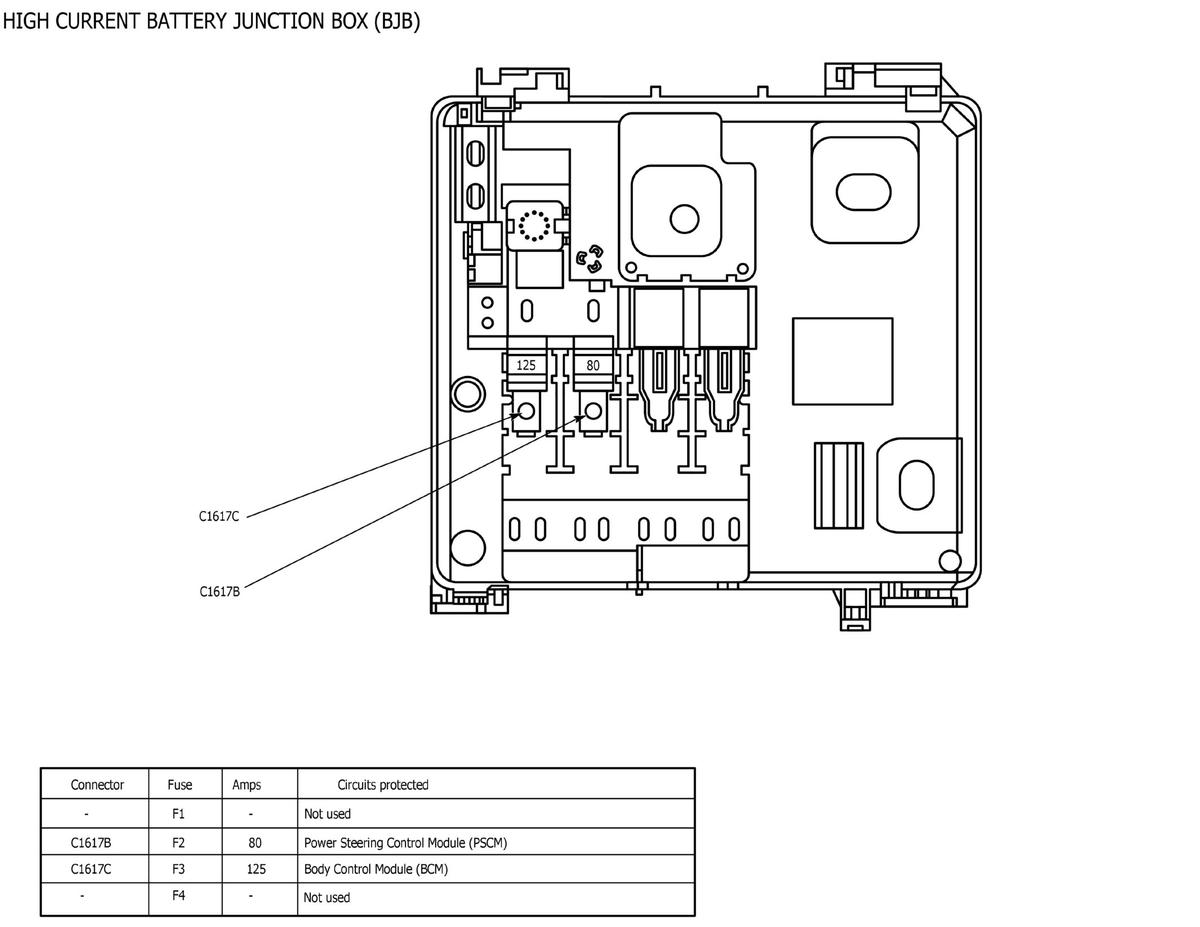

Fig 7: High Current Battery Junction Box (BJB)
GFDWR137103Courtesy of FORD MOTOR COMPANY

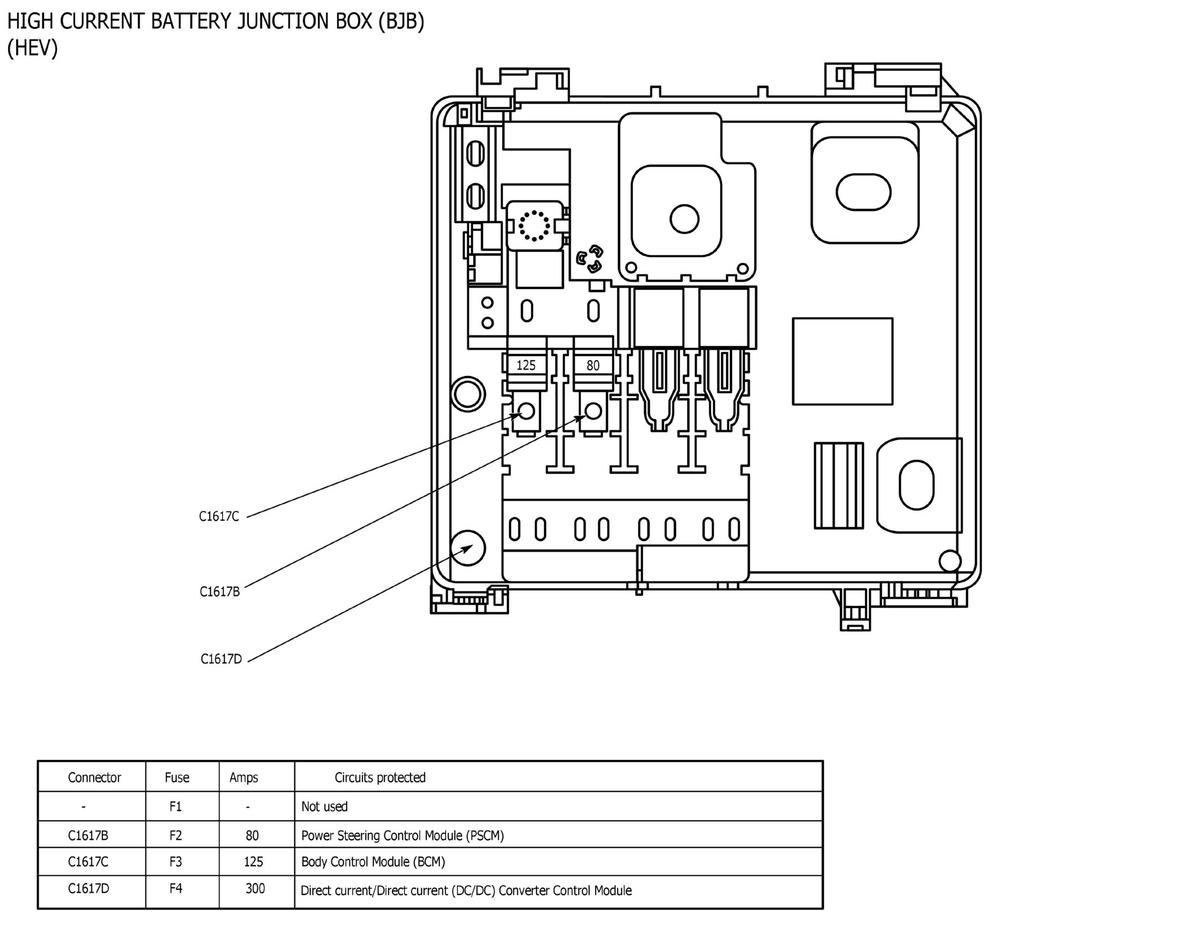

Fig 8: High Current Battery Junction Box (HEV) (BJB)
GFDWR137104Courtesy of FORD MOTOR COMPANY
