Axle Assembly: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation instructions.
- Remove the rear halfshafts. Refer to: Rear Halfshaft
- Remove the muffler and tail pipe. Refer to: Muffler and Tailpipe - 4WD . Refer to: Muffler and Tailpipe . Refer to: Muffler and Tailpipe - Plug-In Hybrid Electric Vehicle (PHEV)
- Separate the driveshaft from the drive pinion flange.
-
NOTE: Make sure that the component aligns with the installation mark.

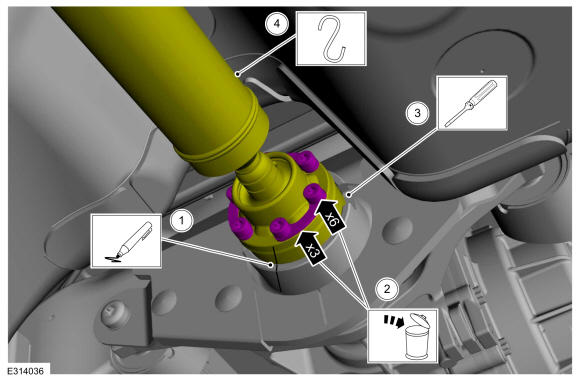

Index-mark the driveshaft flange and the RDU companion flange to maintain alignment during installation.
- Remove and discard the driveshaft to drive pinion companion flange bolts and the retaining straps.
Torque: 26 lb.ft (35 Nm)
-
NOTE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube. Damage to the CV-joint can result.
Using a general equipment, separate the driveshaft from the drive pinion flange. Use the General Equipment: Flat-Bladed Screwdriver
- Position aside and support the rear driveshaft.
-

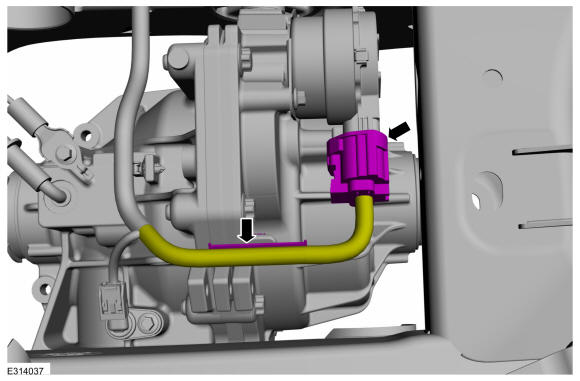

- Disconnect the RDU actuator motor electrical connector and detach wiring harness retainer.

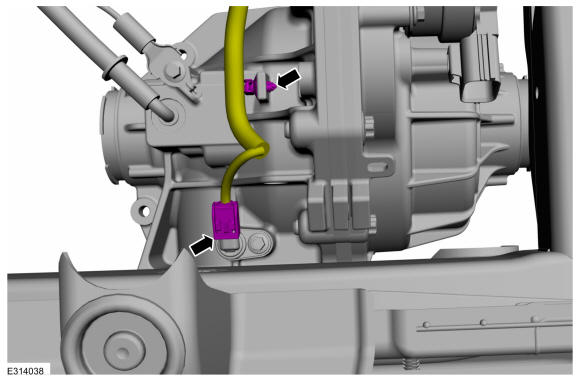

- Disconnect the RDU speed sensor electrical connector and detach wiring harness retainer.
-

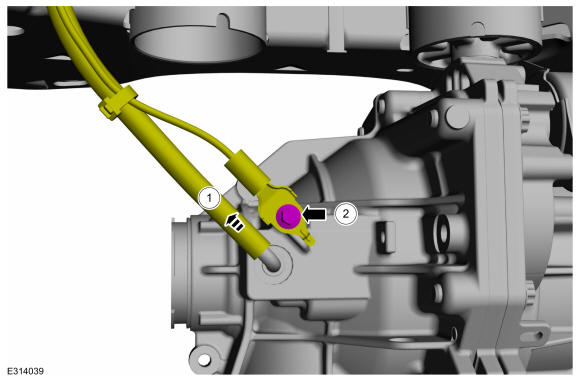

- Remove the rear differential vent hose from RDU and position aside.
- Remove the bolt and position the ground cable aside.
Torque: 106 lb.in (12 Nm)

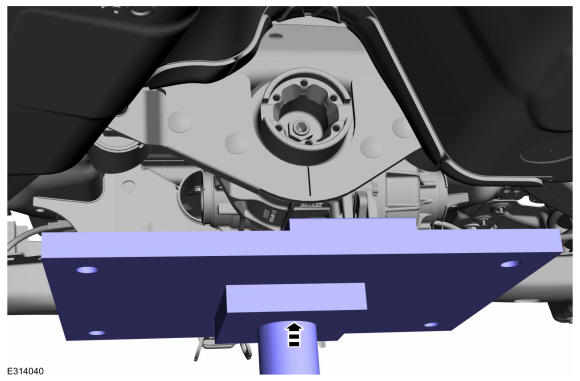

- Position a transmission jack and wooden block to secure the RDU. Use the General Equipment: Transmission Jack / Use the General Equipment: Wooden Block

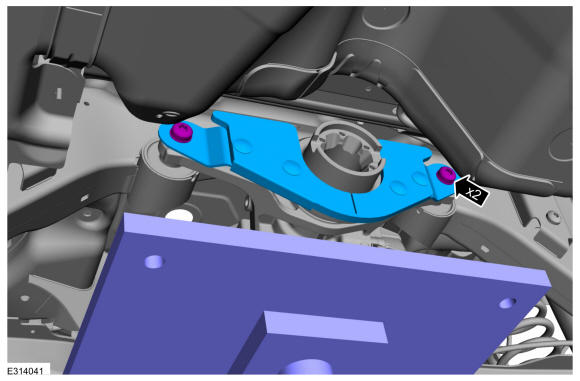

- Remove the front RDU mounting bolts and the RDU protection shield. Use the General Equipment: Transmission Jack / Use the General Equipment: Wooden Block
Torque: 76 lb.ft (103 Nm)

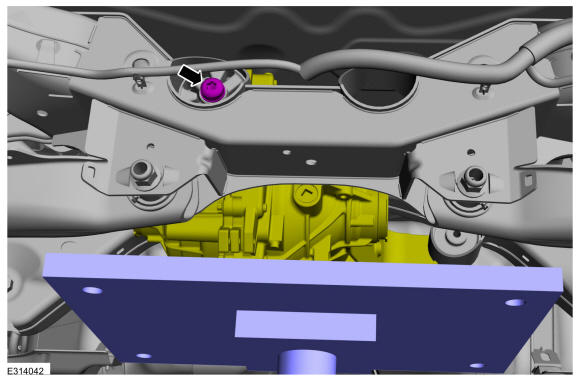

- Remove the rear RDU mounting bolt.
Torque: 76 lb.ft (103 Nm)

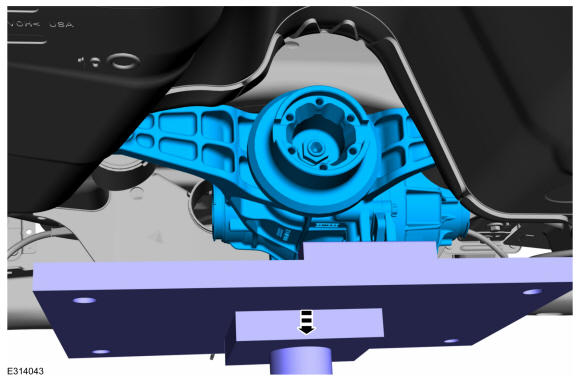

- Lower the transmission jack and remove the rear axle assembly. Use the General Equipment: Transmission Jack
