Windshield Wiper Motor: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the wiper linkage assembly. Refer to: Wiper Linkage Assembly .
-
NOTE: Be careful not to damage the link seals during removal. Failure to follow this instruction may result in poor windshield wiper performance.
Detach the RH windshield wiper link from the windshield wiper motor crank.
- Detach the link.
- Position the link aside.
-
NOTE: Be careful not to damage the link seals during removal. Failure to follow this instruction may result in poor windshield wiper performance.
Detach the LH windshield wiper link from the windshield wiper motor crank.
- Detach the link.
- Position the link aside.
- Remove the windshield wiper motor bolts and motor clamp plates.
Torque: 89 lb.in (10 Nm)

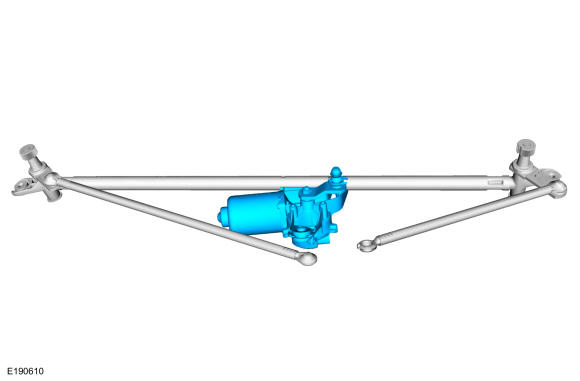

- Remove the windshield wiper motor from the wiper linkage assembly.
