Removal And Installation: Clockspring: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If installing a new clockspring, do not remove the clockspring anti-rotation key until the steering wheel is installed. If the anti-rotation key has been removed before installing the steering wheel, the clockspring must be centered. Failure to follow this instruction may result in component damage and/or system failure.
  1. To install, reverse the removal procedure.
  2. NOTE: This step is only necessary if adjustment or centralizing is required.

    Adjust the clockspring. Refer to: Clockspring Adjustment .

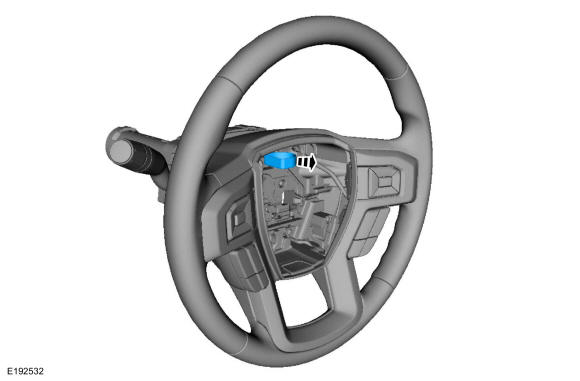

  3. NOTE: To install, remove the anti-rotation key from a new clockspring after installing the steering wheel.

    Install the steering wheel. Refer to: Steering Wheel .

GFD207141Courtesy of FORD MOTOR COMPANY
