Keyless Entry Keypad: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door upper moulding. Refer to: Front Door Upper Moulding .
  2. Remove the keyless entry keypad.

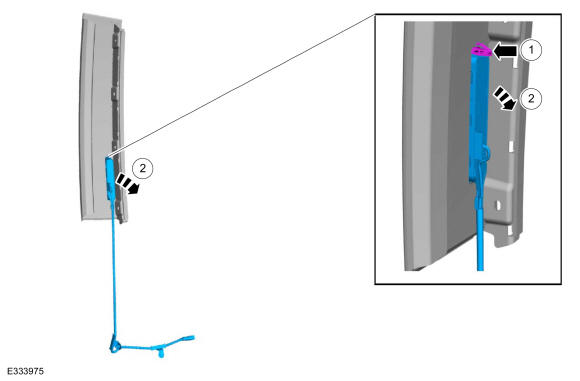

    1. Release the retaining tabs on the keyless entry keypad.
    2. Remove the keyless entry keypad from the front door upper moulding.

GFD562124Courtesy of FORD MOTOR COMPANY
