Keyless Entry Keypad: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door upper moulding. REFER to: Front Door Upper Moulding .

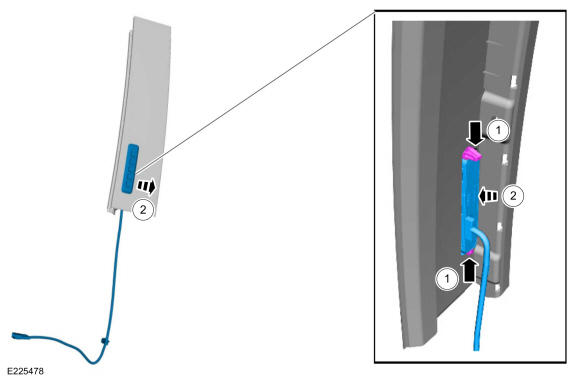

  2. Remove the keyless entry keypad.

    1. Release the retaining tabs on the keyless entry keypad.
    2. Remove the keyless entry keypad from the front door upper moulding.

GFD206874Courtesy of FORD MOTOR COMPANY
