Removal And Installation: Halfshaft: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

If the LH halfshaft is removed, replace the LH axle shaft seal.

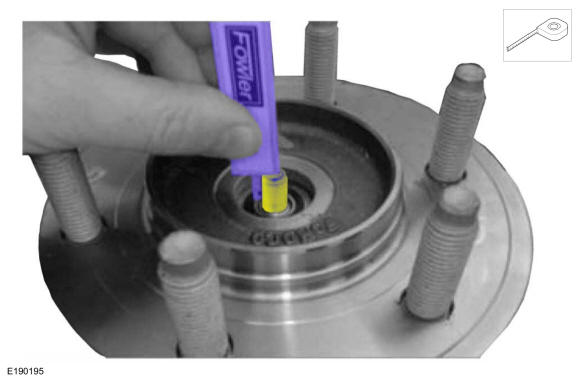

NOTE: Measure the depth of the CV shaft threaded end to the inner bearing race (shown in illustration). The minimum depth is 15.5 mm (0.61 in). If the depth is less than 15.5 mm (0.61 in) rotate the CV shaft to clear a binding condition between the IWE and CV splines. Installing the axle nut and tightening without the proper depth of protrusion will result in damage to the IWE.

When installing the halfshaft, measure the CV shaft threaded end to the inner bearing race.

Courtesy of FORD MOTOR COMPANY
NOTE: Verify the spline engagement by checking for spline lash before installing the wheel hub nut or component damage may occur.

NOTE: With vacuum still applied to the IWE.

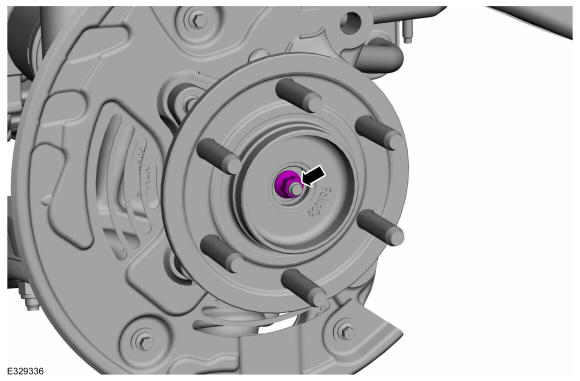

1. Install the new the axle nut.
  Torque

  : 30 lb.ft (40 Nm)
2. Verify free rotation of the hub with no CV joint rotation. No clicking or grinding noise should be present.
3. Release vacuum and rotate bearing slightly to engage actuator (may hear single click when IWE system engages). Verify hub and CV joint rotate together.
Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
Check the front differential fluid level. Refer to: Differential Fluid Level Check .
