Front Driveshaft: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Clean and inspect the boot. If required replace the boot.
NOTE: Make sure that the mating faces are clean and free of foreign material.

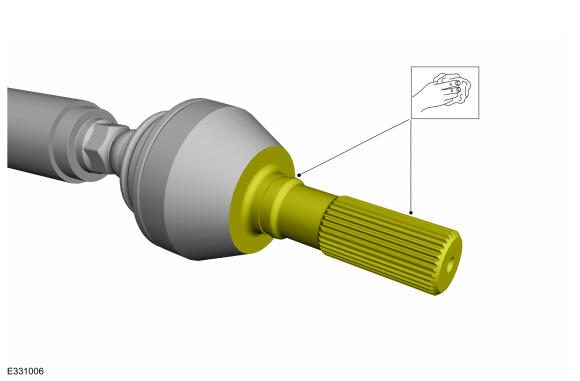

Clean the debris or contamination of the splines.

Courtesy of FORD MOTOR COMPANY

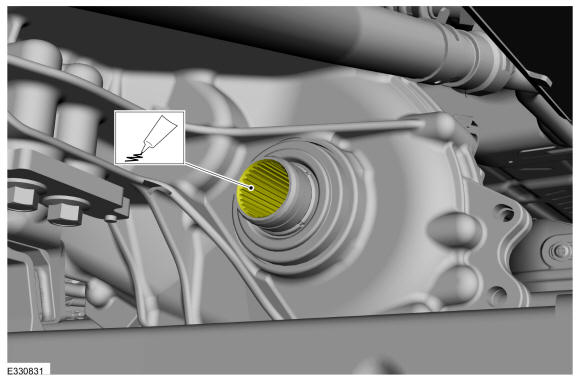

Lubricate the transfer case plug-on yoke splines with grease.

Courtesy of FORD MOTOR COMPANY

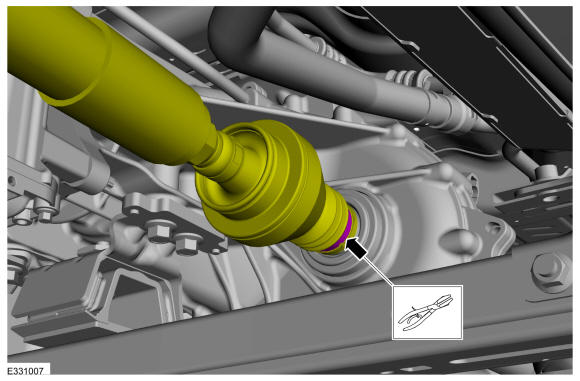

Insert the front driveshaft into the transfer case plug-on yoke and secure the boot clamp.
Use the General Equipment: Crimping Tool

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new components are installed.

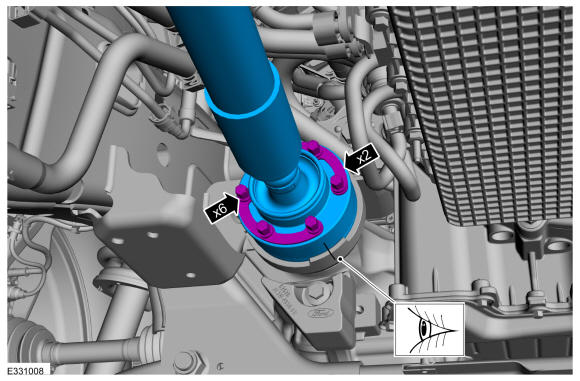

- Align the index-mark on the driveshaft and pinon flange.
- Fit the driveshaft into the drive pinion flange.
- Install the new front driveshaft CV joint-to-pinion flange cup retaining straps and bolts.
  Torque

  : 41 lb.ft (55 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new nuts are installed.

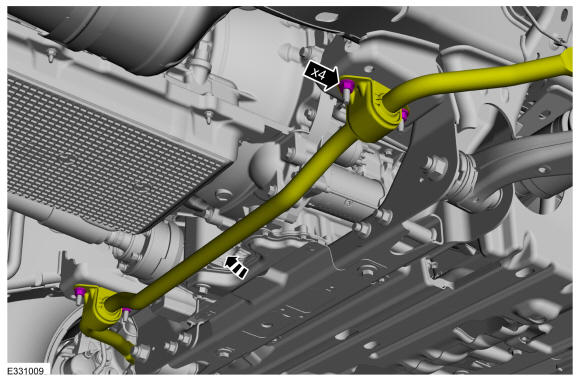

Swing the stabilizer bar upward and install the new stabilizer bar bracket nuts.

Torque

: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

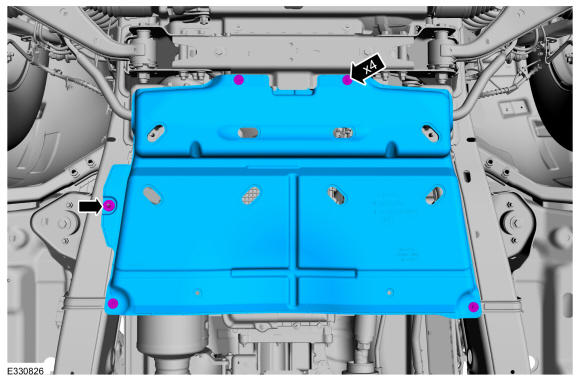

If equipped. Install the transmission shield and the bolts.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

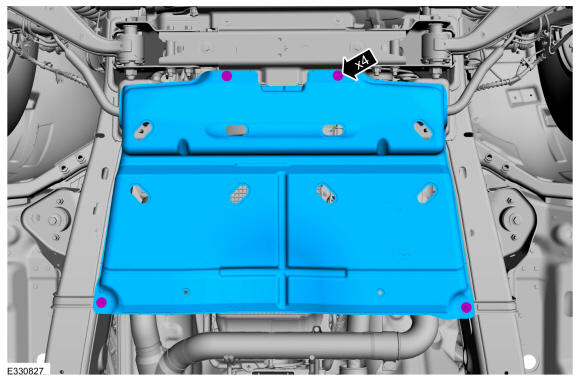

If equipped. Install the transmission shield, nut and bolts.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
