Adjustable Pedal Indexing

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

NOTE: The adjustable pedal system must be indexed whenever the brake pedal assembly or accelerator pedal assembly is installed or damage to the components may result.

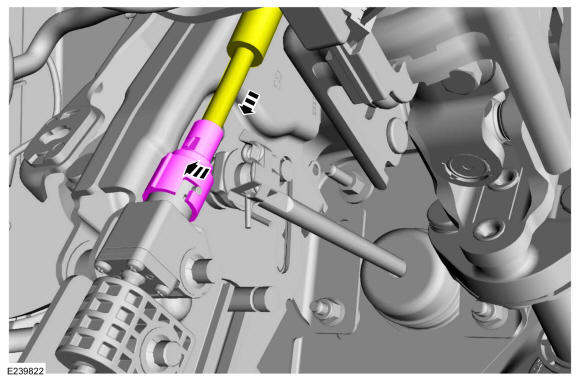

Disconnect the adjustable pedal motor drive cable from the adjustable brake pedal drive.

Courtesy of FORD MOTOR COMPANY

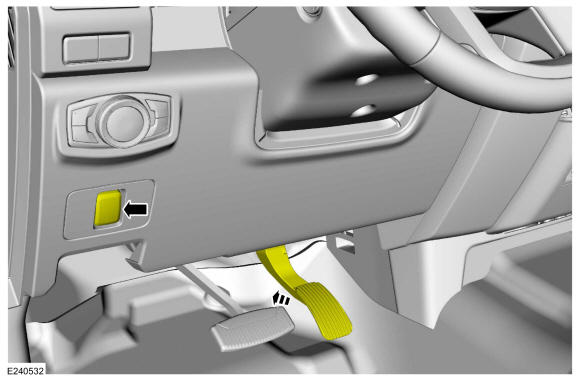

Operate the accelerator pedal to the full rearward position.

Courtesy of FORD MOTOR COMPANY
Connect the adjustable pedal motor drive cable to the adjustable brake pedal drive.

Courtesy of FORD MOTOR COMPANY

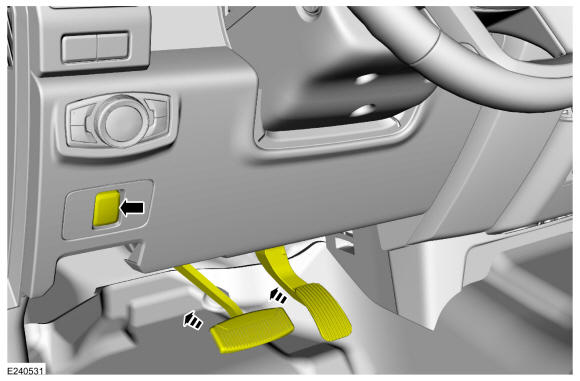

Operate the adjustable pedals to the full forward position.

Courtesy of FORD MOTOR COMPANY
Disconnect the adjustable pedal motor drive cable to the adjustable brake pedal drive.

Courtesy of FORD MOTOR COMPANY

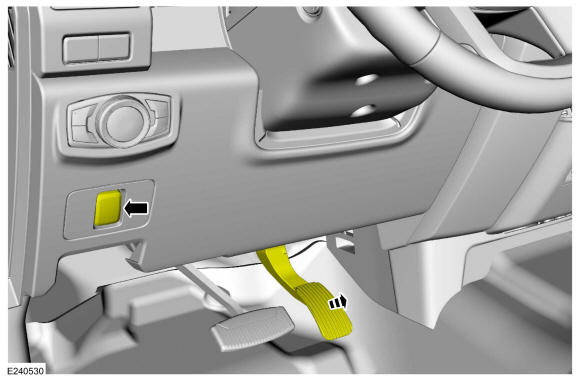

Operate the adjustable accelerator pedal to the full forward position.

Courtesy of FORD MOTOR COMPANY
Connect the adjustable pedal motor drive cable to the adjustable brake pedal drive.
- Check that the brake and accelerator pedals can be fully adjusted forward and rearward.

Courtesy of FORD MOTOR COMPANY
