Front Bumper: Disassembly

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Disassembly steps in this procedure may contain assembly details.

Remove the front bumper. Refer to: Front Bumper .

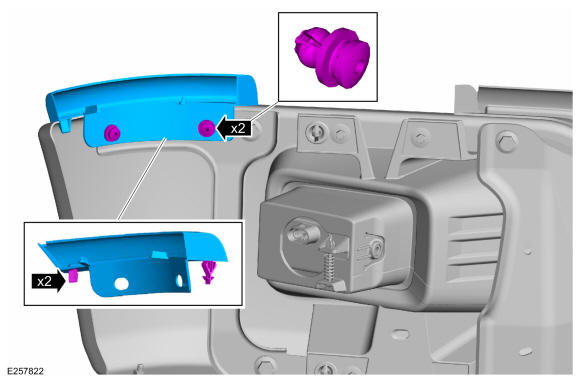

On both sides. Remove the scrivets, release the clips and remove the front bumper side valence panel.

Courtesy of FORD MOTOR COMPANY

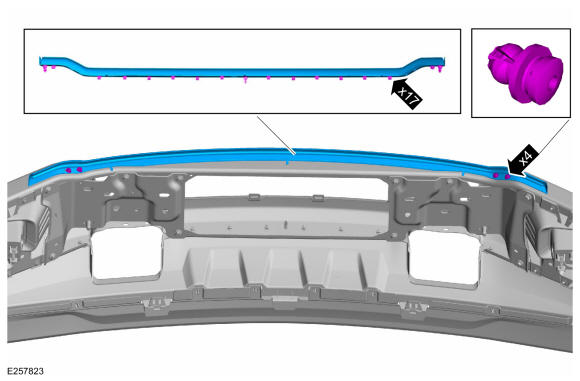

Remove the scrivets, release the clips and remove the front bumper upper valence panel.

Courtesy of FORD MOTOR COMPANY

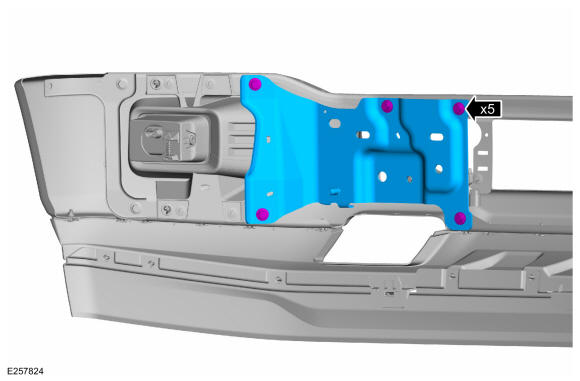

On both sides. Remove the bolts and the front bumper bracket.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

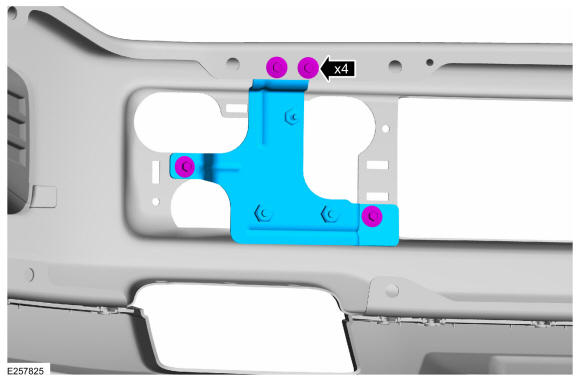

Remove the bolts and the CCM bracket.
Torque

: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

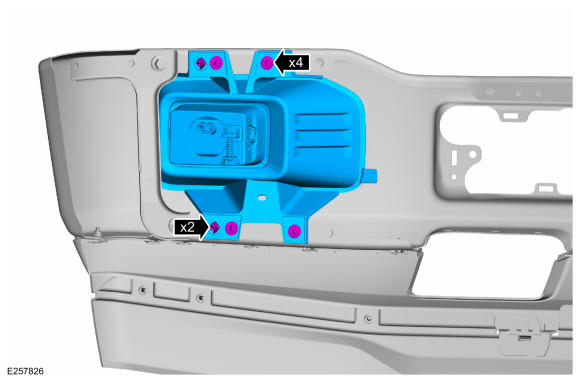

On both sides. Remove the bolts, push pins and the fog lamp assembly.
Torque

: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

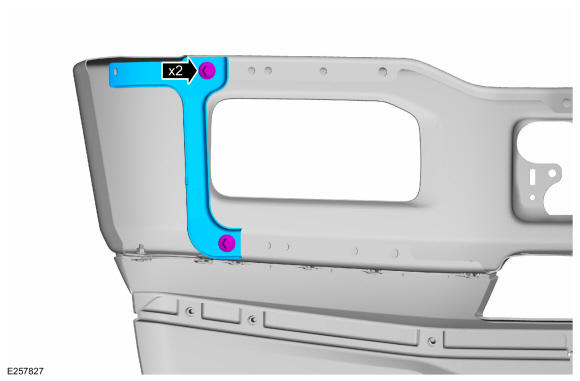

On both sides. Remove the bolts and the front bumper outer bracket.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

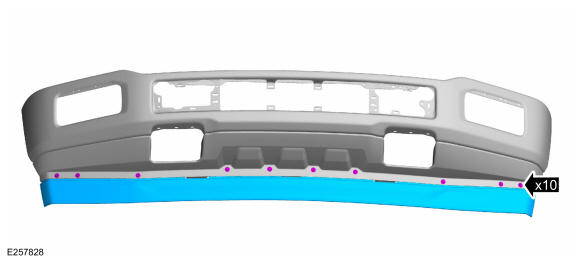

Remove the bolts and the front bumper lower valence panel.
Torque

: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

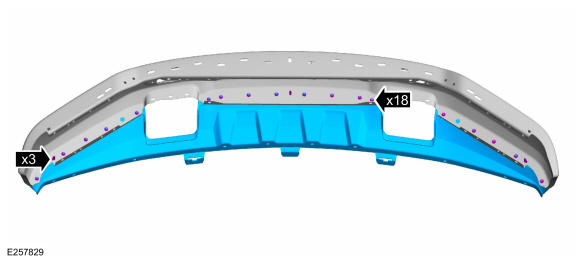

Remove the nuts, push pins and the front bumper valence.
Torque

: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY
