Steering Column: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.
NOTE: Precise tolerances are required when manufacturing a steering column. Never install a repaired, rebuilt, aftermarket, or remanufactured steering column. Always install a new steering column. Failure to follow this direction can result in steering column failure.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. NOTE: Push button start vehicle shown, all others similar.

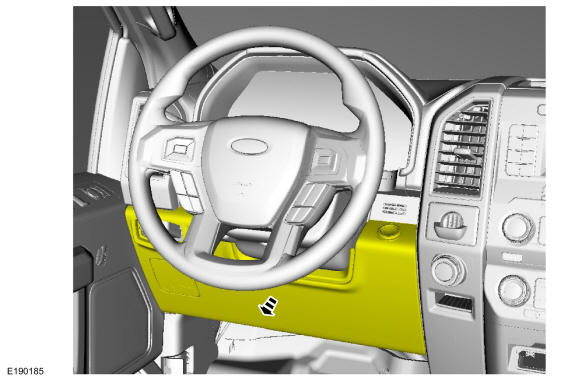

    Lower the steering column opening trim panel.

    GFD458643Courtesy of FORD MOTOR COMPANY

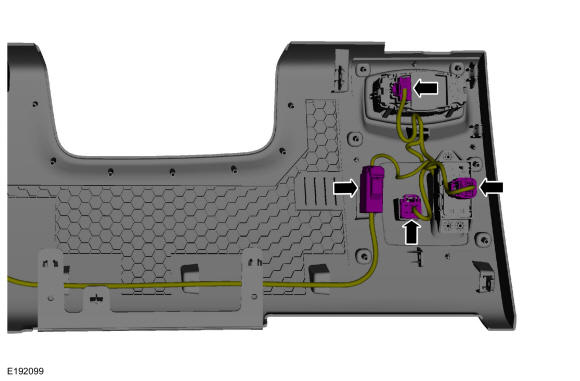

  2. Disconnect the electrical connector(s).
    GFD458644Courtesy of FORD MOTOR COMPANY
  3. NOTE: Push button start vehicle shown, all others similar.

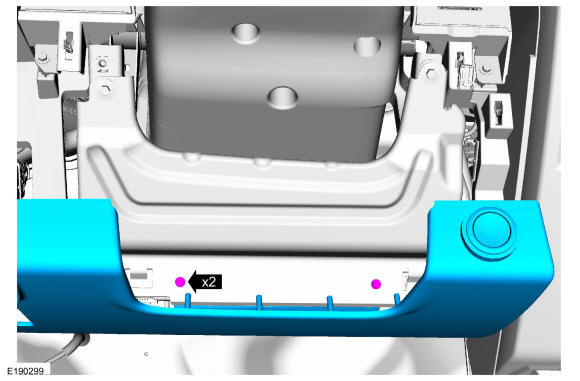

    Remove the screws and the steering column opening trim panel.

    Torque: 80 lb.in (9 Nm)

    GFD458645Courtesy of FORD MOTOR COMPANY

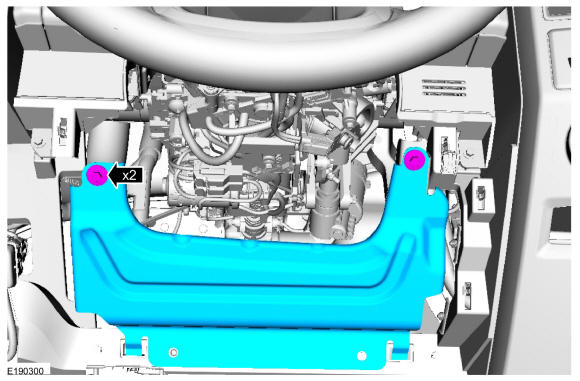

  4. Remove the bolts and the steering column reinforcement panel.

    Torque: 80 lb.in (9 Nm)

    GFD458646Courtesy of FORD MOTOR COMPANY
  5. Remove the SCCM. Refer to: Steering Column Control Module (SCCM) .

    Vehicles with selector lever

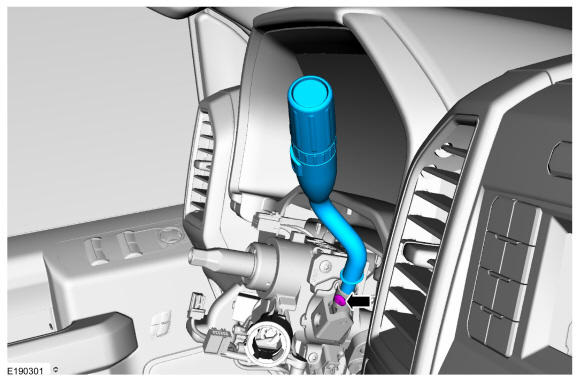

  6. Remove the screw and the selector lever.

    Torque: 159 lb.in (18 Nm)

    GFD458647Courtesy of FORD MOTOR COMPANY

    All vehicles

  7. NOTE: Vehicles equipped with power adjustable steering column shown, all others similar.

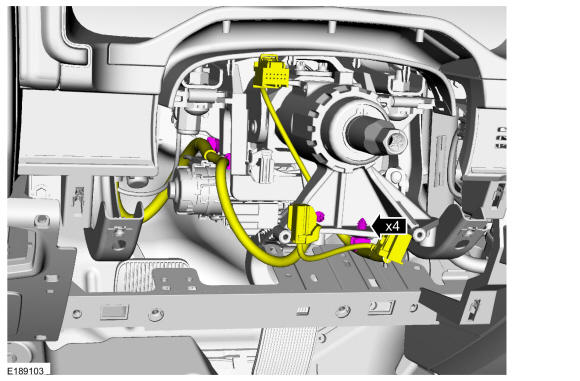

    Release the retainers and position the wire harness aside.

    GFD458648Courtesy of FORD MOTOR COMPANY

    Vehicles with power adjustable steering column

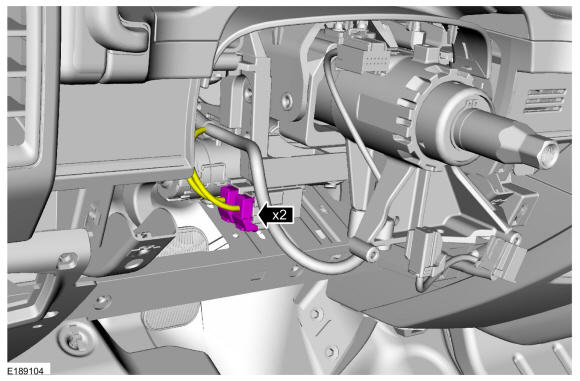

  8. Disconnect the power tilt motor and power telescopic motor electrical connectors.
    GFD458649Courtesy of FORD MOTOR COMPANY

    All vehicles

  9. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

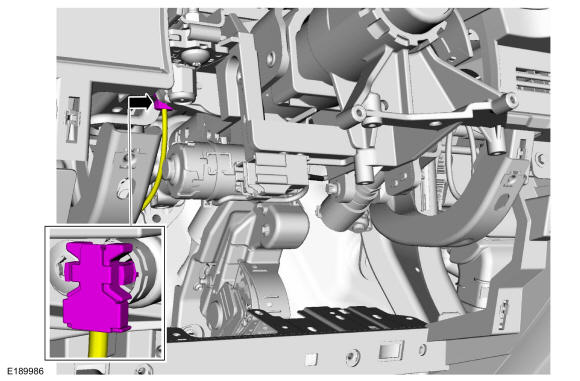

  10. Disconnect the deployable column electrical connector.
    GFD458650Courtesy of FORD MOTOR COMPANY
  11. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

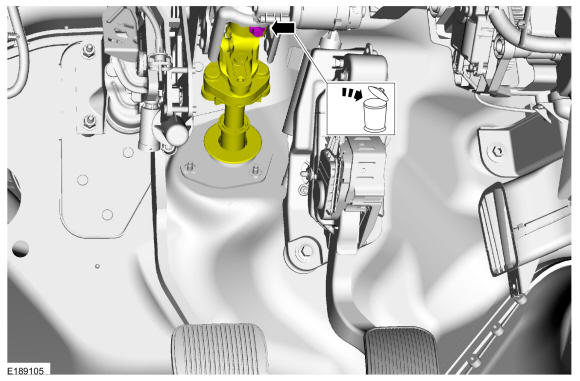

    Remove and discard the bolt and disconnect the upper steering column shaft.

    Torque: All models except Raptor: 22 lb.ft (30 Nm) Raptor: 41 lb.ft (55 Nm)

    GFD458651Courtesy of FORD MOTOR COMPANY

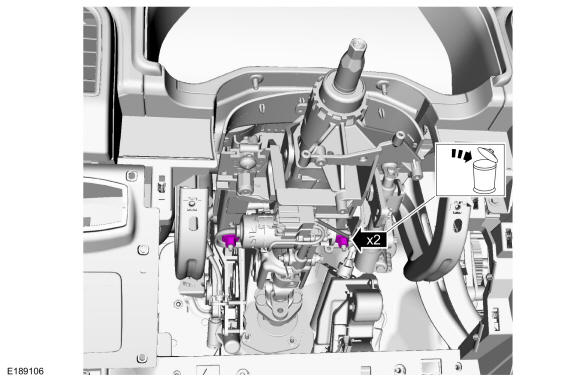

  12. WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the nuts.

    Torque: 22 lb.ft (30 Nm)

    GFD458652Courtesy of FORD MOTOR COMPANY

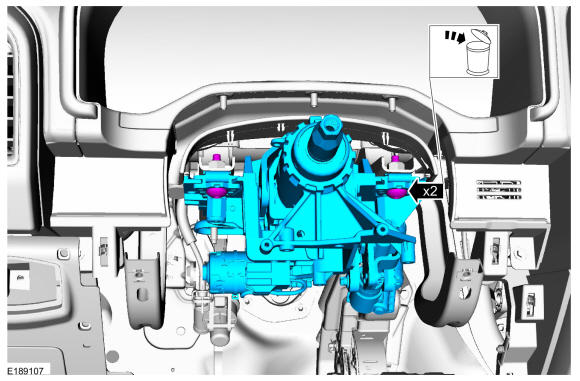

  13. Remove and discard the bolts and remove the steering column.

    Torque: 21 lb.ft (28 Nm)

GFD458653Courtesy of FORD MOTOR COMPANY
