Instrument Panel: Removal

All vehicles

1. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
2. Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .
3. Release the clips and remove the LH instrument panel finish panel.
   • Position aside the weather strip.

     Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

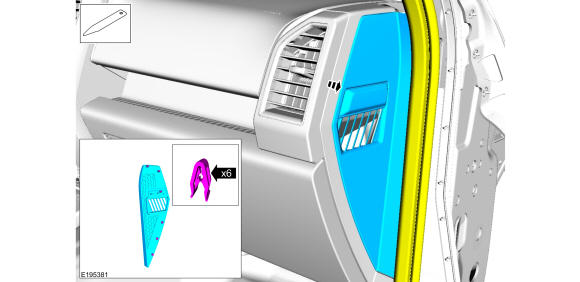

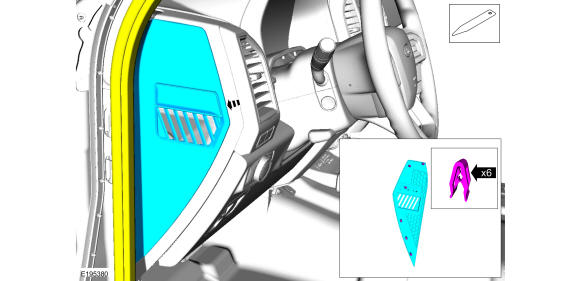

4. Release the clips and remove the RH instrument panel finish panel.
   • Position aside the weather strip.

     Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

5. NOTE: On both sides.

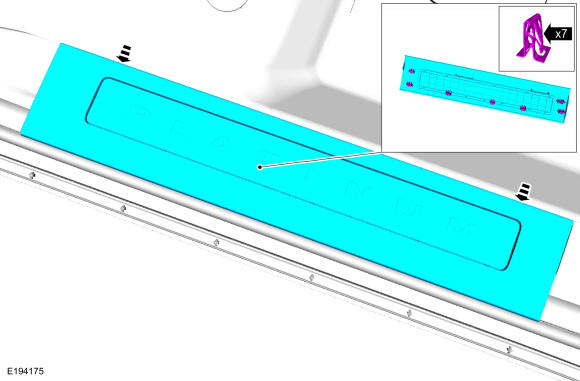

   Release the clips and remove the scuff plate.

   Courtesy of FORD MOTOR COMPANY

6. 1. Position aside the weather strip.
   2. Release the clips and remove the LH lower cowl trim panel.

   Courtesy of FORD MOTOR COMPANY

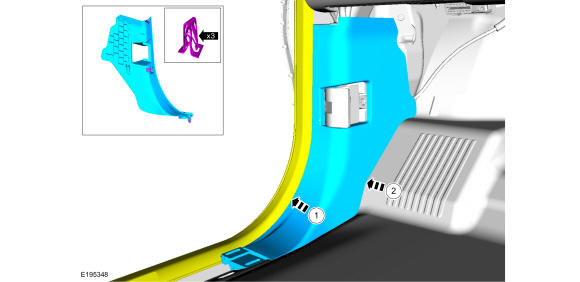

7. 1. Position aside the weather strip.
   2. Remove the access cover.
   3. Release the clips and remove the RH lower cowl trim panel.

   Courtesy of FORD MOTOR COMPANY

8. Remove both front seats. Refer to: Front Seat .
9. If equipped, remove the front center seat. Refer to: Front Center Seat .

   Vehicles with floor console.

10. Remove the floor console. Refer to: Floor Console .

    Vehicles without floor console

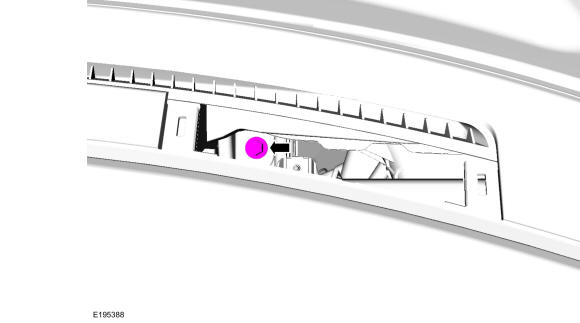

11. Remove bolt and the instrument panel lower trim panel.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

12. NOTE: Push button start vehicle shown in illustration, all others similar.

    Lower the steering column opening trim panel.

    Courtesy of FORD MOTOR COMPANY

13. Detach the harness retainers and disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

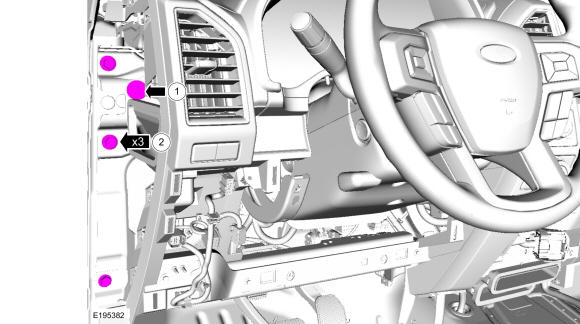

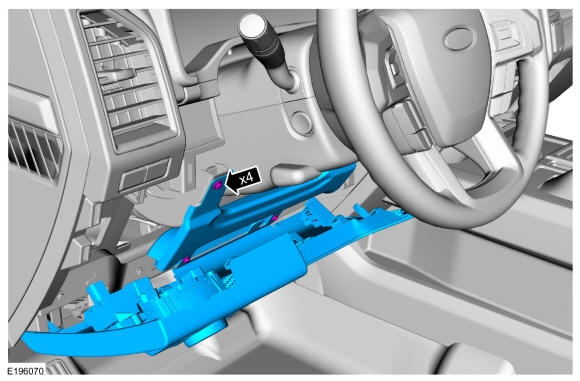

14. Remove the 4 bolts and the steering column opening trim panel and reinforcement.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

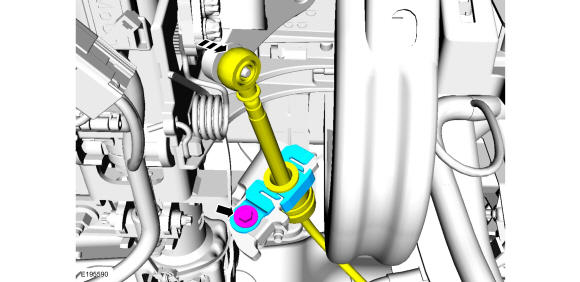

15. NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown in illustration to pry the cable end off the post as close to the post as possible.

    Remove the bolt and position aside the selector lever cable.

    Torque: 31 lb.in (3.5 Nm)

    Courtesy of FORD MOTOR COMPANY

16. Disconnect the selector lever cable retainer.

    Courtesy of FORD MOTOR COMPANY

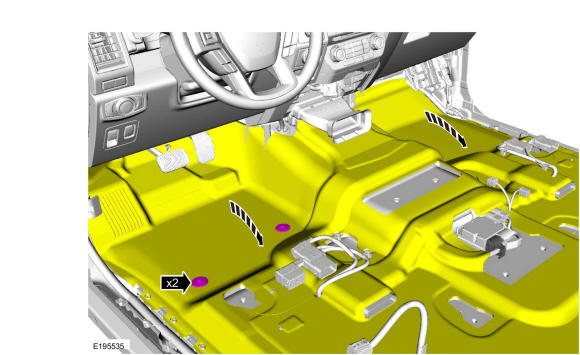

17. Remove the retainers and position the floor covering rearward.

    Courtesy of FORD MOTOR COMPANY

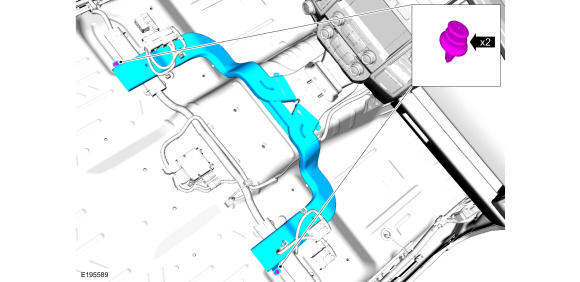

18. Release the retainers and remove the floor duct.

    Courtesy of FORD MOTOR COMPANY

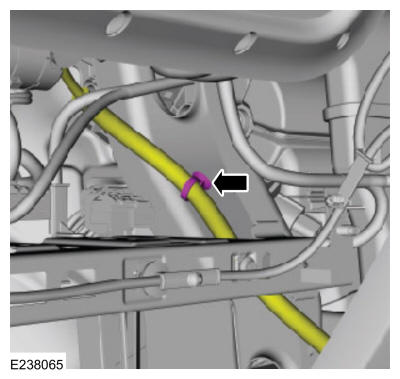

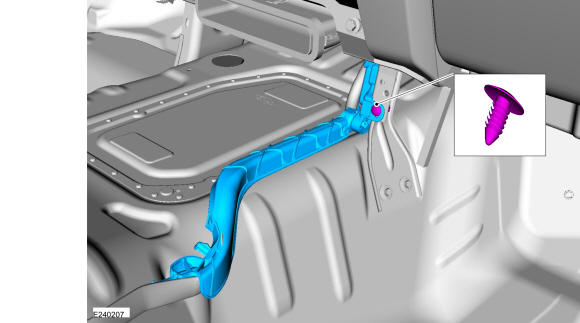

19. If equipped, release the push pin, cut the zip ties and remove the harness cover.

    Courtesy of FORD MOTOR COMPANY

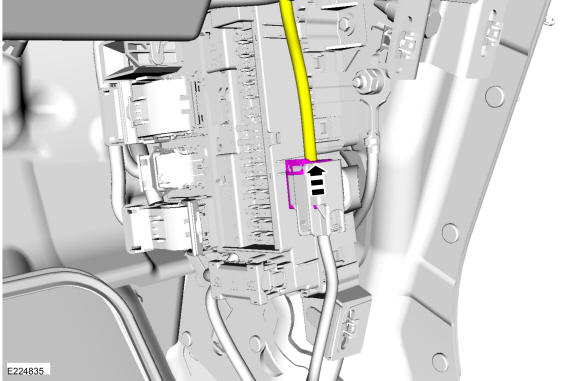

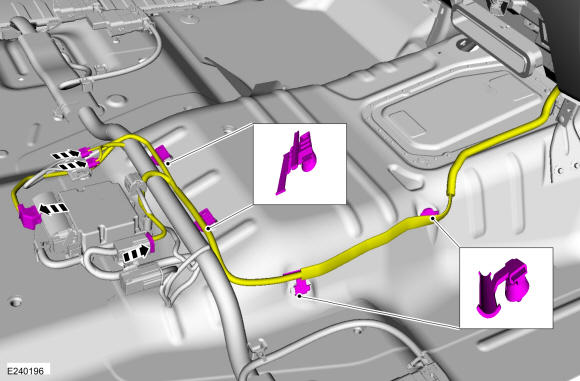

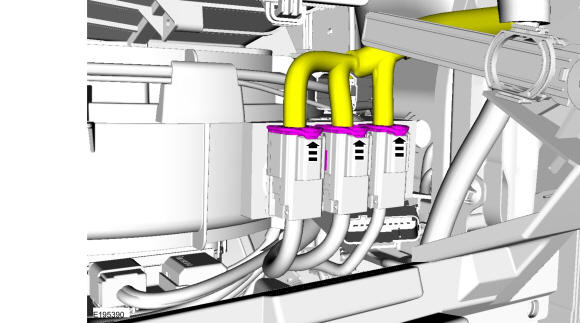

20. Disconnect the electrical connectors, release the retainers and position aside the harness.

    Courtesy of FORD MOTOR COMPANY

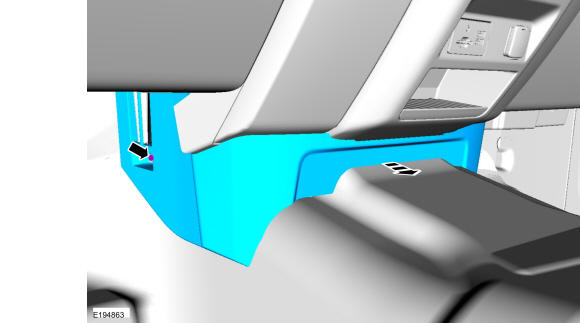

21. NOTE: Located on RH lower instrument panel.

    Release the retainers and remove the insulation panel.

    Courtesy of FORD MOTOR COMPANY

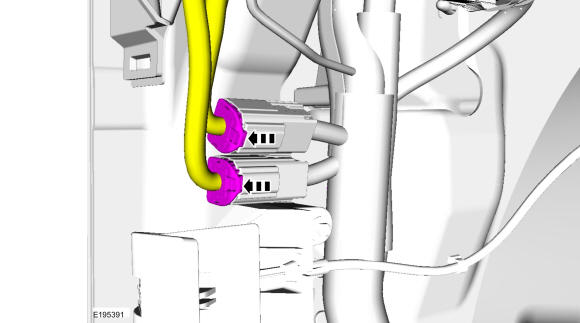

22. Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

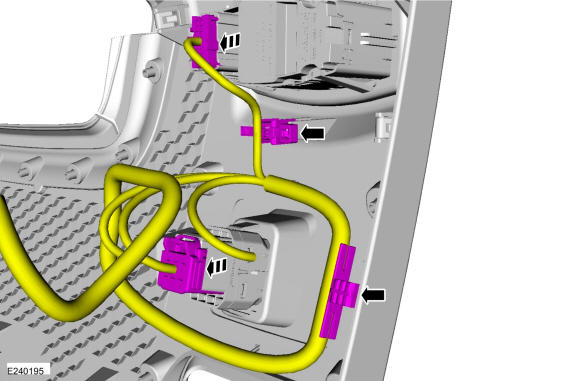

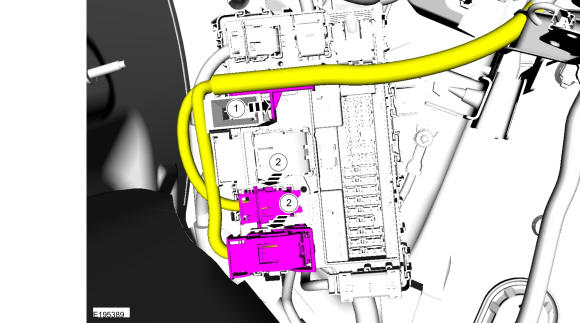

23. 1. Release the harness retainer.
    2. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

24. Remove the glove compartment door. Refer to: Glove Compartment .
25. NOTE: Located behind glove compartment door.

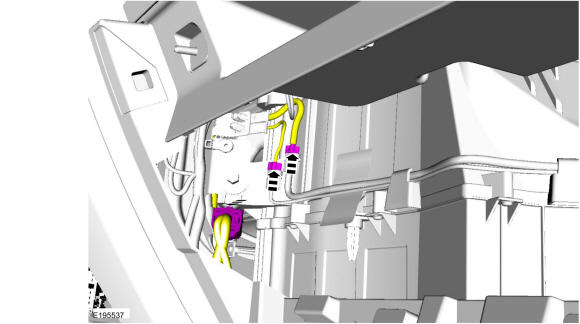

    Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

26. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

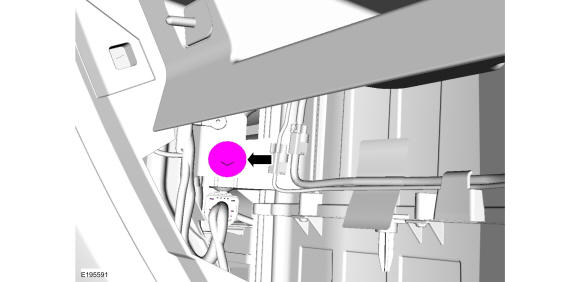

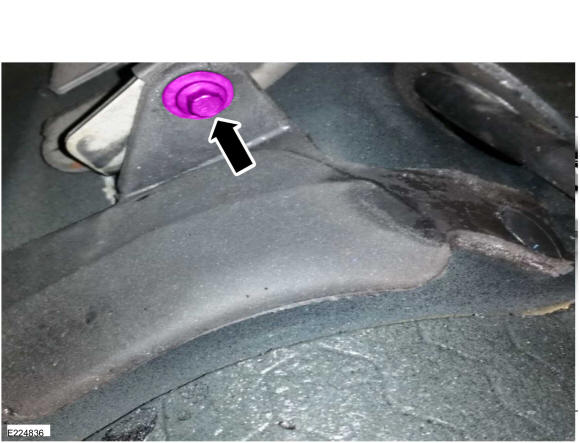

27. Remove the bolt.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

28. NOTE: located on LH lower cowl.

    Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

29. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result.

    Remove and discard the bolt and disconnect the upper steering column shaft.

    Torque: 21 lb.ft (28 Nm)

    Courtesy of FORD MOTOR COMPANY

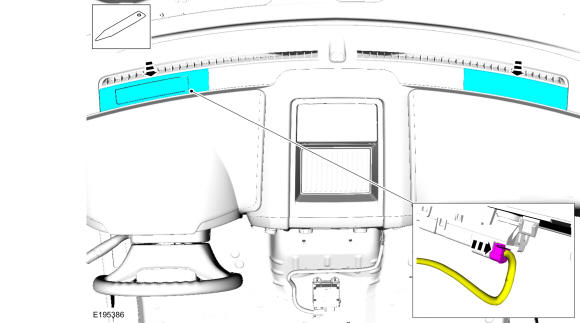

30. Remove the instrument panel access panel.
    • If equipped, disconnect the electrical connector.

      Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

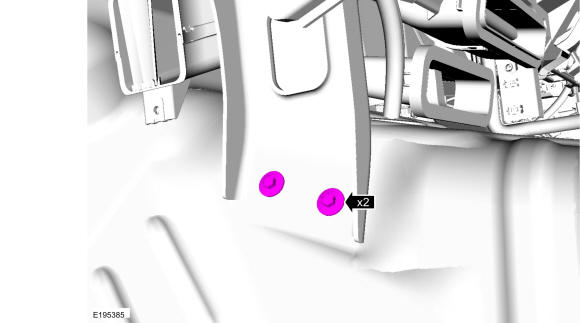

31. Remove the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

32. Remove the bolt.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

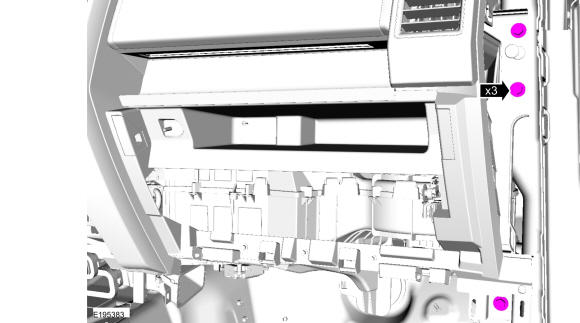

33. Remove the RH bolts.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

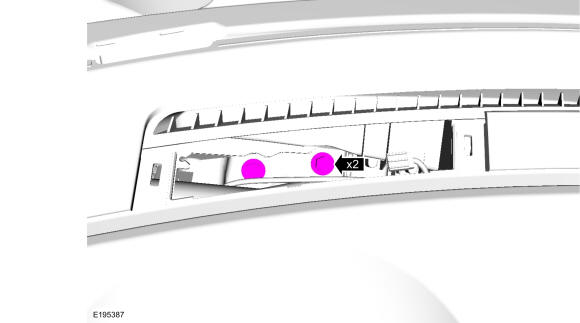

34. If equipped, remove the bolt at the rubber pad.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

35. Remove the LH bolts.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

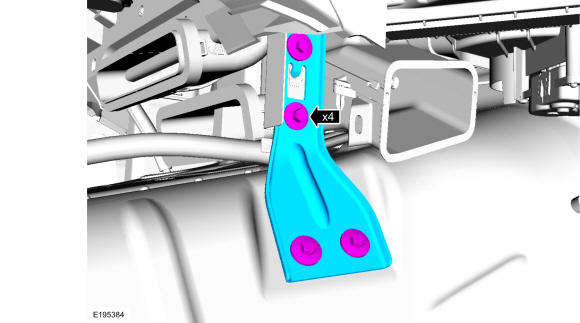

36. 1. Remove the bolt.

       Torque: 18 lb.ft (25 Nm)

    2. Remove the bolts.

       Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

37. Remove the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

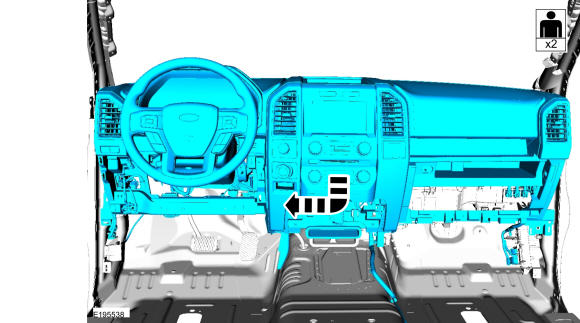

38. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Rotate the instrument panel face down and remove through the LH front door opening.

Courtesy of FORD MOTOR COMPANY
