Climate Controlled Seats

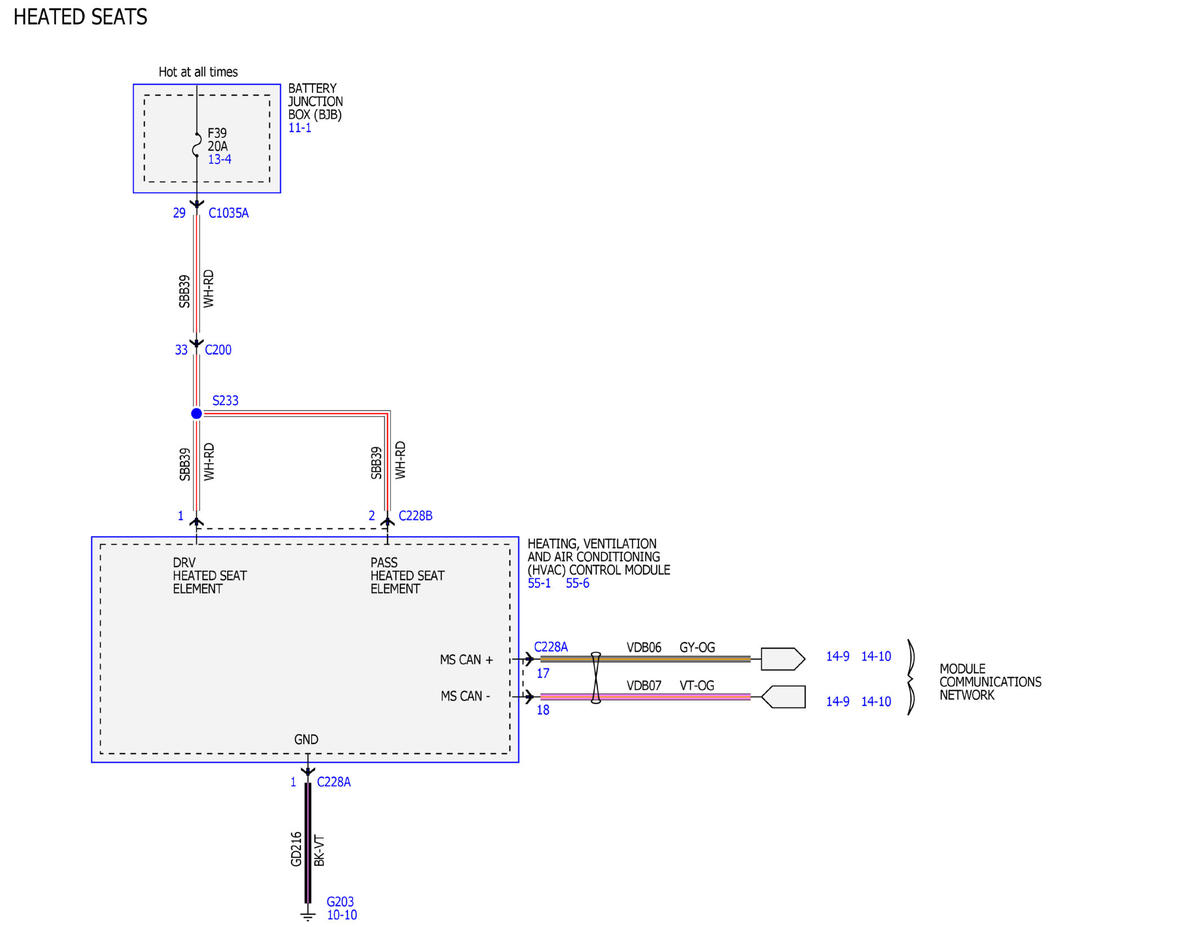

Fig 1: Climate Controlled Seats Wiring Diagram (1 Of 3)
GFDWR137162Courtesy of FORD MOTOR COMPANY

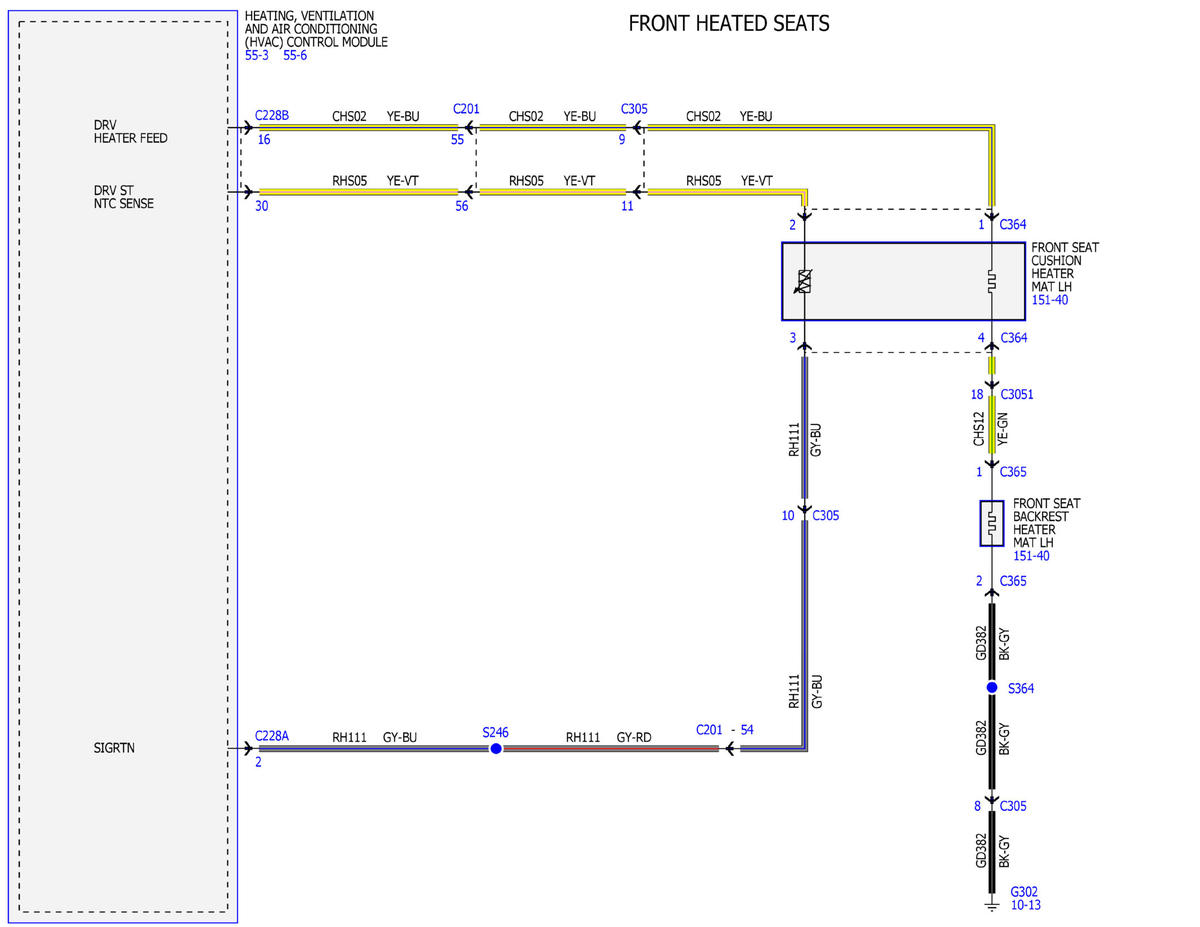

Fig 2: Climate Controlled Seats Wiring Diagram (2 Of 3)
GFDWR137163Courtesy of FORD MOTOR COMPANY

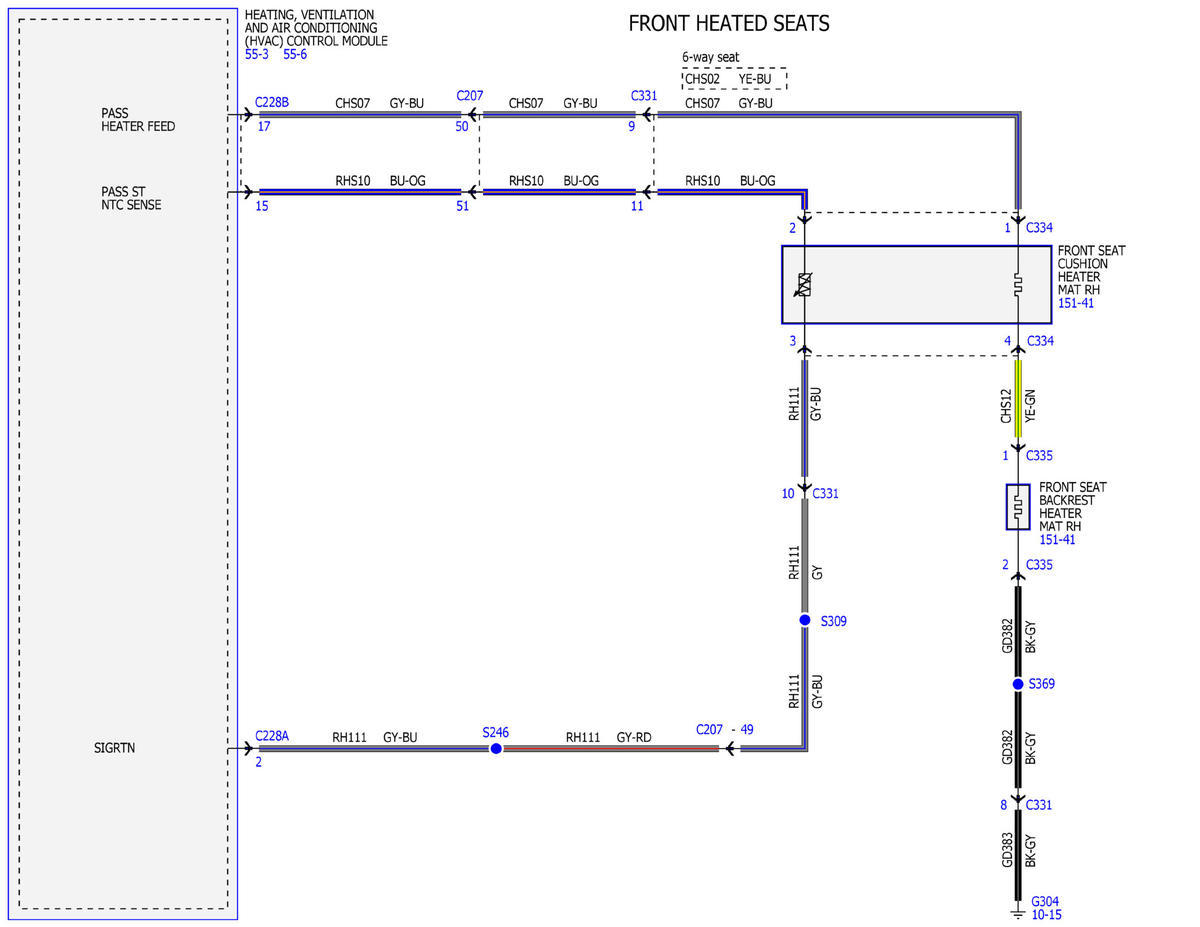

Fig 3: Climate Controlled Seats Wiring Diagram (3 Of 3)
GFDWR137164Courtesy of FORD MOTOR COMPANY
