Floor Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

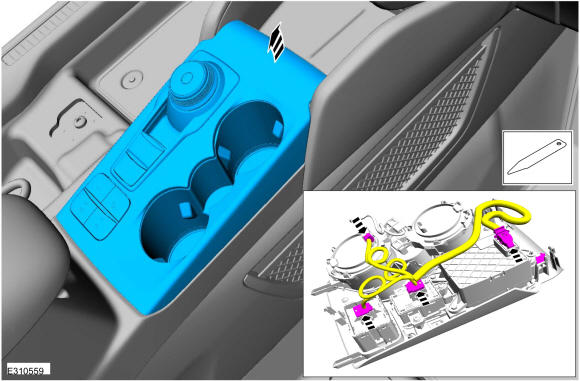

  1. Release the clips and remove the trim panel.

    • Disconnect the electrical connectors.

    GFD591692Courtesy of FORD MOTOR COMPANY

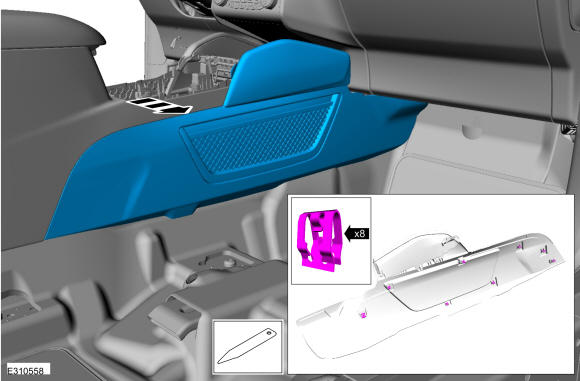

  2. Release the clips and remove the RH floor console side trim panel.

    Use the General Equipment: Interior Trim Remover

    GFD591693Courtesy of FORD MOTOR COMPANY

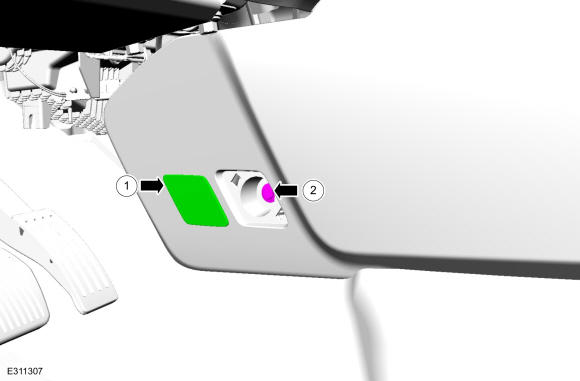

  3. NOTE: LH side of floor console.

    1. Remove the cover.
    2. Remove the bolt.

    GFD591694Courtesy of FORD MOTOR COMPANY

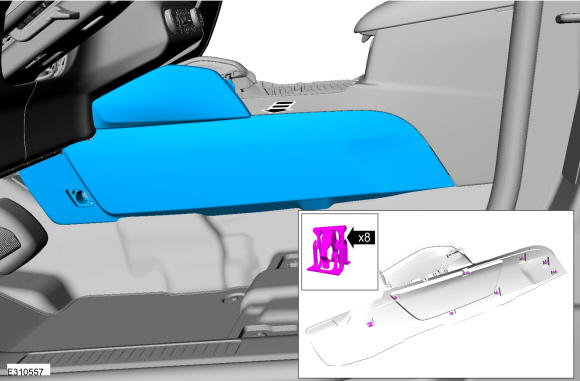

  4. Release the clips and remove the LH floor console side trim panel.
    GFD591695Courtesy of FORD MOTOR COMPANY

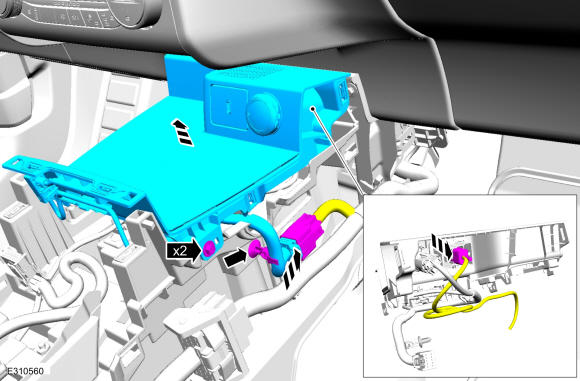

  5. Remove the bolts, release the clips and harness retainers and remove the trim panel.

    • Disconnect the electrical connector.

    GFD591696Courtesy of FORD MOTOR COMPANY

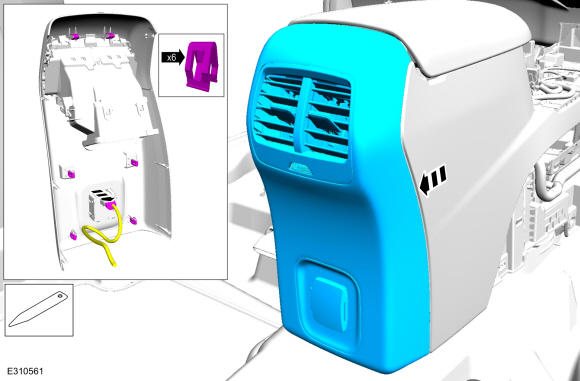

  6. Release the clips and remove the rear floor console trim panel.

    • Disconnect the electrical connector.

    GFD591697Courtesy of FORD MOTOR COMPANY

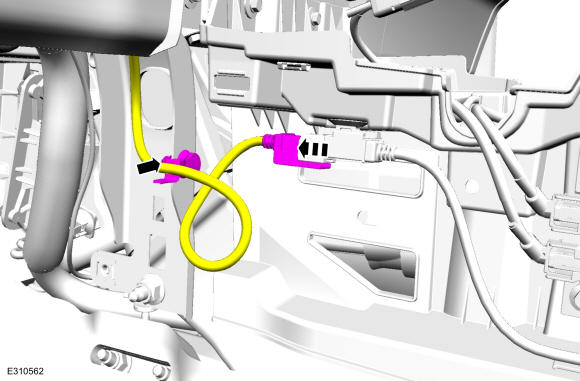

  7. NOTE: LH side of floor console.

    Disconnect the electrical connector, detach the harness retainer and position aside the harness.

    GFD591698Courtesy of FORD MOTOR COMPANY

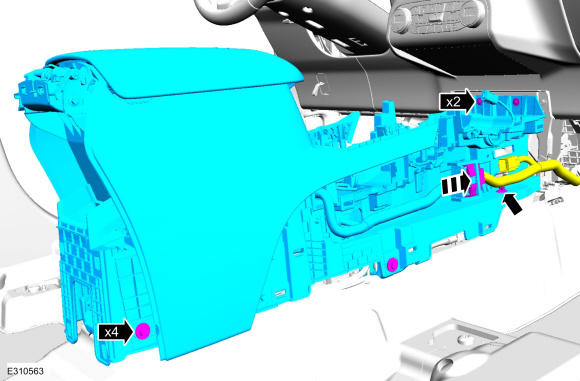

  8. Remove the bolts and remove the floor console.

    • Disconnect the electrical connector, detach the harness retainer and position aside the harness.

GFD591699Courtesy of FORD MOTOR COMPANY
