Rear Door Window Control Switch: Removal

NOTE: LH (left-hand) side shown in illustration, RH (right-hand) side similar.

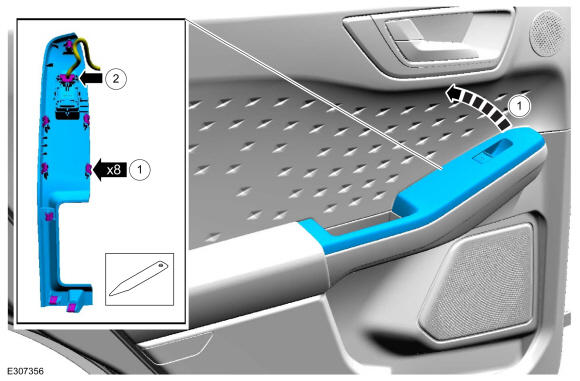

Remove the rear door window control switch bezel assembly.
1. Starting from the front, release the locking tabs from the rear door window control switch bezel assembly. Use the General Equipment: Interior Trim Remover
2. Disconnect the electrical connector and remove the rear door window control switch bezel assembly.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

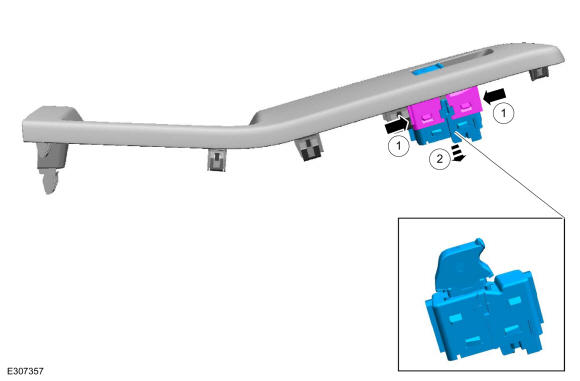

Remove the rear door window control switch from the bezel assembly.
1. Release the locking tabs from the rear door window control switch.
2. Remove the rear door window control switch from the bezel assembly.

Courtesy of FORD MOTOR COMPANY
