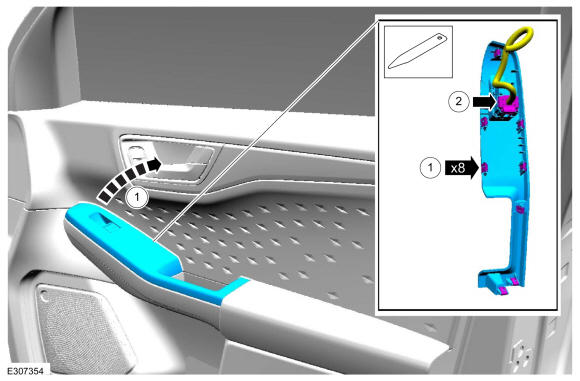

Passenger Door Window Control Switch: Removal

1. Starting from the front, release the locking tabs from the passenger door window control switch bezel assembly. Use the General Equipment: Interior Trim Remover
2. Disconnect the electrical connector and remove the passenger door window control switch bezel assembly.

Courtesy of FORD MOTOR COMPANY

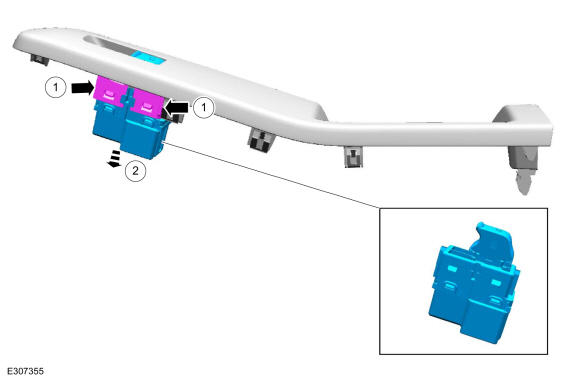

Remove the passenger door window control switch from the bezel assembly.

1. Release the locking tabs from the passenger door window control switch.
2. Remove the passenger door window control switch from the bezel assembly.
