Head Up Display (HUD) Module: Removal

All vehicles

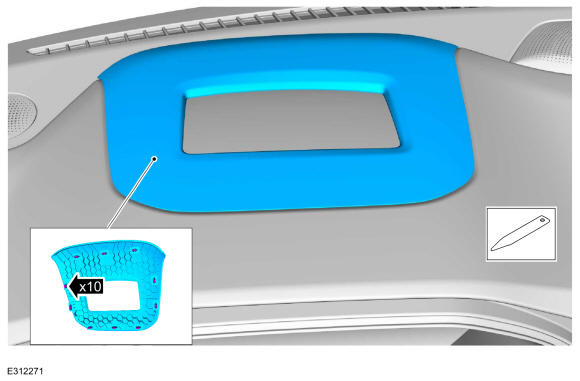

1. Remove the HUD combiner module bezel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

   Head Up Display (HUD) combiner module screen

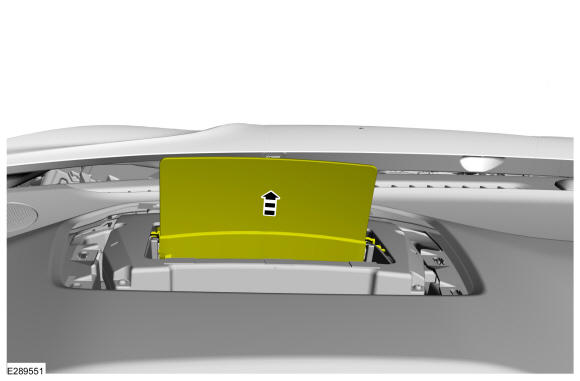

2. Using a diagnostic scan tool, move the HUD combiner module screen into the service position.

   Courtesy of FORD MOTOR COMPANY

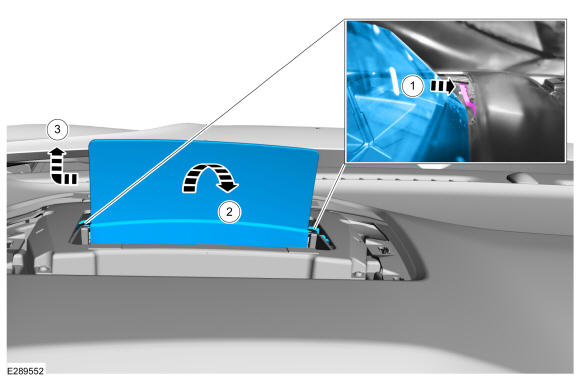

3. 1. Release the HUD combiner module screen clips.
   2. Position the top of the HUD combiner module screen down.
   3. Remove the HUD combiner module screen.

   Courtesy of FORD MOTOR COMPANY

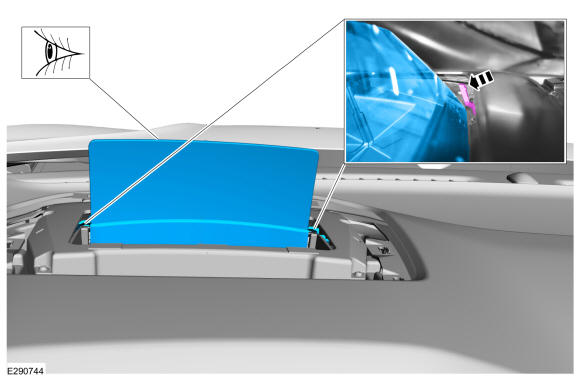

4. NOTE: If installing a new screen, remove the Head Up Display (HUD) combiner screen foil before installation.

   Make sure the HUD combiner module screen is correctly installed.

   Courtesy of FORD MOTOR COMPANY

   Head Up Display (HUD) combiner module

5. Head Up Display (HUD) combiner module Remove the IPC. Refer to: Instrument Panel Cluster (IPC)

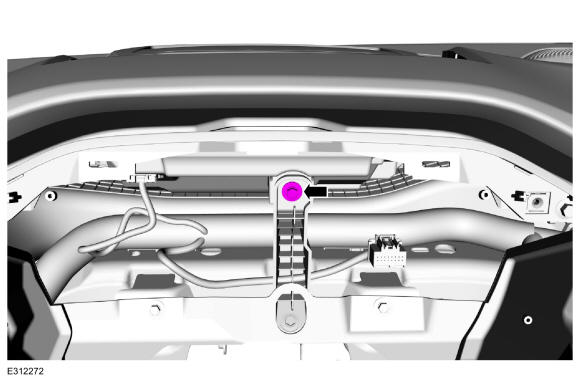

6. Remove the lower HUD combiner module bolt.

   Torque: 33 lb.in (3.7 Nm)

   Courtesy of FORD MOTOR COMPANY

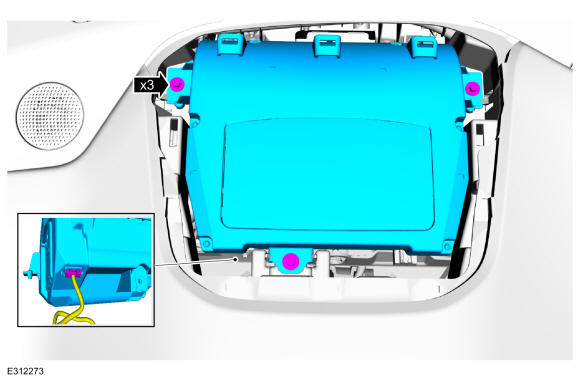

7. Remove the bolts and disconnect the HUD combiner electrical connector. Remove the HUD combiner module.

   Torque: 33 lb.in (3.7 Nm)

Courtesy of FORD MOTOR COMPANY
