OEM Ground Distribution: Grounds

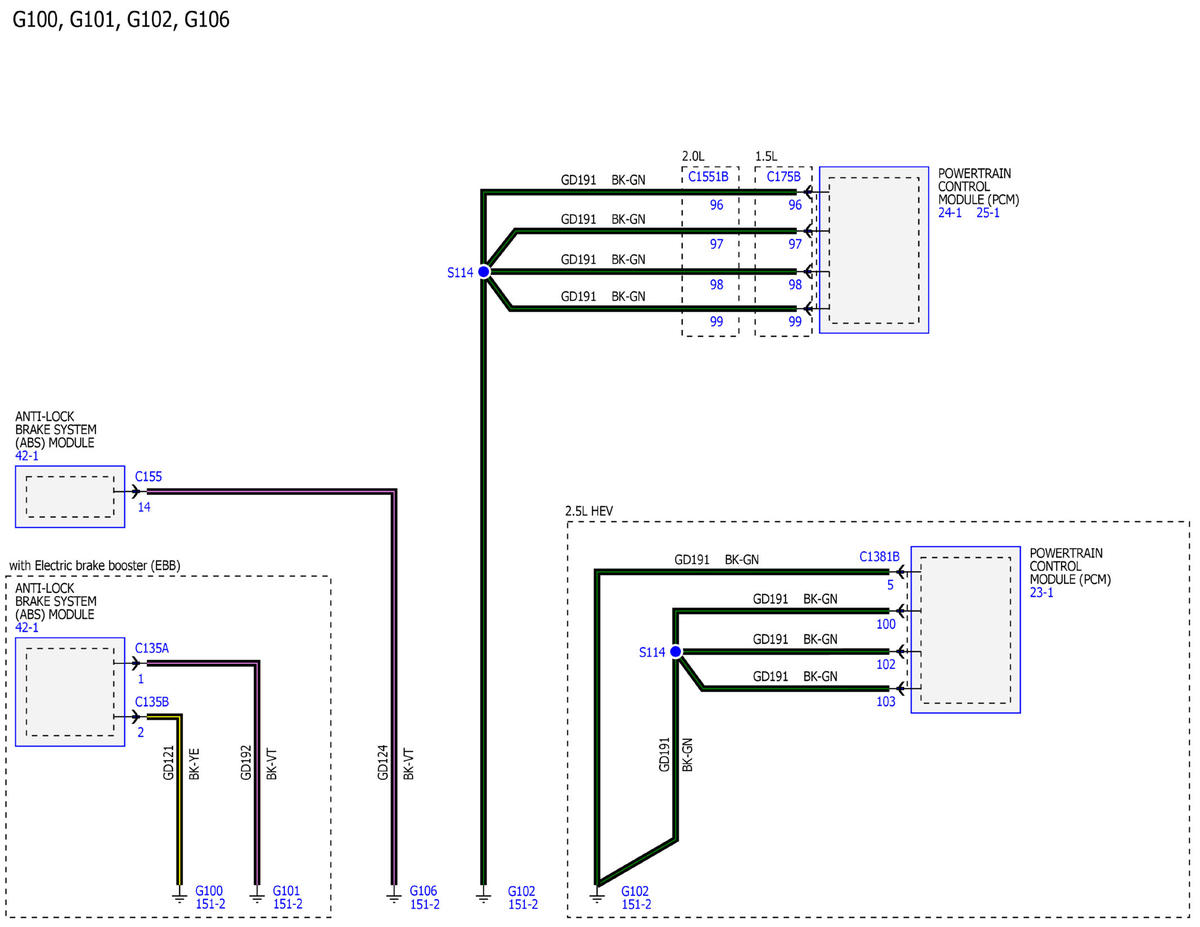

GFDWR137105Courtesy of FORD MOTOR COMPANY

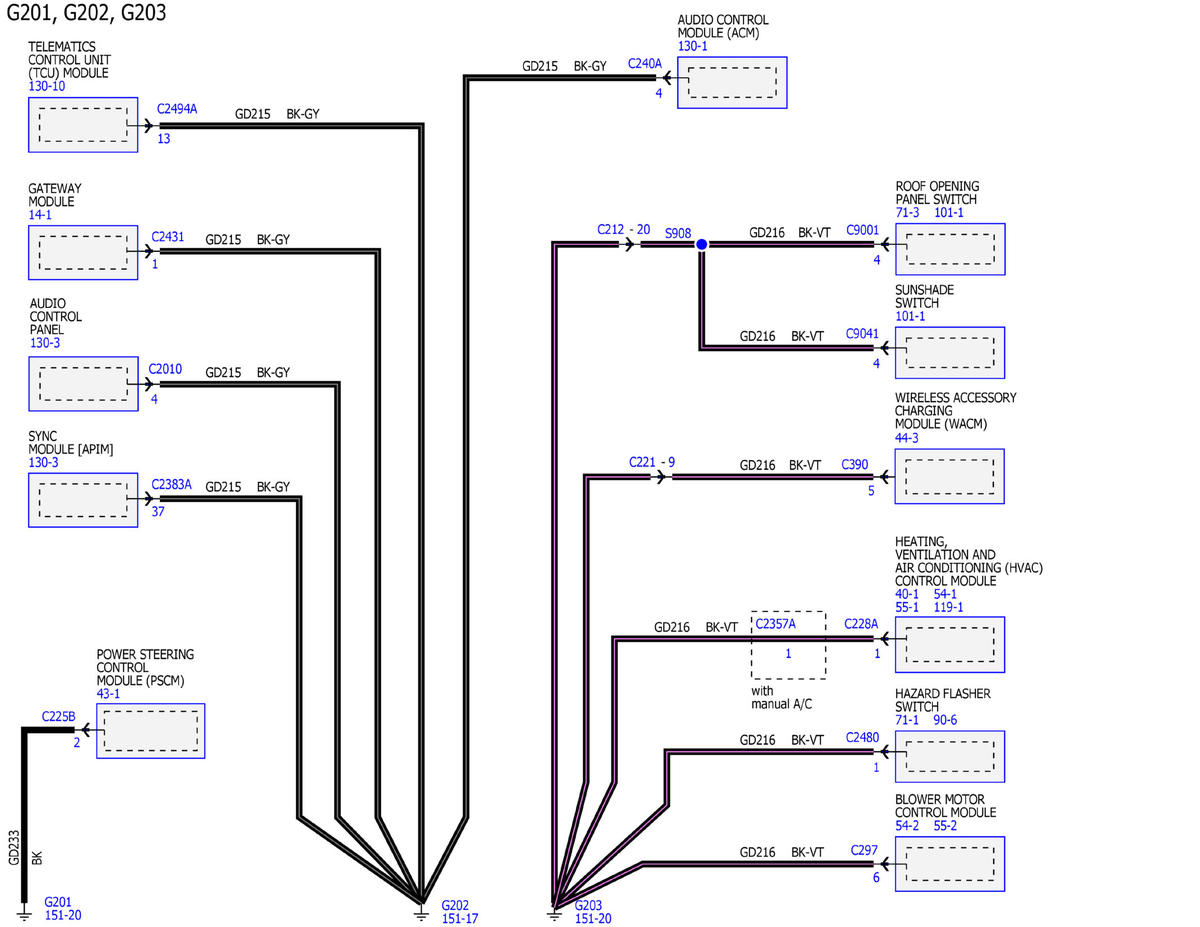

GFDWR137106Courtesy of FORD MOTOR COMPANY

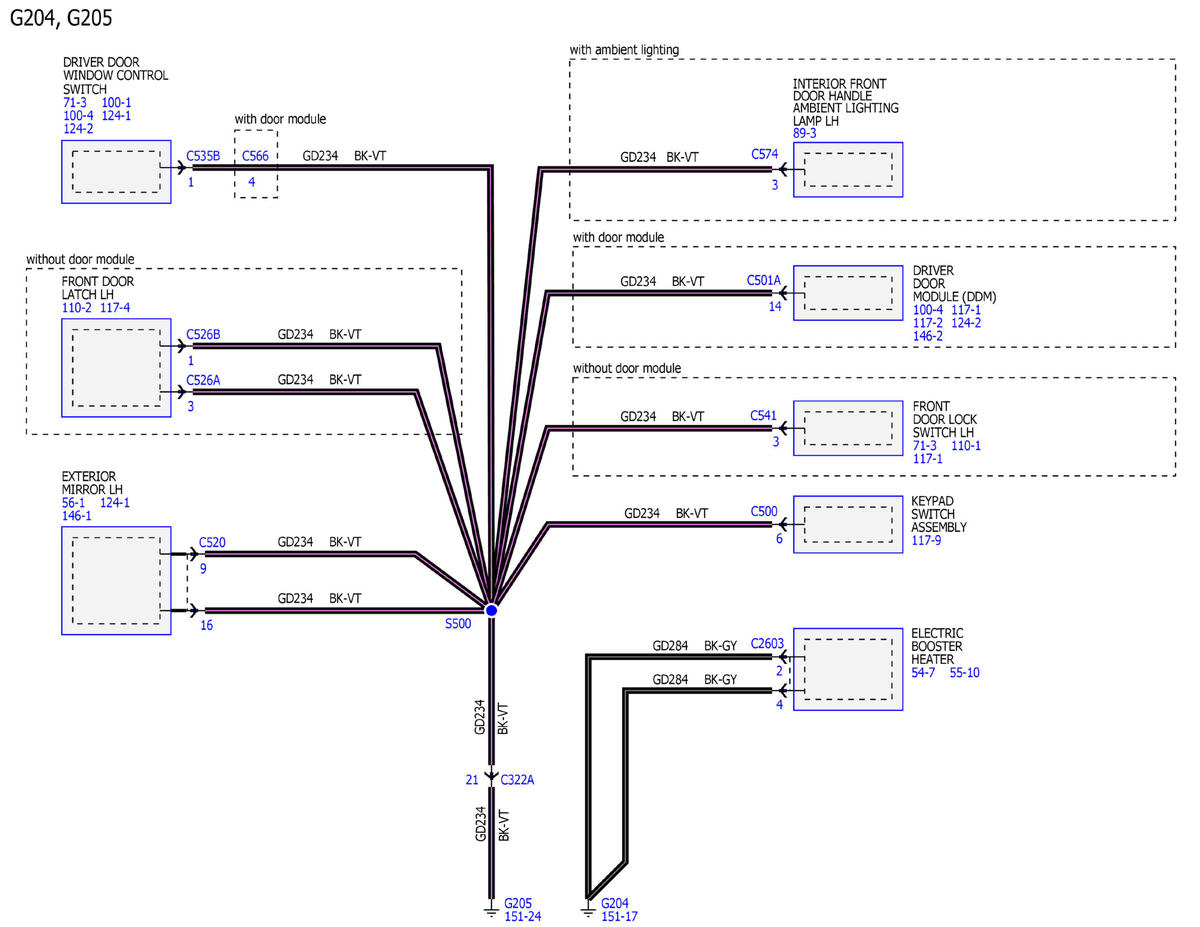

GFDWR137107Courtesy of FORD MOTOR COMPANY

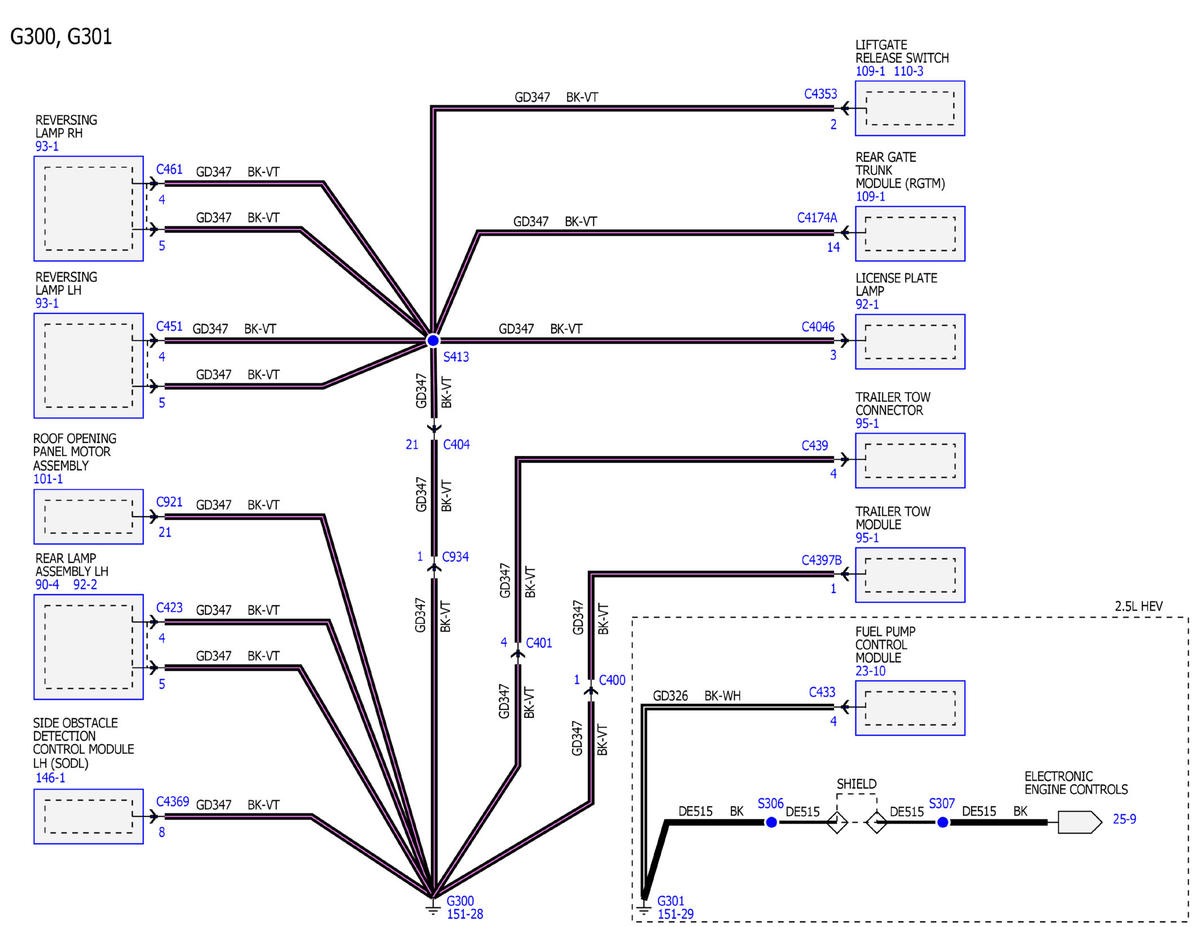

GFDWR137108Courtesy of FORD MOTOR COMPANY

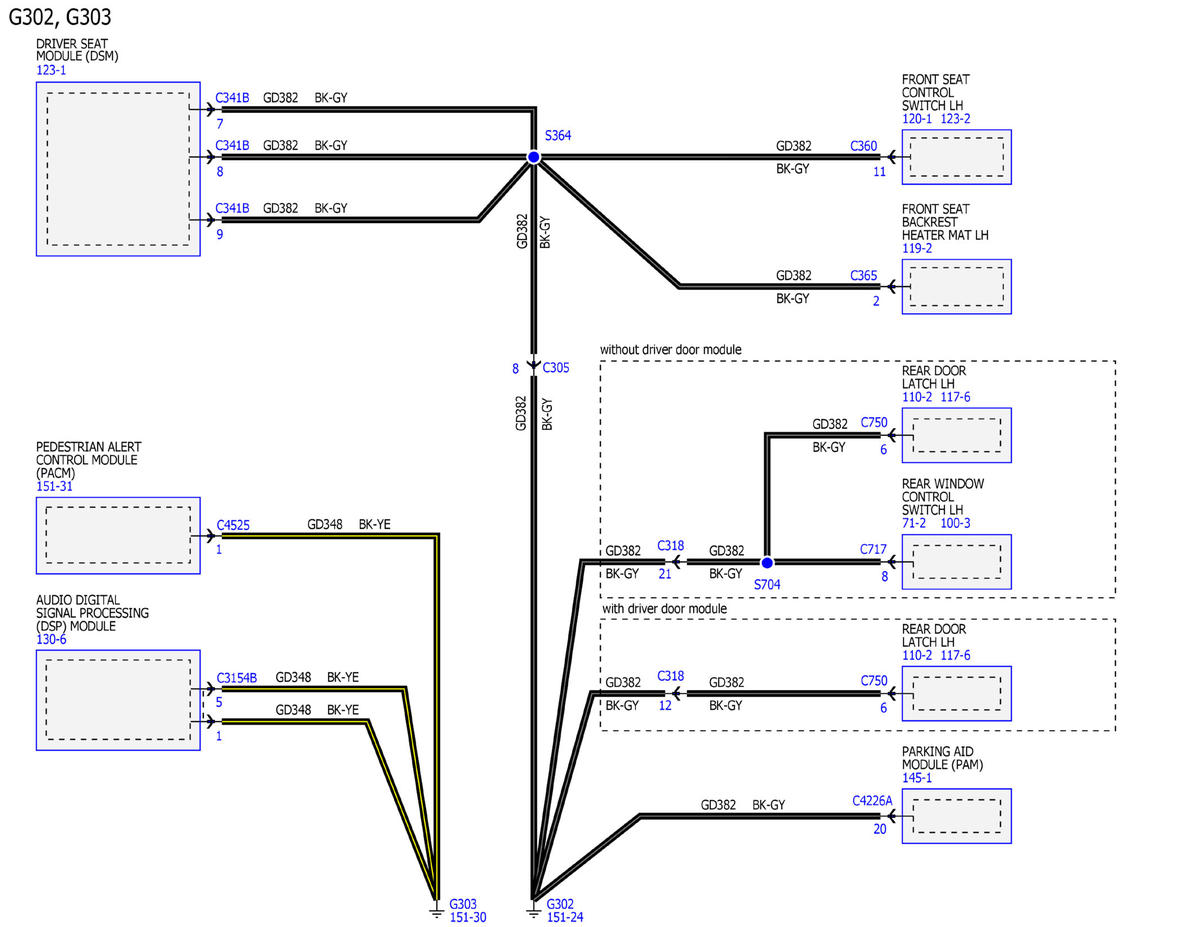

GFDWR137109Courtesy of FORD MOTOR COMPANY

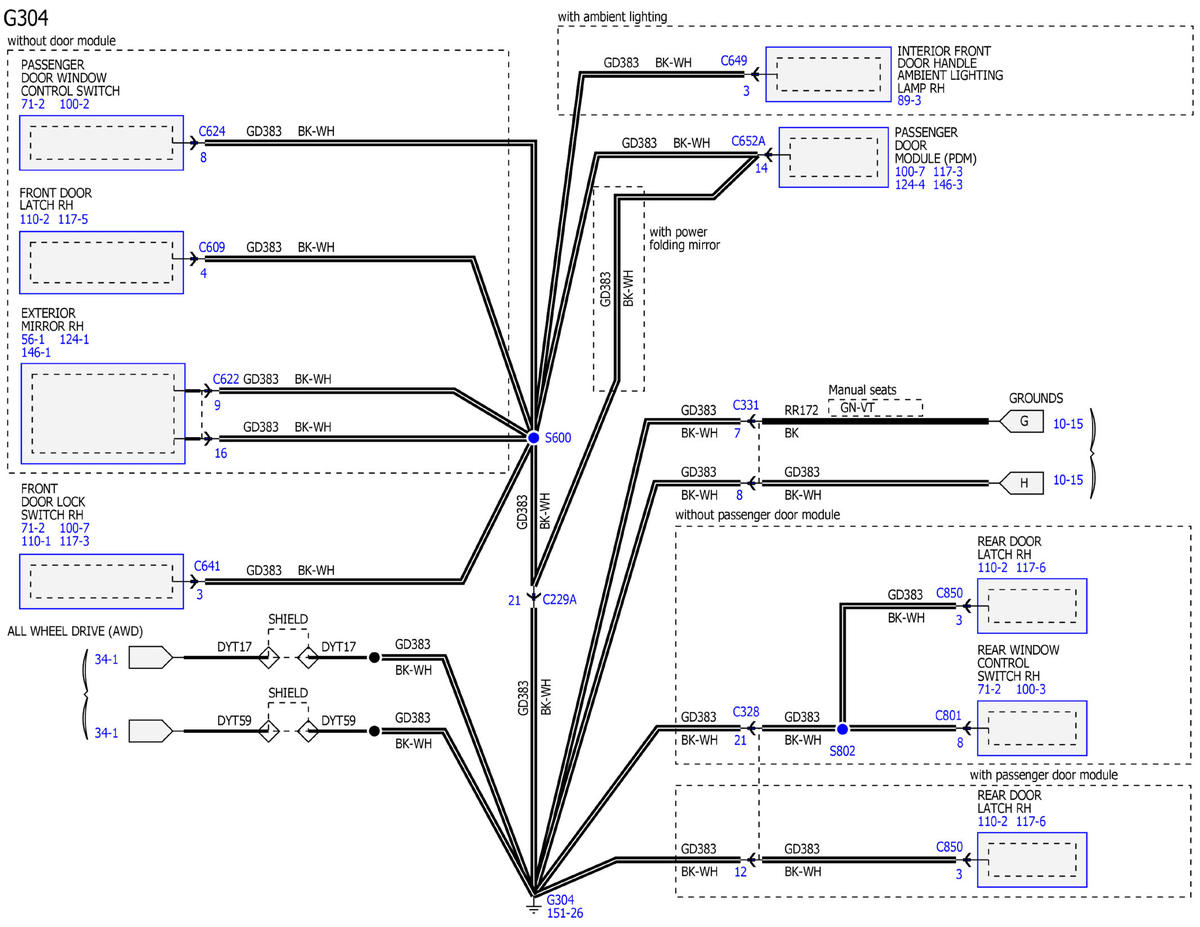

GFDWR137110Courtesy of FORD MOTOR COMPANY

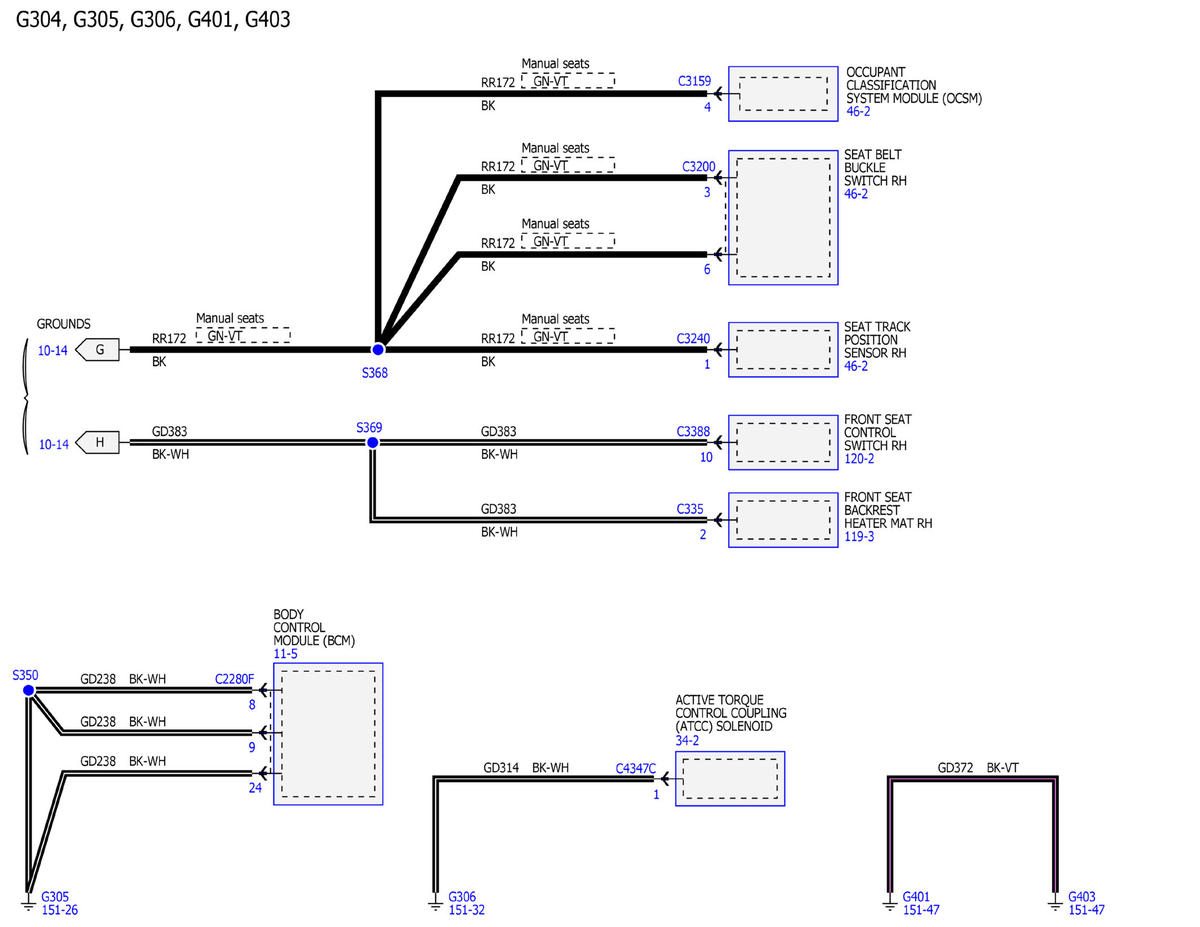

GFDWR137111Courtesy of FORD MOTOR COMPANY

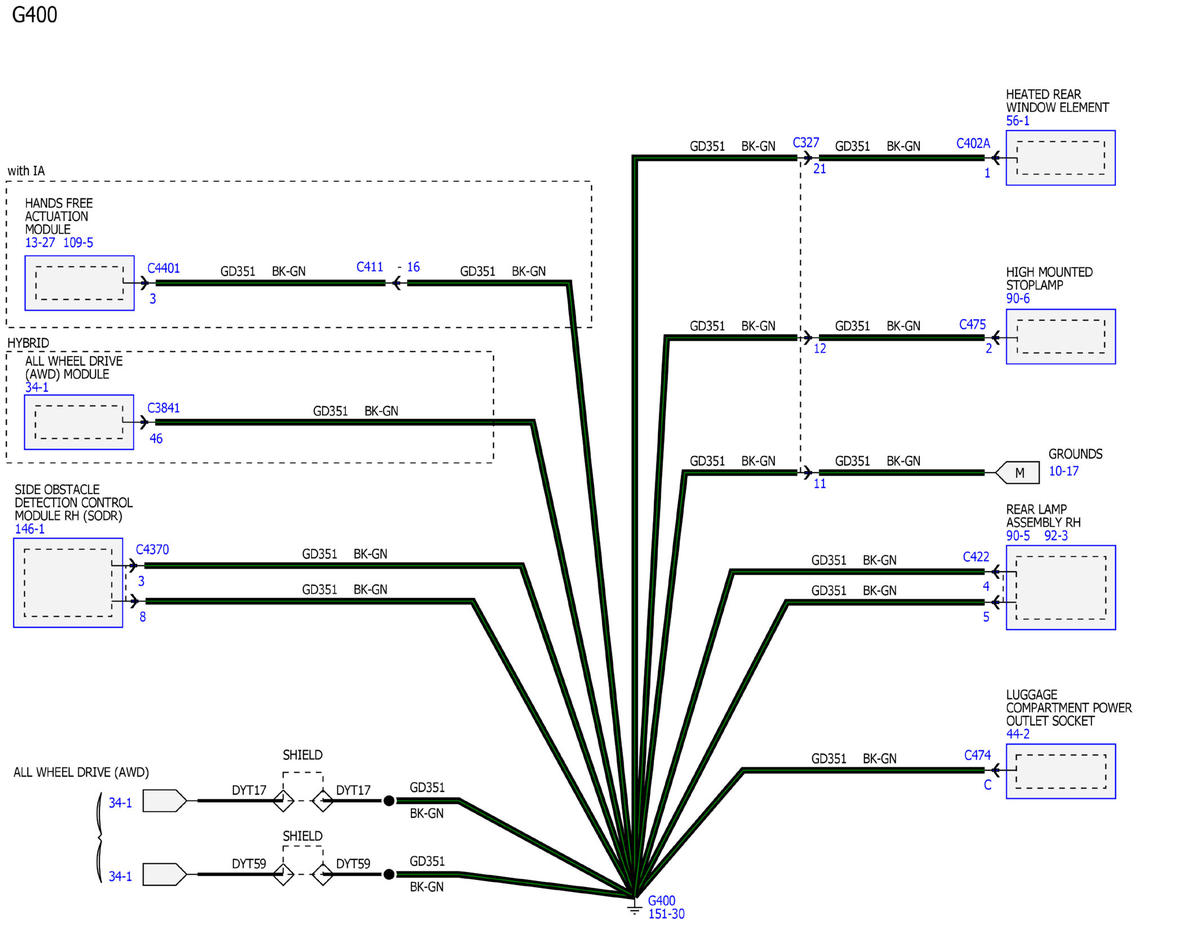

GFDWR137112Courtesy of FORD MOTOR COMPANY

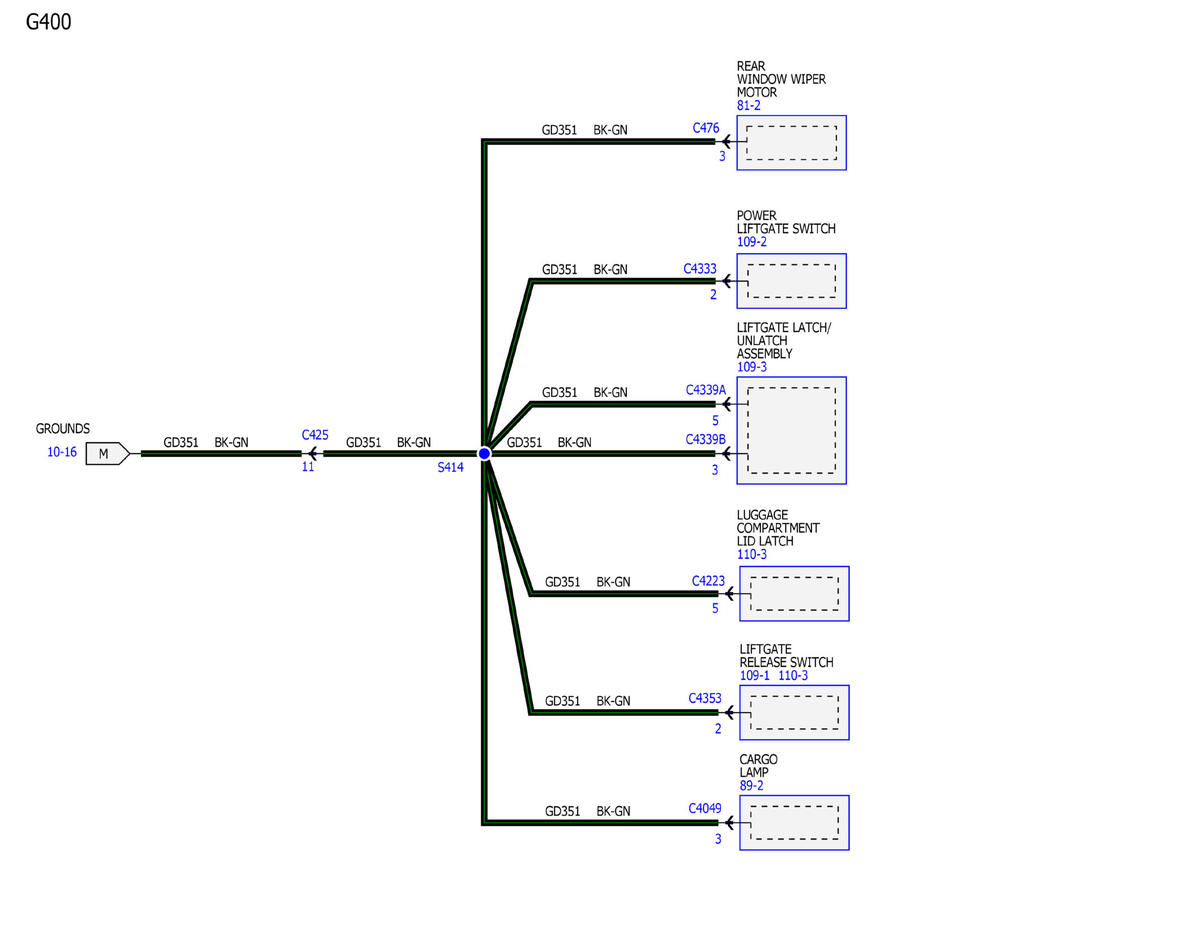

GFDWR137113Courtesy of FORD MOTOR COMPANY

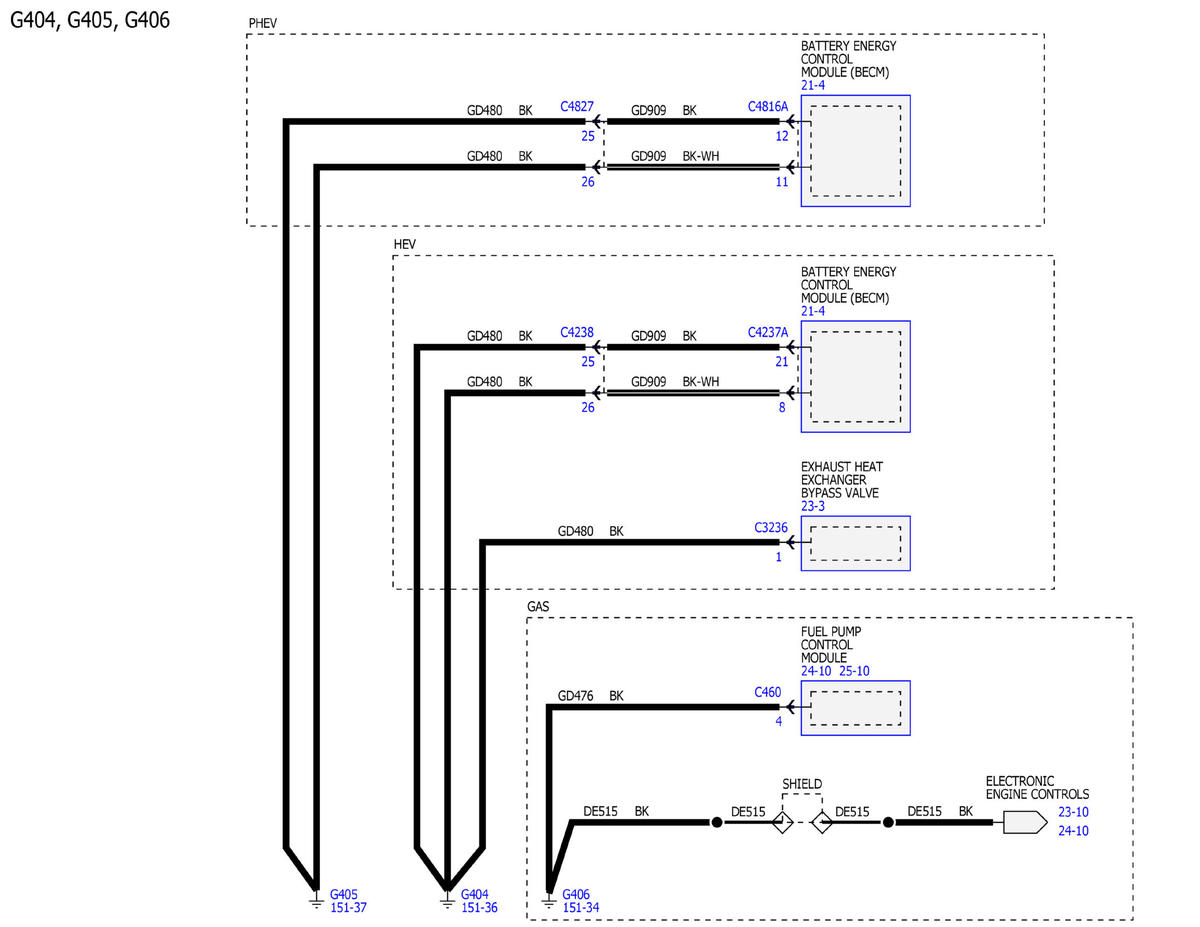

GFDWR137114Courtesy of FORD MOTOR COMPANY

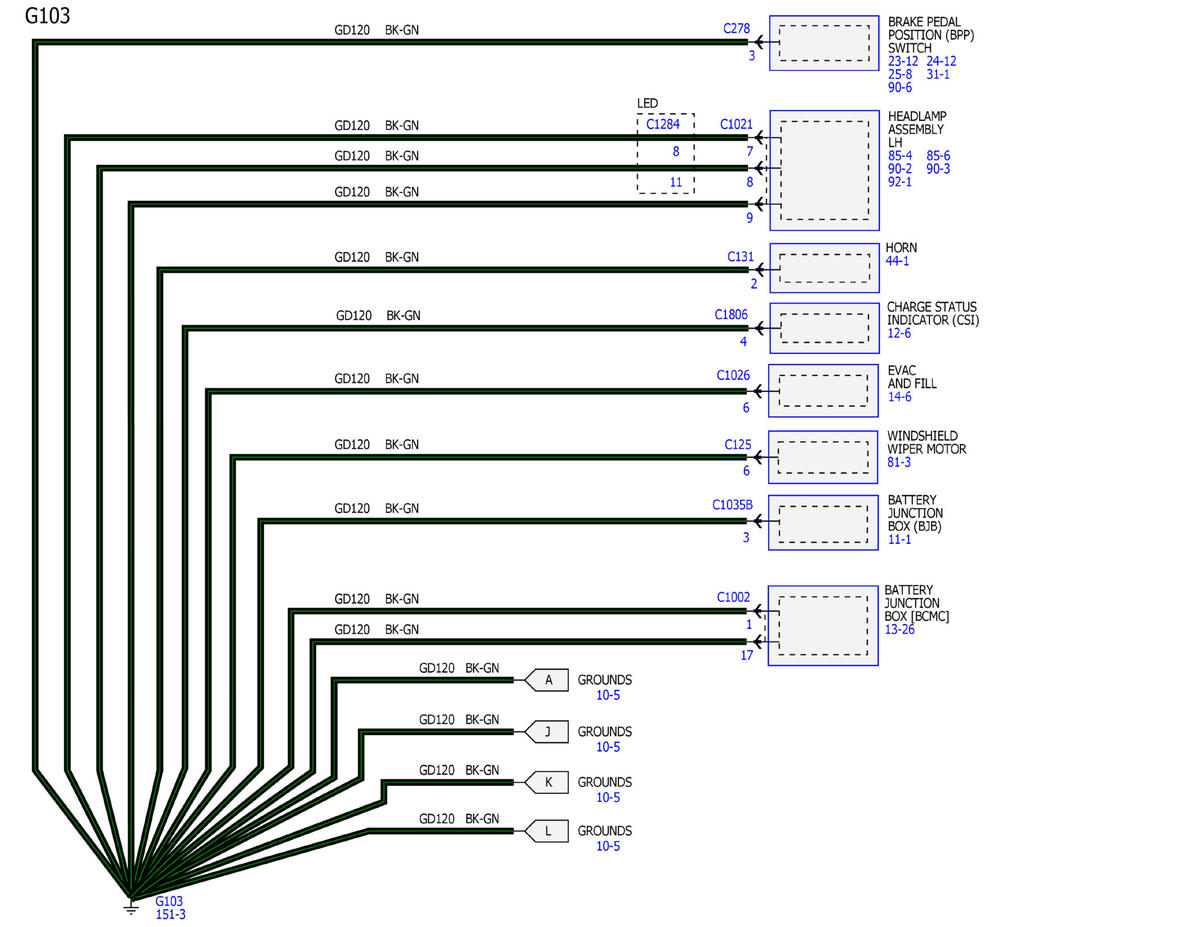

GFDWR137115Courtesy of FORD MOTOR COMPANY

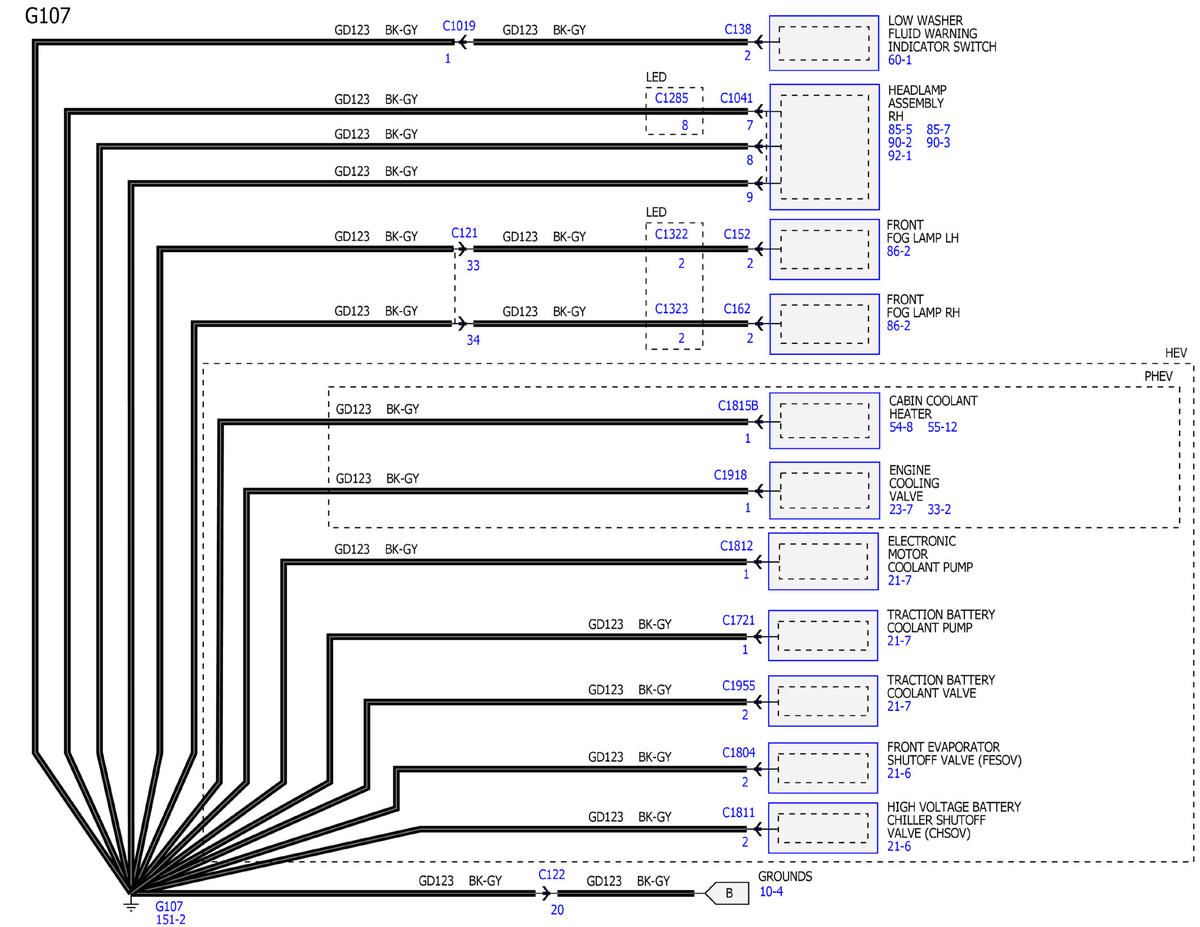

GFDWR137116Courtesy of FORD MOTOR COMPANY

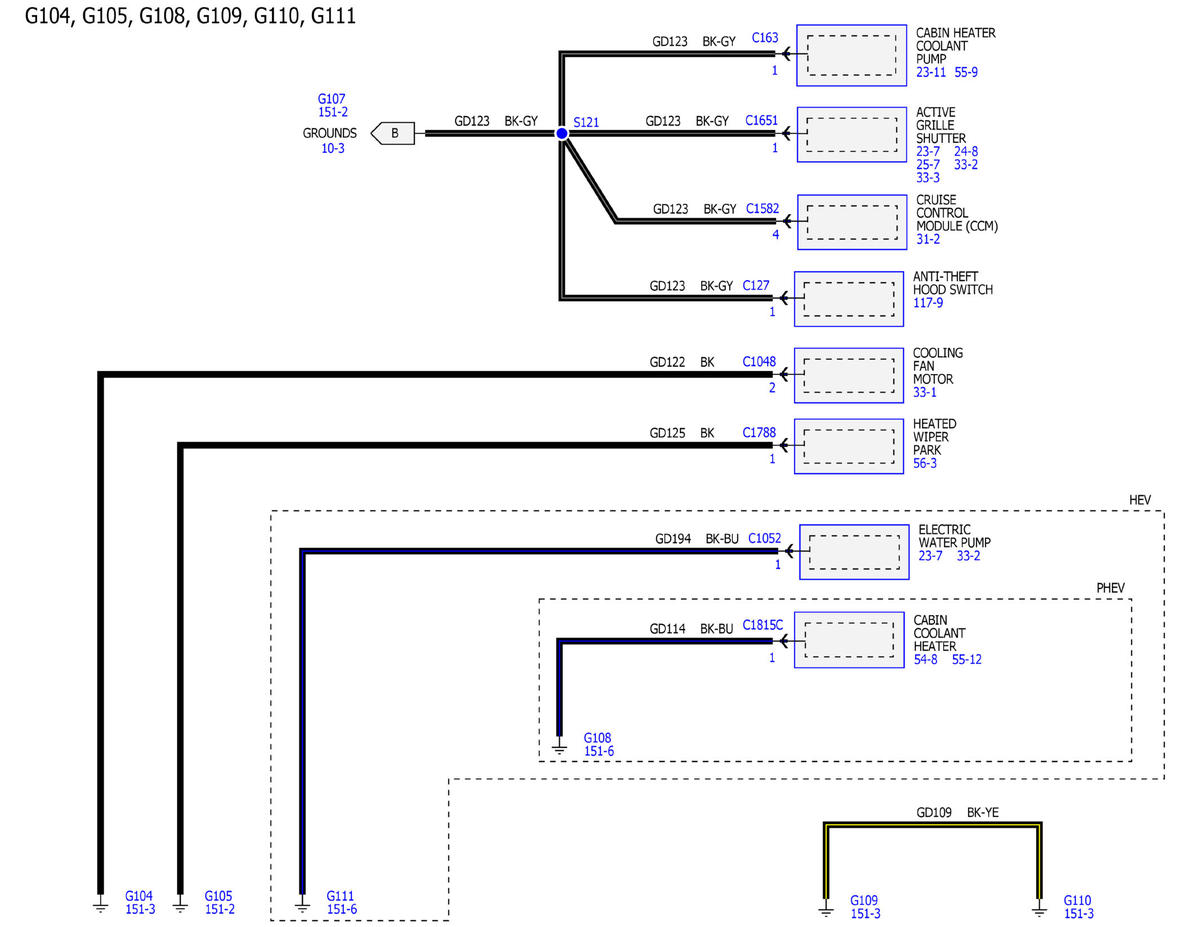

GFDWR137117Courtesy of FORD MOTOR COMPANY

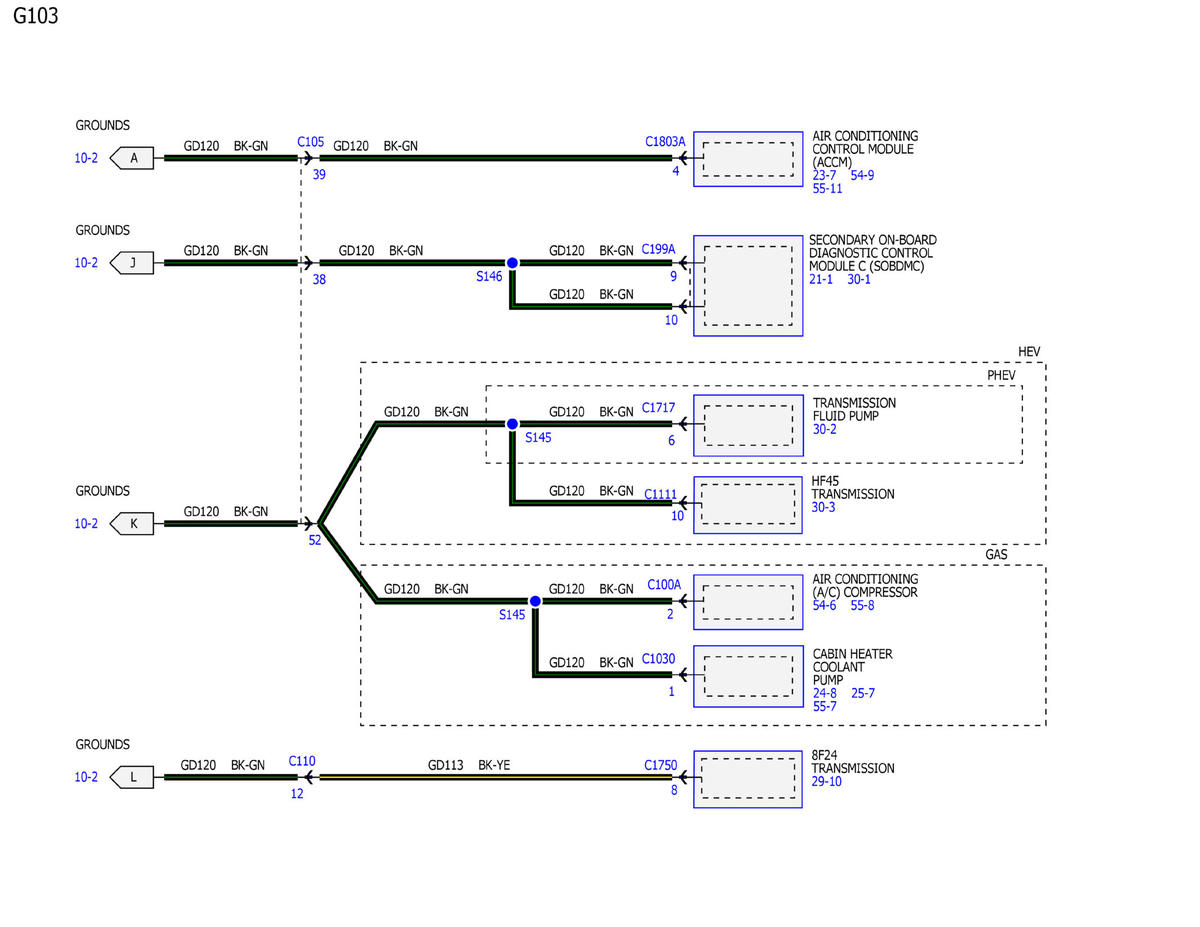

GFDWR137118Courtesy of FORD MOTOR COMPANY

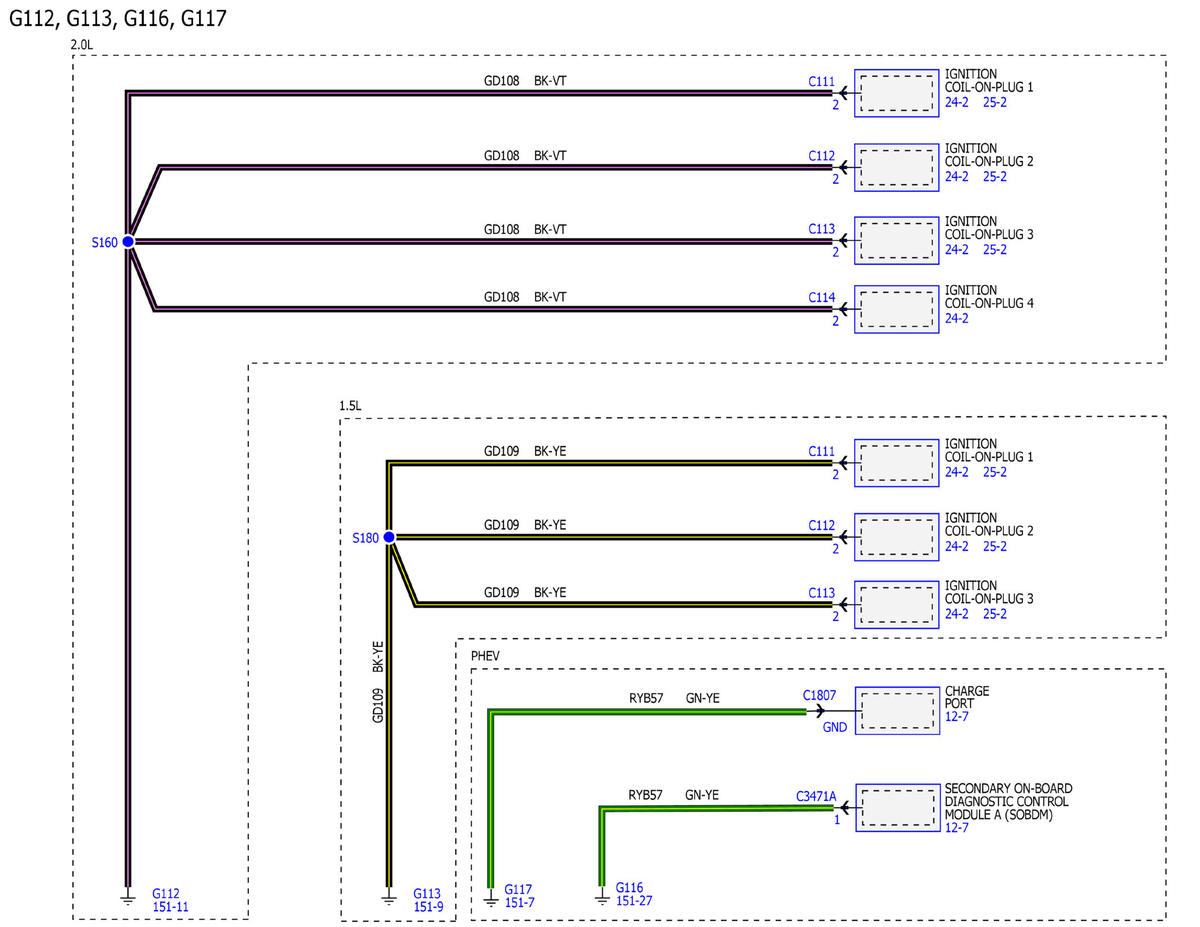

GFDWR137119Courtesy of FORD MOTOR COMPANY

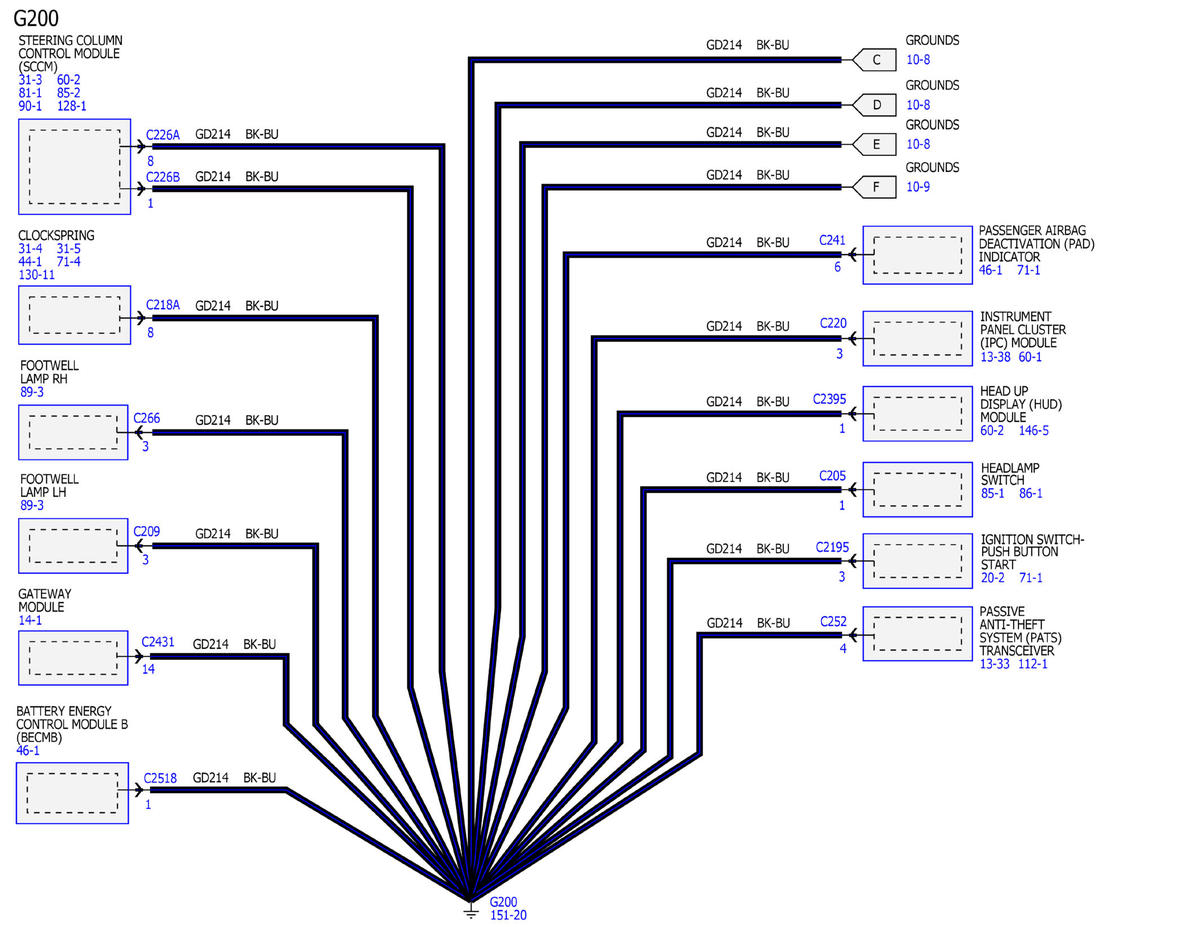

GFDWR137120Courtesy of FORD MOTOR COMPANY

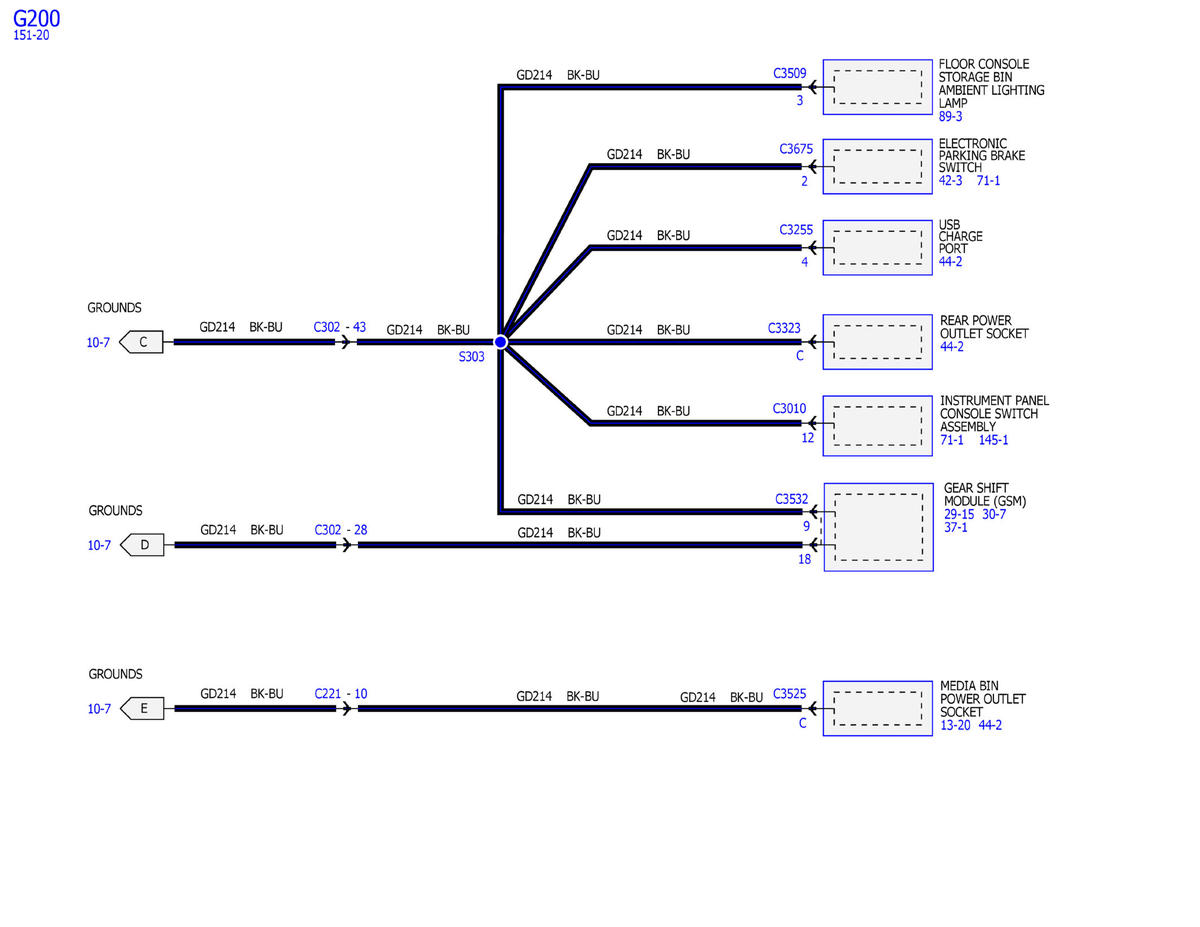

GFDWR137121Courtesy of FORD MOTOR COMPANY

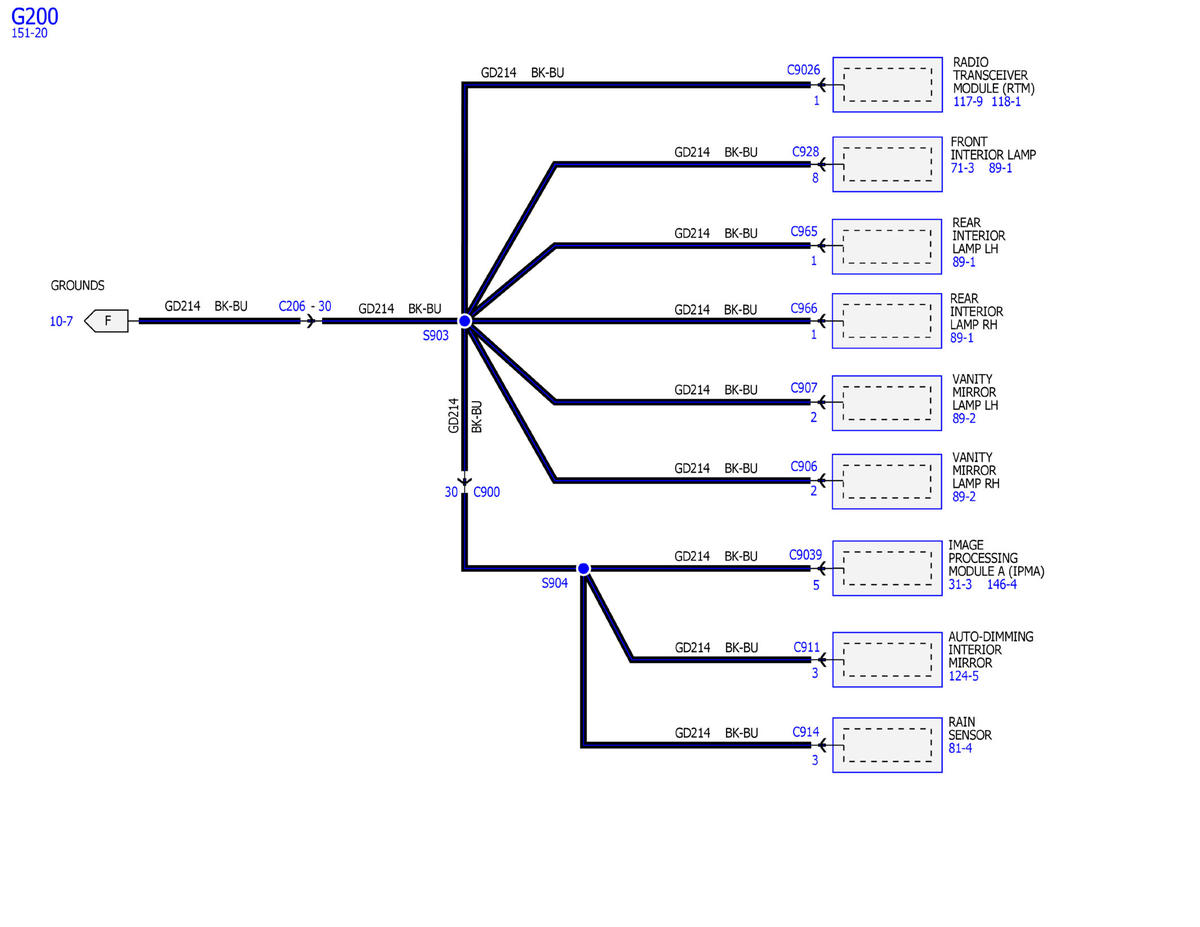

GFDWR137122Courtesy of FORD MOTOR COMPANY
