Transmission Fluid Level Check
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Funnel |
|---|
Materials
| Name | Specification |
|---|---|
| Motorcraft® MERCON® ULV Automatic Transmission FluidXT-12-QULV | WSS-M2C949-A, MERCON® ULV |
Check
- Connect the diagnostic scan tool to the vehicle. Monitor the TFTPID.
- With the engine running in PARK on a level surface make sure the transmission is at normal operating temperature 85-93 deg. C (185-200 deg. F). If necessary, drive the vehicle until the transmission is at normal operating temperature 85-93 deg.C (185-200 deg.F).
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
- Remove the air cleaner. Refer to: Air Cleaner

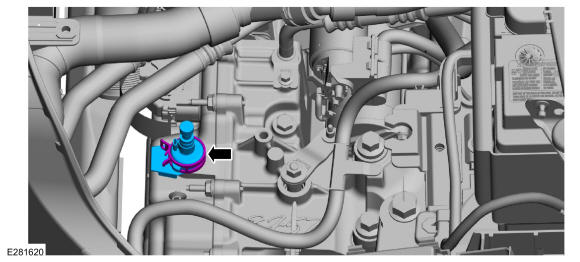

- Remove the transmission vent.
- Install the air cleaner. Refer to: Air Cleaner

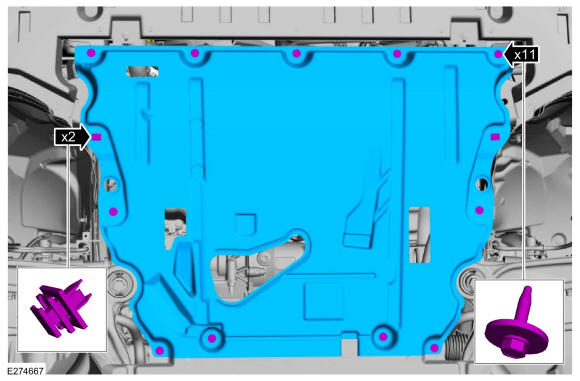

- Remove the retainers and the underbody shield.

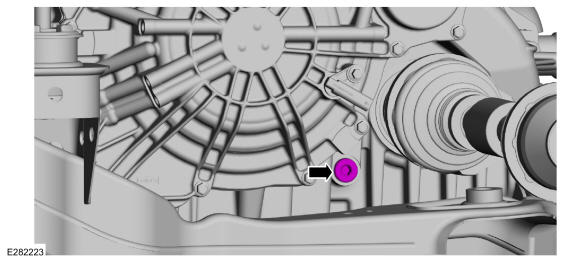

- With the engine running in PARK, remove the oil leveling plug.
- Add clean transmission fluid in increments of 0.25L (0.5 pt) until the transmission fluid is running down the transmission case. Use the General Equipment: Funnel
Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
- Video multimedia:A supplement to the article is available.NOTE: Transmission fluid level correct.

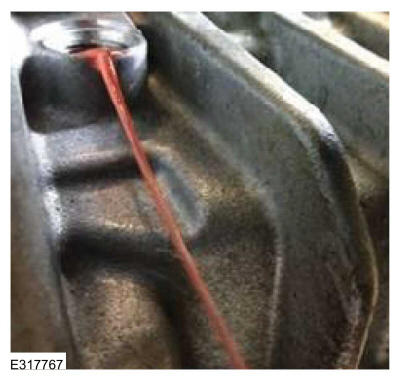

Transmission fluid level correct.
-
NOTE: Transmission fluid overfilled.

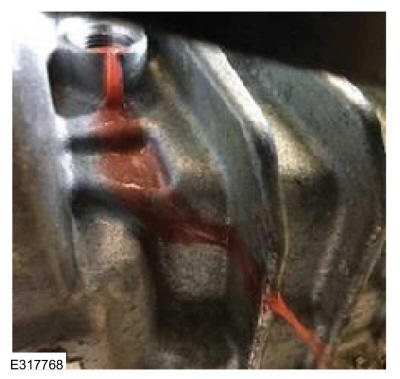

Transmission fluid overfilled.
-
NOTE: Transmission fluid level low.

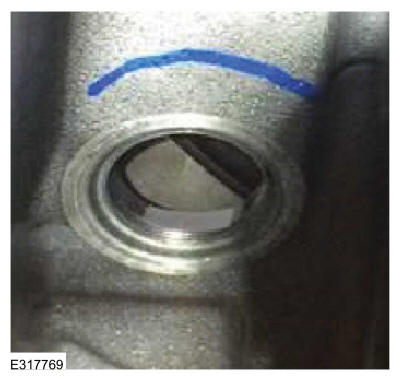

Transmission fluid level low.
- Install the oil leveling plug.
Torque: 30 lb.ft (40 Nm)

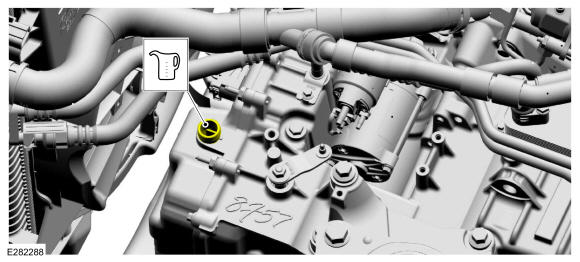

- Add 1L (2 pt) of clean transmission fluid.
Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
- Remove the air cleaner. Refer to: Air Cleaner
- Install the transmission vent.
- Install the air cleaner. Refer to: Air Cleaner
- Install the underbody shield and the retainers.
