Transfer Shaft: Assembly

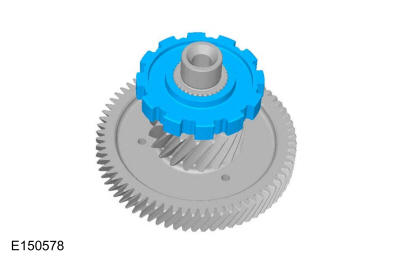

  1. Install the park pawl wheel.
    GFD596538Courtesy of FORD MOTOR COMPANY

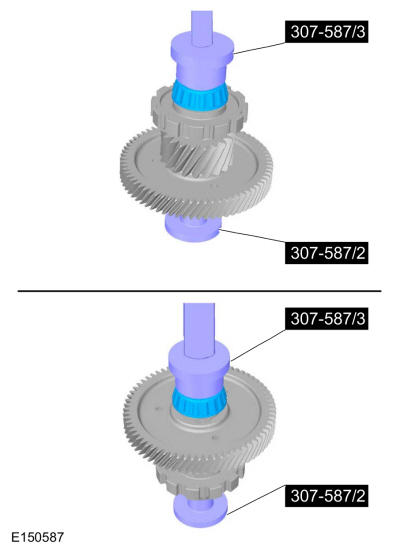

  2. Using the special tool, install the transfer shaft bearings. Use Special Service Tool: 307-587 Differential bearing installer and guide.Use the General Equipment: Hydraulic Press
    GFD596539Courtesy of FORD MOTOR COMPANY
  3. Select a new transfer shaft shim. Refer to: Torque Converter Housing
