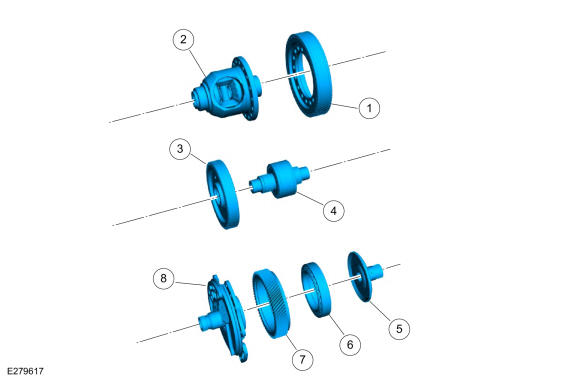

Final Drive Component Exploded View
| Item | Description |
|---|---|
| 1 | Differential ring gear |
| 2 | Differential assembly |
| 3 | Transfer shaft gear |
| 4 | Transfer shaft |
| 5 | Output planetary carrier hub |
| 6 | Transfer shaft drive gear bearing |
| 7 | Transfer shaft drive gear |
| 8 | Stator support assembly |

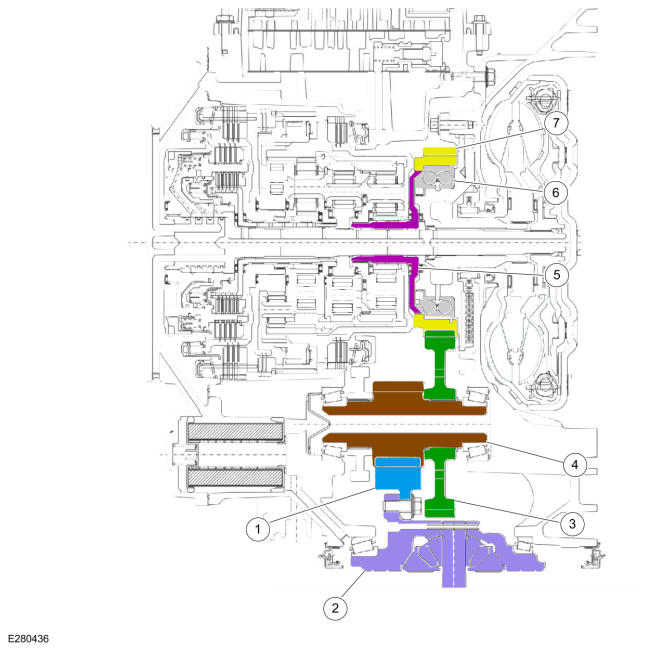

Final Drive Component Cutaway View
Final Drive Gears and Differential Assembly
The final drive consists of a drive and driven gear, transfer shaft, ring gear and differential assembly. The drive and driven gear transfer torque from the output planetary carrier hub to the differential assembly.
