Hood Latch: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. NOTE: If reinstalling the original hood latch, use the marks made during removal to aid in alignment.

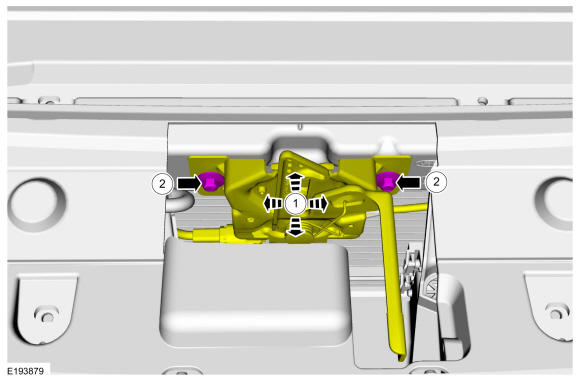

    Install the bolts and align the hood latch.

    1. Align the hood latch.
    2. Tighten the hood latch bolts.

      Torque

      : 26 lb.ft (35 Nm)

GFD562107Courtesy of FORD MOTOR COMPANY
