Transfer Case Shift Lever: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

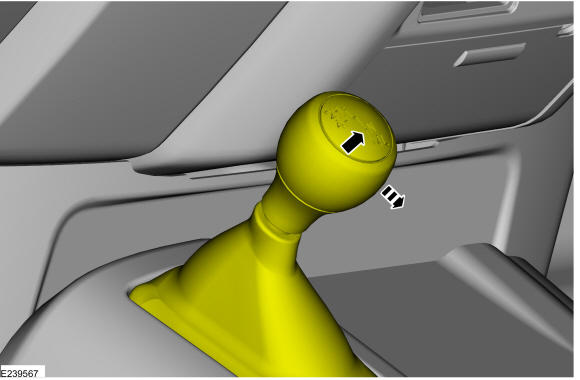

  1. Position the transfer case shift lever in neutral.
    GFD205300Courtesy of FORD MOTOR COMPANY
  2. Remove the transfer case shift lever knob.
    GFD205301Courtesy of FORD MOTOR COMPANY

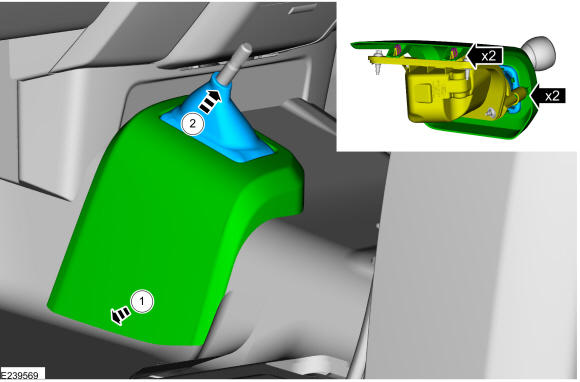

  3. Remove the shift lever trim and boot.

    • Release the shift lever trim clips.

    • Remove the shift lever trim and boot.

    GFD205302Courtesy of FORD MOTOR COMPANY

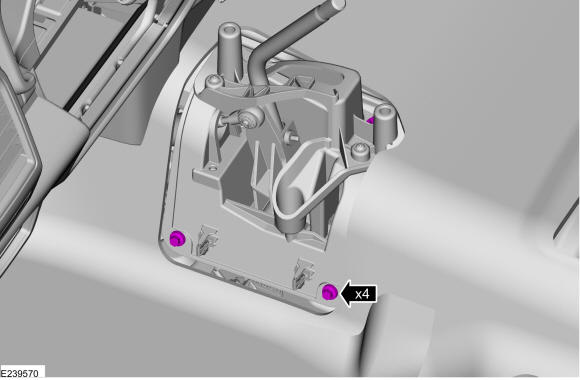

  4. Remove the shift lever bolts.

    Torque: 62 lb.in (7 Nm)

    GFD205303Courtesy of FORD MOTOR COMPANY

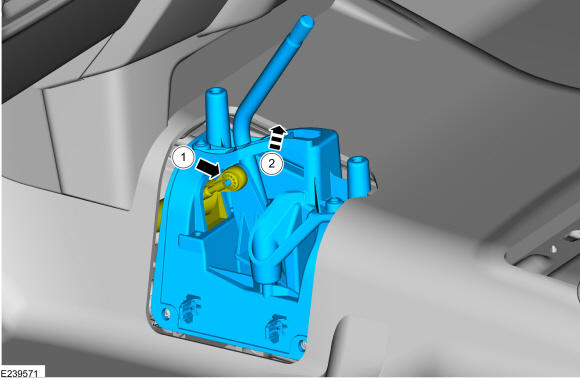

  5. Remove the shift lever assembly.

    • Disconnect the transfer case shift cable.

    • Remove the shift lever assembly.

GFD205304Courtesy of FORD MOTOR COMPANY
