Heated Rear Seat Module: Removal

  1. Remove the rear seat cushion. Refer to: Rear Seat Cushion

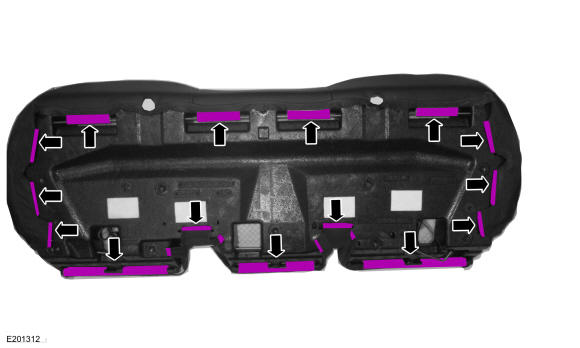

  2. Release the seat cushion cover J-clips.
    GFD597850Courtesy of FORD MOTOR COMPANY

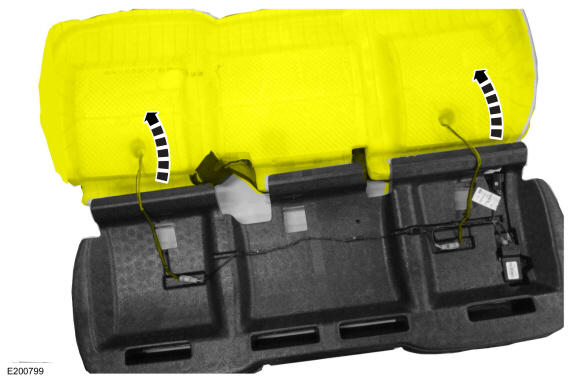

  3. Raise the rear seat cushion cover and foam.
    GFD597851Courtesy of FORD MOTOR COMPANY

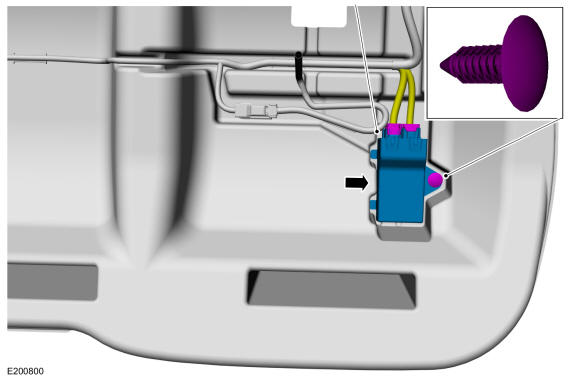

  4. Disconnect the electrical connectors. Remove the pin-type retainer and the heated rear seat module.
GFD597852Courtesy of FORD MOTOR COMPANY
