Output Shaft Speed (OSS) Sensor: Installation

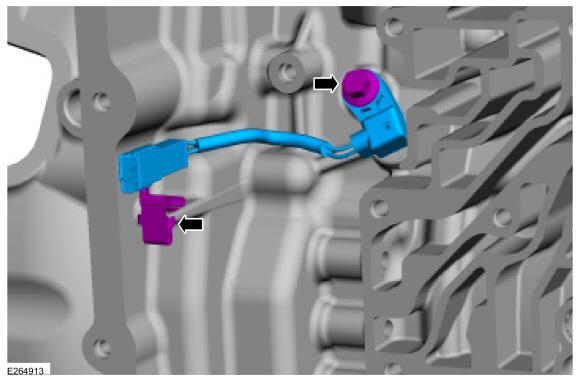

- Install the OSS sensor, the bolt and the wire harness clip.
Torque : 97 lb.in (11 Nm)

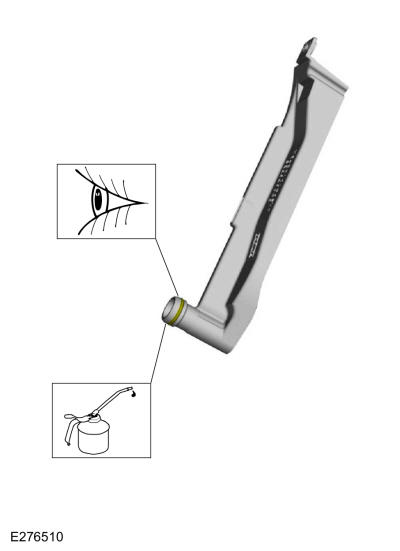

- Inspect the fluid transfer pipe seal for damage and replace if necessary. Lubricate the seal with petroleum jelly.
Material : Petroleum Jelly

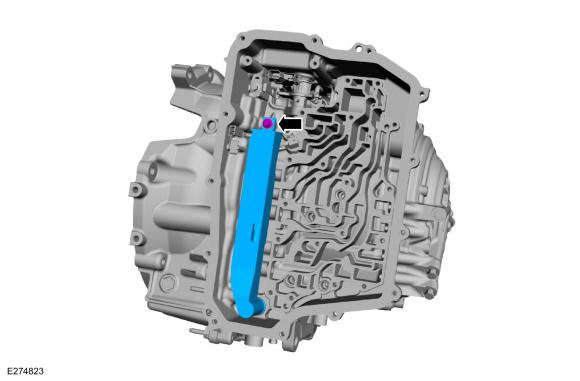

- Install the fluid transfer pipe and the bolt.
Torque : 97 lb.in (11 Nm)
- Install the main control valve body. Refer to: Main Control Valve Body
