Main Control Valve Body: Removal

  1. Remove the main control cover. Refer to: Main Control Cover

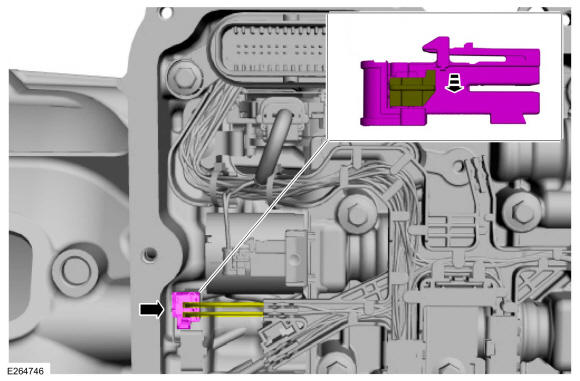

  2. Unlock and disconnect the OSS sensor electrical connector.
    GFD595575Courtesy of FORD MOTOR COMPANY

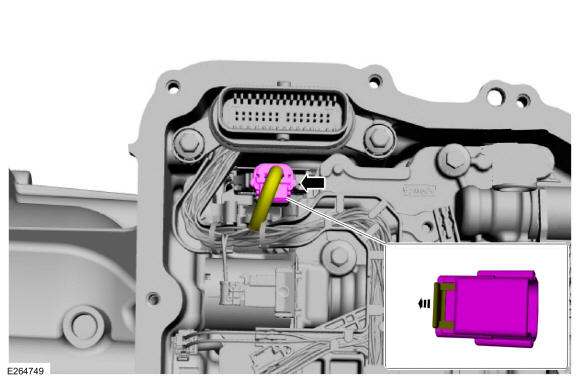

  3. Unlock and disconnect the TR sensor electrical connector.
    GFD595576Courtesy of FORD MOTOR COMPANY
  4. NOTE: Note the location of the short and long main control valve body bolts for assembly.

    Remove the main control valve body bolts. Remove the main control valve body and transmission wiring harness assembly.

GFD595577Courtesy of FORD MOTOR COMPANY
