Main Control Cover: Removal

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
2. Remove the air cleaner. Refer to: Air Cleaner
3. Remover the retainers and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

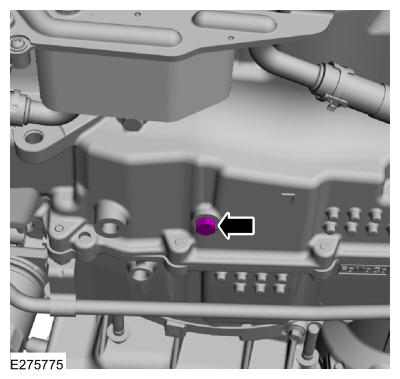

4. Drain the transmission fluid.

   Torque : 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Remove the ground strap bolt and wiring harness retainer.

   Courtesy of FORD MOTOR COMPANY

6. Remove the nuts and position aside the wiring harness.

   Courtesy of FORD MOTOR COMPANY

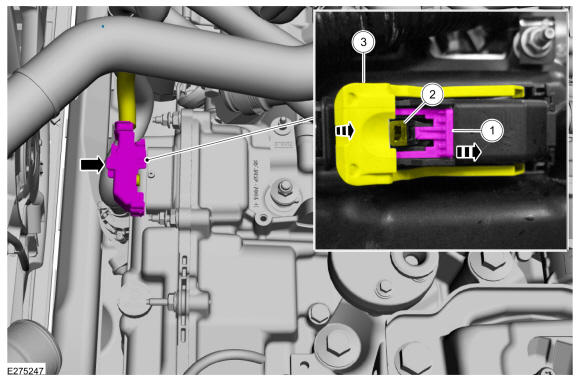

7. Disconnect transmission connector.
   1. Slide the locking clip.
   2. Press the tab.
   3. While pressing the tab, rotate the connector latch.

   Courtesy of FORD MOTOR COMPANY

8. Disconnect the retainer and the turbine shaft speed sensor/intermediate speed sensor A (ISSA) electrical connector.

   Courtesy of FORD MOTOR COMPANY

9. Remove the nuts and position aside the start/stop coolant pump.

   Courtesy of FORD MOTOR COMPANY

10. Remove the nuts and position aside the coolant tube.

    Courtesy of FORD MOTOR COMPANY

11. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    • Loosen the clamps and remove the CAC tube.
    • Cover all open ports.

    Courtesy of FORD MOTOR COMPANY

    Vehicles With: Trailer Tow

12. Remove the transmission fluid cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

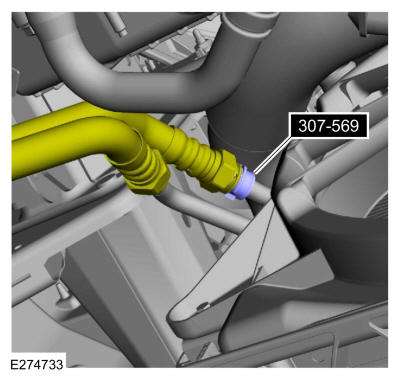

13. Using the special tool, disconnect the transmission fluid cooler tubes. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

    Courtesy of FORD MOTOR COMPANY

    All vehicles

14. Remove the studbolts and remove the main control cover.
