Adjustable Steering Column

Fig 1: Adjustable Steering Column Wiring Diagram (1 Of 4)
GFDWR139045Courtesy of FORD MOTOR COMPANY
Fig 2: Adjustable Steering Column Wiring Diagram (2 Of 4)
GFDWR139046Courtesy of FORD MOTOR COMPANY

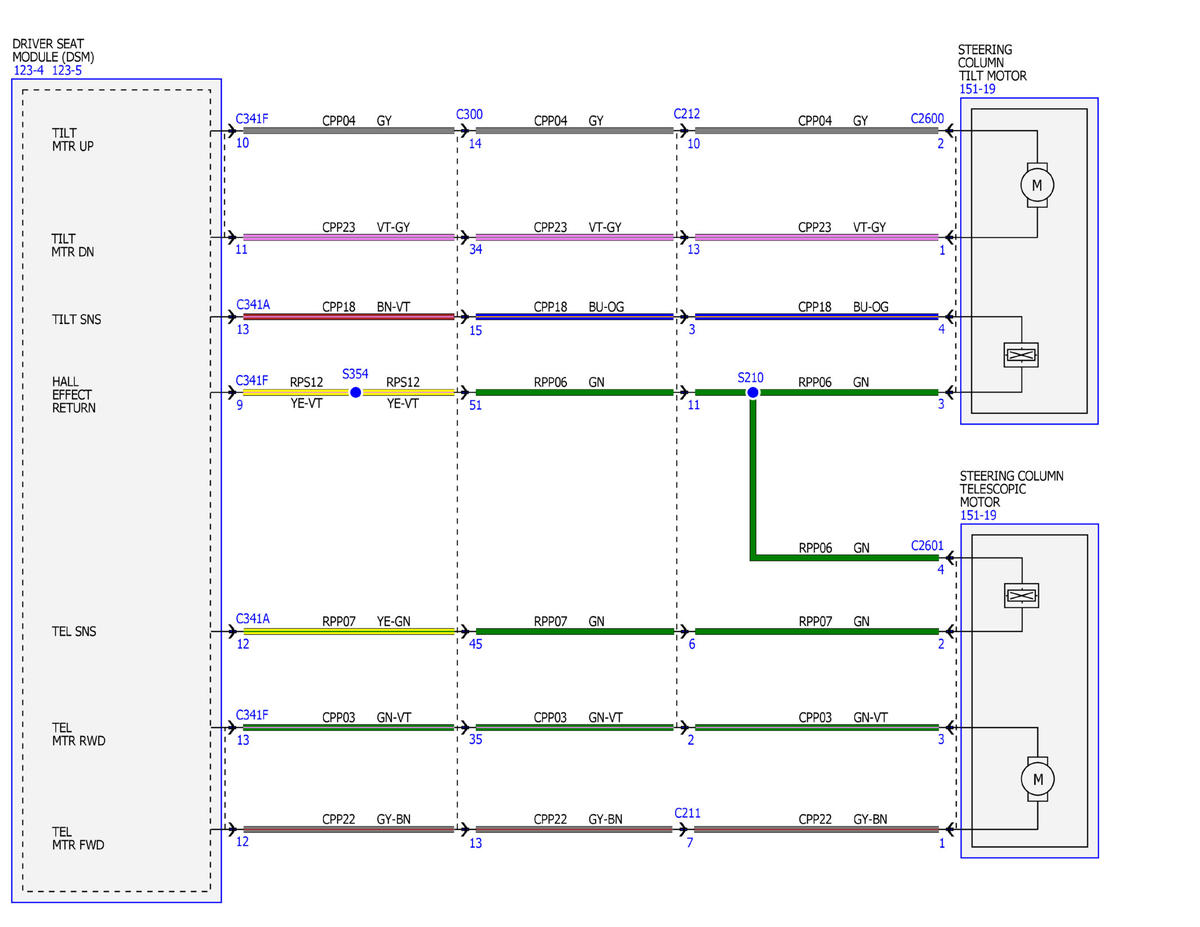

Fig 3: Adjustable Steering Column Wiring Diagram (3 Of 4)
GFDWR139047Courtesy of FORD MOTOR COMPANY
Fig 4: Adjustable Steering Column Wiring Diagram (4 Of 4)
GFDWR139048Courtesy of FORD MOTOR COMPANY
