OEM Wiring Diagram Symbols: Symbols

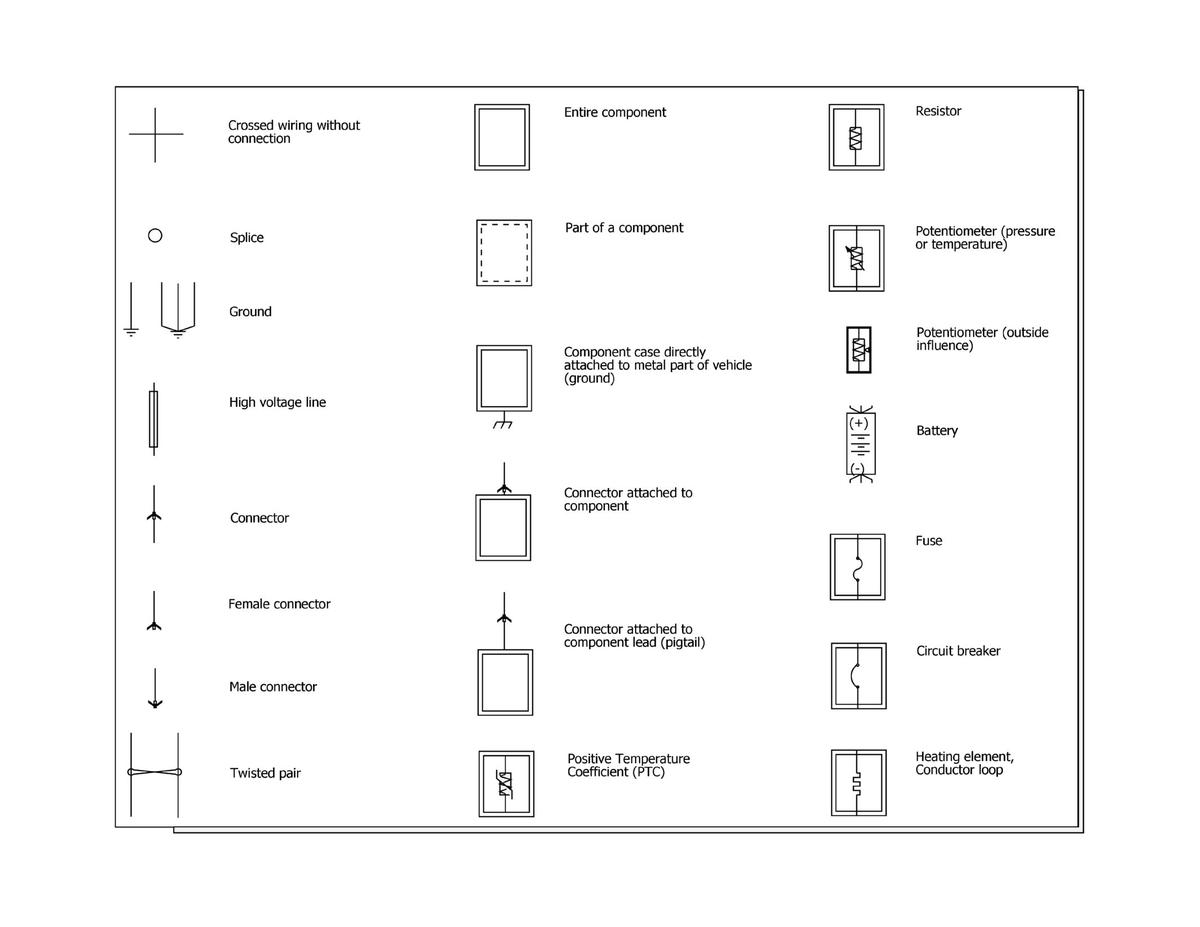

GFDWR139362

Courtesy of FORD MOTOR COMPANY

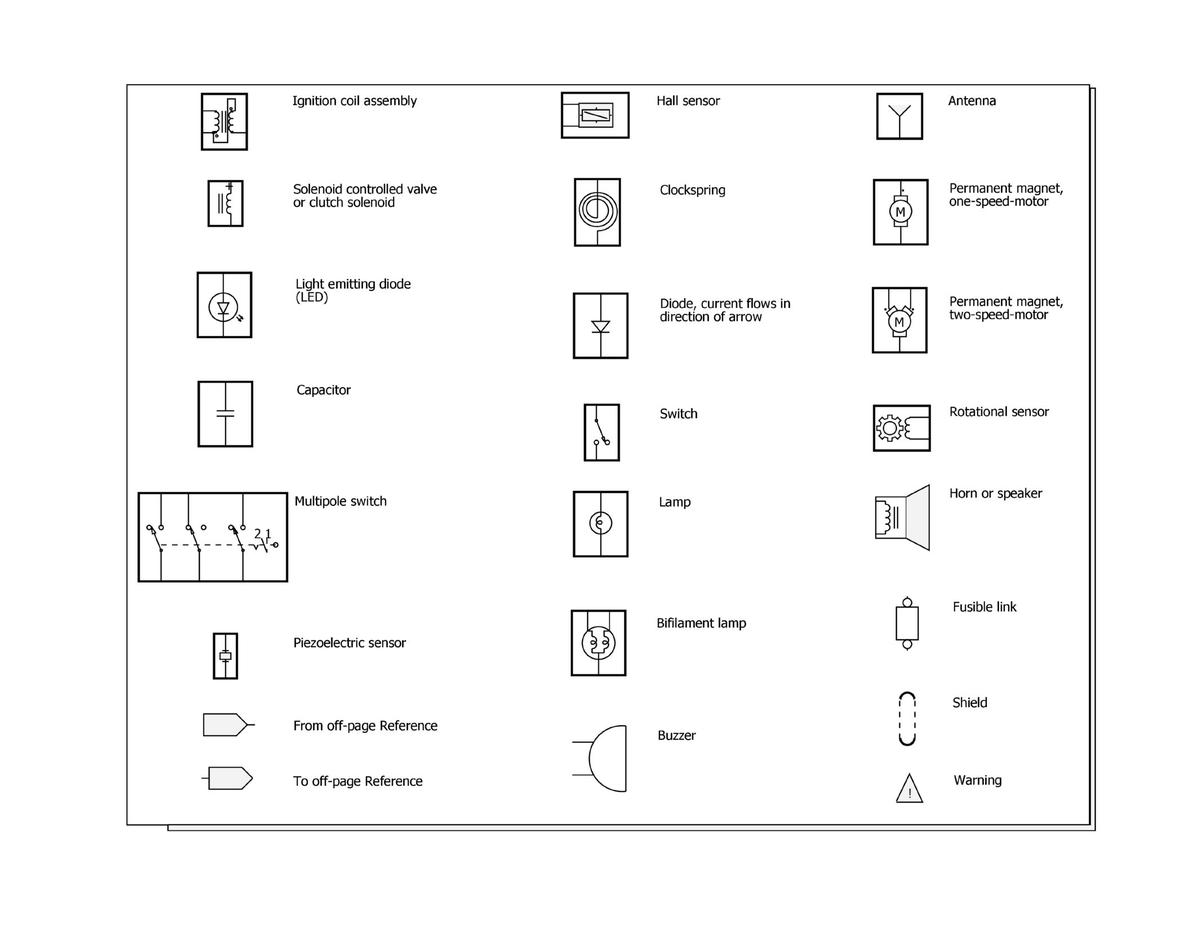

GFDWR139363

Courtesy of FORD MOTOR COMPANY

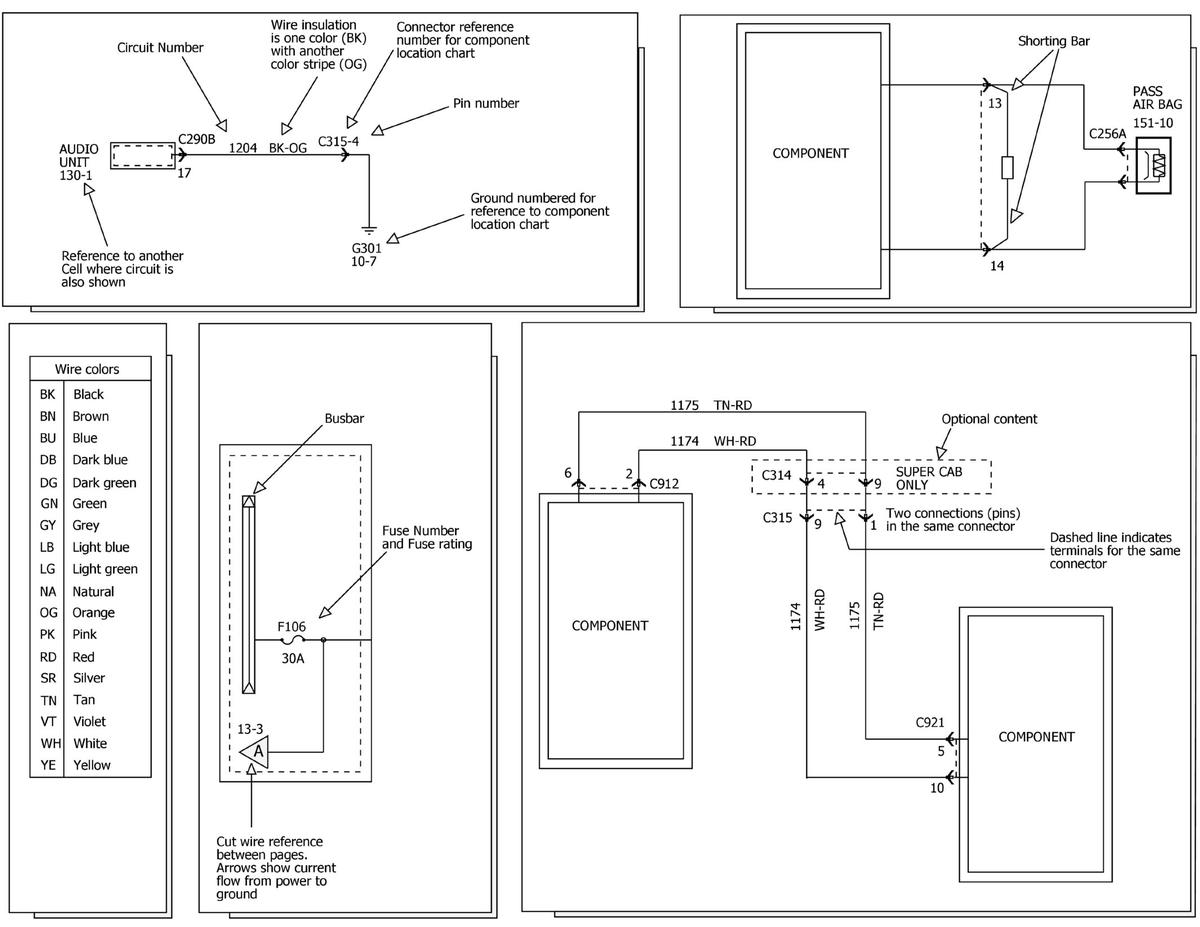

GFDWR139364

Courtesy of FORD MOTOR COMPANY

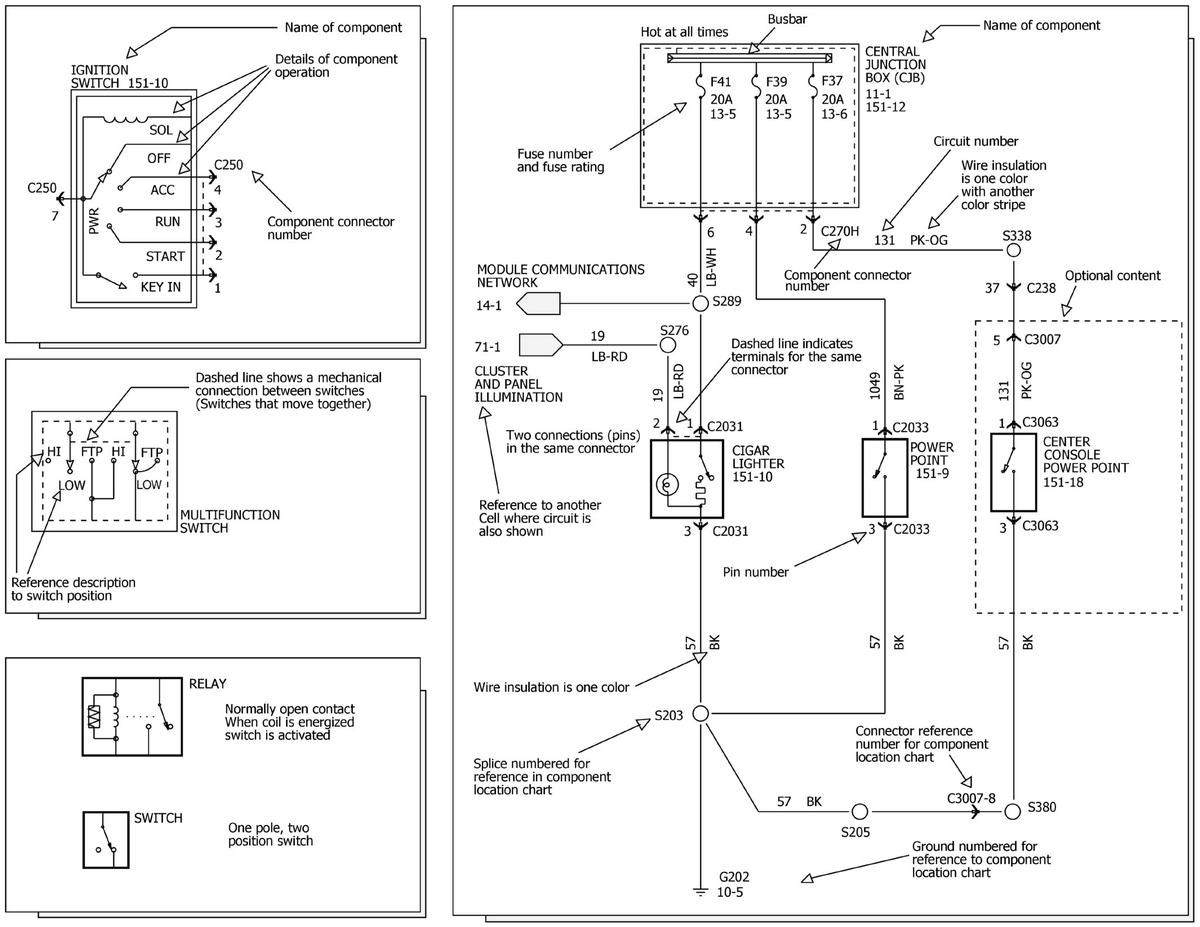

GFDWR139365

Courtesy of FORD MOTOR COMPANY

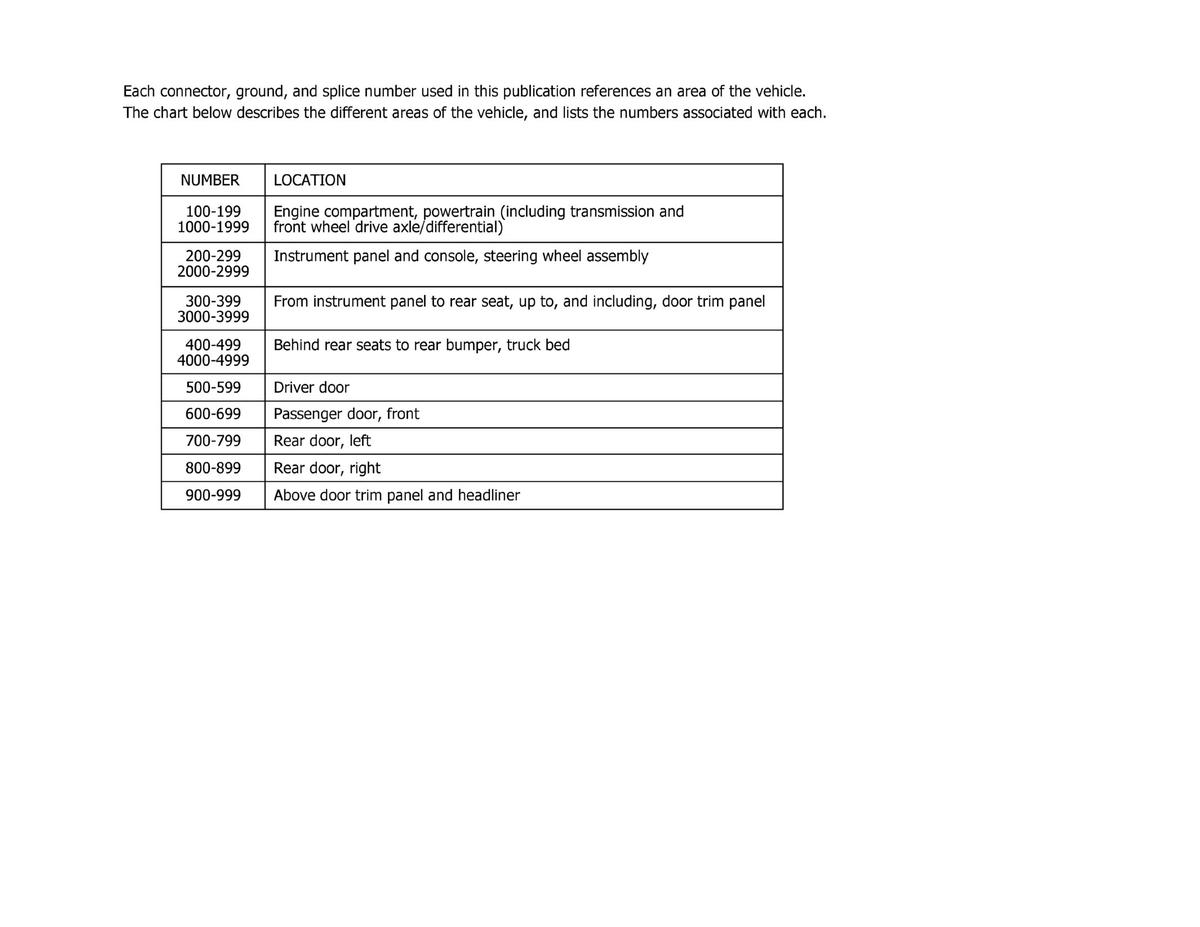

GFDWR139366

Courtesy of FORD MOTOR COMPANY
