Exterior Rear View Mirror Switch

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

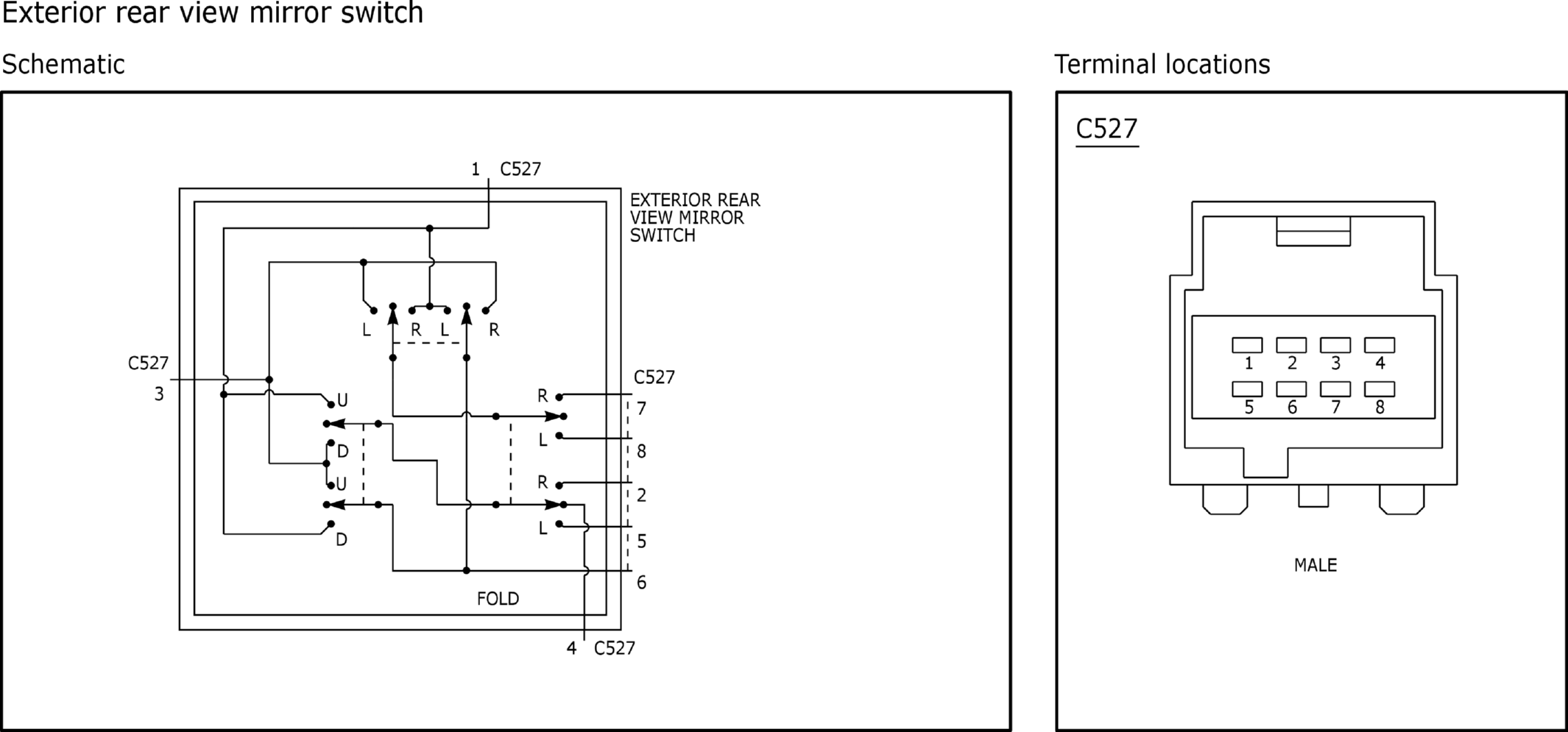

Fig 1: Exterior Rear View Mirror Switch (1 of 2)
GFDW83572Courtesy of FORD MOTOR COMPANY

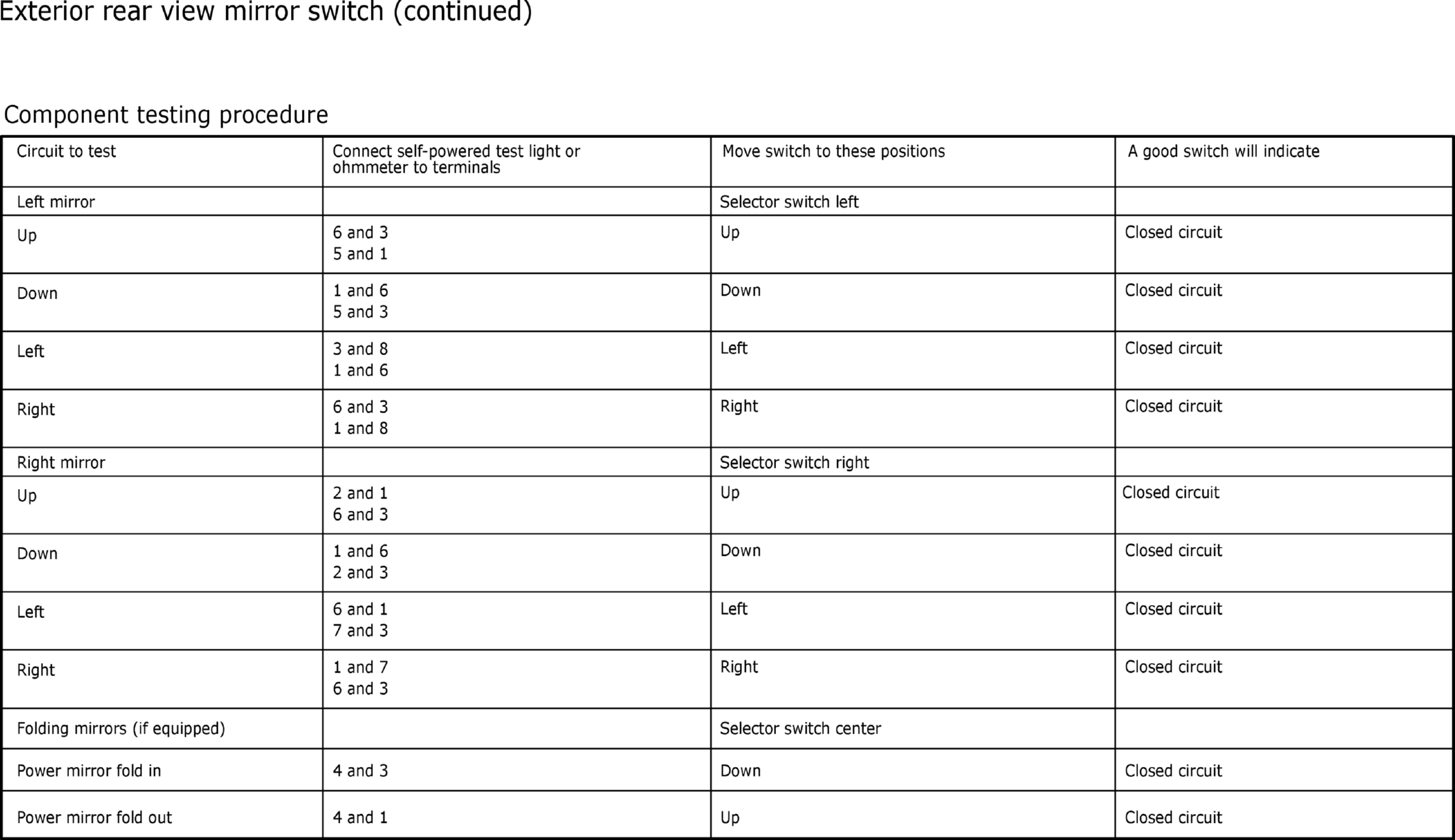

Fig 2: Exterior Rear View Mirror Switch (2 of 2)
GFDW83573Courtesy of FORD MOTOR COMPANY
