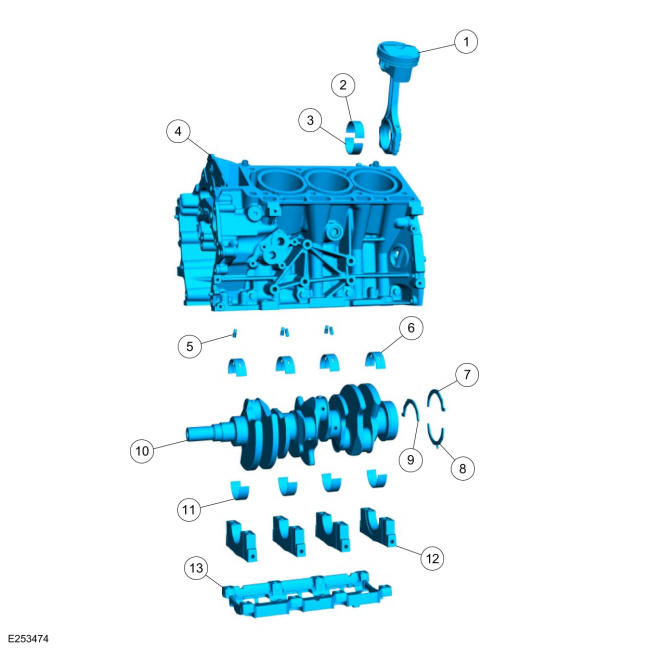

Exploded View of Lower Engine Block (View 2)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6110 | Piston and connecting rod assembly (6 required) |
| 2 | 6211 | Connecting rod upper bearing (6 required) |
| 3 | 6211 | Connecting rod lower bearing (6 required) |
| 4 | 6010 | Cylinder block |
| 5 | 6K868 | Piston oil cool valve (6 required) |
| 6 | 6333 | Cylinder block crankshaft main bearing (4 required) |
| 7 | 6A341 | Crankshaft upper thrust outer washer |
| 8 | 6K302 | Crankshaft lower thrust washer |
| 9 | 6A341 | Crankshaft upper thrust inner washer |
| 10 | 6303 | Crankshaft |
| 11 | 6A338 | Lower crankshaft main bearings (4 required) |
| 12 | -- | Lower crankshaft main bearing caps (4 required) (part of 6010) |
| 13 | 6C364 | Main bearing cap support brace |
