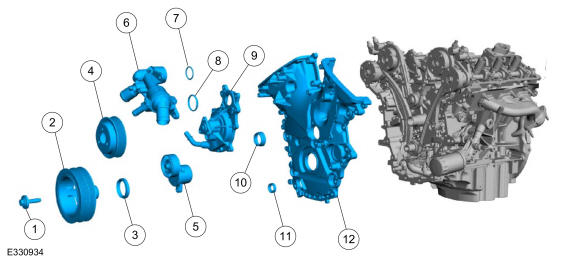

Exploded View Of Engine Front
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W701512/N806165/N806165 | Crankshaft pulley bolt and washer |
| 2 | 6316 | Crankshaft pulley |
| 3 | 6700 | Crankshaft front seal |
| 4 | 8A528 | Coolant pump pulley |
| 5 | 6B209 | Accessory drive belt tensioner |
| 6 | 8A586 | Thermostat housing assembly |
| 7 | 4E856 | Thermostat housing assembly O-ring seal |
| 8 | 8A571 | Coolant pump O-ring seal |
| 9 | 8501 | Coolant pump |
| 10 | 6020 | Front cover to coolant pipe seal |
| 11 | 6P251 | Oil pump electrical connector seal |
| 12 | 6019 | Engine front cover |
