Washer Hose Coupling: Disconnect

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

C-Lock Coupler

NOTE: To prevent damage to the coupler, do not use hand tools to disconnect /connect the C-lock.

NOTE: Do not remove the lock ring from the C-lock coupler.

NOTE: Hold the female side of the coupler at the hose connection to prevent the coupler from rotating internally.

Gently twist the lock ring until it has rotated approximately 90 degrees.

Courtesy of FORD MOTOR COMPANY
NOTE: The female side of the C-lock coupler contains an O-ring seal. Use care not to lose the O-ring.

Slide the C-lock coupler apart from the component fitting.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not leave the lock ring in the unlocked position. This will weaken the lock ring and prevent it from correctly locking in place when reassembled, resulting in a leak.

Rotate the lock ring back to the original locked position.

Courtesy of FORD MOTOR COMPANY
To connect, verify the C-lock coupler lock ring is in the locked position.
NOTE: The lock ring flexes open slightly to allow the male fitting to enter the C-lock coupler.

NOTE: The lock ring can be heard as it snaps into the lock position.

Insert the male fitting into the C-lock coupler.
Gently pull on the C-lock coupler to verify it is seated correctly.
Pinch Type Coupler
NOTE: To prevent damage to the coupler, do not use hand tools to disconnect /connect pinch type coupler.

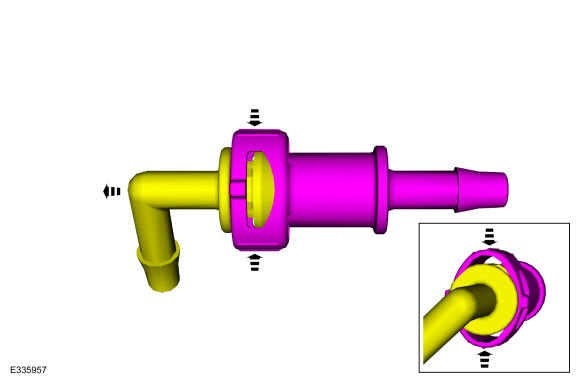

Squeeze the coupler at the two raised points and gently pull the connection apart.

Courtesy of FORD MOTOR COMPANY
Inspect tie O-ring. Replace if necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: An audible click should be heard once in the locked position.

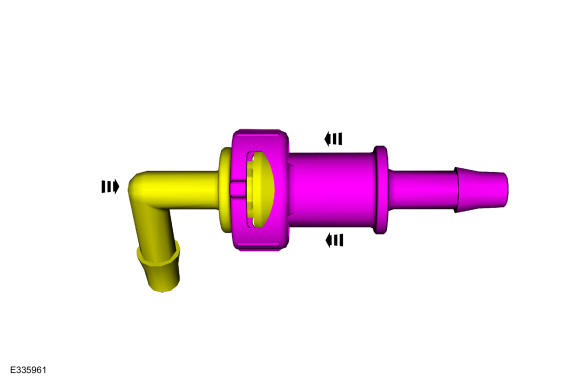

To connect, insert the male fitting into the pinch type coupler until it is in the locked position.

Courtesy of FORD MOTOR COMPANY
Gently pull on the pinch type coupler to verify it is seated correctly.
