Section 545 (OEM Wiring Diagrams)
>>
Power Distribution
Power Distribution
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

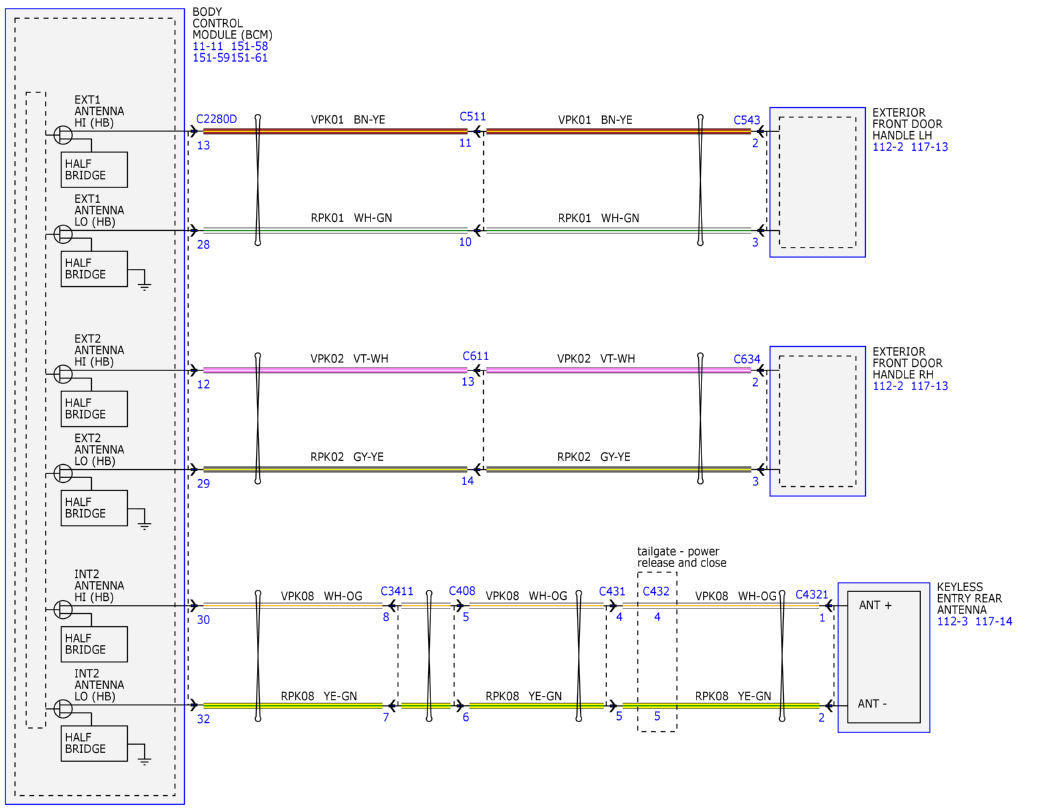

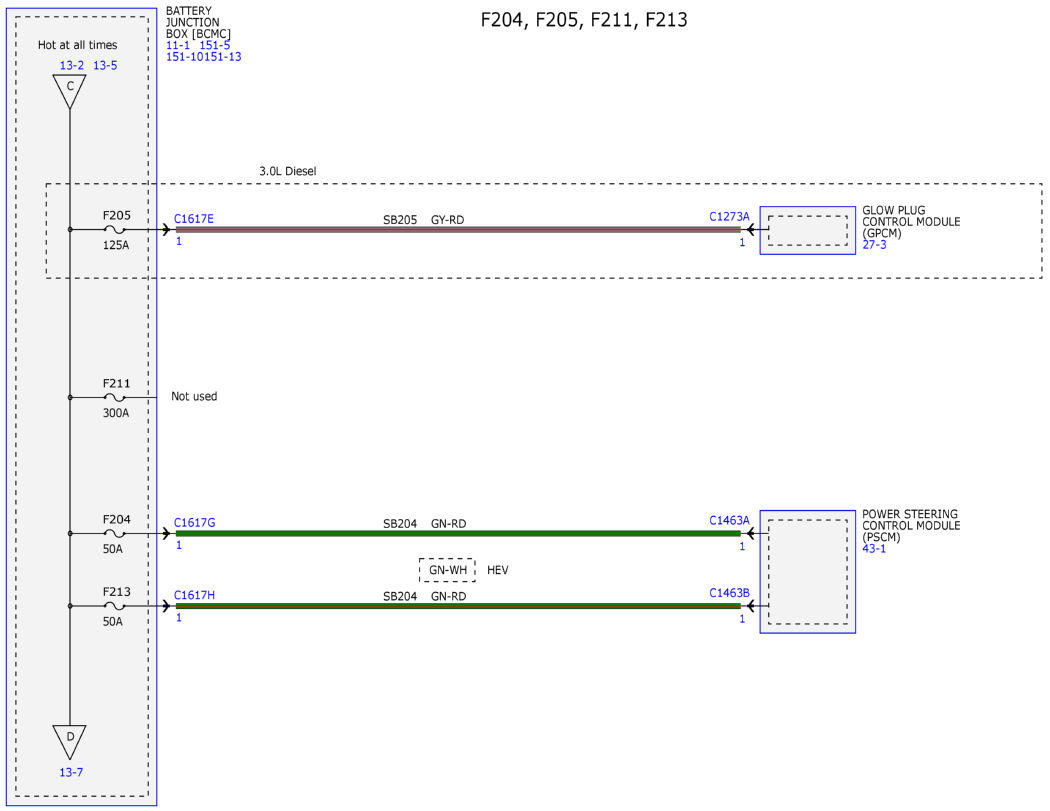

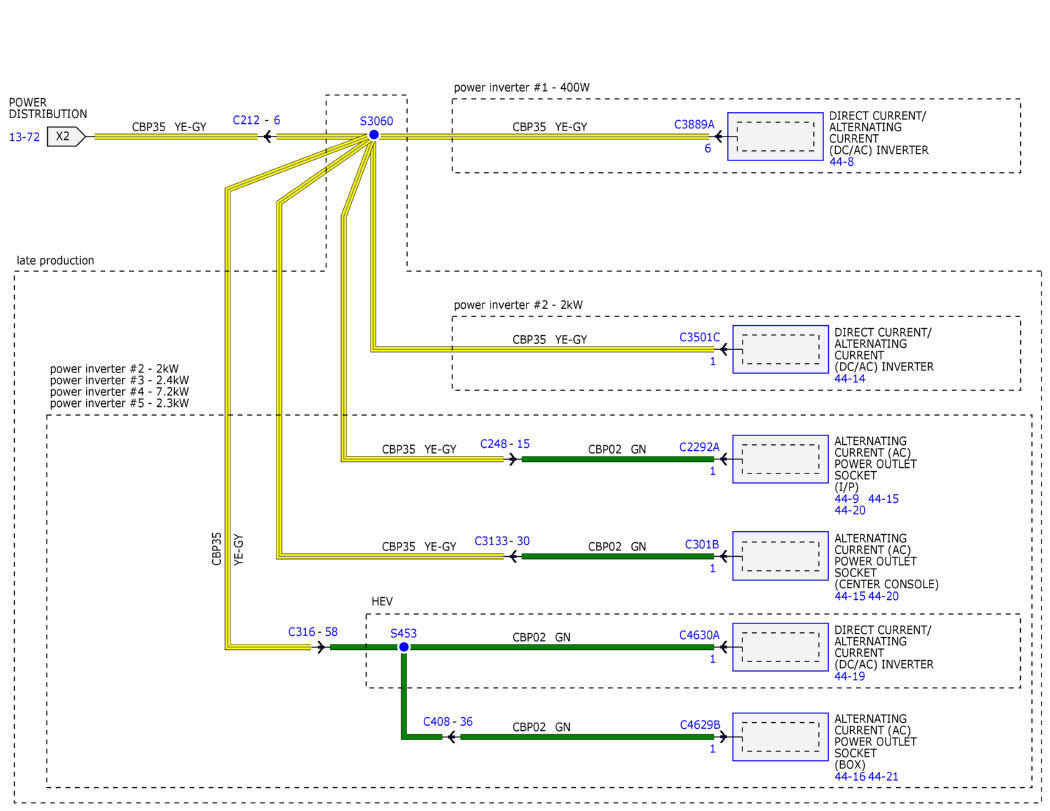

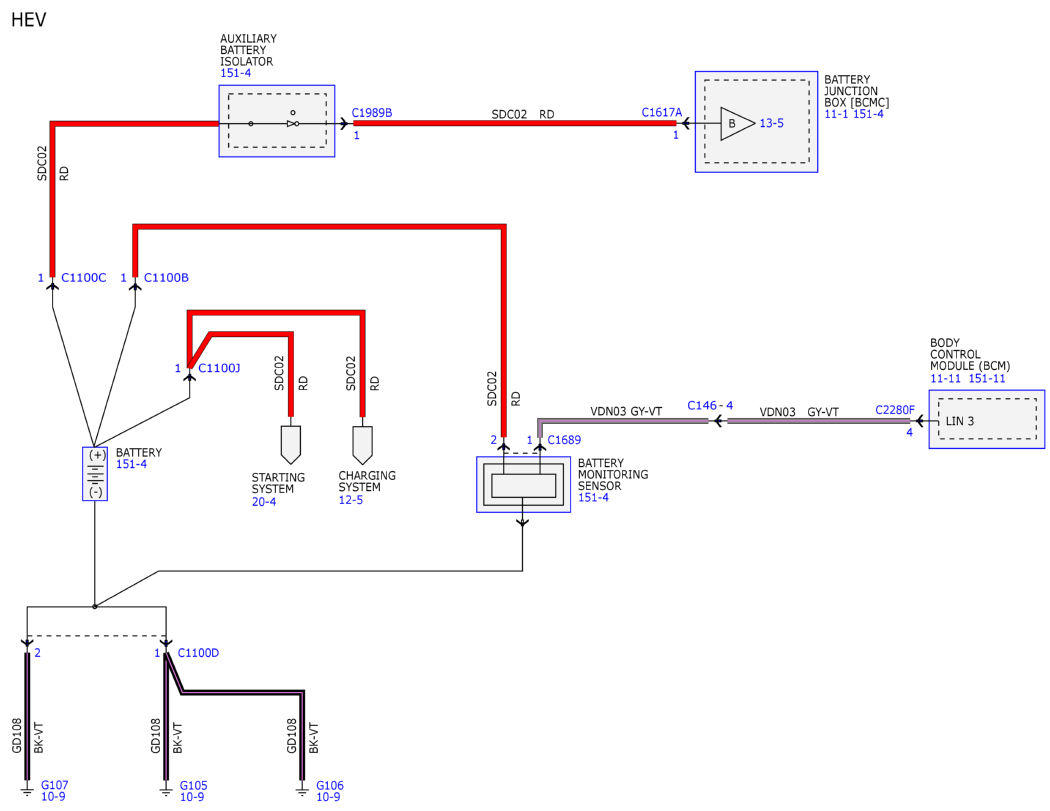

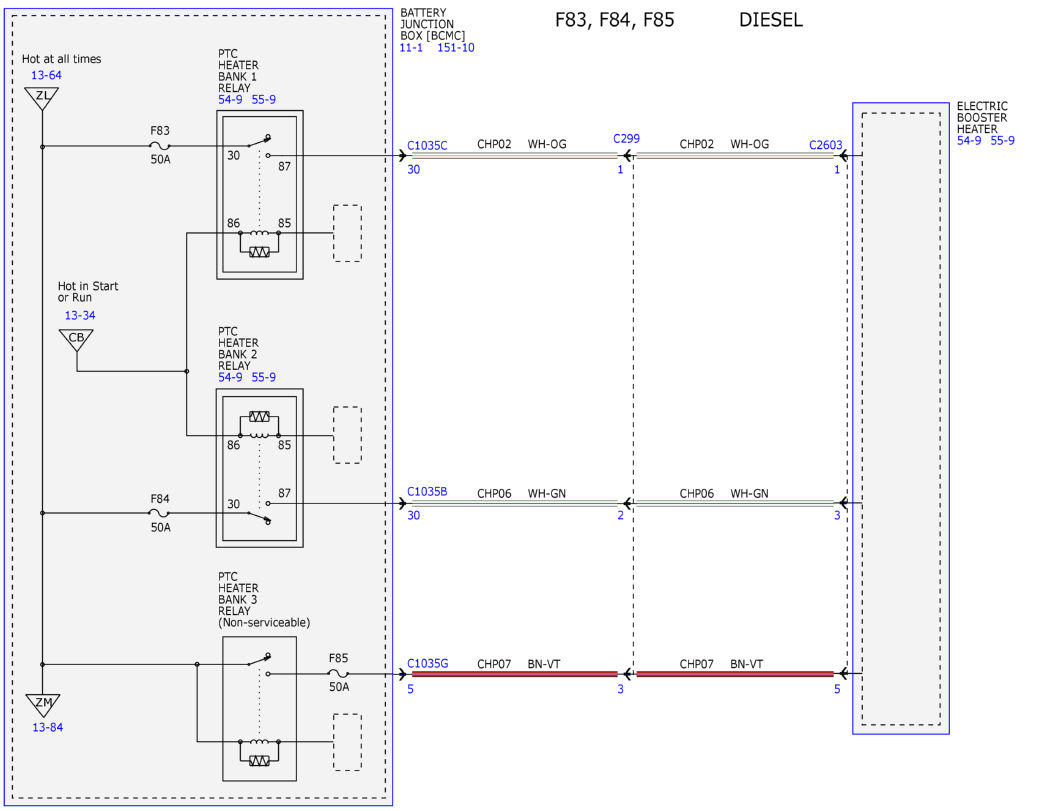

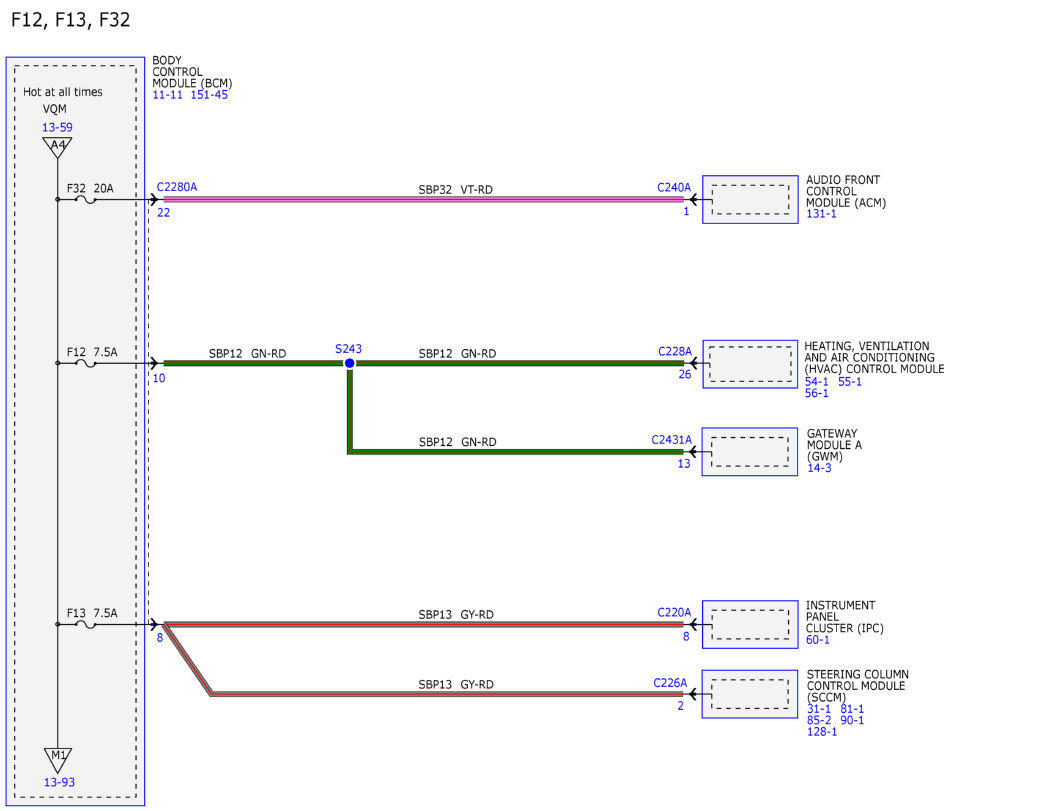

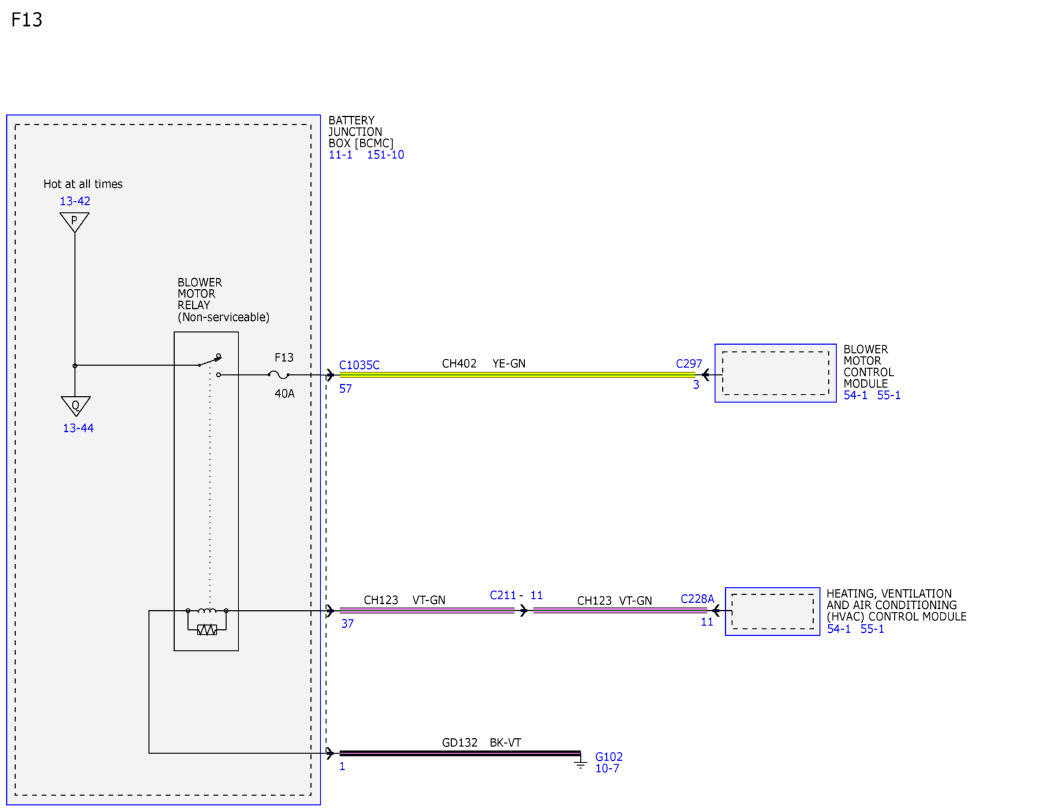

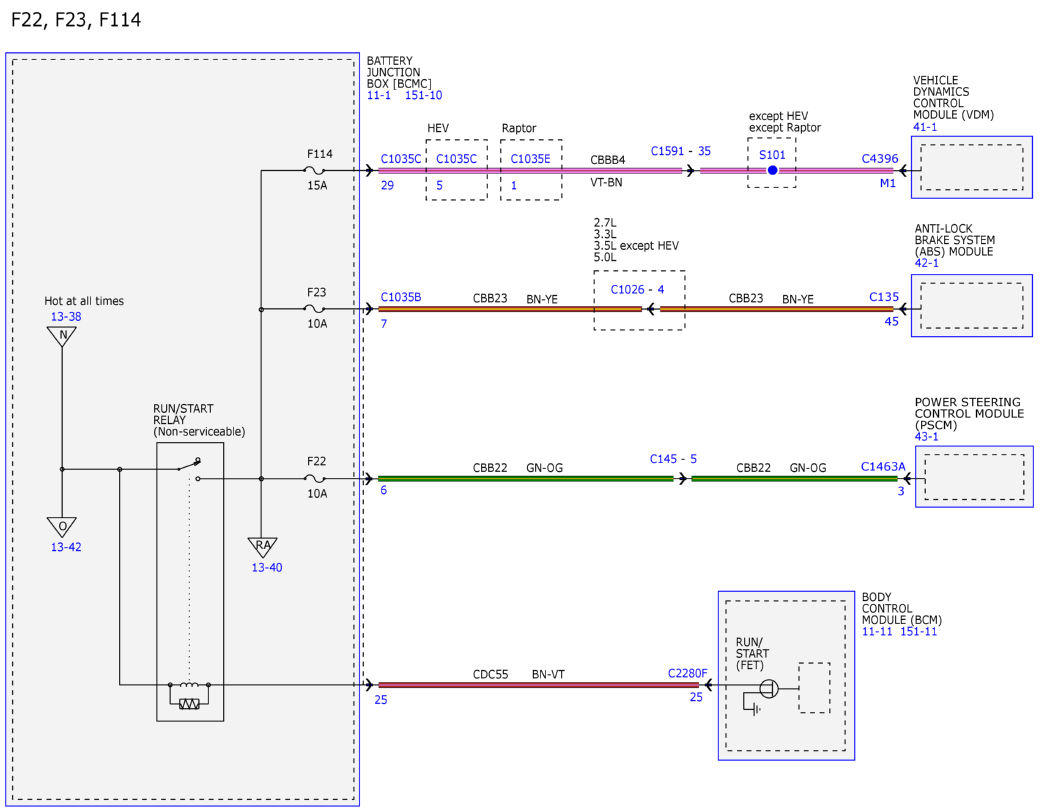

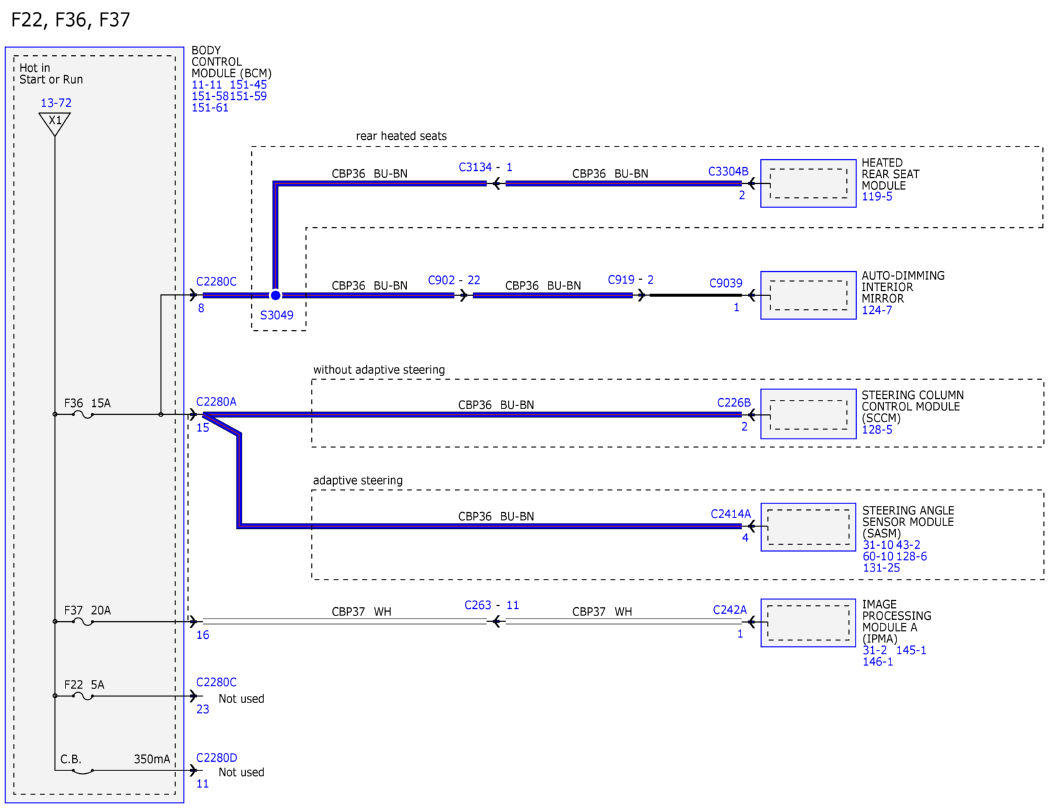

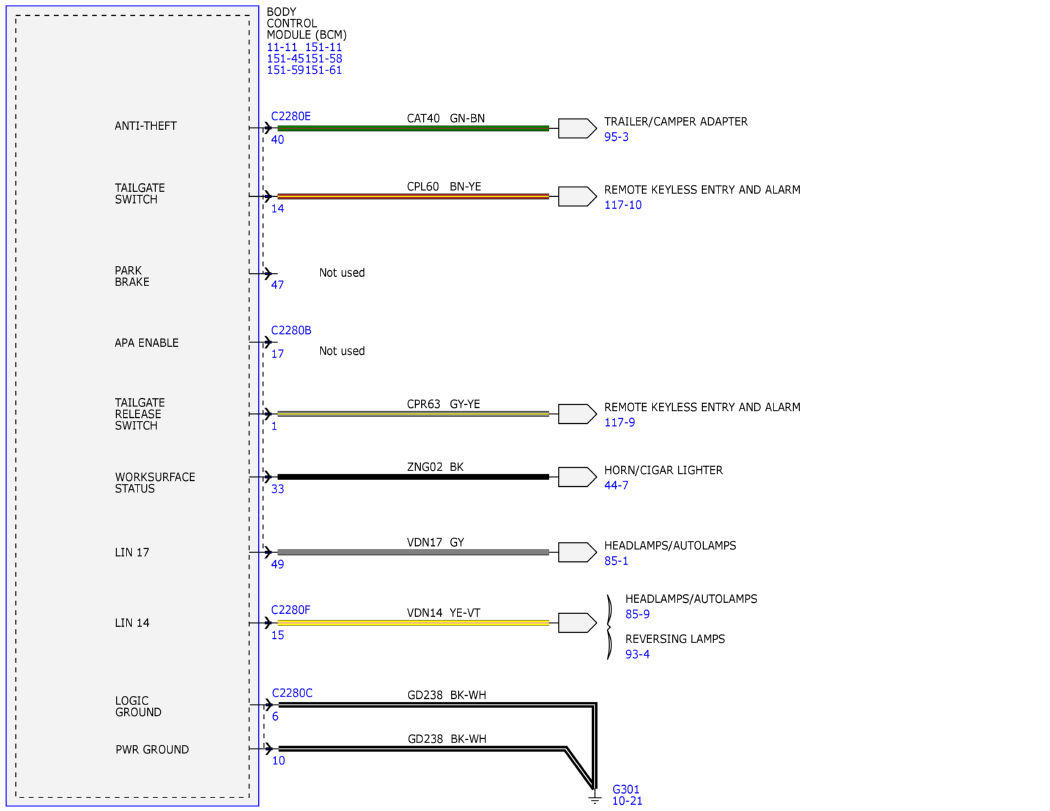

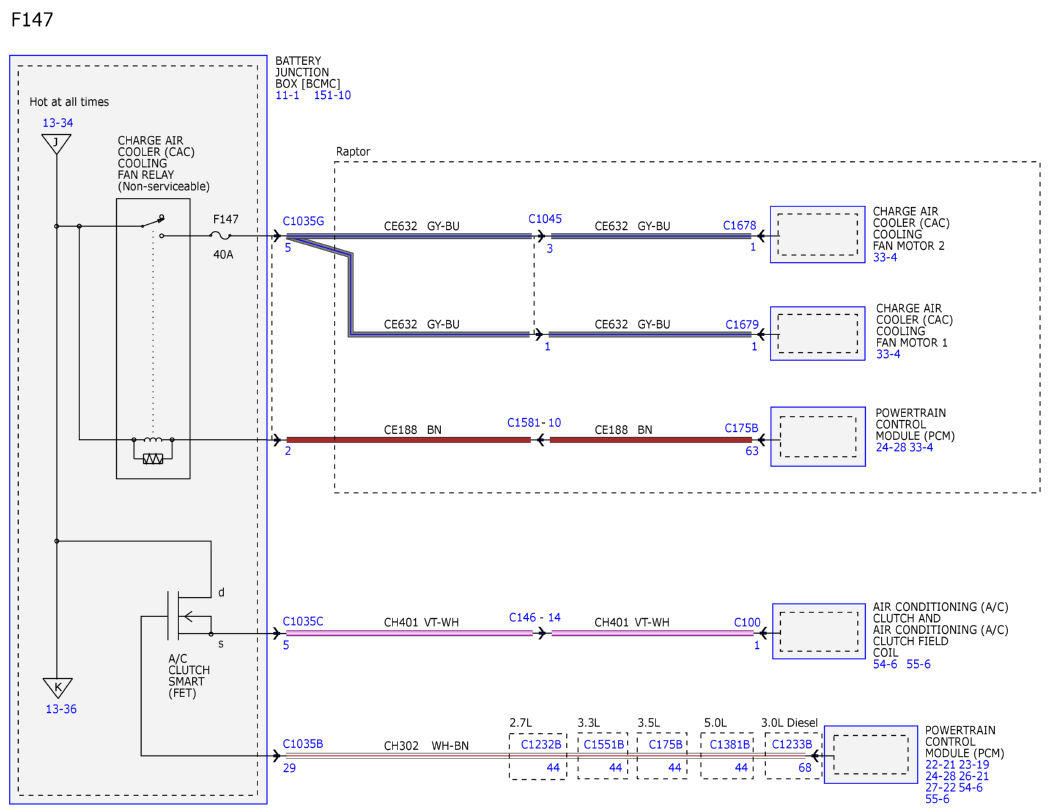

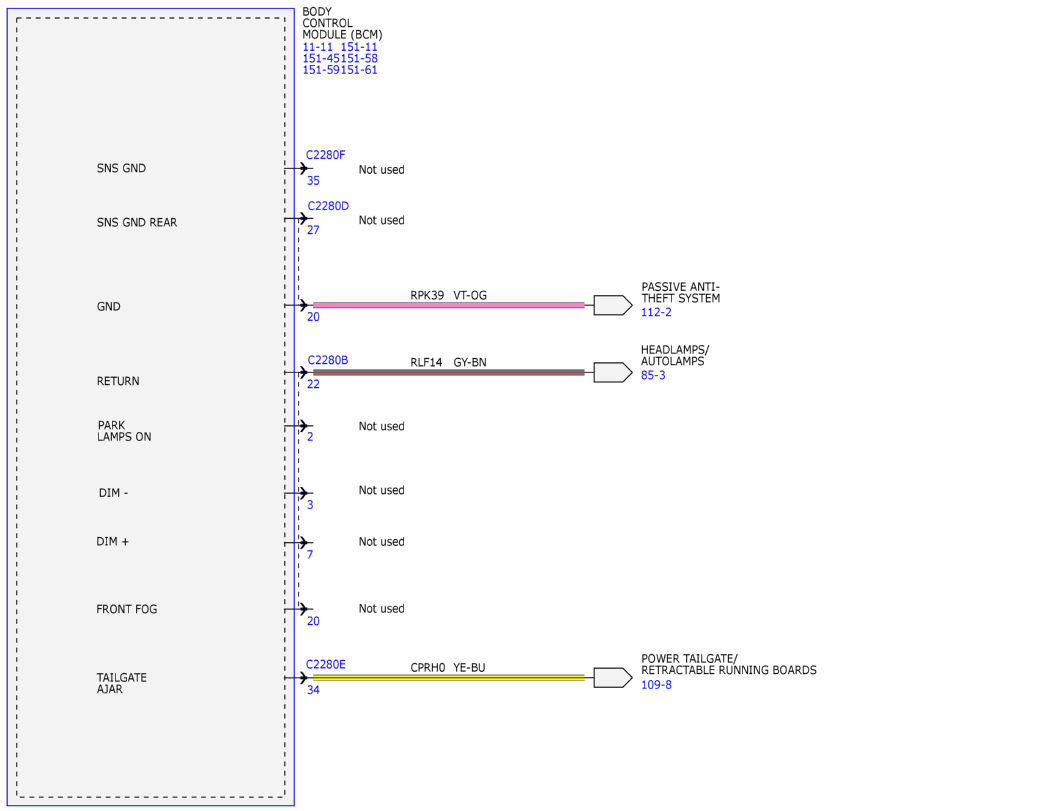

Fig 1: Power Distribution Wiring Diagram (1 Of 104)
Courtesy of FORD MOTOR COMPANY

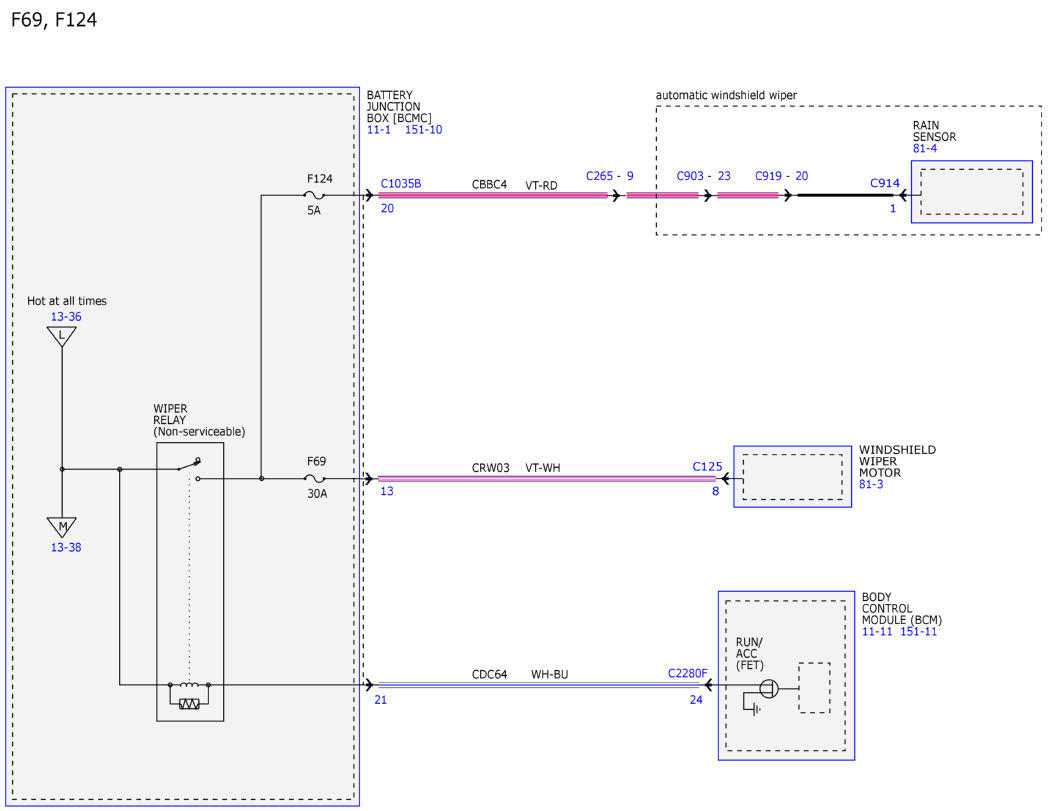

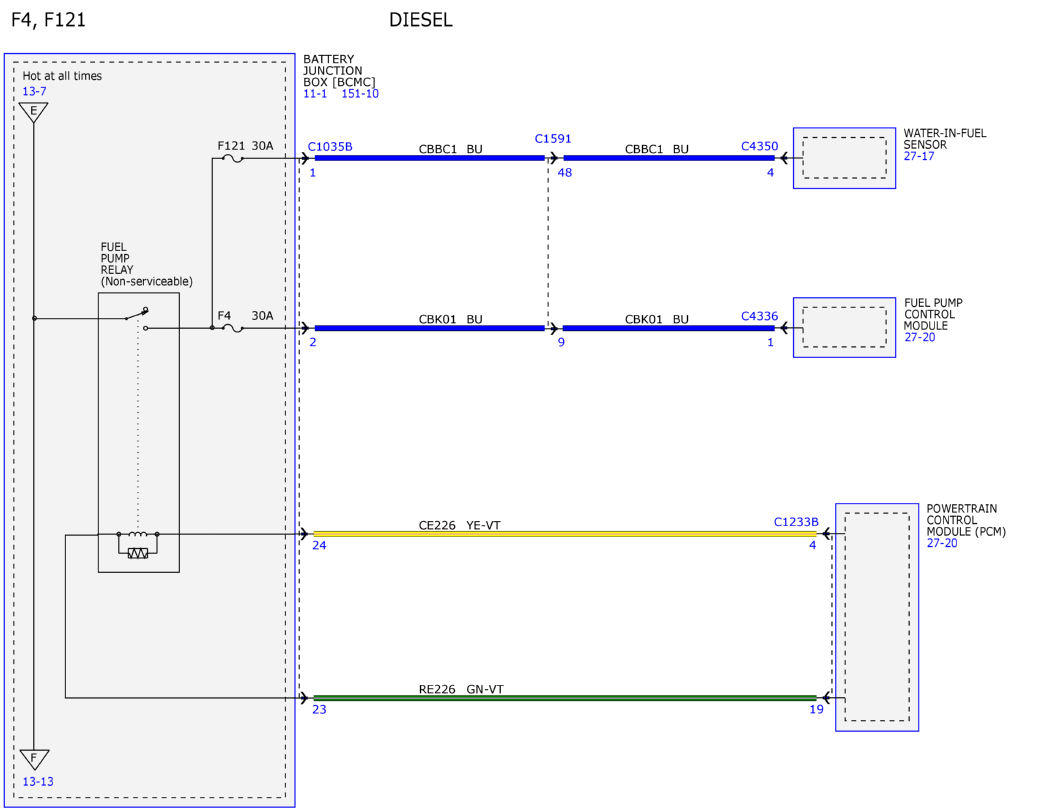

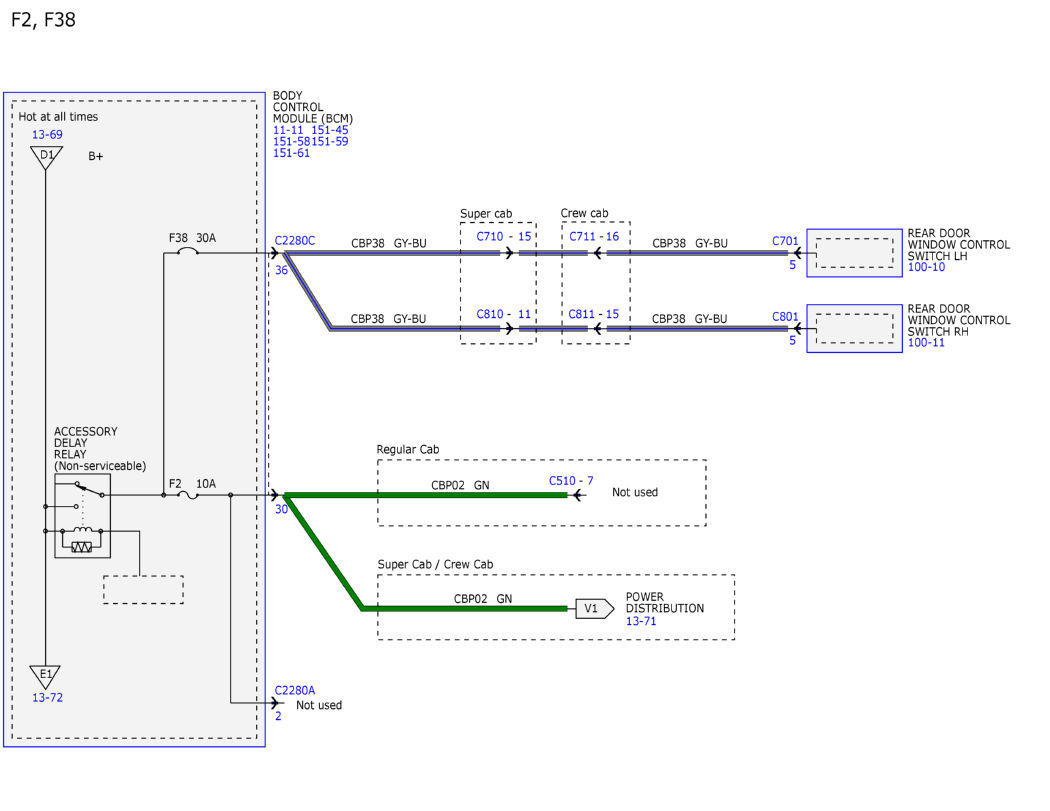

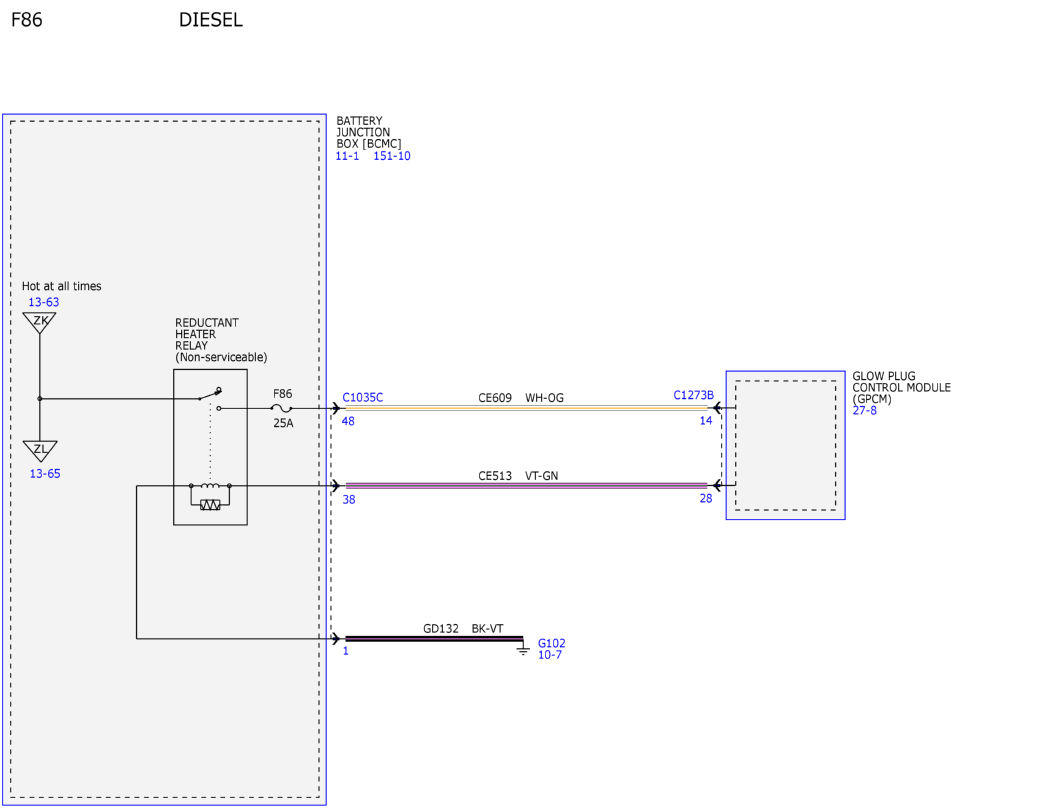

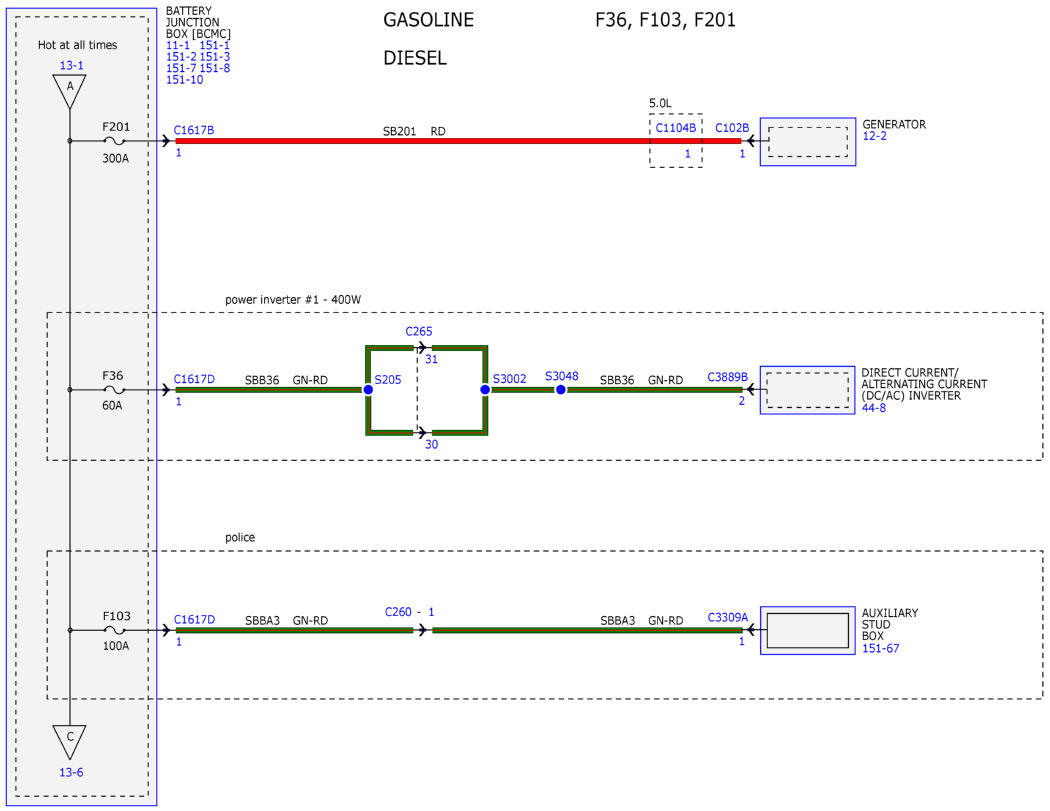

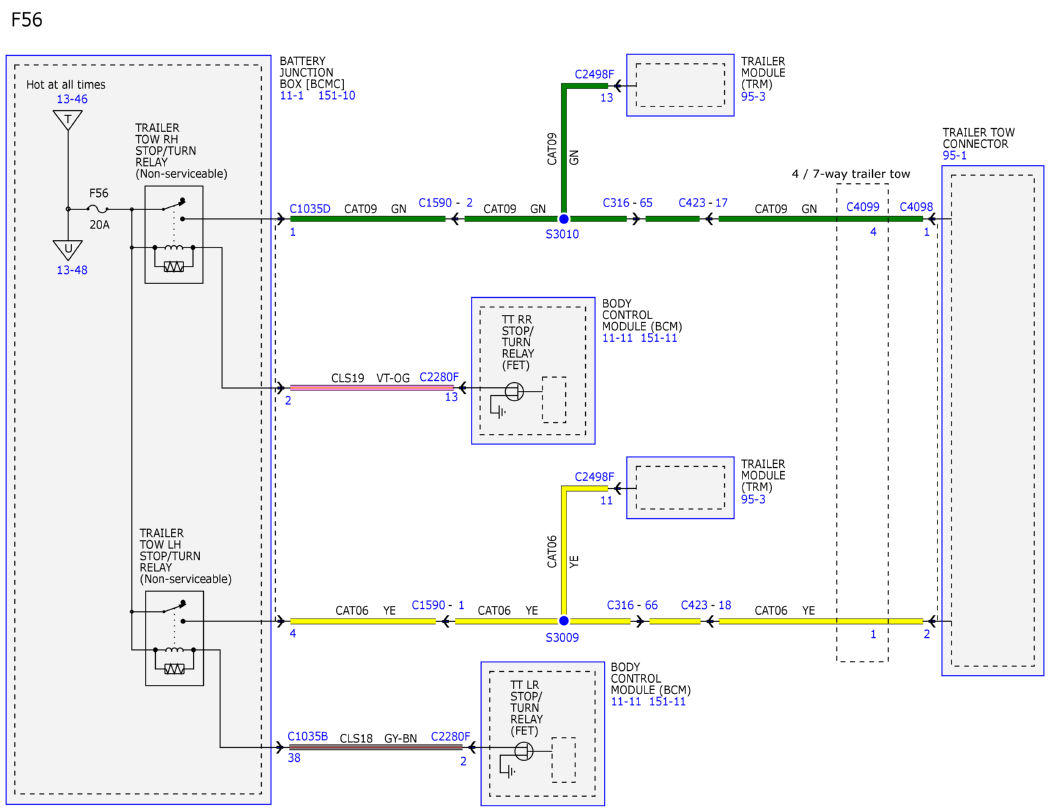

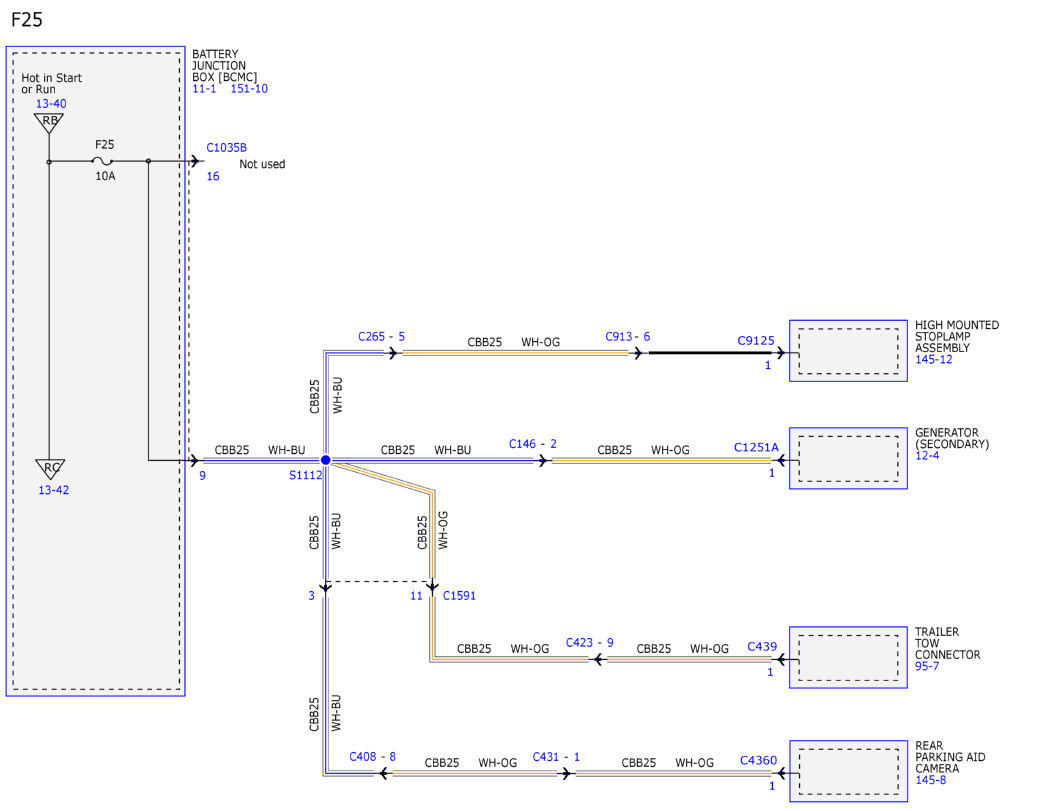

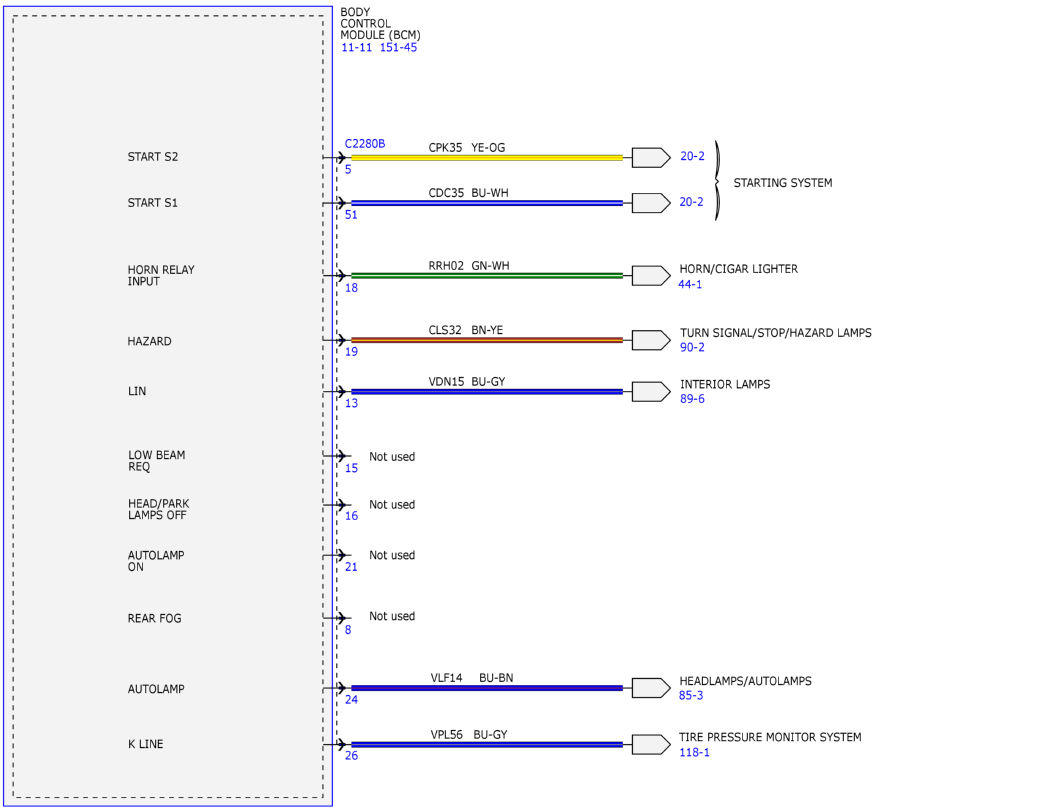

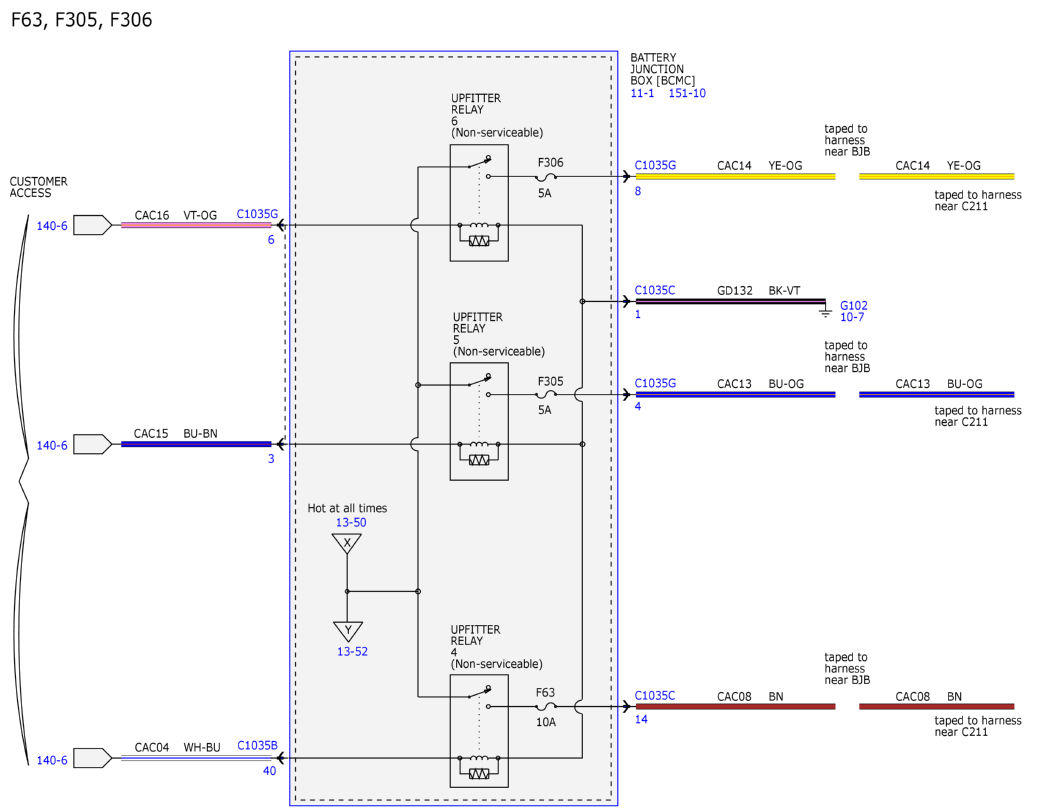

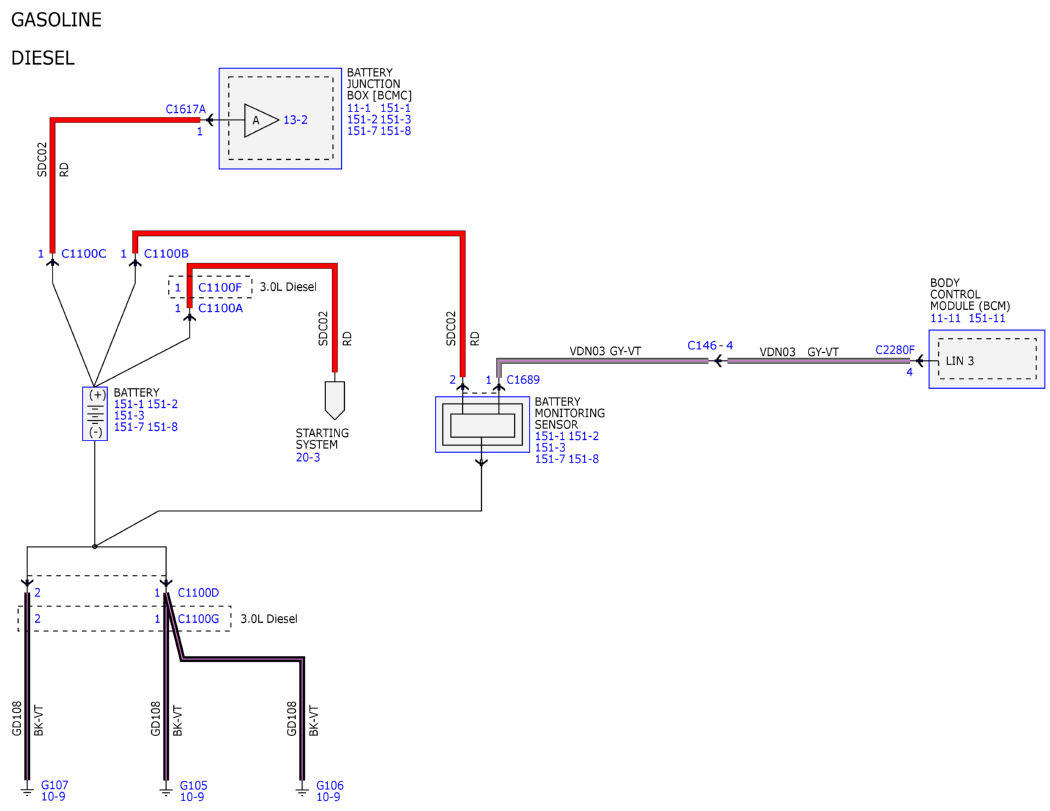

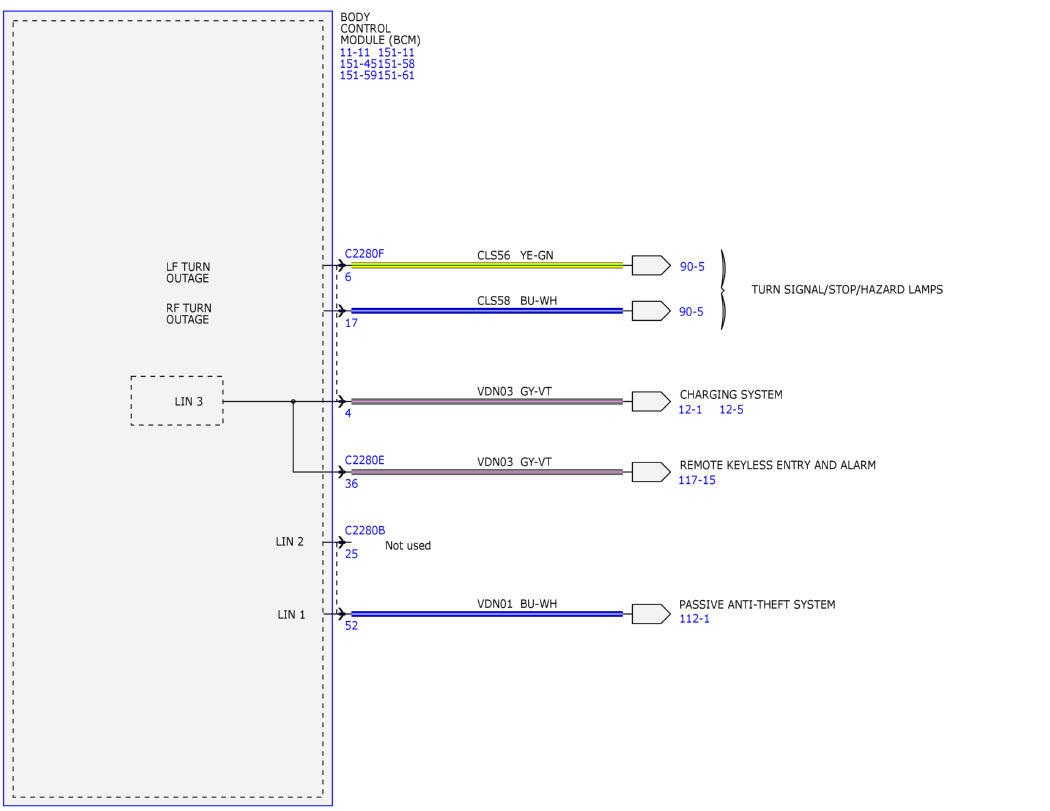

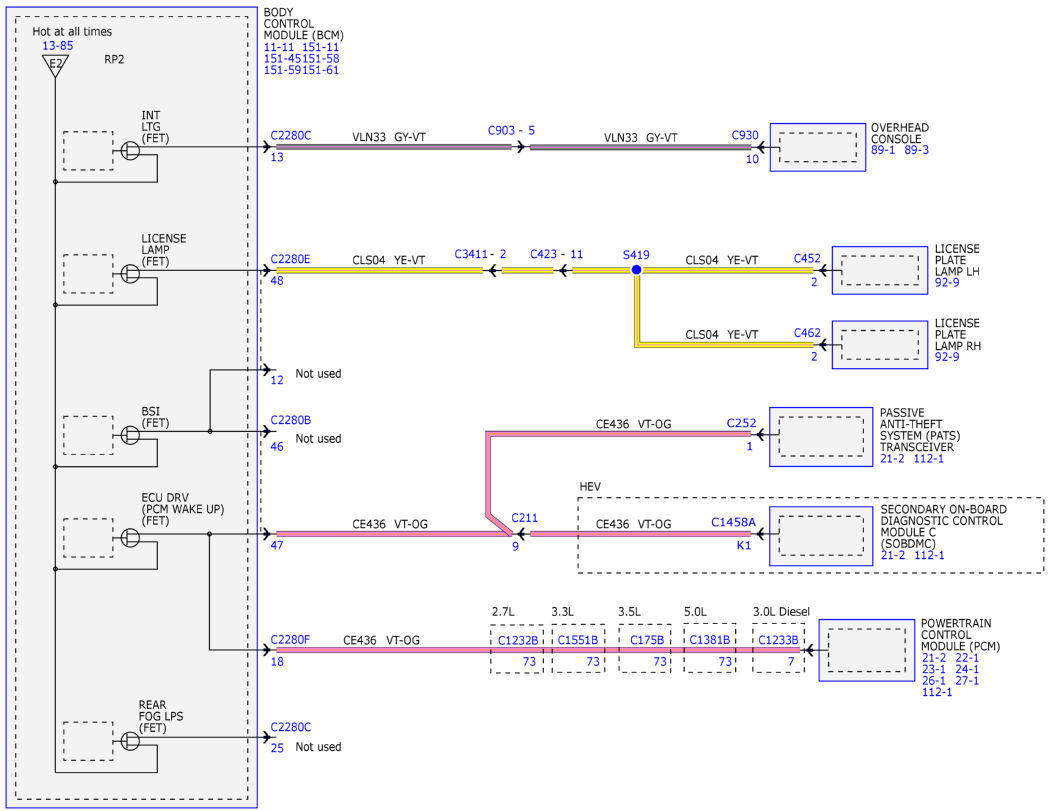

Fig 2: Power Distribution Wiring Diagram (2 Of 104)
Courtesy of FORD MOTOR COMPANY

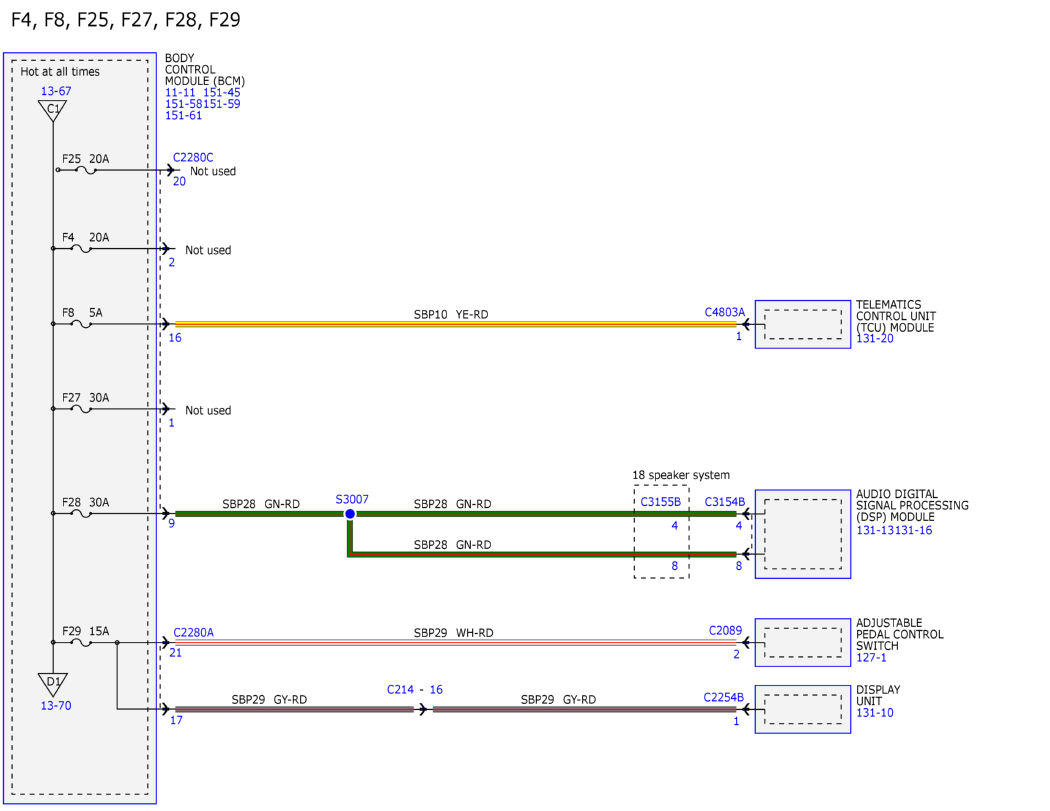

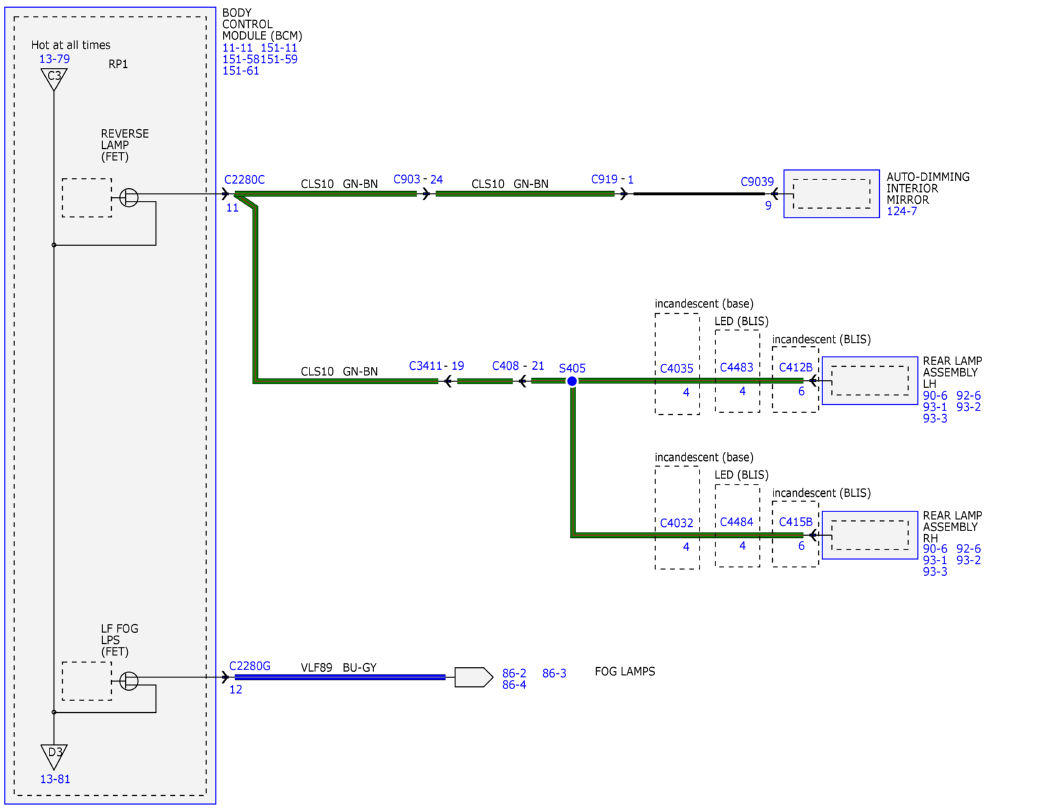

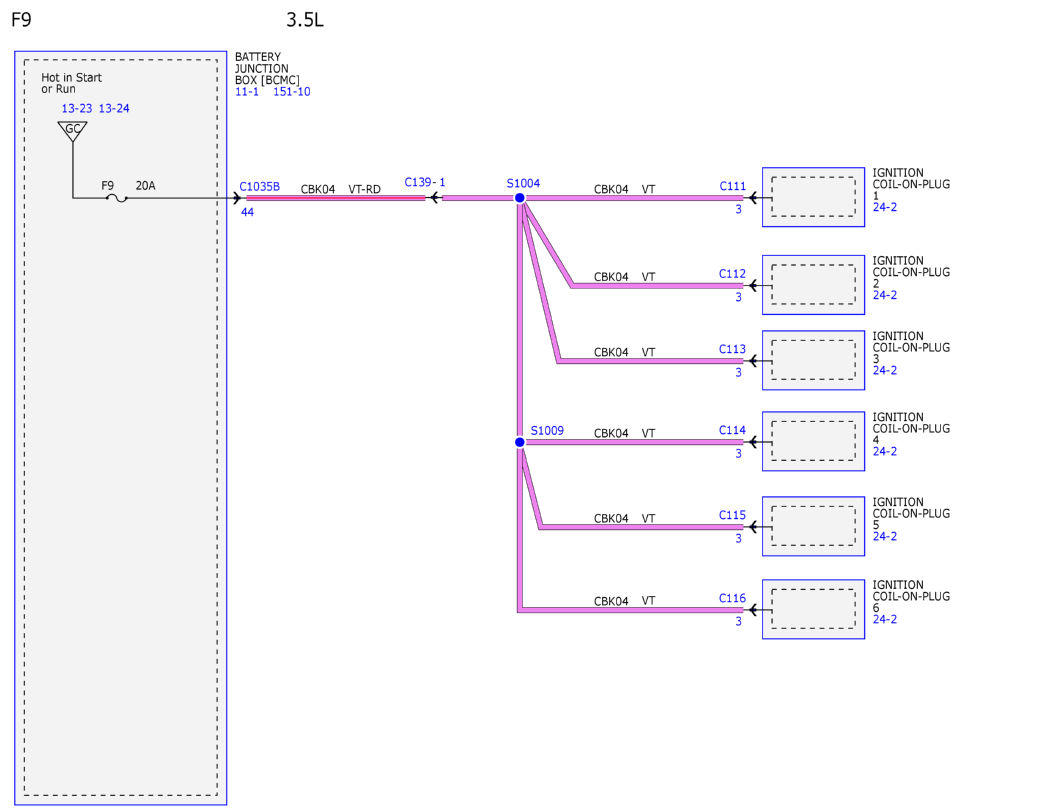

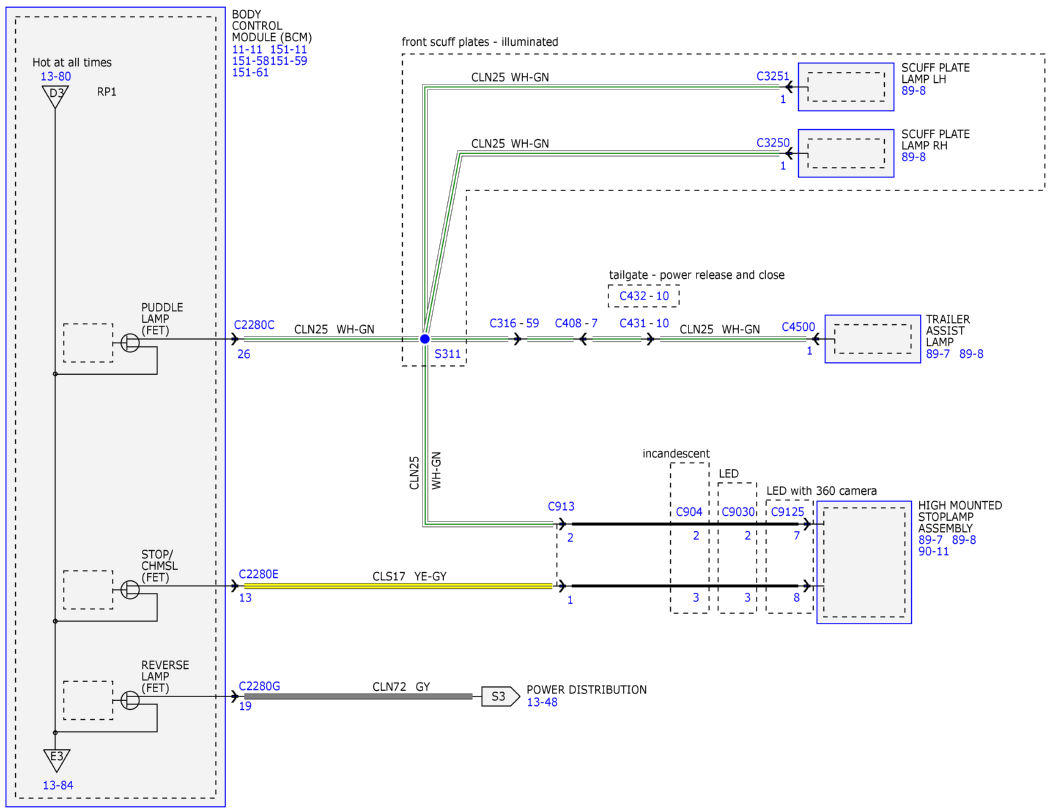

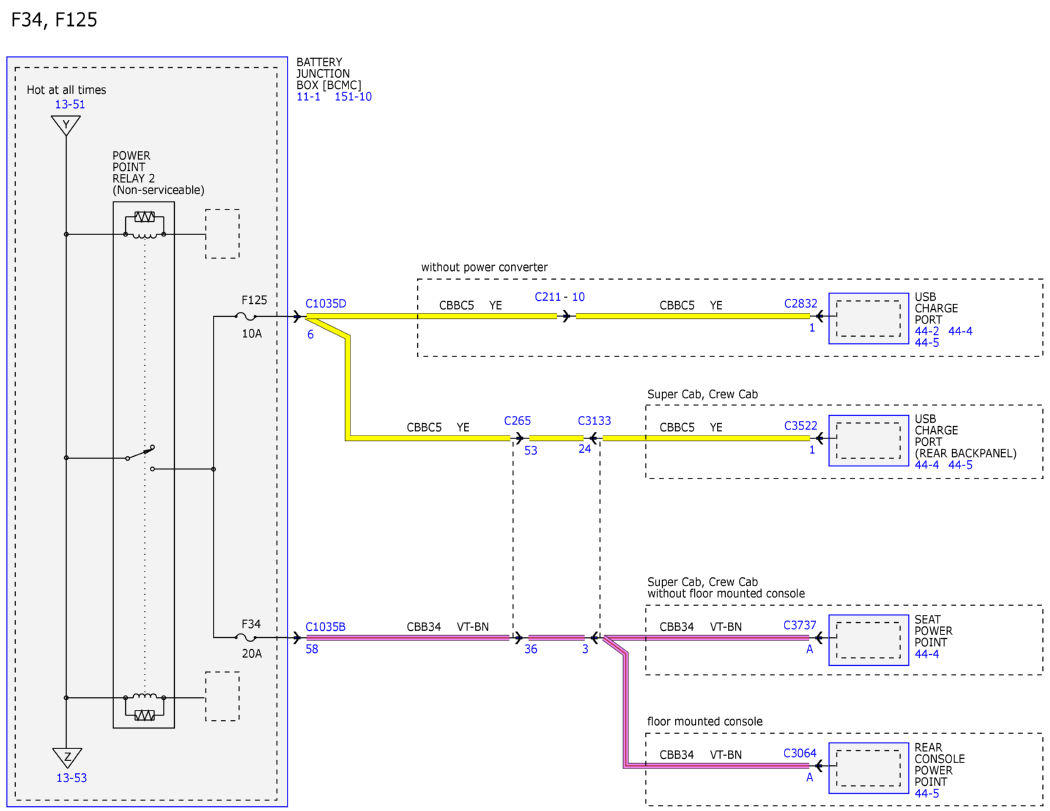

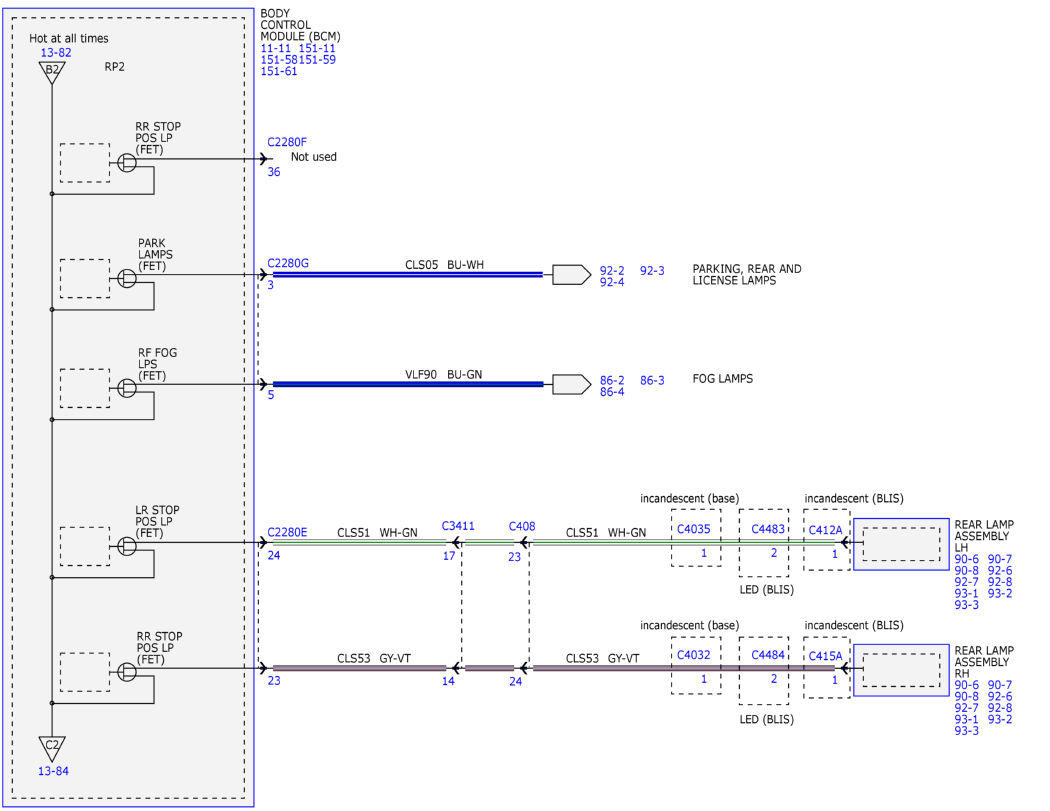

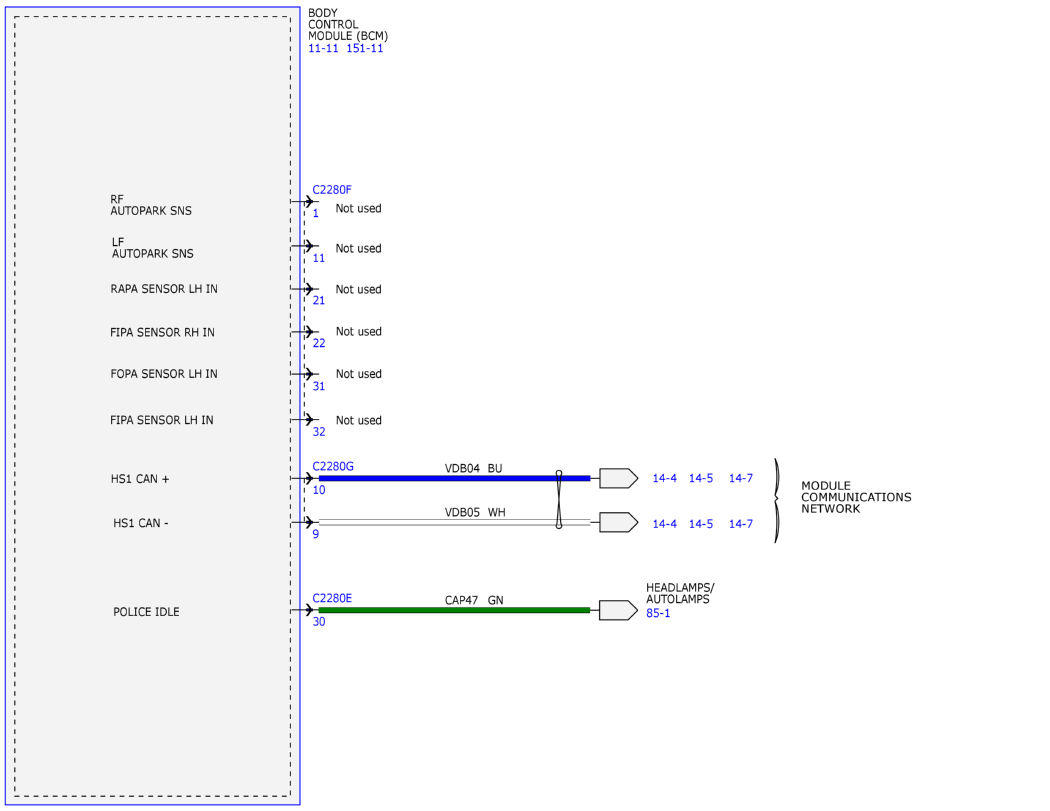

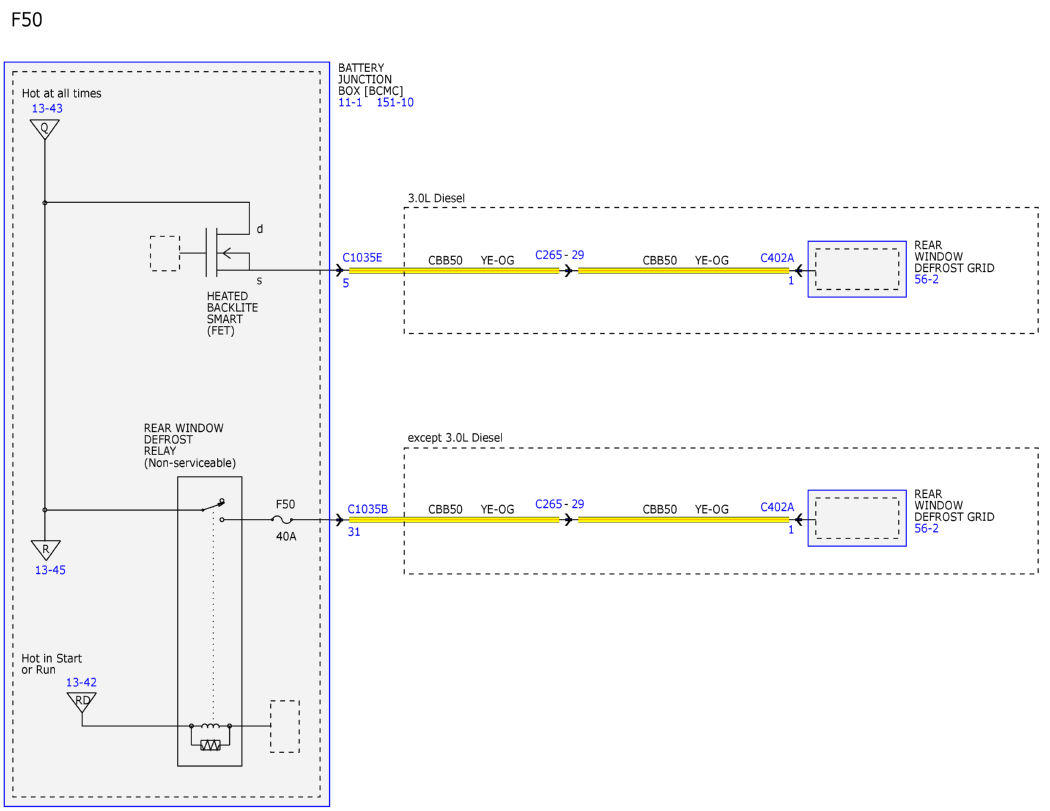

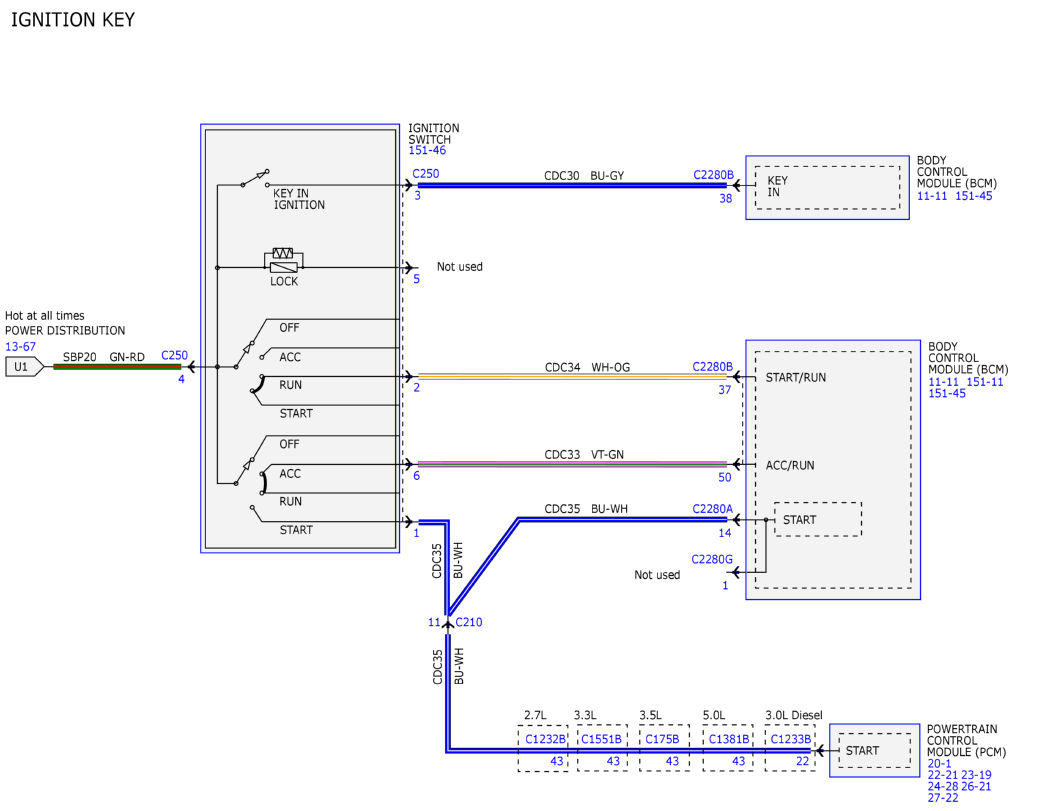

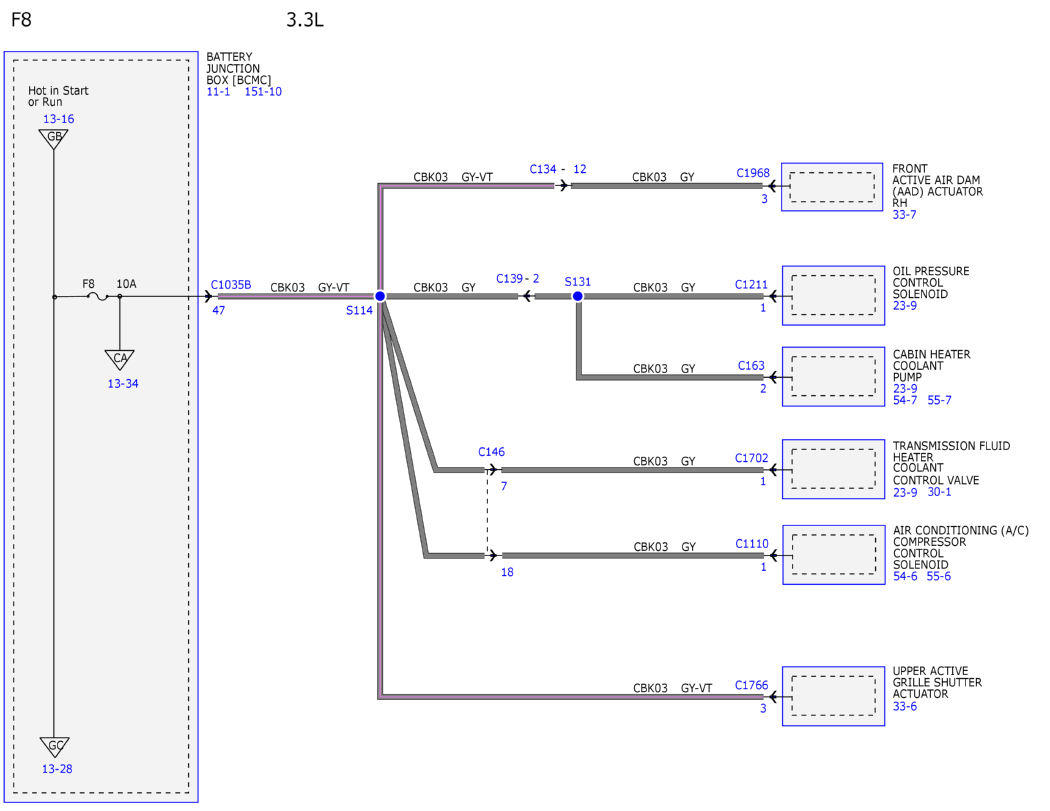

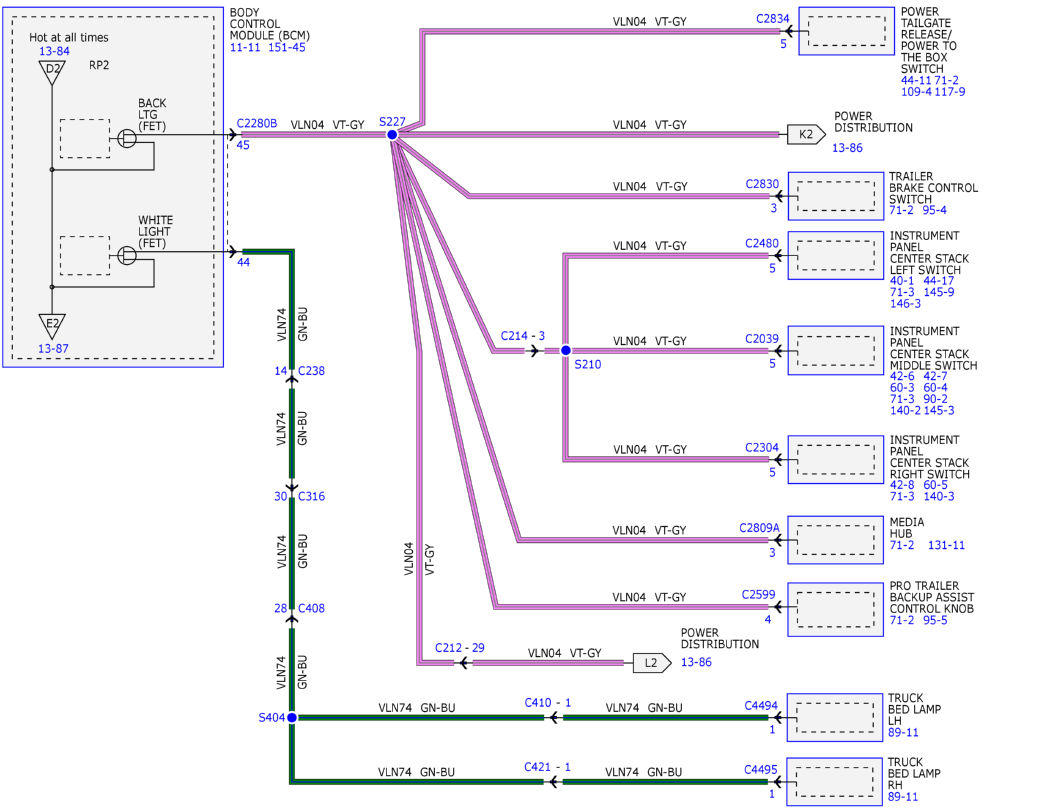

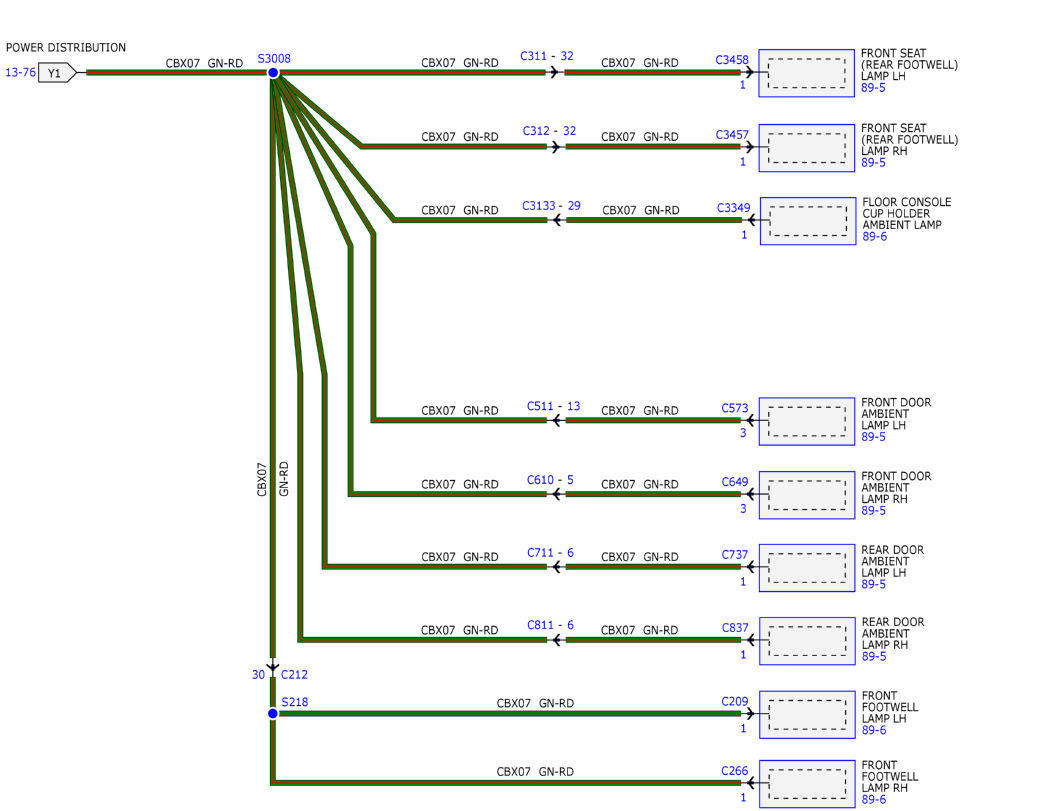

Fig 3: Power Distribution Wiring Diagram (3 Of 104)
Courtesy of FORD MOTOR COMPANY

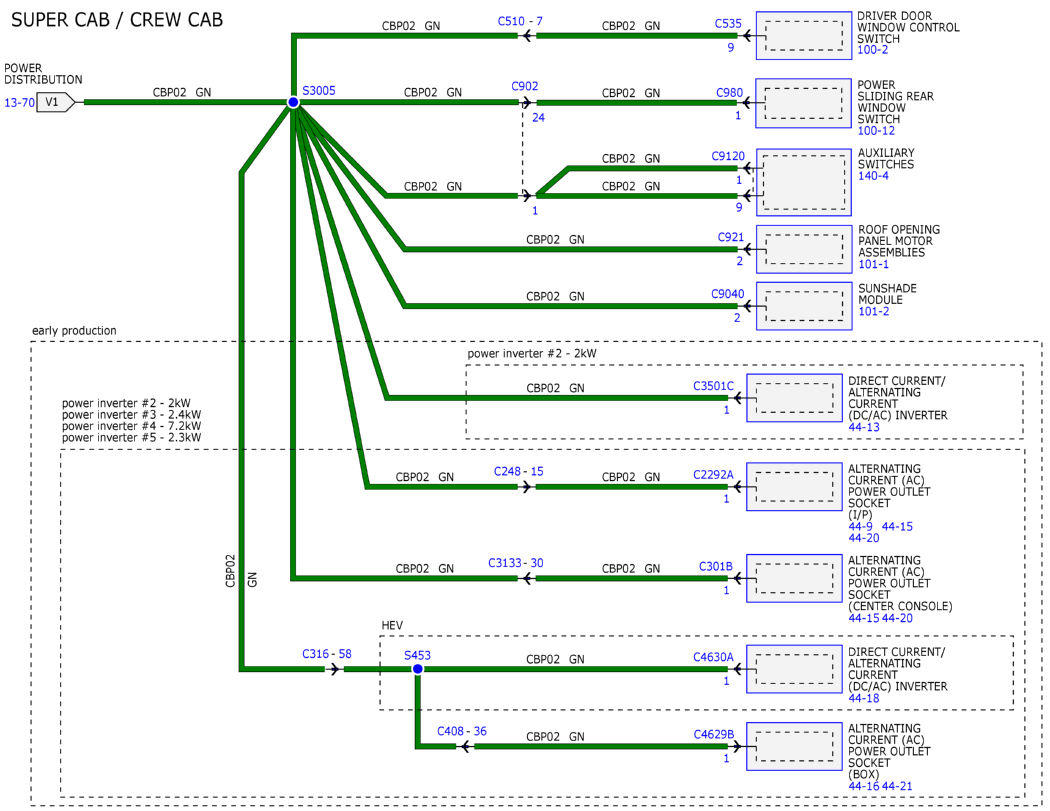

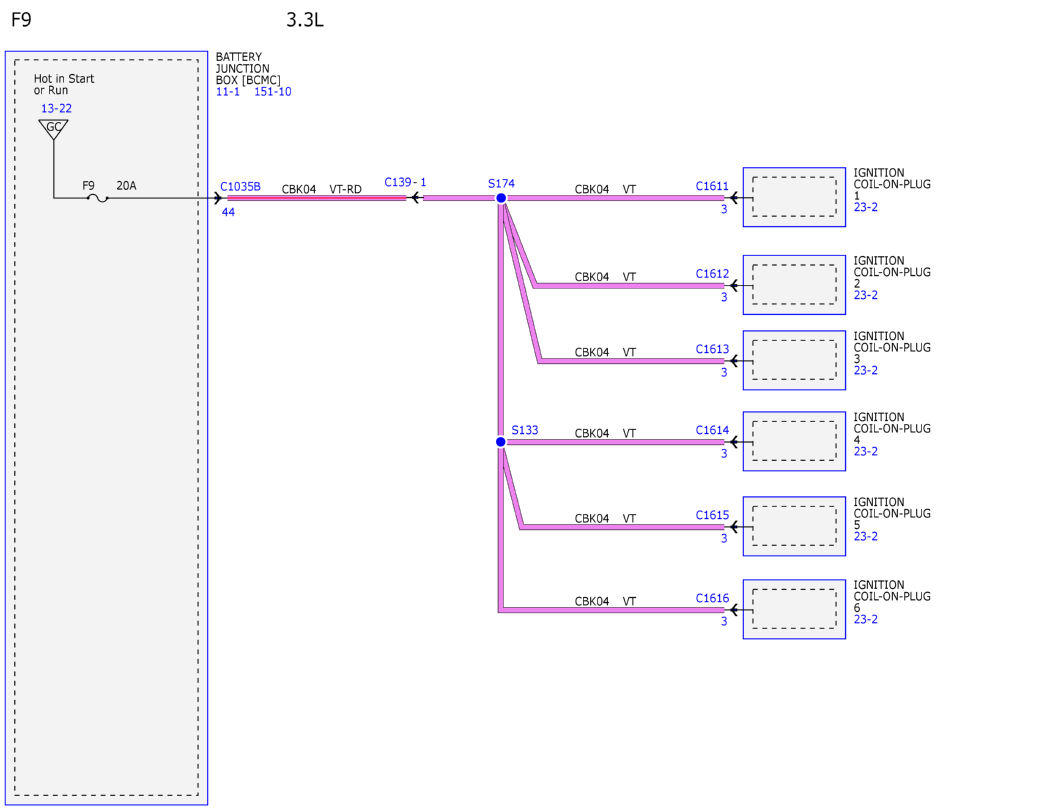

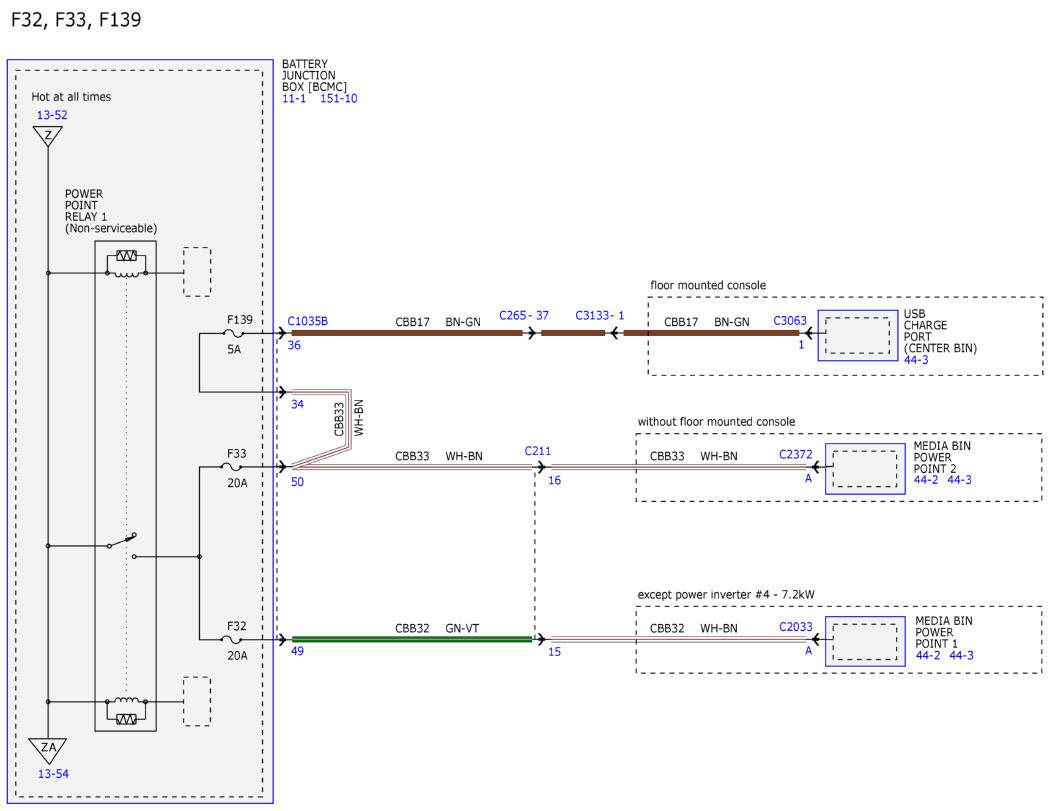

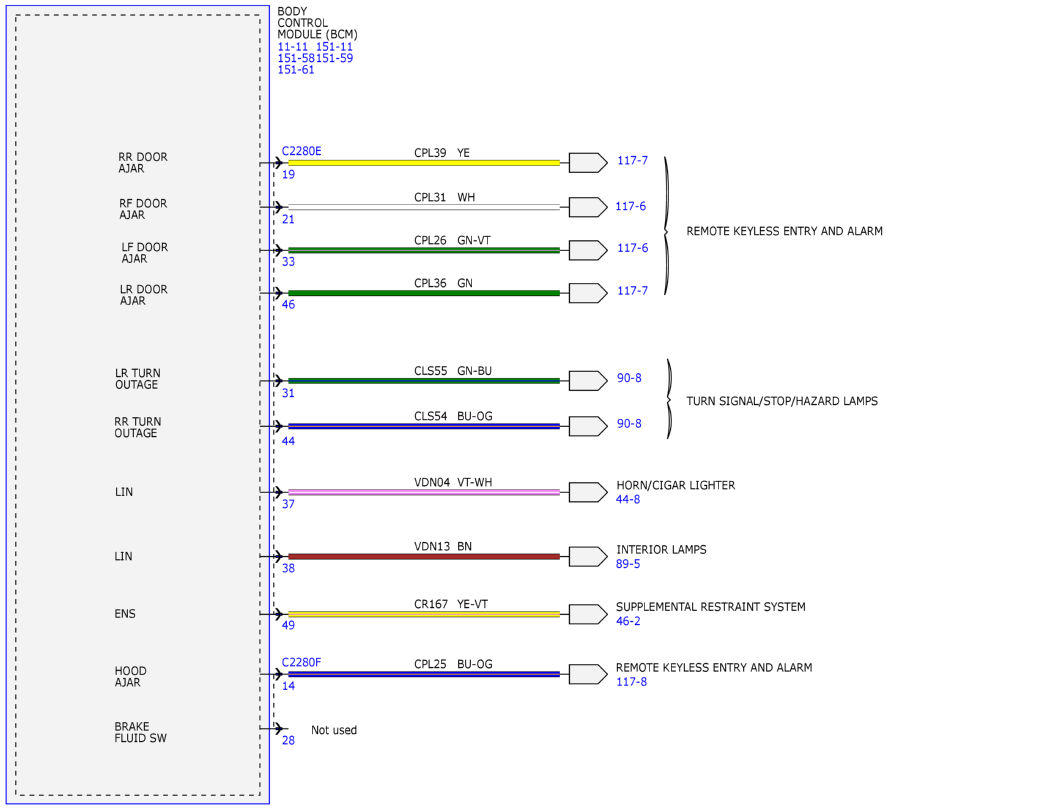

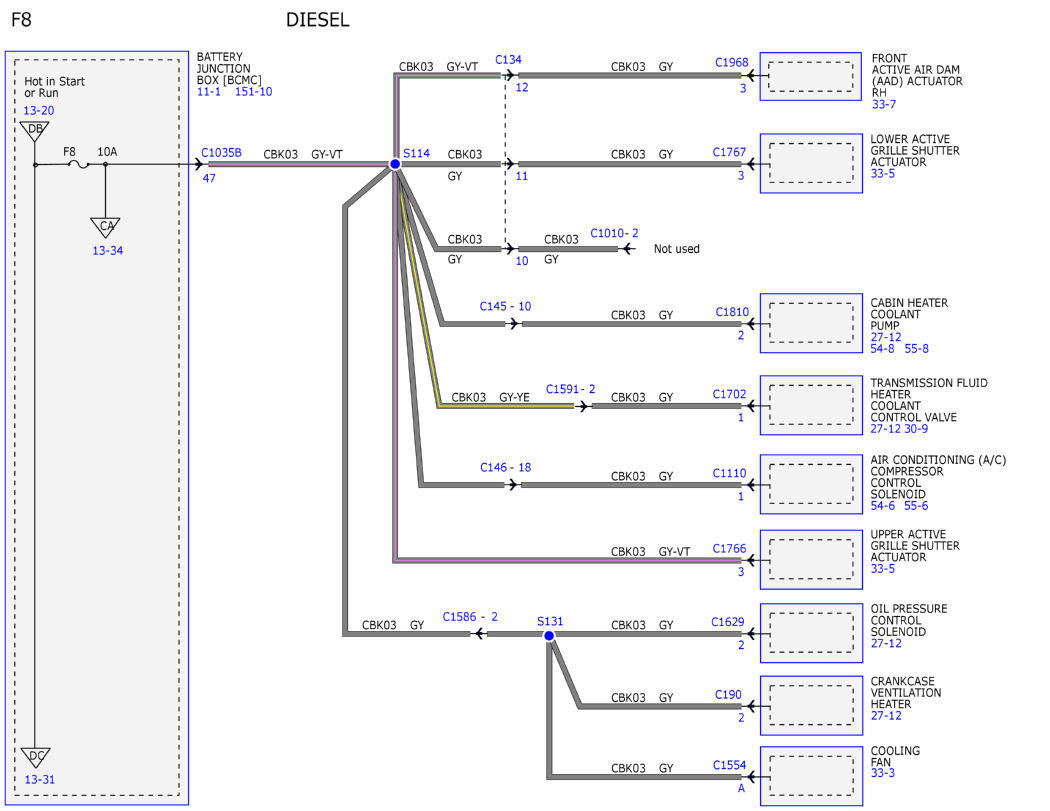

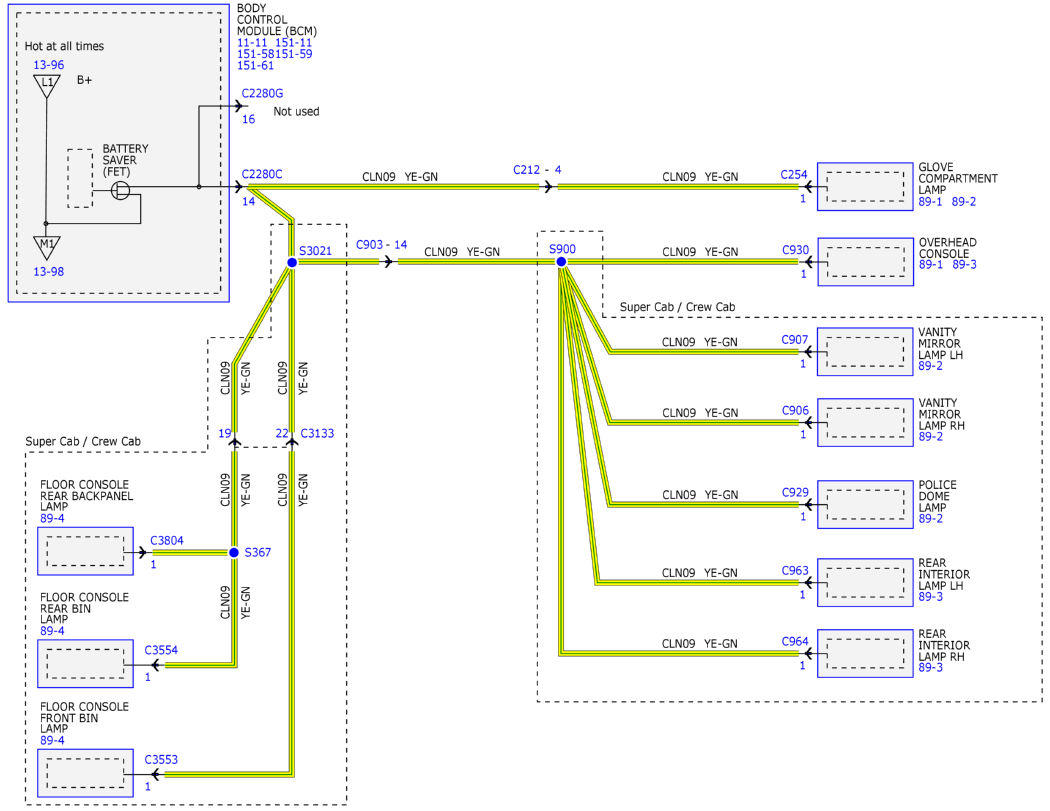

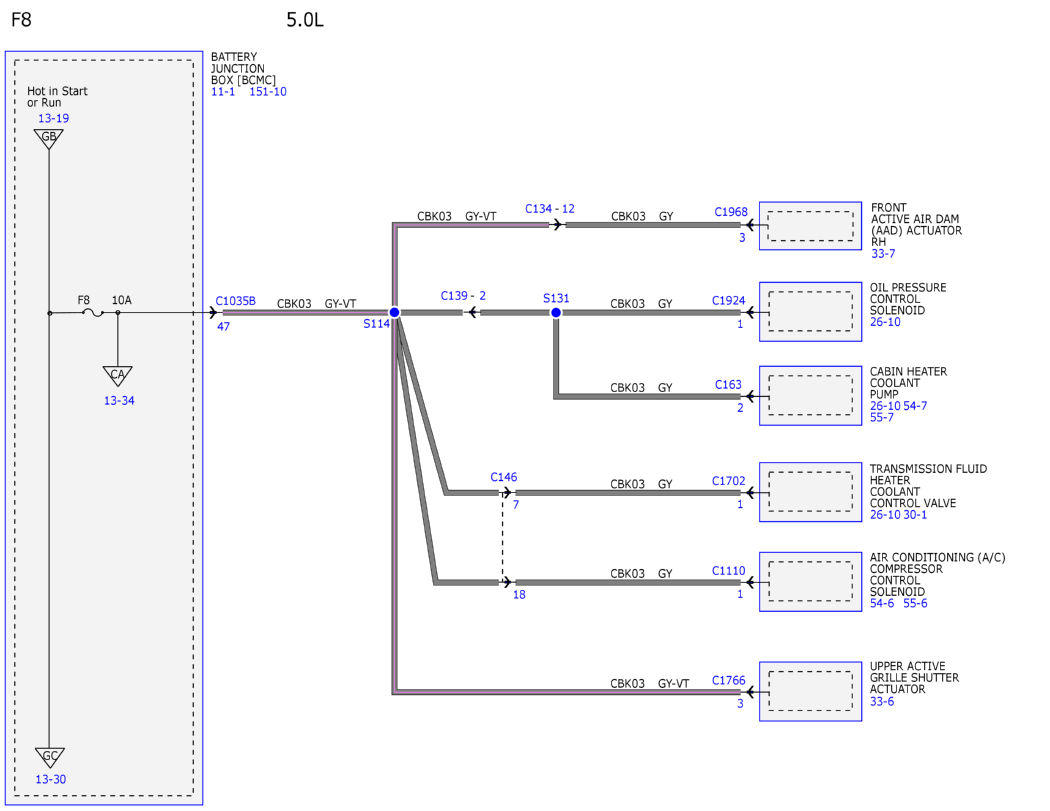

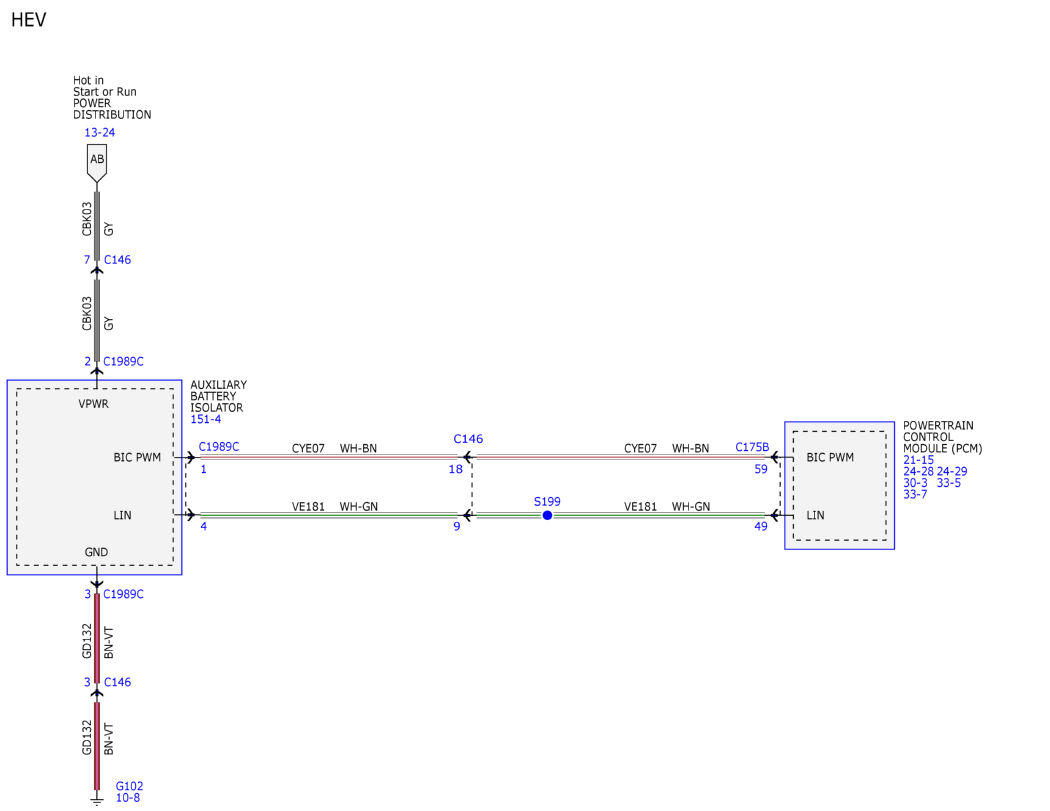

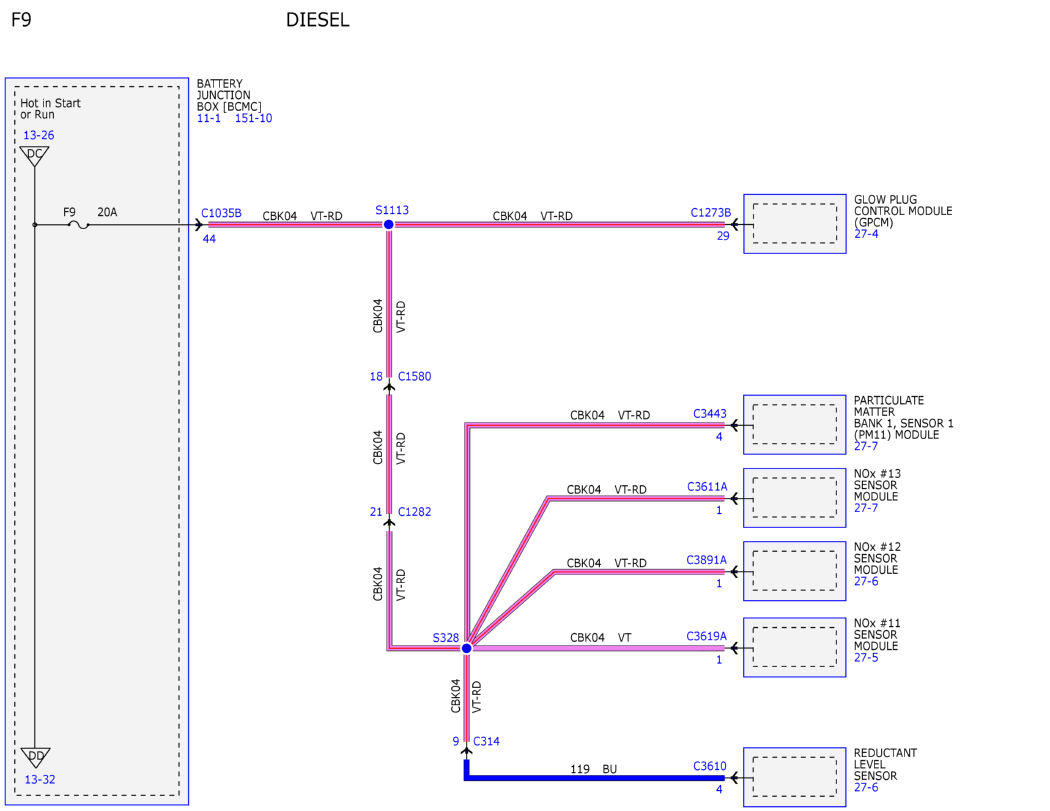

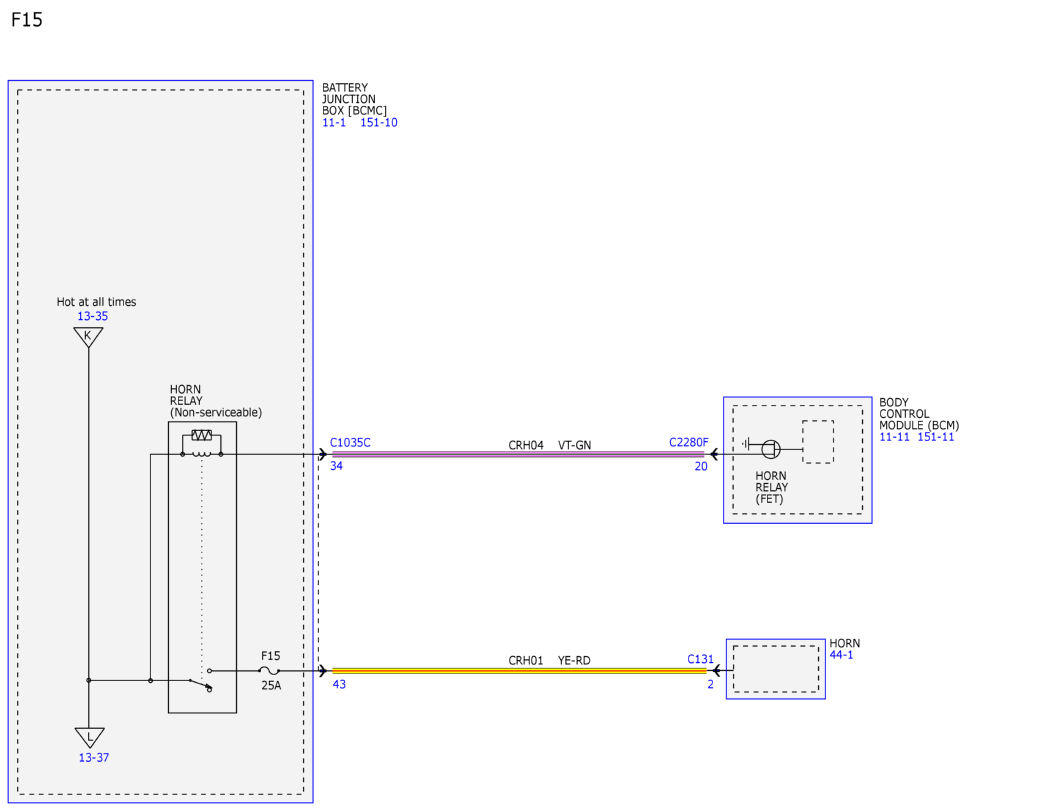

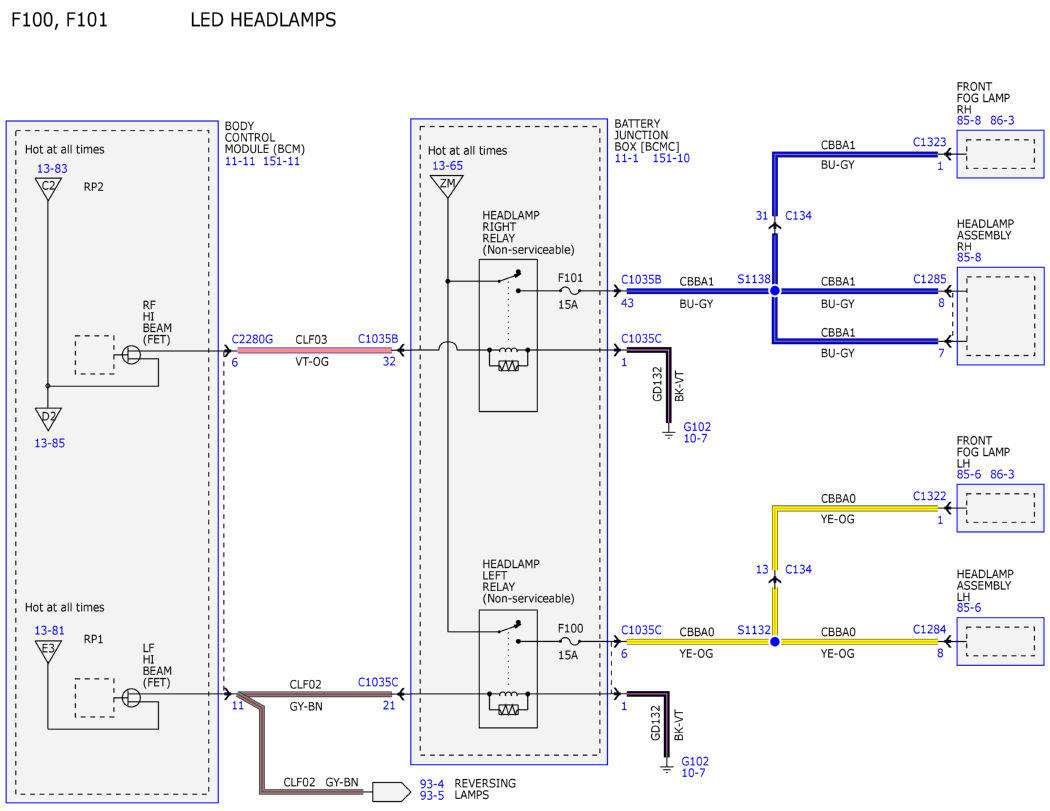

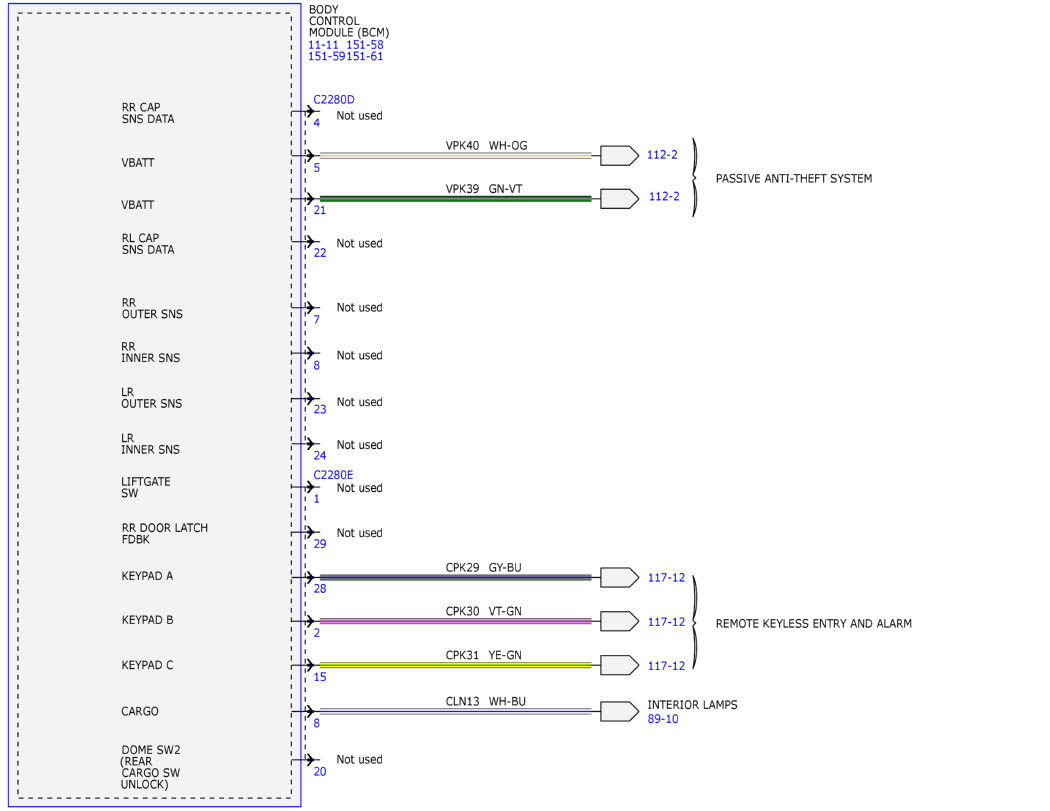

Fig 4: Power Distribution Wiring Diagram (4 Of 104)
Courtesy of FORD MOTOR COMPANY

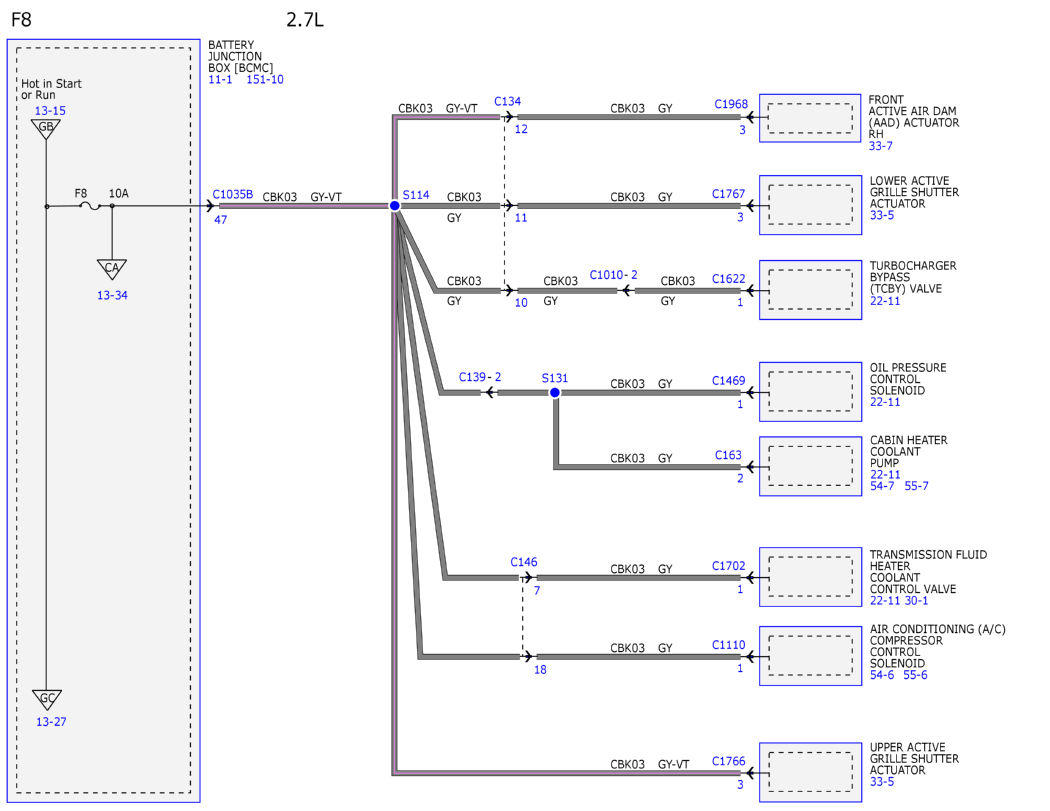

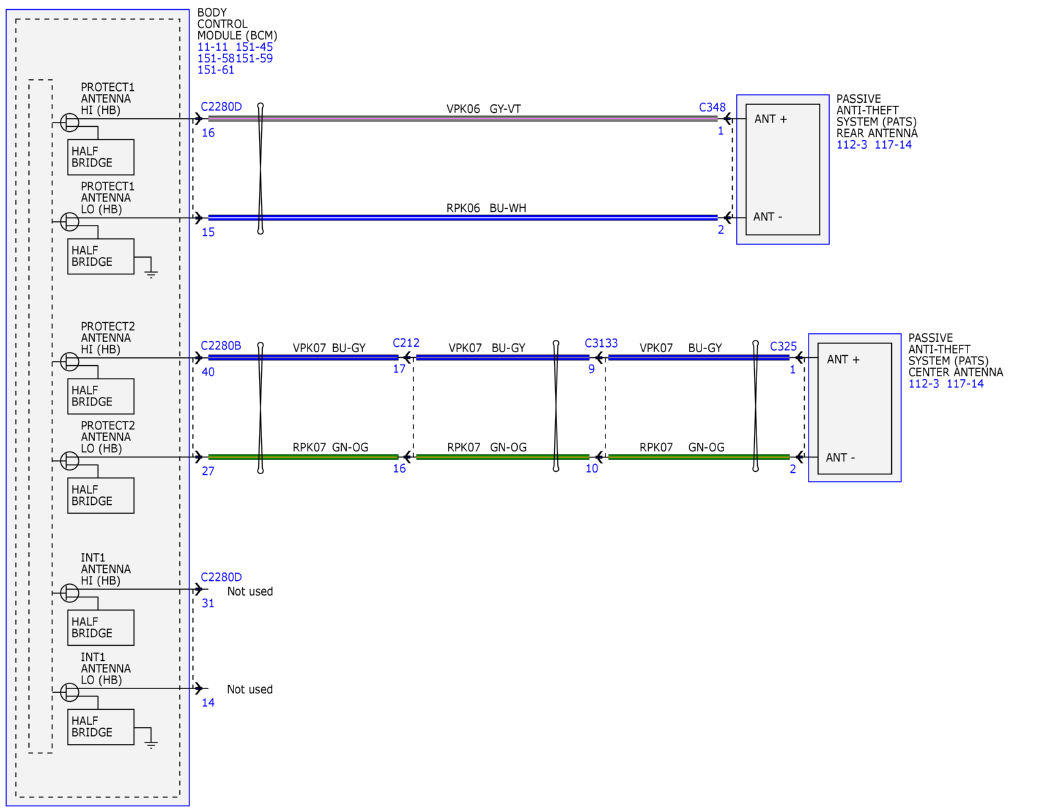

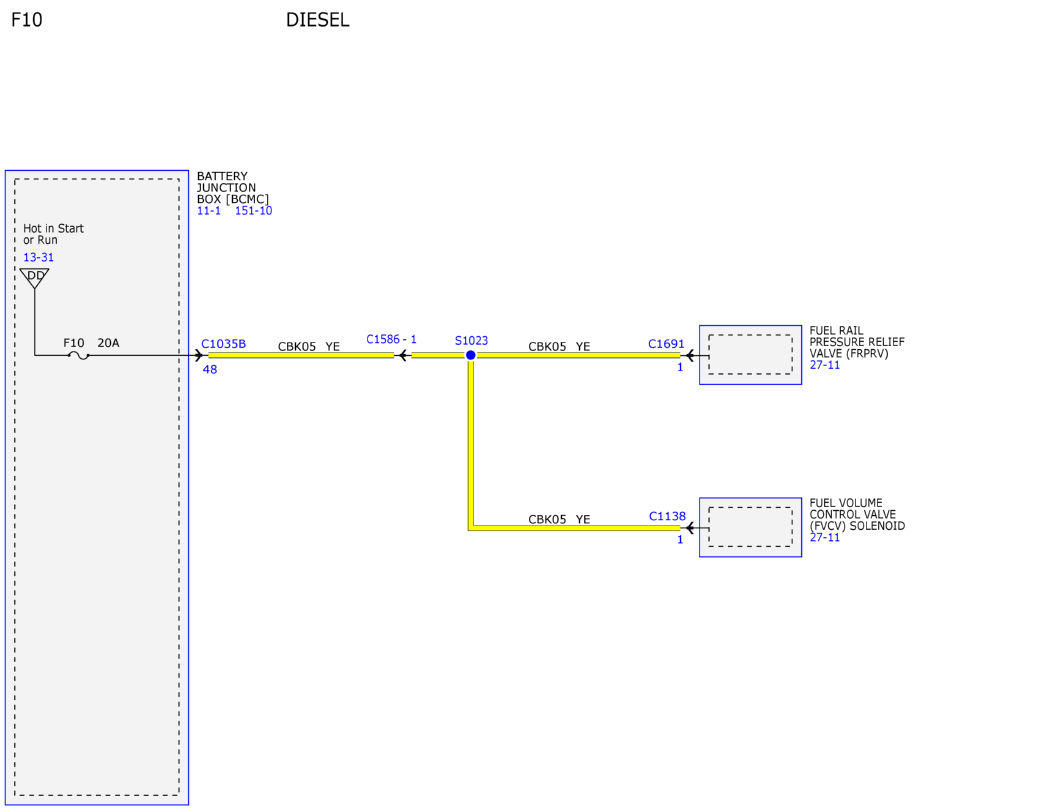

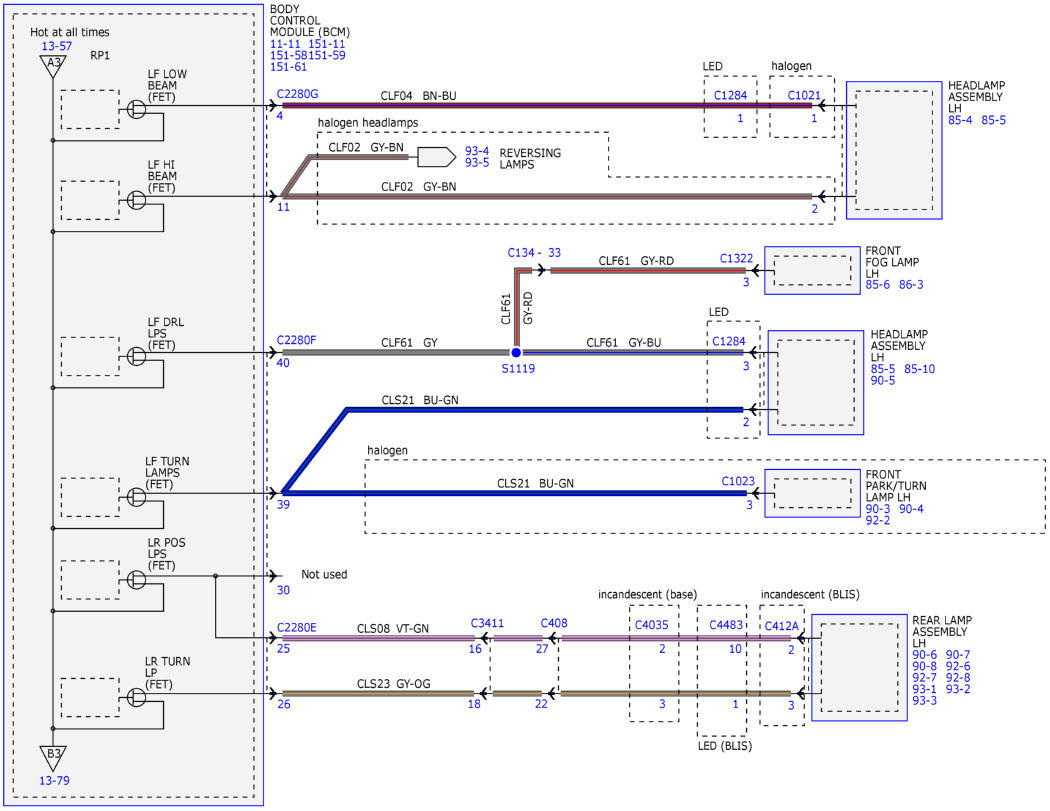

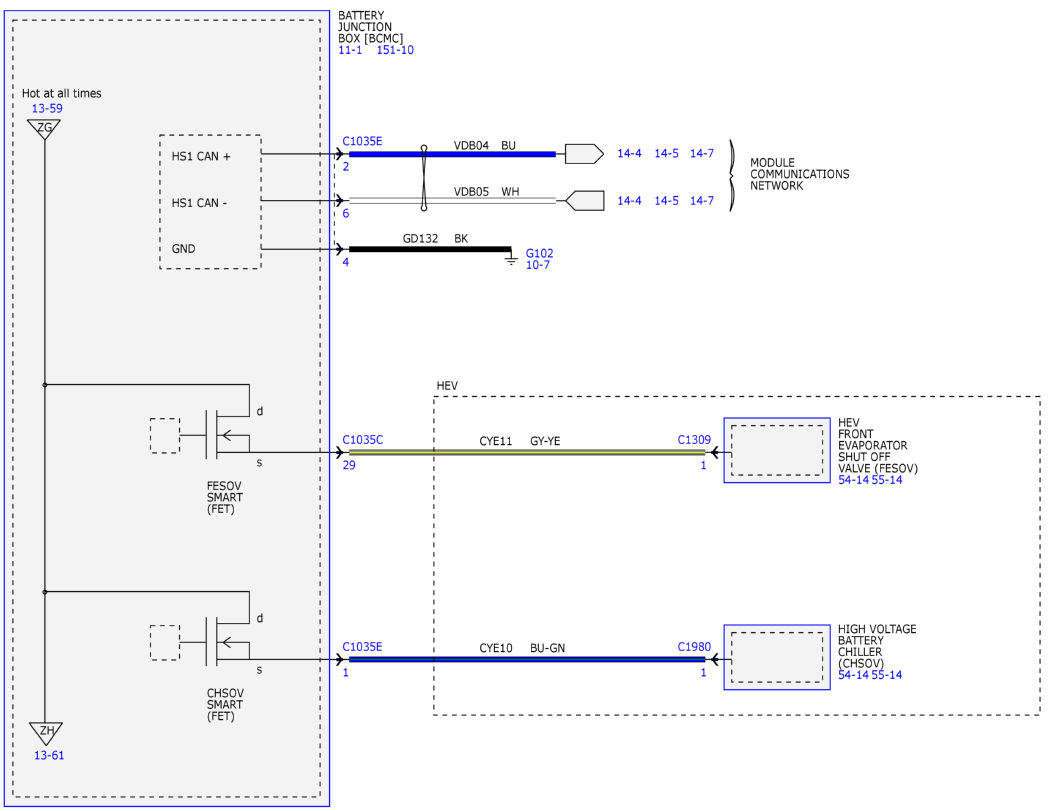

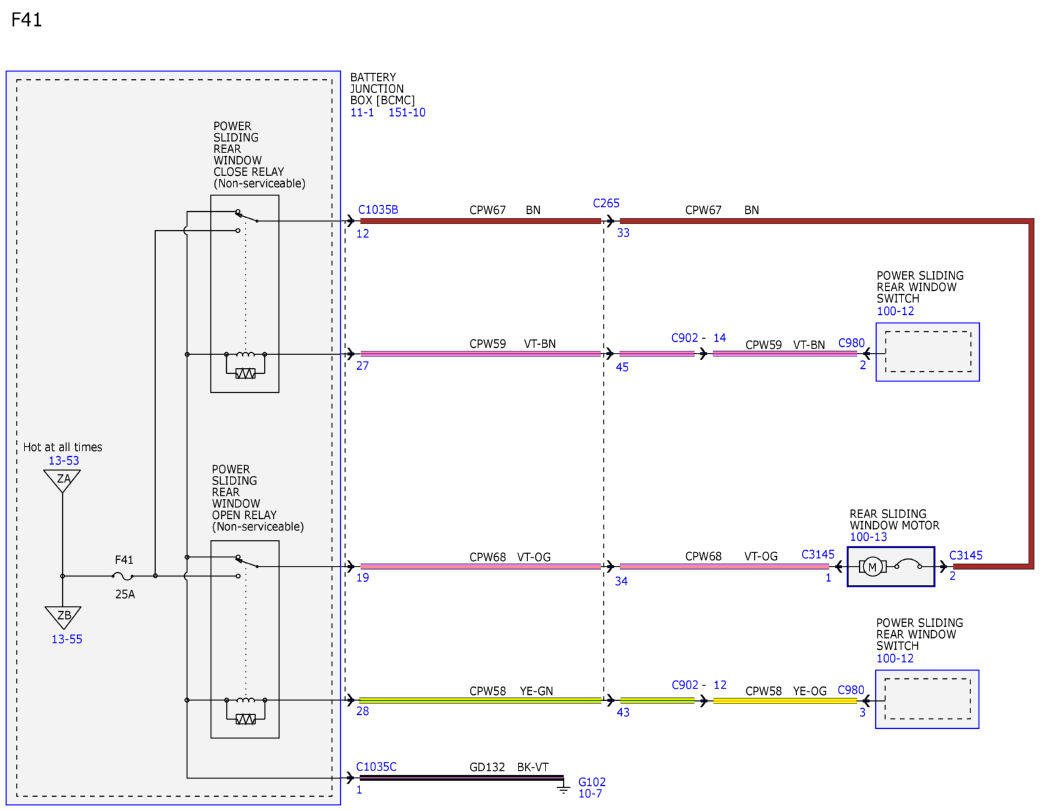

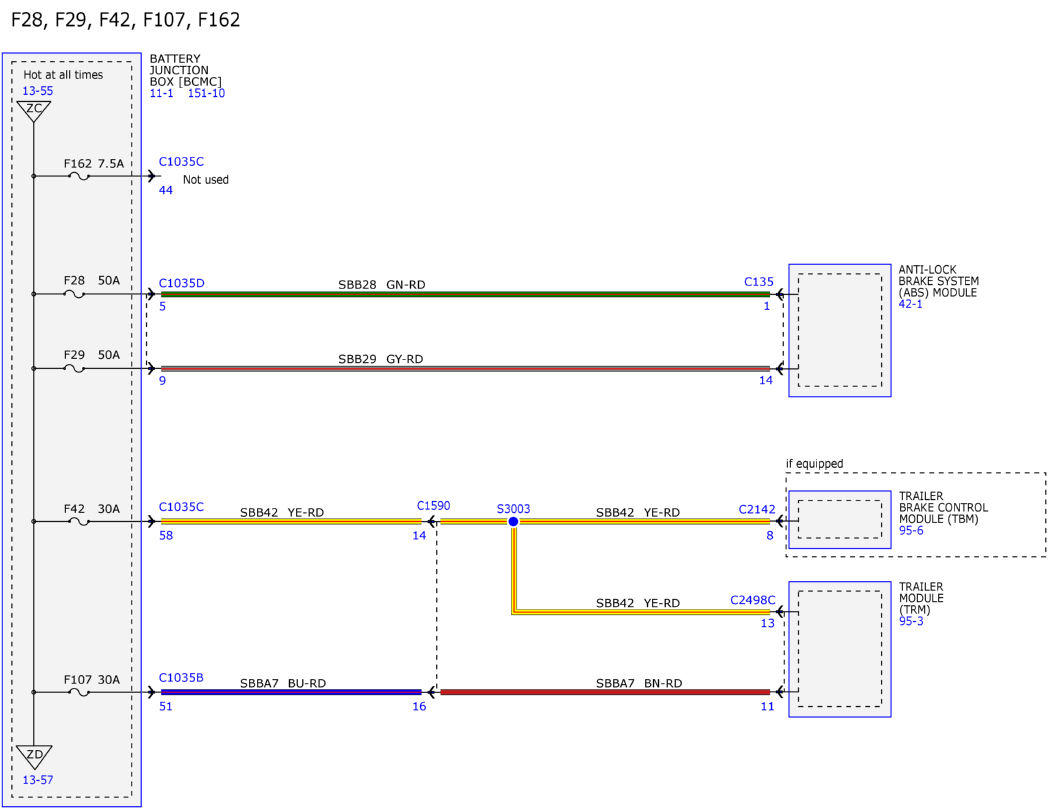

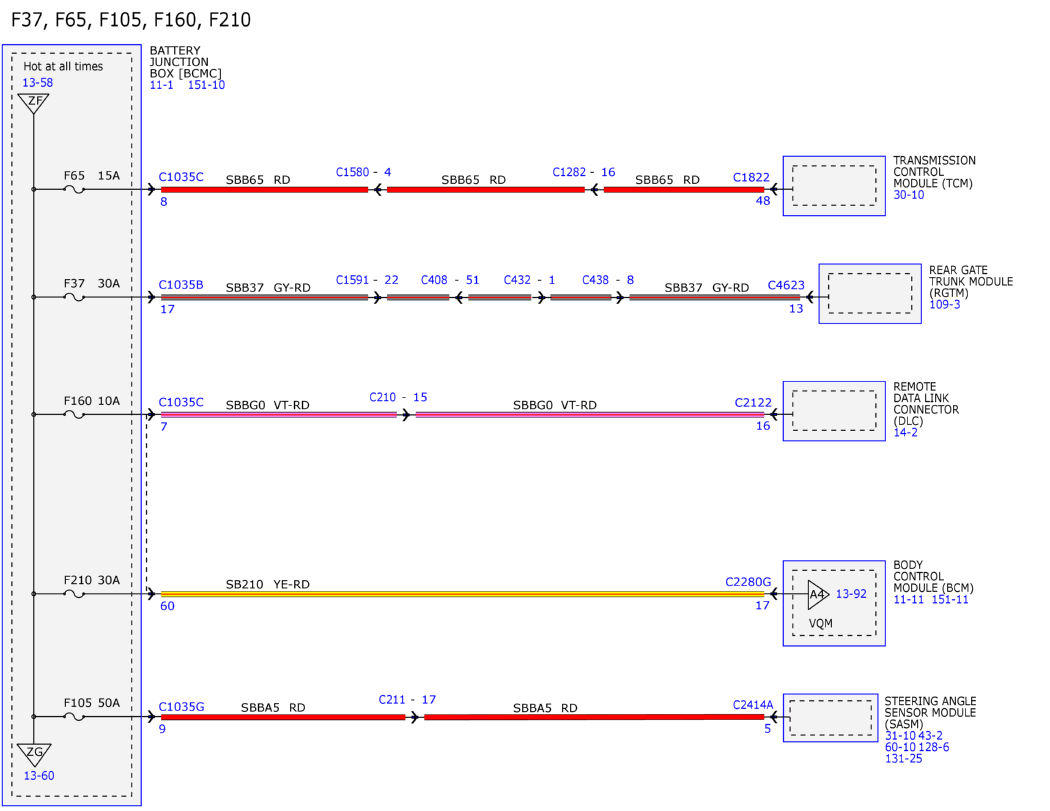

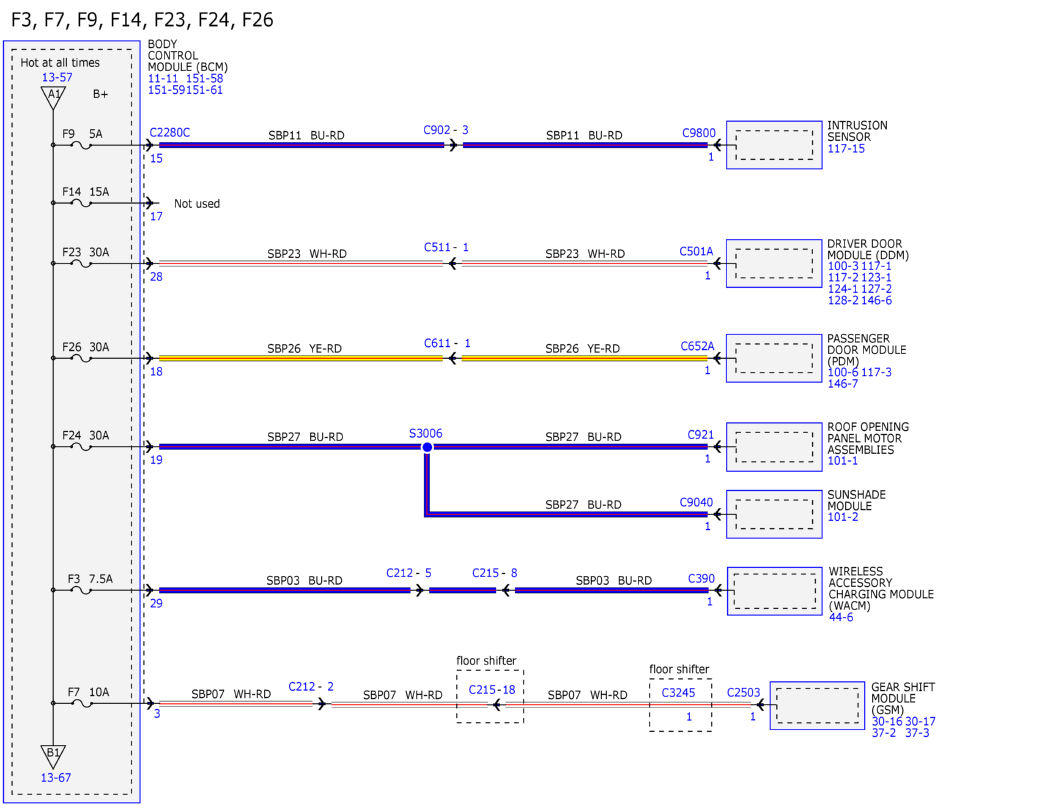

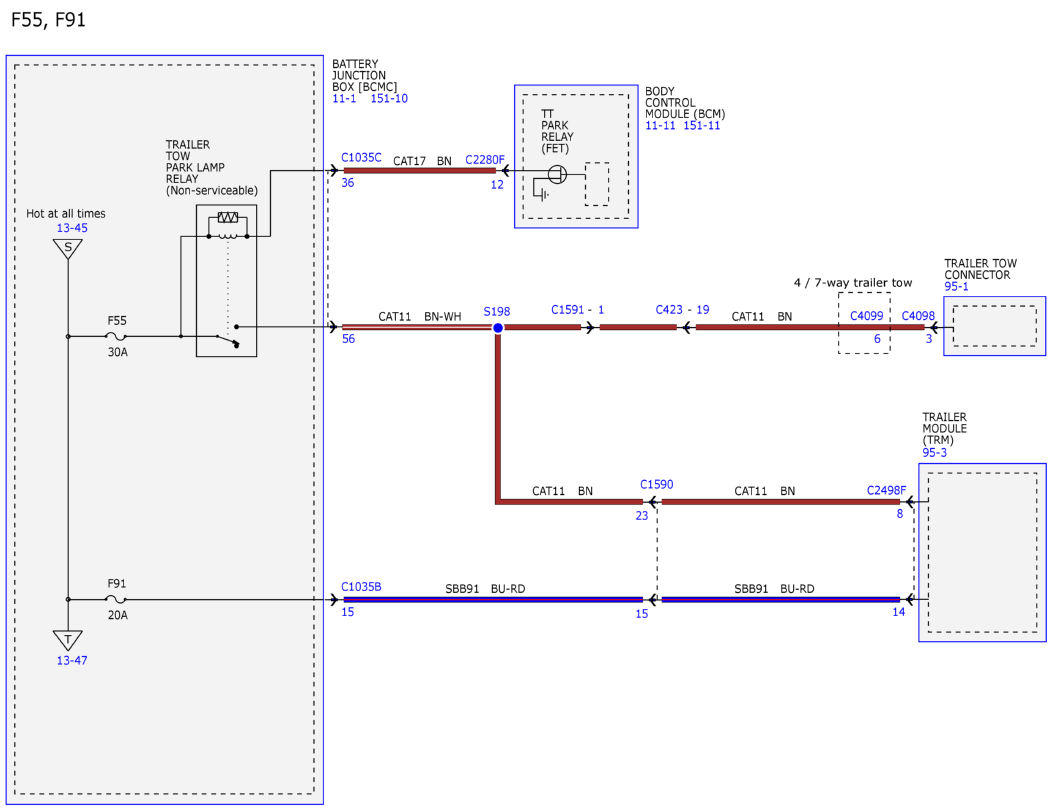

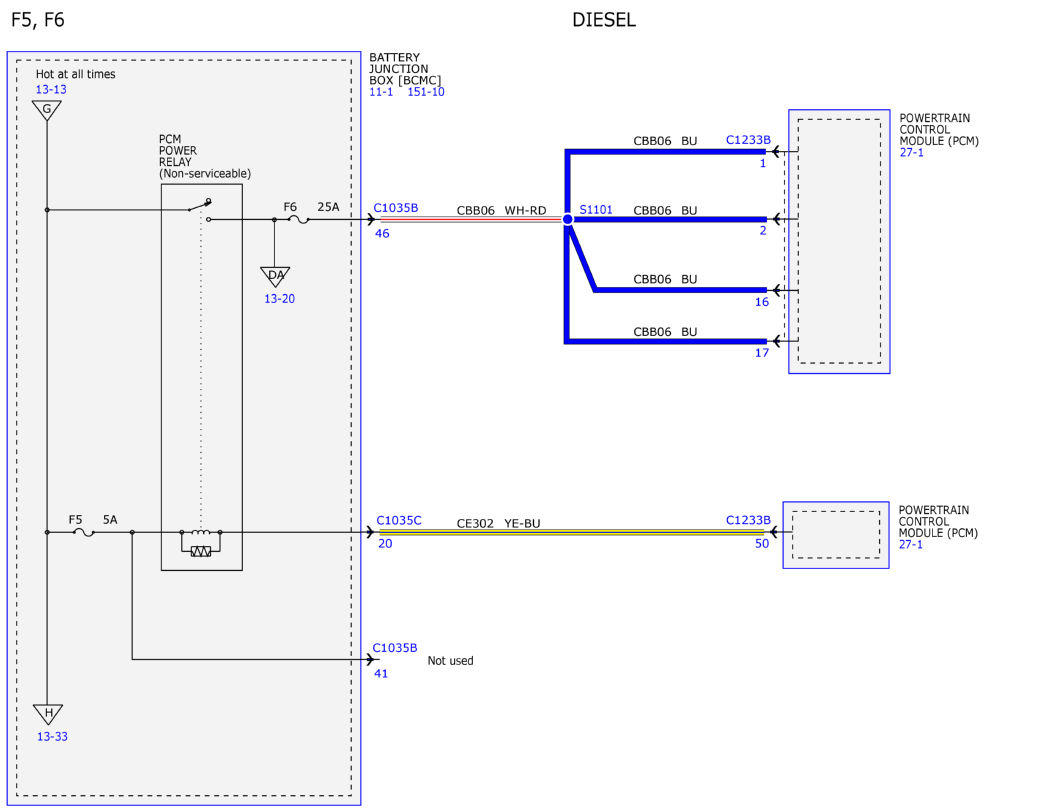

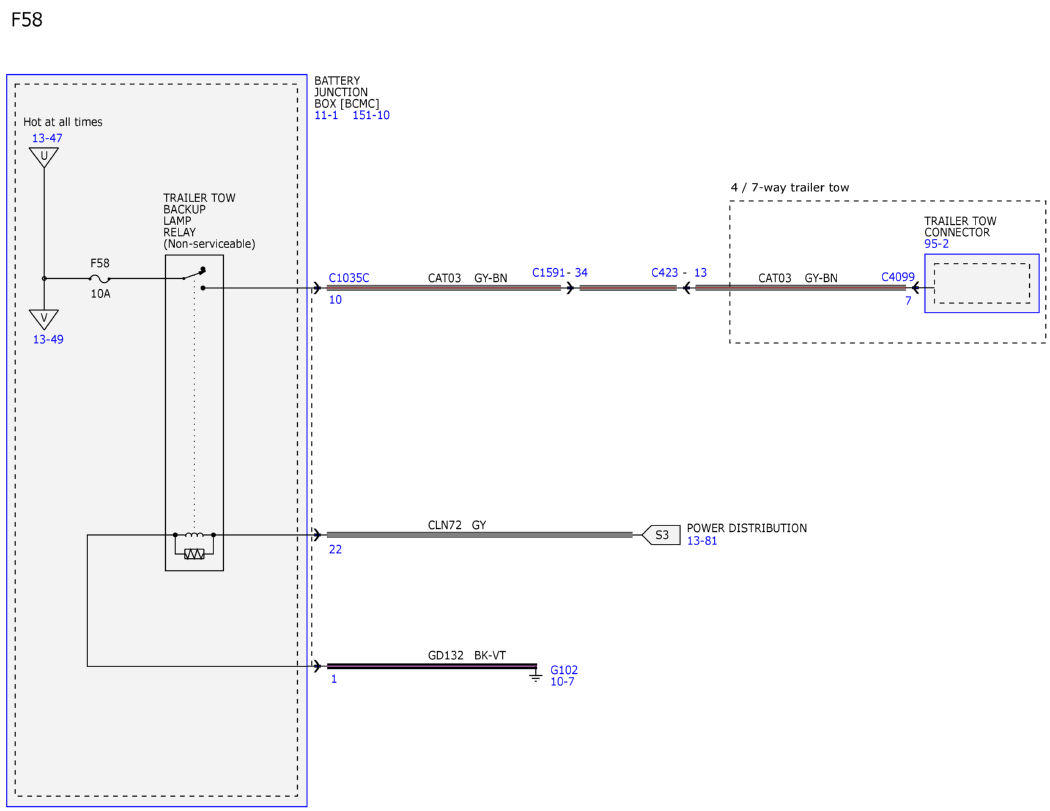

Fig 5: Power Distribution Wiring Diagram (5 Of 104)
Courtesy of FORD MOTOR COMPANY

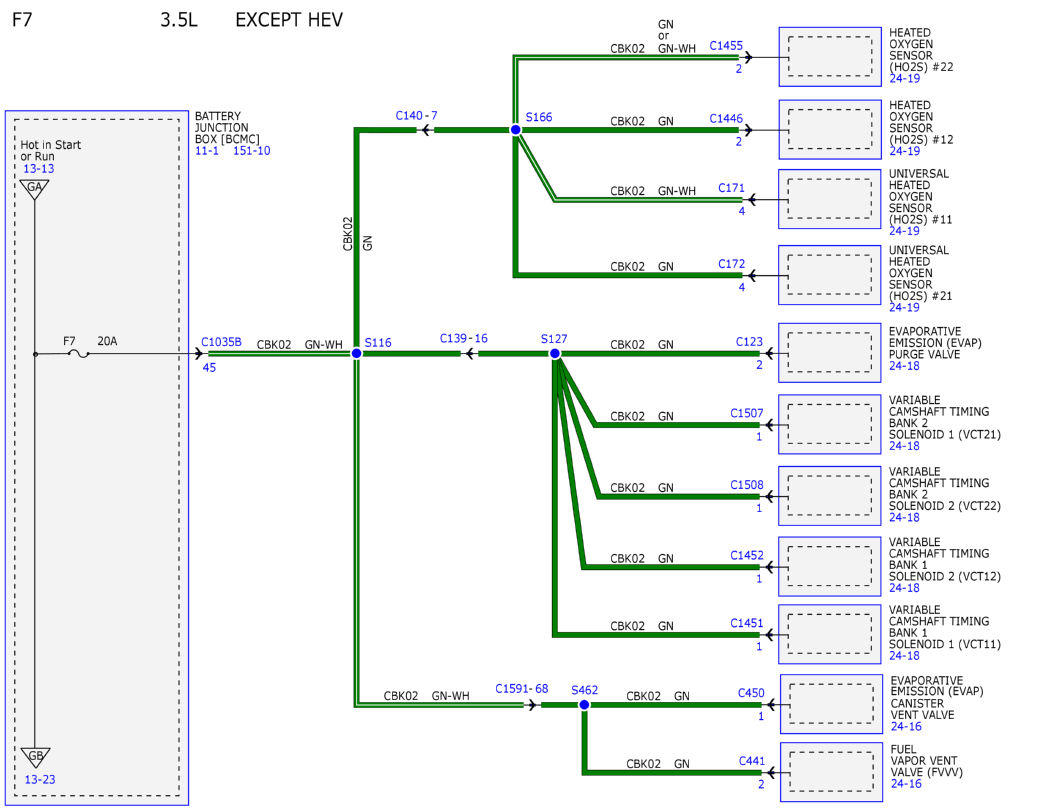

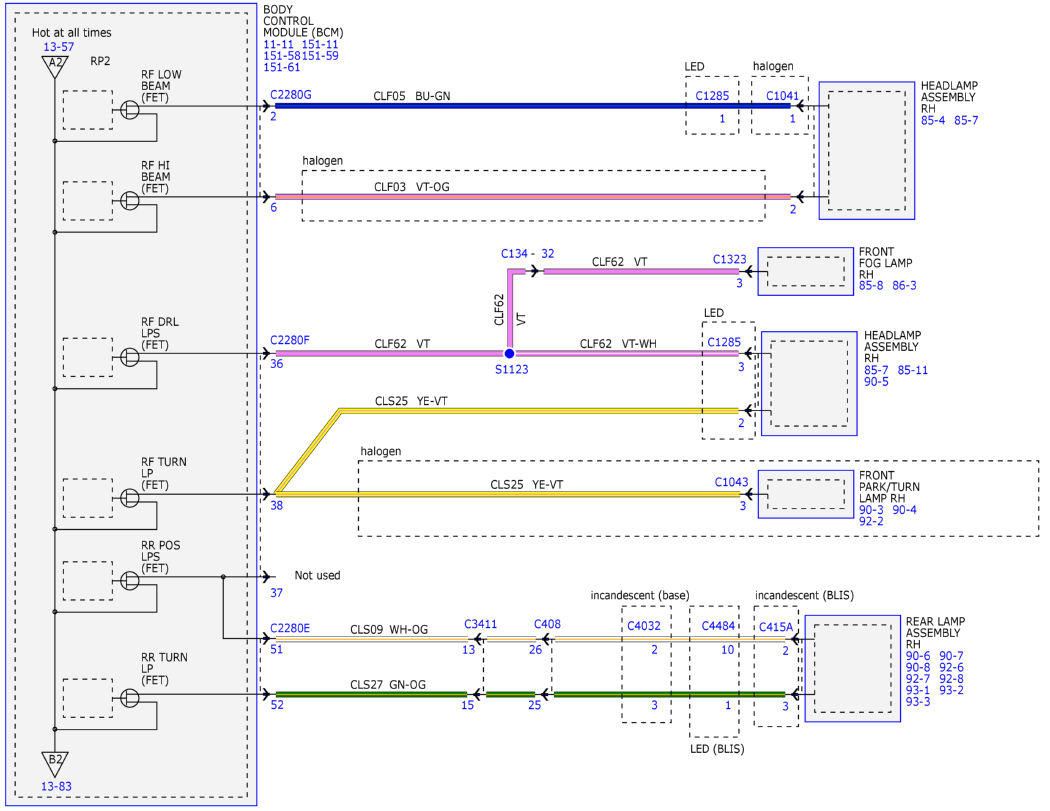

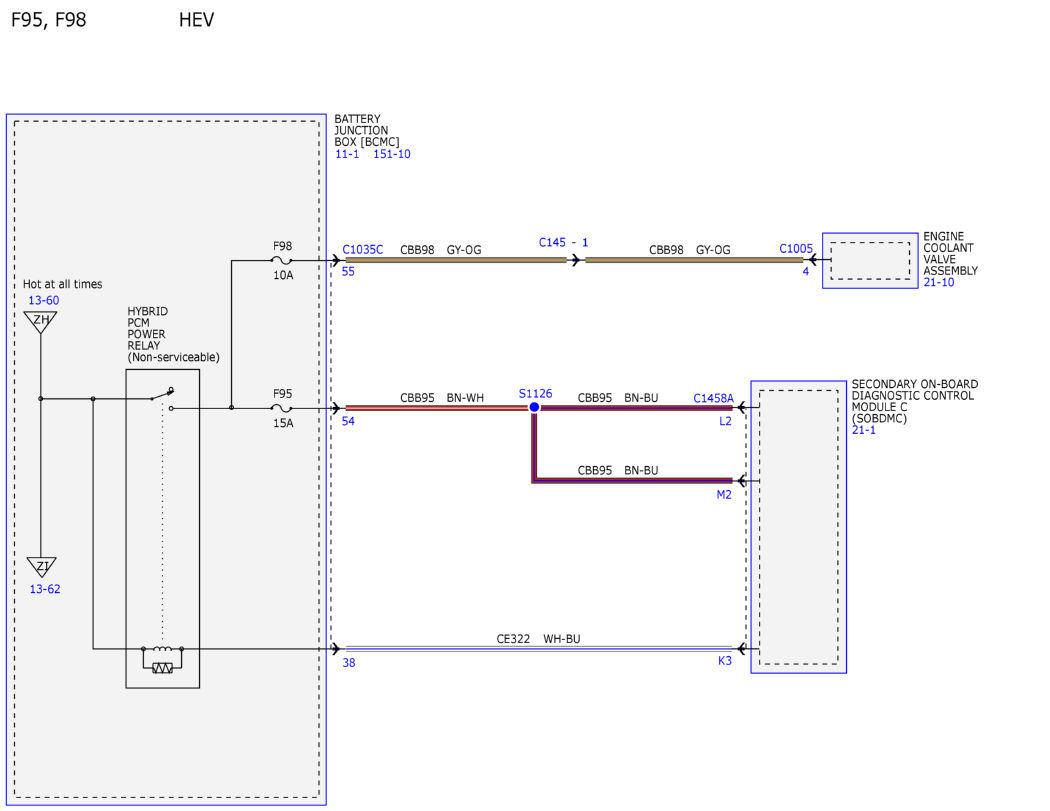

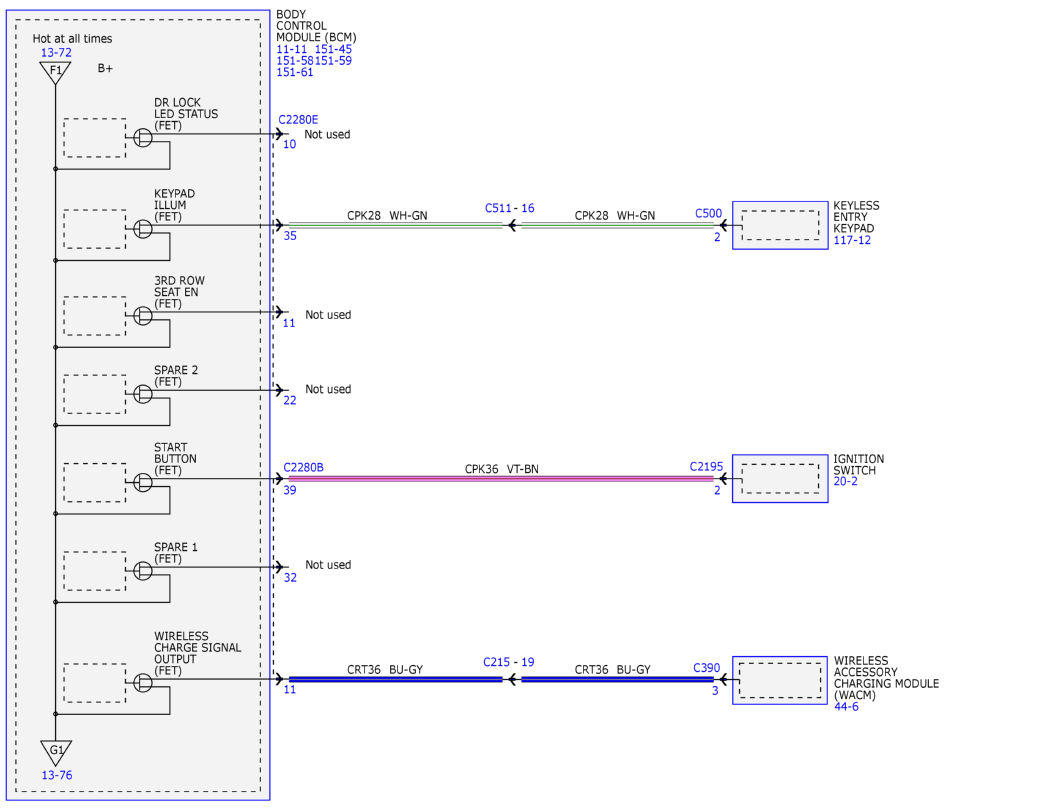

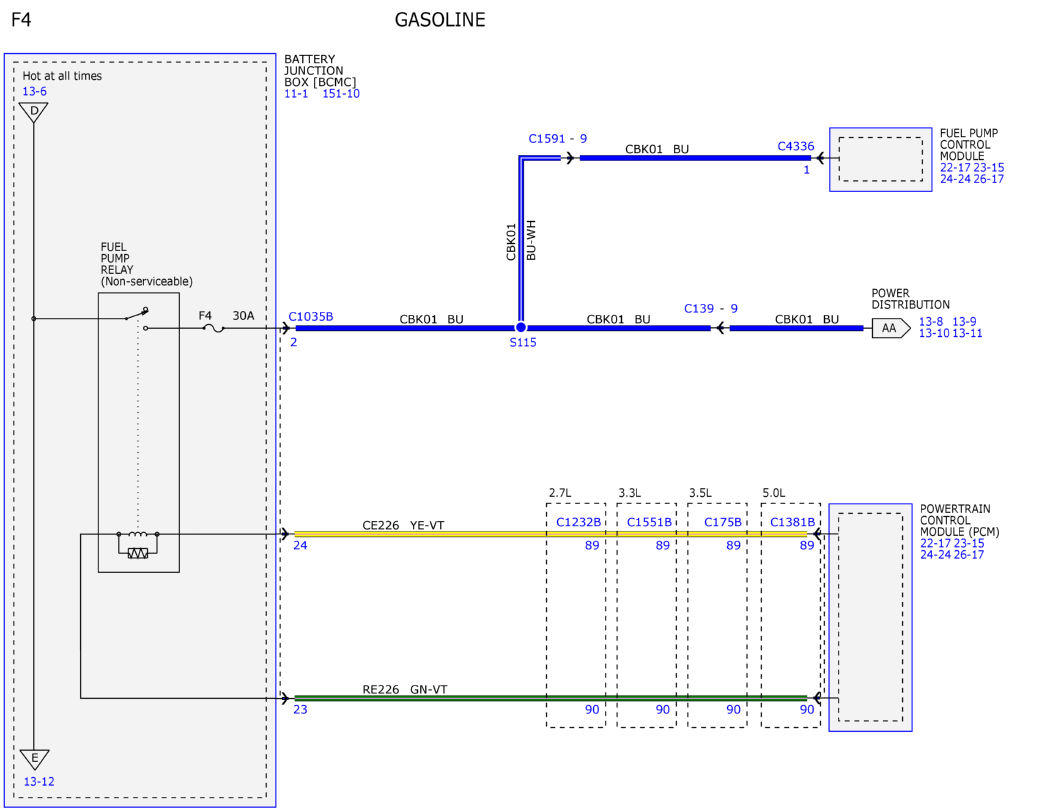

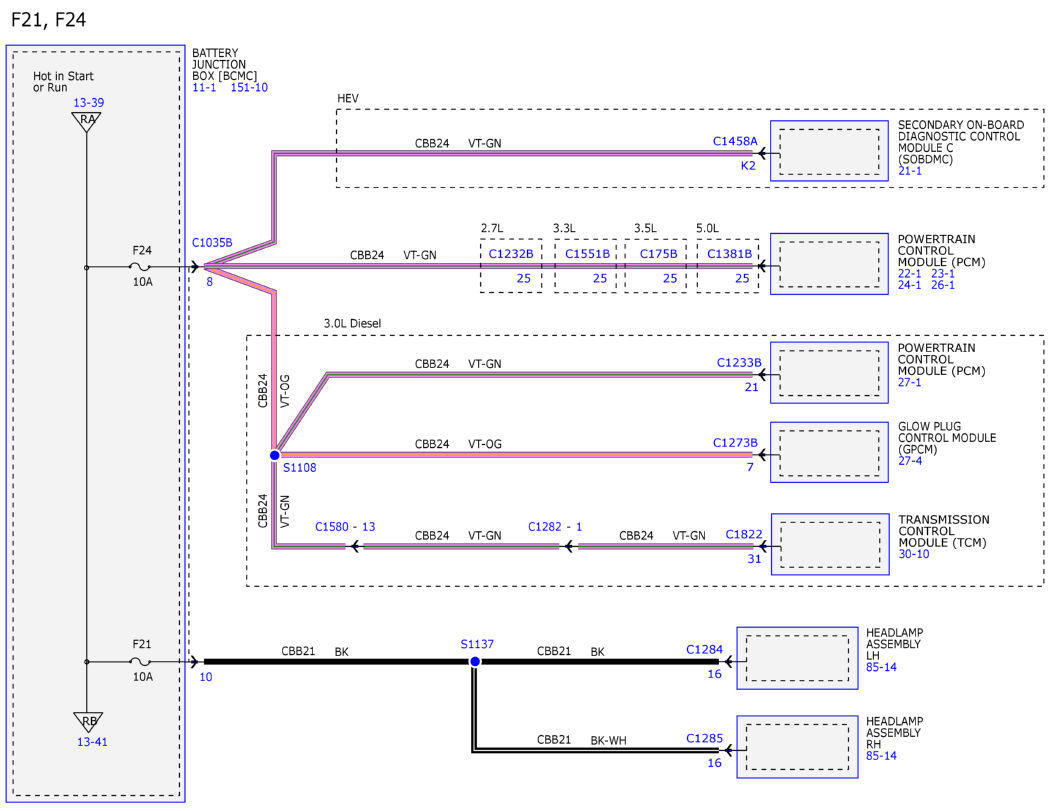

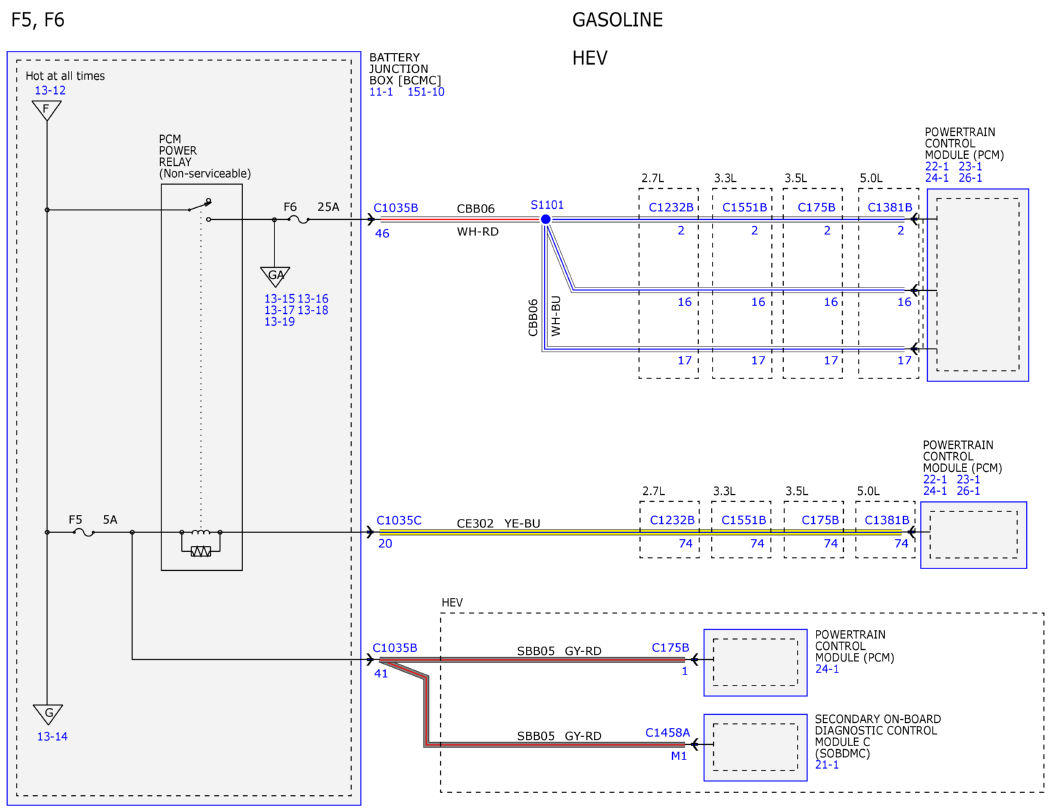

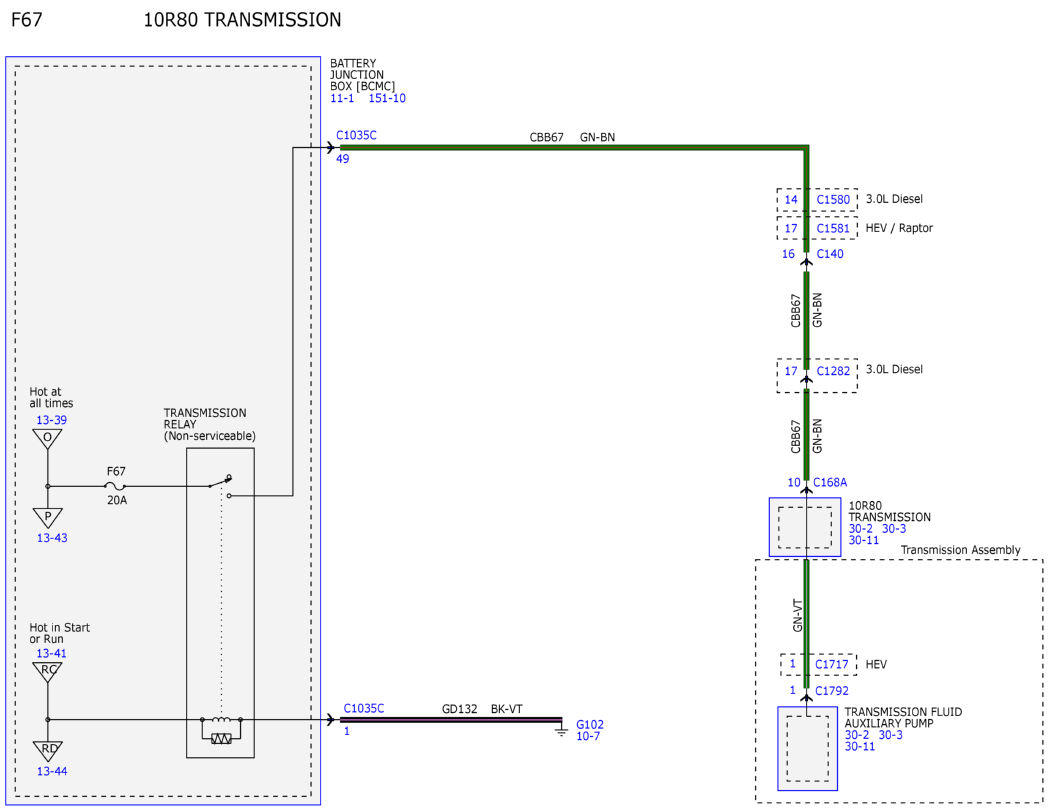

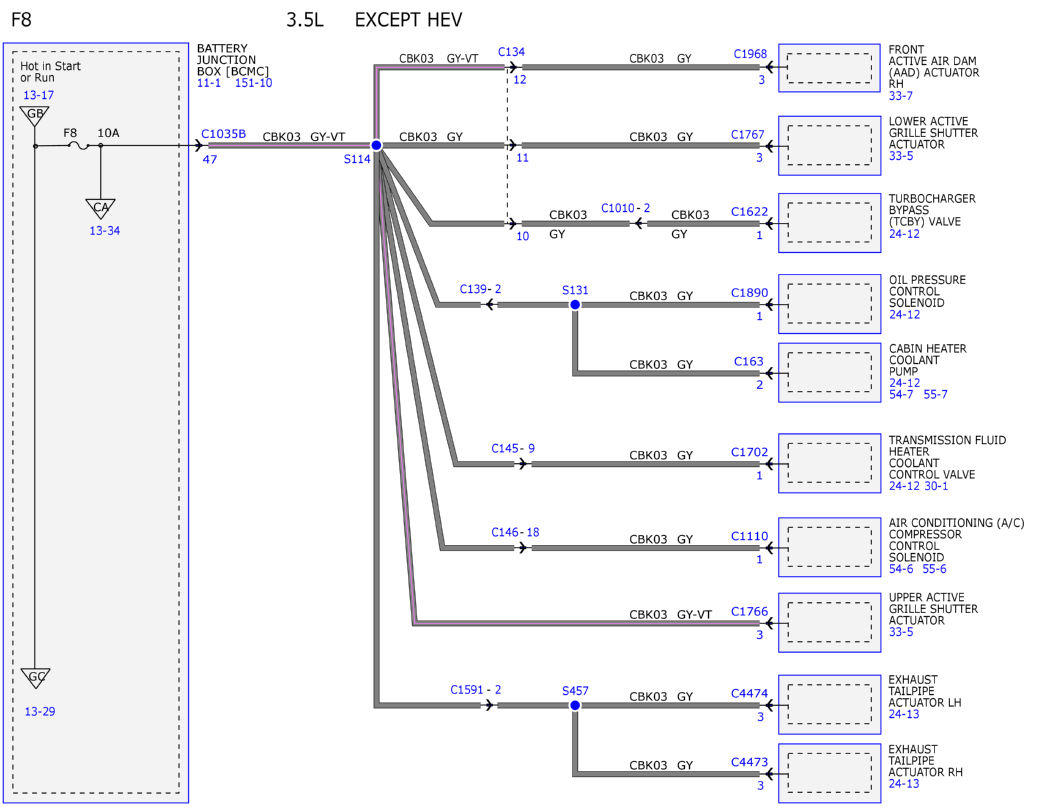

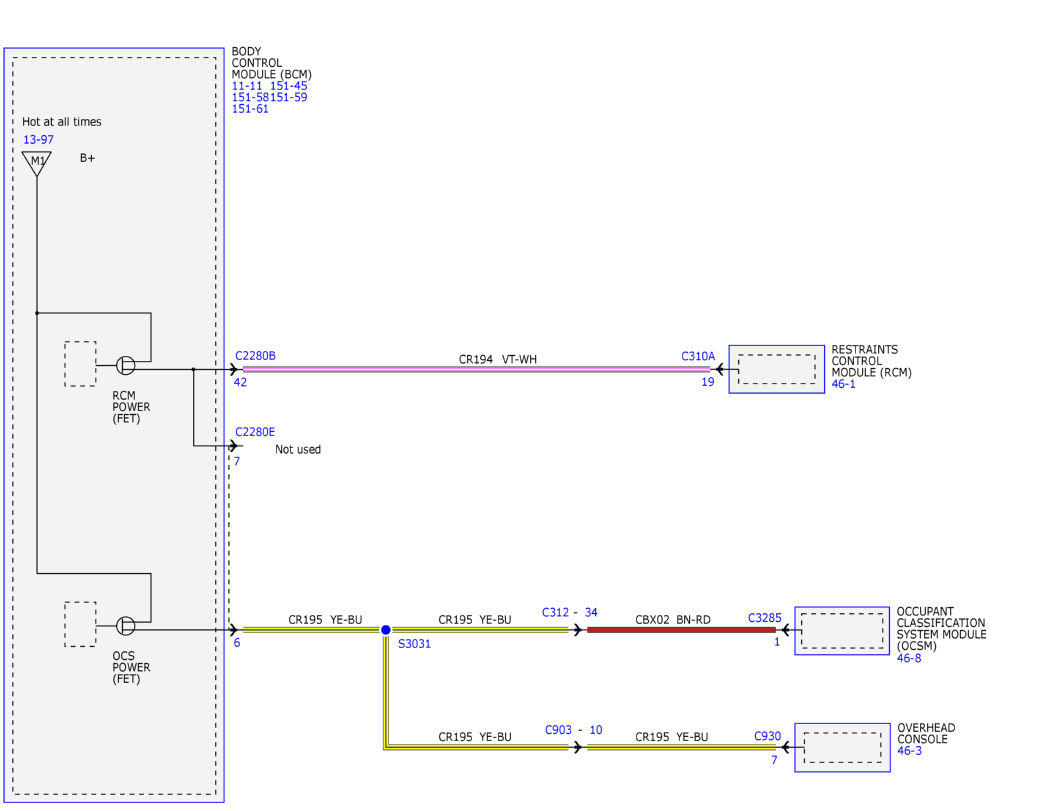

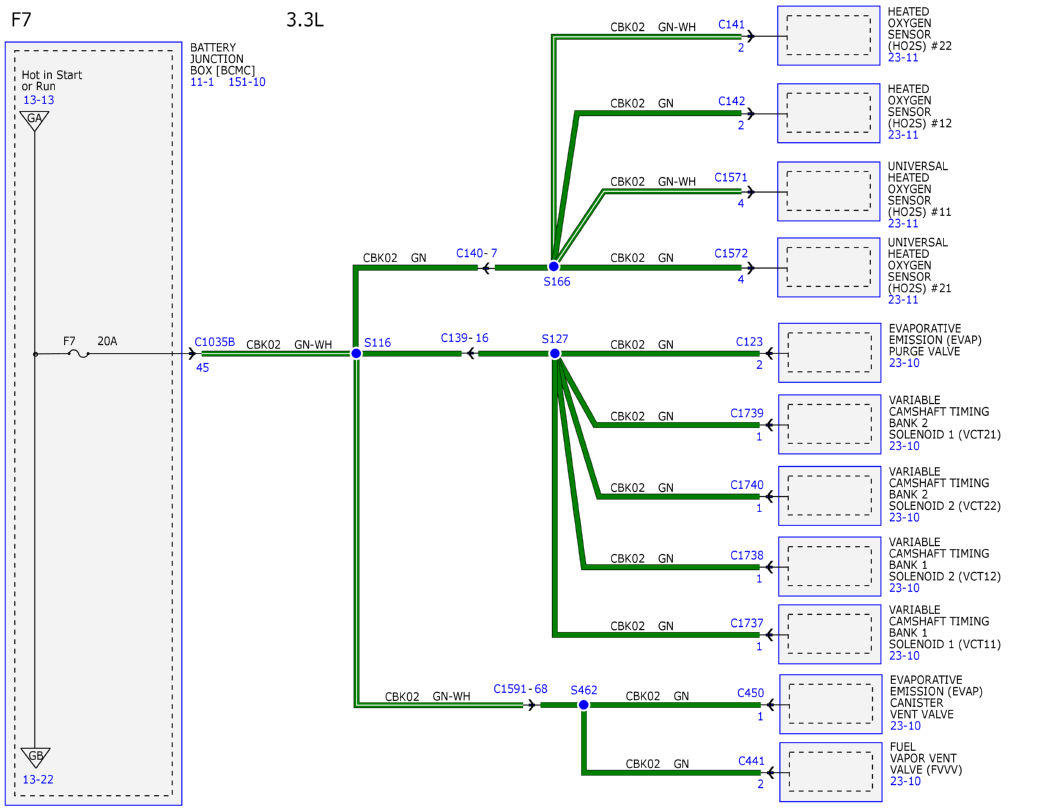

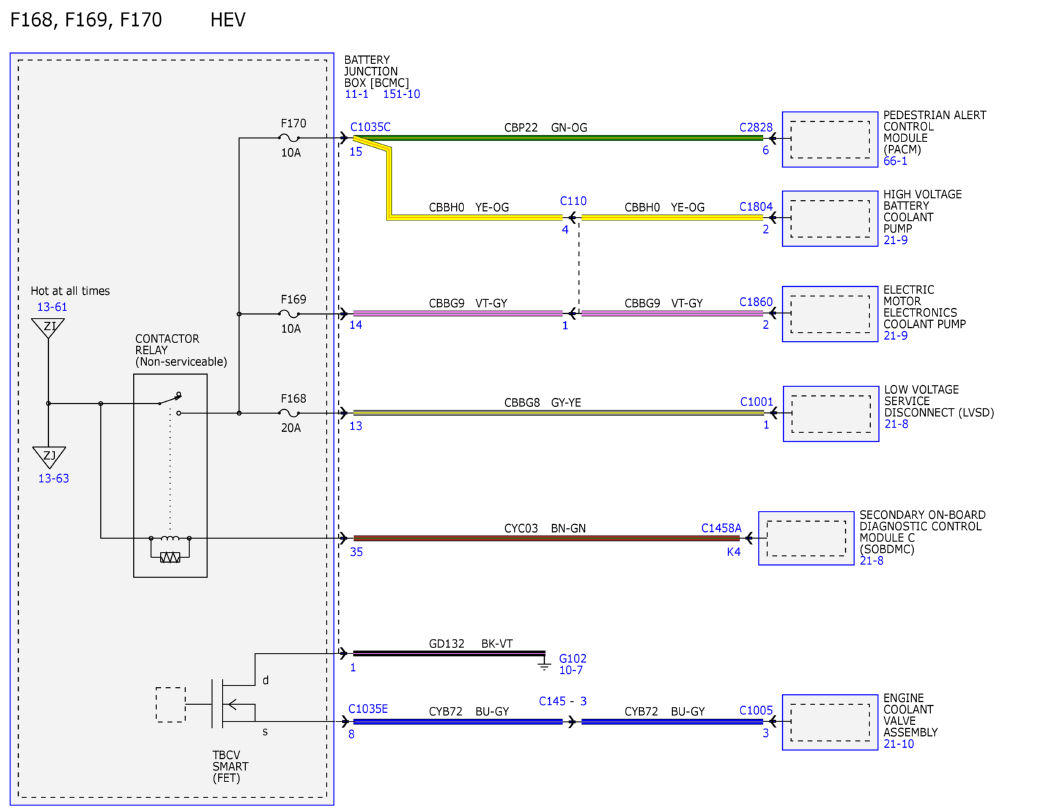

Fig 6: Power Distribution Wiring Diagram (6 Of 104)
Courtesy of FORD MOTOR COMPANY

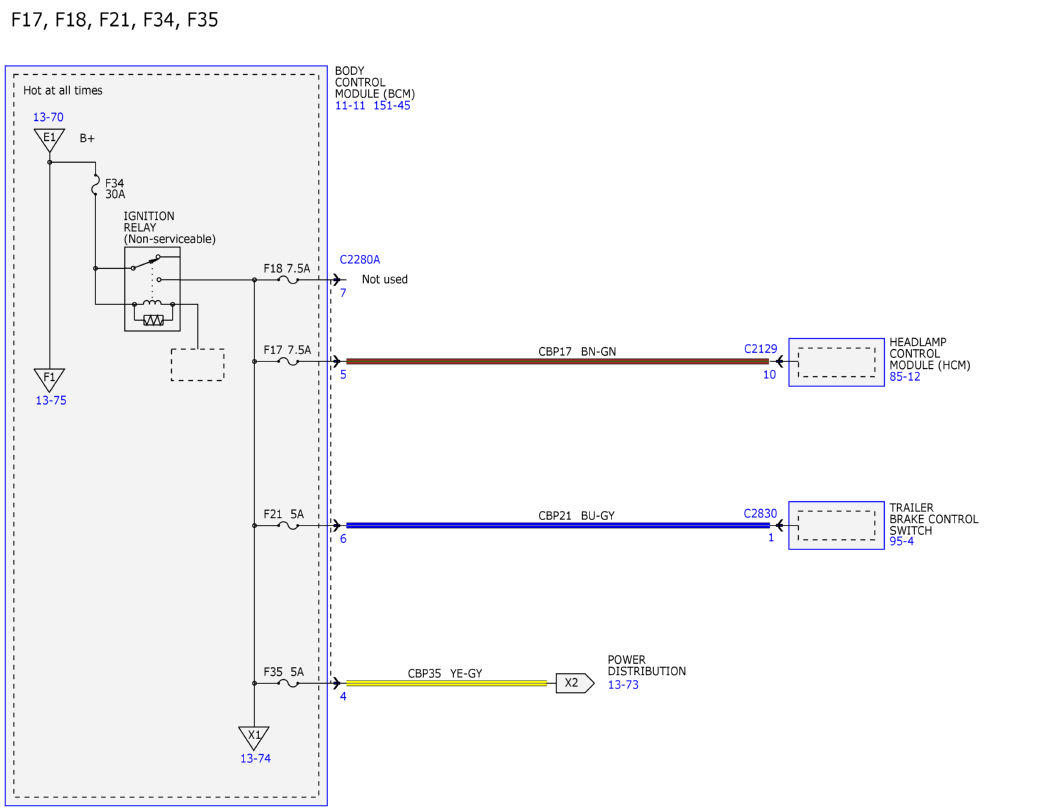

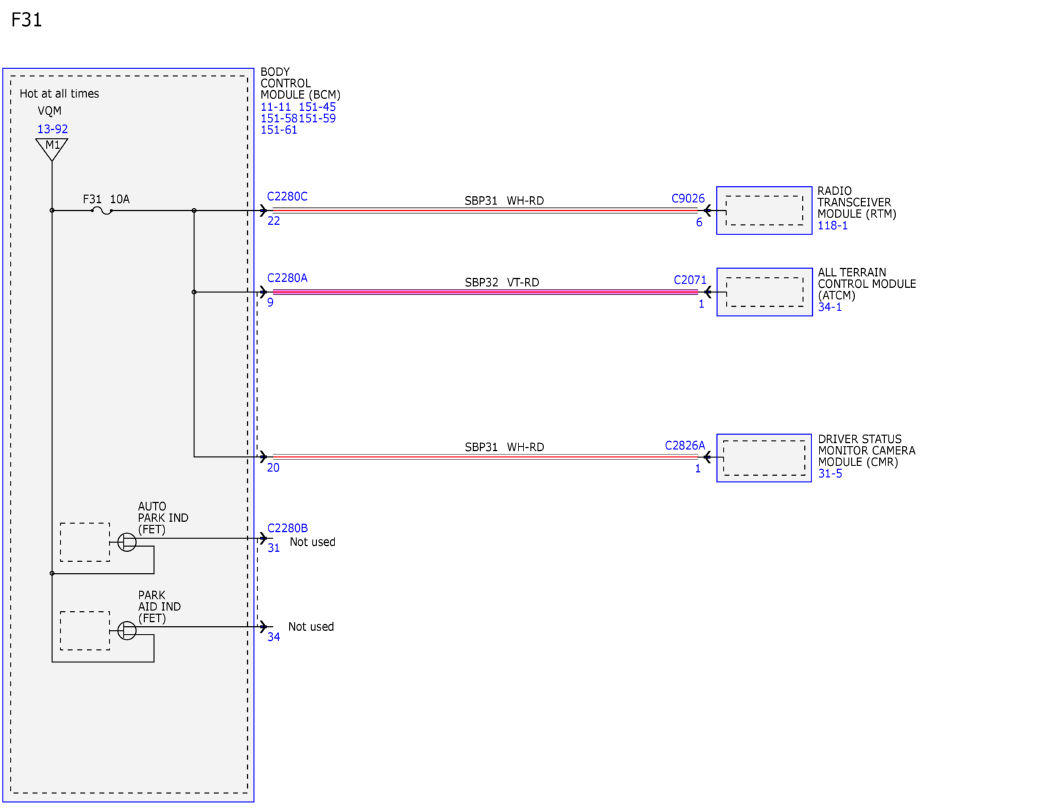

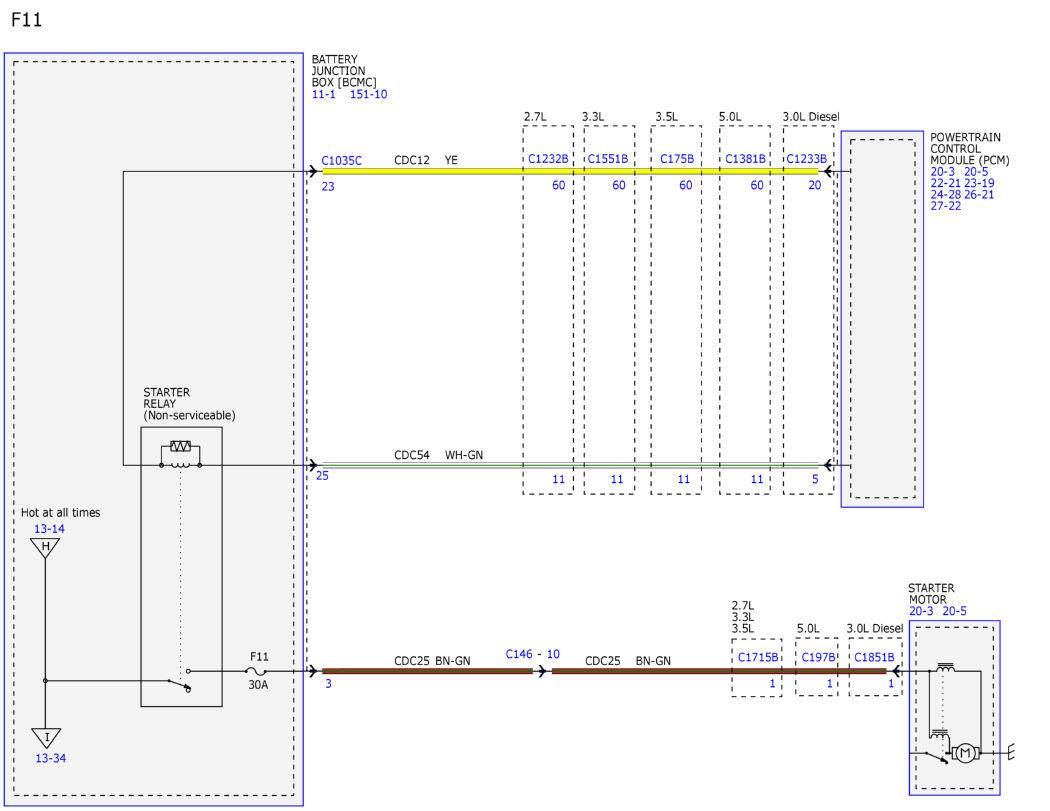

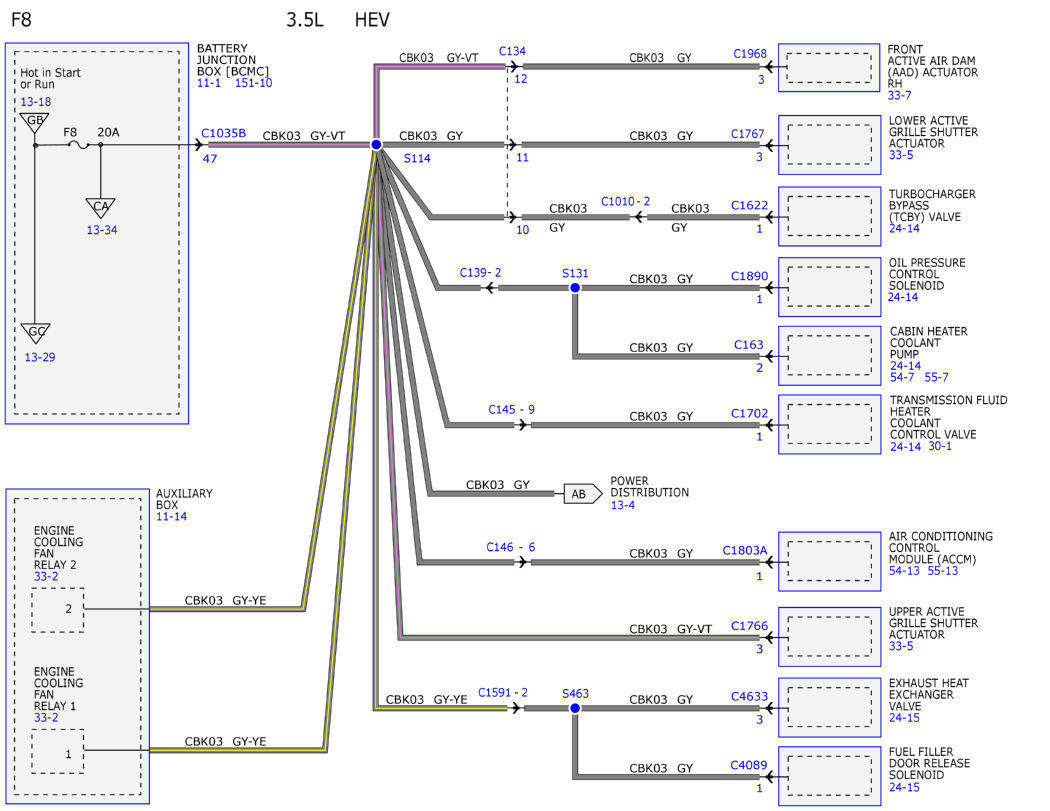

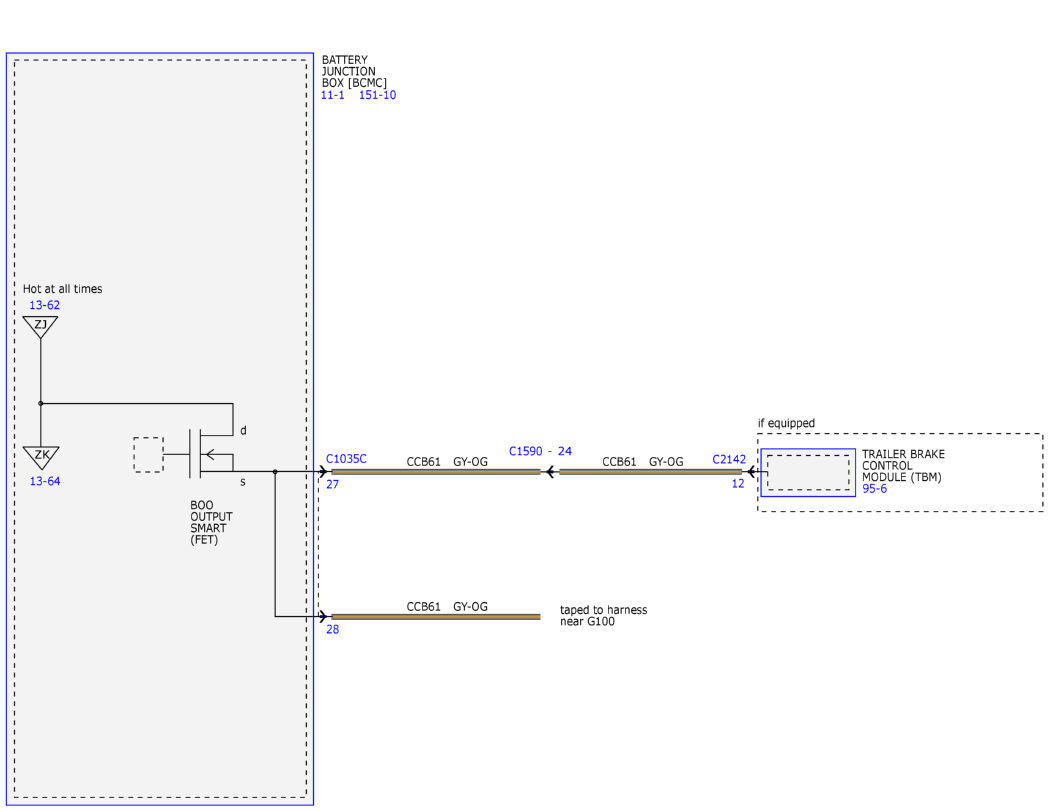

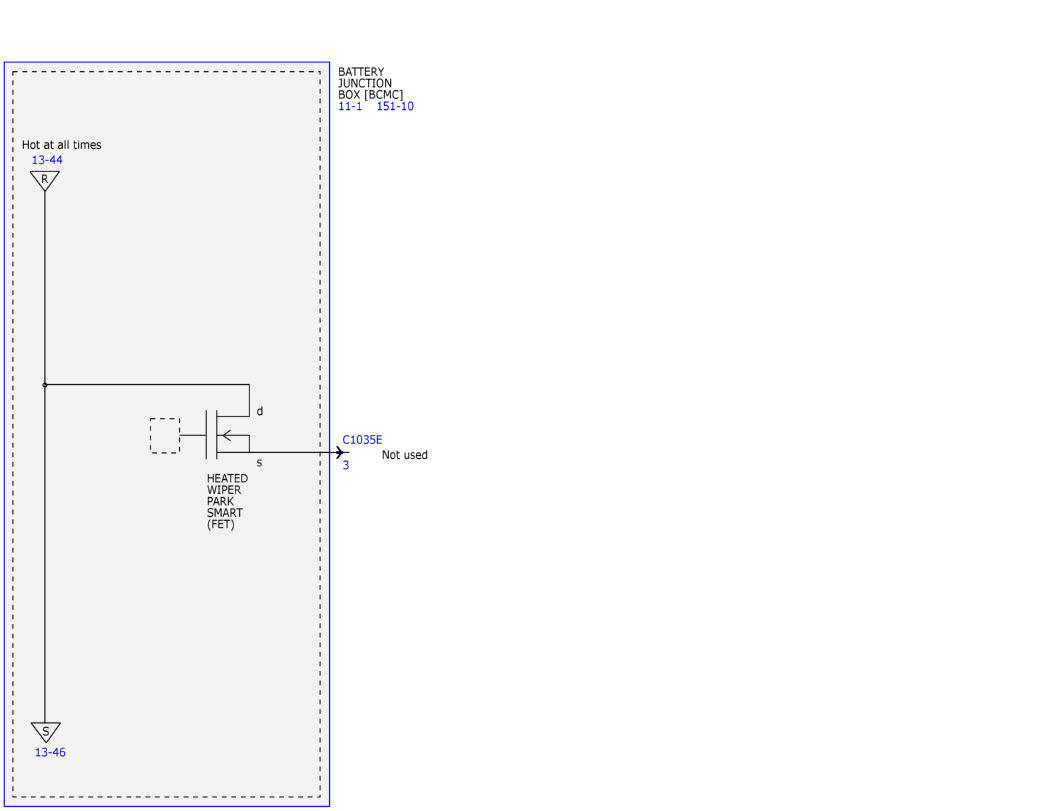

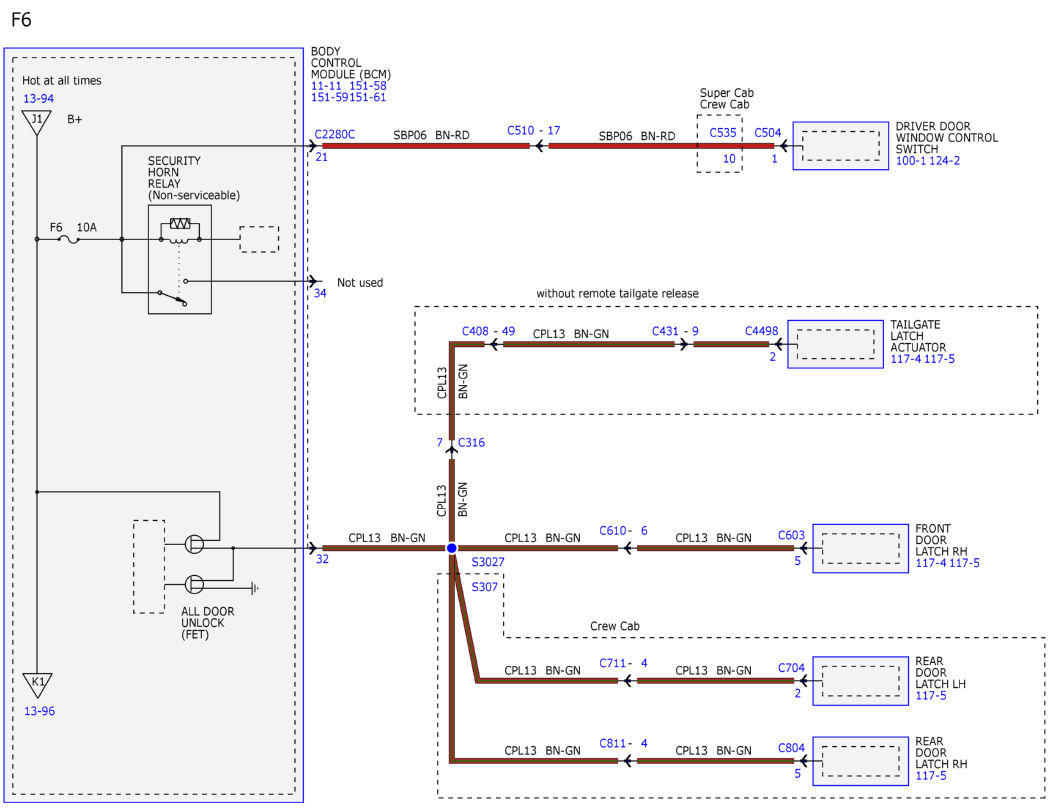

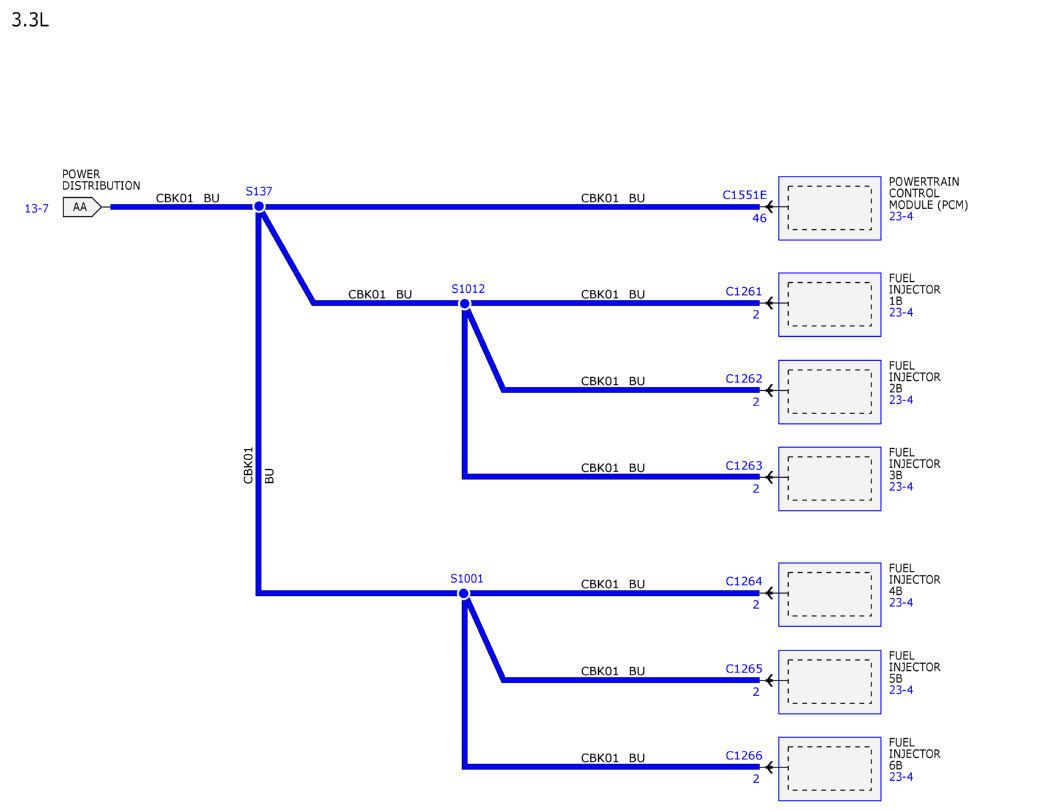

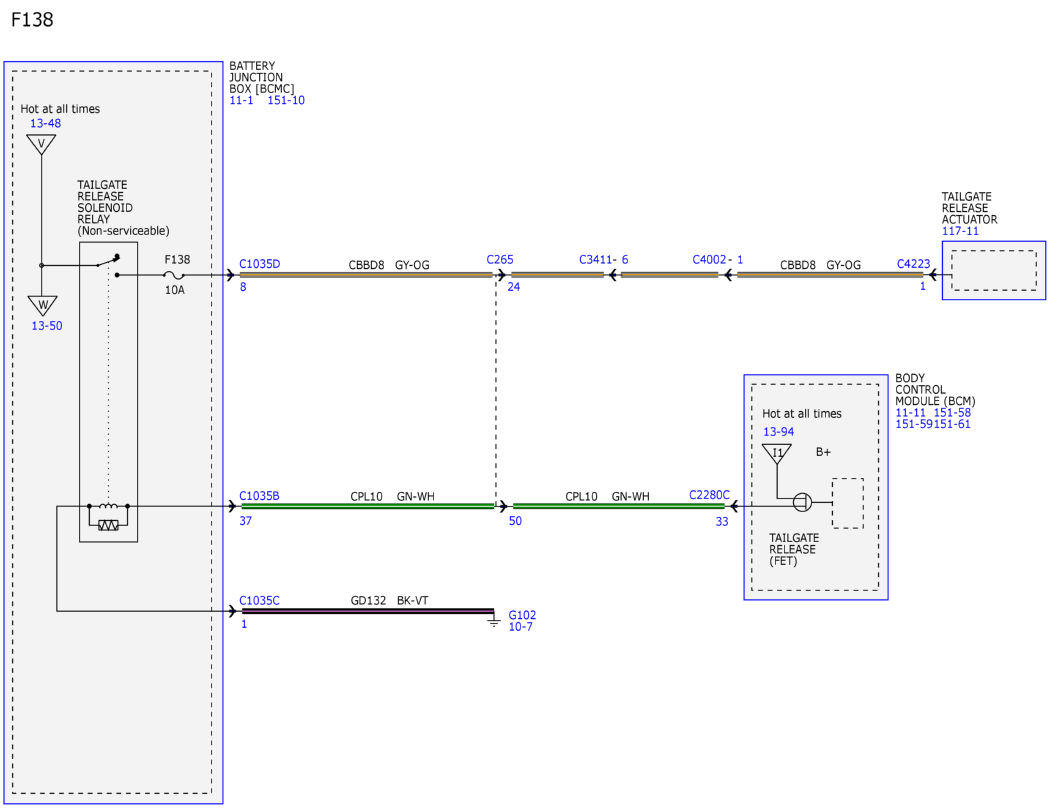

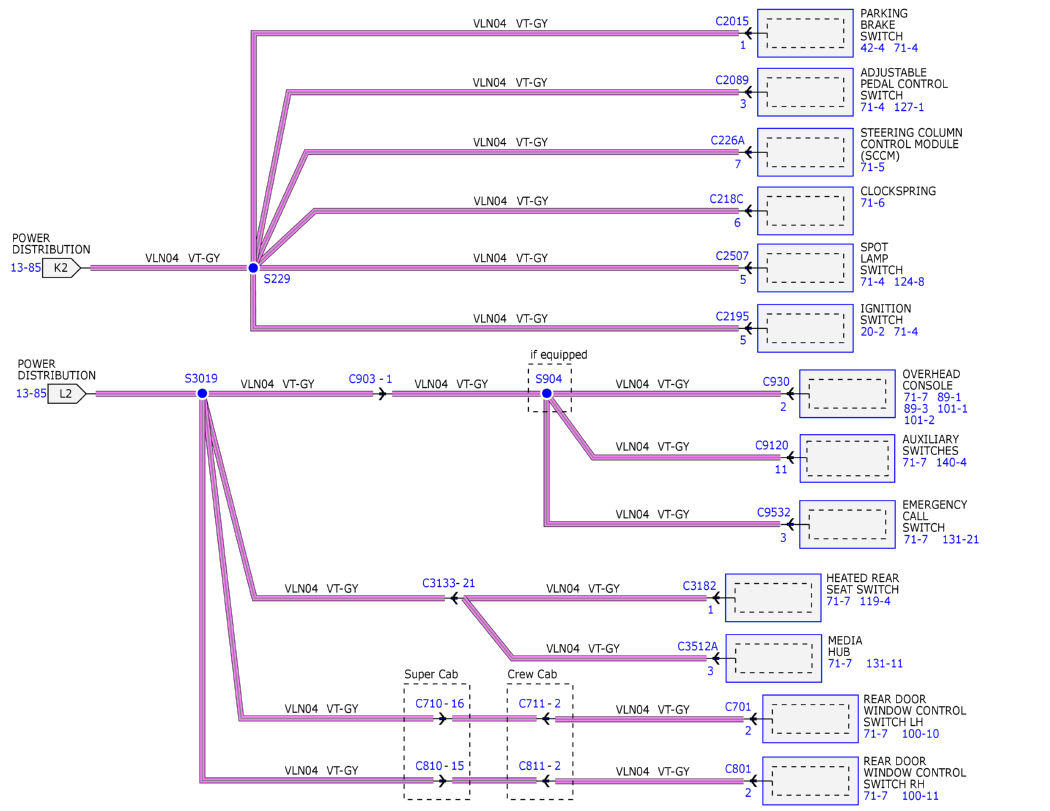

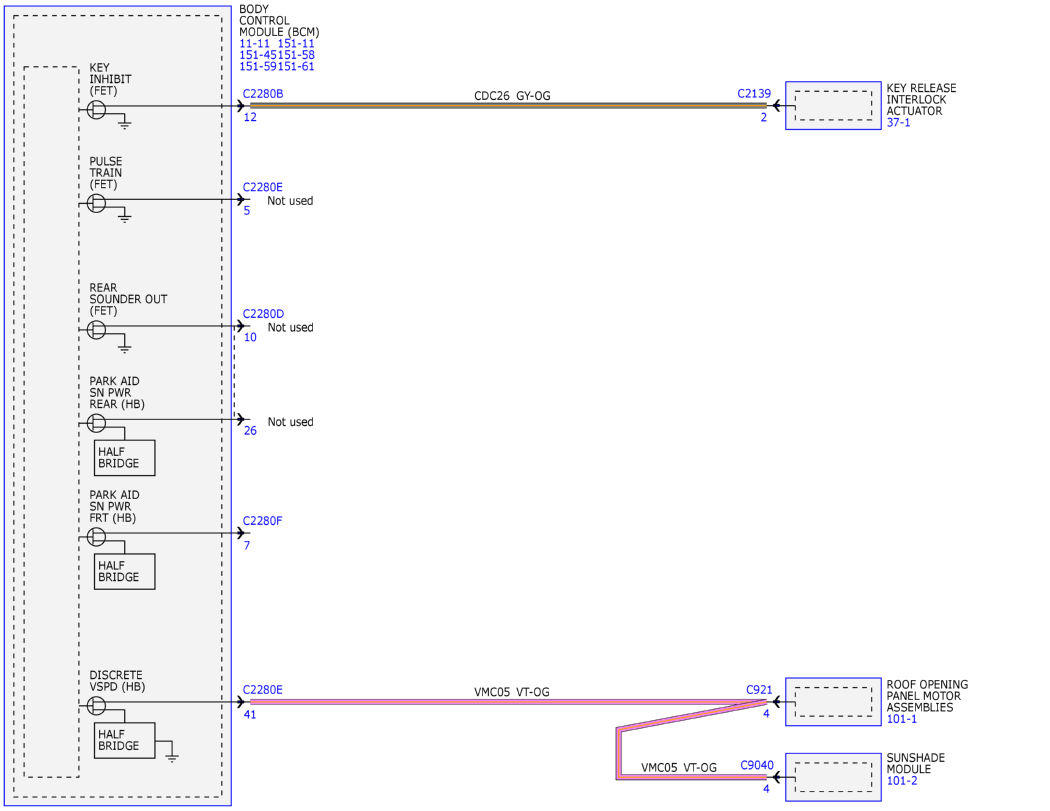

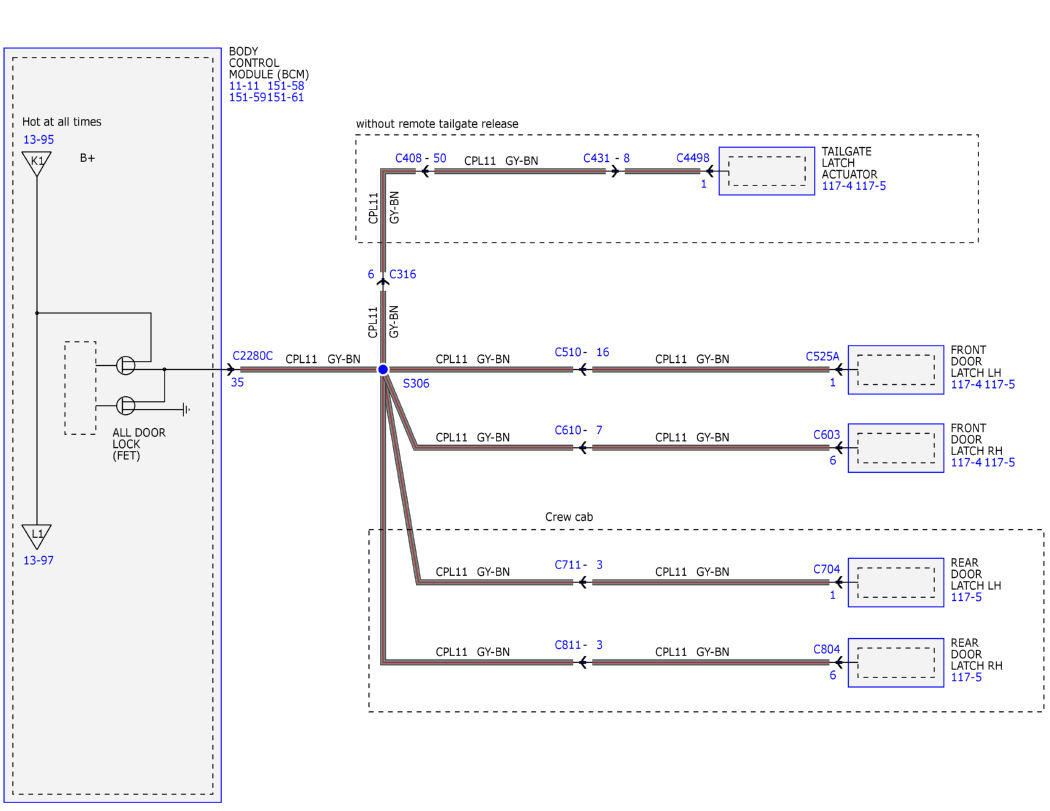

Fig 7: Power Distribution Wiring Diagram (7 Of 104)
Courtesy of FORD MOTOR COMPANY

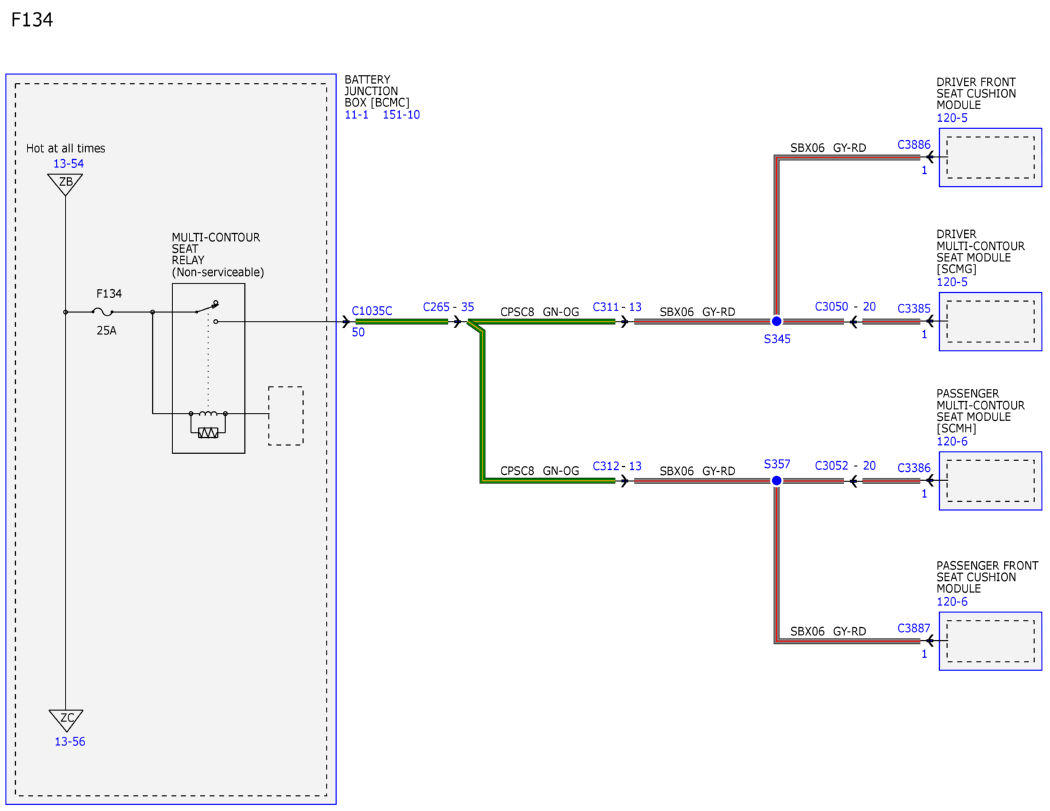

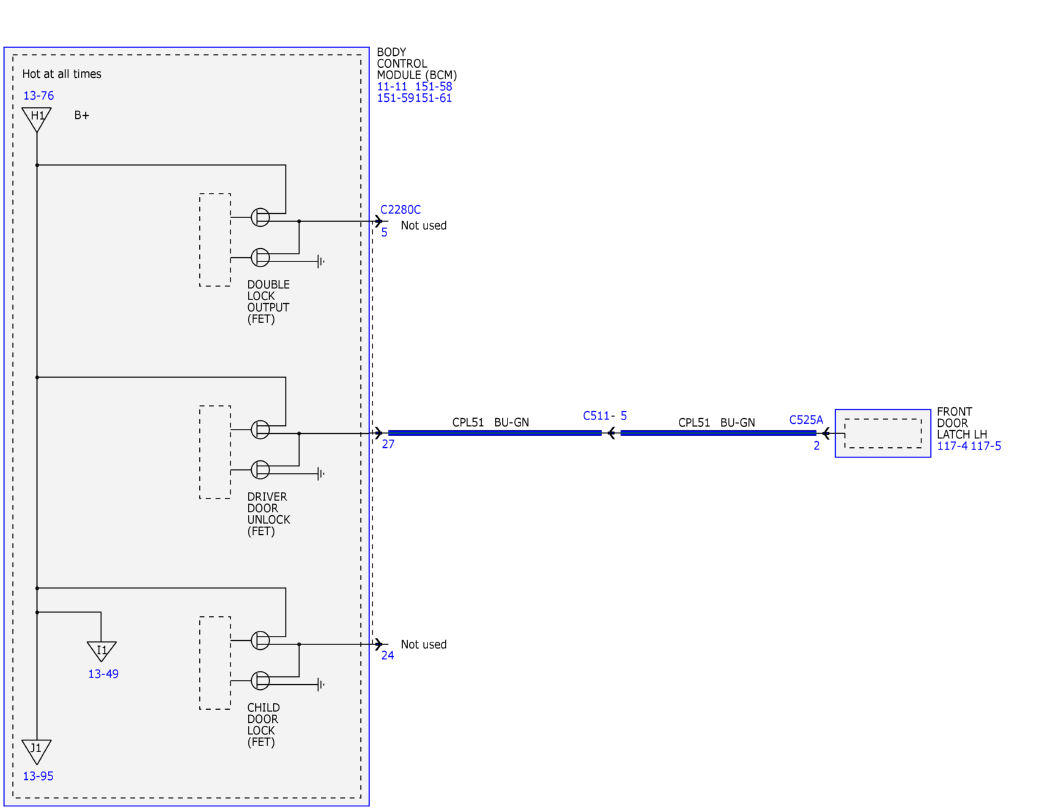

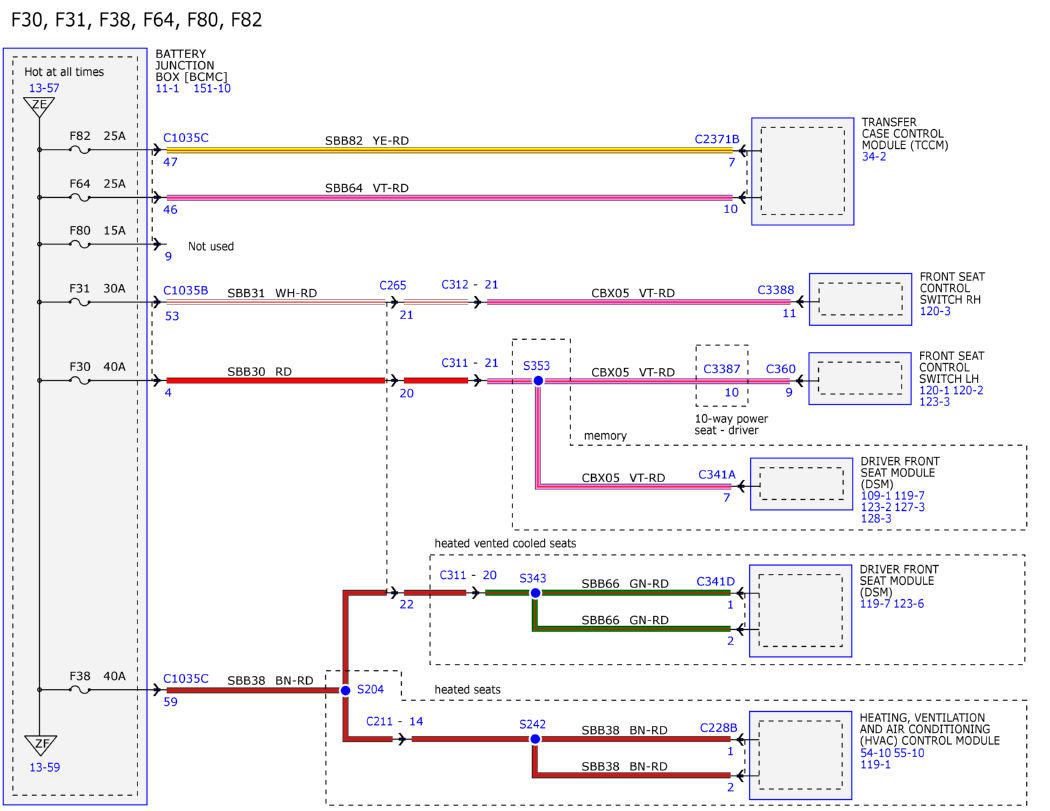

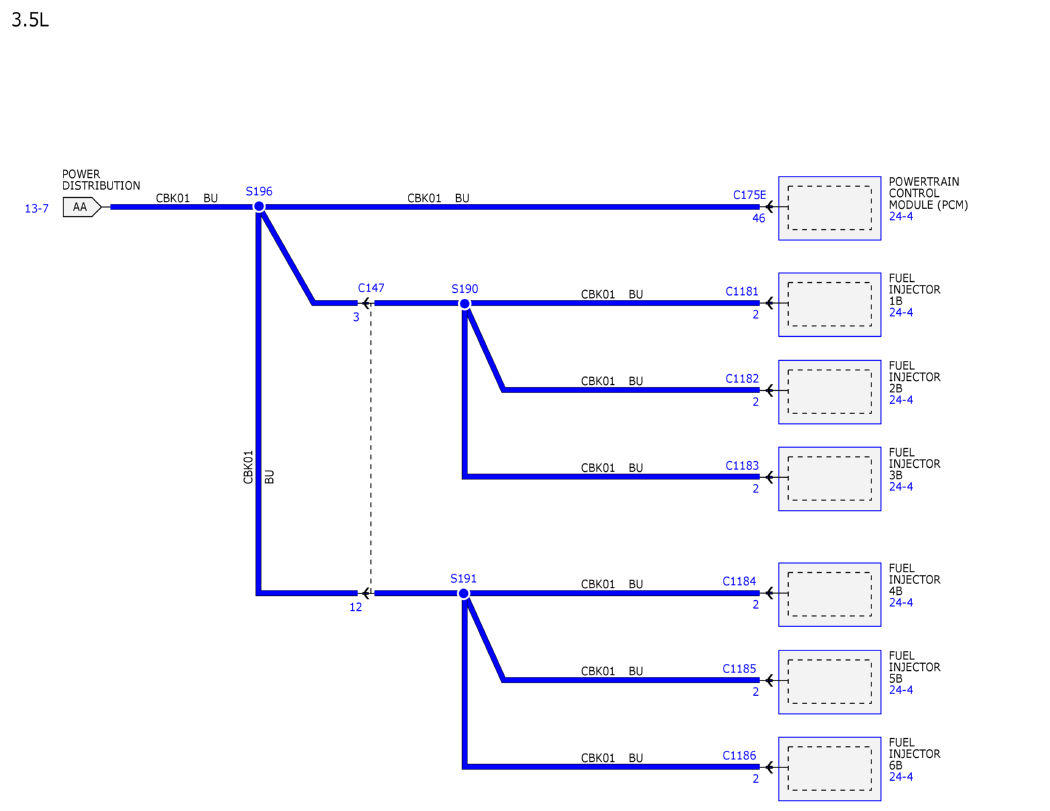

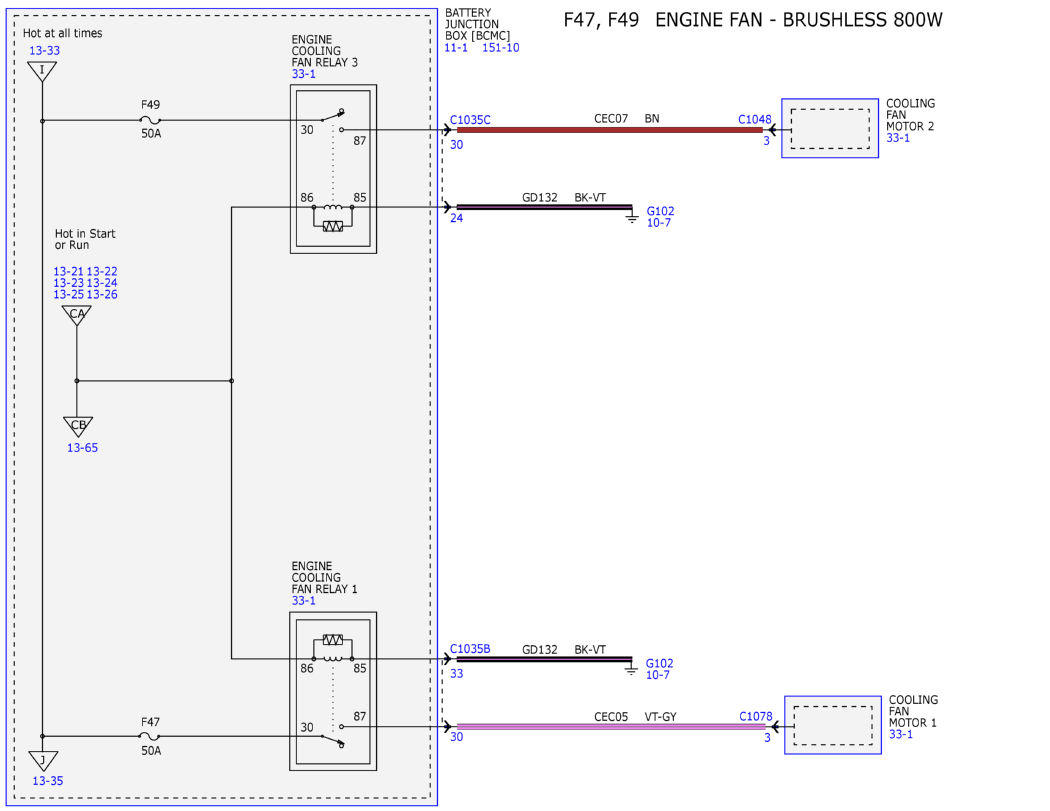

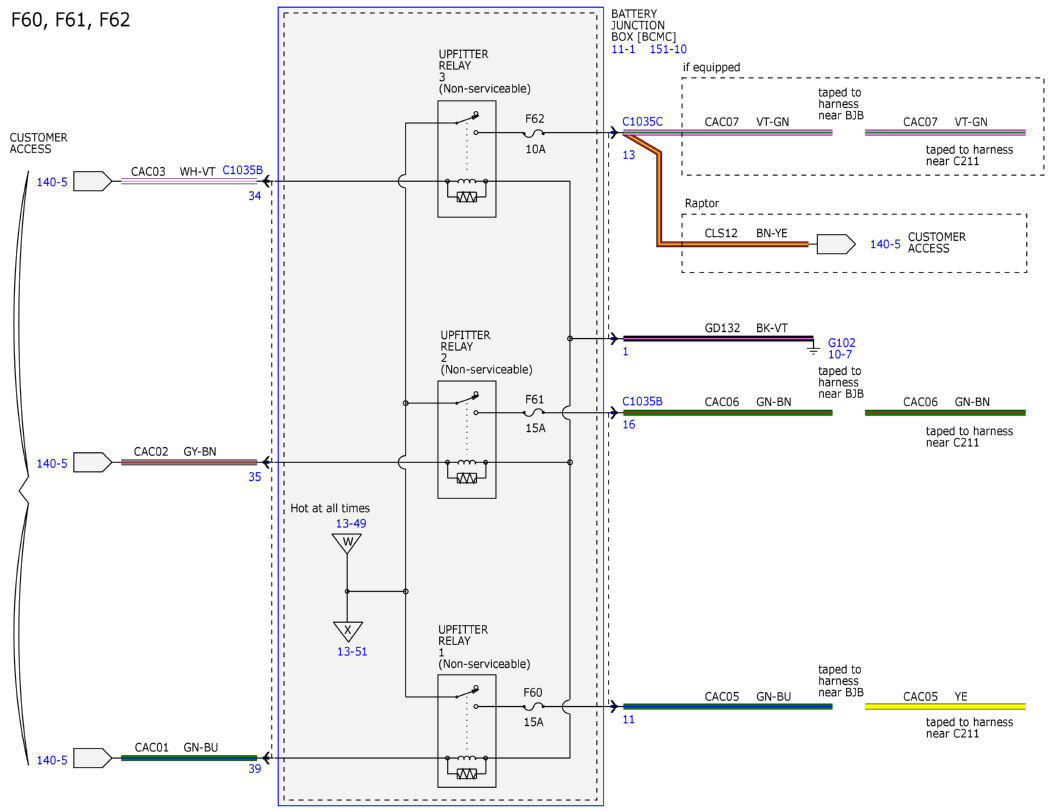

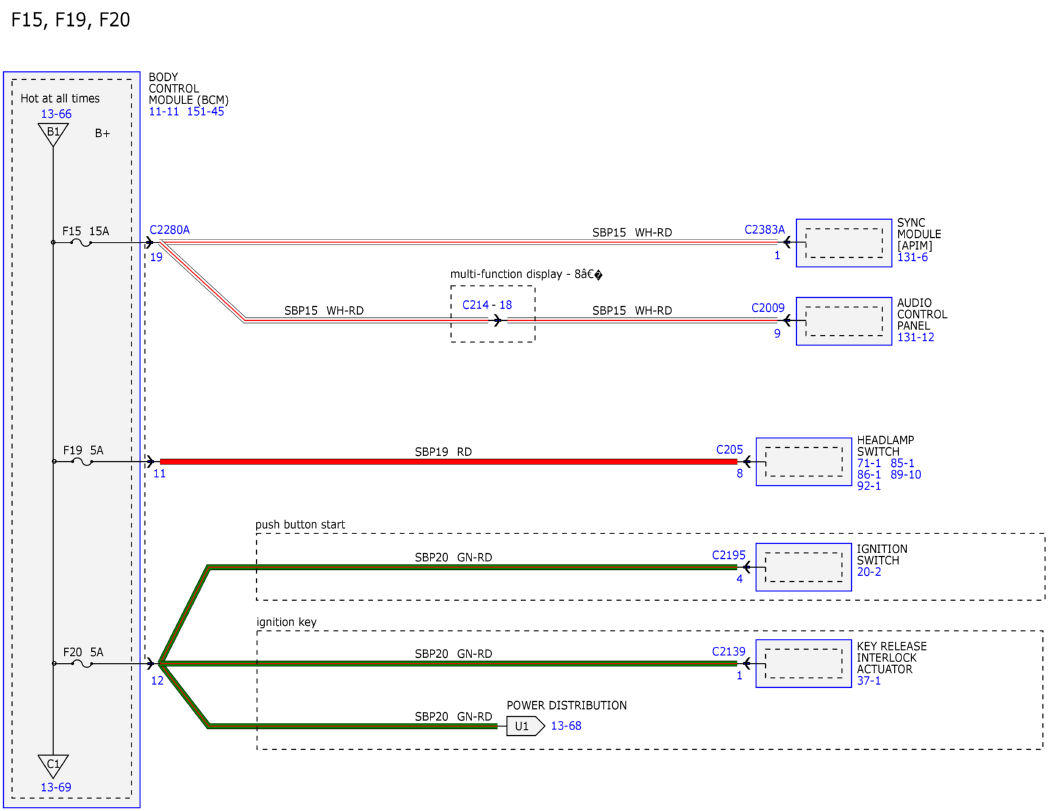

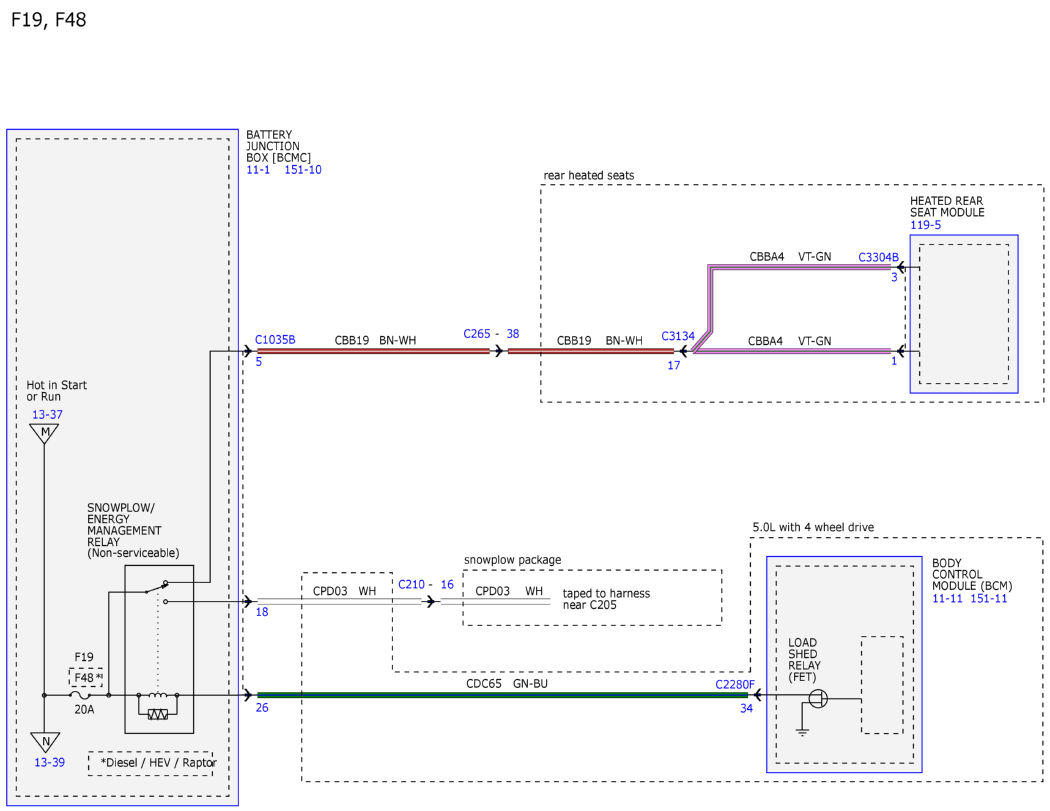

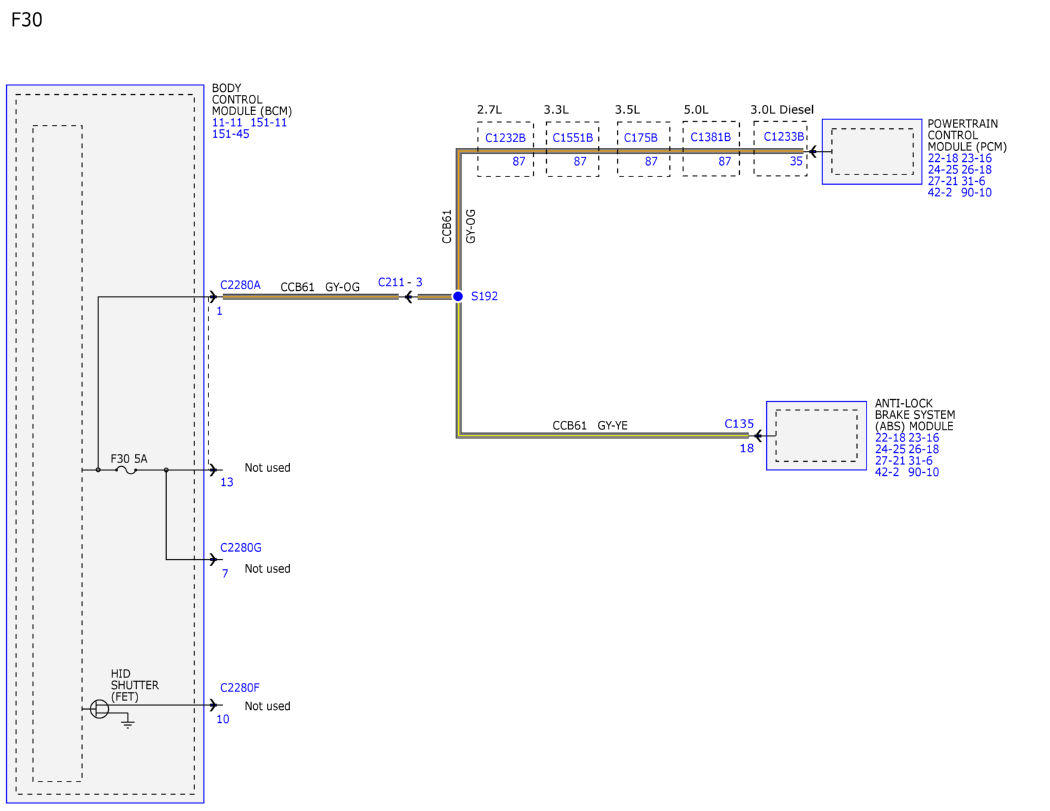

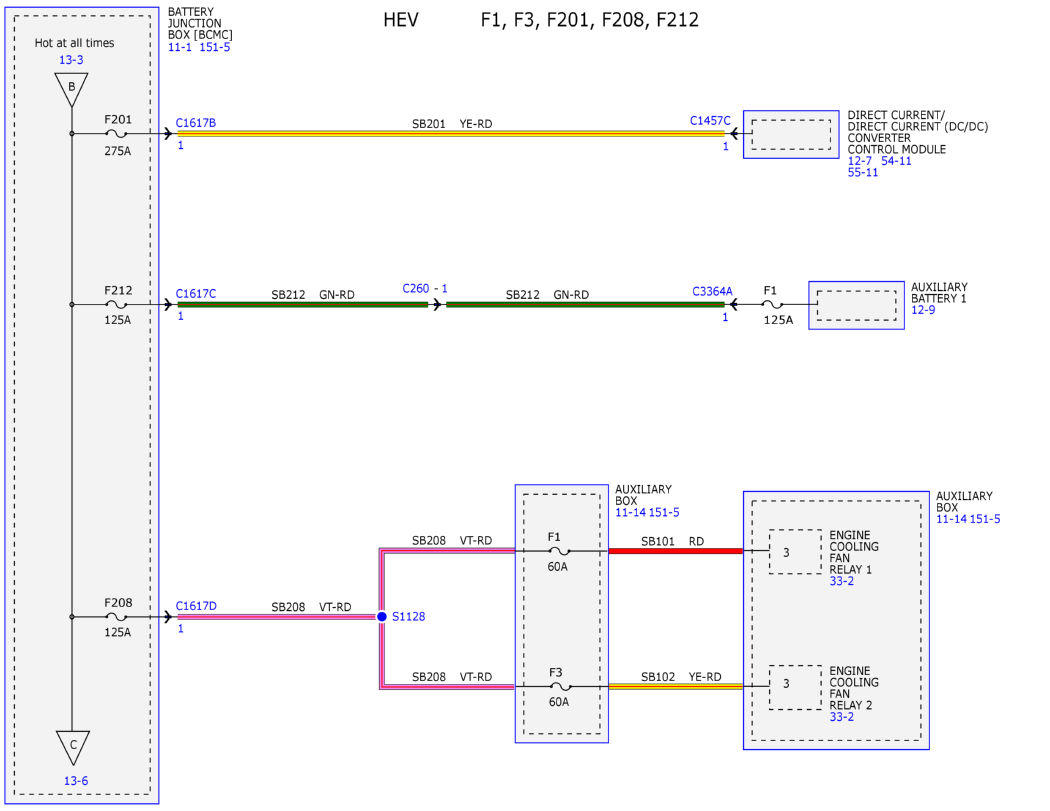

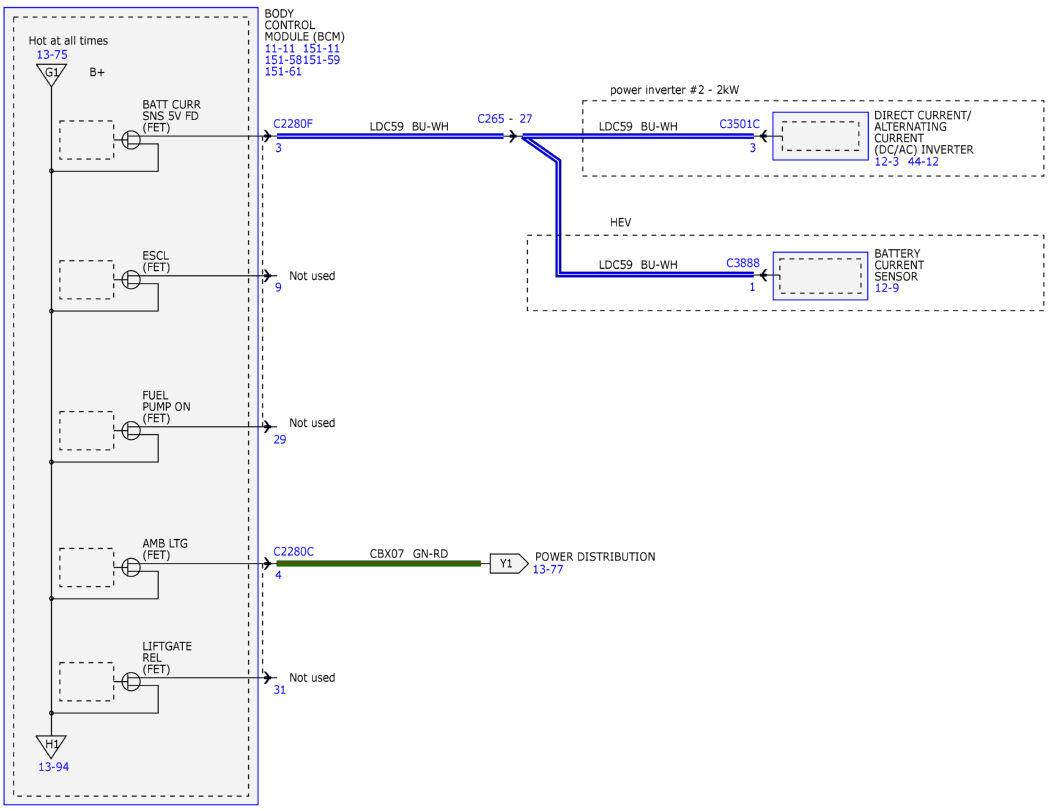

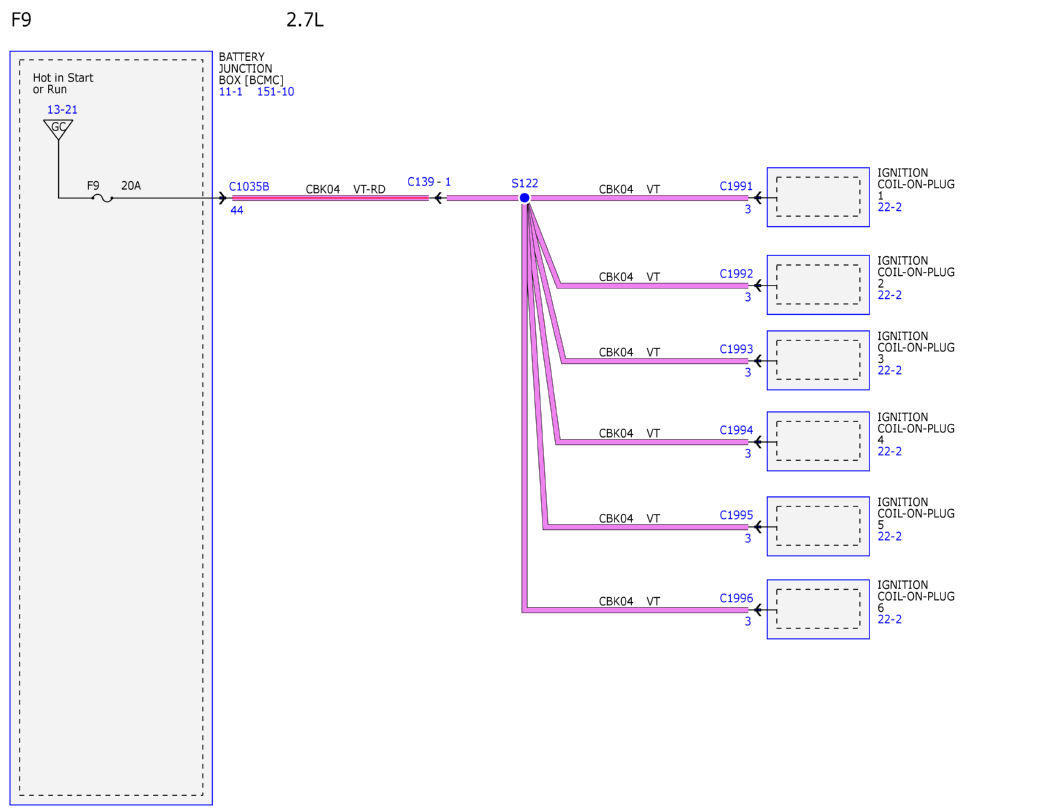

Fig 8: Power Distribution Wiring Diagram (8 Of 104)
Courtesy of FORD MOTOR COMPANY

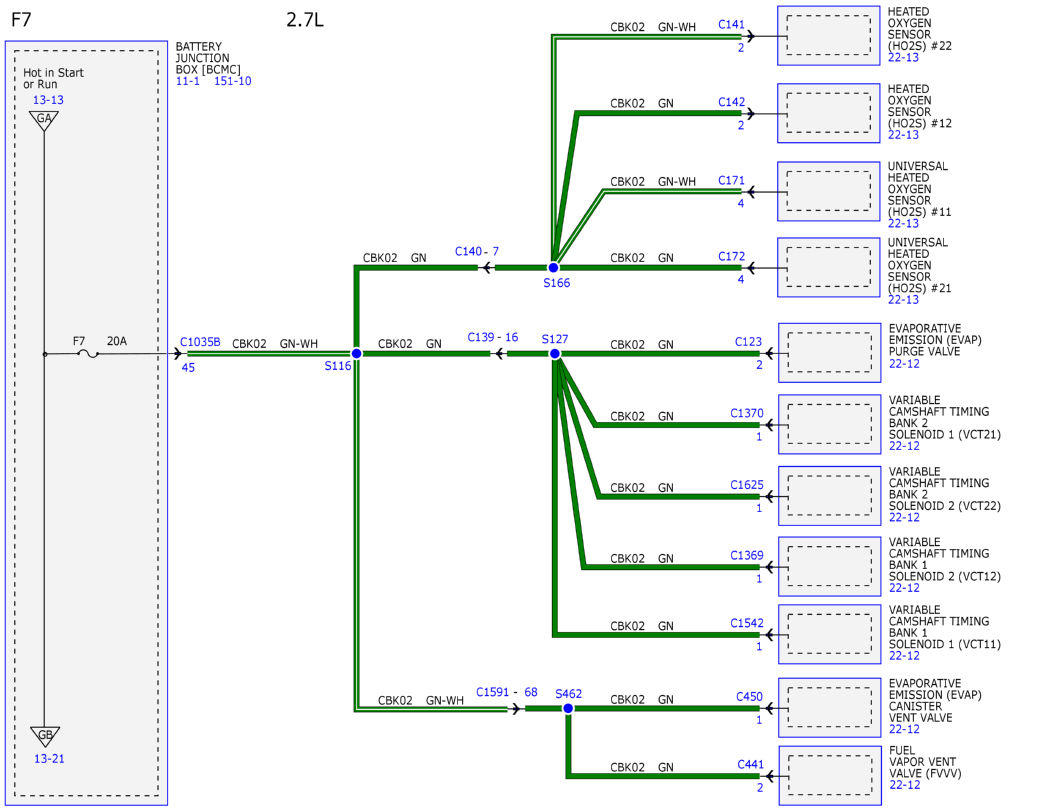

Fig 9: Power Distribution Wiring Diagram (9 Of 104)
Courtesy of FORD MOTOR COMPANY

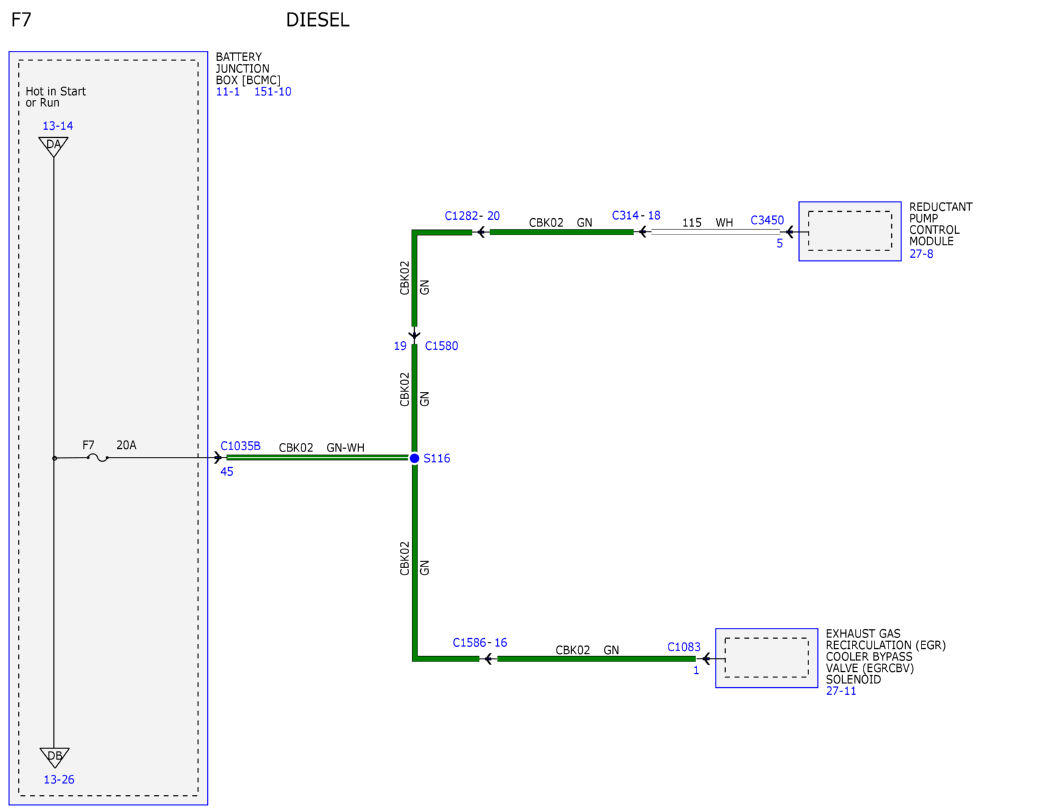

Fig 10: Power Distribution Wiring Diagram (10 Of 104)
Courtesy of FORD MOTOR COMPANY

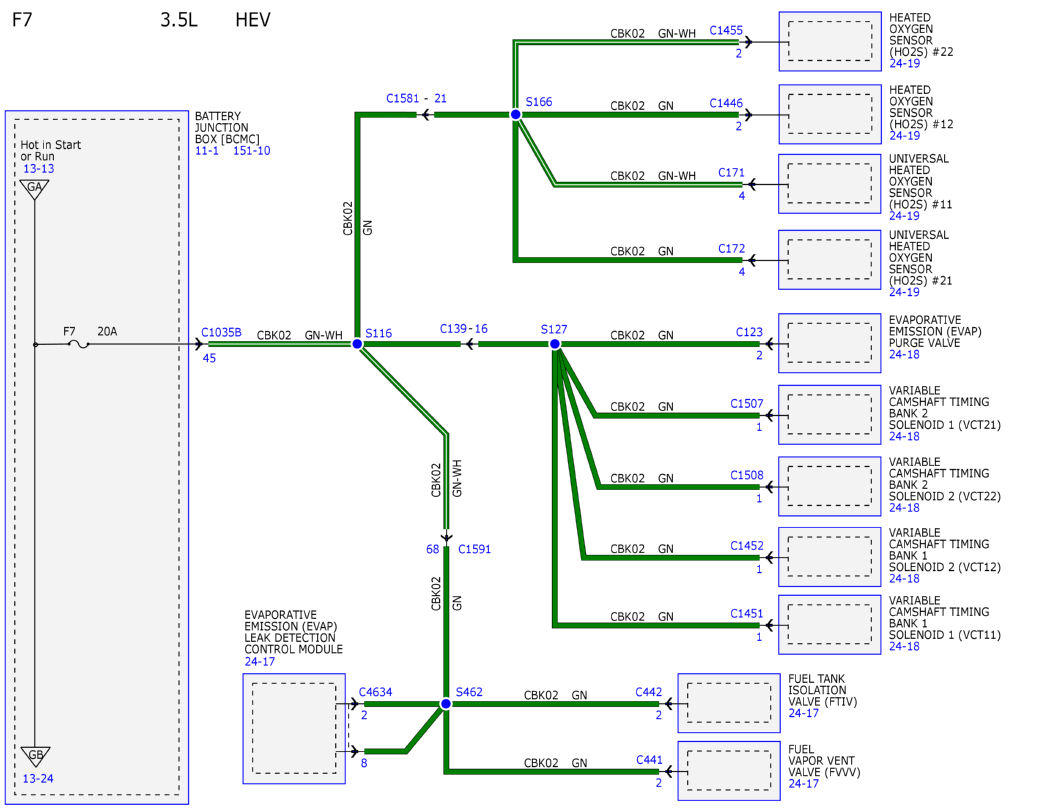

Fig 11: Power Distribution Wiring Diagram (11 Of 104)
Courtesy of FORD MOTOR COMPANY

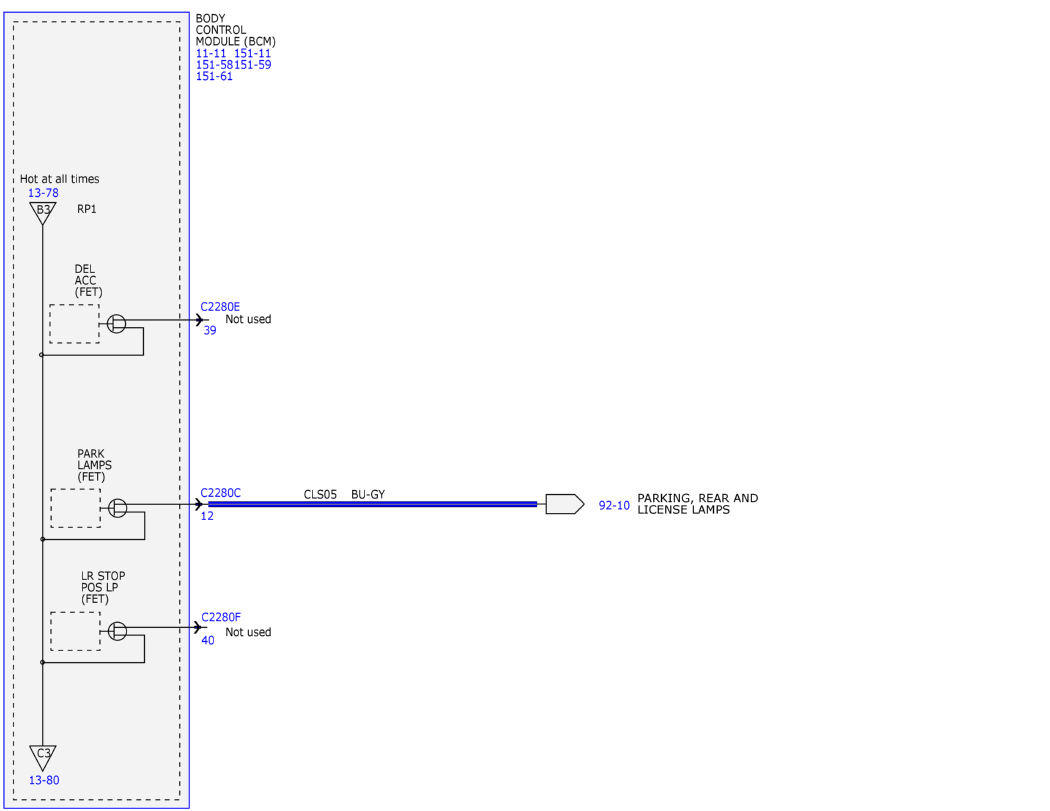

Fig 12: Power Distribution Wiring Diagram (12 Of 104)
Courtesy of FORD MOTOR COMPANY

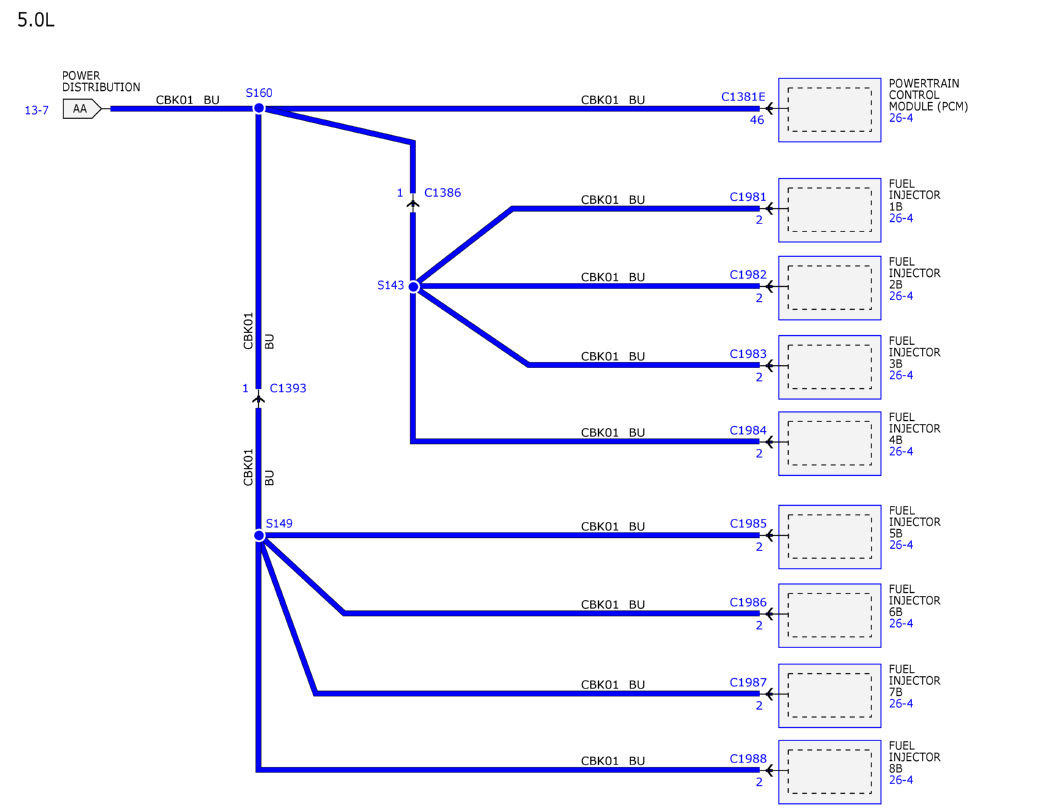

Fig 13: Power Distribution Wiring Diagram (13 Of 104)
Courtesy of FORD MOTOR COMPANY

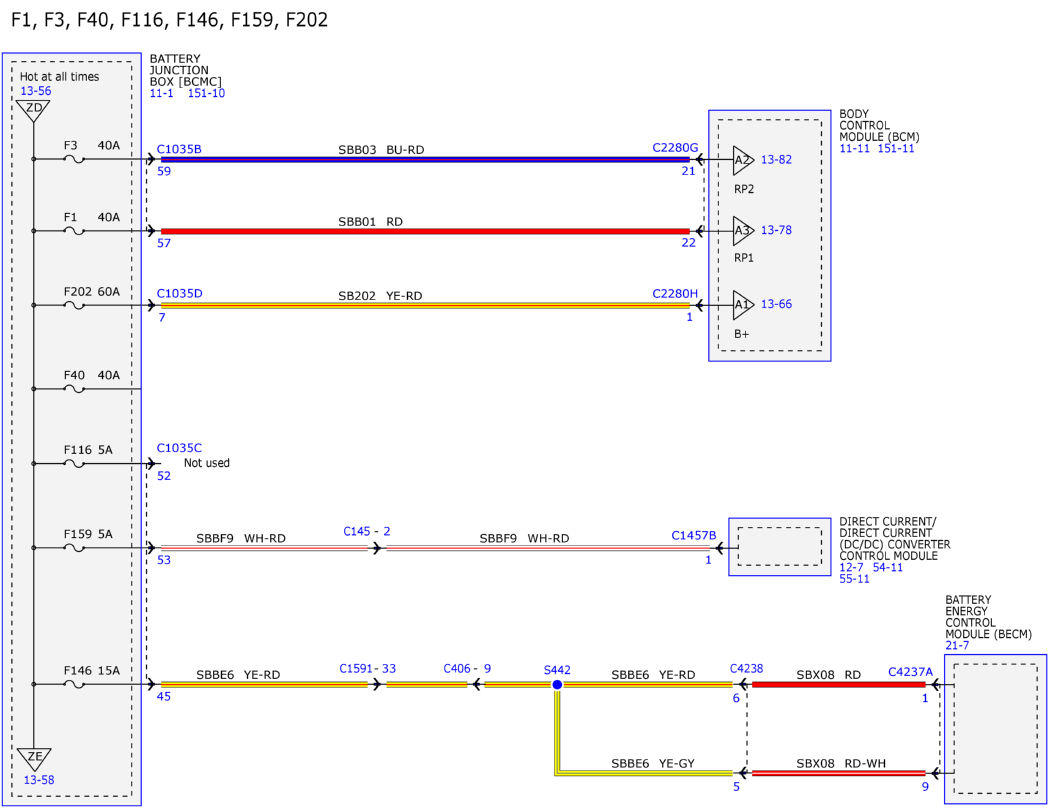

Fig 14: Power Distribution Wiring Diagram (14 Of 104)
Courtesy of FORD MOTOR COMPANY

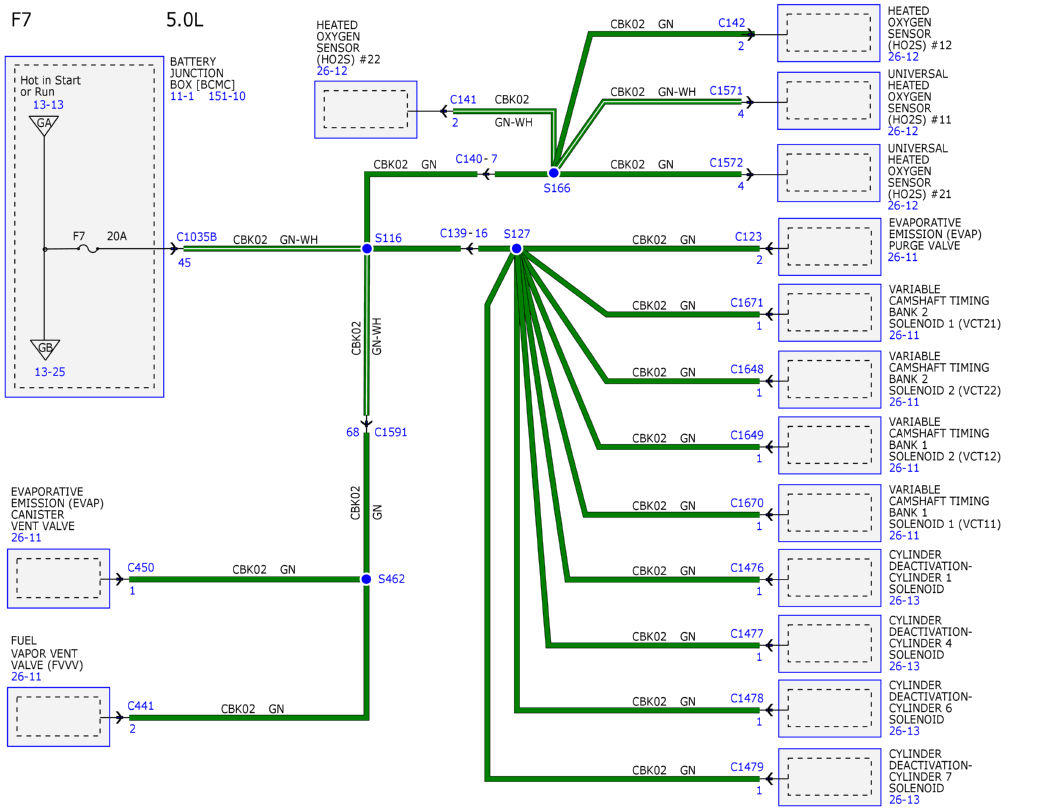

Fig 15: Power Distribution Wiring Diagram (15 Of 104)
Courtesy of FORD MOTOR COMPANY

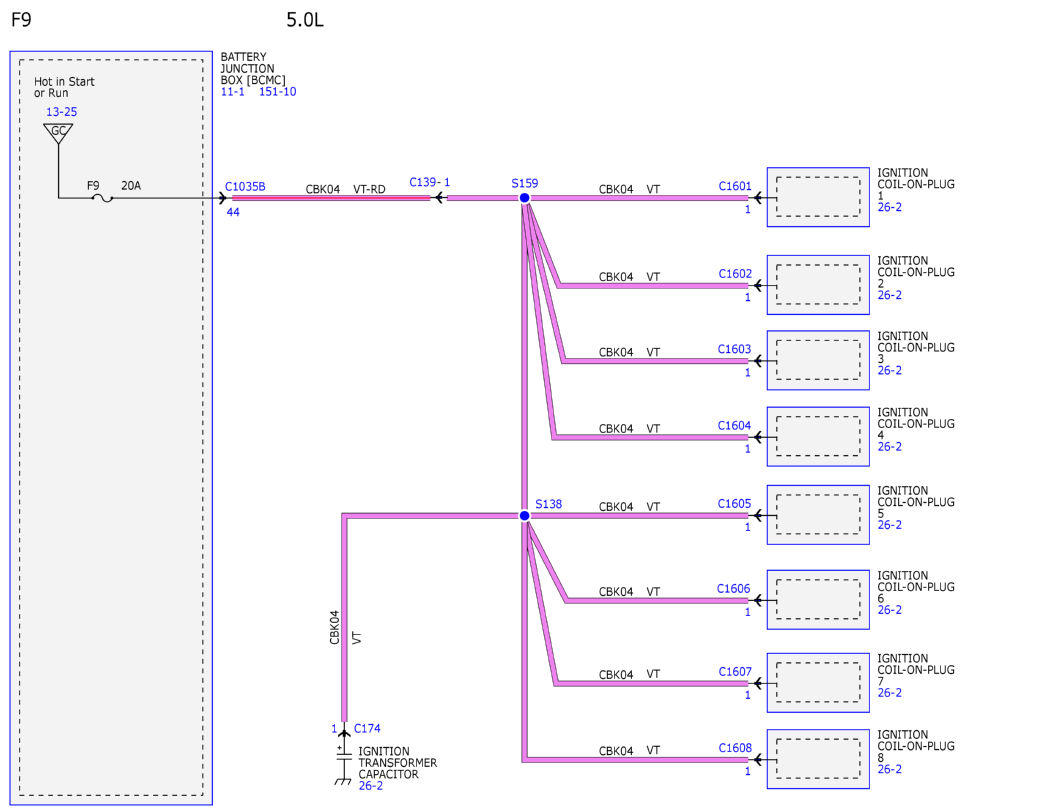

Fig 16: Power Distribution Wiring Diagram (16 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution Wiring Diagram (17 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution Wiring Diagram (18 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution Wiring Diagram (19 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution Wiring Diagram (20 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution Wiring Diagram (21 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution Wiring Diagram (22 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution Wiring Diagram (23 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution Wiring Diagram (24 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution Wiring Diagram (25 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution Wiring Diagram (26 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution Wiring Diagram (27 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution Wiring Diagram (28 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution Wiring Diagram (29 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution Wiring Diagram (30 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution Wiring Diagram (31 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution Wiring Diagram (32 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution Wiring Diagram (32 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution Wiring Diagram (33 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 35: Power Distribution Wiring Diagram (34 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 36: Power Distribution Wiring Diagram (35 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 37: Power Distribution Wiring Diagram (36 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 38: Power Distribution Wiring Diagram (37 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 39: Power Distribution Wiring Diagram (38 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 40: Power Distribution Wiring Diagram (39 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 41: Power Distribution Wiring Diagram (40 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 42: Power Distribution Wiring Diagram (41 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 43: Power Distribution Wiring Diagram (42 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 44: Power Distribution Wiring Diagram (43 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 45: Power Distribution Wiring Diagram (44 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 46: Power Distribution Wiring Diagram (45 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 47: Power Distribution Wiring Diagram (46 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 48: Power Distribution Wiring Diagram (47 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 49: Power Distribution Wiring Diagram (48 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 50: Power Distribution Wiring Diagram (49 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 51: Power Distribution Wiring Diagram (50 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 52: Power Distribution Wiring Diagram (51 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 53: Power Distribution Wiring Diagram (52 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 54: Power Distribution Wiring Diagram (53 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 55: Power Distribution Wiring Diagram (54 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 56: Power Distribution Wiring Diagram (55 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 57: Power Distribution Wiring Diagram (56 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 58: Power Distribution Wiring Diagram (57 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 59: Power Distribution Wiring Diagram (58 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 60: Power Distribution Wiring Diagram (59 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 61: Power Distribution Wiring Diagram (60 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 62: Power Distribution Wiring Diagram (61 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 63: Power Distribution Wiring Diagram (62 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 64: Power Distribution Wiring Diagram (63 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 65: Power Distribution Wiring Diagram (64 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 66: Power Distribution Wiring Diagram (65 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 67: Power Distribution Wiring Diagram (66 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 68: Power Distribution Wiring Diagram (67 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 69: Power Distribution Wiring Diagram (68 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 70: Power Distribution Wiring Diagram (69 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 71: Power Distribution Wiring Diagram (70 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 72: Power Distribution Wiring Diagram (71 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 73: Power Distribution Wiring Diagram (72 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 74: Power Distribution Wiring Diagram (73 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 75: Power Distribution Wiring Diagram (74 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 76: Power Distribution Wiring Diagram (75 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 77: Power Distribution Wiring Diagram (76 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 78: Power Distribution Wiring Diagram (77 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 79: Power Distribution Wiring Diagram (78 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 80: Power Distribution Wiring Diagram (79 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 81: Power Distribution Wiring Diagram (80 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 82: Power Distribution Wiring Diagram (81 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 83: Power Distribution Wiring Diagram (82 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 84: Power Distribution Wiring Diagram (83 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 85: Power Distribution Wiring Diagram (84 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 86: Power Distribution Wiring Diagram (85 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 87: Power Distribution Wiring Diagram (86 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 88: Power Distribution Wiring Diagram (87 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 89: Power Distribution Wiring Diagram (88 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 90: Power Distribution Wiring Diagram (89 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 91: Power Distribution Wiring Diagram (90 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 92: Power Distribution Wiring Diagram (91 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 93: Power Distribution Wiring Diagram (92 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 94: Power Distribution Wiring Diagram (93 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 95: Power Distribution Wiring Diagram (94 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 96: Power Distribution Wiring Diagram (95 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 97: Power Distribution Wiring Diagram (96 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 98: Power Distribution Wiring Diagram (97 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 99: Power Distribution Wiring Diagram (98 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 100: Power Distribution Wiring Diagram (99 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 101: Power Distribution Wiring Diagram (100 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 102: Power Distribution Wiring Diagram (101 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 103: Power Distribution Wiring Diagram (102 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 104: Power Distribution Wiring Diagram (103 Of 104)
Courtesy of FORD MOTOR COMPANY
Fig 105: Power Distribution Wiring Diagram (104 Of 104)
Courtesy of FORD MOTOR COMPANY
