Driveshaft Slip Yoke: Assembly
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

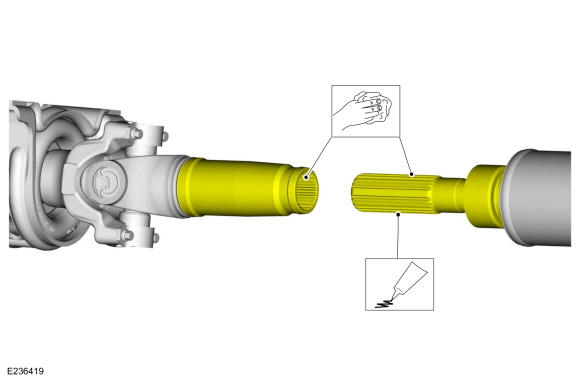

- Clean and lubricate the slip yoke splines.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

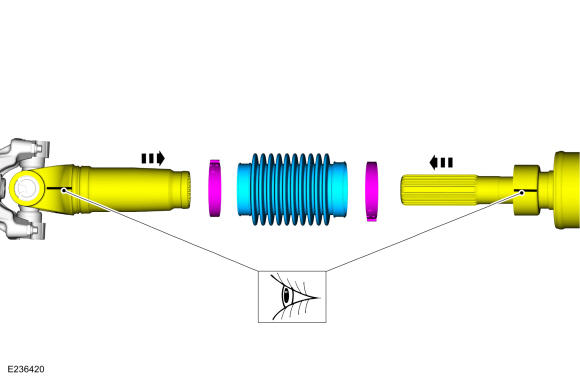

- Align the index marks and assemble the slip yoke.

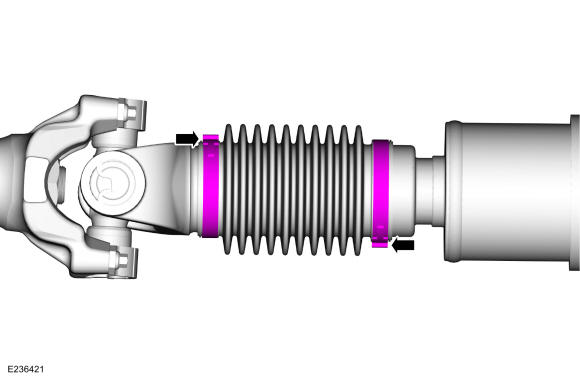

- Tighten the clamps
Use Special Service Tool: 205-D067 (D87P-1098-A) Pliers, Boot Clamp.
- Install the driveshaft assembly. Refer to: Rear Driveshaft .
