Power Distribution/BCM

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

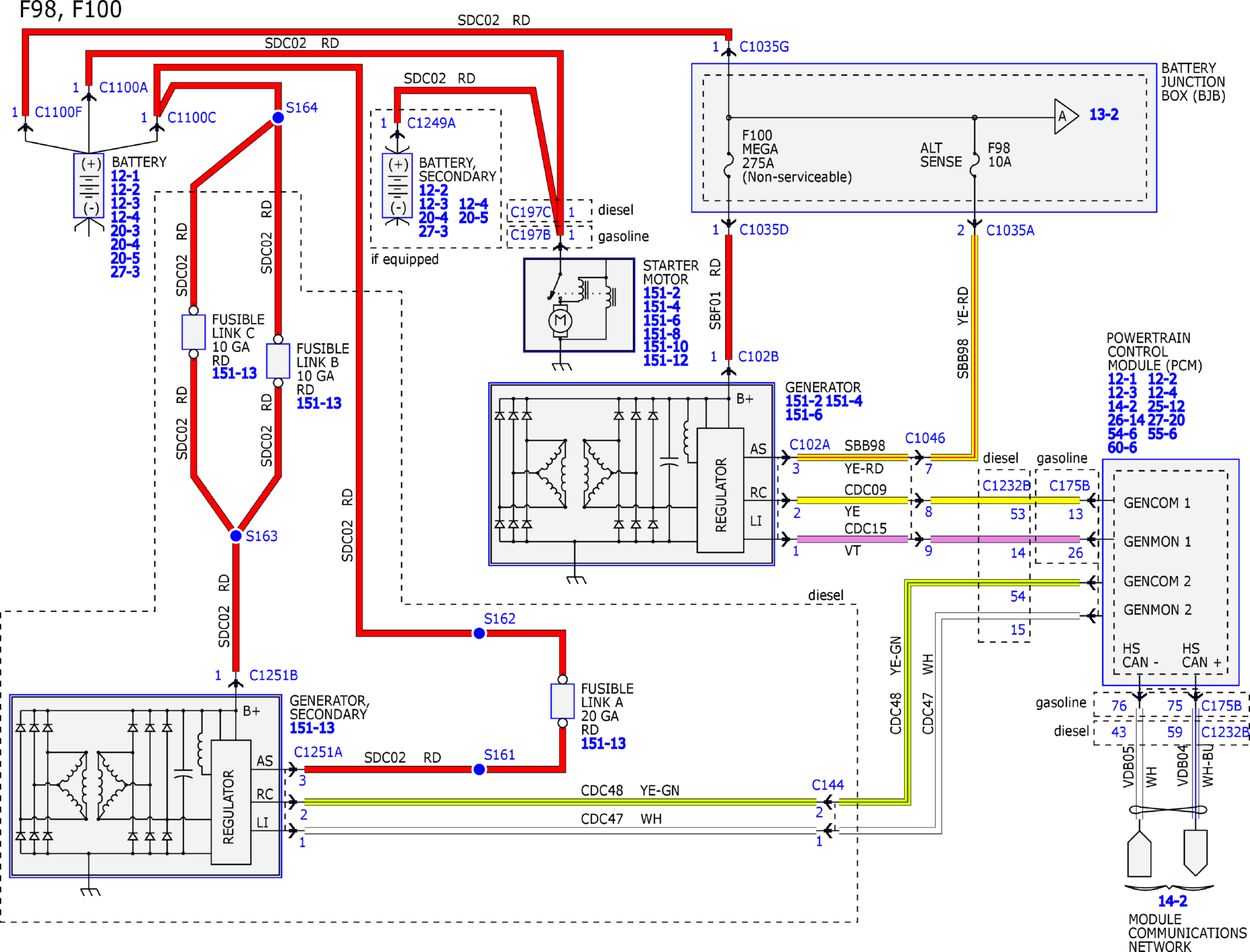

Fig 1: Power Distribution/BCM Wiring Diagram (1 of 50)

GFDW83424

Courtesy of FORD MOTOR COMPANY

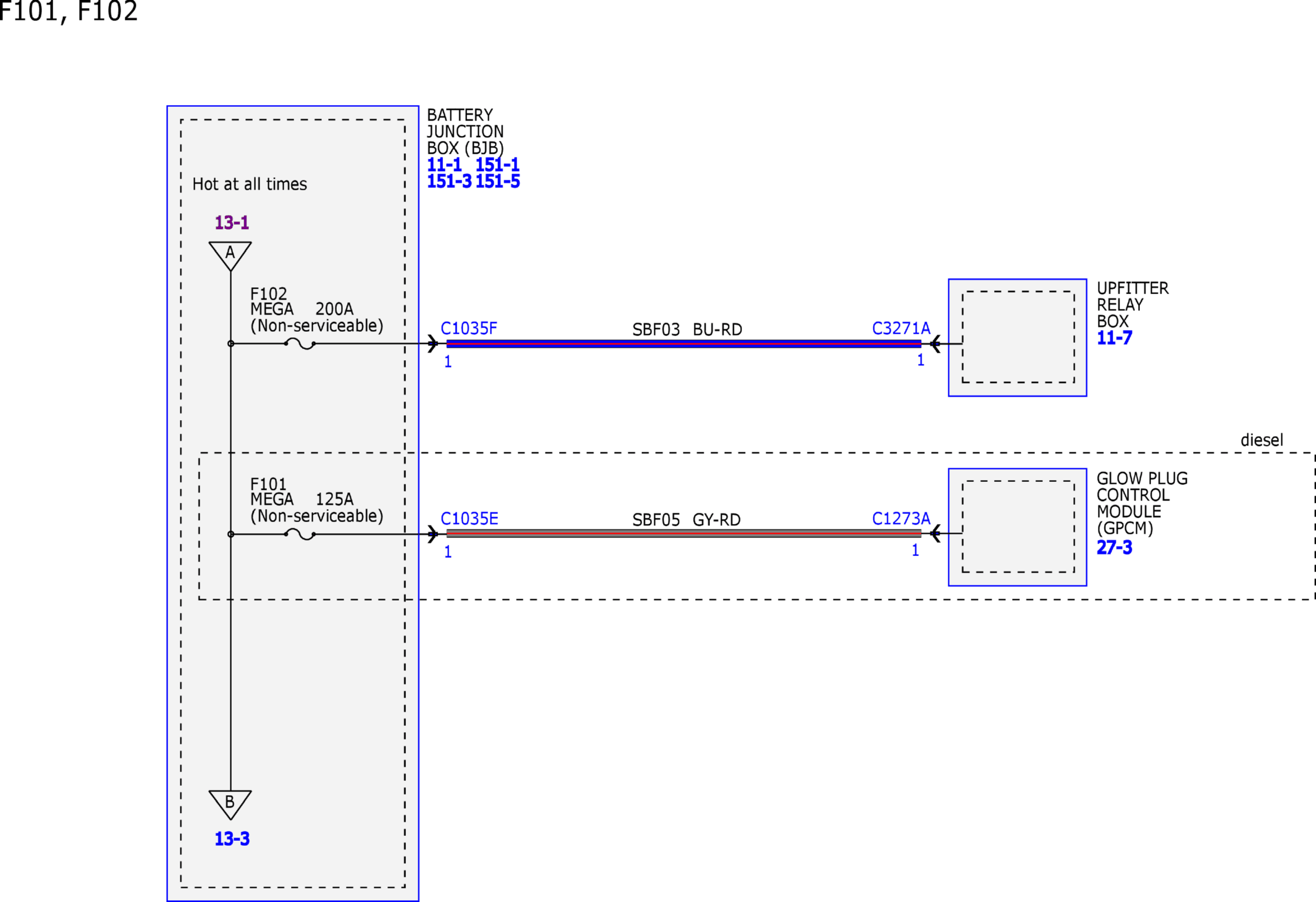

Fig 2: Power Distribution/BCM Wiring Diagram (2 of 50)

GFDW83425

Courtesy of FORD MOTOR COMPANY

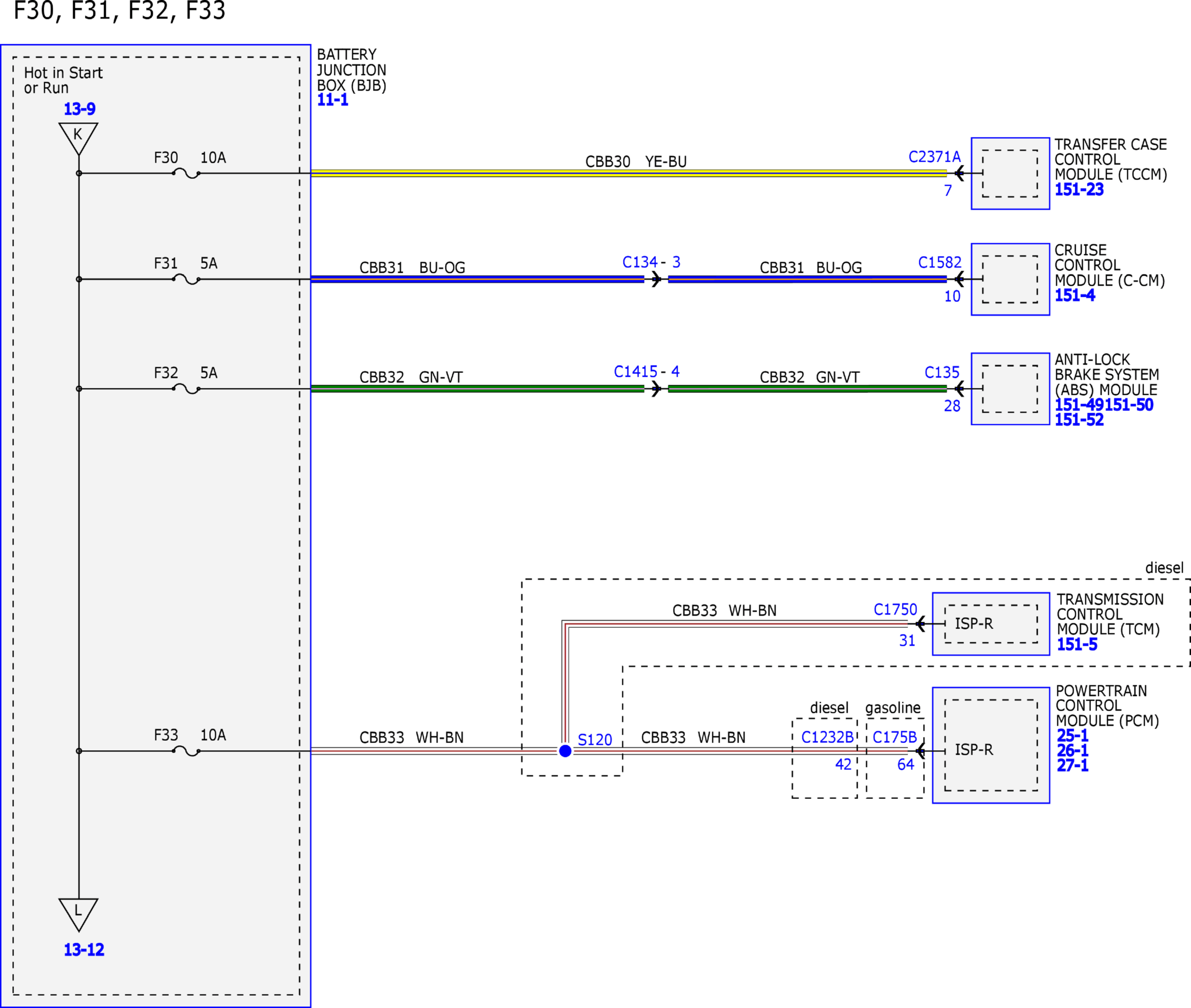

Fig 3: Power Distribution/BCM Wiring Diagram (3 of 50)

GFDW83426

Courtesy of FORD MOTOR COMPANY

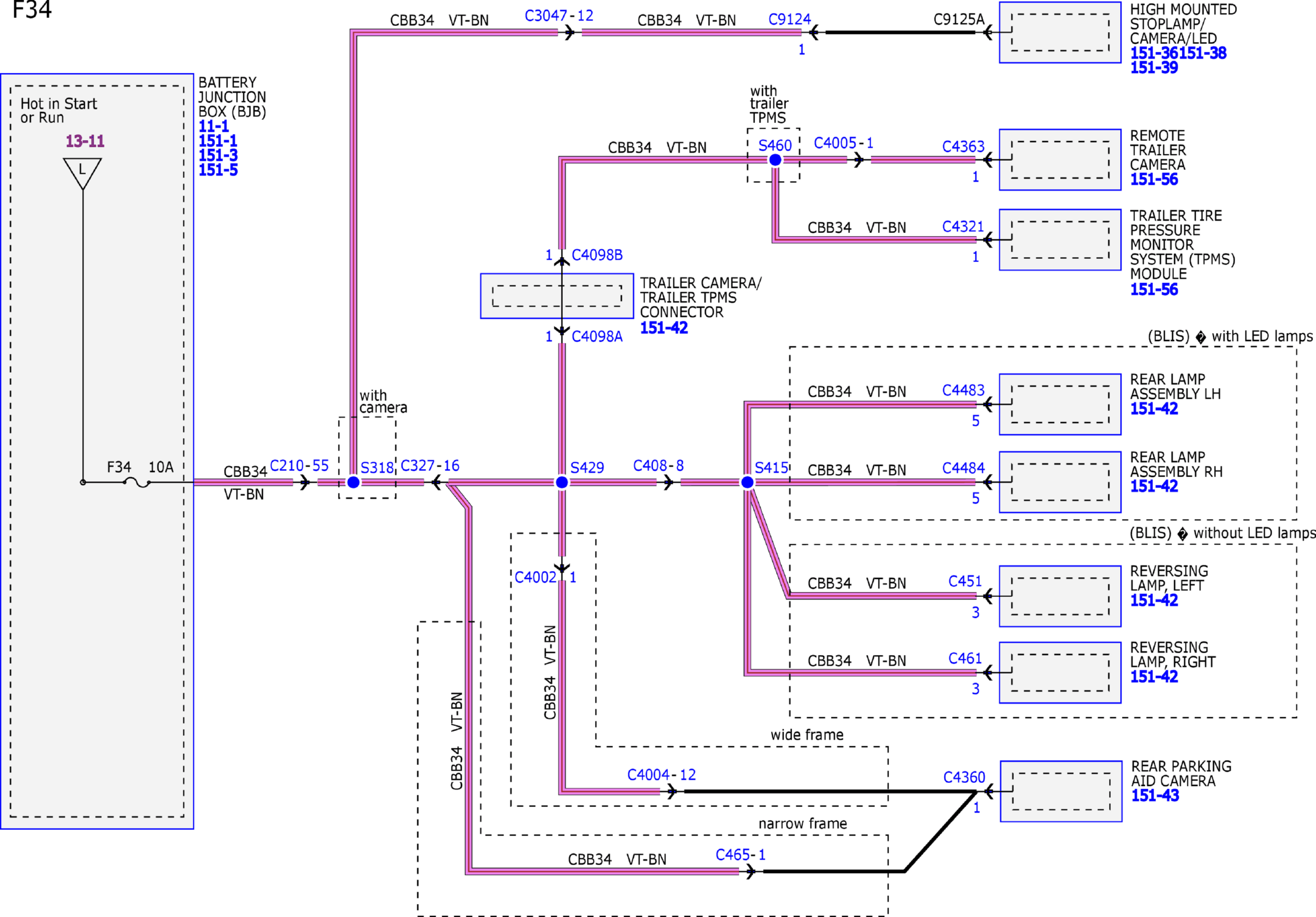

Fig 4: Power Distribution/BCM Wiring Diagram (4 of 50)

GFDW83427

Courtesy of FORD MOTOR COMPANY

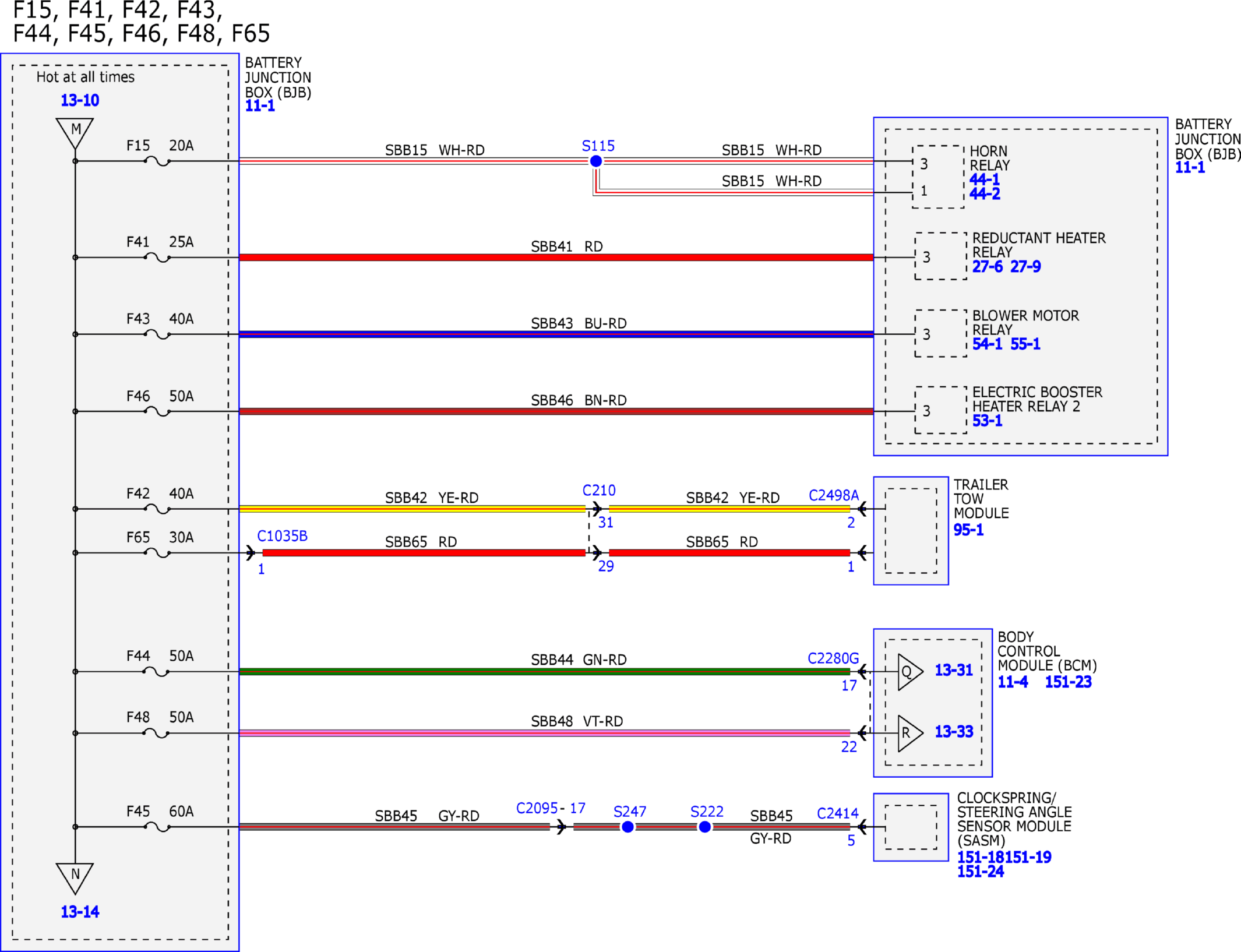

Fig 5: Power Distribution/BCM Wiring Diagram (5 of 50)

GFDW83428

Courtesy of FORD MOTOR COMPANY

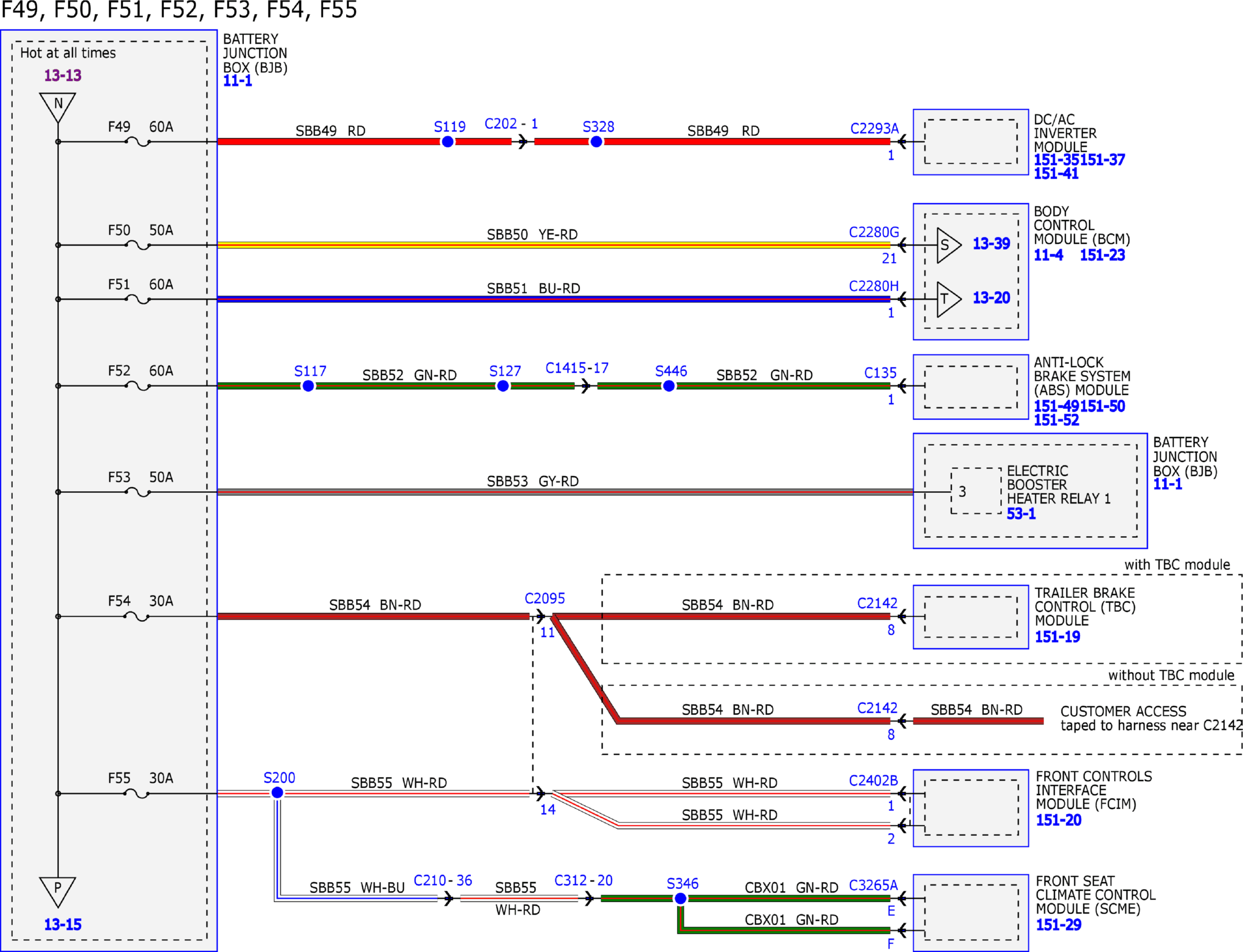

Fig 6: Power Distribution/BCM Wiring Diagram (6 of 50)

GFDW83429

Courtesy of FORD MOTOR COMPANY

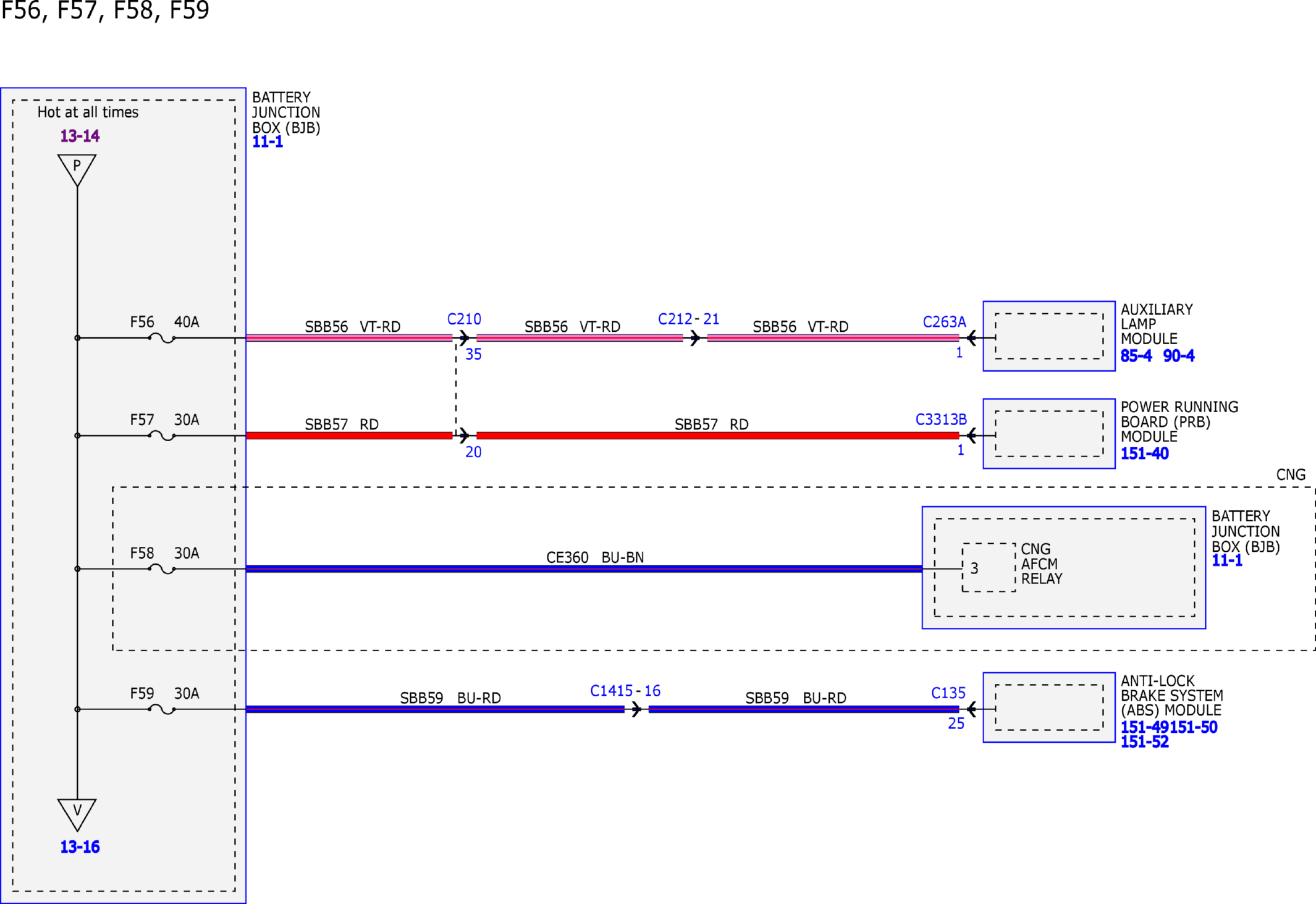

Fig 7: Power Distribution/BCM Wiring Diagram (7 of 50)

GFDW83430

Courtesy of FORD MOTOR COMPANY

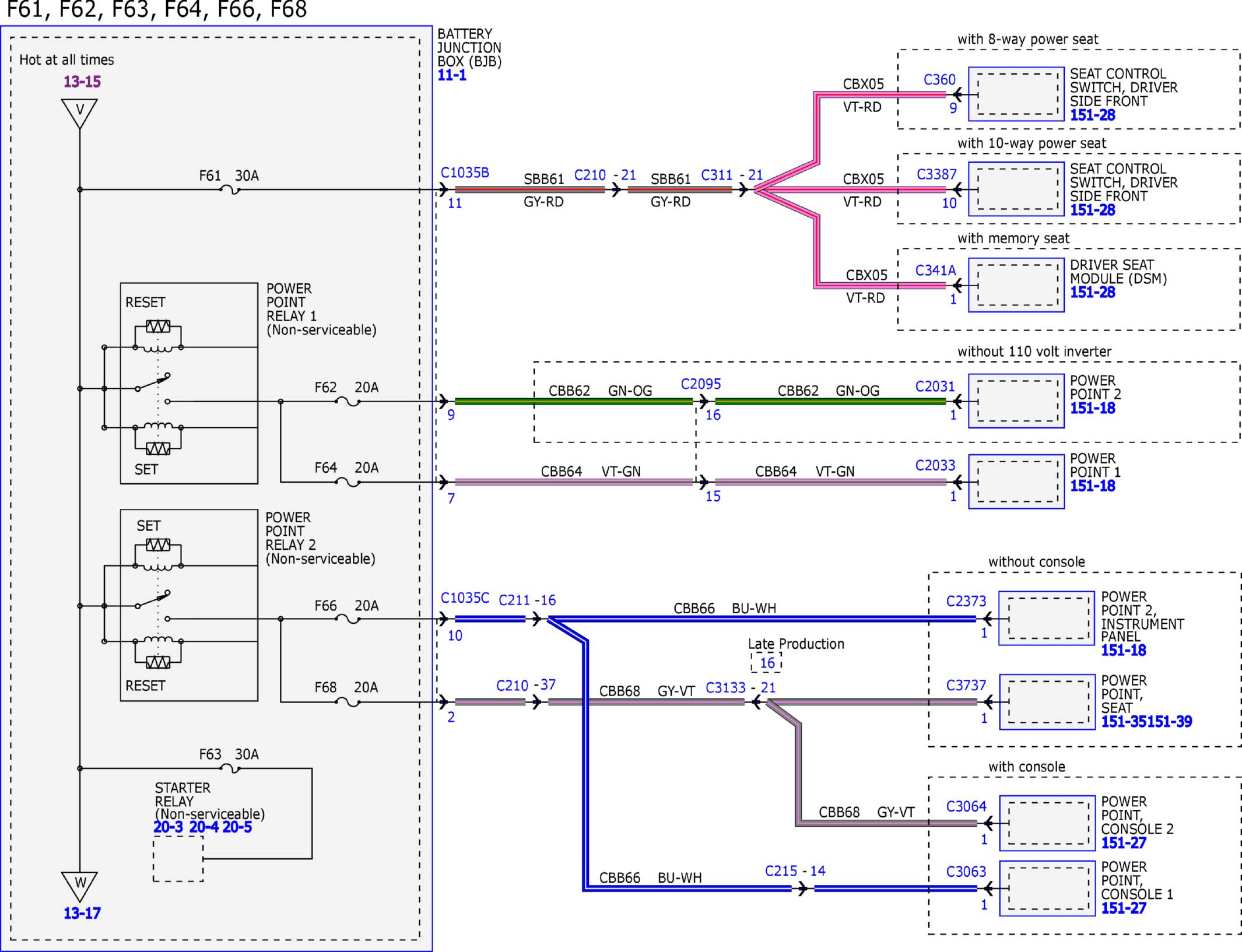

Fig 8: Power Distribution/BCM Wiring Diagram (8 of 50)

GFDW83431

Courtesy of FORD MOTOR COMPANY

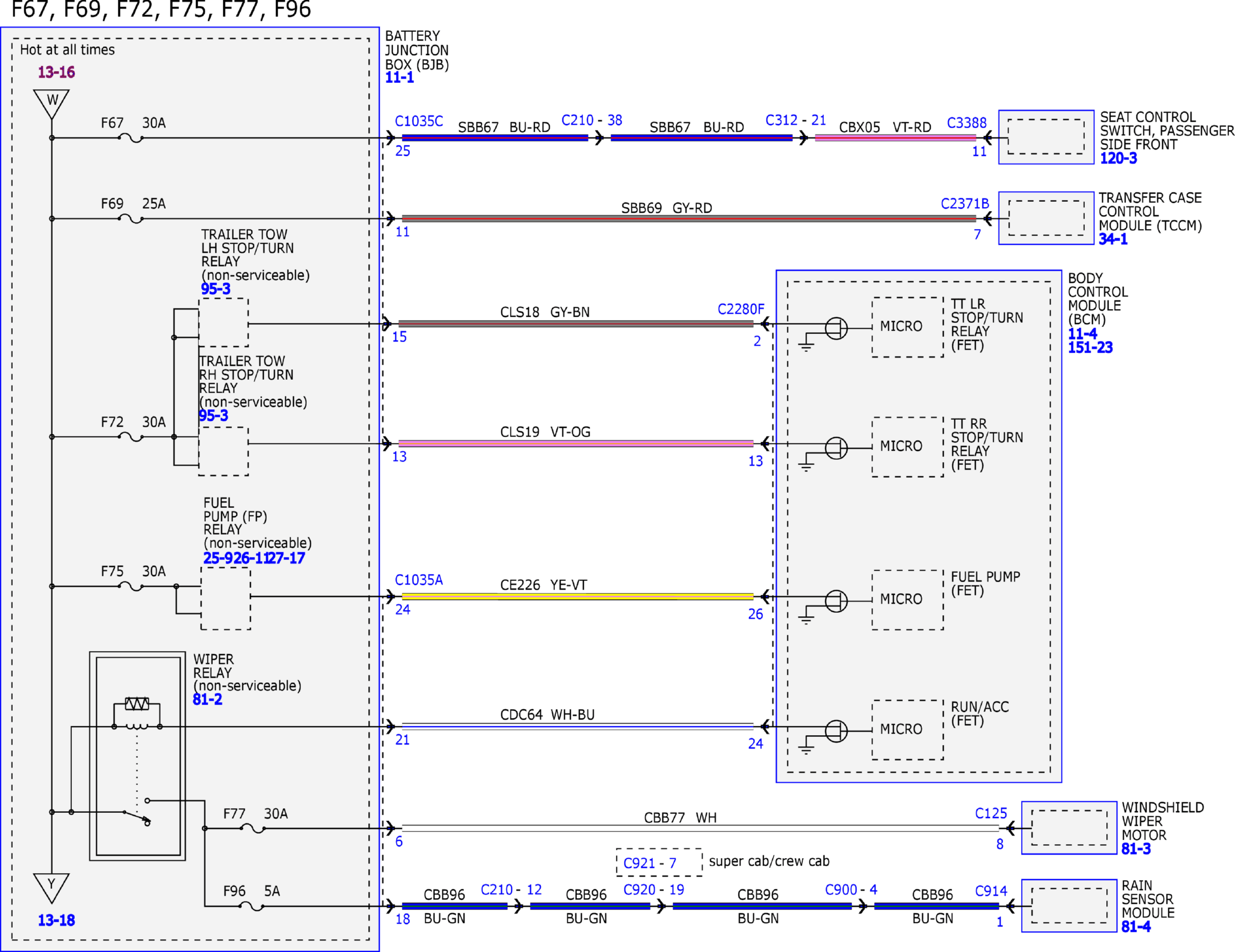

Fig 9: Power Distribution/BCM Wiring Diagram (9 of 50)

GFDW83432

Courtesy of FORD MOTOR COMPANY

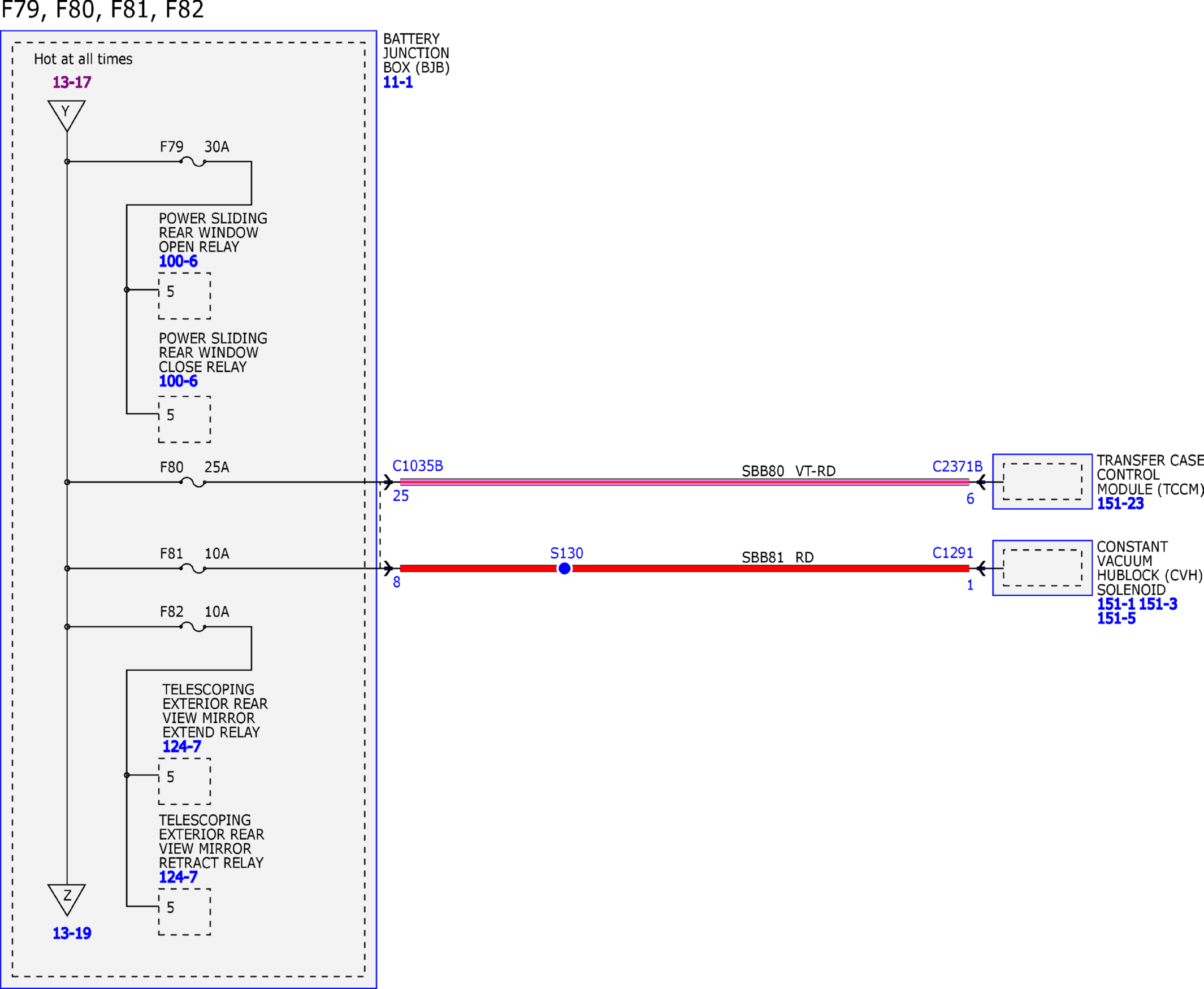

Fig 10: Power Distribution/BCM Wiring Diagram (10 of 50)

GFDW83433

Courtesy of FORD MOTOR COMPANY

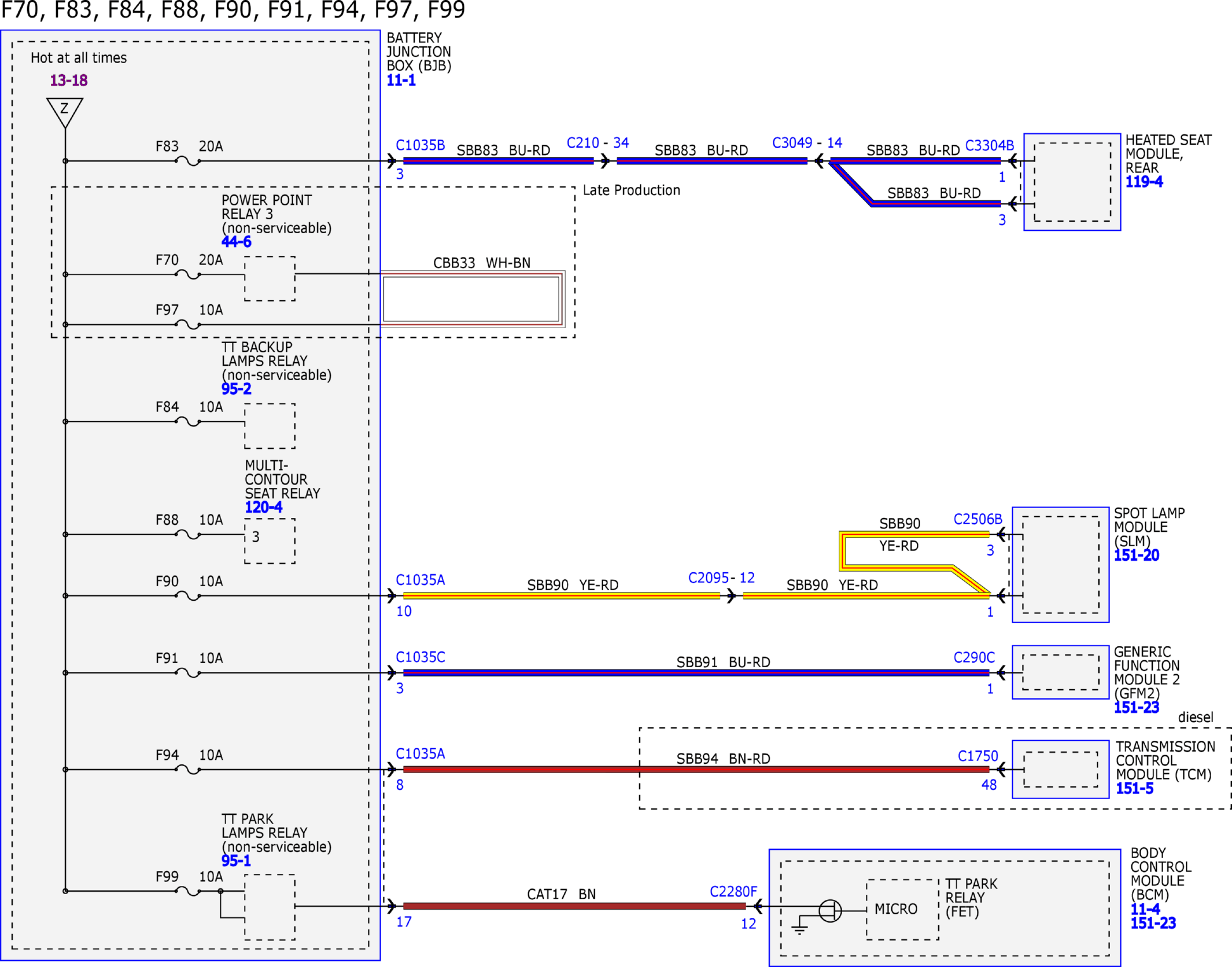

Fig 11: Power Distribution/BCM Wiring Diagram (11 of 50)

GFDW83434

Courtesy of FORD MOTOR COMPANY

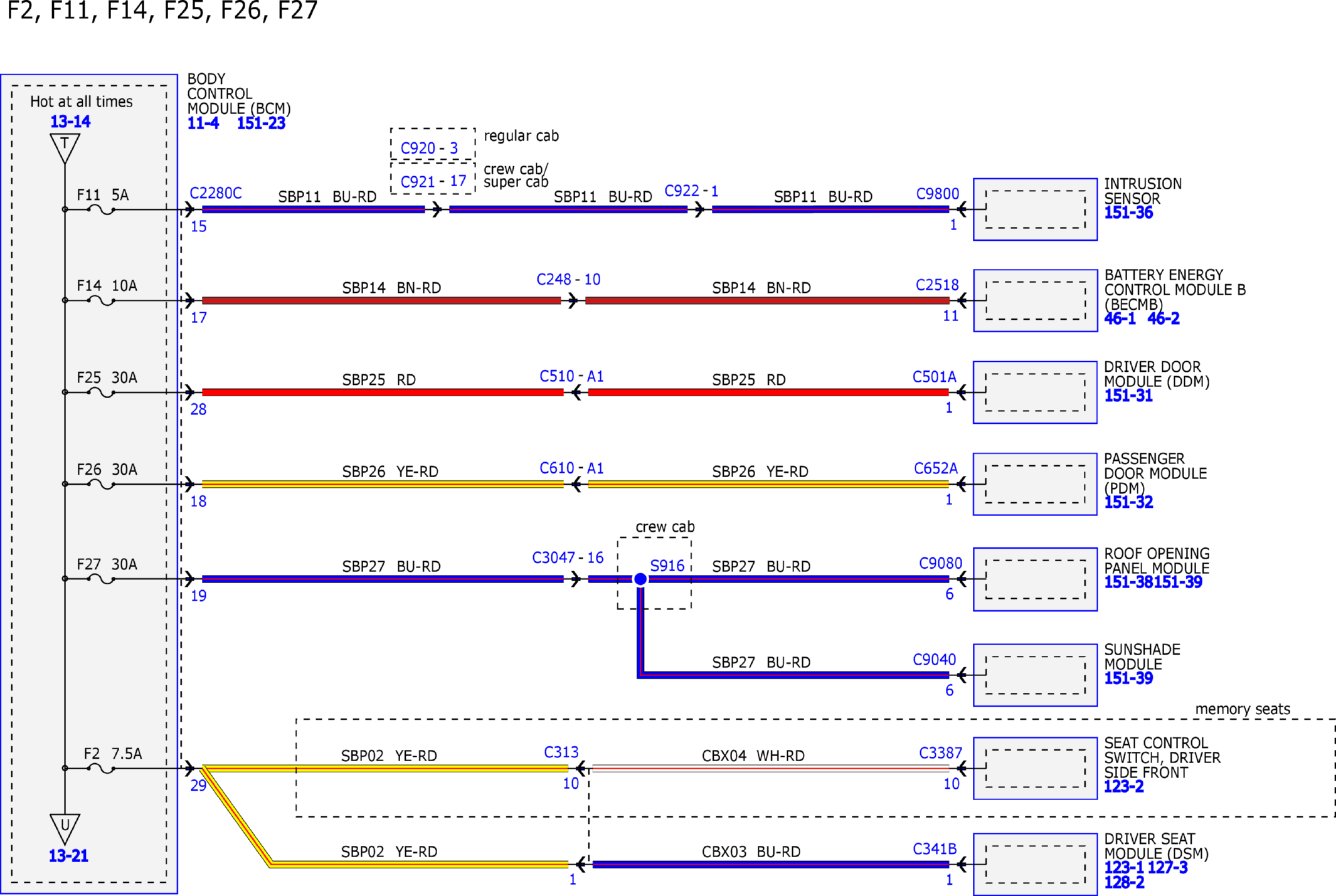

Fig 12: Power Distribution/BCM Wiring Diagram (12 of 50)

GFDW83435

Courtesy of FORD MOTOR COMPANY

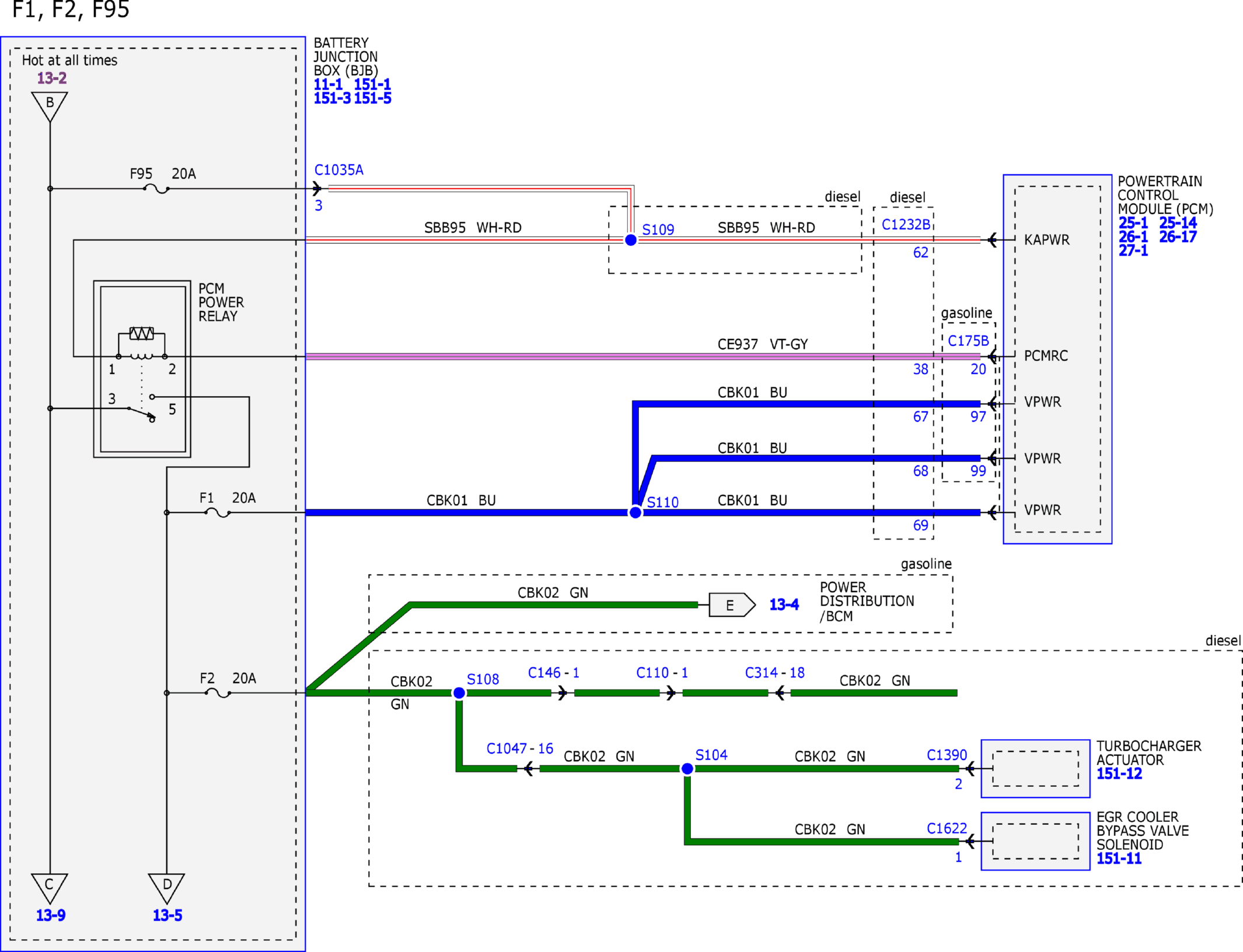

Fig 13: Power Distribution/BCM Wiring Diagram (13 of 50)

GFDW83436

Courtesy of FORD MOTOR COMPANY

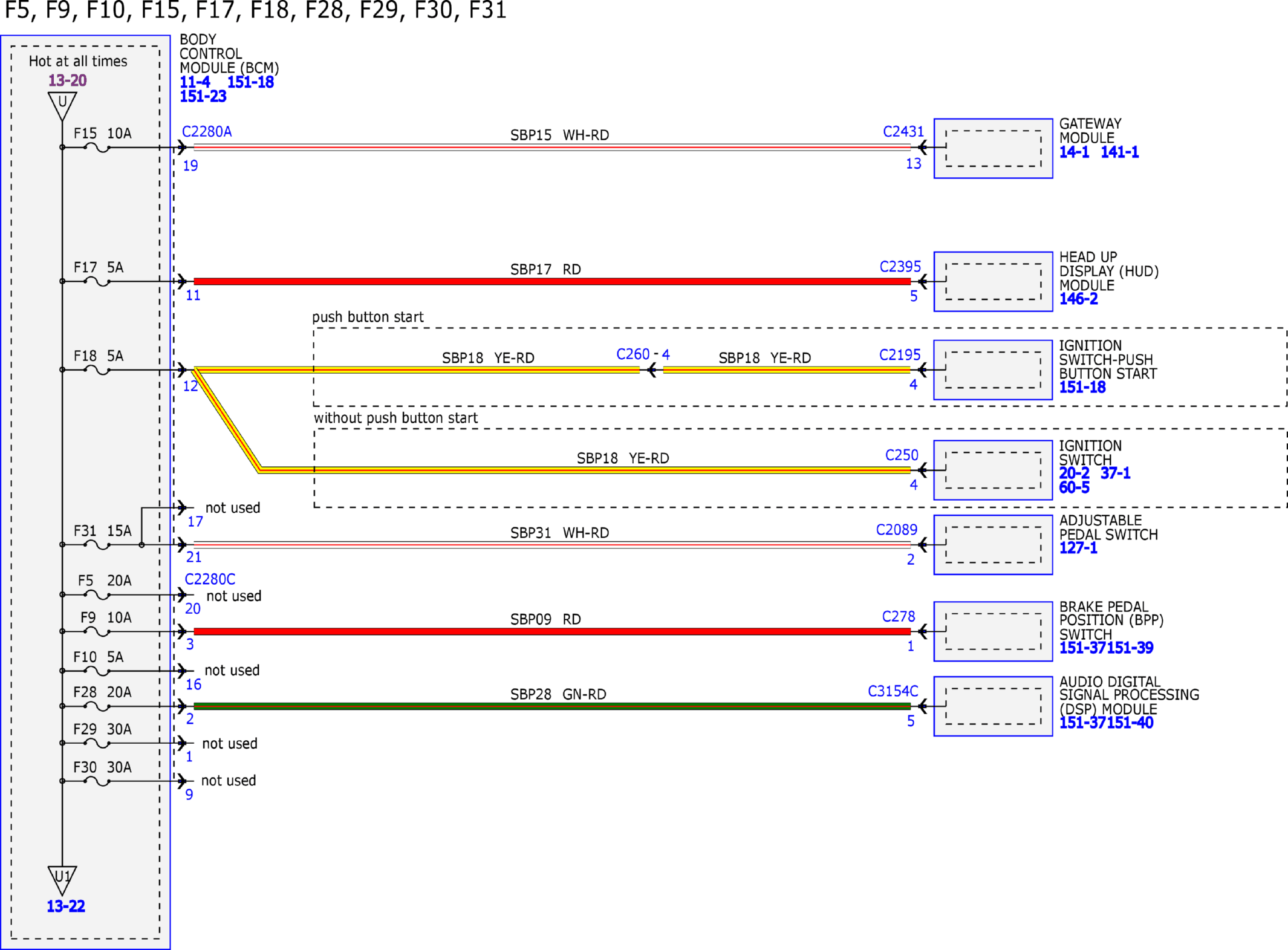

Fig 14: Power Distribution/BCM Wiring Diagram (14 of 50)

GFDW83437

Courtesy of FORD MOTOR COMPANY

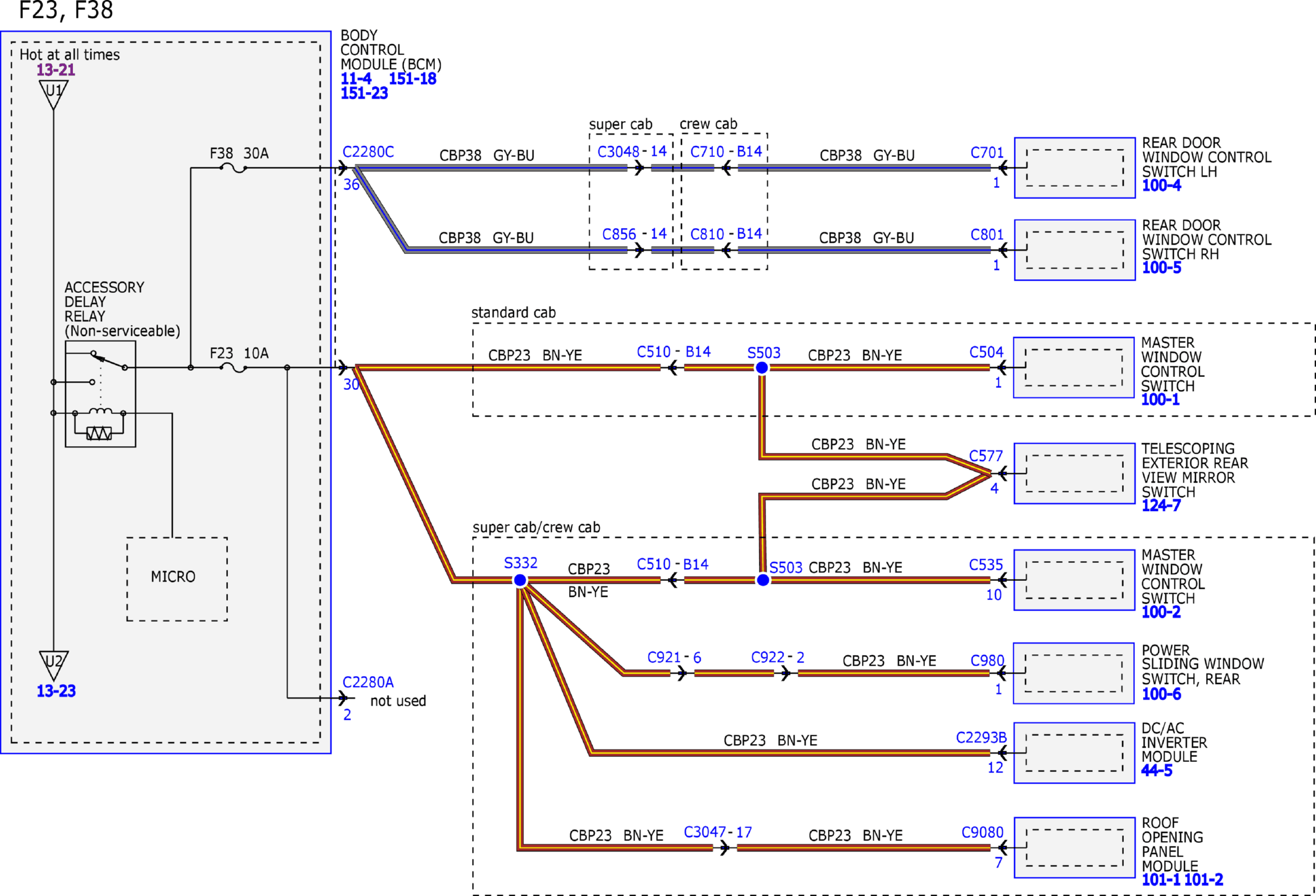

Fig 15: Power Distribution/BCM Wiring Diagram (15 of 50)

GFDW83438

Courtesy of FORD MOTOR COMPANY

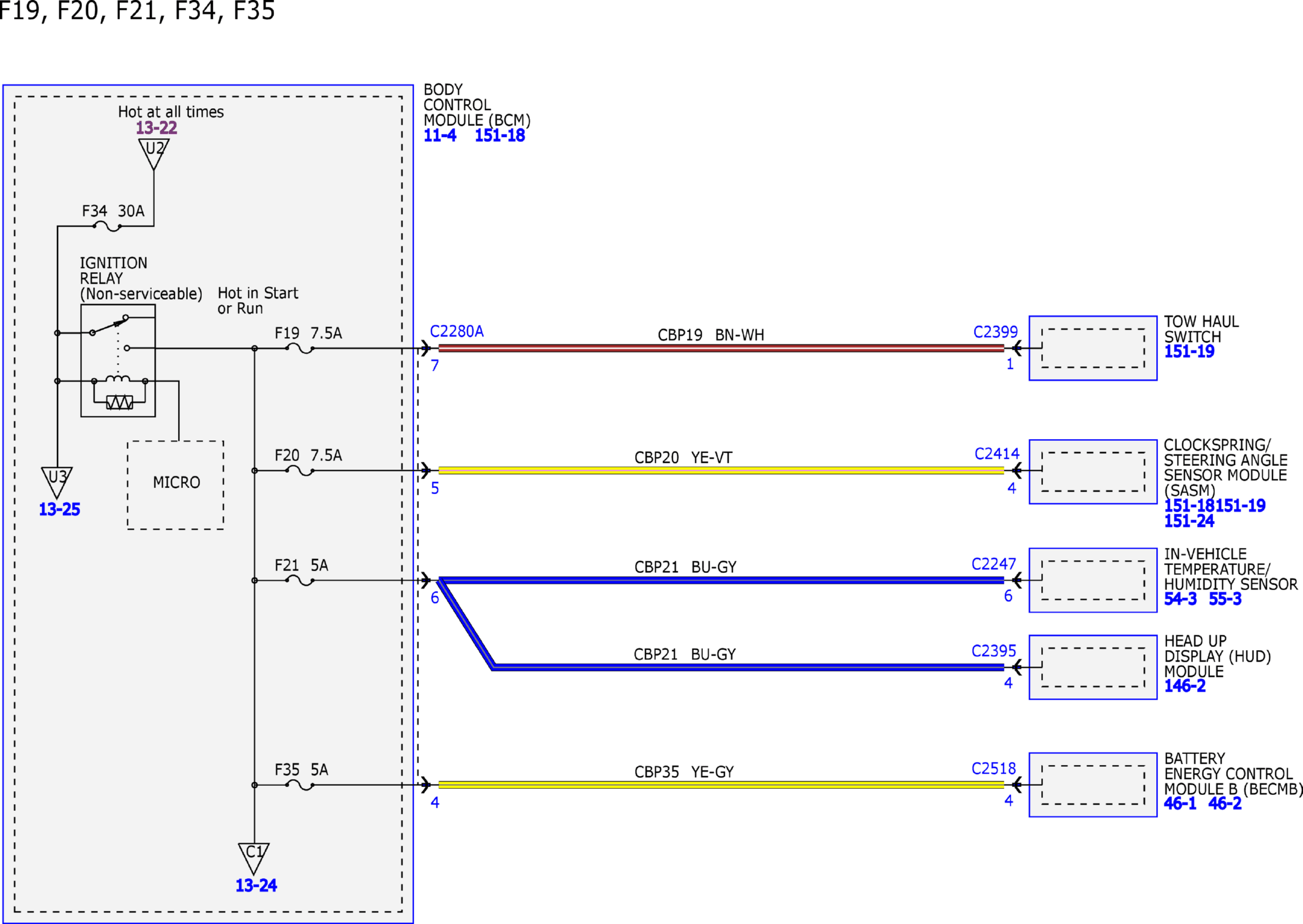

Fig 16: Power Distribution/BCM Wiring Diagram (16 of 50)

GFDW83439

Courtesy of FORD MOTOR COMPANY

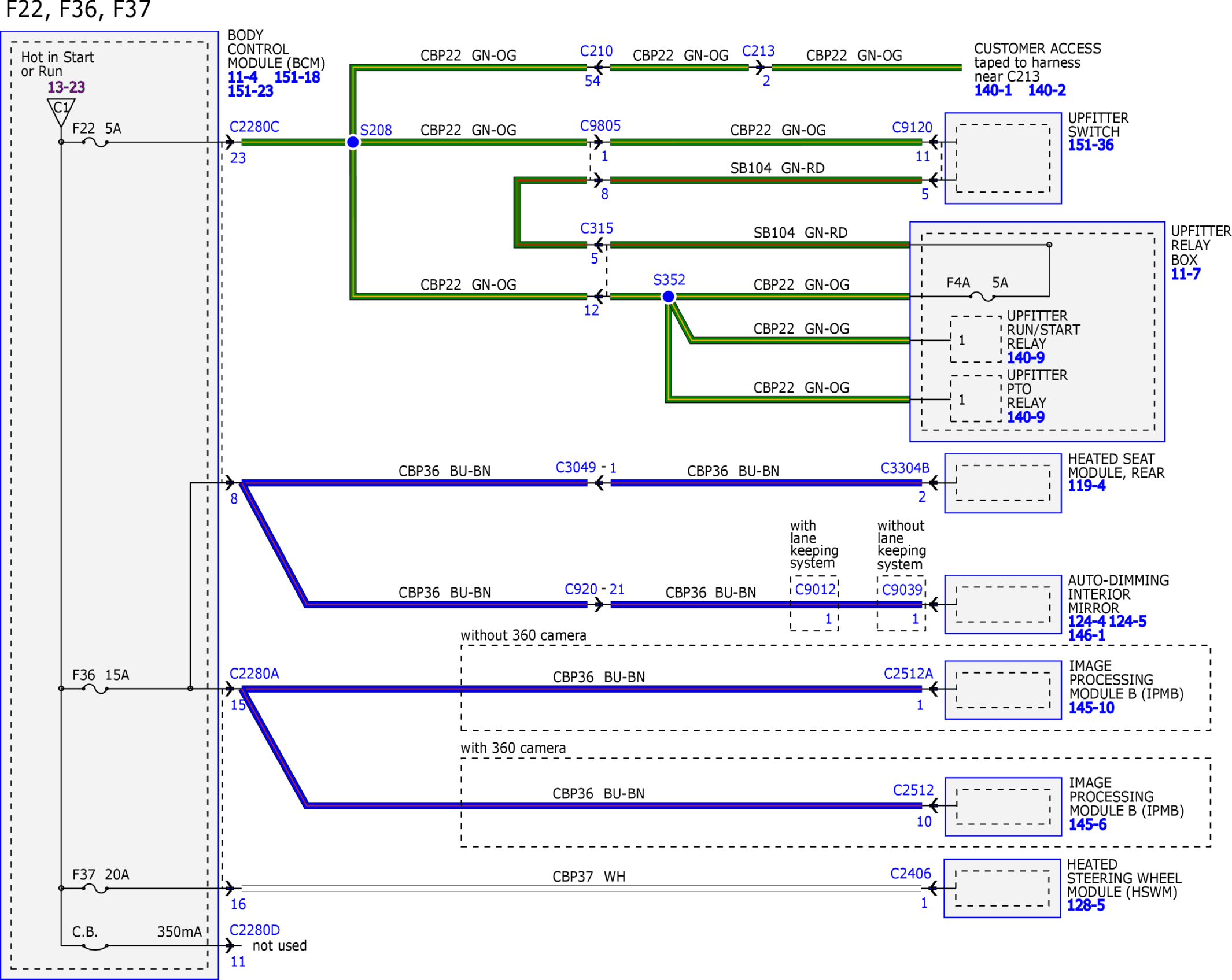

Fig 17: Power Distribution/BCM Wiring Diagram (17 of 50)

GFDW83440

Courtesy of FORD MOTOR COMPANY

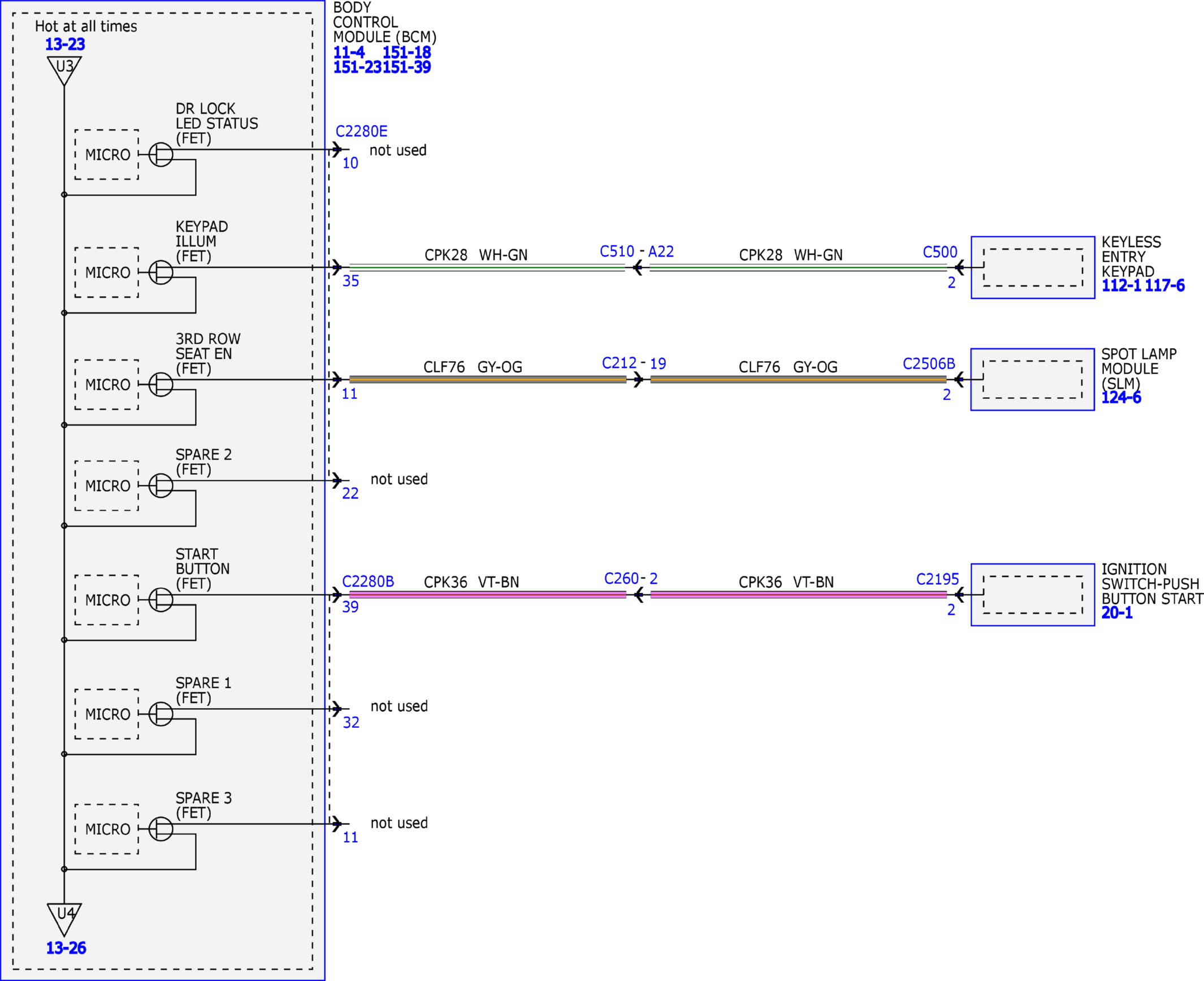

Fig 18: Power Distribution/BCM Wiring Diagram (18 of 50)

GFDW83441

Courtesy of FORD MOTOR COMPANY

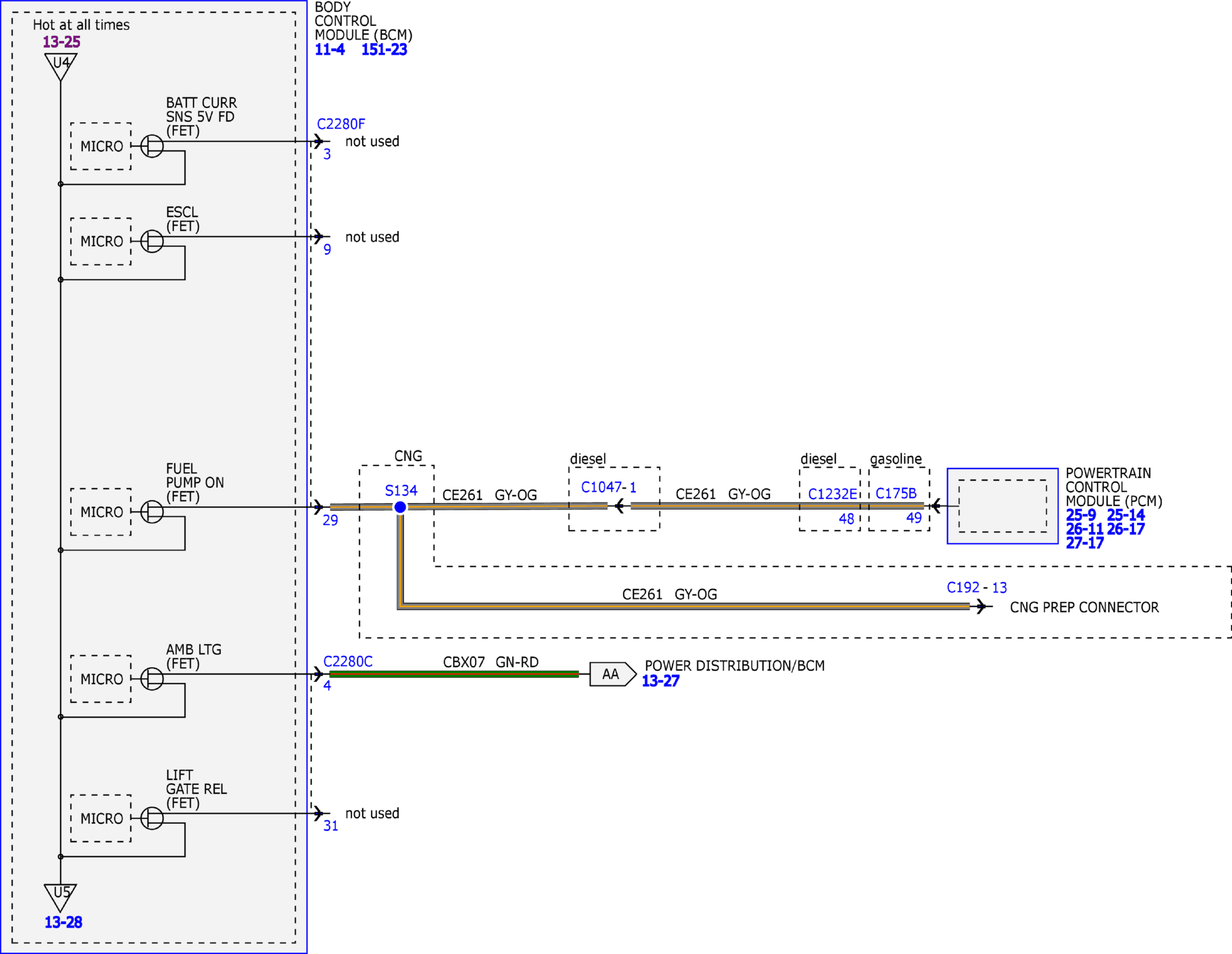

Fig 19: Power Distribution/BCM Wiring Diagram (19 of 50)

GFDW83442

Courtesy of FORD MOTOR COMPANY

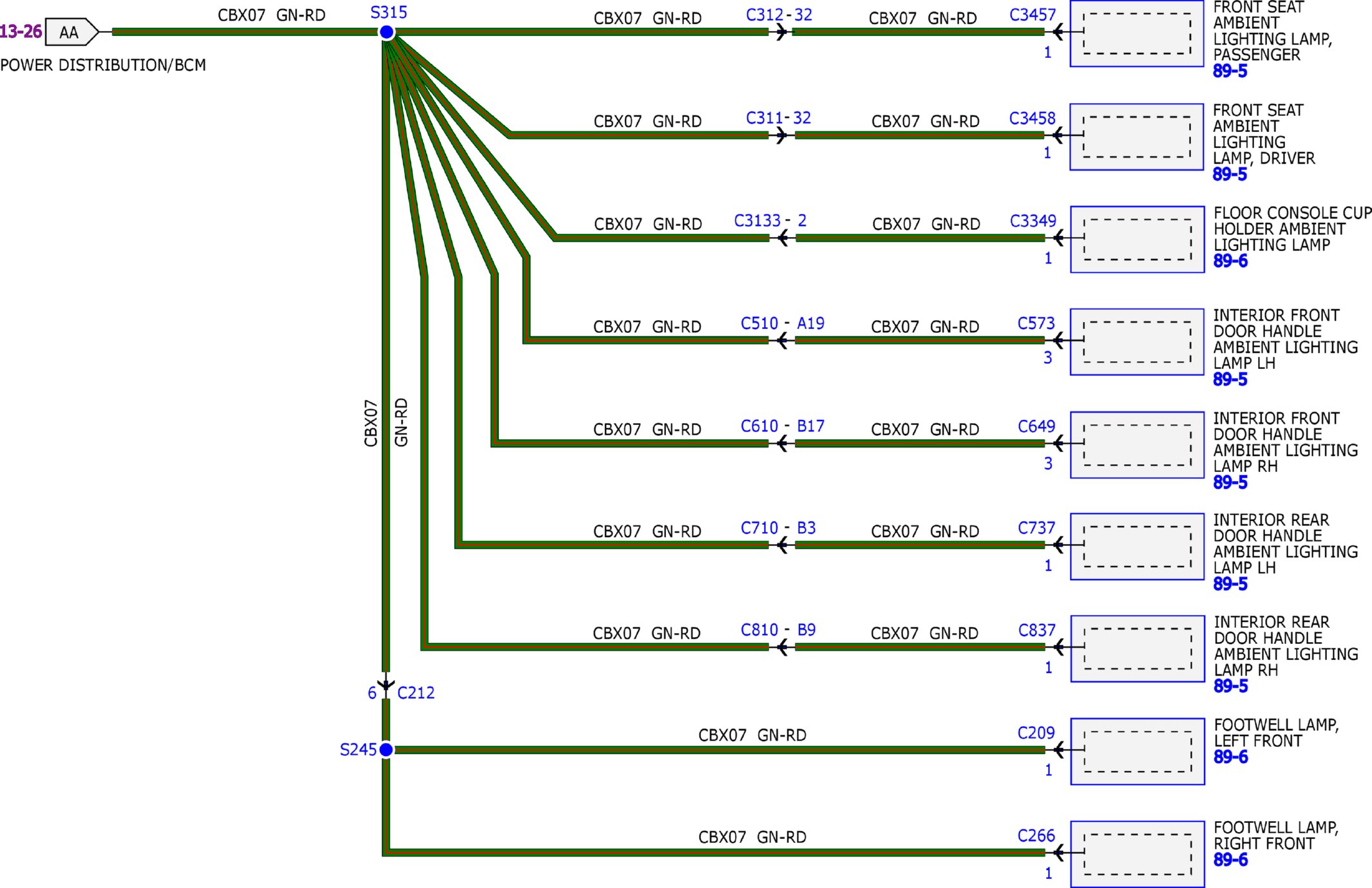

Fig 20: Power Distribution/BCM Wiring Diagram (20 of 50)

GFDW83443

Courtesy of FORD MOTOR COMPANY

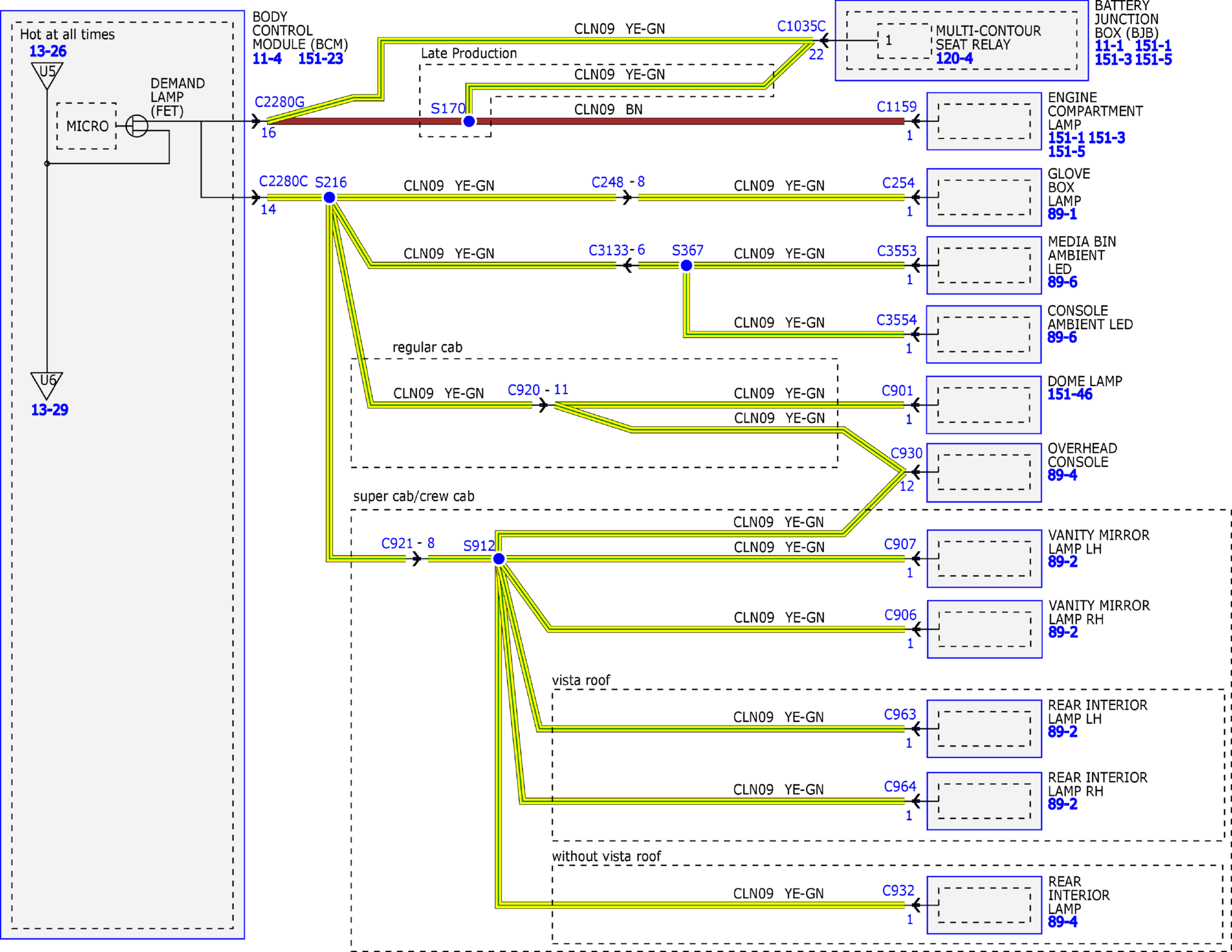

Fig 21: Power Distribution/BCM Wiring Diagram (21 of 50)

GFDW83444

Courtesy of FORD MOTOR COMPANY

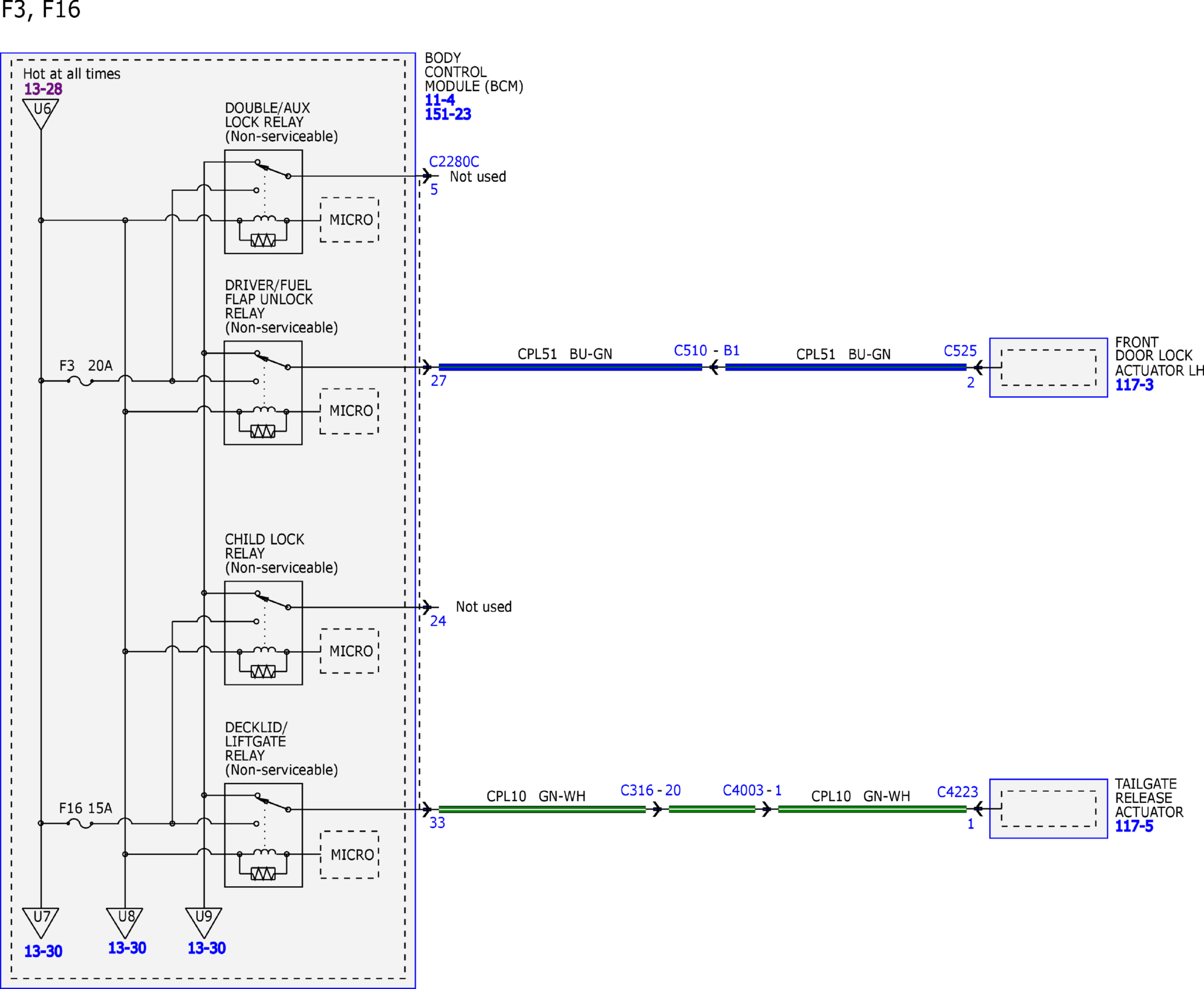

Fig 22: Power Distribution/BCM Wiring Diagram (22 of 50)

GFDW83445

Courtesy of FORD MOTOR COMPANY

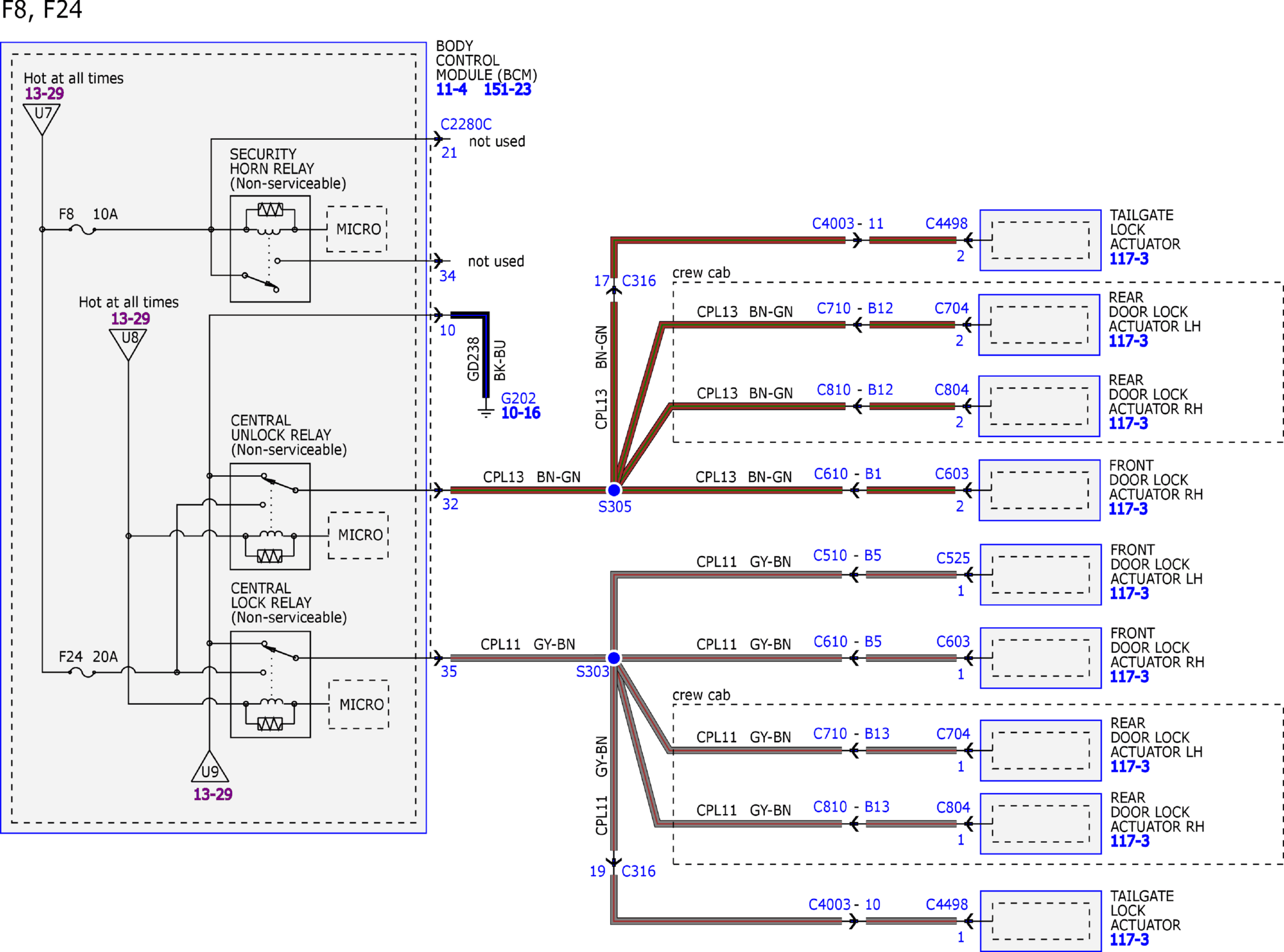

Fig 23: Power Distribution/BCM Wiring Diagram (23 of 50)

GFDW83446

Courtesy of FORD MOTOR COMPANY

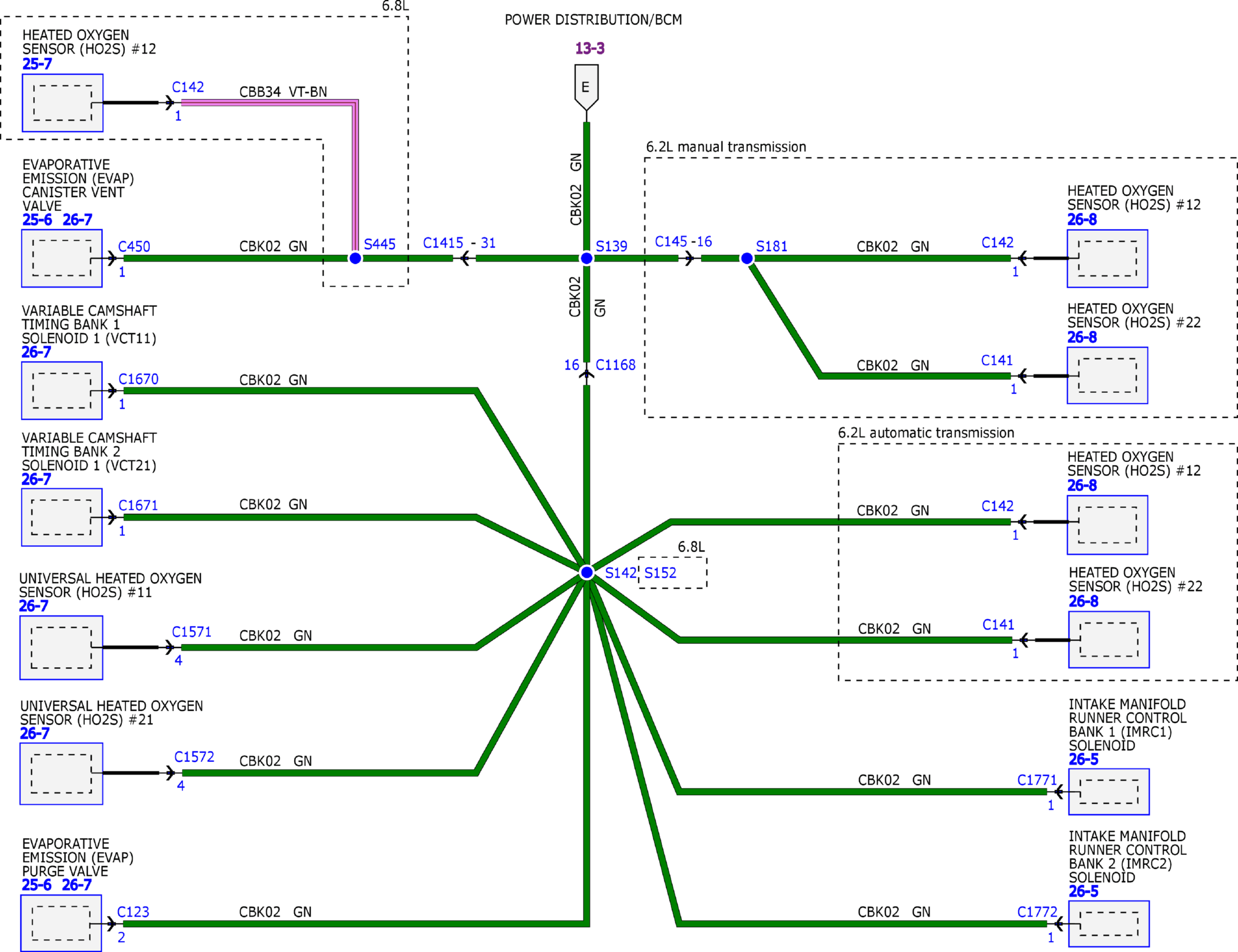

Fig 24: Power Distribution/BCM Wiring Diagram (24 of 50)

GFDW83447

Courtesy of FORD MOTOR COMPANY

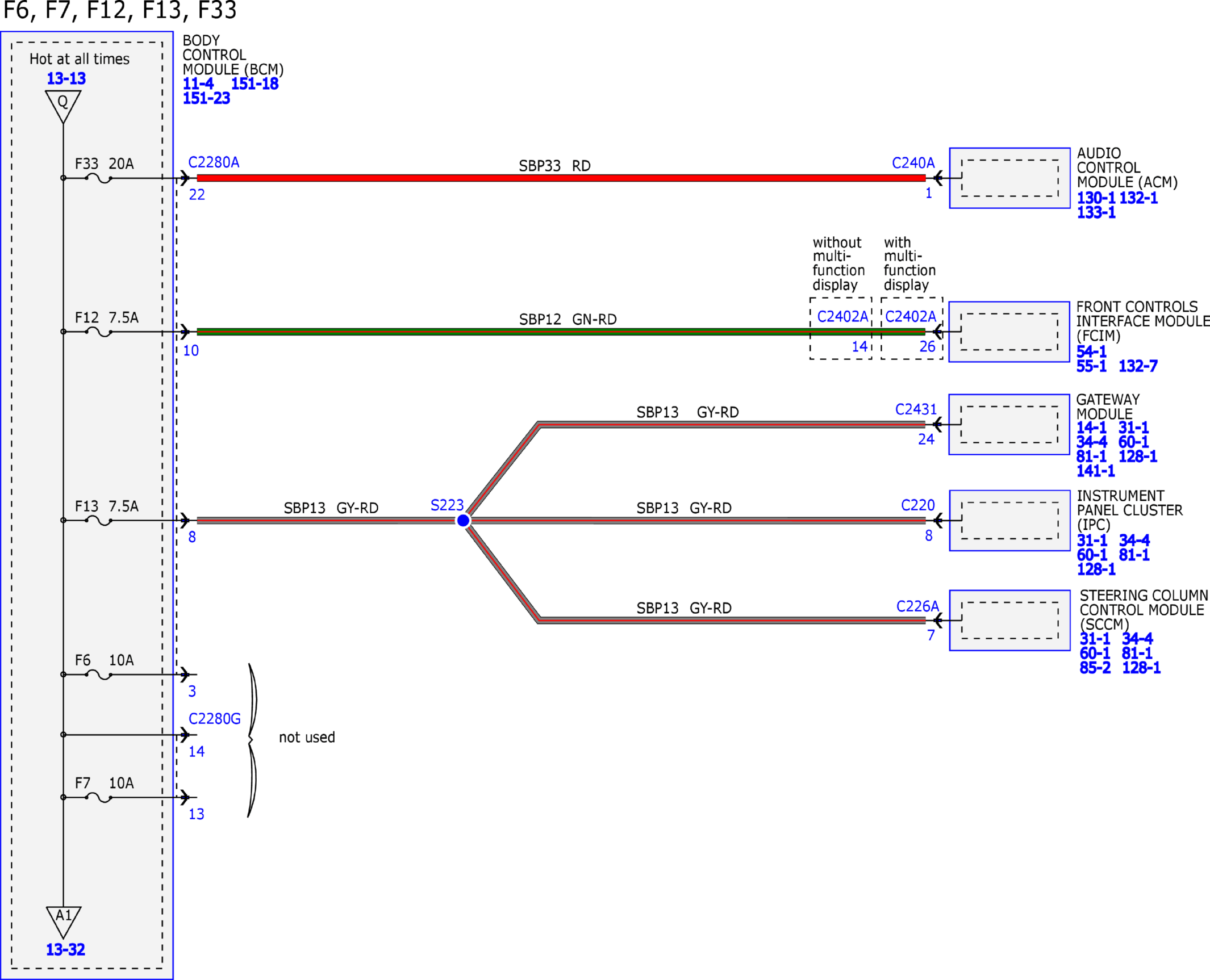

Fig 25: Power Distribution/BCM Wiring Diagram (25 of 50)

GFDW83448

Courtesy of FORD MOTOR COMPANY

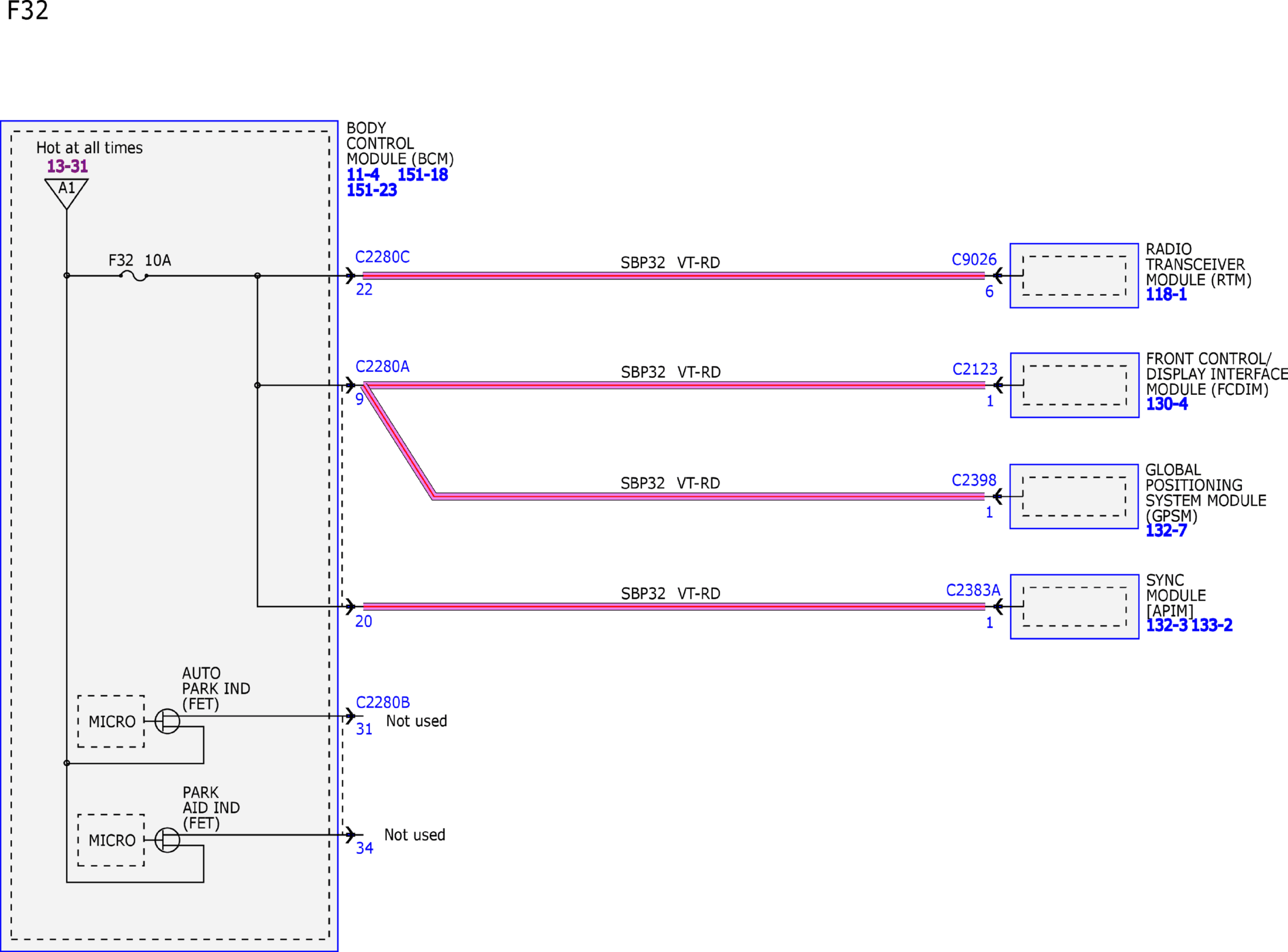

Fig 26: Power Distribution/BCM Wiring Diagram (26 of 50)

GFDW83449

Courtesy of FORD MOTOR COMPANY

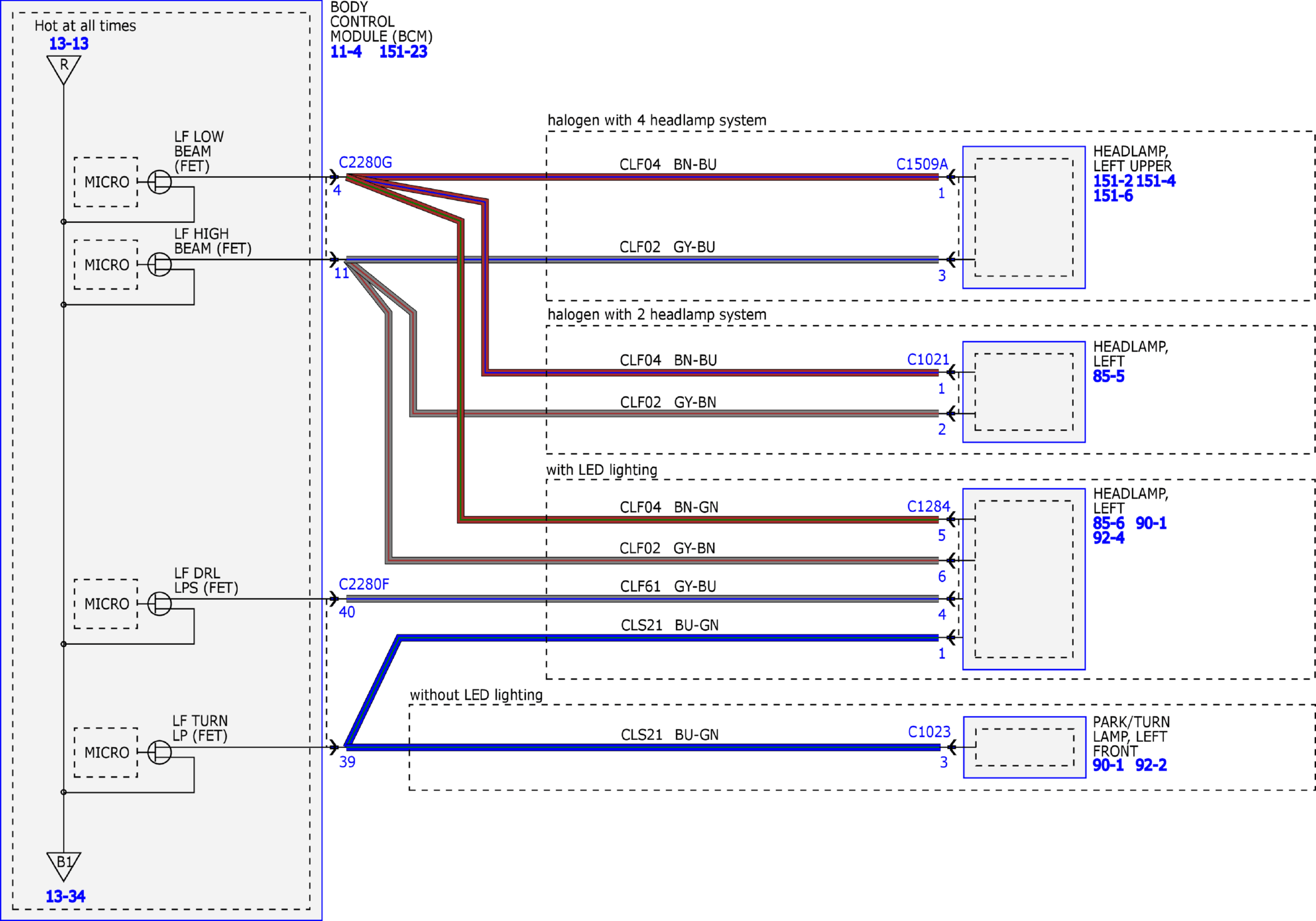

Fig 27: Power Distribution/BCM Wiring Diagram (27 of 50)

GFDW83450

Courtesy of FORD MOTOR COMPANY

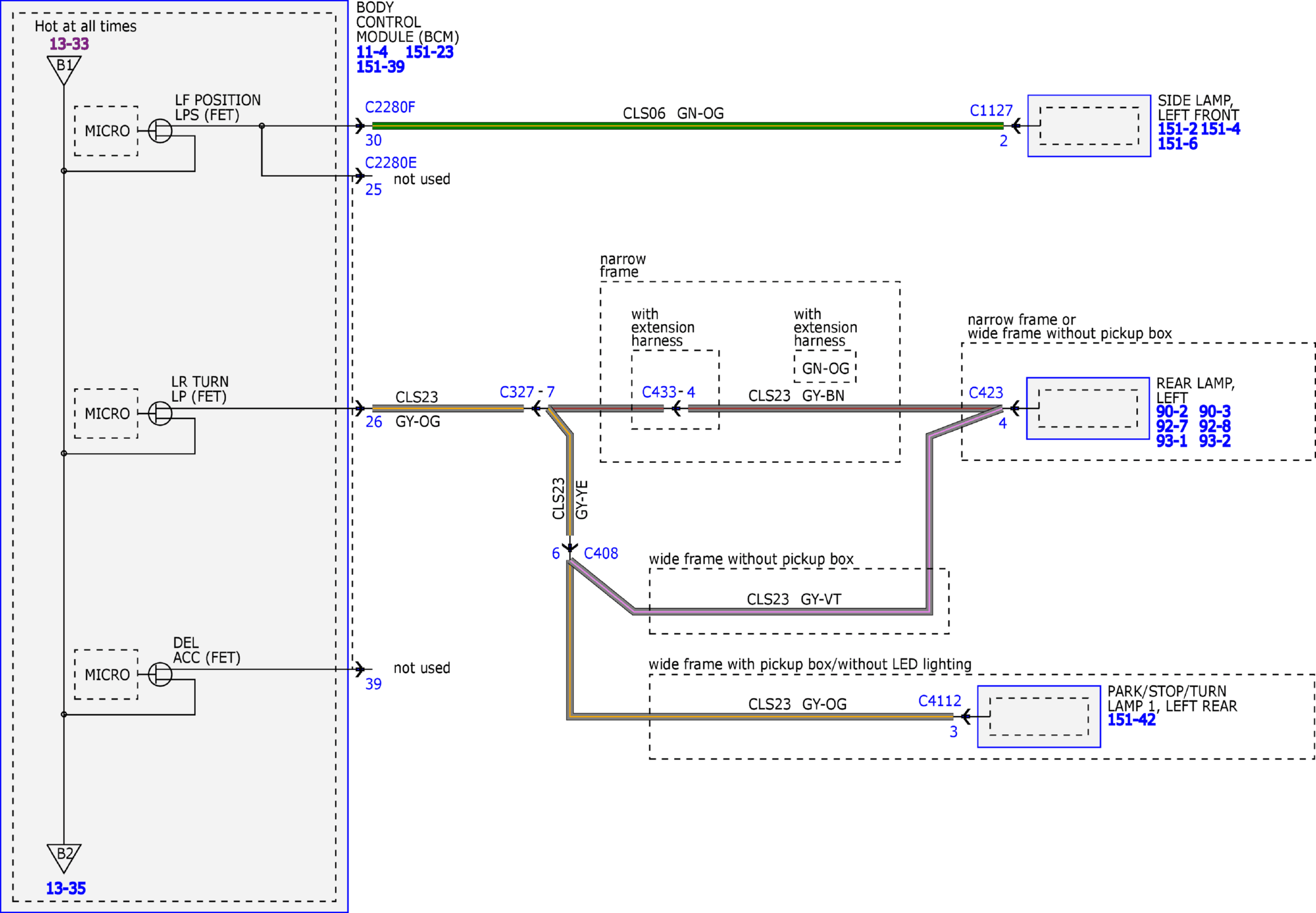

Fig 28: Power Distribution/BCM Wiring Diagram (28 of 50)

GFDW83451

Courtesy of FORD MOTOR COMPANY

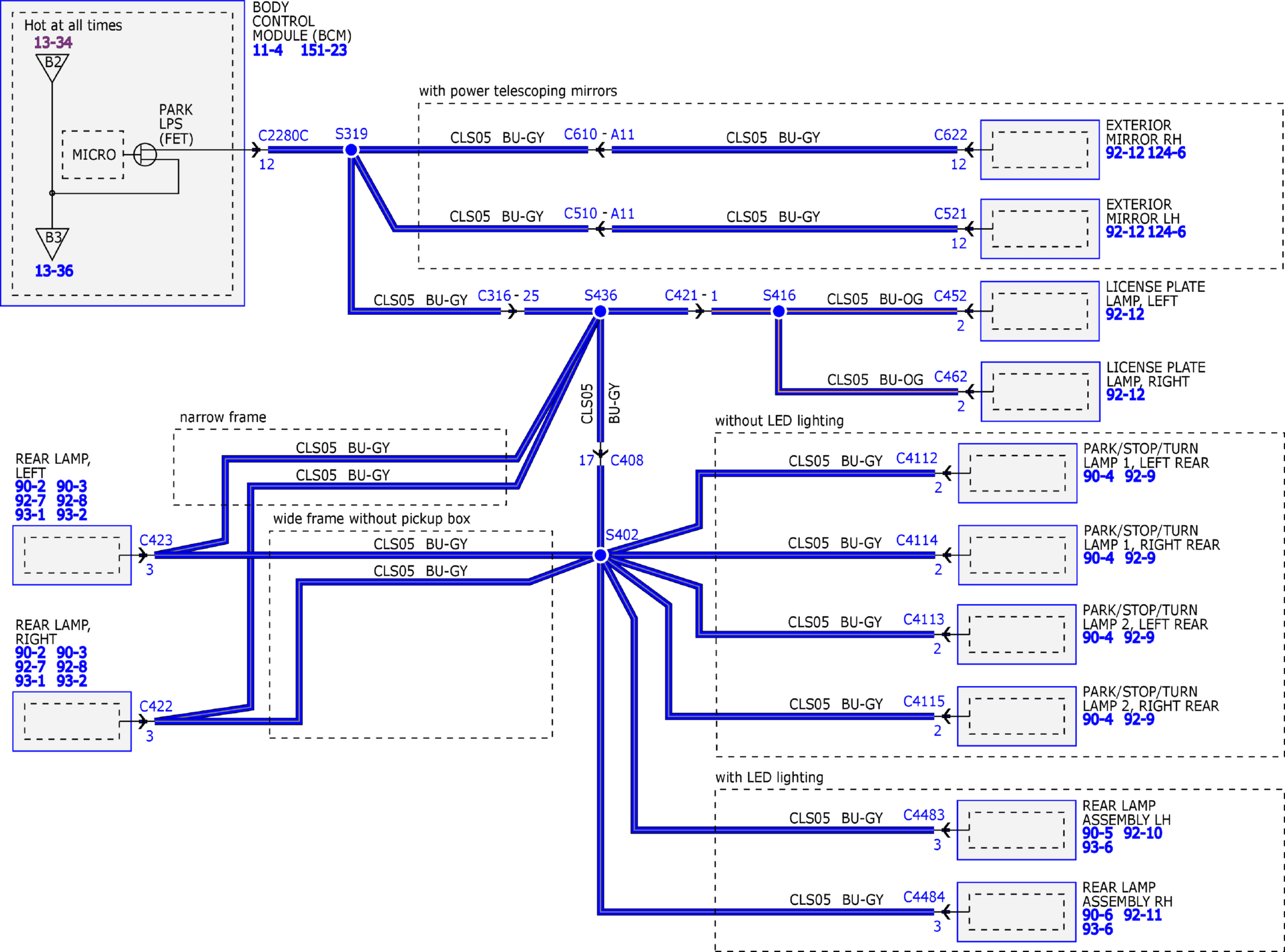

Fig 29: Power Distribution/BCM Wiring Diagram (29 of 50)

GFDW83452

Courtesy of FORD MOTOR COMPANY

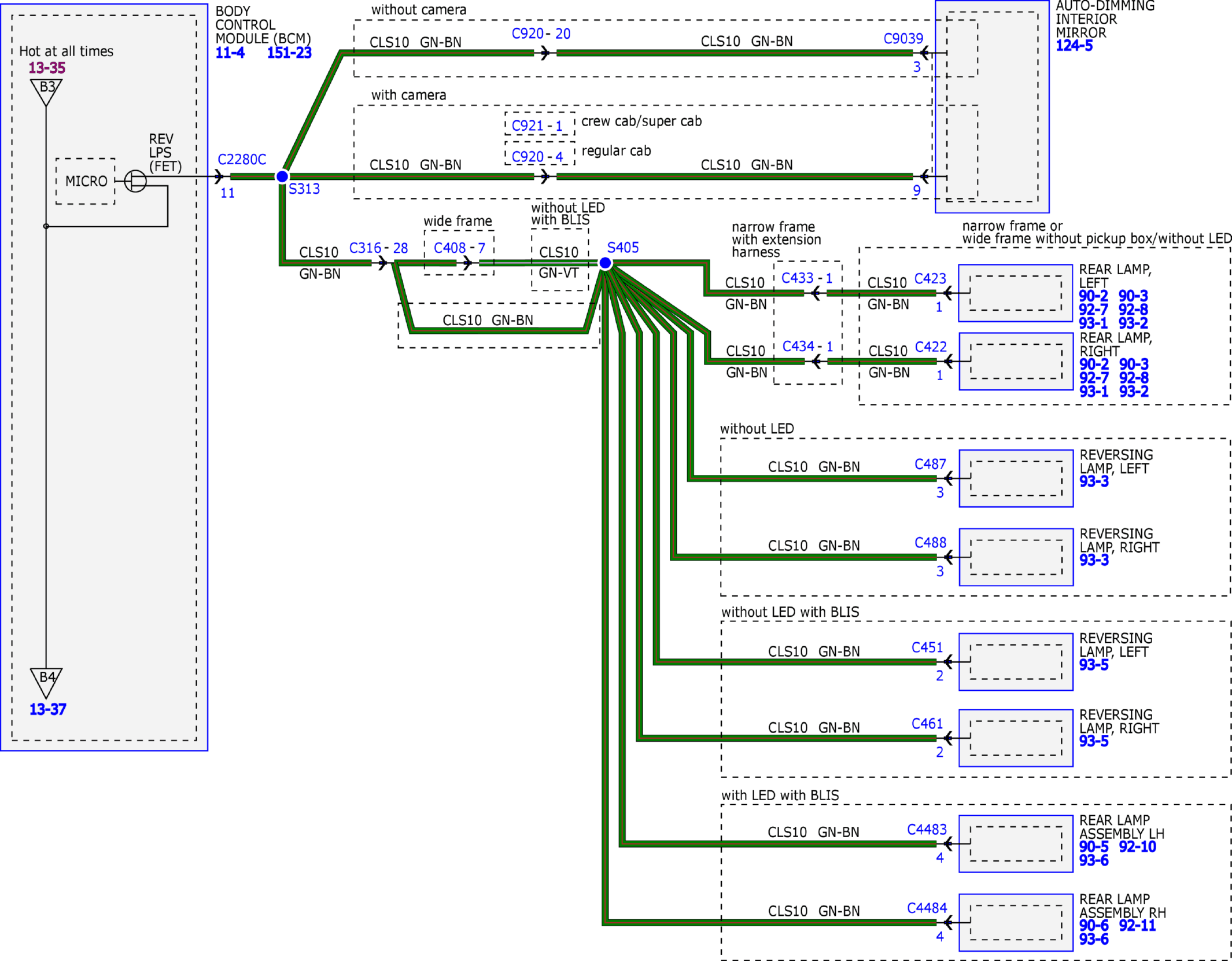

Fig 30: Power Distribution/BCM Wiring Diagram (30 of 50)

GFDW83453

Courtesy of FORD MOTOR COMPANY

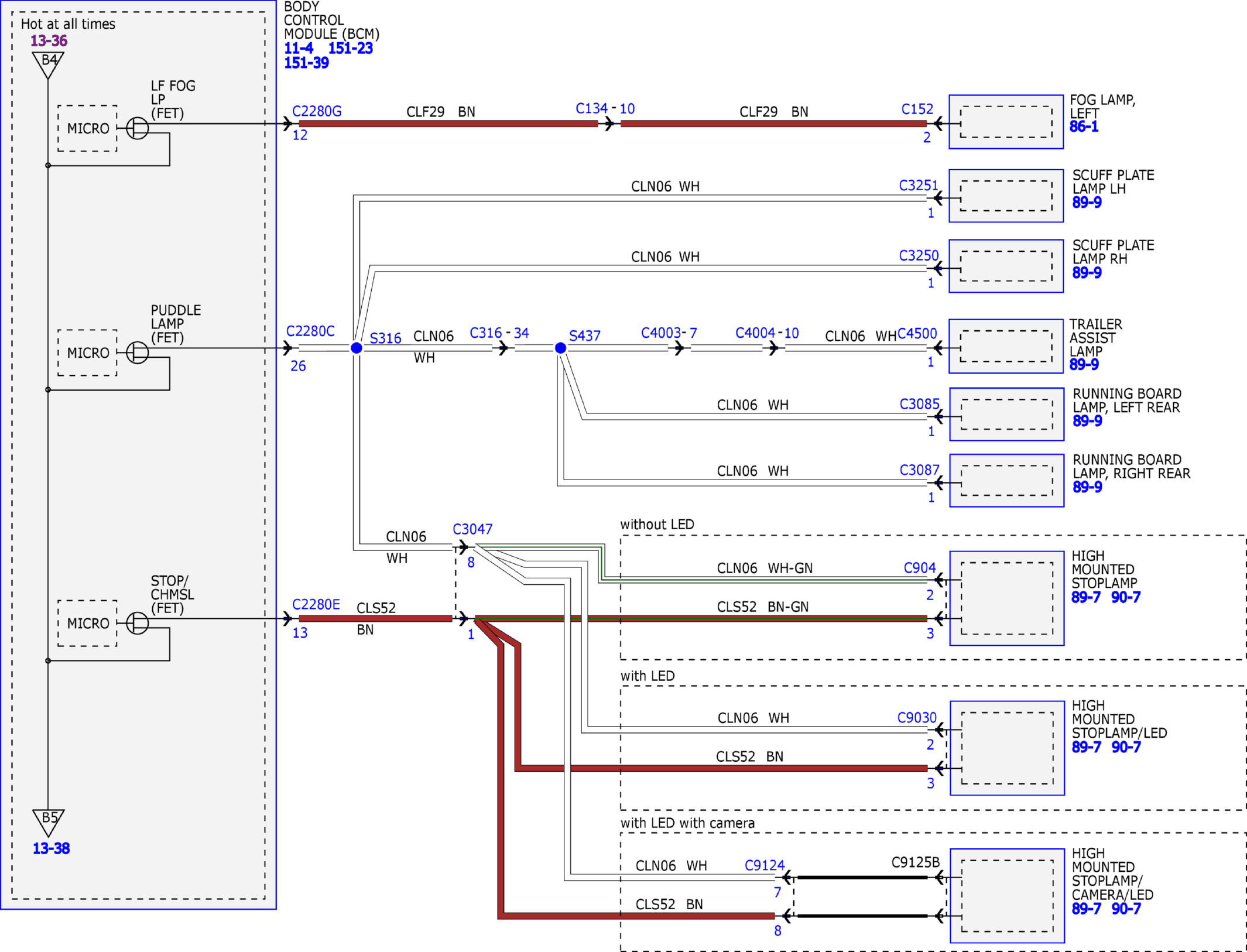

Fig 31: Power Distribution/BCM Wiring Diagram (31 of 50)

GFDW83454

Courtesy of FORD MOTOR COMPANY

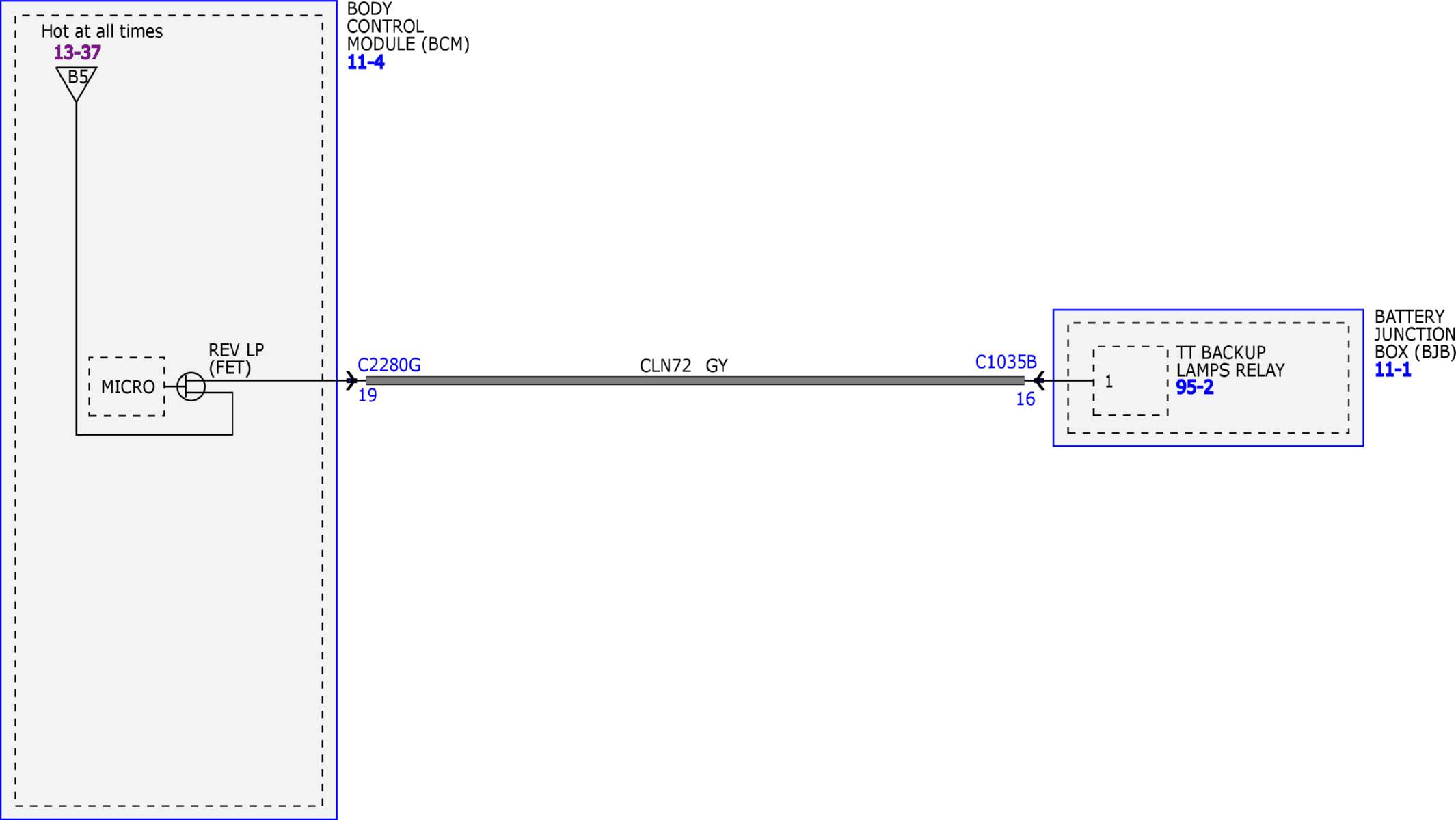

Fig 32: Power Distribution/BCM Wiring Diagram (32 of 50)

GFDW83455

Courtesy of FORD MOTOR COMPANY

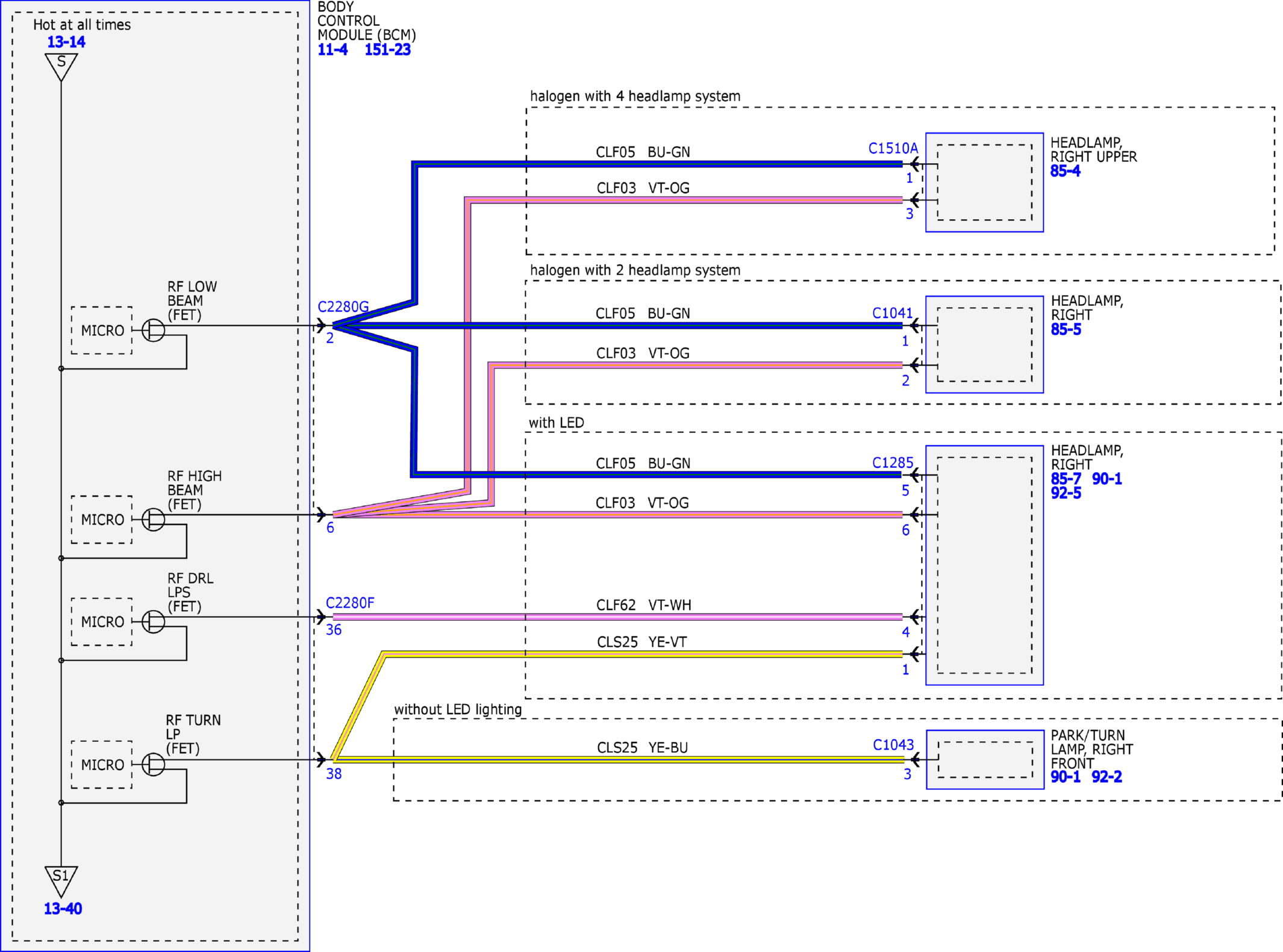

Fig 33: Power Distribution/BCM Wiring Diagram (33 of 50)

GFDW83456

Courtesy of FORD MOTOR COMPANY

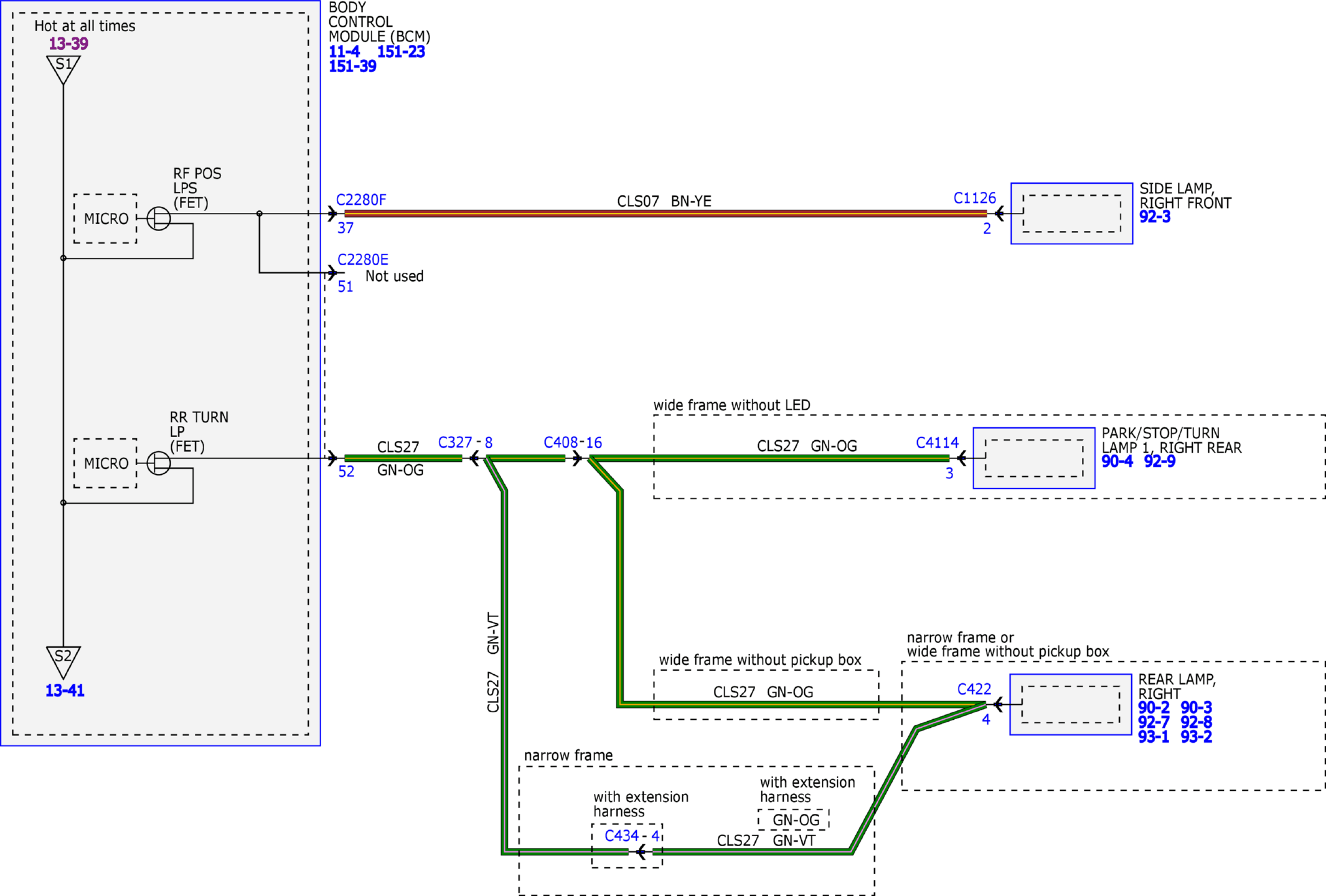

Fig 34: Power Distribution/BCM Wiring Diagram (34 of 50)

GFDW83457

Courtesy of FORD MOTOR COMPANY

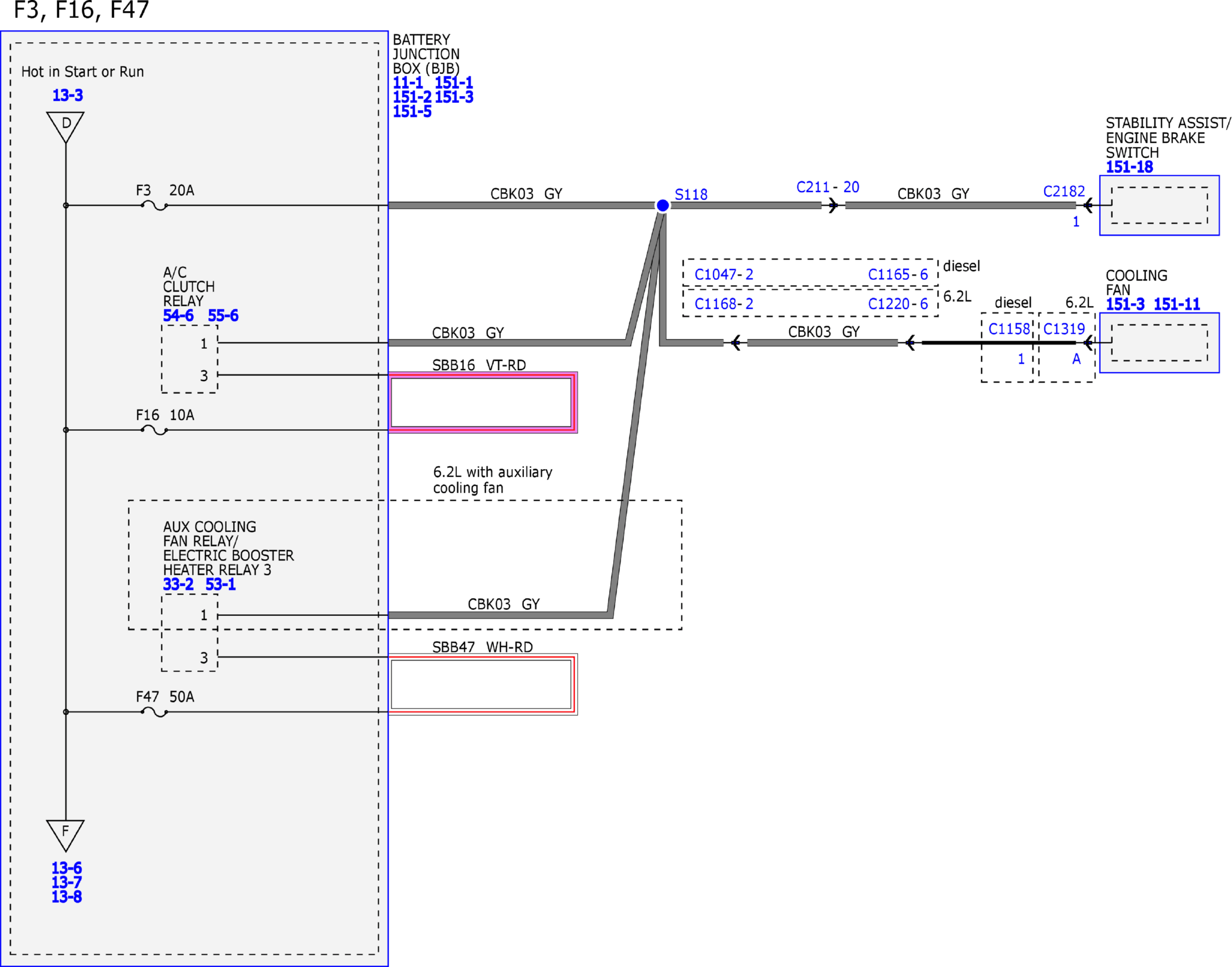

Fig 35: Power Distribution/BCM Wiring Diagram (35 of 50)

GFDW83458

Courtesy of FORD MOTOR COMPANY

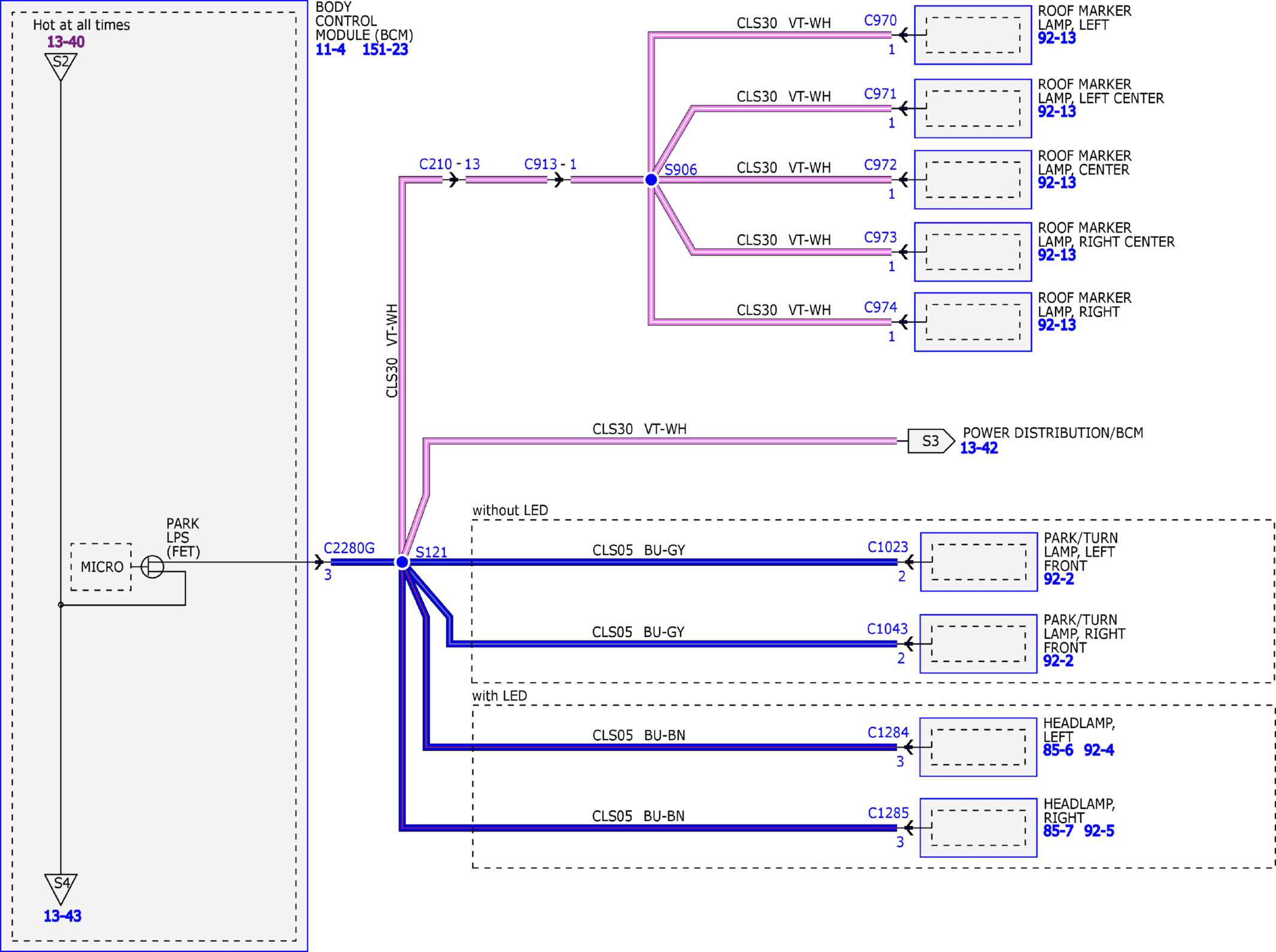

Fig 36: Power Distribution/BCM Wiring Diagram (36 of 50)

GFDW83459

Courtesy of FORD MOTOR COMPANY

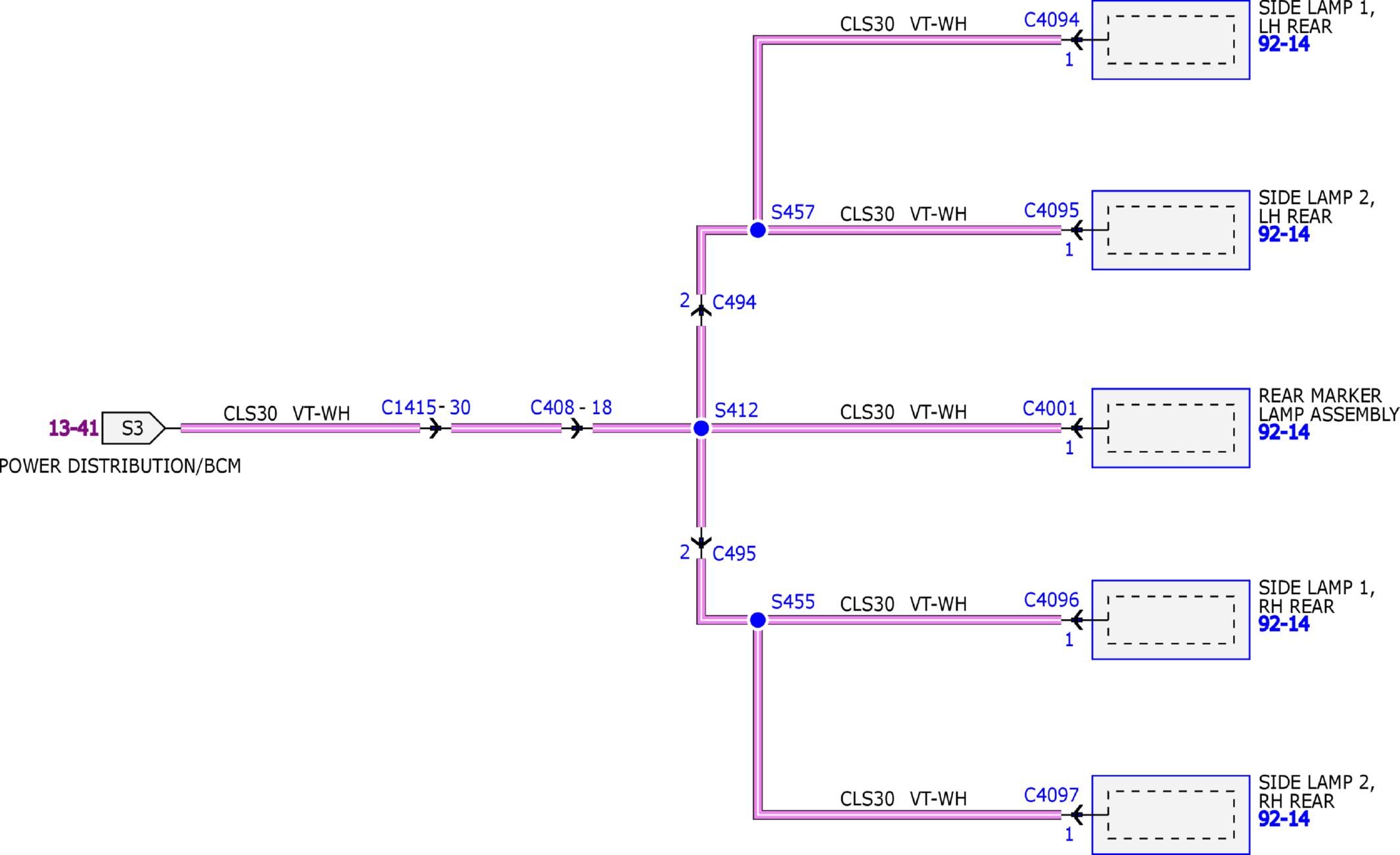

Fig 37: Power Distribution/BCM Wiring Diagram (37 of 50)

GFDW83460

Courtesy of FORD MOTOR COMPANY

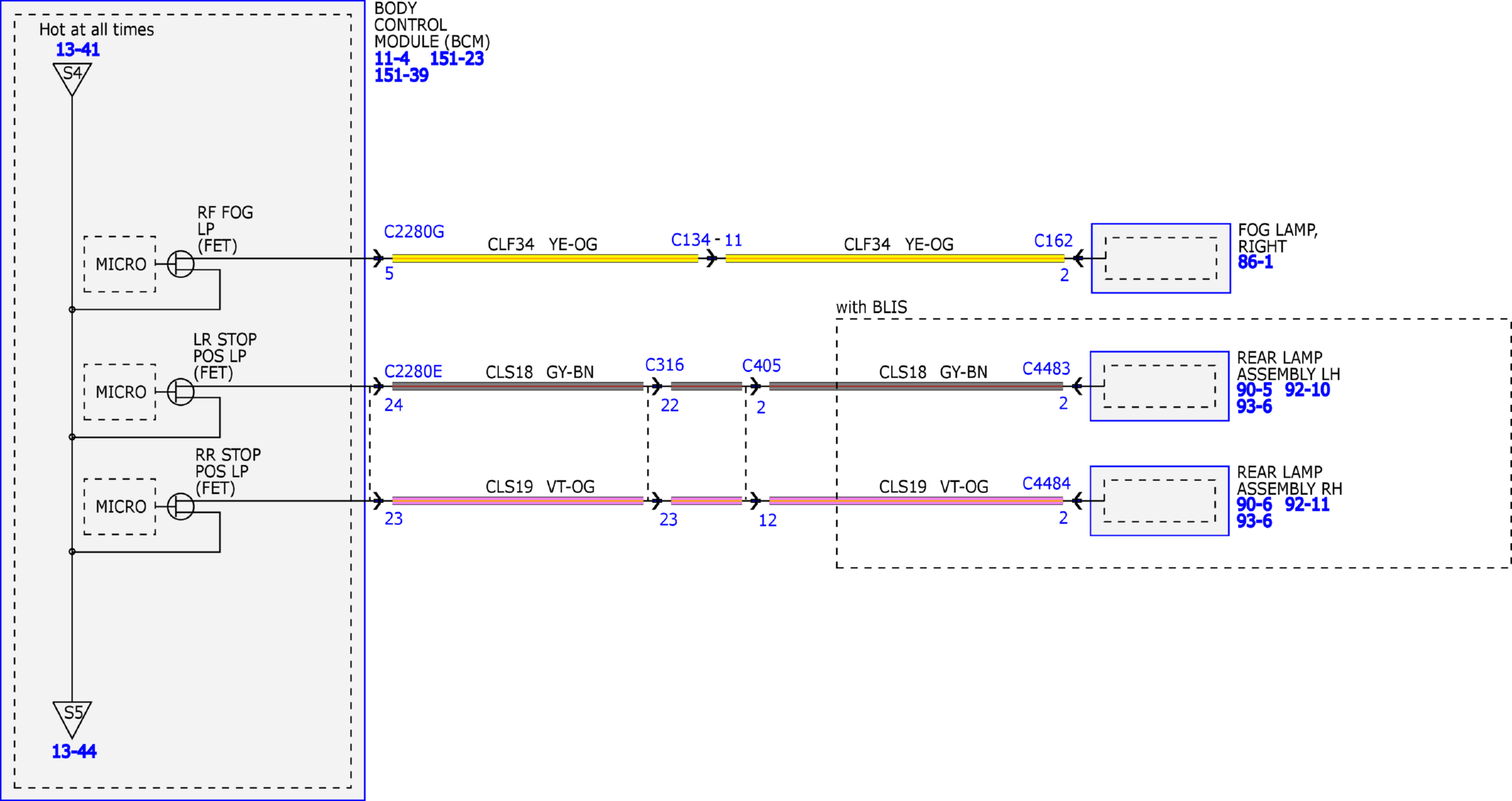

Fig 38: Power Distribution/BCM Wiring Diagram (38 of 50)

GFDW83461

Courtesy of FORD MOTOR COMPANY

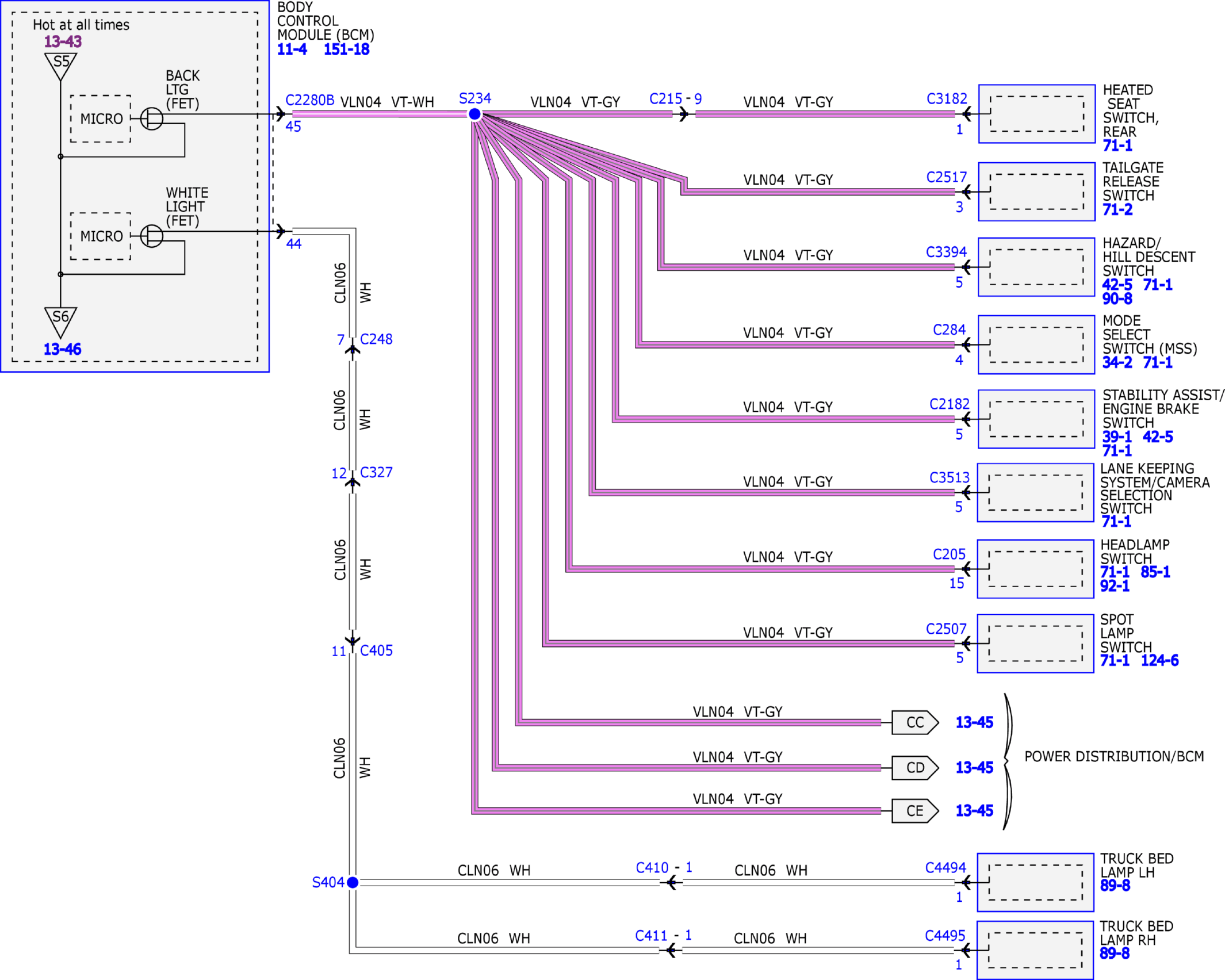

Fig 39: Power Distribution/BCM Wiring Diagram (39 of 50)

GFDW83462

Courtesy of FORD MOTOR COMPANY

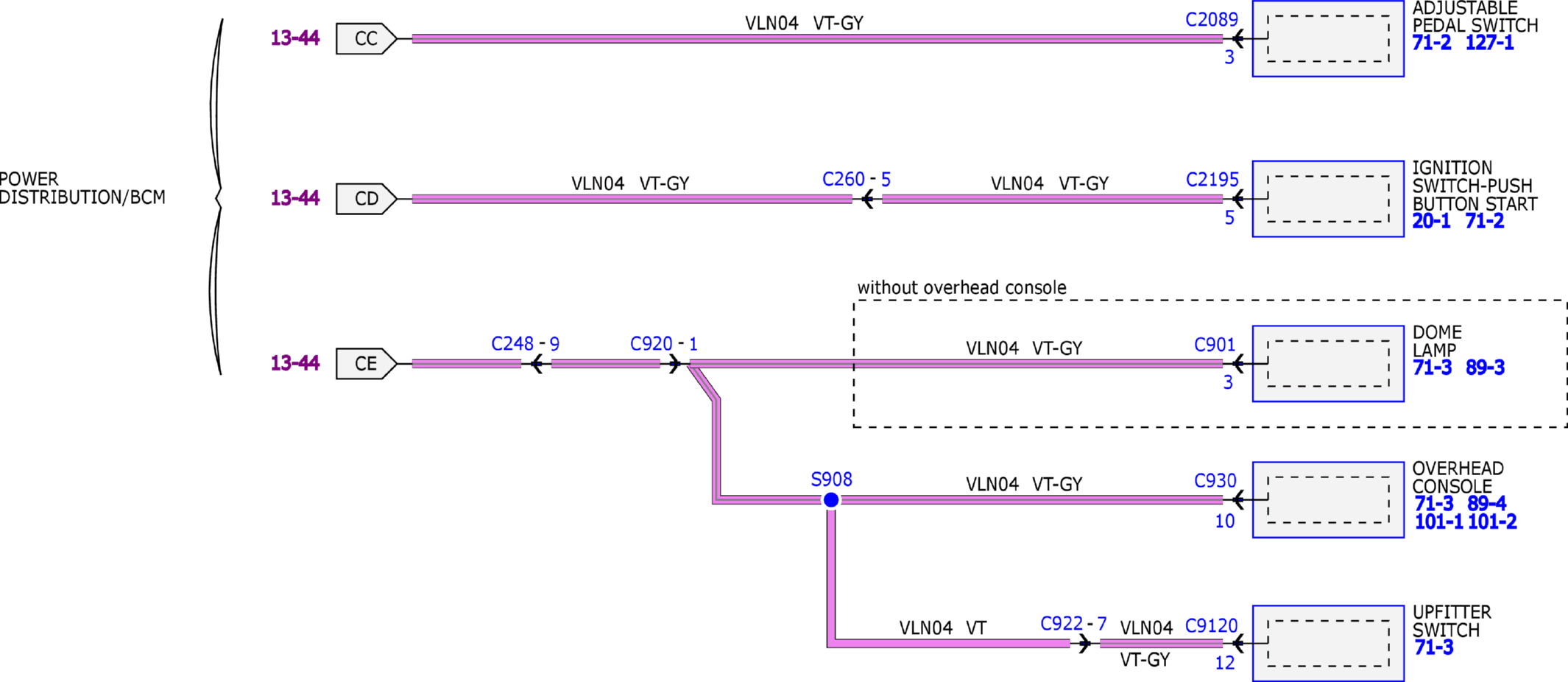

Fig 40: Power Distribution/BCM Wiring Diagram (40 of 50)

GFDW83463

Courtesy of FORD MOTOR COMPANY

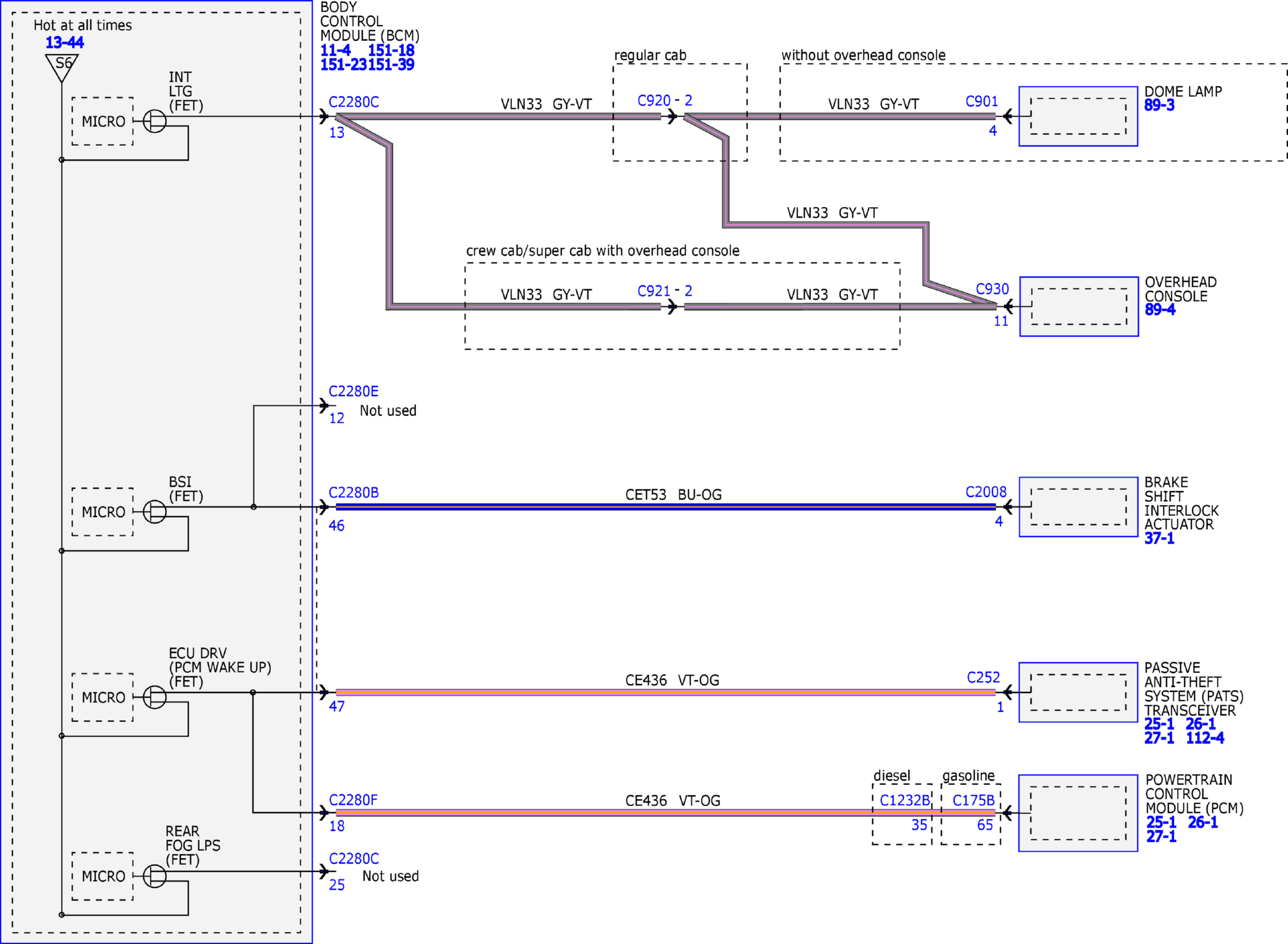

Fig 41: Power Distribution/BCM Wiring Diagram (41 of 50)

GFDW83464

Courtesy of FORD MOTOR COMPANY

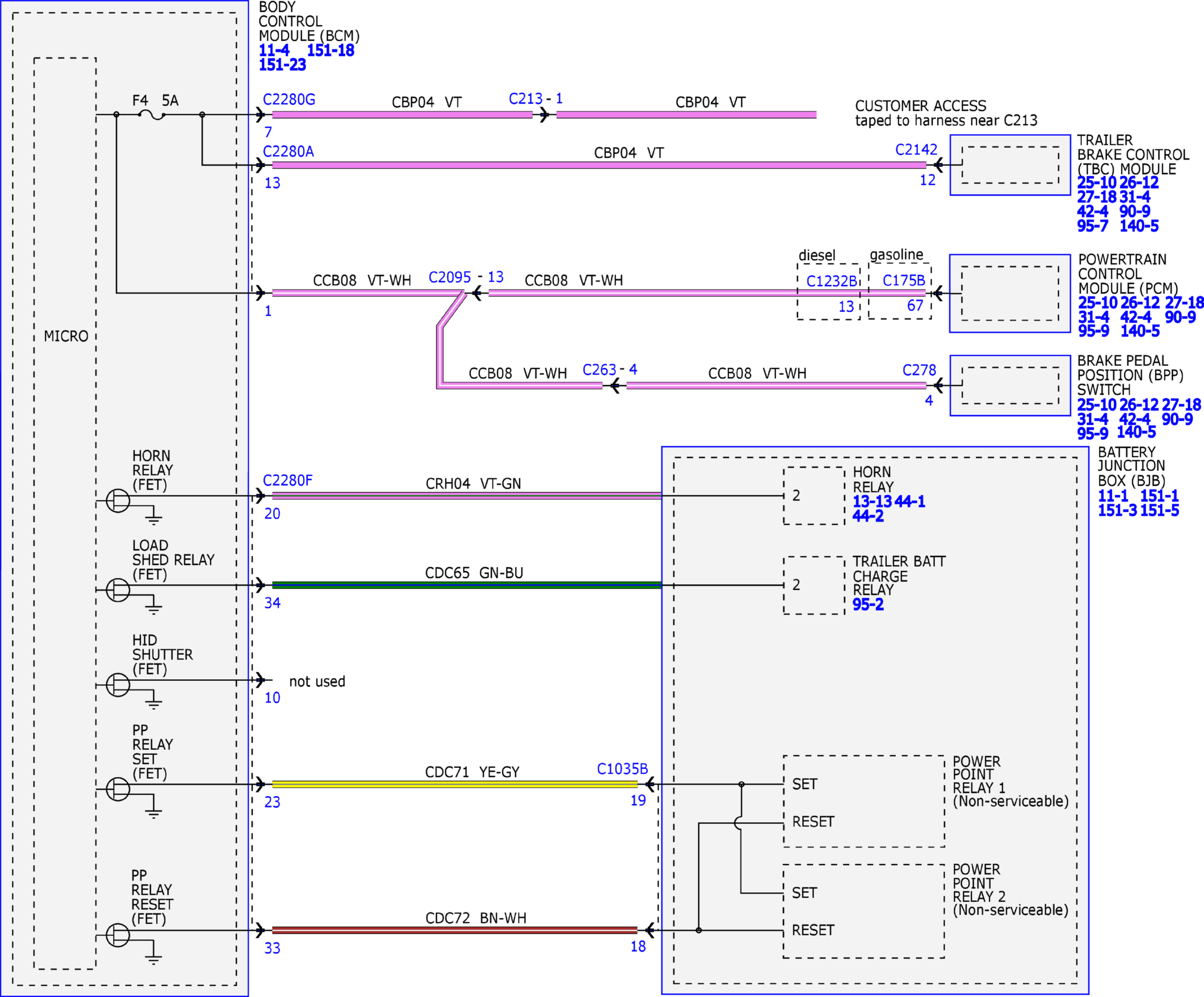

Fig 42: Power Distribution/BCM Wiring Diagram (42 of 50)

GFDW83465

Courtesy of FORD MOTOR COMPANY

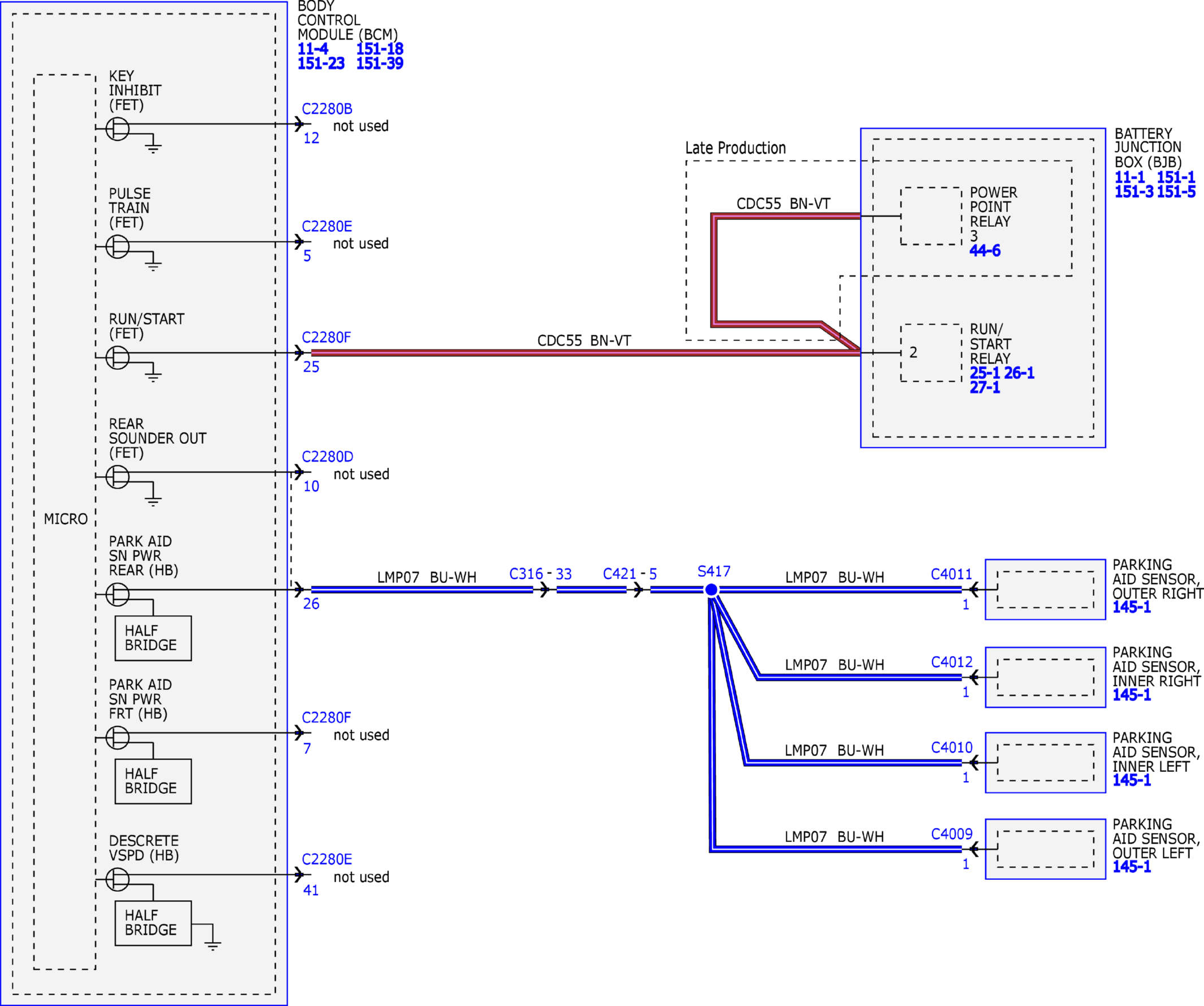

Fig 43: Power Distribution/BCM Wiring Diagram (43 of 50)

GFDW83466

Courtesy of FORD MOTOR COMPANY

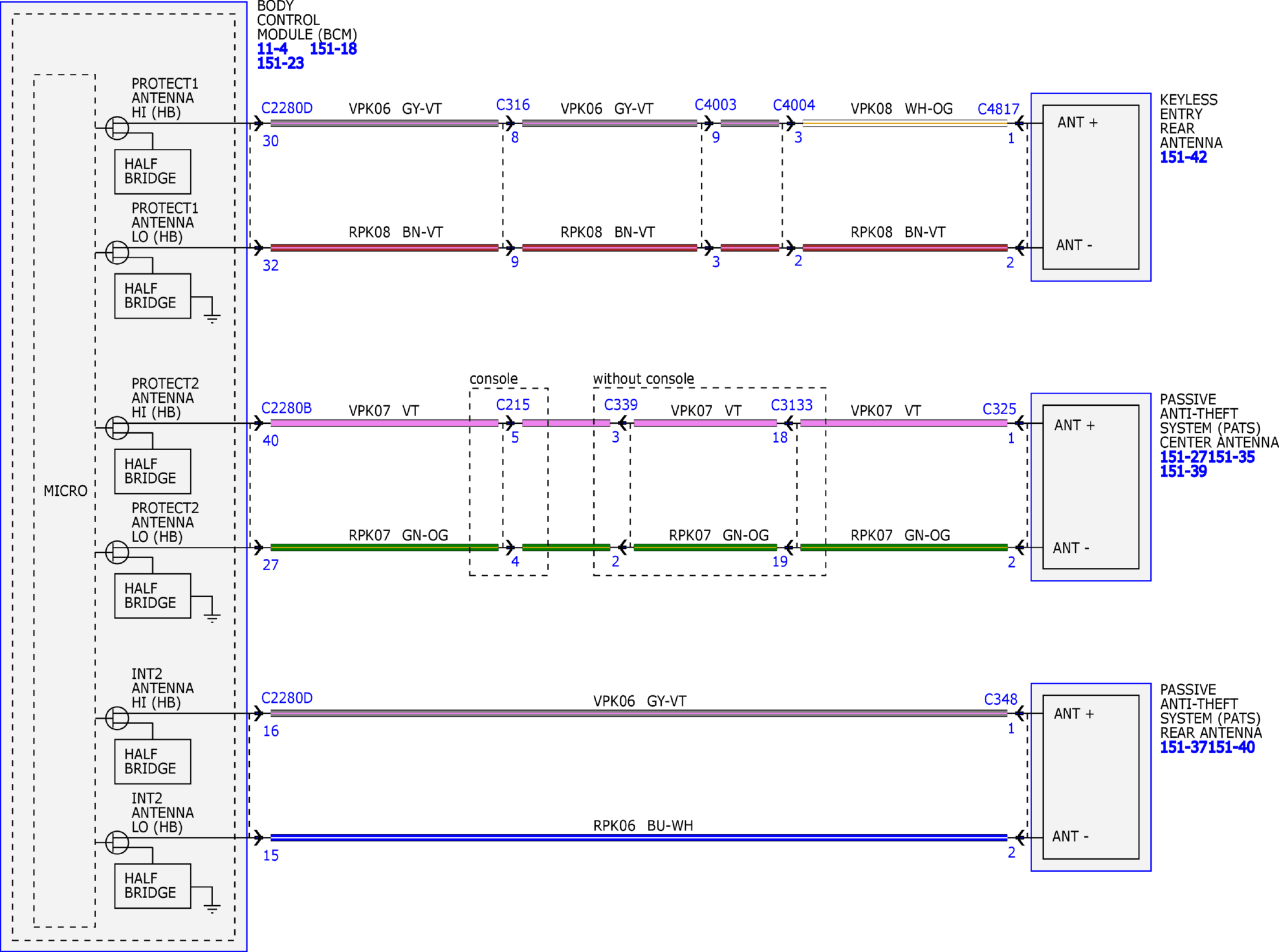

Fig 44: Power Distribution/BCM Wiring Diagram (44 of 50)

GFDW83467

Courtesy of FORD MOTOR COMPANY

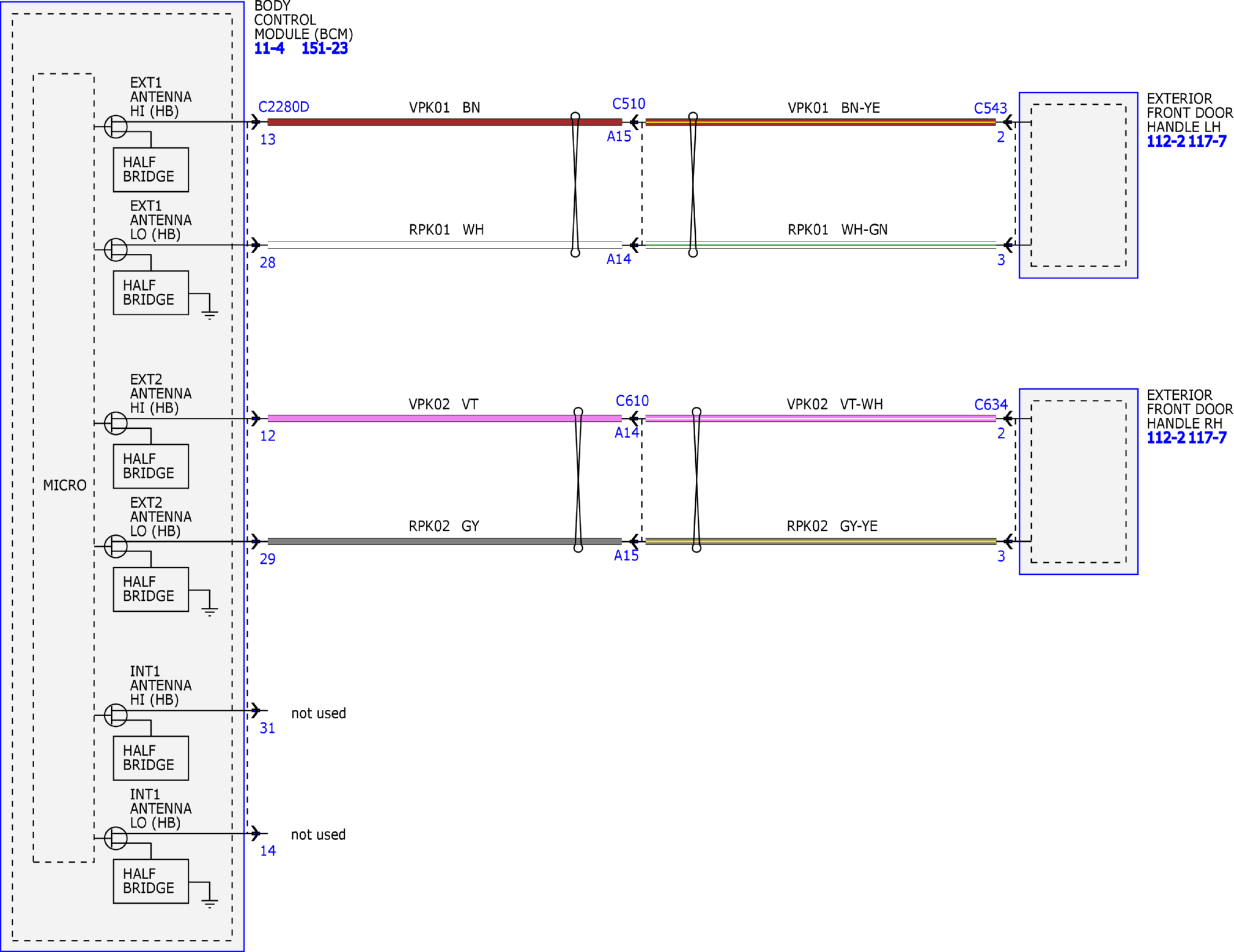

Fig 45: Power Distribution/BCM Wiring Diagram (45 of 50)

GFDW83468

Courtesy of FORD MOTOR COMPANY

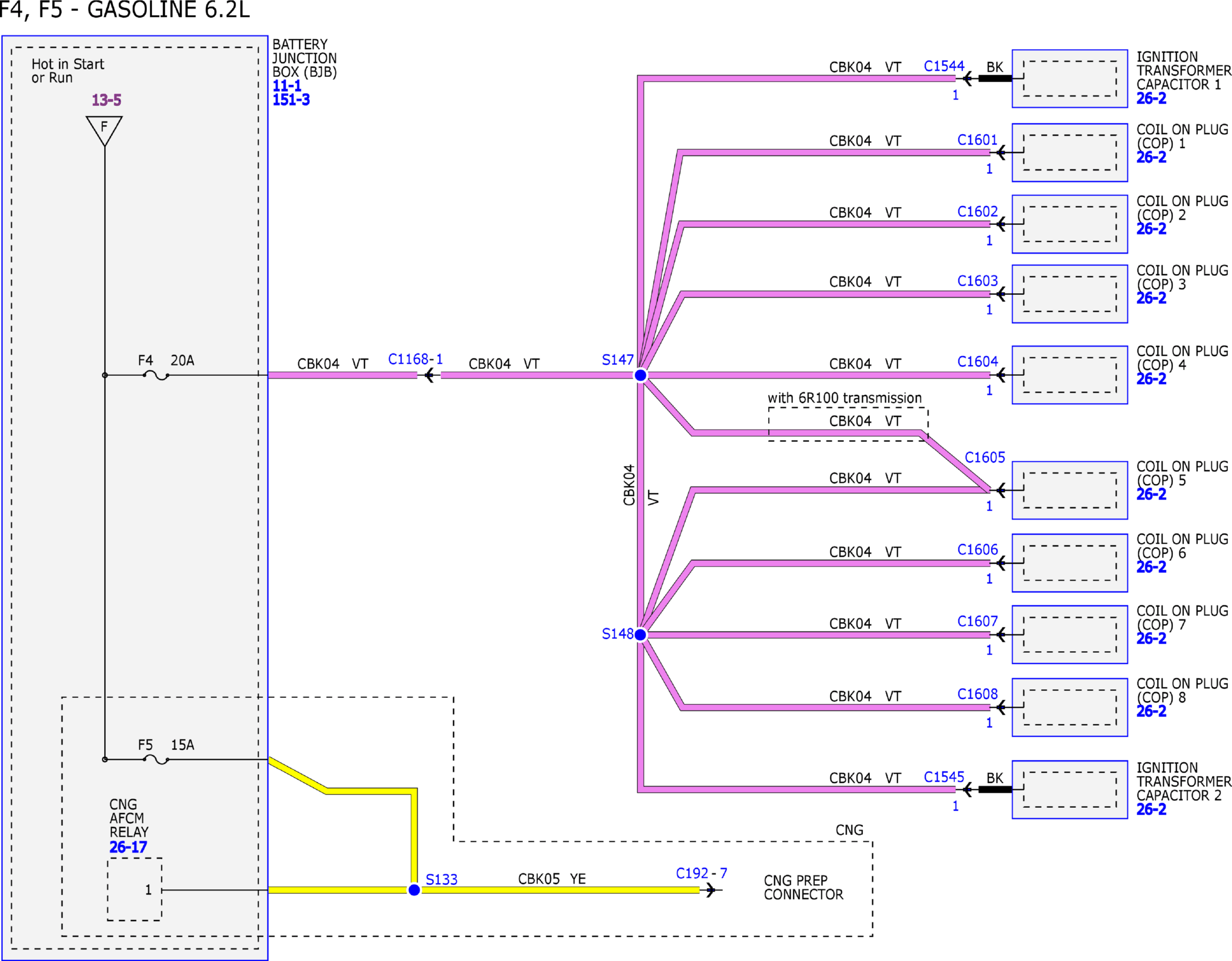

Fig 46: Power Distribution/BCM Wiring Diagram (46 of 50)

GFDW83469

Courtesy of FORD MOTOR COMPANY

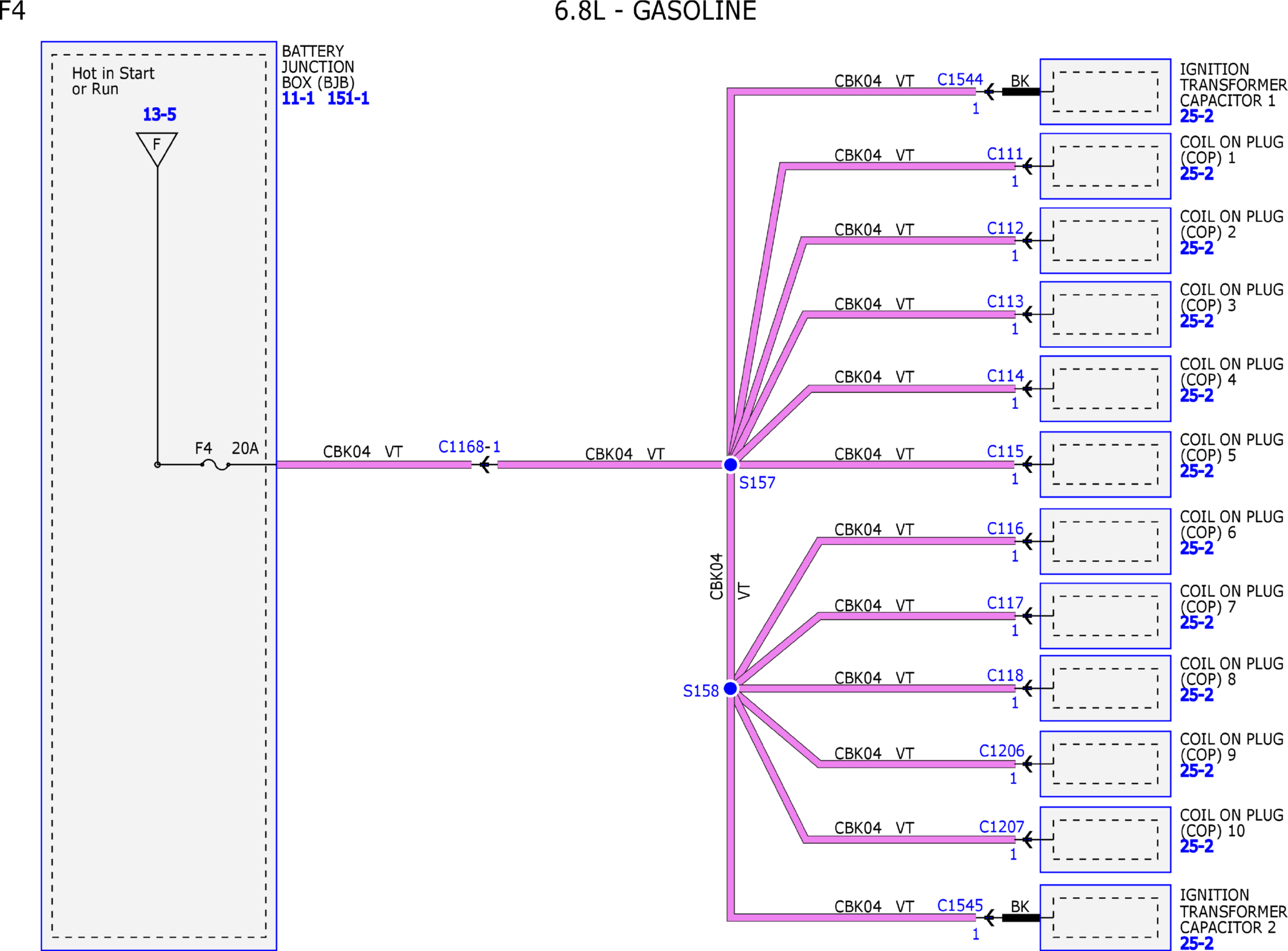

Fig 47: Power Distribution/BCM Wiring Diagram (47 of 50)

GFDW83470

Courtesy of FORD MOTOR COMPANY

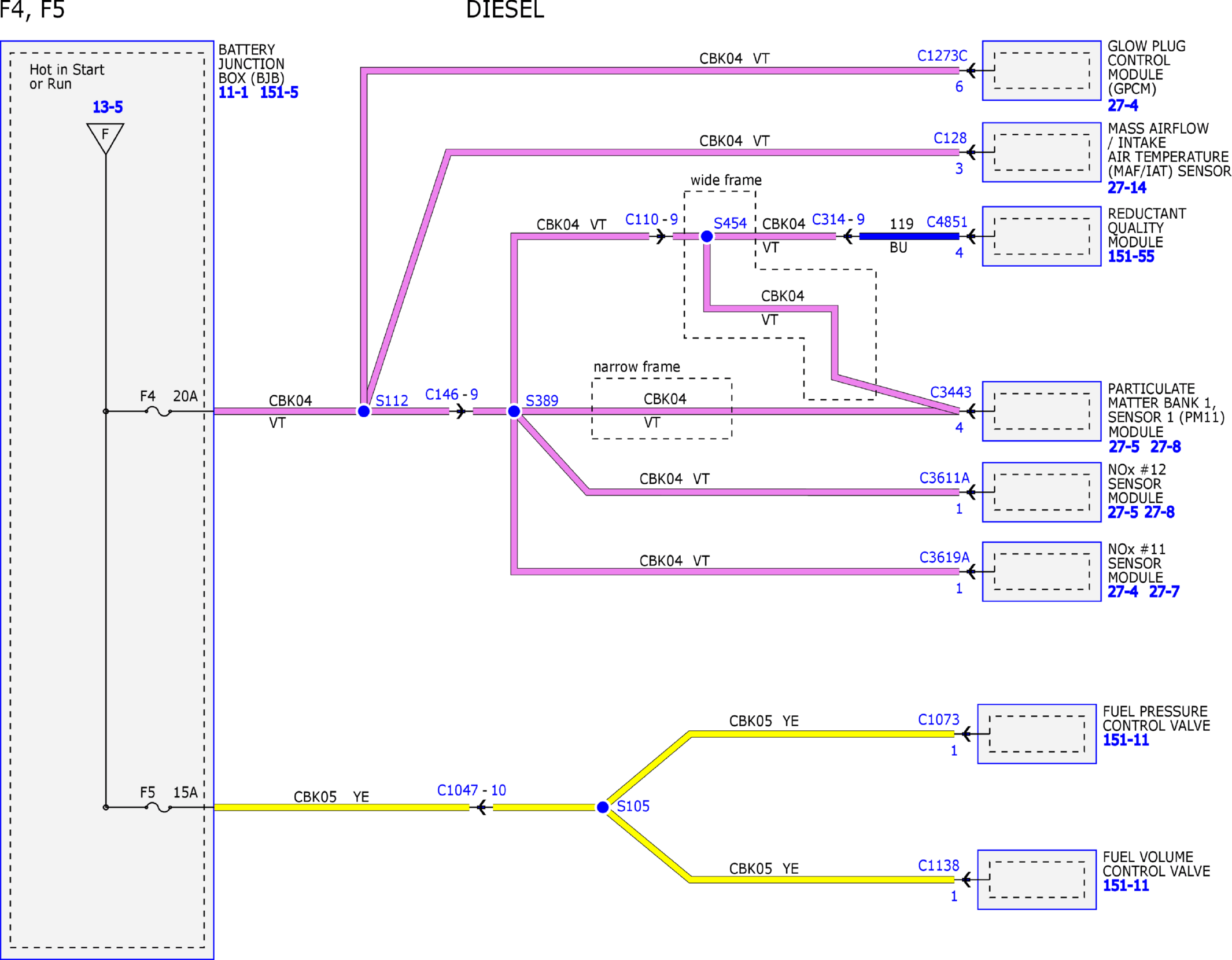

Fig 48: Power Distribution/BCM Wiring Diagram (48 of 50)

GFDW83471

Courtesy of FORD MOTOR COMPANY

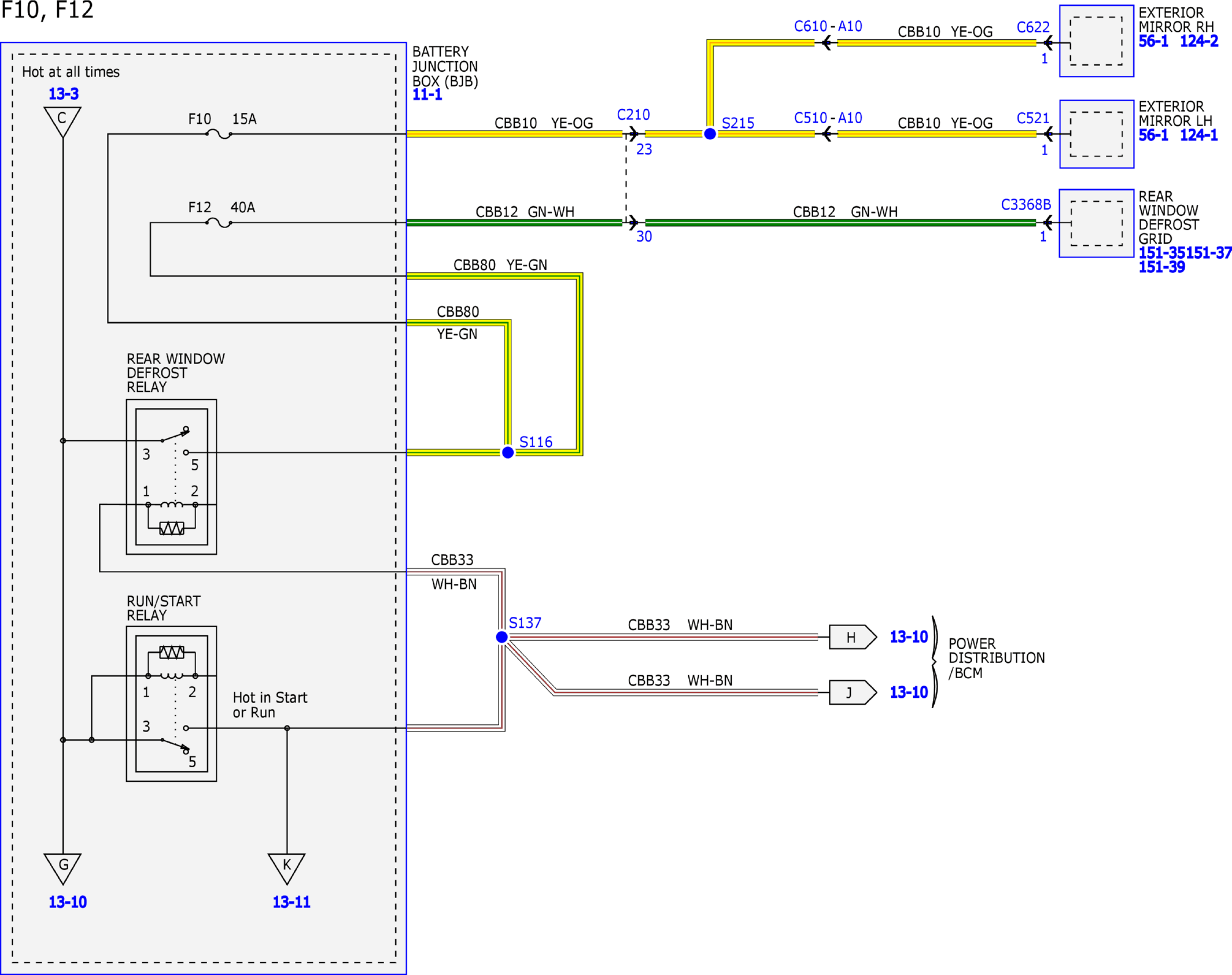

Fig 49: Power Distribution/BCM Wiring Diagram (49 of 50)

GFDW83472

Courtesy of FORD MOTOR COMPANY

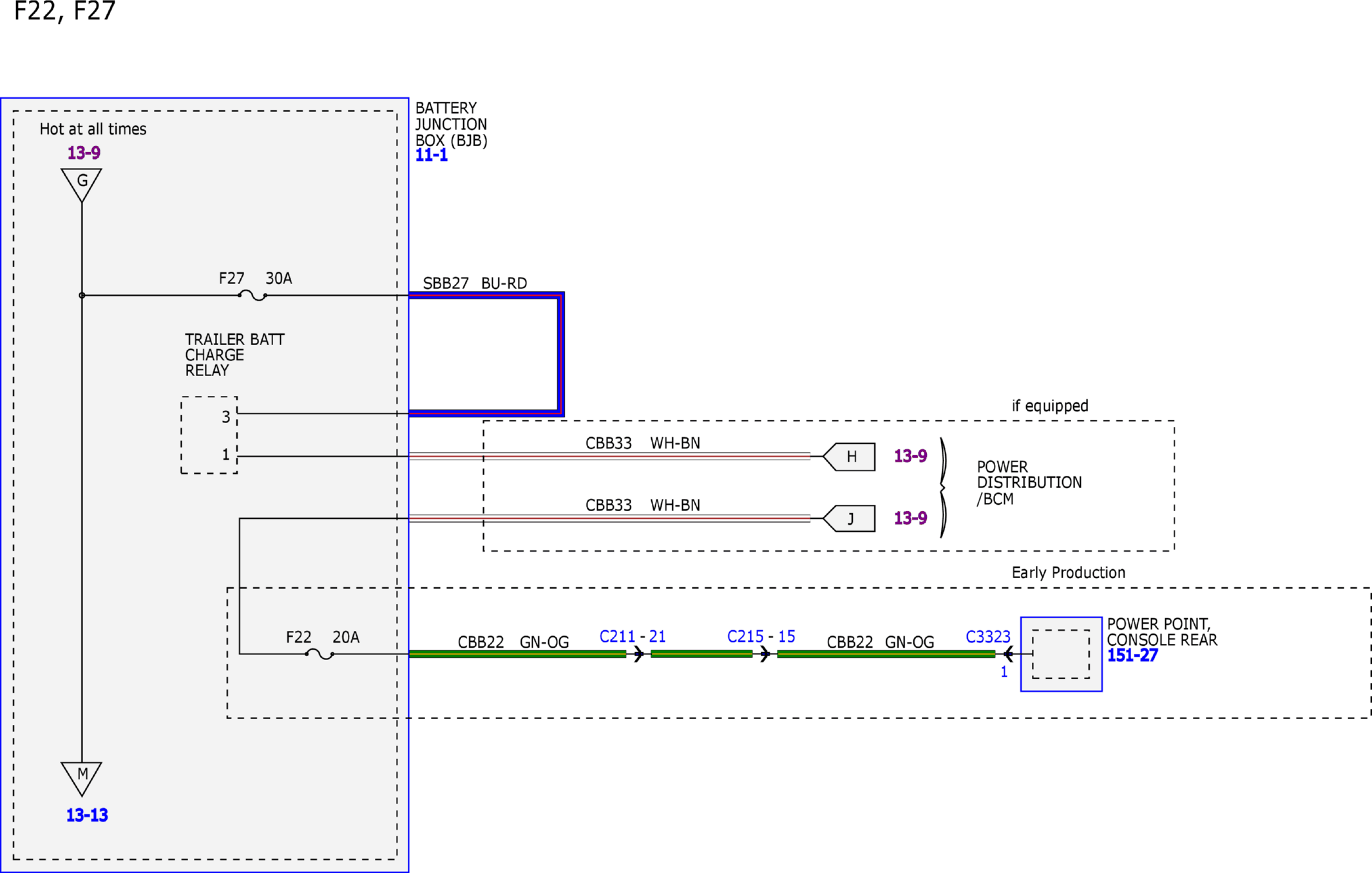

Fig 50: Power Distribution/BCM Wiring Diagram (50 of 50)

GFDW83473

Courtesy of FORD MOTOR COMPANY
