Mode Select Switch (MSS): Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

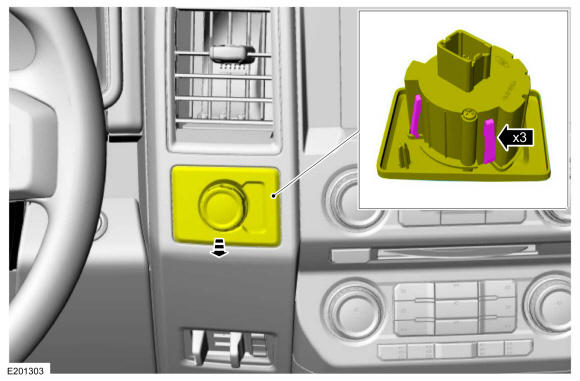

  1. Carefully pry the MSS from the instrument panel.
    GFD205281Courtesy of FORD MOTOR COMPANY

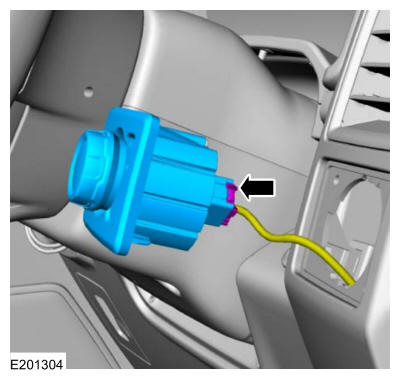

  2. Disconnect the MSS harness connector and remove the switch.
GFD205282Courtesy of FORD MOTOR COMPANY
