Transfer Case Shift Lever: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Position the transfer case shift lever in neutral.

Courtesy of FORD MOTOR COMPANY

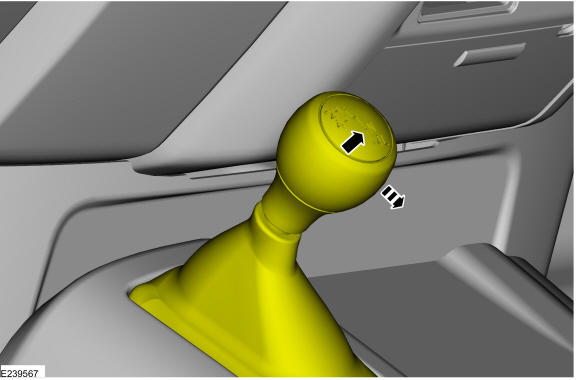

Remove the transfer case shift lever knob.

Courtesy of FORD MOTOR COMPANY

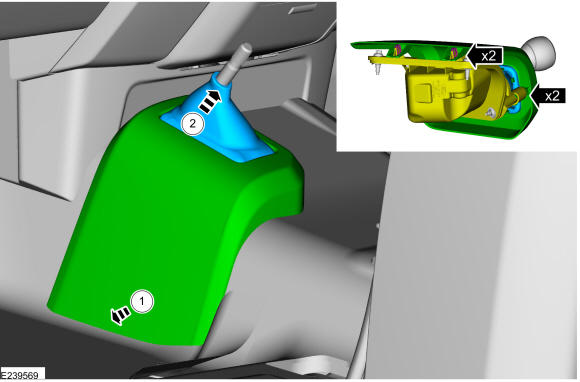

Remove the shift lever trim and boot.
- Release the shift lever trim clips.
- Remove the shift lever trim and boot.
Courtesy of FORD MOTOR COMPANY

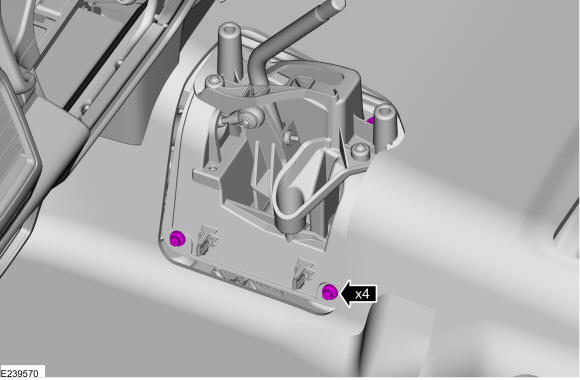

Remove the shift lever bolts.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

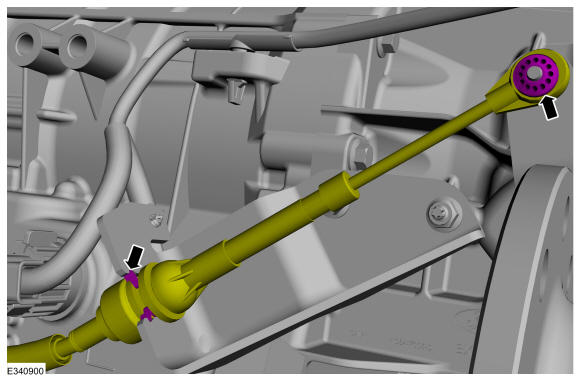

- Disconnect the shift lever cable.
- Release the lock and position aside the shift lever cable.
Courtesy of FORD MOTOR COMPANY

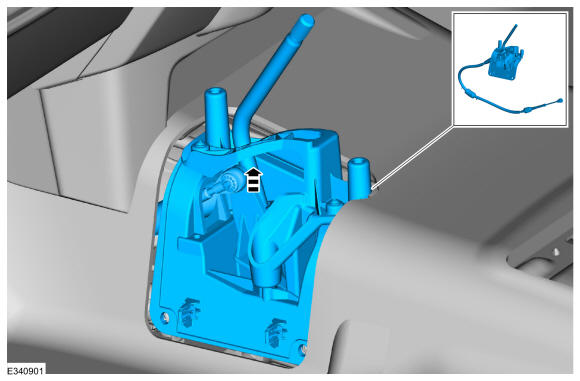

Remove the shift lever assembly.
