Supplemental Restraint System

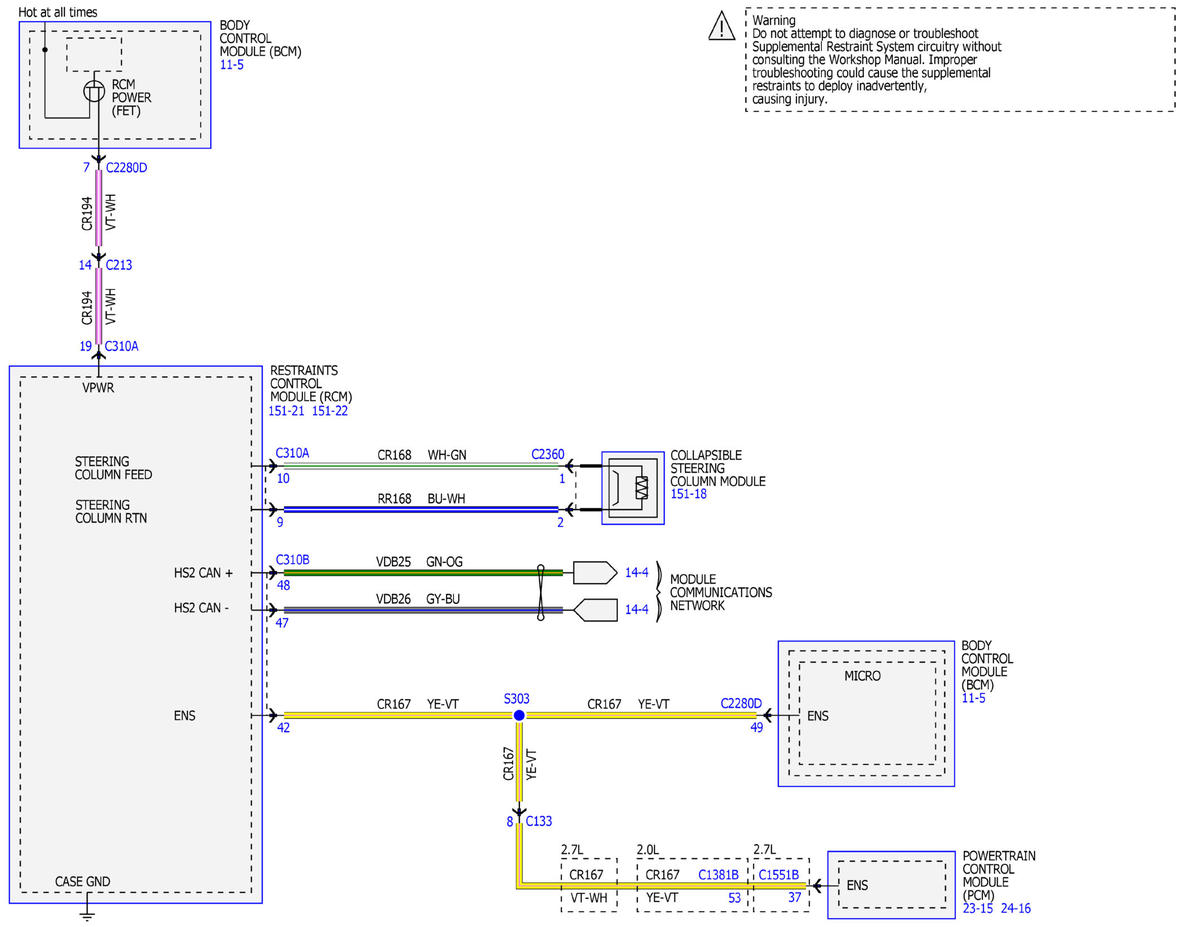

Fig 1: Supplemental Restraint System Wiring Diagram (1 Of 10)
GFDWR139306Courtesy of FORD MOTOR COMPANY

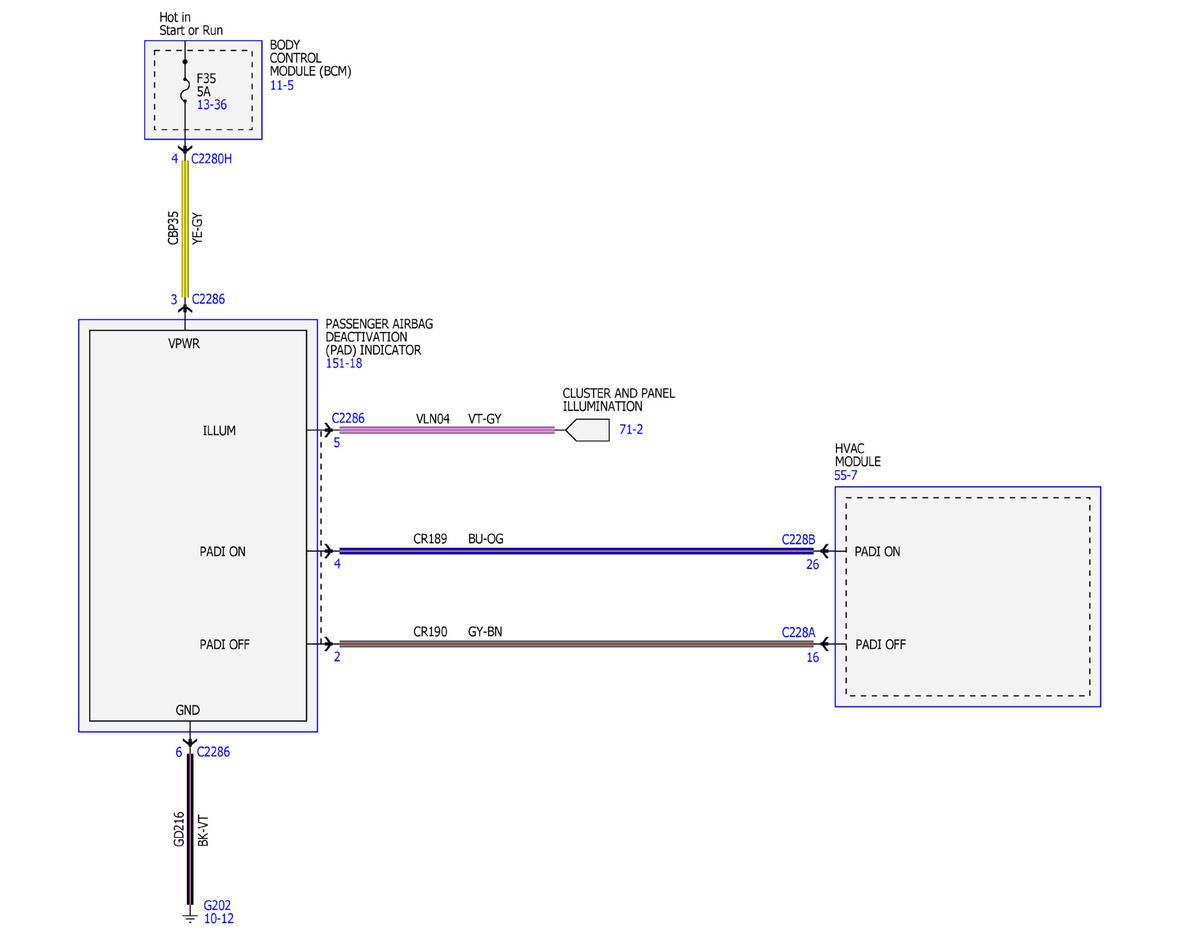

Fig 2: Supplemental Restraint System Wiring Diagram (2 Of 10)
GFDWR139307Courtesy of FORD MOTOR COMPANY

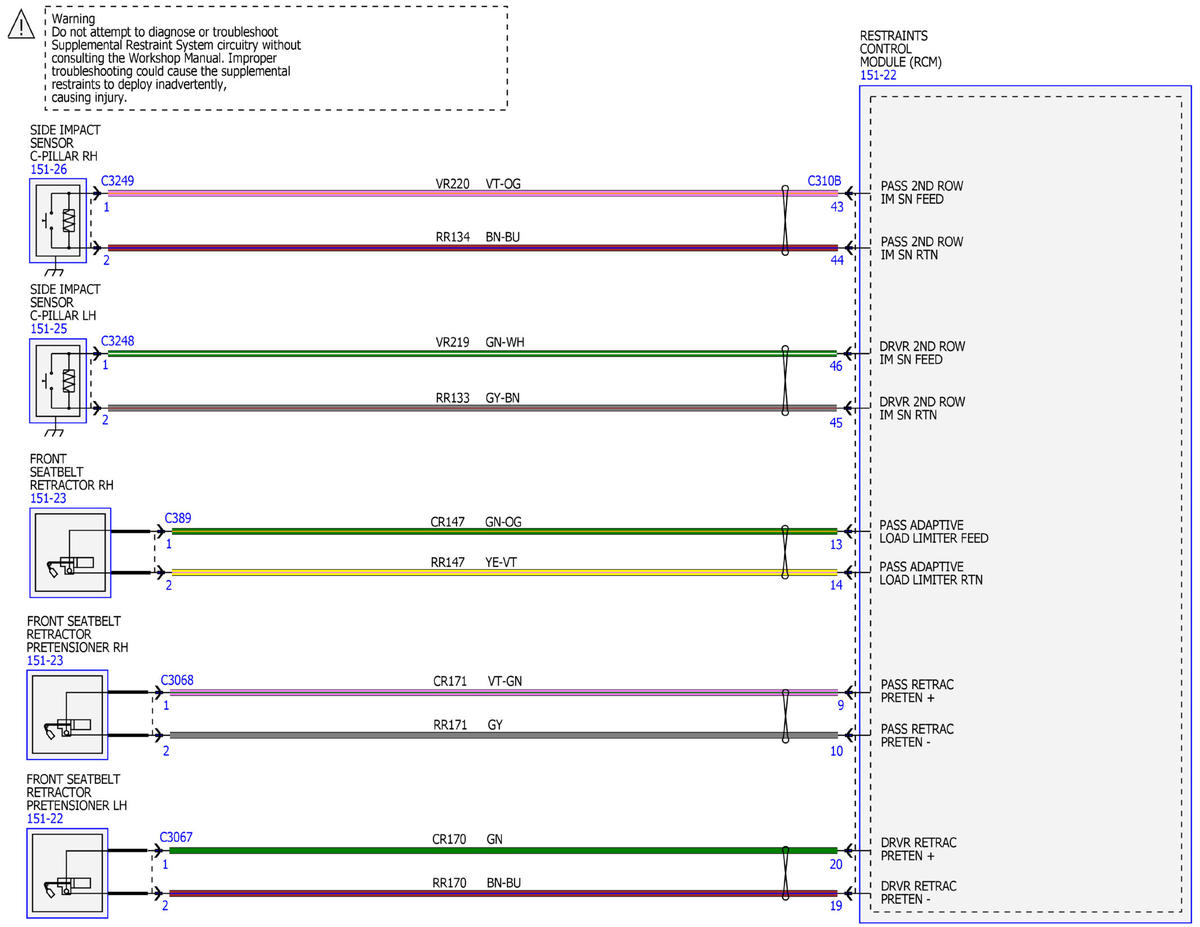

Fig 3: Supplemental Restraint System Wiring Diagram (3 Of 10)
GFDWR139308Courtesy of FORD MOTOR COMPANY

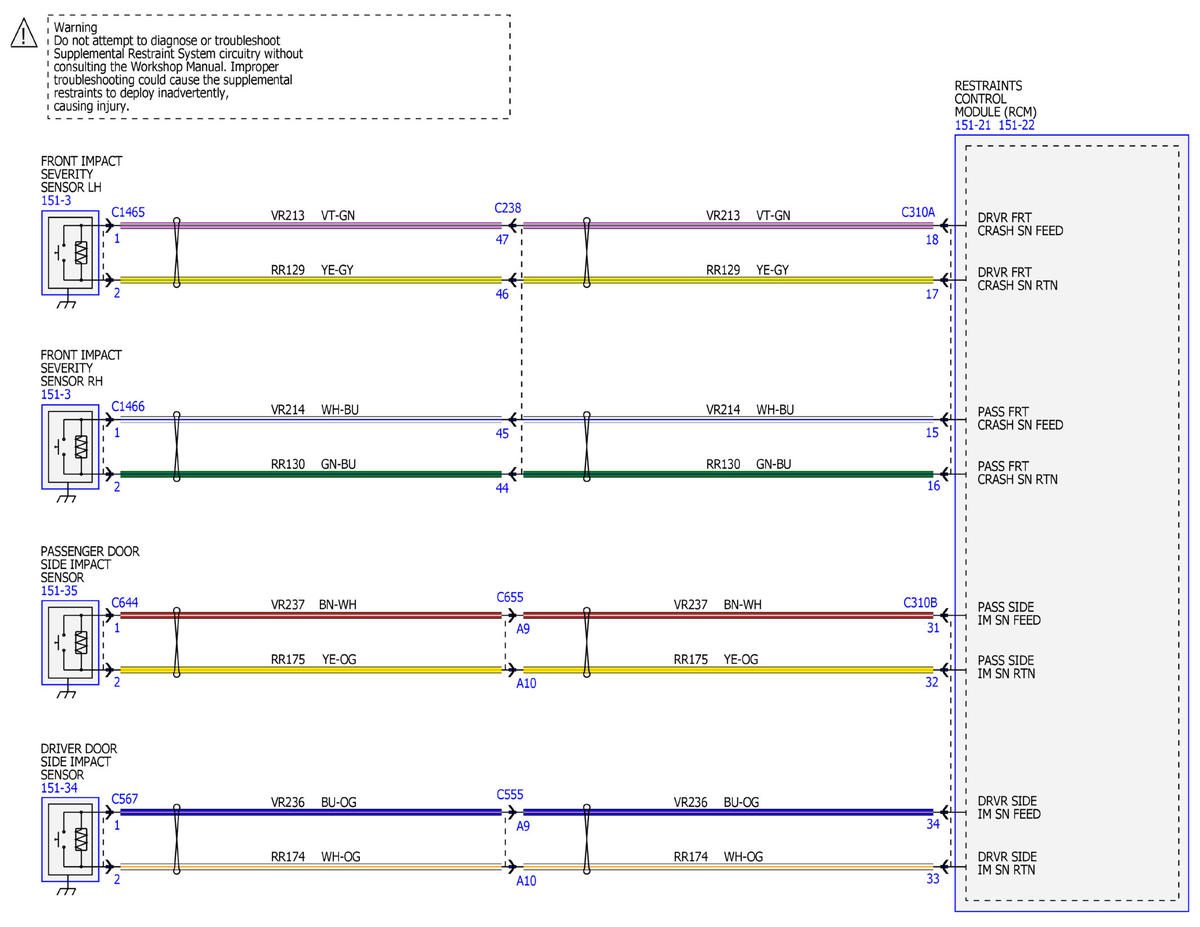

Fig 4: Supplemental Restraint System Wiring Diagram (4 Of 10)
GFDWR139309Courtesy of FORD MOTOR COMPANY

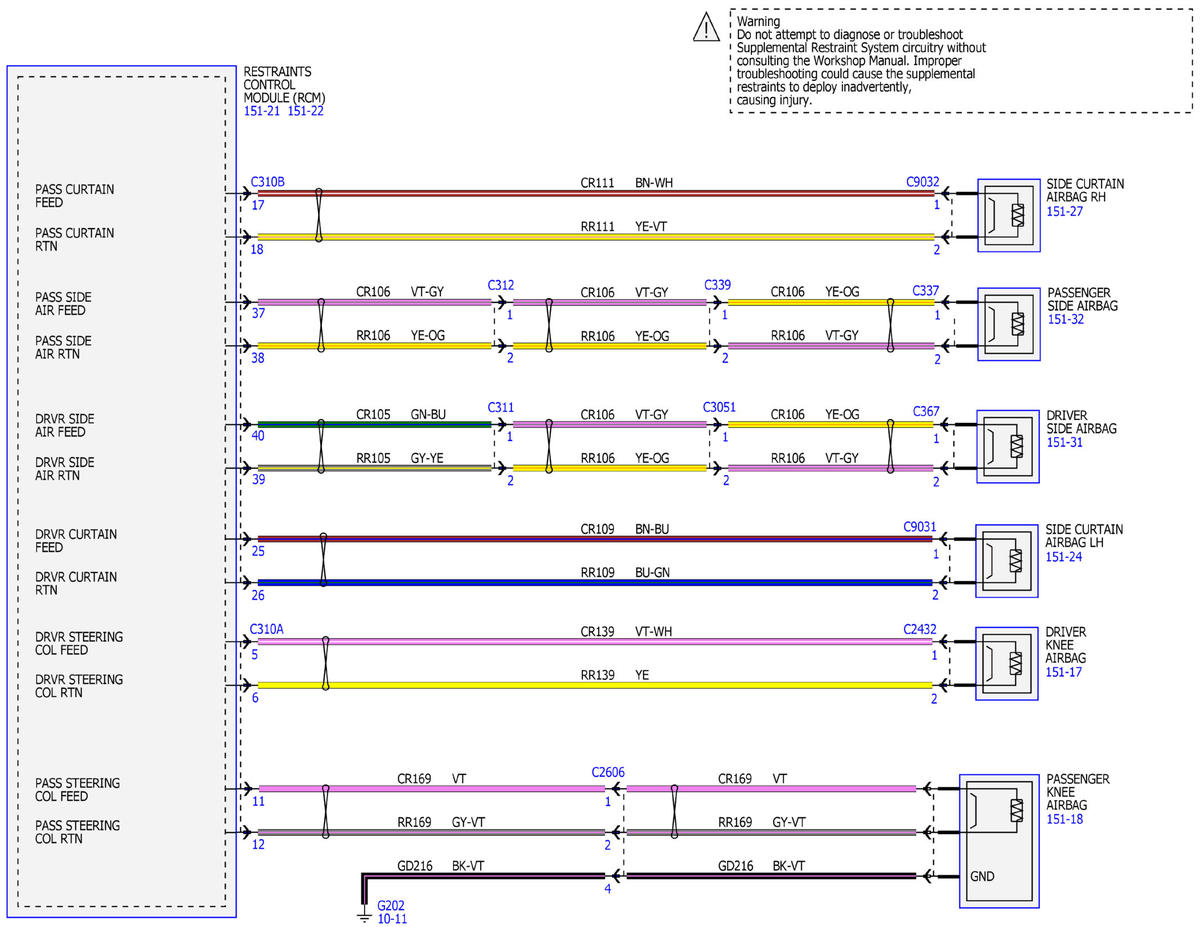

Fig 5: Supplemental Restraint System Wiring Diagram (5 Of 10)
GFDWR139310Courtesy of FORD MOTOR COMPANY

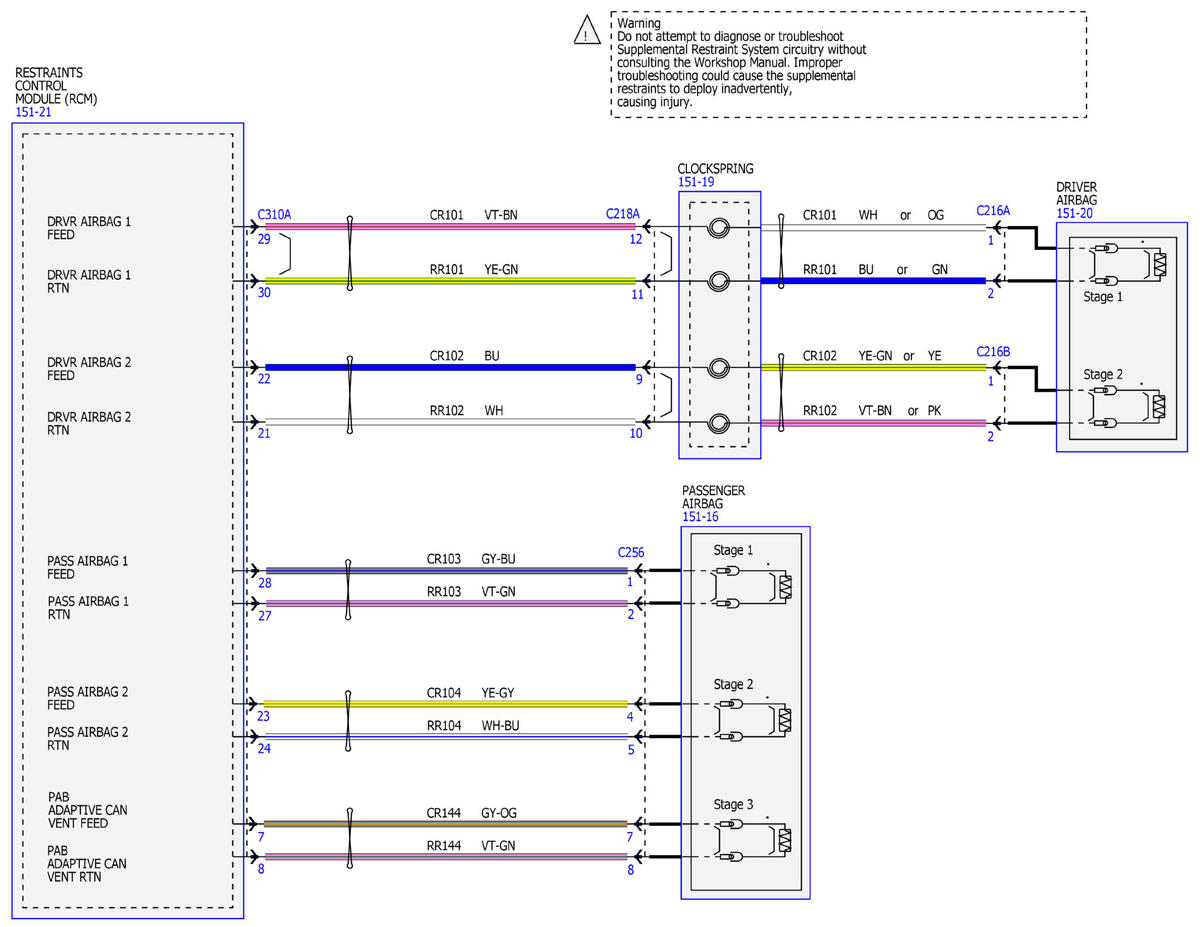

Fig 6: Supplemental Restraint System Wiring Diagram (6 Of 10)
GFDWR139311Courtesy of FORD MOTOR COMPANY

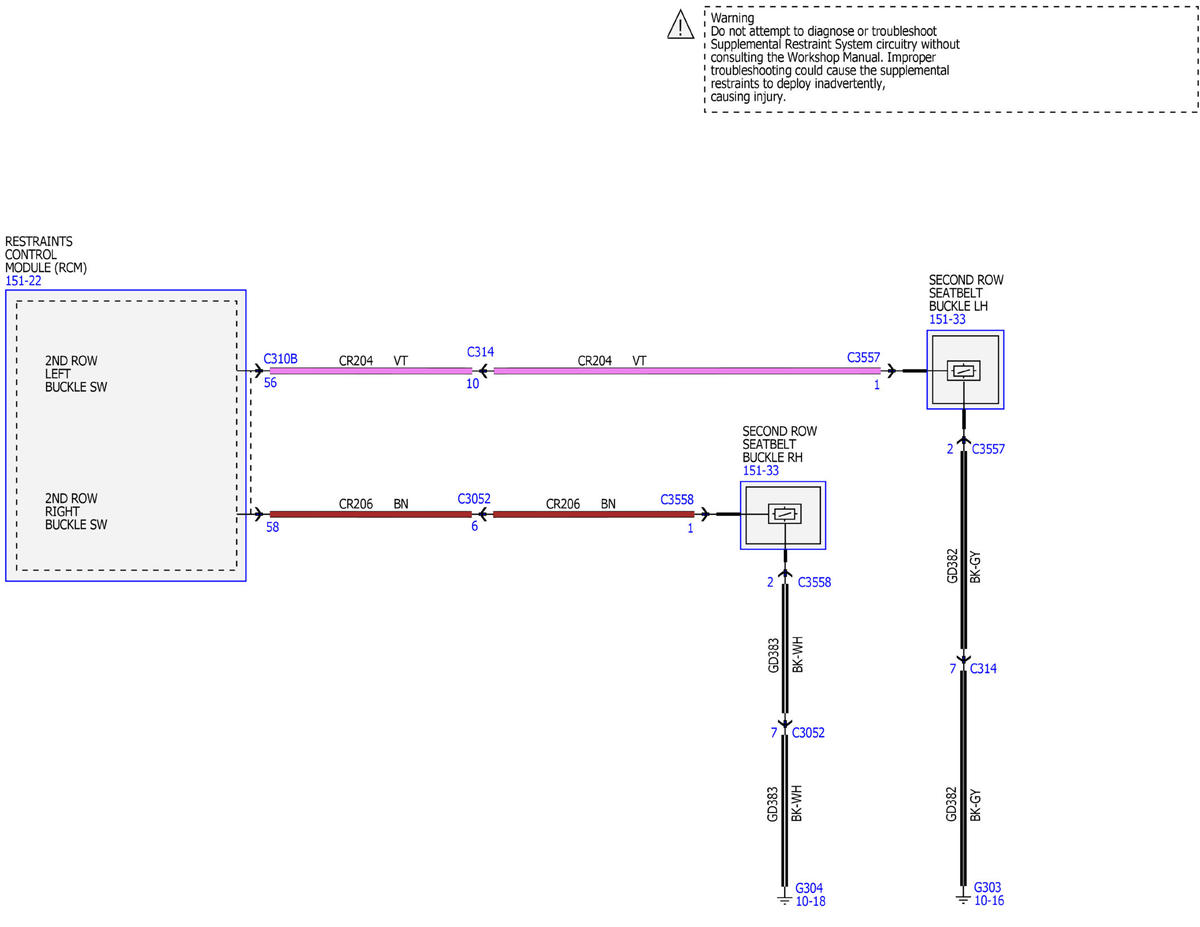

Fig 7: Supplemental Restraint System Wiring Diagram (7 Of 10)
GFDWR139312Courtesy of FORD MOTOR COMPANY

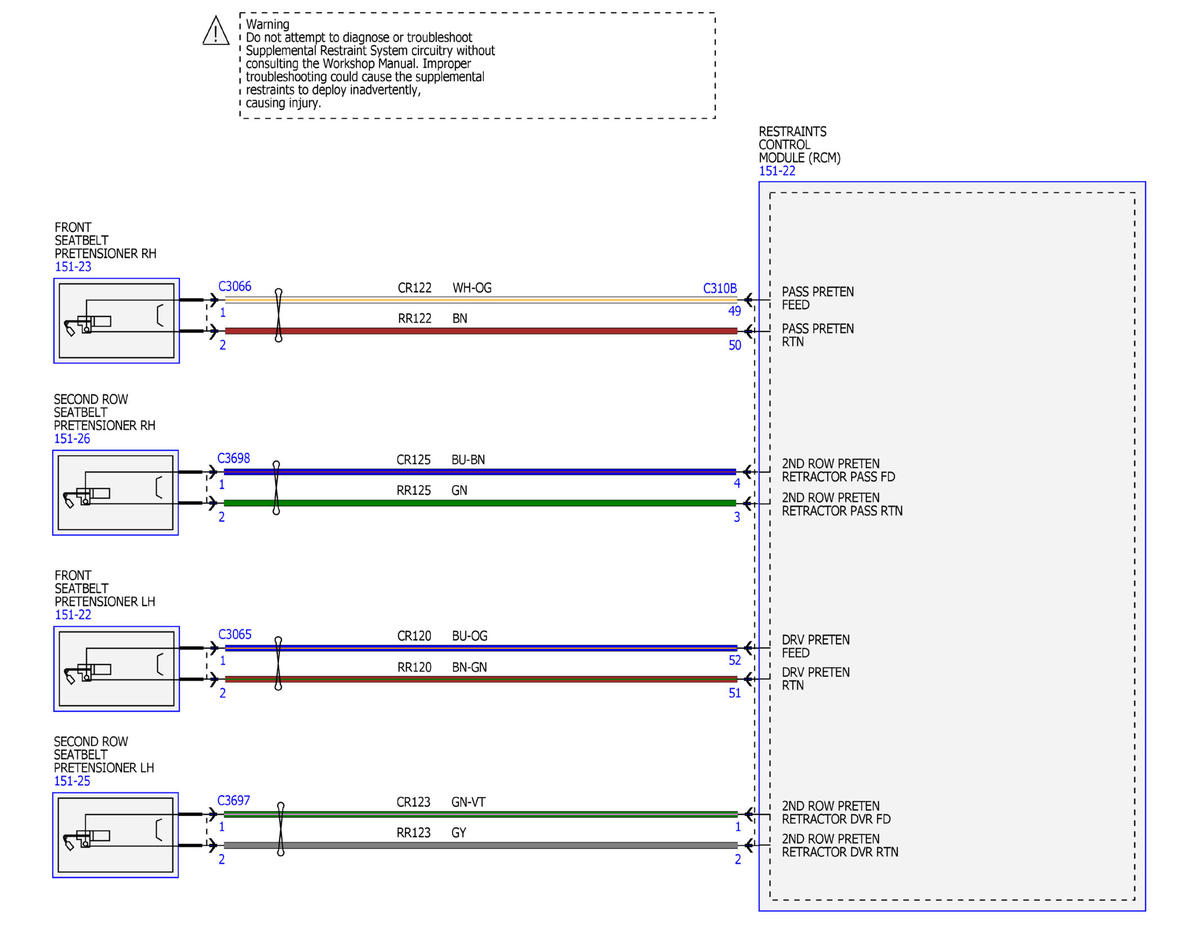

Fig 8: Supplemental Restraint System Wiring Diagram (8 Of 10)
GFDWR139313Courtesy of FORD MOTOR COMPANY

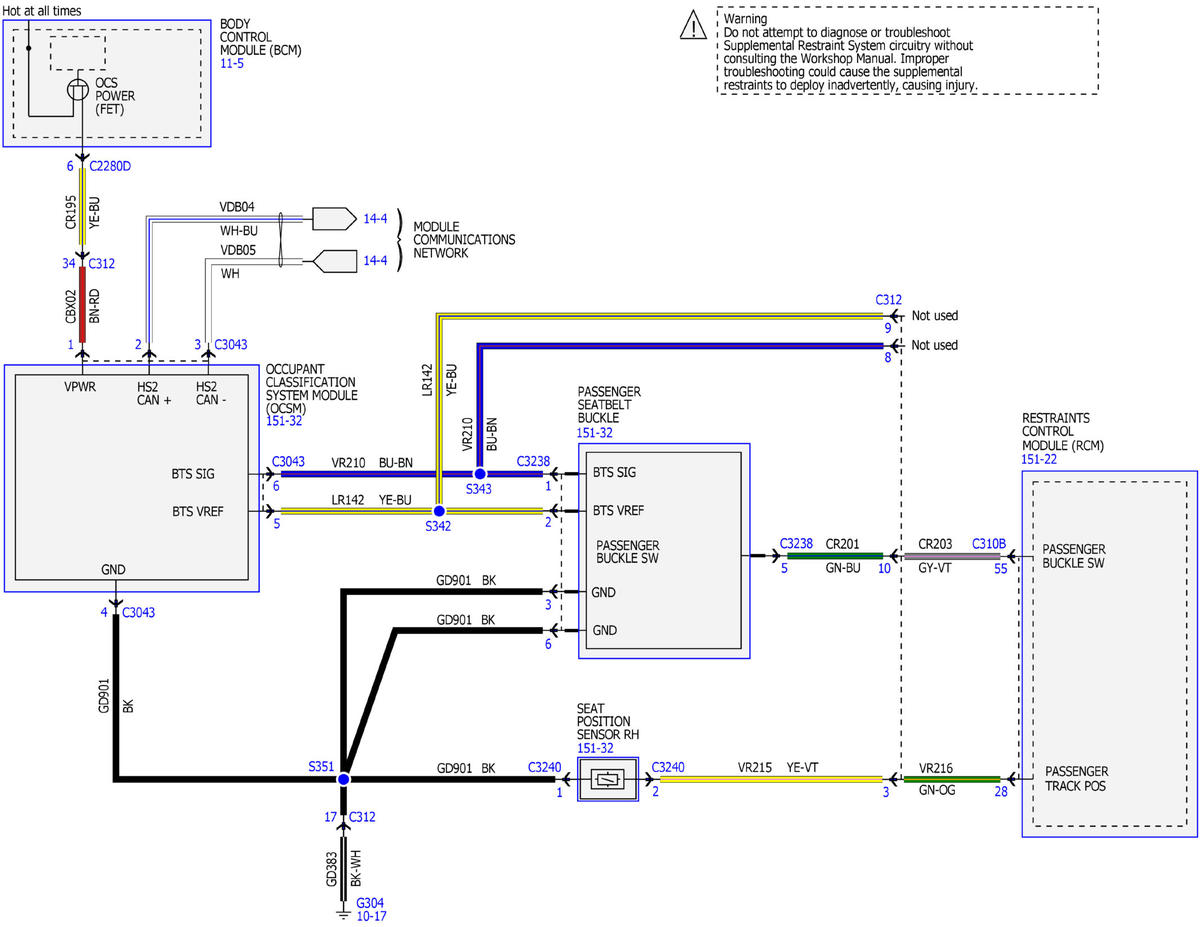

Fig 9: Supplemental Restraint System Wiring Diagram (9 Of 10)
GFDWR139314Courtesy of FORD MOTOR COMPANY

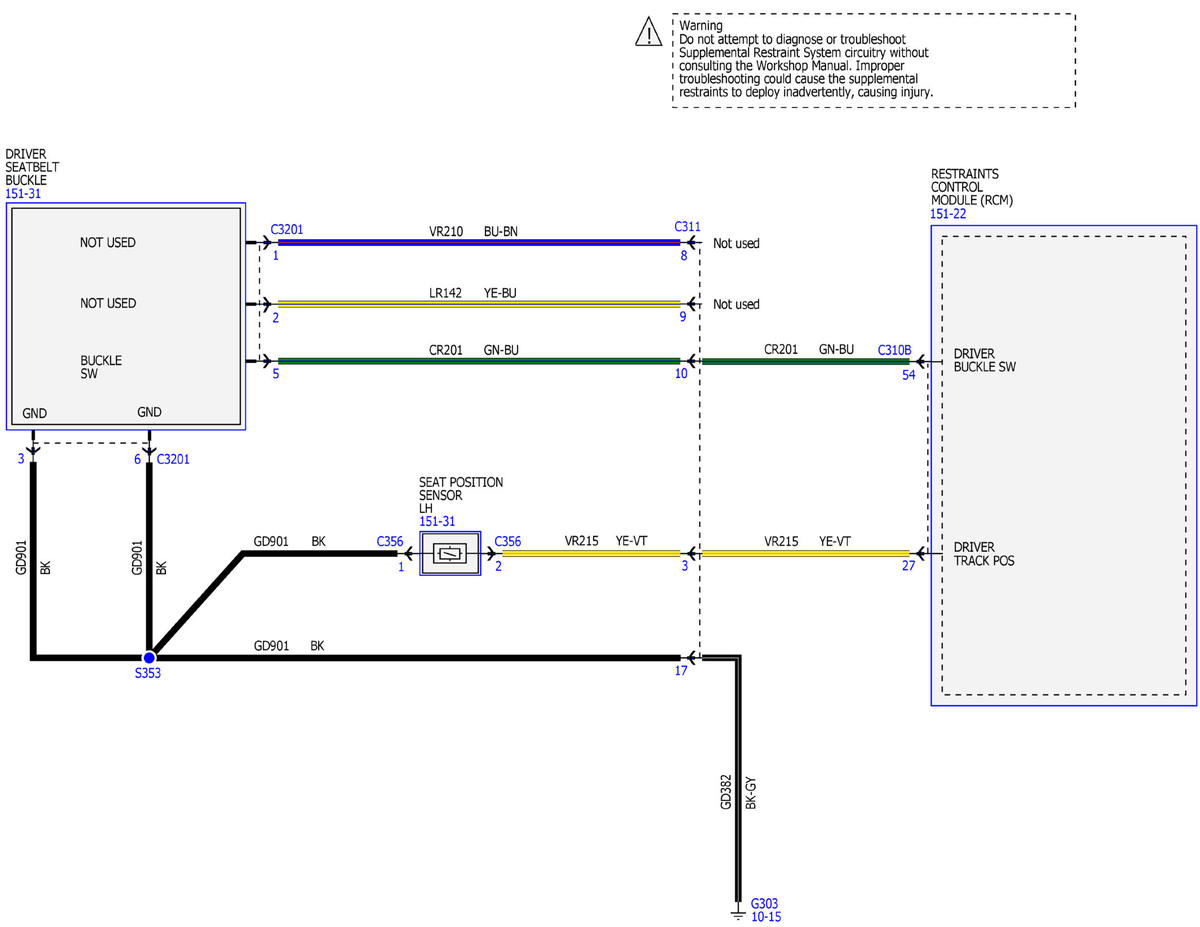

Fig 10: Supplemental Restraint System Wiring Diagram (10 Of 10)
GFDWR139315Courtesy of FORD MOTOR COMPANY
