Roof Opening Panel

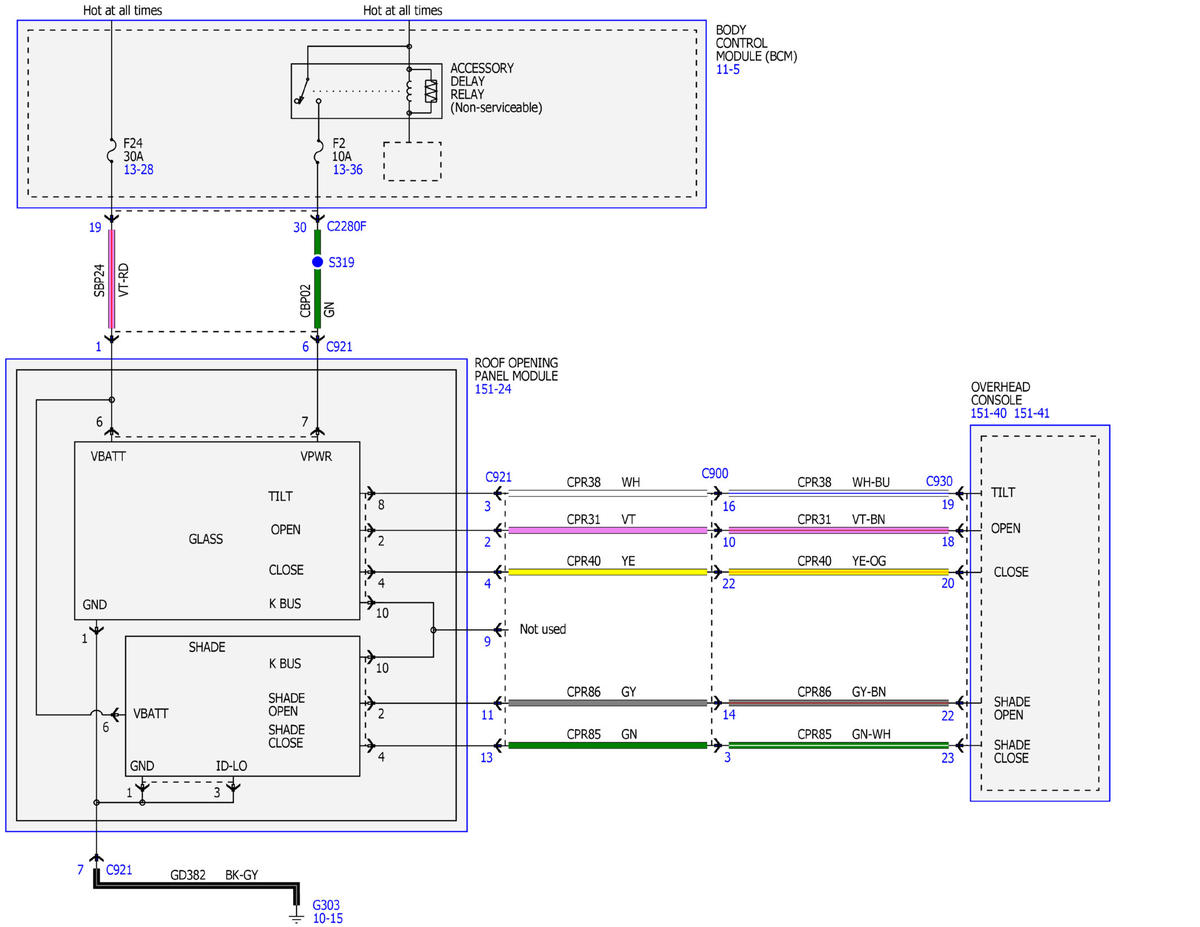

Fig 1: Roof Opening Panel Wiring Diagram

GFDWR139302

Courtesy of FORD MOTOR COMPANY
