Power Seats

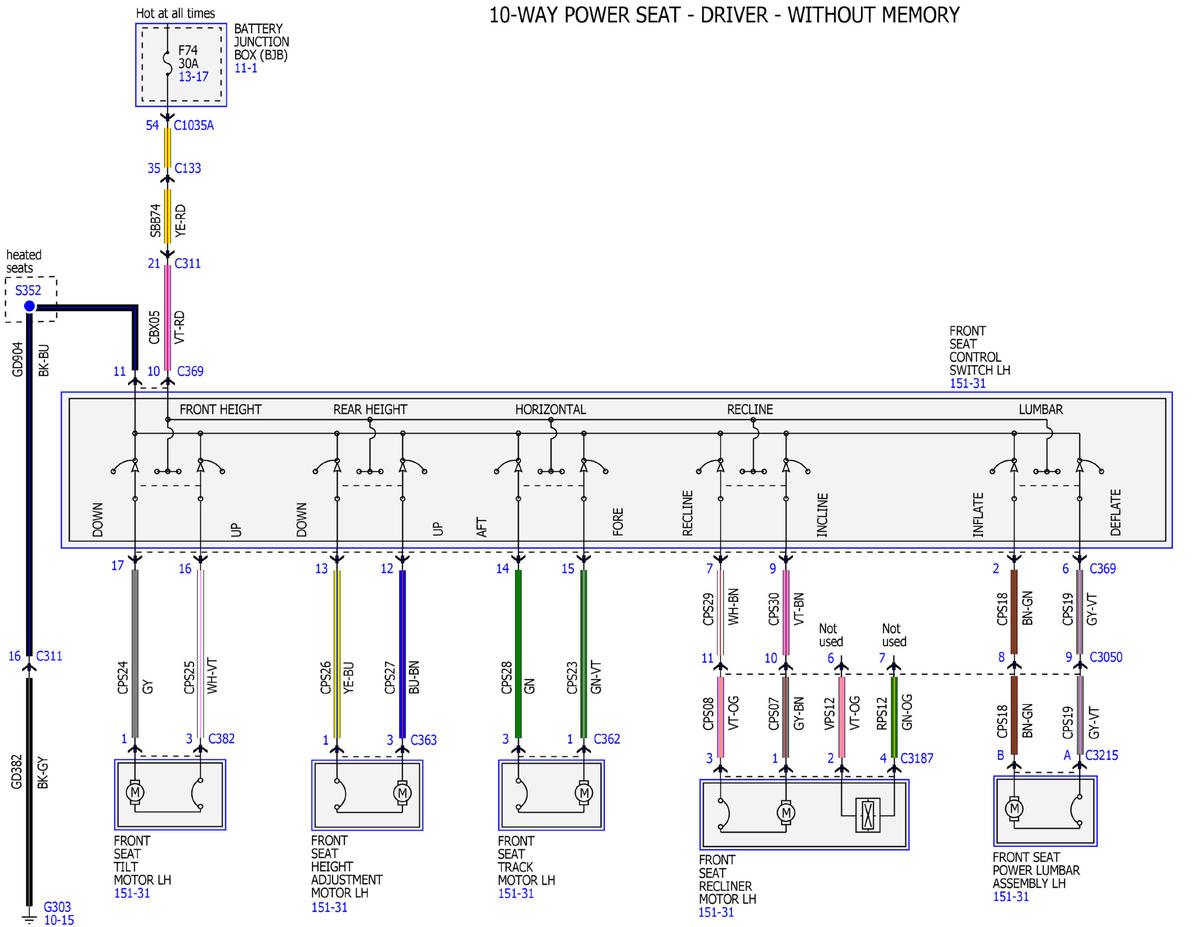

Fig 1: Power Seats (1 Of 4)
GFDWR139274Courtesy of FORD MOTOR COMPANY

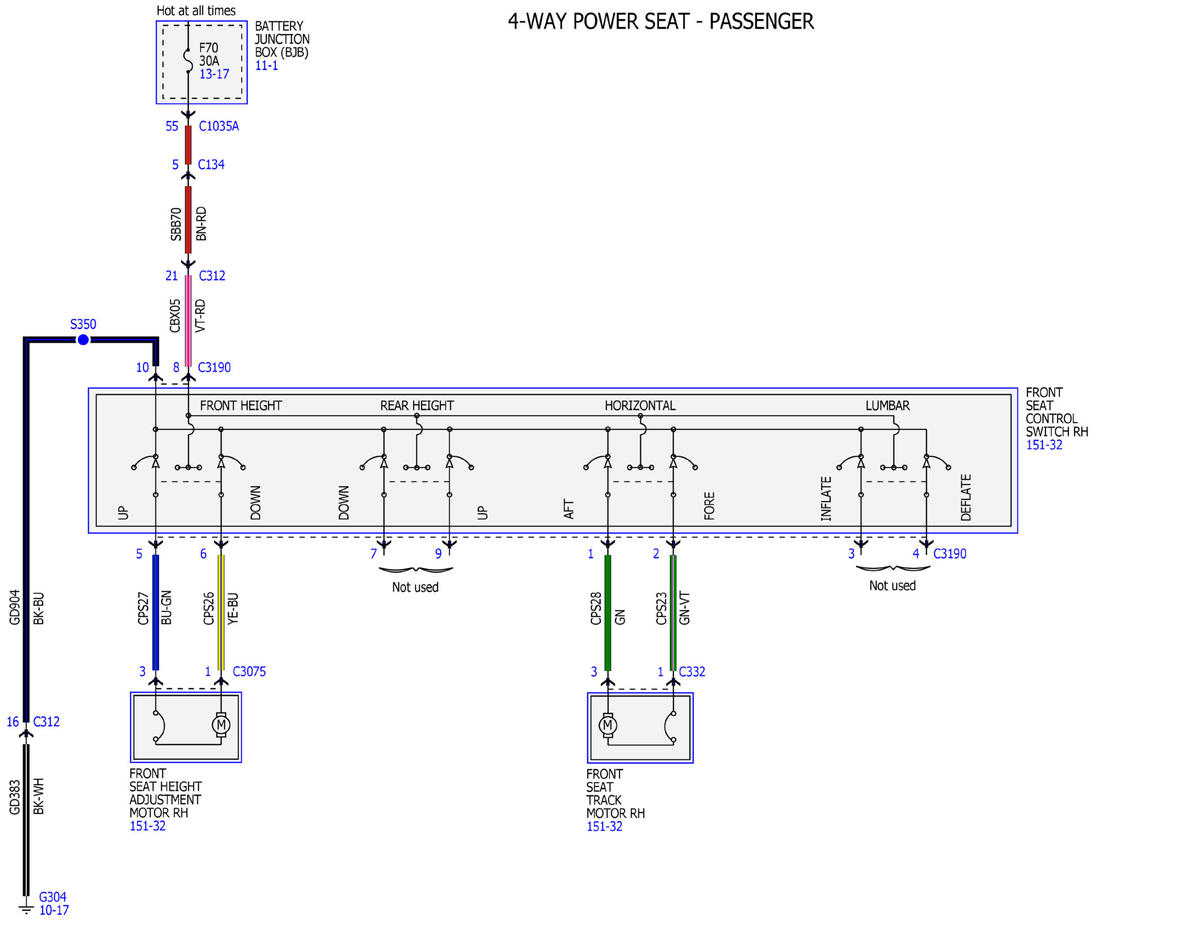

Fig 2: Power Seats (2 Of 4)
GFDWR139275Courtesy of FORD MOTOR COMPANY

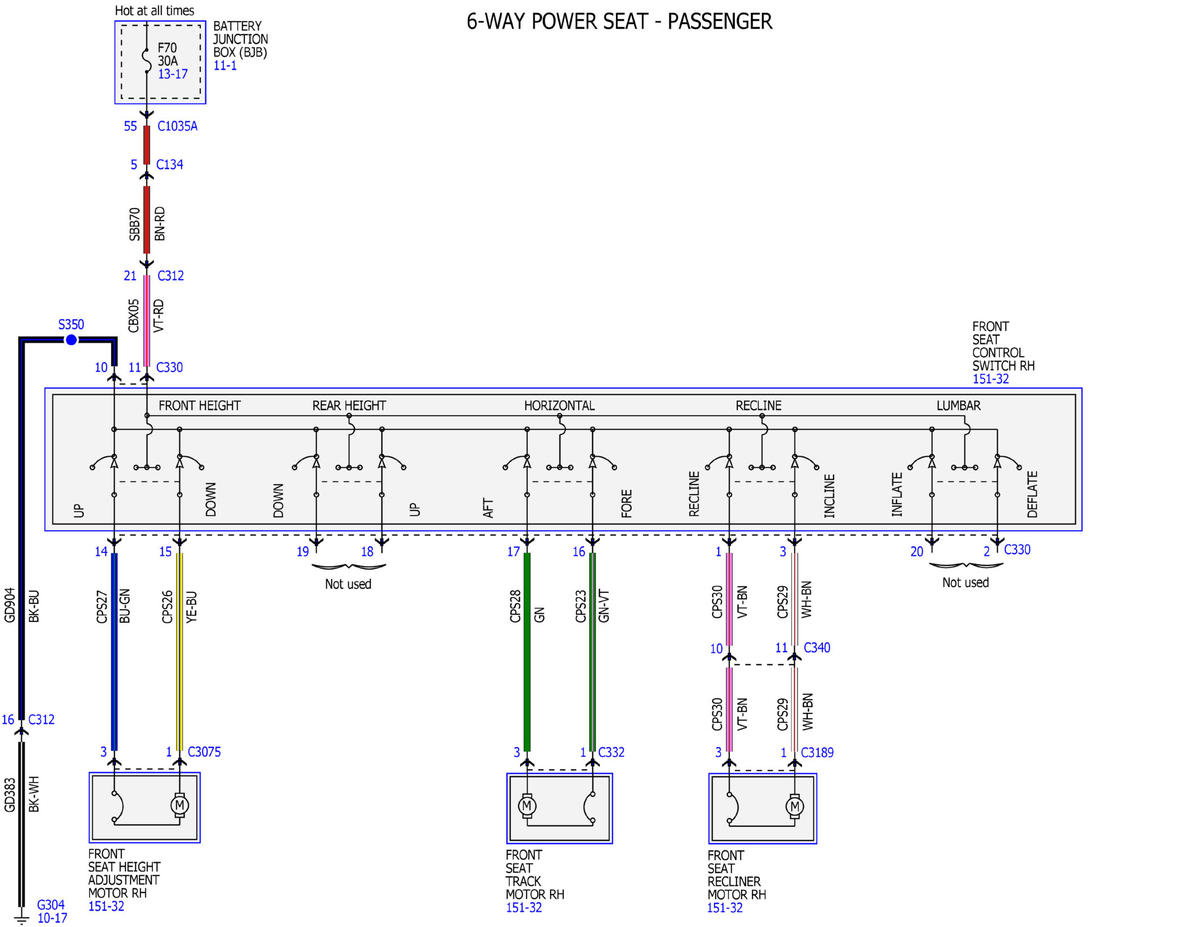

Fig 3: Power Seats (3 Of 4)
GFDWR139276Courtesy of FORD MOTOR COMPANY

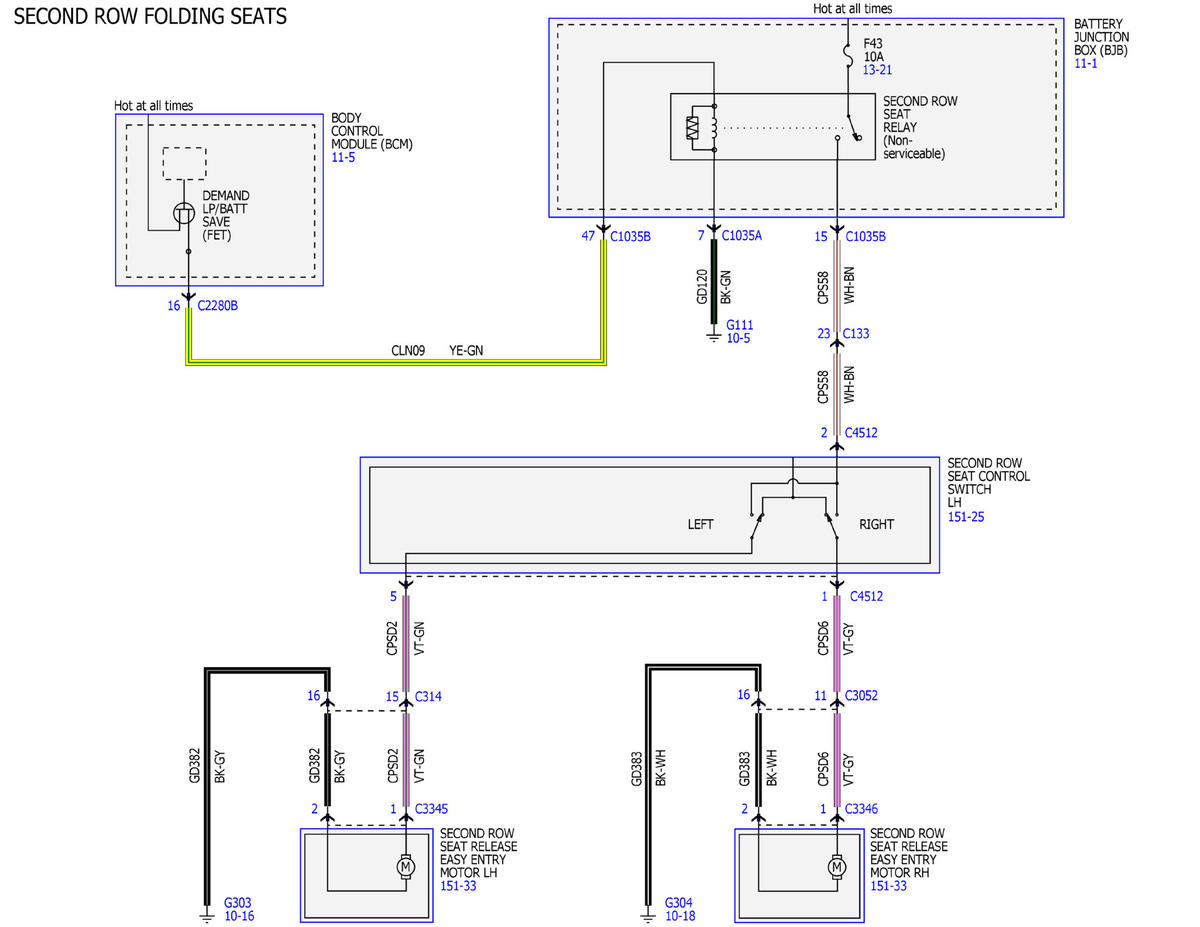

Fig 4: Power Seats (4 Of 4)
GFDWR139277Courtesy of FORD MOTOR COMPANY
