Audio System/Navigation - 6 Speaker

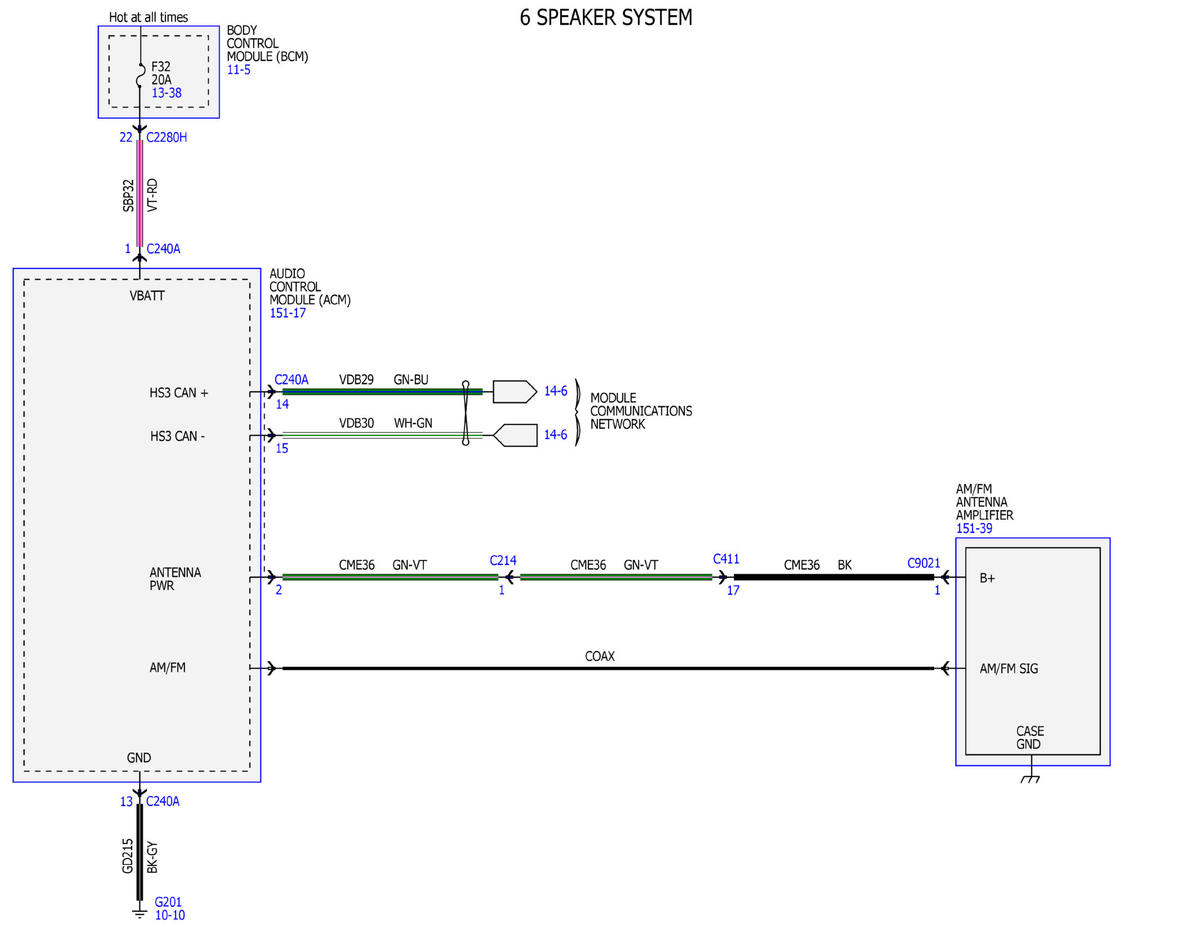

Fig 1: Audio System/Navigation - 6 Speaker Wiring Diagram (1 Of 10)
GFDWR139069Courtesy of FORD MOTOR COMPANY
Fig 2: Audio System/Navigation - 6 Speaker Wiring Diagram (2 Of 10)
GFDWR139070Courtesy of FORD MOTOR COMPANY

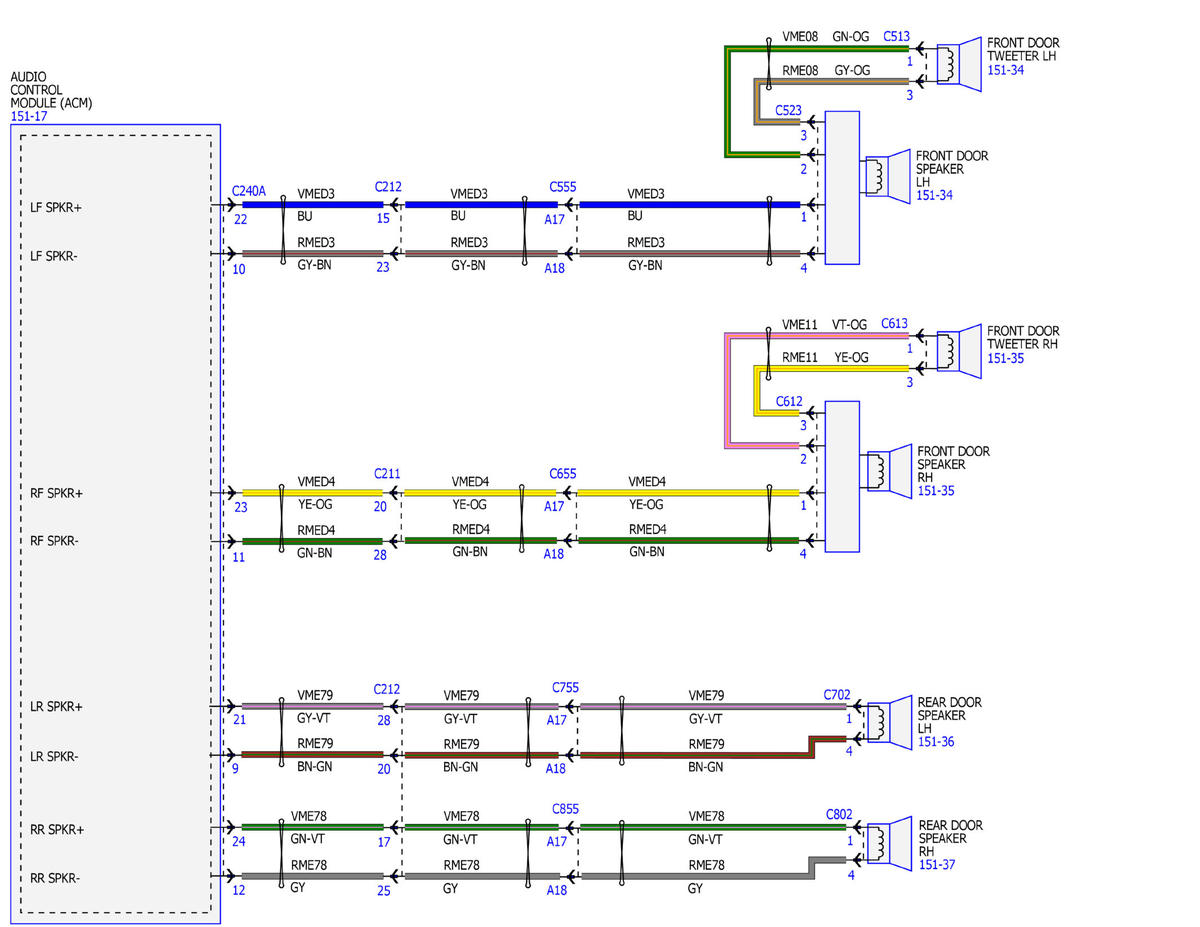

Fig 3: Audio System/Navigation - 6 Speaker Wiring Diagram (3 Of 10)
GFDWR139071Courtesy of FORD MOTOR COMPANY

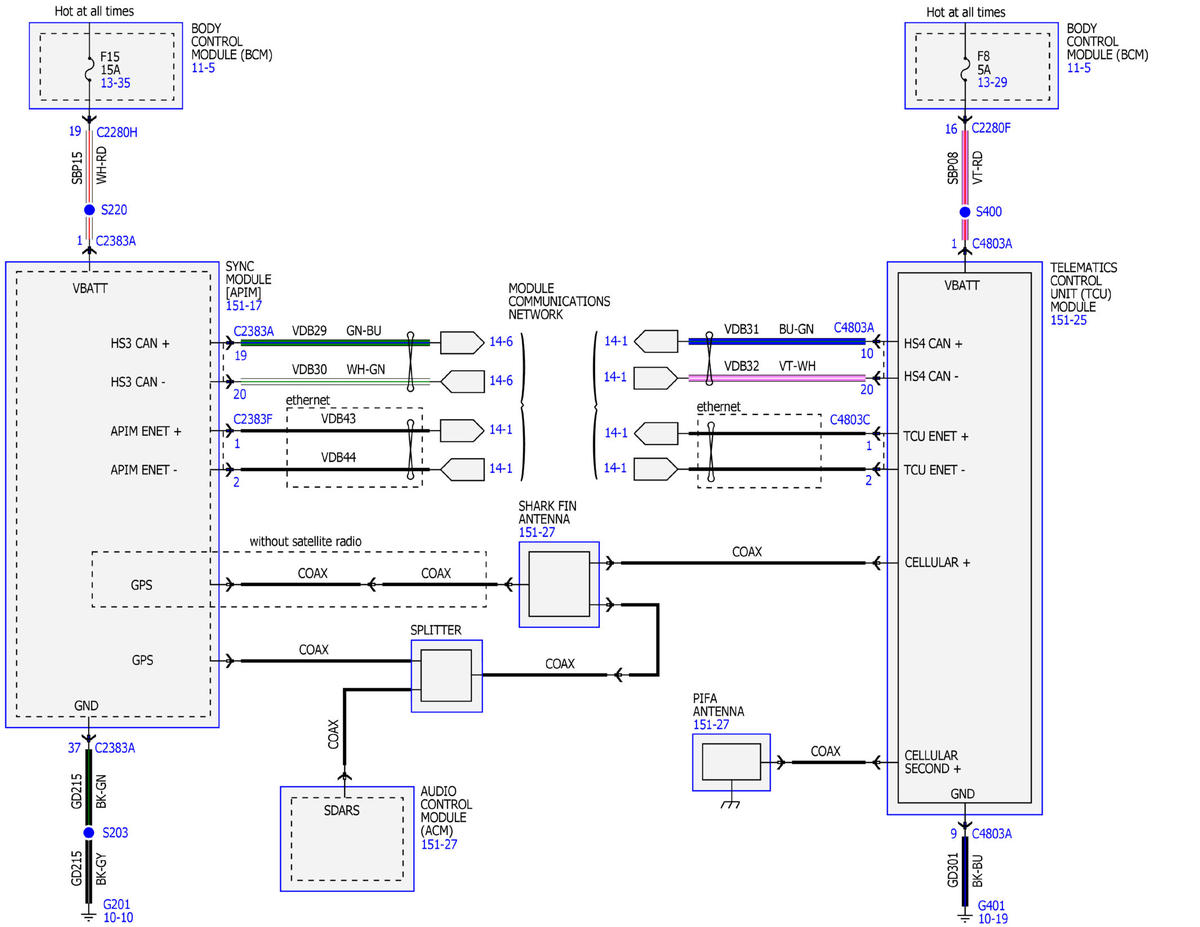

Fig 4: Audio System/Navigation - 6 Speaker Wiring Diagram (4 Of 10)
GFDWR139072Courtesy of FORD MOTOR COMPANY

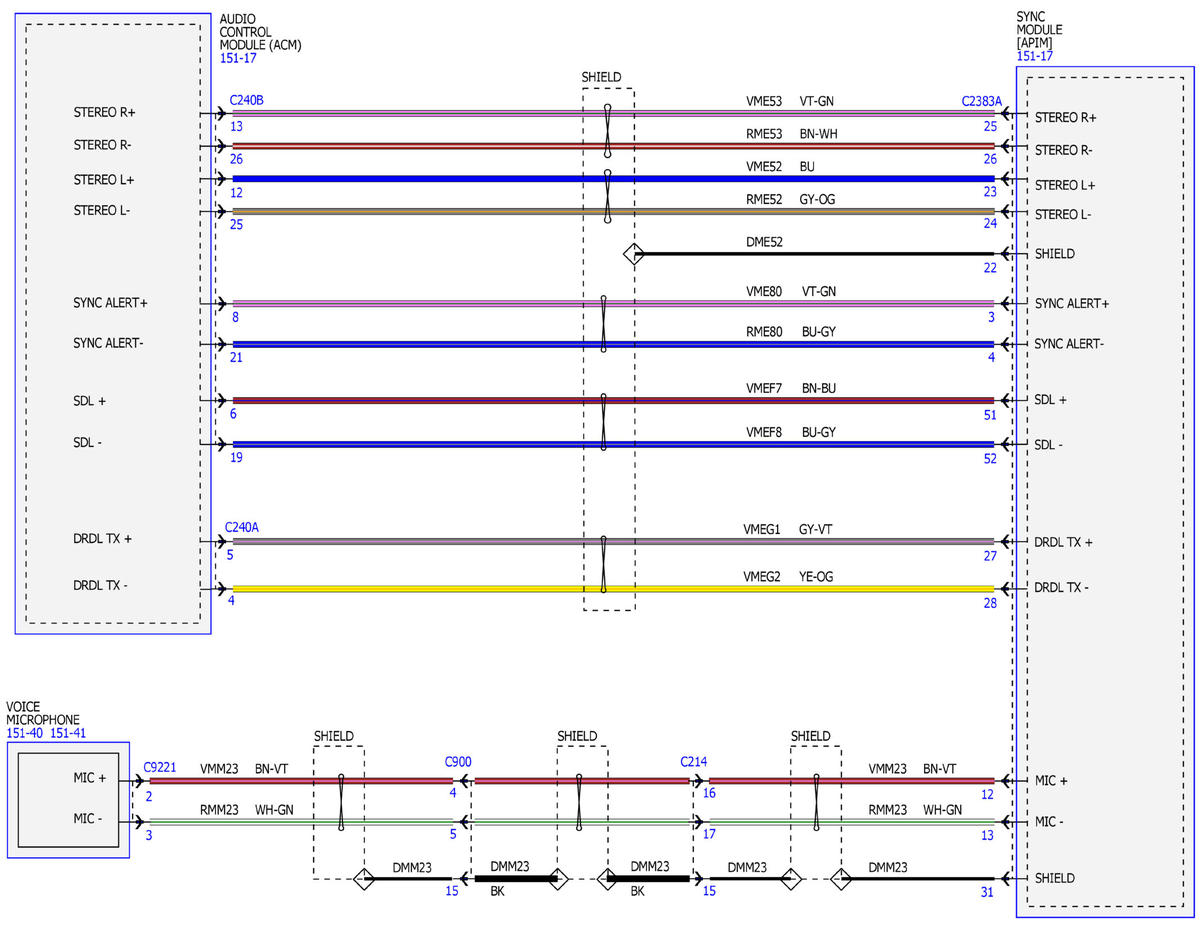

Fig 5: Audio System/Navigation - 6 Speaker Wiring Diagram (5 Of 10)
GFDWR139073Courtesy of FORD MOTOR COMPANY

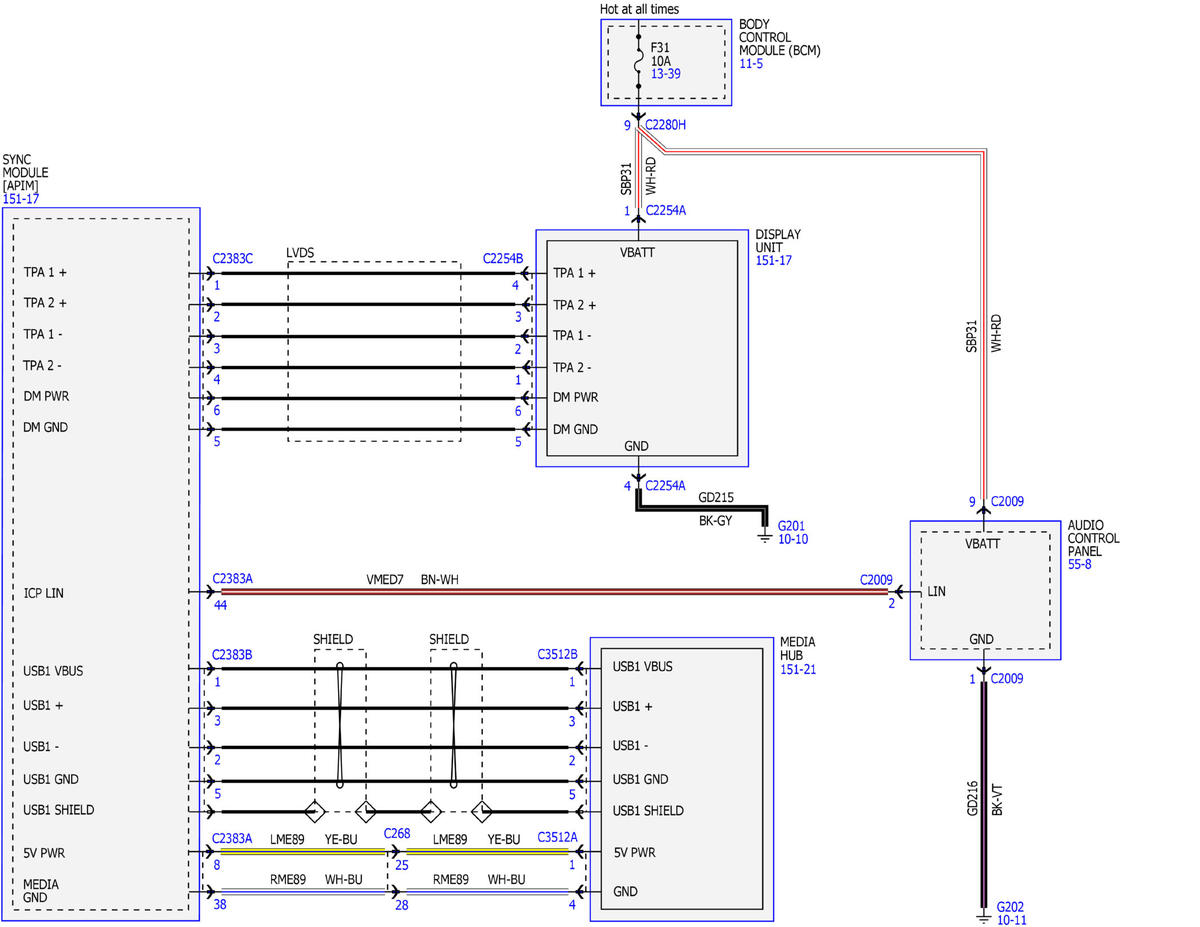

Fig 6: Audio System/Navigation - 6 Speaker Wiring Diagram (6 Of 10)
GFDWR139074Courtesy of FORD MOTOR COMPANY

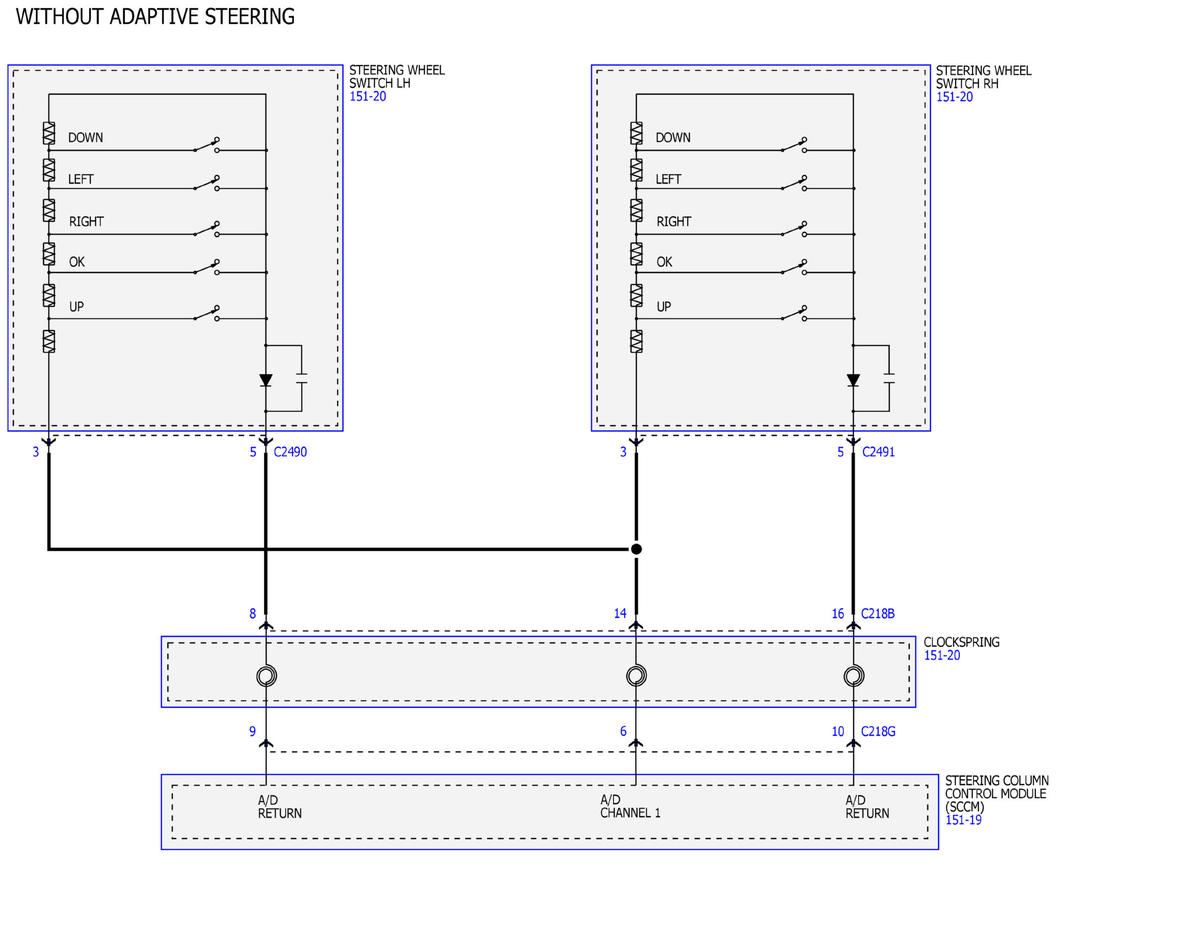

Fig 7: Audio System/Navigation - 6 Speaker Wiring Diagram (7 Of 10)
GFDWR139075Courtesy of FORD MOTOR COMPANY

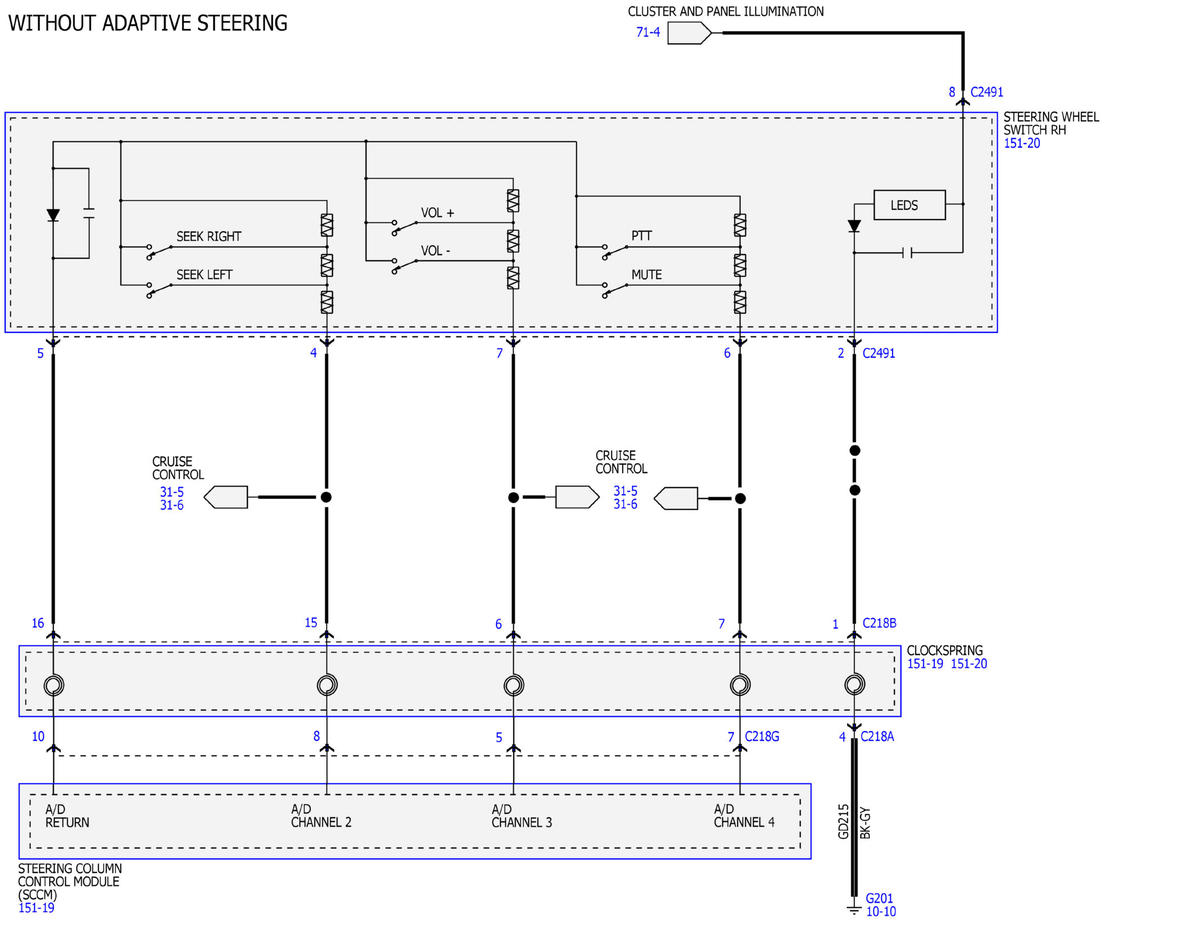

Fig 8: Audio System/Navigation - 6 Speaker Wiring Diagram (8 Of 10)
GFDWR139076Courtesy of FORD MOTOR COMPANY

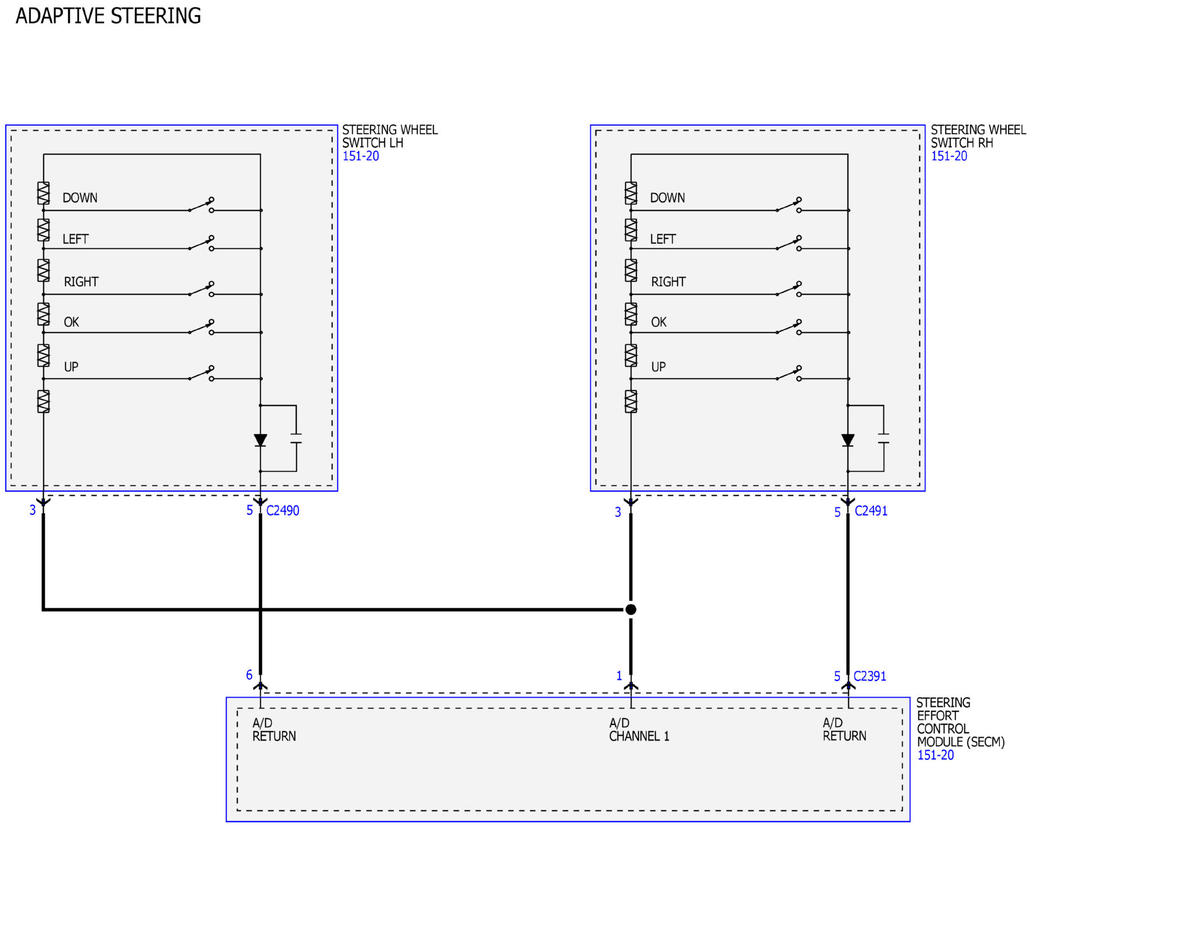

Fig 9: Audio System/Navigation - 6 Speaker Wiring Diagram (9 Of 10)
GFDWR139077Courtesy of FORD MOTOR COMPANY

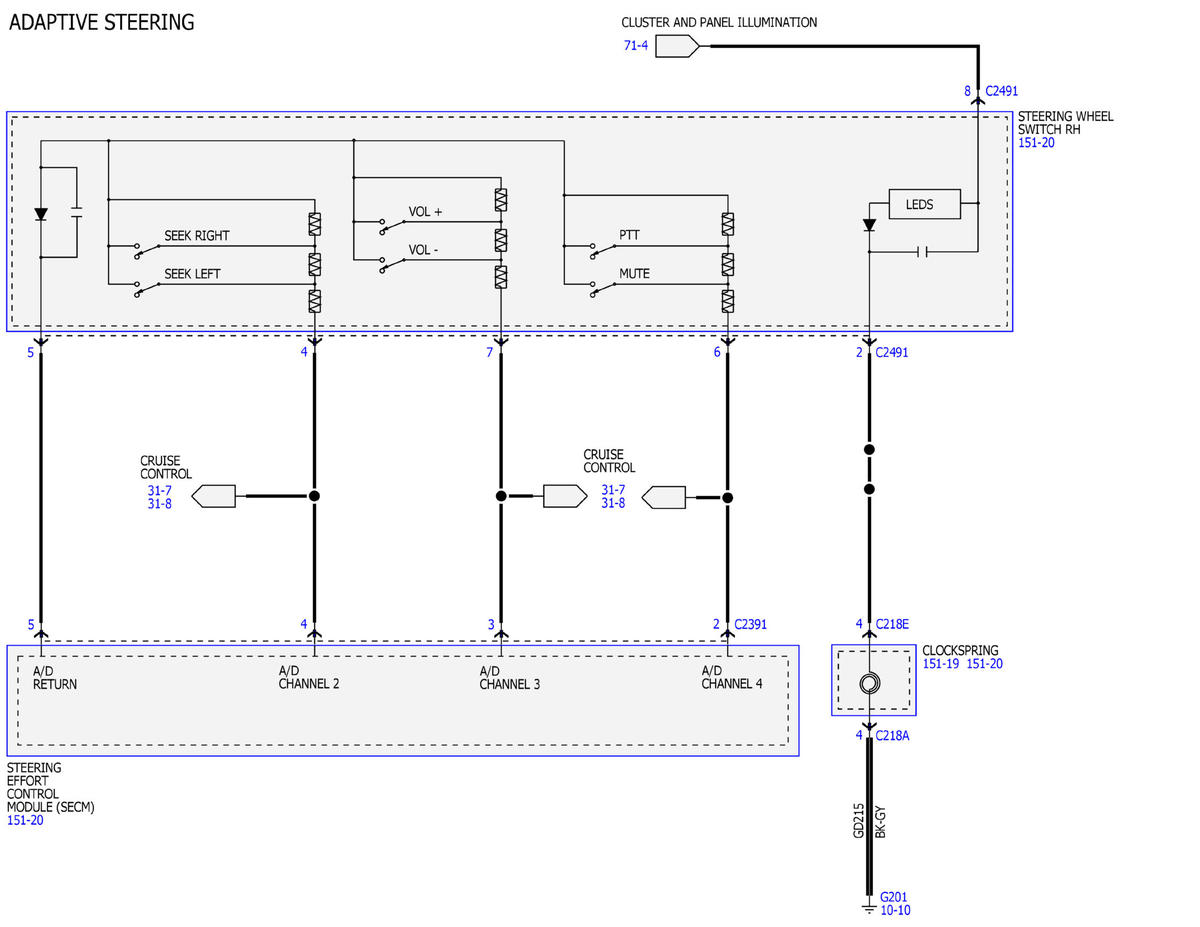

Fig 10: Audio System/Navigation - 6 Speaker Wiring Diagram (10 Of 10)
GFDWR139078Courtesy of FORD MOTOR COMPANY
